Micro-D interface formMicro-D接口形式
The compact Micro-D-form connection can be arranged around mating direction, rear support and cable exit.紧凑的Micro-D形式连接端可围绕插合方向、端头后方支撑和线束出口安排安装。
Micro-D Cable AssemblyMicro-D线缆组件

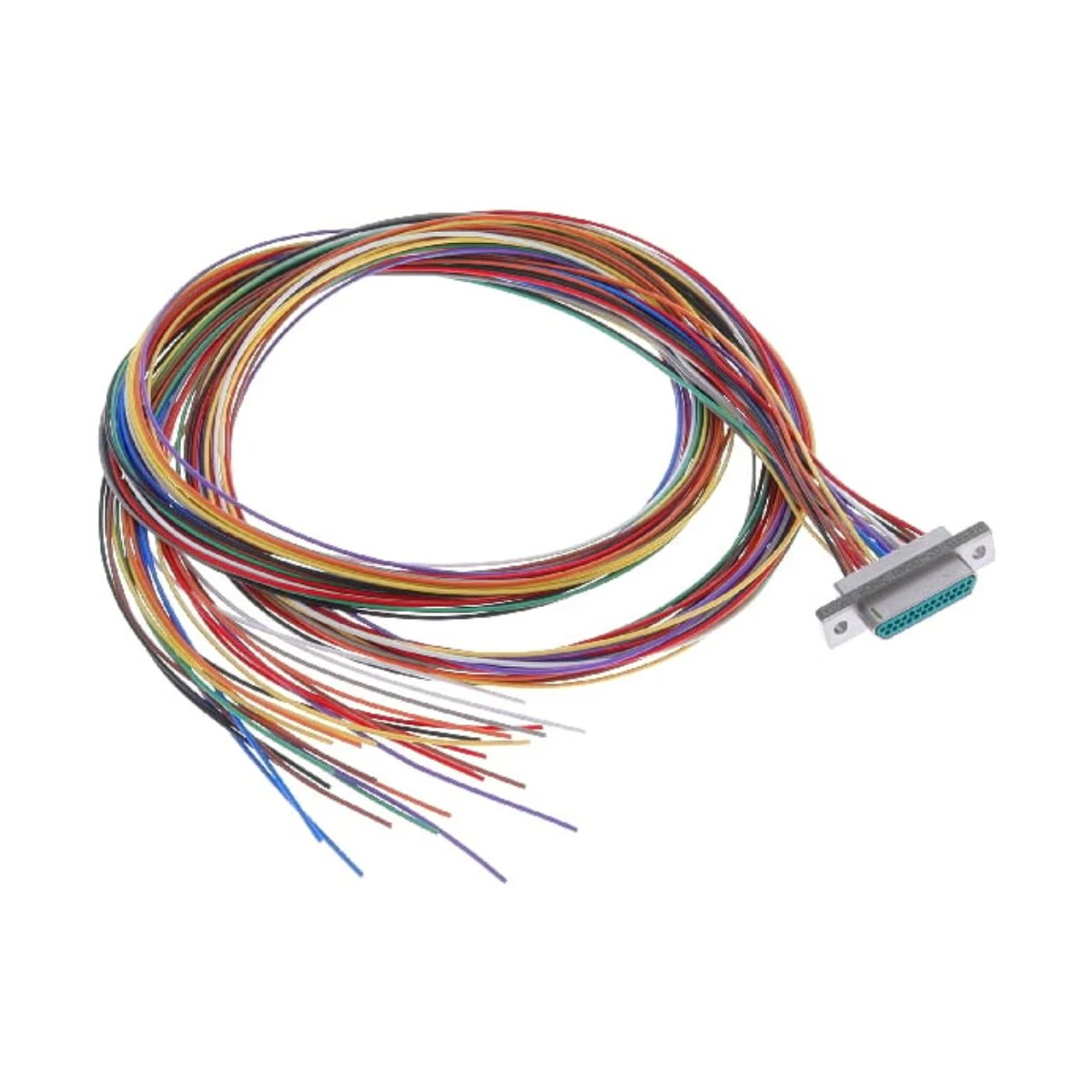

Color-coded coiled Micro-D pigtail harnessMicro-D彩色环绕尾线束
Color-coded coiled Micro-D pigtail harness combines micro-d interface form, coiled or spiral form, pigtail connection form. Interface, circuit and installation data guide dimensions, material selection and sample review.Micro-D彩色环绕尾线束的结构重点包括Micro-D接口形式、卷绕或螺旋形态、尾线连接形式。接口、电路与安装资料将作为尺寸、物料和样品制作的确认依据。
- Micro-D interface formMicro-D接口形式
- Coiled or spiral form卷绕或螺旋形态
- Pigtail connection form尾线连接形式
CONSTRUCTION结构解析
Connection structure and design details连接结构与设计要点
Use the color-coded coiled micro-d pigtail harness form as a starting point and confirm these design points against drawings and the actual equipment.以Micro-D彩色环绕尾线束的结构形式为起点，结合图纸和实际设备确认以下设计要点。
Coiled or spiral form卷绕或螺旋形态
The cable is arranged in a coiled or spiral form, with straight tails and ends placed for storage or connection positions.线缆以卷绕或螺旋形态排列，直线尾段与端头可以结合收纳或连接位置安排。
Pigtail connection form尾线连接形式
A lead section extends behind the connector, allowing length, further termination and support to follow the equipment connection.插接端后保留引线段，便于按设备接线位置确定长度、后续端接与支撑。
Trunk and branch layout主干与分支
Locate trunk and branch datums from equipment fixing points. Allow room for mating, bends and servicing so branches do not transfer installation loads to contacts.以设备固定点确定主干和各支路的尺寸基准，预留插拔、弯曲和维护空间，避免支路把拉力传递到端子。
CONFIGURATION结构与选配
Construction & customization options结构与定制配置
The table describes the construction and available configuration choices. Materials, dimensions, circuits and inspection requirements are agreed for each project.以下说明展示结构与可配置内容。具体材料、尺寸、电路和检验要求按项目确认。
| Micro-D series, shell size and full insertMicro-D系列、壳号与完整插芯 | Check the Micro-D family, shell size and complete insert configuration.核对Micro-D系列、壳号及完整插芯配置。 |
|---|---|
| Contact type, gender and pin map接点类型、性别与针位图 | Record contact type, gender and connection table from end-face views.按端面视图记录接点类型、公母及连接表。 |
| Termination method, wire gauge and rear support端接方式、线规及尾部支撑 | Define termination method, wire gauge and rear support for the specific contacts.端接工艺、线规与后部支撑按具体接点定义。 |
| Locking hardware, shielding and acceptance specification锁紧件、屏蔽和验收规范 | Confirm fasteners, shielding and acceptance specifications against project documents.锁紧件、屏蔽及验收规范按项目文件逐项确认。 |
| Installation and operating boundary安装与使用边界 | Provide exact mating references, contact arrangement, wiring view, cable construction, hardware, route and acceptance requirements.请提供准确对插料号、触点排列、接线视图、线缆结构、锁紧件、路径及验收要求。 |
| Sample and release basis样品与放行依据 | Approve the interface schedule, termination sample, mechanical configuration and electrical inspection evidence before repeat production.重复生产前确认接口清单、端接样品、机械配置与电气检验证据。 |
APPLICATIONS连接的应用
Application directions应用方向
These are connection directions for project discussion. Suitability depends on interfaces, circuits, installation conditions and project validation; configuration can be adapted to the equipment.以下为可讨论的连接方向。实际适用性取决于接口、电路、安装环境和项目验证，可按设备需求调整。
Instrument inputs and measurement leads仪器输入与测量引线
Start measurement leads from signal type, input conditions and grounding. Select pairs and shields for the actual measurement range and noise target. Check the Micro-D family, shell size and complete insert configuration.测量引线以信号类型、输入条件和接地方式为起点，线对与屏蔽选择需要对应实际量程和噪声目标。选配时，核对Micro-D系列、壳号及完整插芯配置。
Contact and fine-wire termination端子与细线端接
Contact selection depends on conductor construction, insulation diameter and tooling limits. Set wire preparation and crimp inspection for the actual contact part. Record contact type, gender and connection table from end-face views.端子选择同时取决于导体结构、绝缘外径和工具范围；备线尺寸与压接检查应落到实际接点型号。选配时，按端面视图记录接点类型、公母及连接表。
Module wiring within enclosures机箱内部的模块配线
Coordinate board positions, module removal and wire bends within the enclosure. Preserve insulation clearance and support behind each termination. Define termination method, wire gauge and rear support for the specific contacts.机箱内部配线需要协调板卡位置、模块拆装和导线转弯空间；端接后的绝缘与支撑不能被外壳挤压。选配时，端接工艺、线规与后部支撑按具体接点定义。
Equipment control-board connections设备控制板连接
Document pin-row views, mating direction and nearby wire support. Check access to the latch and contacts after assembly. Confirm fasteners, shielding and acceptance specifications against project documents.板端连接要给出针排视图、插合方向和近端线缆支撑；检查装配后是否仍能操作锁扣并查看接点。选配时，锁紧件、屏蔽及验收规范按项目文件逐项确认。
Equipment panels and circular interfaces设备面板与圆形接口
Start with the cutout, panel thickness, mounting direction and rear clearance. Coordinate contact arrangement and cable exit with the complete assembly view. Check the Micro-D family, shell size and complete insert configuration.面板连接以开孔、板厚、装配方向和后方净空为起点；接点排列与电缆出口还需要对应完整总装视图。选配时，核对Micro-D系列、壳号及完整插芯配置。
External interfaces on portable equipment便携设备的外部接口
Consider handling, plug grip and cable bends together. Align the exit direction with the device position during use. Record contact type, gender and connection table from end-face views.便携设备连接要同时考虑操作手势、插头握持和尾部弯曲空间，线缆出口方向应与实际使用姿态协调。选配时，按端面视图记录接点类型、公母及连接表。
ENGINEERING & PRODUCTION工程与制造
Adapt the connection to your equipment.围绕设备，调整连接细节。
Touched by me, better it’ll beTouched by me, better it’ll be
Custom wire harness manufacturing in China中国工厂 · 定制线束制造
Our China factory supports micro-d cable assembly projects through custom wire harness manufacturing and OEM/ODM development. Interface, circuit and installation data guide material selection, sample builds and manufacturing-document approval before repeat production.Super Smile-Tech 中国工厂围绕Micro-D线缆组件的项目需求提供定制线束制造与 OEM/ODM 支持。我们从接口、电路与安装资料开始，协同物料选配、样品制作和制造文件确认，再按批准要求组织重复生产。
Define termination and protection boundaries确定端接与保护边界
Check the Micro-D family, shell size and complete insert configuration. Do not label look-alike Mini-D as Micro-D.核对Micro-D系列、壳号及完整插芯配置。 Micro-D不能与外形接近Mini-D混称。
Match dimensions and operating motion配合尺寸与使用动作
Record contact type, gender and connection table from end-face views. Specification claims need exact part numbers and documents.按端面视图记录接点类型、公母及连接表。 专用规范需对应准确料号与文件。
Verify processing and finished condition验证工艺与成品状态
Define termination method, wire gauge and rear support for the specific contacts. Inspect miniature solder joints and inter-contact insulation.端接工艺、线规与后部支撑按具体接点定义。 微型焊接和针脚间绝缘需检查。
PRODUCT QUESTIONS产品问答
Product & customization questions产品与定制常见问题
Can Micro-D and Mini-D names be used interchangeably?Micro-D与Mini-D可以混称吗？
Do not label look-alike Mini-D as Micro-D. Check the Micro-D family, shell size and complete insert configuration.Micro-D不能与外形接近Mini-D混称。核对Micro-D系列、壳号及完整插芯配置。
Does the category name establish compliance with a specialized specification?分类名称能证明符合某项专用规范吗？
Specification claims need exact part numbers and documents. Record contact type, gender and connection table from end-face views.专用规范需对应准确料号与文件。按端面视图记录接点类型、公母及连接表。
What should be checked after miniature solder termination?微型焊接后要检查什么？
Inspect miniature solder joints and inter-contact insulation. Define termination method, wire gauge and rear support for the specific contacts.微型焊接和针脚间绝缘需检查。端接工艺、线规与后部支撑按具体接点定义。
Start with your interface and installation requirements从您的接口与安装需求开始
Share mating interfaces, a circuit table, target lengths or a sample for the color-coded coiled micro-d pigtail harness. We can use them to review configuration and sample requirements.提供Micro-D彩色环绕尾线束的对插接口、回路表、目标长度或参考样品，我们据此梳理选配与样品确认事项。
