Conductor and insulation selection导体与绝缘选配
Select conductors and insulation from circuit loads, diameter limits, bending and exposure. A material name does not replace ratings or validation results.从电路负载、外径限制、弯曲方式与环境条件选择导体和绝缘体系；材料名称不应直接代替额定参数或验证结果。
Control Panel Harness控制面板线束

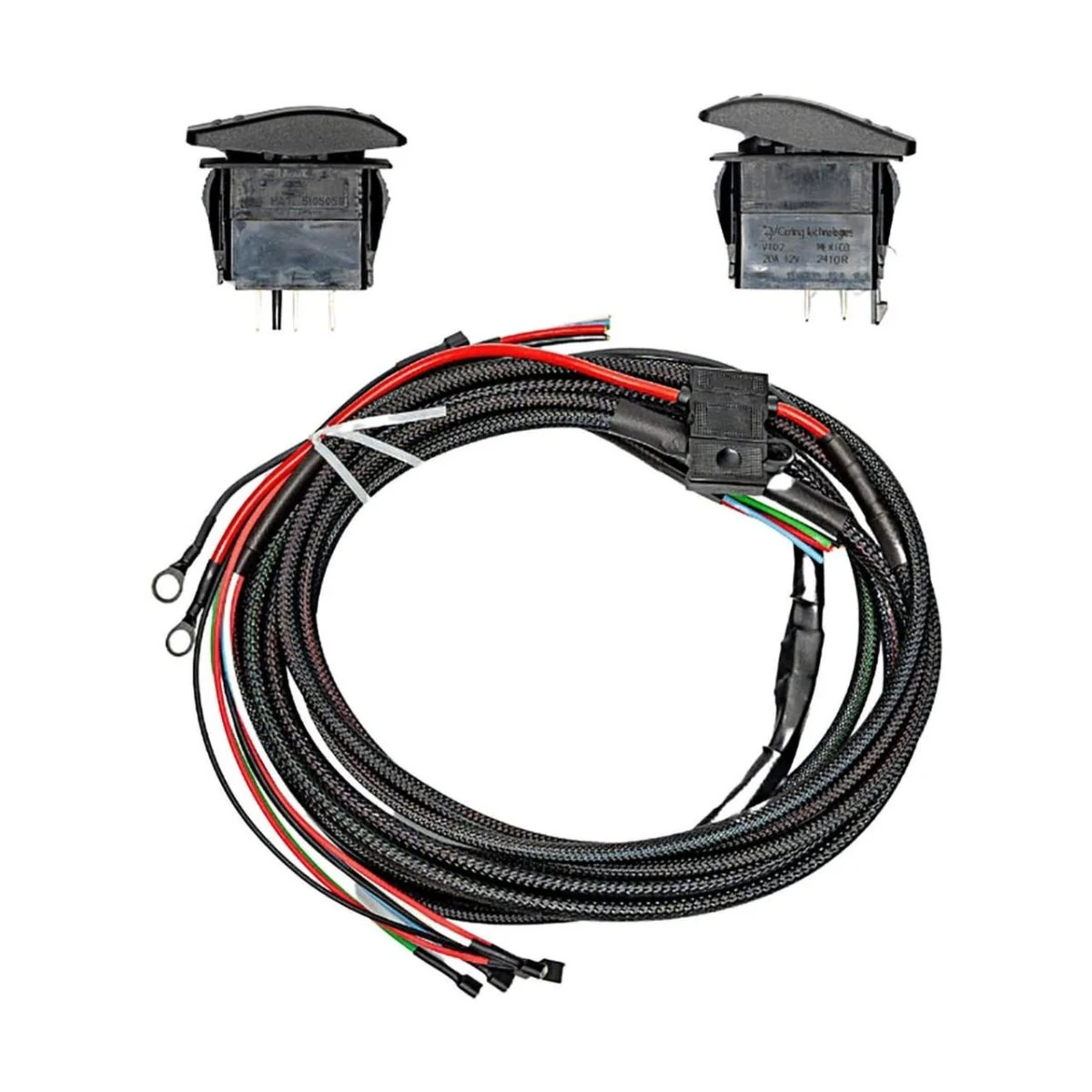

Dual Switch Vehicle Power Harness双开关车辆供电线束
Dual Switch Vehicle Power Harness can be configured around equipment interfaces and routing. Panel depth, component spacing, door movement and terminal access determine branch length and exit direction. Clear wire numbers, terminal labels and defined connector keying reduce assembly and maintenance errors.双开关车辆供电线束可围绕设备接口与安装路径进行配置。面板深度、器件间距、柜门运动和端子操作空间决定分支长度与出线方向。清晰的线号、端子标识和防错接口有助于减少装配与检修错误。
- Interface and circuit review接口与回路对应审核
- Length and installation configuration线长与安装结构定制
- Manufacture from approved sample样品确认后组织制造
CONSTRUCTION结构解析
Connection structure and design details连接结构与设计要点
Use the dual switch vehicle power harness form as a starting point and confirm these design points against drawings and the actual equipment.以双开关车辆供电线束的结构形式为起点，结合图纸和实际设备确认以下设计要点。
Interface and function review接口与功能确认
Do not infer NO/NC contacts or lamp common terminals from color常开常闭与灯具公共端不能按颜色推断
Installation and acceptance安装与验收
Check bridging, power distribution and safety circuits separately端子排桥接、供电和安全回路分开核对
CONFIGURATION结构与选配
Construction & customization options结构与定制配置
The table describes the construction and available configuration choices. Materials, dimensions, circuits and inspection requirements are agreed for each project.以下说明展示结构与可配置内容。具体材料、尺寸、电路和检验要求按项目确认。
| Panel cutouts, device positions and terminal diagram面板开孔、元件位置与端子图 | Device positions, door movement and cutouts define branch routing.元件位置、门板运动与开孔共同决定支路布置。 |
|---|---|
| Switch, relay and indicator contact functions按钮、继电器和指示灯触点定义 | Define switch contacts, coils and lamp common terminals separately.按开关触点、线圈和灯具公共端分别接线。 |
| Circuit fuse selection and conductor protection各回路保险丝与导线保护关系 | Review fusing, conductors and the actual load as one circuit.将保险、导体与实际负载作为一个回路审核。 |
| Terminal-block numbering, wire IDs and duct dimensions端子排编号、线号和线槽尺寸 | Map wire IDs to terminal numbers and allow duct and service space.线号与端子排编号对应，并预留线槽和拆装空间。 |
| Circuit and revision reference电路与版本依据 | Provide the panel drawing, component model list, terminal schedule, door or hinge movement, wire-number rules and connection table.建议提供面板图、器件型号清单、端子表、柜门或铰链运动范围、线号规则和接线表，并确认线束是散装交付、面板预装还是连同指定附件交付。 |
| Sample and manufacturing configuration样品与制造配置 | After a layout and terminal review, a first assembly is checked on the actual panel or an agreed fixture. Terminal positions, labels, branch lengths and continuity are recorded before batch assembly.完成布局与端子审核后，首件可在实际面板或约定工装上核对；端子位置、标签、分支长度和导通结果确认后再进行批量装配。 |
APPLICATIONS连接的应用
Application directions应用方向
These are connection directions for project discussion. Suitability depends on interfaces, circuits, installation conditions and project validation; configuration can be adapted to the equipment.以下为可讨论的连接方向。实际适用性取决于接口、电路、安装环境和项目验证，可按设备需求调整。
Industrial automation工业自动化
PLC cabinets, assembly cells, conveyors, robot peripherals, safety circuits and distributed I/O panels. Device positions, door movement and cutouts define branch routing.PLC控制柜、装配单元、输送线、机器人外围、安全回路与分布式I/O面板。选配时，元件位置、门板运动与开孔共同决定支路布置。
Packaging and processing machinery包装与加工机械
Operator stations, heater controls, drives, sensors, valves and replaceable process modules. Define switch contacts, coils and lamp common terminals separately.操作站、加热控制、驱动器、传感器、阀组和可更换工艺模组。选配时，按开关触点、线圈和灯具公共端分别接线。
HVAC and building equipment暖通与楼宇设备
Control panels for fans, pumps, dampers, thermostats, sensors and building automation interfaces. Review fusing, conductors and the actual load as one circuit.用于风机、泵、风阀、温控器、传感器和楼宇自动化接口的控制面板。选配时，将保险、导体与实际负载作为一个回路审核。
Automotive manufacturing equipment汽车制造设备
Fixture panels, production cells, inspection stations, material handling and line-side service interfaces. Map wire IDs to terminal numbers and allow duct and service space.工装面板、生产单元、检测工位、物料搬运及线边检修接口。选配时，线号与端子排编号对应，并预留线槽和拆装空间。
Energy and utility systems能源与公用系统
Low-voltage monitoring, auxiliary power, pump control, distribution and equipment-room panels. Device positions, door movement and cutouts define branch routing.低压监测、辅助供电、泵控制、配电和设备间控制面板。选配时，元件位置、门板运动与开孔共同决定支路布置。
Test and laboratory systems测试与实验系统
Instrument racks, acquisition panels, test fixtures, safety interlocks and replaceable test interfaces. Define switch contacts, coils and lamp common terminals separately.仪器机架、采集面板、测试工装、安全联锁和可更换测试接口。选配时，按开关触点、线圈和灯具公共端分别接线。
ENGINEERING & PRODUCTION工程与制造
Adapt the connection to your equipment.围绕设备，调整连接细节。
Touched by me, better it’ll beTouched by me, better it’ll be
Custom wire harness manufacturing in China中国工厂 · 定制线束制造
Our China factory supports control panel harness projects through custom wire harness manufacturing and OEM/ODM development. Interface, circuit and installation data guide material selection, sample builds and manufacturing-document approval before repeat production.Super Smile-Tech 中国工厂围绕控制面板线束的项目需求提供定制线束制造与 OEM/ODM 支持。我们从接口、电路与安装资料开始，协同物料选配、样品制作和制造文件确认，再按批准要求组织重复生产。
Build from panel drawing and connection table依据面板图与接线表制作
We review component positions, terminal references, branch datum, door movement, wire numbering and connector orientation before releasing the first assembly.首件制作前审核器件位置、端子编号、分支基准、柜门运动、线号规则和接口方向。
Develop from an existing panel or sample依据现有面板或样品开发
An existing harness or cabinet can provide routing and interface references, while electrical function and any hidden jumpers still require confirmation.现有线束或控制柜可用于整理布线路径与接口资料，但电气功能及隐藏跳接仍需确认。
Labeling and error-proof assembly标识与防错装配
Defined labels, color coding, keyed connectors and branch grouping reduce terminal mistakes during panel assembly and later service work.通过明确标签、颜色规则、防错接口和分支归组，减少面板装配及后续检修中的接线错误。
PRODUCT QUESTIONS产品问答
Product & customization questions产品与定制常见问题
Is a control panel harness one standard product?控制面板线束是固定标准产品吗？
No. It is a category covering door looms, controller interconnects, terminal wiring, panel-to-machine interfaces, pre-installed sets and service branches. The finished assembly follows the actual panel data.不是。它覆盖柜门线束、控制器互连、端子布线、面板至设备接口、预装套件和检修分支等结构，最终成品依据实际面板资料定义。
What information should be provided first?首先需要提供哪些资料？
A panel layout, circuit or connection table, component models, terminal schedule, wire-number rule, hinge movement and delivery boundary are the most useful starting materials.面板布局、回路或接线表、器件型号、端子表、线号规则、铰链运动范围和交付边界，是最有帮助的起始资料。
Can you match an existing panel harness?可以匹配现有面板线束吗？
Yes. A sample or existing panel can be measured and mapped, but hidden jumpers, electrical function and mating references still require confirmation before production.可以。可对样品或现有面板进行测量和回路整理，但隐藏跳接、电气功能及对插资料仍需在生产前确认。
Start with your interface and installation requirements从您的接口与安装需求开始
Share mating interfaces, a circuit table, target lengths or a sample for the dual switch vehicle power harness. We can use them to review configuration and sample requirements.提供双开关车辆供电线束的对插接口、回路表、目标长度或参考样品，我们据此梳理选配与样品确认事项。
