Interface and function review接口与功能确认
Do not substitute peak starting current for continuous current峰值启动电流与连续载流不能混用
Battery Cable Assembly电池电缆组件

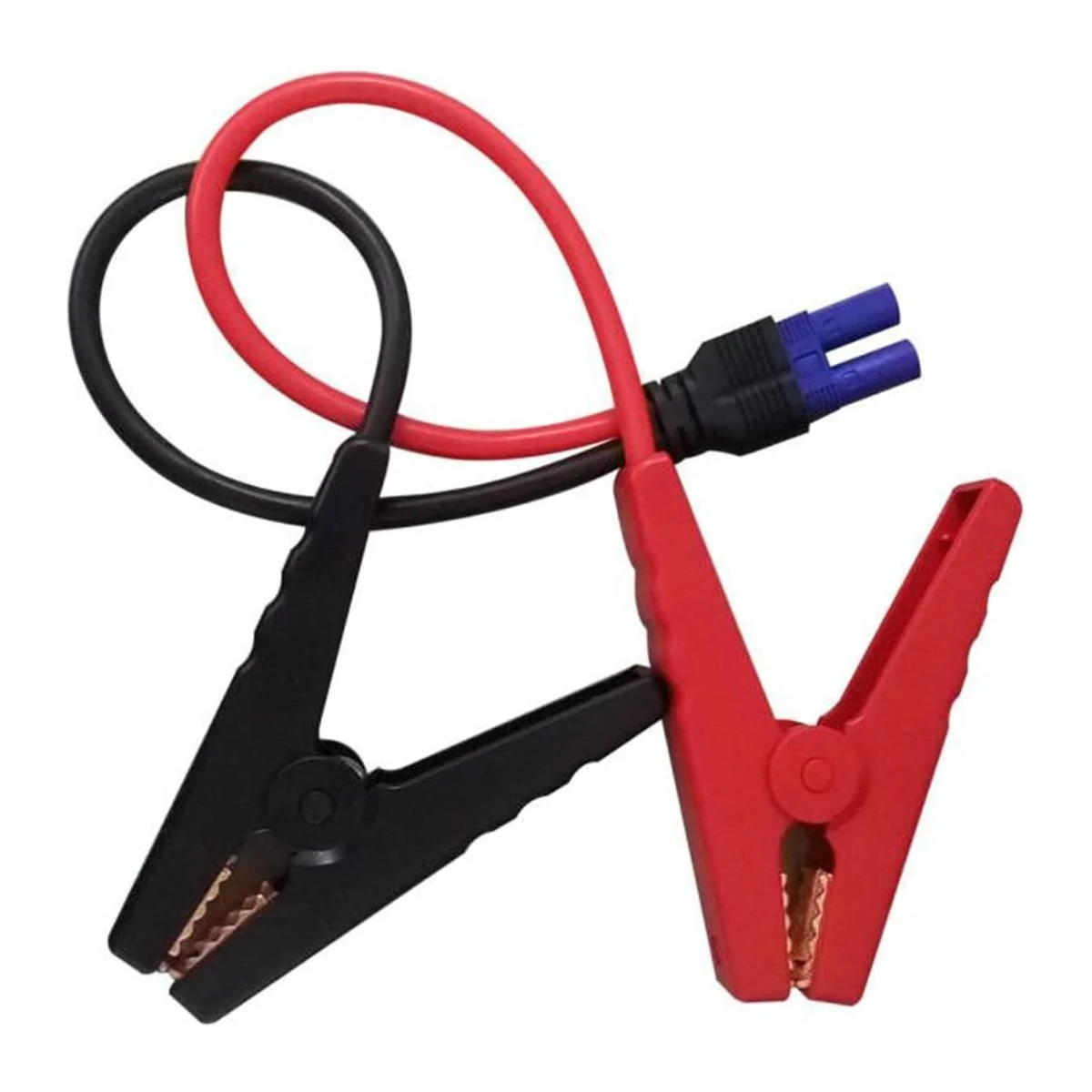

EC5 Jump-Start Alligator Clips HarnessEC5应急启动鳄鱼夹线束
EC5 Jump-Start Alligator Clips Harness can be configured around equipment interfaces and routing. High-current DC exposes every milliohm. Cable resistance, crimp interfaces, bolted joints and ground returns all create voltage drop and heat, especially during starting or charging peaks.EC5应急启动鳄鱼夹线束可围绕设备接口与安装路径进行配置。在大电流直流回路中，每一个毫欧都不可忽视。电缆电阻、压接界面、螺栓连接与接地回路都会产生压降和热量，在起动或充电峰值时尤其明显。
- Interface and circuit review接口与回路对应审核
- Length and installation configuration线长与安装结构定制
- Manufacture from approved sample样品确认后组织制造
CONSTRUCTION结构解析
Connection structure and design details连接结构与设计要点
Use the ec5 jump-start alligator clips harness form as a starting point and confirm these design points against drawings and the actual equipment.以EC5应急启动鳄鱼夹线束的结构形式为起点，结合图纸和实际设备确认以下设计要点。
Installation and acceptance安装与验收
Confirm conductor material and lug crimp from the BOM铜铝材质和端子压接需依据BOM
Manufacturing reference制造依据
Confirm drawings, circuit mapping, dimensional datums and sample revision before manufacture to control fit checks and repeat production.确认图纸、连接关系、尺寸基准和样品版本后再制作，减少试装与重复生产中的差异。
CONFIGURATION结构与选配
Construction & customization options结构与定制配置
The table describes the construction and available configuration choices. Materials, dimensions, circuits and inspection requirements are agreed for each project.以下说明展示结构与可配置内容。具体材料、尺寸、电路和检验要求按项目确认。
| Battery lug bore, connector and polarity电池端子孔径、接头与极性 | Match lug bore, connector and polarity to the battery interface.端子孔径、接头与极性匹配真实电池接口。 |
|---|---|
| Continuous/peak current and duration持续及峰值电流、持续时间 | Specify duration and conditions separately for continuous and peak current.持续和峰值电流分别写明时长与工况。 |
| Cable area, length and voltage-drop target电缆截面、长度与压降目标 | Use conductor material, area and length to establish voltage-drop calculations.导体材质、截面与线长形成压降基线。 |
| Fusing, insulating boots and abrasion protection熔断、绝缘帽与防磨结构 | Use fusing, insulating boots and support for electrical and mechanical risks.熔断、绝缘帽和固定分担短路与机械风险。 |
| Circuit and revision reference电路与版本依据 | Provide system voltage, continuous and peak current, peak duration and repetition, cable lengths, battery and equipment interfaces, lug-hole sizes and orientations, ground points, fuse or disconnect arrangement, ambient and conductor temperature, fluids, vibration, routing, quantity and required validation.请提供系统电压、持续与峰值电流、峰值持续时间及重复频率、线长、电池与设备接口、端子孔径和方向、接地点、熔断或隔离布置、环境与导体温度、液体、振动、走线、数量及所需验证。 |
| Sample and manufacturing configuration样品与制造配置 | Engineering releases the circuit, conductor, lugs, boots, seals, branch protection, labels, routing dimensions and process limits. Production controls strip length, strand condition, crimp tooling and orientation, then verifies continuity, polarity, resistance, dimensions and workmanship; pull, section analysis, voltage-drop, thermal, vibration or environmental checks are added when specified.工程放行回路、导体、线鼻、护套、密封、分支保护、标识、走线尺寸与工艺限值。生产控制剥线长度、线股状态、压接工具与方向，再检查导通、极性、电阻、尺寸和工艺；需要时增加拉力、截面分析、压降、温升、振动或环境验证。 |
APPLICATIONS连接的应用
Application directions应用方向
These are connection directions for project discussion. Suitability depends on interfaces, circuits, installation conditions and project validation; configuration can be adapted to the equipment.以下为可讨论的连接方向。实际适用性取决于接口、电路、安装环境和项目验证，可按设备需求调整。
Battery interconnections电池包互连
Configure leads for battery terminals, polarity and segment lengths. Match lug bore, connector and polarity to the battery interface.按电池端子、极性和各连接段长度配置引线。选配时，端子孔径、接头与极性匹配真实电池接口。
Handling and auxiliary-power equipment搬运与辅助动力设备
Coordinate fixing and ends with motion, load and cable weight. Specify duration and conditions separately for continuous and peak current.运动、负载及电缆重量共同影响固定与端头。选配时，持续和峰值电流分别写明时长与工况。
Battery banks and DC bus interfaces电池组与直流母线接口
Define battery-bank connections from bus locations, load current, contact geometry and assembly sequence, with insulation coverage and service space retained. Use conductor material, area and length to establish voltage-drop calculations.电池组连接从母线位置、负载电流、接点几何和装配顺序定义，保留绝缘覆盖与检修空间。选配时，导体材质、截面与线长形成压降基线。
Engine auxiliary-power connections发动机辅助电源接线
Confirm power interfaces, lug bores, length and fixing routes for engine auxiliary circuits so mechanical vibration is not carried directly into terminations. Use fusing, insulating boots and support for electrical and mechanical risks.发动机辅助回路需确认电源接口、端子孔径、线长和固定路径，避免将机械振动直接传到端接部位。选配时，熔断、绝缘帽和固定分担短路与机械风险。
Storage-equipment DC connections储能设备直流连接
Review battery/equipment parts, protection and polarity together. Match lug bore, connector and polarity to the battery interface.电池端与设备端料号、保护和极性成套审核。选配时，端子孔径、接头与极性匹配真实电池接口。
Battery service replacement leads维修替换电池引线
Retain mounting datums while reviewing the cause of old-lead damage. Specify duration and conditions separately for continuous and peak current.保留安装孔距与固定点，同时复核旧线受损原因。选配时，持续和峰值电流分别写明时长与工况。
ENGINEERING & PRODUCTION工程与制造
Adapt the connection to your equipment.围绕设备，调整连接细节。
Touched by me, better it’ll beTouched by me, better it’ll be
Custom wire harness manufacturing in China中国工厂 · 定制线束制造
Our China factory supports battery cable assembly projects through custom wire harness manufacturing and OEM/ODM development. Interface, circuit and installation data guide material selection, sample builds and manufacturing-document approval before repeat production.Super Smile-Tech 中国工厂围绕电池电缆组件的项目需求提供定制线束制造与 OEM/ODM 支持。我们从接口、电路与安装资料开始，协同物料选配、样品制作和制造文件确认，再按批准要求组织重复生产。
Battery lug bore, connector and polarity电池端子孔径、接头与极性
Match lug bore, connector and polarity to the battery interface.端子孔径、接头与极性匹配真实电池接口。
Continuous/peak current and duration持续及峰值电流、持续时间
Specify duration and conditions separately for continuous and peak current.持续和峰值电流分别写明时长与工况。
Fusing, insulating boots and abrasion protection熔断、绝缘帽与防磨结构
Use fusing, insulating boots and support for electrical and mechanical risks.熔断、绝缘帽和固定分担短路与机械风险。
PRODUCT QUESTIONS产品问答
Product & customization questions产品与定制常见问题
Can battery cable size be selected from starter current alone?电池线径只按起动电流选择可以吗？
No. Loop length, allowable voltage drop, peak duration and repetition, continuous charging or auxiliary load, temperature, bundling, conductor construction, termination resistance and protection all affect selection.不可以。回路长度、允许压降、峰值持续时间及重复频率、持续充电或辅助负载、温度、成束、导体结构、端接电阻与保护都会影响选择。
Can you build from an existing battery cable sample?可以依据现有电池线样品开发吗？
Yes, a sample helps confirm length, routing and terminal geometry, but conductor area, material grade, electrical duty, joint specification and validation limits still require customer data or engineering confirmation.可以，样品有助于确认长度、走线与端子几何，但导体截面积、材料牌号、电气工况、接点规范与验证限值仍需客户资料或工程确认。
Is a soldered lug better than a crimped lug?焊接线鼻一定比压接线鼻好吗？
Not inherently. A properly engineered crimp provides a controlled mechanical and electrical interface. Solder can wick into strands and create a stiff transition; either process must be specified and validated for the application.不一定。正确工程化的压接能够形成受控机械与电气界面。焊锡可能沿线股渗入并形成硬过渡；无论哪种工艺都必须针对应用明确并验证。
Start with your interface and installation requirements从您的接口与安装需求开始
