Rectangular interface form矩形接口外形
The rectangular interface form allows end position and service clearance to follow the mating face, latch and cable exit.接口采用矩形轮廓，可围绕插入面、卡扣与线束出口安排端头位置和拆装空间。
Industrial Equipment Harness工业设备线束

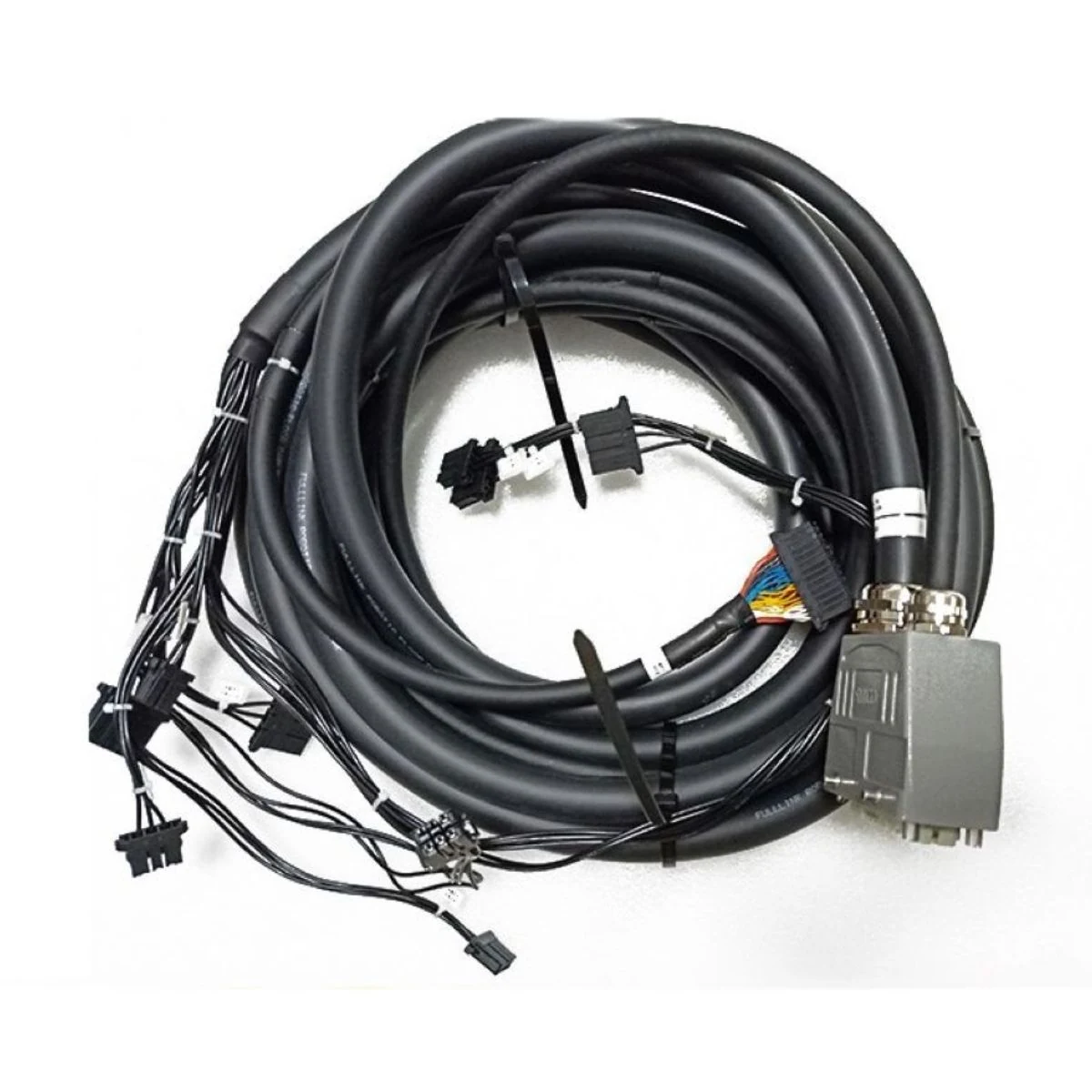

Heavy-Duty Rectangular Connector Robot Control Harness重载矩形接头机器人控制线束
Heavy-Duty Rectangular Connector Robot Control Harness combines rectangular interface form, plug-in connection end. Interface, circuit and installation data guide dimensions, material selection and sample review.重载矩形接头机器人控制线束的结构重点包括矩形接口外形、插接式端头。接口、电路与安装资料将作为尺寸、物料和样品制作的确认依据。
- Interface and circuit review接口与回路对应审核
- Length and installation configuration线长与安装结构定制
- Manufacture from approved sample样品确认后组织制造
CONSTRUCTION结构解析
Connection structure and design details连接结构与设计要点
Use the heavy-duty rectangular connector robot control harness form as a starting point and confirm these design points against drawings and the actual equipment.以重载矩形接头机器人控制线束的结构形式为起点，结合图纸和实际设备确认以下设计要点。
Interface and function review接口与功能确认
Use identifiable installation datums for every branch分支在设备上有独立安装基准
Installation and acceptance安装与验收
Confirm separation and shielding for power and sensitive signals电源与敏感信号的间距及屏蔽路径需确认
CONFIGURATION结构与选配
Construction & customization options结构与定制配置
The table describes the construction and available configuration choices. Materials, dimensions, circuits and inspection requirements are agreed for each project.以下说明展示结构与可配置内容。具体材料、尺寸、电路和检验要求按项目确认。
| Equipment modules and interface allocation设备模块与接口分配 | Allocate connection points among cabinets, sensors, drives and auxiliary modules.按控制柜、传感器、驱动与辅助模块分配接入点。 |
|---|---|
| Branch endpoints, length datums and tolerances各支路起止点、尺寸基准及公差 | Measure trunk and branches from equipment fixing datums and record tolerances.从设备固定点量取主干与分支，并记录公差。 |
| Power and control circuit load table电源与控制回路负载表 | List power, control and sensitive-signal loads separately.分别列出动力、控制和敏感信号的电路负载。 |
| Fixing points, ducts and abrasion protection线束固定点、管槽与防磨布置 | Choose fixing and protection around ducts, openings and service routes.结合线槽、穿线孔与维护路径选配固定和防护。 |
| Circuit and revision reference电路与版本依据 | Confirm the equipment layout, connector or terminal-block models, pin or terminal numbers, voltage and current, cable path, ambient temperature, oil or abrasion exposure and maintenance method.需要确认设备布局、连接器或端子排型号、针脚或端子编号、电压电流、布线路径、环境温度、油污与磨损情况以及维护方式。 |
| Sample and manufacturing configuration样品与制造配置 | Engineering first reviews the drawing, BOM and routing constraints, then confirms materials and builds a sample. Branch dimensions, labels, connector orientation and continuity are checked against the approved sample before repeat production.先审核图纸、BOM和布线限制，再确认物料并制作样品；经确认的分支尺寸、标签、接口方向和导通关系将作为后续重复生产的依据。 |
APPLICATIONS连接的应用
Application directions应用方向
These are connection directions for project discussion. Suitability depends on interfaces, circuits, installation conditions and project validation; configuration can be adapted to the equipment.以下为可讨论的连接方向。实际适用性取决于接口、电路、安装环境和项目验证，可按设备需求调整。
Industrial automation工业自动化
PLC cabinets, distributed I/O, conveyors, actuators, safety switches and assembly cells. Allocate connection points among cabinets, sensors, drives and auxiliary modules.PLC控制柜、分布式I/O、输送线、执行器、安全开关与装配单元。选配时，按控制柜、传感器、驱动与辅助模块分配接入点。
Machine tools & CNC机床与CNC设备
Spindle auxiliaries, sensors, lubrication, cooling, doors and internal control connections. Measure trunk and branches from equipment fixing datums and record tolerances.主轴附件、传感器、润滑、冷却、安全门和机内控制连接。选配时，从设备固定点量取主干与分支，并记录公差。
Packaging & processing equipment包装与加工设备
Motors, photoelectric sensors, heaters, valves, weighing modules and replaceable machine sections. List power, control and sensitive-signal loads separately.电机、光电传感器、加热元件、阀组、称重模块与可更换机组。选配时，分别列出动力、控制和敏感信号的电路负载。
Warehouse & material handling仓储与物料搬运
Conveyors, sorters, lifts, mobile modules, proximity detection and field communication. Choose fixing and protection around ducts, openings and service routes.输送机、分拣机、升降模组、移动单元、接近检测与现场通信。选配时，结合线槽、穿线孔与维护路径选配固定和防护。
Energy & environmental equipment能源与环保设备
Low-voltage controls, pumps, fans, sensors and auxiliary systems in storage, treatment and monitoring equipment. Allocate connection points among cabinets, sensors, drives and auxiliary modules.储能、处理与监测设备中的低压控制、泵、风机、传感器和辅助系统。选配时，按控制柜、传感器、驱动与辅助模块分配接入点。
Test & measurement systems测试与测量系统
Instrument panels, acquisition modules, test fixtures, internal interconnects and replaceable interface leads. Measure trunk and branches from equipment fixing datums and record tolerances.仪表面板、采集模块、测试工装、机内互连和可更换接口线。选配时，从设备固定点量取主干与分支，并记录公差。
ENGINEERING & PRODUCTION工程与制造
Adapt the connection to your equipment.围绕设备，调整连接细节。
Touched by me, better it’ll beTouched by me, better it’ll be
Custom wire harness manufacturing in China中国工厂 · 定制线束制造
Our China factory supports industrial equipment harness projects through custom wire harness manufacturing and OEM/ODM development. Interface, circuit and installation data guide material selection, sample builds and manufacturing-document approval before repeat production.Super Smile-Tech 中国工厂围绕工业设备线束的项目需求提供定制线束制造与 OEM/ODM 支持。我们从接口、电路与安装资料开始，协同物料选配、样品制作和制造文件确认，再按批准要求组织重复生产。
Build from drawing or pin table按图纸或针脚表制作
We review circuit mapping, branch datum, connector direction, labels and installation constraints before a first article is released.在首件制作前审核回路对应、分支基准、接口方向、标识和安装限制。
Develop from an existing sample依据现有样品开发
A reference harness can be measured and mapped, but electrical function, mating interfaces and any hidden components still require customer confirmation.可对参考线束进行尺寸与回路整理，但电气功能、对插接口及隐藏元件仍需客户确认。
Connector and material alternatives接口与材料替代审核
When the original part is difficult to source, alternatives are compared by fit, terminal system, electrical rating, sealing and documented approval, not by appearance alone.原物料供应困难时，从装配、端子系统、电气额定、密封和书面批准等方面比较替代方案，不只比外观。
PRODUCT QUESTIONS产品问答
Product & customization questions产品与定制常见问题
Does industrial equipment harness mean one standard product?工业设备线束是一个固定产品吗？
No. It is a family covering cabinet, motor, sensor, I/O, sealed, internal and moving harnesses. The actual assembly is defined by your electrical and mechanical data.不是。它覆盖控制柜、电机、传感器、I/O、密封、机内及运动线束等多种结构，最终产品依据项目的电气与机械资料定义。
What can I send if I do not have a complete drawing?没有完整图纸时可以提供什么？
A sample, connector photos, mating-part references, pin table, equipment layout and required lengths can start the review. Unknown electrical functions must still be confirmed before production.可先提供样品、接口照片、对插型号、针脚表、设备布局和长度要求；不确定的电气功能仍需在生产前确认。
Can you make prototypes and small batches?可以做样品和小批量吗？
Yes. Prototype and small-batch builds can be used to check fit, routing and electrical mapping before a controlled repeat order.可以。可先通过样品或小批量确认装配、布线和电气对应，再转入受控的重复生产。
Start with your interface and installation requirements从您的接口与安装需求开始
Share mating interfaces, a circuit table, target lengths or a sample for the heavy-duty rectangular connector robot control harness. We can use them to review configuration and sample requirements.提供重载矩形接头机器人控制线束的对插接口、回路表、目标长度或参考样品，我们据此梳理选配与样品确认事项。
