Plug-in connection end插接式端头
The end uses a plug-in form, with clearance arranged for insertion, removal and cable bends.端头采用插接形式，可围绕安装位置安排插入、退出及线缆弯曲空间。
IDC Ribbon Cable AssemblyIDC带状电缆组件

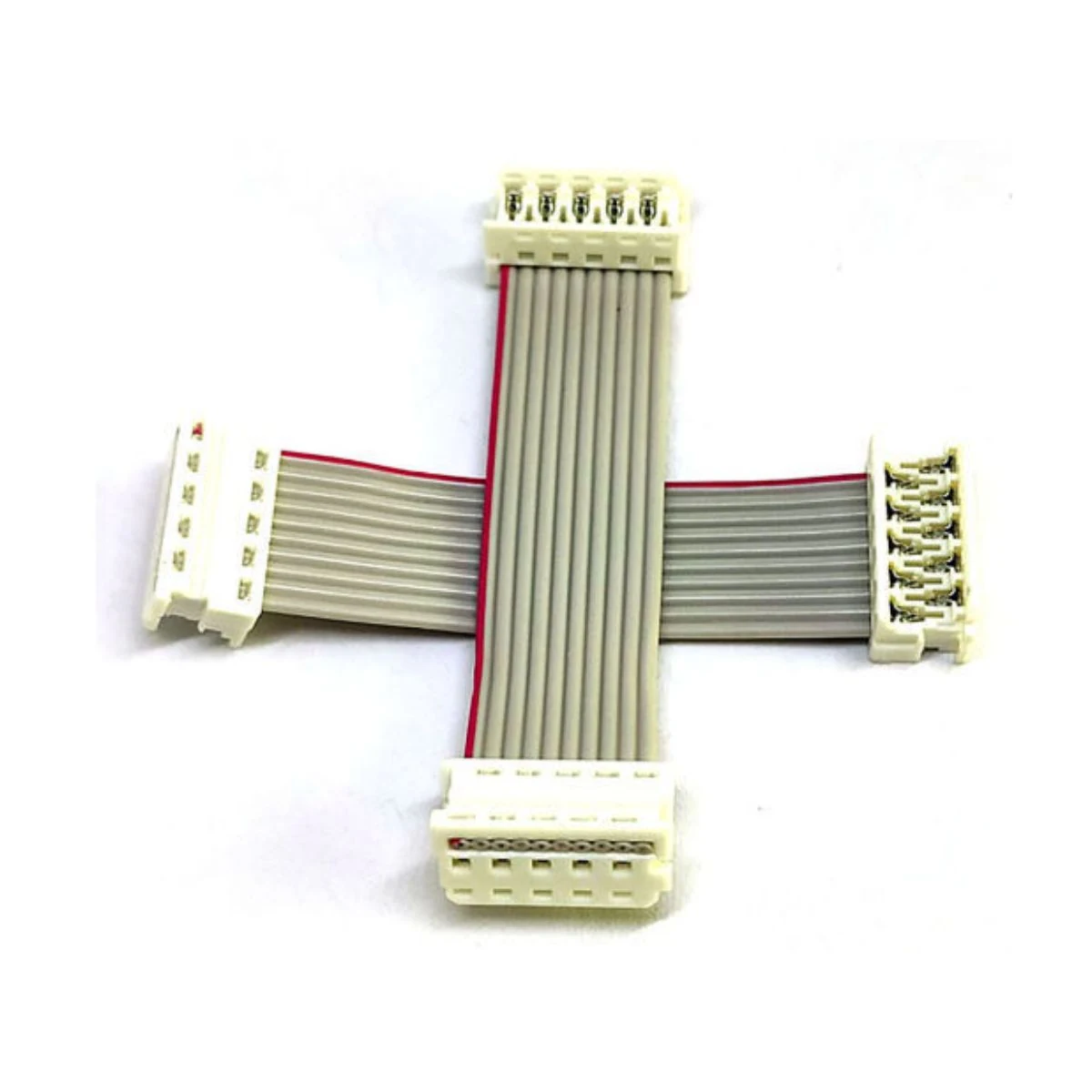

IDC 4-Connector Crossed Ribbon Cable AssemblyIDC四接头交叉排线组件
IDC 4-Connector Crossed Ribbon Cable Assembly combines plug-in connection end, flat conductor arrangement, grouped cable-set form. Interface, circuit and installation data guide dimensions, material selection and sample review.IDC四接头交叉排线组件的结构重点包括插接式端头、扁平排列结构、组合线组形式。接口、电路与安装资料将作为尺寸、物料和样品制作的确认依据。
- Plug-in connection end插接式端头
- Flat conductor arrangement扁平排列结构
- Grouped cable-set form组合线组形式
CONSTRUCTION结构解析
Connection structure and design details连接结构与设计要点
Use the idc 4-connector crossed ribbon cable assembly form as a starting point and confirm these design points against drawings and the actual equipment.以IDC四接头交叉排线组件的结构形式为起点，结合图纸和实际设备确认以下设计要点。
Flat conductor arrangement扁平排列结构
The cable uses a flat arrangement, allowing compact routing around insertion direction, folds and end orientation.线缆采用扁平排列形态，可围绕插入方向、折转位置和端头朝向安排紧凑布线。
Grouped cable-set form组合线组形式
Several connection pieces are organized as a cable set, allowing each section to be assigned and identified by assembly sequence and module.多段连接件以线组形式组织，可按装配顺序和设备模块划分各段用途与标识。
Conductor and insulation selection导体与绝缘选配
Select conductors and insulation from circuit loads, diameter limits, bending and exposure. A material name does not replace ratings or validation results.从电路负载、外径限制、弯曲方式与环境条件选择导体和绝缘体系；材料名称不应直接代替额定参数或验证结果。
CONFIGURATION结构与选配
Construction & customization options结构与定制配置
The table describes the construction and available configuration choices. Materials, dimensions, circuits and inspection requirements are agreed for each project.以下说明展示结构与可配置内容。具体材料、尺寸、电路和检验要求按项目确认。
| IDC connector series, pitch and positionsIDC连接器系列、间距与针位 | Confirm the IDC family, connector pitch and cavity views together.IDC系列、连接器节距与针位视图成套确认。 |
|---|---|
| Ribbon pitch, gauge and conductor count带状线节距、线规与芯数 | Match ribbon conductor count, gauge and spacing to the connector.带状线的芯数、线规和导体节距匹配连接器。 |
| Polarizing notch, red edge and pin-1 mapping极化缺口、红边与1脚对应 | Show marked edge, polarization notch and pin one at every end.图纸明确红边、极化缺口和1脚在每一端的关系。 |
| Press tooling, alignment and strain clamp压接工装、定位与应力夹 | Define location tooling, press travel and strain-clamp assembly in the process.定位工装、压合行程与应力夹装配形成工艺要求。 |
| Installation and operating boundary安装与使用边界 | Provide the mating interface, pitch, circuit count, AWG, pin map, orientation, dimensions, route and test requirements.请提供对插接口、节距、回路数、AWG、针脚表、方向、尺寸、路径与测试要求。 |
| Sample and release basis样品与放行依据 | Approve cable, connectors, tooling, first-article orientation and continuity evidence before repeat production.重复生产前确认排线、接头、工装、首件方向与导通证据。 |
APPLICATIONS连接的应用
Application directions应用方向
These are connection directions for project discussion. Suitability depends on interfaces, circuits, installation conditions and project validation; configuration can be adapted to the equipment.以下为可讨论的连接方向。实际适用性取决于接口、电路、安装环境和项目验证，可按设备需求调整。
Equipment control-board connections设备控制板连接
Document pin-row views, mating direction and nearby wire support. Check access to the latch and contacts after assembly. Confirm the IDC family, connector pitch and cavity views together.板端连接要给出针排视图、插合方向和近端线缆支撑；检查装配后是否仍能操作锁扣并查看接点。选配时，IDC系列、连接器节距与针位视图成套确认。
Inter-board ribbon cables and pin orientation板间排线与针位方向
Relate the marked edge, polarization feature and both end views. Document fixed folds and strain support separately on the assembly drawing. Match ribbon conductor count, gauge and spacing to the connector.排线连接应把标识边、极化缺口和两端针位视图对应起来，固定折弯与拉力支撑在装配图中单列。选配时，带状线的芯数、线规和导体节距匹配连接器。
Module wiring within enclosures机箱内部的模块配线
Coordinate board positions, module removal and wire bends within the enclosure. Preserve insulation clearance and support behind each termination. Show marked edge, polarization notch and pin one at every end.机箱内部配线需要协调板卡位置、模块拆装和导线转弯空间；端接后的绝缘与支撑不能被外壳挤压。选配时，图纸明确红边、极化缺口和1脚在每一端的关系。
Board service and module removal板卡检修与模块拆装
Keep latches and cable ends accessible for board service. Review removal paths and cable allowance alongside the controlled pinout. Define location tooling, press travel and strain-clamp assembly in the process.板卡检修要保留锁扣与连接端的操作空间，拆装路径和线缆余量应与受控针脚表一起确认。选配时，定位工装、压合行程与应力夹装配形成工艺要求。
Equipment panels and circular interfaces设备面板与圆形接口
Start with the cutout, panel thickness, mounting direction and rear clearance. Coordinate contact arrangement and cable exit with the complete assembly view. Confirm the IDC family, connector pitch and cavity views together.面板连接以开孔、板厚、装配方向和后方净空为起点；接点排列与电缆出口还需要对应完整总装视图。选配时，IDC系列、连接器节距与针位视图成套确认。
Internal connections in racks and multi-board equipment机架与多板卡内部连接
In multi-board equipment, define slots, board orientation and pin mapping at each end. Keep ribbon folds and retention clear of module-removal paths. Match ribbon conductor count, gauge and spacing to the connector.多板卡设备需要清楚定义插槽、板间方向和各端针位，排线的折返与固定不能妨碍模块抽出。选配时，带状线的芯数、线规和导体节距匹配连接器。
ENGINEERING & PRODUCTION工程与制造
Adapt the connection to your equipment.围绕设备，调整连接细节。
Touched by me, better it’ll beTouched by me, better it’ll be
Custom wire harness manufacturing in China中国工厂 · 定制线束制造
Our China factory supports idc ribbon cable assembly projects through custom wire harness manufacturing and OEM/ODM development. Interface, circuit and installation data guide material selection, sample builds and manufacturing-document approval before repeat production.Super Smile-Tech 中国工厂围绕IDC带状电缆组件的项目需求提供定制线束制造与 OEM/ODM 支持。我们从接口、电路与安装资料开始，协同物料选配、样品制作和制造文件确认，再按批准要求组织重复生产。
Define termination and protection boundaries确定端接与保护边界
Confirm the IDC family, connector pitch and cavity views together. Verify cable pitch against connector suitability.IDC系列、连接器节距与针位视图成套确认。 线缆节距与连接器适配需核对。
Match dimensions and operating motion配合尺寸与使用动作
Match ribbon conductor count, gauge and spacing to the connector. Foldbacks and branches affect the pin-order view.带状线的芯数、线规和导体节距匹配连接器。 折返和分支会改变针序视图。
Verify processing and finished condition验证工艺与成品状态
Show marked edge, polarization notch and pin one at every end. Appearance alone does not establish a reliable IDC press.图纸明确红边、极化缺口和1脚在每一端的关系。 IDC接触不能按外观判定可靠压合。
PRODUCT QUESTIONS产品问答
Product & customization questions产品与定制常见问题
Does matching cable spacing allow any IDC connector?线缆节距相同就能选任意IDC头吗？
Verify cable pitch against connector suitability. Confirm the IDC family, connector pitch and cavity views together.线缆节距与连接器适配需核对。IDC系列、连接器节距与针位视图成套确认。
Do folds and branches affect the pin-order view?折返和分支会影响针序吗？
Foldbacks and branches affect the pin-order view. Match ribbon conductor count, gauge and spacing to the connector.折返和分支会改变针序视图。带状线的芯数、线规和导体节距匹配连接器。
Can IDC pressing quality be judged from appearance alone?压合质量能只看外观吗？
Appearance alone does not establish a reliable IDC press. Show marked edge, polarization notch and pin one at every end.IDC接触不能按外观判定可靠压合。图纸明确红边、极化缺口和1脚在每一端的关系。
Start with your interface and installation requirements从您的接口与安装需求开始
Share mating interfaces, a circuit table, target lengths or a sample for the idc 4-connector crossed ribbon cable assembly. We can use them to review configuration and sample requirements.提供IDC四接头交叉排线组件的对插接口、回路表、目标长度或参考样品，我们据此梳理选配与样品确认事项。
