Y-shaped breakoutY形分出结构
The breakout follows a Y-shaped route toward separate ends. Bend clearance and fixing can be arranged around the split.分出位置形成Y形走向，可把一处接入分向不同端头。安装时围绕分出点安排弯曲和固定。
Medical Equipment Assembly医疗设备电缆组件

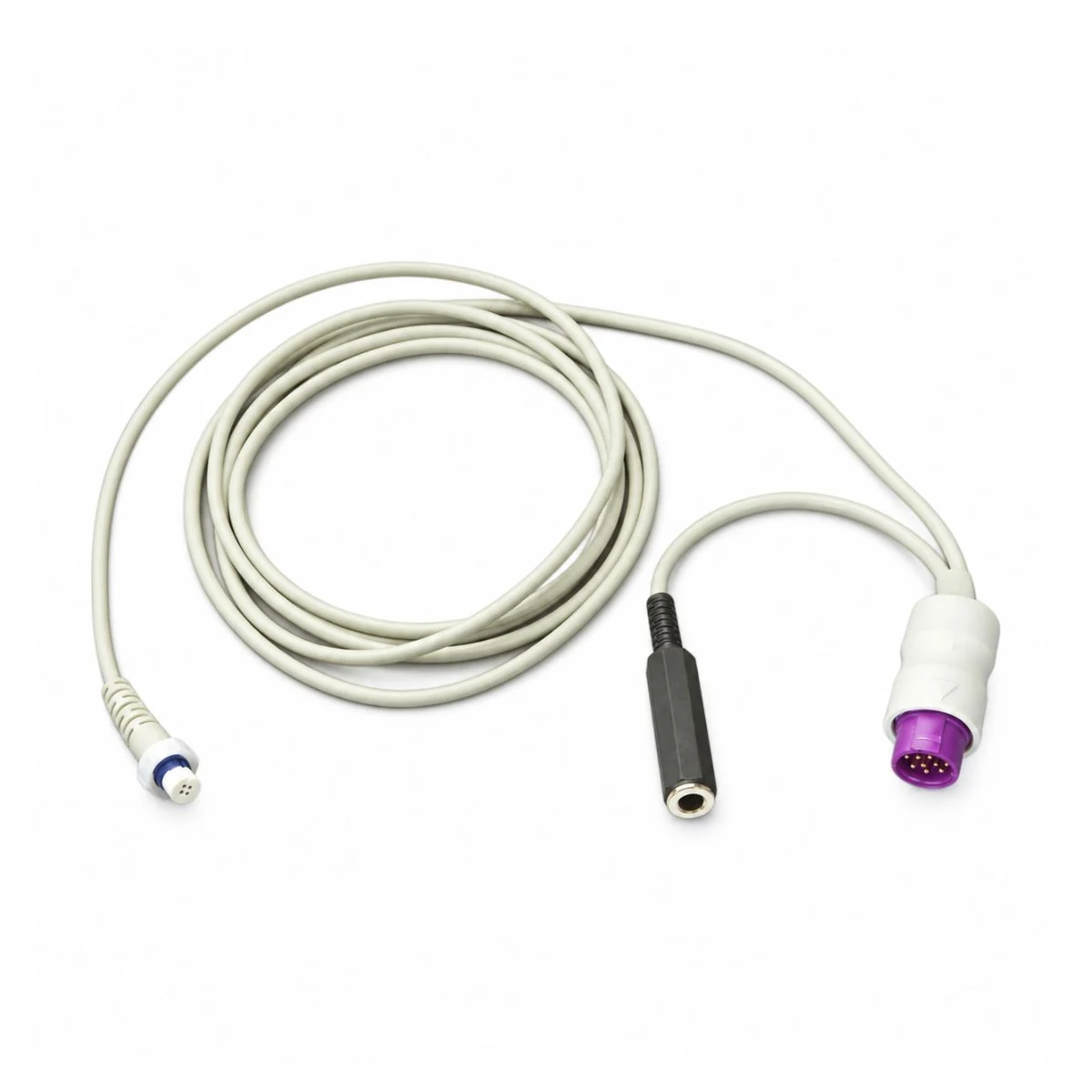

Medical Circular Connector Y-Branch Harness医疗圆形接头Y形分支线束
Medical Circular Connector Y-Branch Harness combines y-shaped breakout, circular connection end, plug-in connection end. Interface, circuit and installation data guide dimensions, material selection and sample review.医疗圆形接头Y形分支线束的结构重点包括Y形分出结构、圆形连接端、插接式端头。接口、电路与安装资料将作为尺寸、物料和样品制作的确认依据。
- Y-shaped breakoutY形分出结构
- Circular connection end圆形连接端
- Plug-in connection end插接式端头
CONSTRUCTION结构解析
Connection structure and design details连接结构与设计要点
Use the medical circular connector y-branch harness form as a starting point and confirm these design points against drawings and the actual equipment.以医疗圆形接头Y形分支线束的结构形式为起点，结合图纸和实际设备确认以下设计要点。
Circular connection end圆形连接端
The end uses a circular interface form, with connection positions planned around mating direction, retention and cable exit.端头具有圆形接口形式，可围绕对插方向、端部固定和线缆出口规划连接位置。
Plug-in connection end插接式端头
The end uses a plug-in form, with clearance arranged for insertion, removal and cable bends.端头采用插接形式，可围绕安装位置安排插入、退出及线缆弯曲空间。
Trunk and branch layout主干与分支
Locate trunk and branch datums from equipment fixing points. Allow room for mating, bends and servicing so branches do not transfer installation loads to contacts.以设备固定点确定主干和各支路的尺寸基准，预留插拔、弯曲和维护空间，避免支路把拉力传递到端子。
CONFIGURATION结构与选配
Construction & customization options结构与定制配置
The table describes the construction and available configuration choices. Materials, dimensions, circuits and inspection requirements are agreed for each project.以下说明展示结构与可配置内容。具体材料、尺寸、电路和检验要求按项目确认。
| Medical-device use and patient-contact boundary医疗设备用途与患者接触边界 | Separate internal, external and patient-contact boundaries first.先划分设备内部、外部和患者接触边界。 |
|---|---|
| Interfaces, circuit isolation and power requirements接口、电路隔离与供电要求 | Follow the device design for interfaces, isolation and power.接口、隔离与供电服从医疗设备设计定义。 |
| Cleaning/disinfection method and material exposure time清洁消毒方式及材料接触时间 | Record media, duration and cycles for cleaning, disinfection or sterilization.清洁、消毒或灭菌需记录介质、时间和循环。 |
| Required biocompatibility or device-standard evidence生物相容或设备标准所需证据 | Match material and biocompatibility evidence to the actual contact scope.材料与生物相容证据对应实际接触范围。 |
| Circuit and revision reference电路与版本依据 | Provide the device and intended-use description, patient-contact boundary, mating interfaces and keying, circuit and shield schedule, signal levels and bandwidth, voltage/current, cable geometry, cleaning or disinfection method, flex and pull duty, environmental limits, material restrictions, labeling, traceability, sample quantity and the approved verification plan.请提供设备与预期用途说明、患者接触边界、对插接口与防错方式、回路和屏蔽表、信号电平与带宽、电压/电流、线缆几何、清洁或消毒方法、弯折与拉力工况、环境限值、材料限制、标签、追溯、样品数量及批准的验证计划。 |
| Sample and manufacturing configuration样品与制造配置 | Build samples to the confirmed drawing and check fit, pin mapping, materials and agreed tests. Patient contact, cleaning and device approval are defined separately within the device project.按确认图纸制作样品，检查安装、针脚、材料与约定验证项目。患者接触、清洁及整机批准按设备项目分别确认。 |
APPLICATIONS连接的应用
Application directions应用方向
These are connection directions for project discussion. Suitability depends on interfaces, circuits, installation conditions and project validation; configuration can be adapted to the equipment.以下为可讨论的连接方向。实际适用性取决于接口、电路、安装环境和项目验证，可按设备需求调整。
Internal device links设备内部连接
Define internal assemblies for device isolation, signals and fixing. Separate internal, external and patient-contact boundaries first.按设备隔离、信号和固定要求定义内部组件。选配时，先划分设备内部、外部和患者接触边界。
External sensor leads外部传感器引线
Define device, electrode/sensor ends and contact boundaries separately. Follow the device design for interfaces, isolation and power.设备端、电极或传感器端及接触边界分别明确。选配时，接口、隔离与供电服从医疗设备设计定义。
Serviceable medical-equipment modules可维护的医疗设备模块
For a serviceable module, confirm removal sequence, outlet positions and the user's specified cleaning method. A photograph does not establish reuse conditions. Record media, duration and cycles for cleaning, disinfection or sterilization.可维护模块的引线需确认拆装顺序、出口位置和使用方规定的清洁方式，避免由照片推定重复使用条件。选配时，清洁、消毒或灭菌需记录介质、时间和循环。
Device panels and removable modules设备面板与可拆模块
Define fixing, mating and cleaning boundaries for enclosure and operator use. Match material and biocompatibility evidence to the actual contact scope.固定、插拔及清洁边界结合机壳与操作者使用方式。选配时，材料与生物相容证据对应实际接触范围。
Diagnostic-instrument auxiliary links诊断仪器辅助连接
Separate auxiliary power and measurement paths to device isolation requirements. Separate internal, external and patient-contact boundaries first.辅助供电与测量回路按设备隔离要求分开处理。选配时，先划分设备内部、外部和患者接触边界。
Medical-equipment service interfaces医疗设备的检修接口
Match service leads to equipment interfaces, pins and accessible check points. Record length, mating direction and measurement access for maintenance. Follow the device design for interfaces, isolation and power.检修引线需匹配设备接口、针脚和可接近的检查位置；将线长、插拔方向和维修时的测量接入写入确认资料。选配时，接口、隔离与供电服从医疗设备设计定义。
ENGINEERING & PRODUCTION工程与制造
Adapt the connection to your equipment.围绕设备，调整连接细节。
Touched by me, better it’ll beTouched by me, better it’ll be
Custom wire harness manufacturing in China中国工厂 · 定制线束制造
Our China factory supports medical equipment assembly projects through custom wire harness manufacturing and OEM/ODM development. Interface, circuit and installation data guide material selection, sample builds and manufacturing-document approval before repeat production.Super Smile-Tech 中国工厂围绕医疗设备电缆组件的项目需求提供定制线束制造与 OEM/ODM 支持。我们从接口、电路与安装资料开始，协同物料选配、样品制作和制造文件确认，再按批准要求组织重复生产。
Medical-device use and patient-contact boundary医疗设备用途与患者接触边界
Separate internal, external and patient-contact boundaries first.先划分设备内部、外部和患者接触边界。
Interfaces, circuit isolation and power requirements接口、电路隔离与供电要求
Follow the device design for interfaces, isolation and power.接口、隔离与供电服从医疗设备设计定义。
Required biocompatibility or device-standard evidence生物相容或设备标准所需证据
Match material and biocompatibility evidence to the actual contact scope.材料与生物相容证据对应实际接触范围。
PRODUCT QUESTIONS产品问答
Product & customization questions产品与定制常见问题
Does ‘medical cable’ mean the assembly is already approved for patient use?“医疗线缆”是否表示组件已经获批用于患者？
No. It describes an application category. Intended use, patient-contact boundary, device risk controls, materials, manufacturing records and verification must be defined by the legal manufacturer and applicable regulatory route.不是。它只是应用类别。预期用途、患者接触边界、器械风险控制、材料、制造记录与验证必须由法定制造商和适用法规路径确定。
Can you make ECG, SpO₂ or temperature lead sets from a sample?可以依据样品制作 ECG、SpO₂ 或体温导联吗？
A sample supports interface and dimensional study, but device model, pinout, signal requirements, electrode or sensor interface, materials, cleaning method and acceptance criteria still require written confirmation.样品可支持接口与尺寸研究，但设备型号、针脚、信号要求、电极或传感器接口、材料、清洁方法与验收准则仍需书面确认。
Which jacket material is best for reusable medical cables?可重复使用医疗线缆最适合哪种护套？
There is no universal answer. Flex, abrasion, skin proximity, disinfectant chemistry, temperature, sterilization or cleaning cycle, color and processing all matter. Candidate materials are screened, then evaluated in the finished construction.没有统一答案。弯折、耐磨、皮肤接近、消毒剂化学、温度、灭菌或清洁循环、颜色与加工都需考虑。候选材料先筛选，再在成品结构中评价。
Start with your interface and installation requirements从您的接口与安装需求开始
Share mating interfaces, a circuit table, target lengths or a sample for the medical circular connector y-branch harness. We can use them to review configuration and sample requirements.提供医疗圆形接头Y形分支线束的对插接口、回路表、目标长度或参考样品，我们据此梳理选配与样品确认事项。
