RJ45 connection endRJ45连接端
The RJ45-form end supports routing around port direction, latch access and cable exit.端头采用RJ45形式，可围绕端口朝向、锁扣操作和线缆出口安排设备连接。
Copper-network interconnect assemblies铜缆网络连接组件

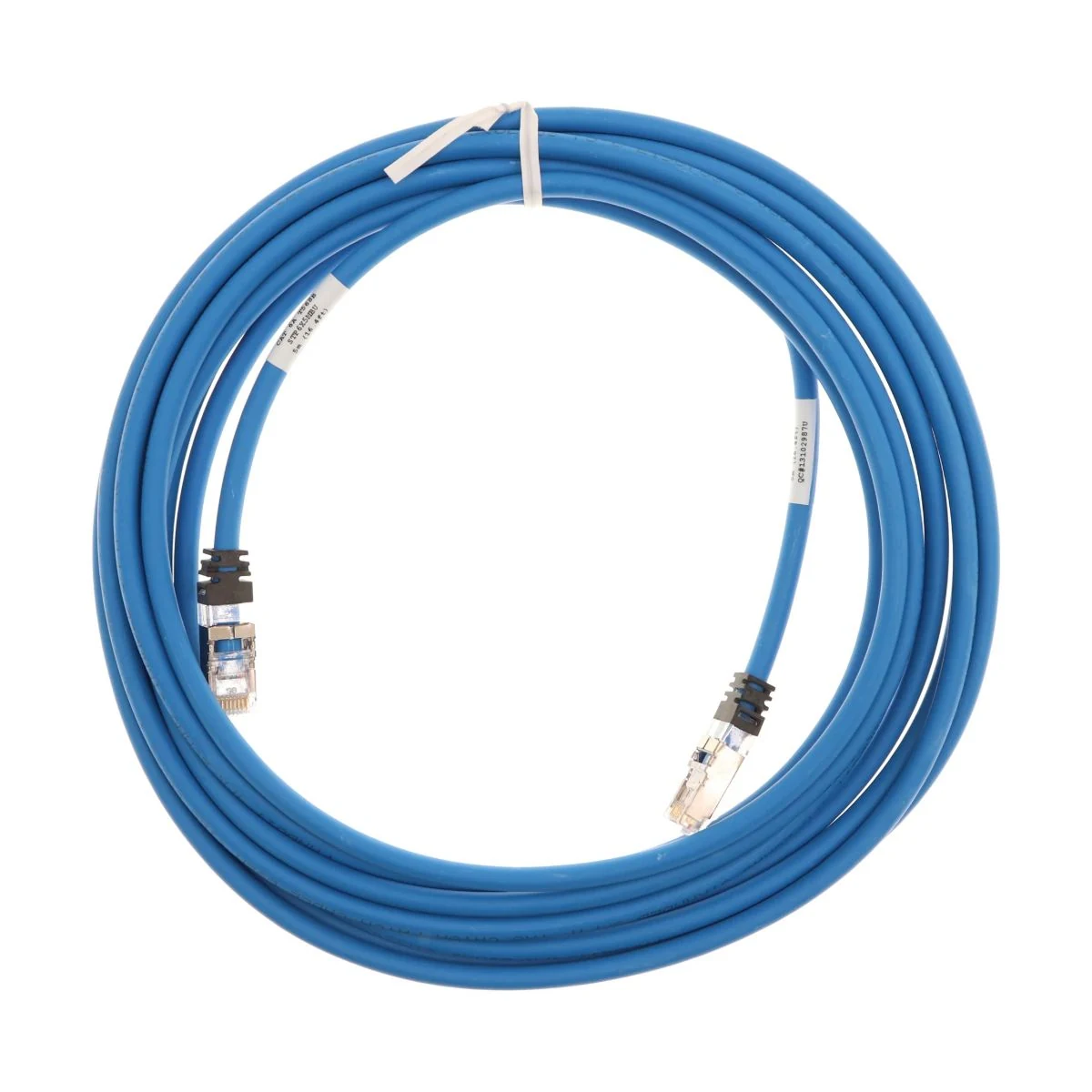

RJ45 Double-Ended Network HarnessRJ45双端网络线束
Network-form ends at both ends provide a clear point-to-point route. End orientation, latch access and cable length can follow equipment positions, with transmission requirements defined for the actual cable and complete connection plan.双端网络形式连接提供清晰的点对点布线路径，端头方向、锁扣操作与线缆长度可围绕设备位置安排。传输要求以实际线材和完整连接方案确认。
- Copper network ports and wiring铜网络端口与线序
- End and breakout dimensions端头与分支尺寸
- Project-defined transmission and supply传输与供电按项目确认
CONSTRUCTION结构解析
Connection structure and design details连接结构与设计要点
Review end forms and branch arrangement, then use equipment-port records to define each connection task. Specify copper pairs, shielding and supply requirements separately.先看端头形式与支路安排，再用设备端口表明确各路连接用途。铜缆的线对、屏蔽与供电要求分开定义。
Two-ended connection layout双端连接布局
Connection points sit at both cable ends, with the route arranged for equipment spacing and port orientation.线缆在两端设置连接位置，可结合设备间距和端口朝向安排整体走线。
Signal path信号路径
Define signal type, pair allocation, shield continuity and termination as well as the connector shape. Establish transmission performance from the actual cable, length and system validation.在接口外形之外确认信号类型、线对分配、屏蔽连续性和端接方法；传输能力应按实际线材、长度及整机验证结果确定。
CONFIGURATION结构与选配
Construction & customization options结构与定制配置
The table describes the construction and available configuration choices. Materials, dimensions, circuits and inspection requirements are agreed for each project.以下说明展示结构与可配置内容。具体材料、尺寸、电路和检验要求按项目确认。
| Network interfaces and mating parts网络接口与对插件 | Record the complete RJ45, RJ21 or other end form, port documents, latch and installation direction. Confirm shielded and unshielded housing configurations separately.记录RJ45或RJ21等端头的完整形式、端口资料、锁扣与安装方向；屏蔽壳体和普通壳体分别确认。 |
|---|---|
| Wiring order and port mapping线序与端口映射 | Define contact mapping, pair allocation and straight-through or crossover connections. Multiway assemblies need a complete map between every branch port and the main interface.确定逐针对应、线对分配、直通或交叉关系。多路组件需要每个端口与主接口的完整对应表。 |
| Cable and transmission requirements线材与目标传输要求 | Confirm cable category, conductor construction, target rate and overall length from the equipment task, then set channel checks. RJ45 form alone does not establish rate.按设备任务确认线材类别、导体结构、目标速率和总长，再确定所需信道验证；不以RJ45外形直接声明速率。 |
| Shielding and termination屏蔽与端接结构 | Define cable shielding, connector shells and grounding separately. Review the shield path and strain support at branches and transitions.分别定义线缆屏蔽、连接器壳体和接地安排，核对分支或过渡处的屏蔽路径及端头应力支撑。 |
| Power and data boundary供电与数据边界 | If the equipment uses PoE, define its mode, pair use, load and thermal requirements. Record separate power branches independently from network channels.设备如使用PoE，确认适用模式、线对使用、负载和温升要求；独立电源支路与网络通道分别记录。 |
| Dimensions, identification and acceptance尺寸、标识与验收 | Set overall and branch lengths and labels from port positions, then agree continuity, wiring, shield and target-network test scope and records.以端口位置确认总长、分支长度与标签，再约定导通、线序、屏蔽和目标网络测试的范围与记录。 |
APPLICATIONS连接的应用
Application directions应用方向
These directions cover copper network cabling and equipment ports. Define network system, wiring, supply and acceptance from equipment documents and the selected cable.以下方向围绕铜缆网络及设备端口展开。实际网络制式、线序、供电与验收以设备资料和选定线材为依据。
Switch-equipment port links交换设备端口连接
Define the copper-cable connection from equipment ports and target transmission requirements. Review end direction, latch access and shield continuity; establish rate and channel performance from the selected cable, overall length and actual termination.以设备端口及目标传输要求确定铜缆连接方案，审核端头方向、锁扣操作和屏蔽接续。额定速率与通道表现需要对应所选线材、总长及实际端接。
Patch panels and network outlets配线面板与网络出口
Connections between patch panels, network outlets and equipment need port IDs, a wiring convention and defined lengths. Arrange ends for the available panel space, keeping pulling loads and sharp bends away from the connector exit.配线面板、墙面网络出口与设备间的连接，需要明确端口编号、布线标准和长度。端头结构按面板空间安排，避免把拉力或急弯集中在锁扣后方。
Jumpers between rack devices机架设备间跳接
Set rack-jumper lengths and organization from device spacing and port layout. Include port grouping in labels for multiway assemblies; for individual links, balance a short route with the allowance needed to remove equipment modules.机架跳接以设备间距和端口排布确定线长及整理路径。多路组件可把端口分组纳入线号；单路组件则兼顾短跳接与可拆模块的维护余量。
Network entry for control equipment控制设备网络接入
For controllers or modules using copper network interfaces, confirm the network system, wiring map and shielding before arranging the cabinet route. Matching connector outlines do not establish the same wiring for different communication tasks.控制器或设备模块采用铜缆网络接口时，先核对网络制式、接线表和屏蔽方案，再安排柜内路径。接口外形相同并不表示不同通信任务可以共用同一接线。
Grouped multiport distribution多端口集中分配
Organize branches by module and channel at multiport equipment, identifying each port and destination. Concentrated interfaces such as RJ21 need a complete contact map; wire colors do not establish RJ45 allocation or network rate.多端口设备可按模块与通道整理分支，逐路标明对应端口和去向。RJ21等集中接口另需完整针位表，不按线色推断RJ45分配或网络速率。
Equipment extensions and service links设备扩展与检修跳接
Equipment extensions and service links need mating clearance, visible port IDs and manageable slack. After changing lengths, joints or branches, reconfirm continuity, wiring order and any required channel checks for the intended connection task.设备扩展或检修跳接需保留插拔空间、端口可见性和适当余长。更改线长、接续件或分支后，按目标连接用途重新确认导通、线序与所需信道验证。
ENGINEERING & PRODUCTION工程与制造
Adapt the connection to your equipment.围绕设备，调整连接细节。
Touched by me, better it’ll beTouched by me, better it’ll be
Custom wire harness manufacturing in China中国工厂 · 定制线束制造
Our China factory provides custom wire harness manufacturing and OEM/ODM support around equipment ports, wiring maps and routing. Approve ends, cables and manufacturing drawings for sample builds, with network-transmission and powered-link acceptance defined for the project.Super Smile-Tech中国工厂围绕设备端口、线序与安装路径提供定制线束制造及OEM/ODM支持。确认端头、线材和制造图后组织样品，网络传输与供电相关验收按项目要求确定。
Port allocation and wiring端口分配与线序
Convert equipment-port drawings into a contact map defining straight-through, crossover and branch allocation. Keep labels aligned with port IDs.把设备端口图转为逐针连接表，定义直通、交叉与分支分配，并让标签与端口编号保持对应。
Ends and routing combinations端头与路由组合
Arrange end direction, overall length and branch lengths around panels and racks. Select shielding, jackets and retention protection for the actual installation conditions.结合面板和机架空间安排端头朝向、总长与分支长度；屏蔽、护套及固定保护按实际敷设条件选择。
Samples and connection checks样品与连接验证
Review mating, wiring order and installed dimensions at sample approval. Define network-transmission and PoE checks for the specified cable, length, equipment and acceptance requirements.样品确认时核对对插、线序和安装尺寸；网络传输与PoE相关检查按指定线材、长度、设备及验收要求单独定义。
PRODUCT QUESTIONS产品问答
Product & customization questions产品与定制常见问题
Does an RJ45 end establish a network rate?RJ45端头是否代表固定网络速率？
It does not. Network performance depends on cable construction, termination, length and equipment requirements. Define the connection task before selecting the cable and test conditions.不代表。网络表现取决于线材结构、端接、长度与设备要求。先确定目标连接任务，再定义线材与测试条件。
Can multiway RJ45 branches be wired by color alone?多路RJ45分支能直接按颜色接线吗？
Use equipment-port documents and a contact map. Branch count or an RJ21 outline does not establish each signal assignment, and not every pair can be assumed to carry Ethernet.需按设备端口与逐针映射确认。分支数量或RJ21外形不能说明每路承载哪种信号，也不能默认全部线对用于以太网。
What is needed for a powered network connection?带供电的网络项目需要补充什么？
Provide the supply method, load, PoE mode or separate power circuit, cable length and thermal conditions. Define data and power paths separately and confirm the equipment-side interface requirements.补充供电方式、负载、PoE模式或独立电源电路、线长和热条件。数据路径与电源路径分别定义，并确认整机端接口要求。
Start with equipment ports and the connection map从设备端口与连接表开始
Share end interfaces, contact or port mapping, network and power tasks, target lengths and the installation layout to define termination, samples and acceptance requirements.提供两端接口、逐针或逐端口对应、网络与供电任务、目标长度和安装布局，我们据此梳理端接、样品与验收要求。
