Branched end layout分支端头布局
Conductors separate toward different ends, creating individual connection points. Branch lengths and directions can follow the equipment modules.导线向不同端头分出，形成独立接入位置。各支路可围绕设备模块分别安排长度与方向。
Instrument & Sensor Harness仪表与传感器线束

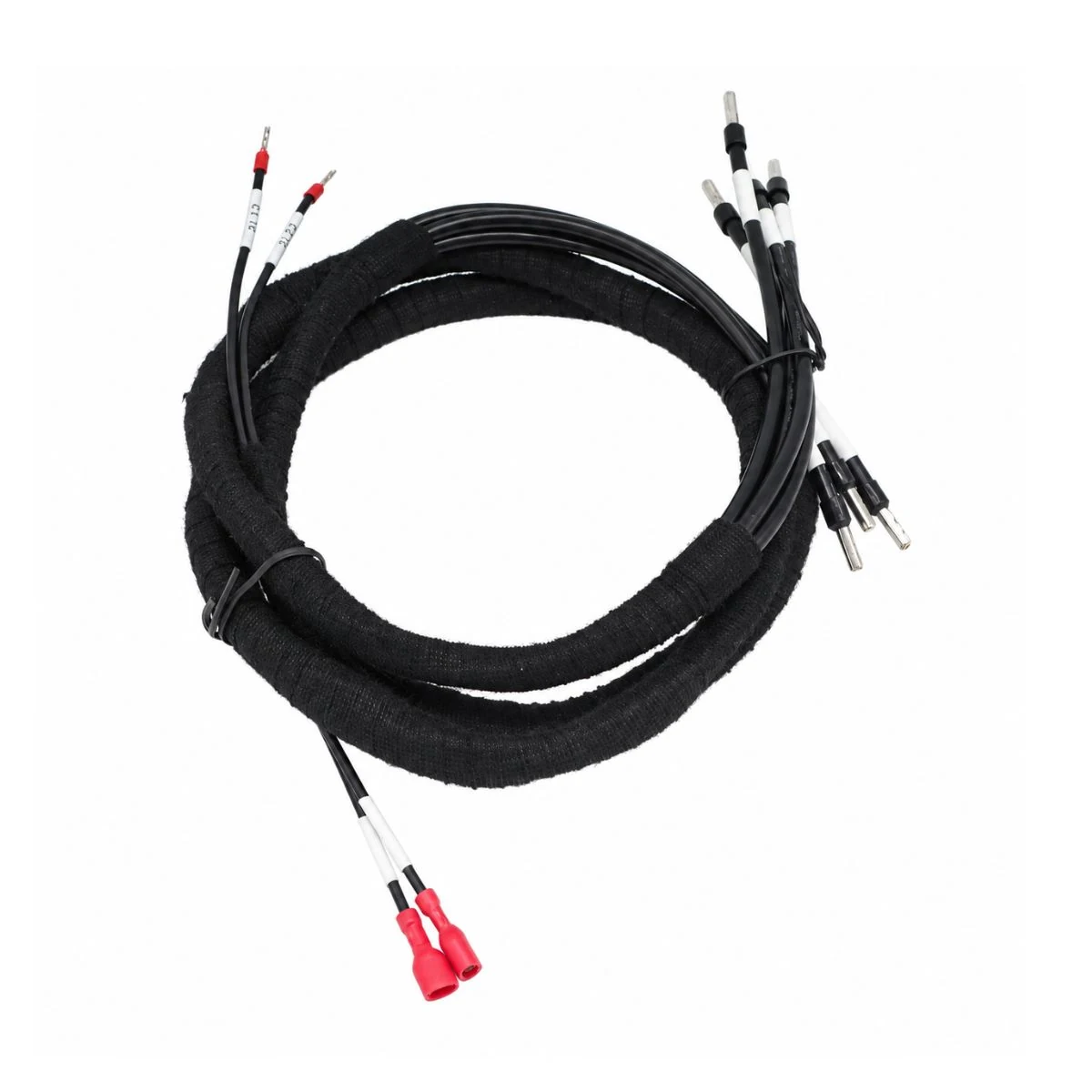

Terminal Branch & Braided Sleeve Sensor Harness端子分支与编织护套传感器线束
Terminal Branch & Braided Sleeve Sensor Harness combines branched end layout, terminal connection section, braided outer form. Interface, circuit and installation data guide dimensions, material selection and sample review.端子分支与编织护套传感器线束的结构重点包括分支端头布局、端子接入部位、编织形态外层。接口、电路与安装资料将作为尺寸、物料和样品制作的确认依据。
- Branched end layout分支端头布局
- Terminal connection section端子接入部位
- Braided outer form编织形态外层
CONSTRUCTION结构解析
Connection structure and design details连接结构与设计要点
Use the terminal branch & braided sleeve sensor harness form as a starting point and confirm these design points against drawings and the actual equipment.以端子分支与编织护套传感器线束的结构形式为起点，结合图纸和实际设备确认以下设计要点。
Terminal connection section端子接入部位
Leads use terminal-form ends at the connection points. Orientation, fixing and insulation coverage can follow the equipment assembly.引线以端子形式接入相应连接位置，可按设备装配方式安排端头方向、固定和绝缘覆盖。
Braided outer form编织形态外层
The outer covering has a braided form. Coverage segments and finishing can follow breakouts, routing passages and fixing positions.外层呈编织形态，可按分支出口、穿线位置和固定点定义覆盖段与收尾。
CONFIGURATION结构与选配
Construction & customization options结构与定制配置
The table describes the construction and available configuration choices. Materials, dimensions, circuits and inspection requirements are agreed for each project.以下说明展示结构与可配置内容。具体材料、尺寸、电路和检验要求按项目确认。
| Sensor model, output type and interface definition传感器型号、输出方式与接口定义 | Distinguish analog, switching and digital outputs by sensor model.按传感器型号区分模拟量、开关量或数字输出。 |
|---|---|
| Supply voltage, current and polarity供电电压、电流及极性 | Define supply, reference ground and signal polarity from device drawings.供电、参考地和信号极性按设备图定义。 |
| Analog, pulse or digital signal wiring模拟量、脉冲或数字信号接线方式 | Use separate wiring definitions for voltage, current, pulse and communication circuits.电压、电流、脉冲与通信回路采用各自接线定义。 |
| Shield drain and instrument grounding屏蔽排流线和仪表接地方式 | Follow the system grounding scheme for shields and instrument references.屏蔽端接与仪器参考地遵从系统接地方案。 |
| Circuit and revision reference电路与版本依据 | Provide the sensor and controller models, signal type, pin definition, supply voltage, connector orientation, required shielding and installation environment.需要提供传感器与控制器型号、信号类型、针脚定义、供电电压、接口方向、屏蔽要求和安装环境；涉及校准的系统，还应明确哪些校准或功能验证由客户完成。 |
| Sample and manufacturing configuration样品与制造配置 | Pin routing, conductor and shield construction are reviewed before sampling. Continuity, insulation where specified, shield termination and labels are checked to the approved drawing; signal performance testing is agreed separately when required.打样前审核针脚路径、导体与屏蔽结构；依据确认图纸检查导通、约定的绝缘项目、屏蔽端接和标签，若需要信号性能测试则另行约定。 |
APPLICATIONS连接的应用
Application directions应用方向
These are connection directions for project discussion. Suitability depends on interfaces, circuits, installation conditions and project validation; configuration can be adapted to the equipment.以下为可讨论的连接方向。实际适用性取决于接口、电路、安装环境和项目验证，可按设备需求调整。
Test and measurement equipment测试与测量设备
Bench instruments, DAQ modules, test fixtures, reference sensors and replaceable test leads. Distinguish analog, switching and digital outputs by sensor model.台式仪表、DAQ采集模块、测试工装、参考传感器和可更换测试线。选配时，按传感器型号区分模拟量、开关量或数字输出。
Process and packaging machinery过程与包装机械
Photoelectric, proximity, temperature, pressure, position and weighing sensors distributed across a production machine. Define supply, reference ground and signal polarity from device drawings.分布在生产设备中的光电、接近、温度、压力、位置和称重传感器。选配时，供电、参考地和信号极性按设备图定义。
Water, energy and environmental monitoring水处理、能源与环境监测
Level, flow, pressure, conductivity and condition-monitoring instruments installed around pumps, tanks and treatment systems. Use separate wiring definitions for voltage, current, pulse and communication circuits.安装在泵、储罐与处理系统周围的液位、流量、压力、电导率及状态监测仪表。选配时，电压、电流、脉冲与通信回路采用各自接线定义。
Machine tools and motion equipment机床与运动设备
Encoders, limit sensors, tool probes, temperature points and condition-monitoring devices inside machines. Follow the system grounding scheme for shields and instrument references.机床内部的编码器、限位传感器、对刀探头、温度测点与状态监测装置。选配时，屏蔽端接与仪器参考地遵从系统接地方案。
Laboratory and analytical instruments实验室与分析仪器
Internal sensor interconnects, pumps, valves, detectors, acquisition boards and front-panel instruments. Distinguish analog, switching and digital outputs by sensor model.连接内部传感器、泵、阀、检测器、采集板与前面板仪表。选配时，按传感器型号区分模拟量、开关量或数字输出。
Automation and robotic cells自动化与机器人单元
Position, force, vision-trigger, safety and process sensors linked to local I/O and controllers. Define supply, reference ground and signal polarity from device drawings.将位置、力、视觉触发、安全与工艺传感器连接至现场I/O和控制器。选配时，供电、参考地和信号极性按设备图定义。
ENGINEERING & PRODUCTION工程与制造
Adapt the connection to your equipment.围绕设备，调整连接细节。
Touched by me, better it’ll beTouched by me, better it’ll be
Custom wire harness manufacturing in China中国工厂 · 定制线束制造
Our China factory supports instrument & sensor harness projects through custom wire harness manufacturing and OEM/ODM development. Interface, circuit and installation data guide material selection, sample builds and manufacturing-document approval before repeat production.Super Smile-Tech 中国工厂围绕仪表与传感器线束的项目需求提供定制线束制造与 OEM/ODM 支持。我们从接口、电路与安装资料开始，协同物料选配、样品制作和制造文件确认，再按批准要求组织重复生产。
Build from sensor and instrument data依据传感器与仪表资料开发
Model numbers, manuals, pin tables, signal type, supply, measurement range and connector drawings are converted into a reviewed interconnect definition.把型号、手册、针脚表、信号类型、供电、测量范围和接口图转化为经过审核的互连定义。
Match an existing cable or sample匹配现有线缆或样品
A sample can establish dimensions, visible construction and mating interfaces, while hidden circuits, compensation materials and calibration responsibility still require confirmation.样品可用于确认尺寸、可见结构和对插接口，但隐藏回路、补偿材料与校准责任仍需另行确认。
Separate sensitive signals from power将敏感信号与动力回路分开
Routing, spacing, pair layout, shield termination and branch points are coordinated with the machine to reduce avoidable coupling into low-level circuits.结合设备协调路径、间距、线对布局、屏蔽端接和分支点，减少动力回路对低电平信号的不必要耦合。
PRODUCT QUESTIONS产品问答
Product & customization questions产品与定制常见问题
Is an instrument and sensor harness a fixed product model?仪表与传感器线束是固定型号吗？
No. It is a family covering many sensors, instruments, signal types, interfaces and environments. The final harness is defined by the actual measurement system.不是。它覆盖多种传感器、仪表、信号类型、接口与环境，最终结构由真实测量系统定义。
What information is needed for a quotation?报价需要提供哪些资料？
Provide sensor and instrument models, manuals or drawings, signal type, supply, pin map, connector data, route, length, environment, quantity and required inspections.建议提供传感器与仪表型号、手册或图纸、信号类型、供电、针脚表、接口资料、路径、长度、环境、数量和检验要求。
Can you copy an existing sensor cable?可以按现有传感器线缆复制吗？
A sample can define dimensions and visible construction, but signal function, hidden components, compensation material and calibration responsibility must still be confirmed.样品可用于确认尺寸和可见结构，但信号功能、隐藏元件、补偿材料与校准责任仍需确认。
Start with your interface and installation requirements从您的接口与安装需求开始
Share mating interfaces, a circuit table, target lengths or a sample for the terminal branch & braided sleeve sensor harness. We can use them to review configuration and sample requirements.提供端子分支与编织护套传感器线束的对插接口、回路表、目标长度或参考样品，我们据此梳理选配与样品确认事项。
