Plug-in connection end插接式端头
The end uses a plug-in form, with clearance arranged for insertion, removal and cable bends.端头采用插接形式，可围绕安装位置安排插入、退出及线缆弯曲空间。
Trailer Harness拖车线束

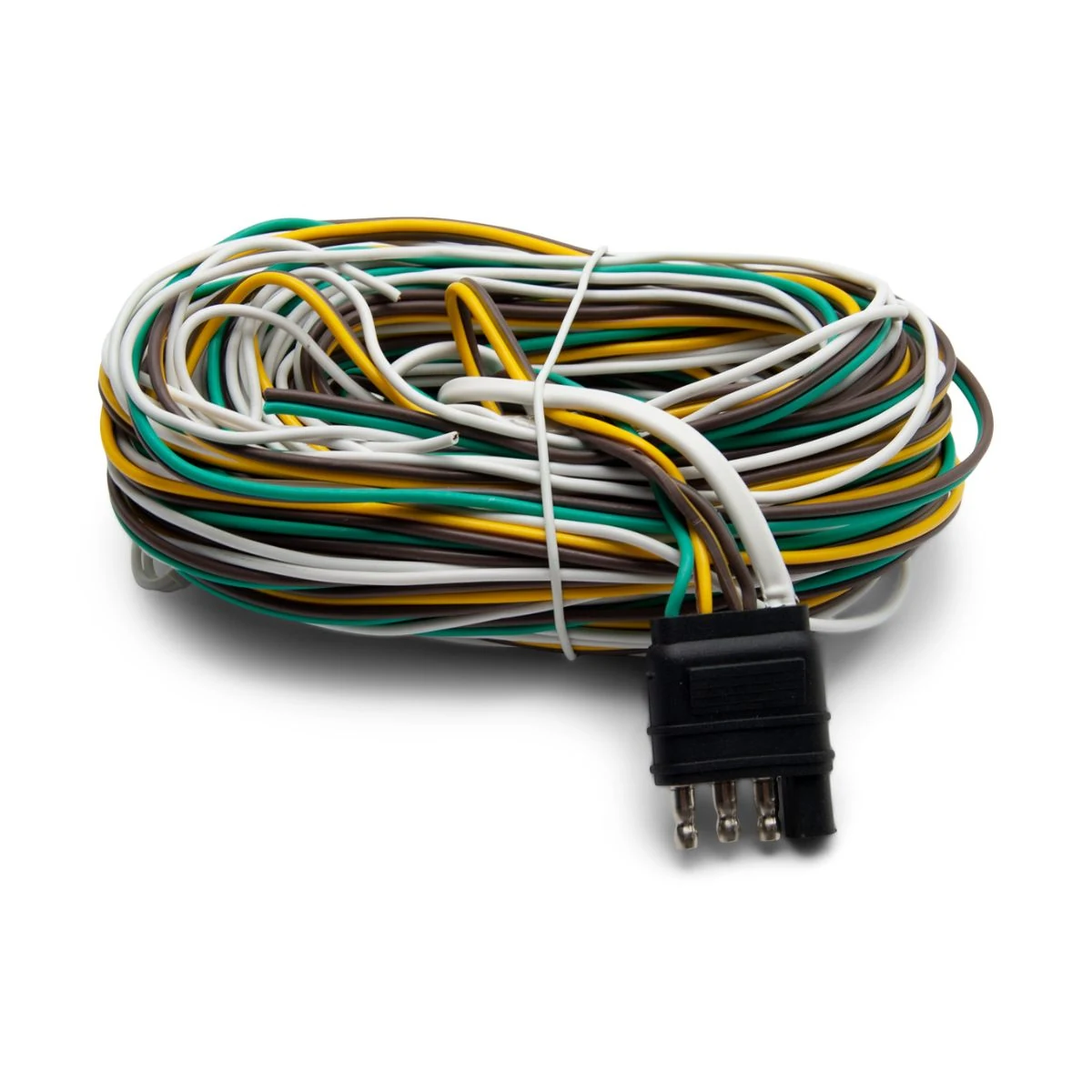

4-Pin Flat Plug Color-Coded Wire Trailer Light Harness4针扁平插头多色导线拖车灯线束
4-Pin Flat Plug Color-Coded Wire Trailer Light Harness combines plug-in connection end, flat conductor arrangement. Interface, circuit and installation data guide dimensions, material selection and sample review.4针扁平插头多色导线拖车灯线束的结构重点包括插接式端头、扁平排列结构。接口、电路与安装资料将作为尺寸、物料和样品制作的确认依据。
- Interface and circuit review接口与回路对应审核
- Length and installation configuration线长与安装结构定制
- Manufacture from approved sample样品确认后组织制造
CONSTRUCTION结构解析
Connection structure and design details连接结构与设计要点
Use the 4-pin flat plug color-coded wire trailer light harness form as a starting point and confirm these design points against drawings and the actual equipment.以4针扁平插头多色导线拖车灯线束的结构形式为起点，结合图纸和实际设备确认以下设计要点。
Flat conductor arrangement扁平排列结构
The cable uses a flat arrangement, allowing compact routing around insertion direction, folds and end orientation.线缆采用扁平排列形态，可围绕插入方向、折转位置和端头朝向安排紧凑布线。
Conductor and insulation selection导体与绝缘选配
Select conductors and insulation from circuit loads, diameter limits, bending and exposure. A material name does not replace ratings or validation results.从电路负载、外径限制、弯曲方式与环境条件选择导体和绝缘体系；材料名称不应直接代替额定参数或验证结果。
CONFIGURATION结构与选配
Construction & customization options结构与定制配置
The table describes the construction and available configuration choices. Materials, dimensions, circuits and inspection requirements are agreed for each project.以下说明展示结构与可配置内容。具体材料、尺寸、电路和检验要求按项目确认。
| Regional trailer connector format and pinout目标地区拖车插座制式与针图 | Confirm regional connector format with the tow-vehicle configuration.目标地区接口制式和牵引车配置一起确认。 |
|---|---|
| Tow vehicle, trailer lighting and brake arrangement牵引车、拖车灯具与制动配置 | Plan lighting, braking, charging and auxiliary circuits separately.灯光、制动、充电及辅助回路分别规划。 |
| Circuit current, length and ground structure各回路电流、长度与地线结构 | Select conductors from circuit current, body length and return paths.回路电流、车体长度和回路线共同选线。 |
| External sealing, fixing and abrasion conditions外部防水、线束固定和耐磨条件 | Match external connectors, fixing and abrasion protection to frame motion.外部接头、固定与耐磨配合车架运动。 |
| Circuit and revision reference电路与版本依据 | Provide towing vehicle and trailer type; market and applicable interface standard; system voltage; connector and mating-part data; circuit table and loads; lighting, brake, ABS/EBS and auxiliary equipment; trailer length, axle count and articulation points; chassis route photographs; clips and pass-throughs; water, salt, mud, UV and washdown exposure; drawings or sample; labels; quantity; and required validation.请提供牵引车与拖车类型、销售市场及适用接口标准、系统电压、连接器与对插件资料、回路表与负载、灯光、制动、ABS/EBS 及辅助设备信息、拖车长度、车轴数量与铰接点、底盘走线照片、卡扣与穿孔、水、盐、泥浆、紫外线及冲洗暴露、图纸或样品、标签、数量与所需验证。 |
| Sample and manufacturing configuration样品与制造配置 | Approved requirements become controlled drawings, circuit and pin tables, BOMs, cut lists, splice maps, route datums, protection instructions, labels and test programs. First articles are checked for mating, reach, articulation, chassis clearance, lamp and equipment function and agreed vehicle behavior before repeat production.批准需求会转化为受控图纸、回路与针脚表、物料表、裁线表、接续图、走线基准、防护工艺、标签与测试程序。重复生产前检查首件的对插、可达、铰接、底盘间隙、灯具与设备功能及约定车辆行为，记录持续关联拖车配置和图纸版本。 |
APPLICATIONS连接的应用
Application directions应用方向
These are connection directions for project discussion. Suitability depends on interfaces, circuits, installation conditions and project validation; configuration can be adapted to the equipment.以下为可讨论的连接方向。实际适用性取决于接口、电路、安装环境和项目验证，可按设备需求调整。
Trailer lighting links拖车灯光连接
Separate lighting functions by regional format and tow-vehicle circuits. Confirm regional connector format with the tow-vehicle configuration.按地区制式和牵引车回路区分灯光功能。选配时，目标地区接口制式和牵引车配置一起确认。

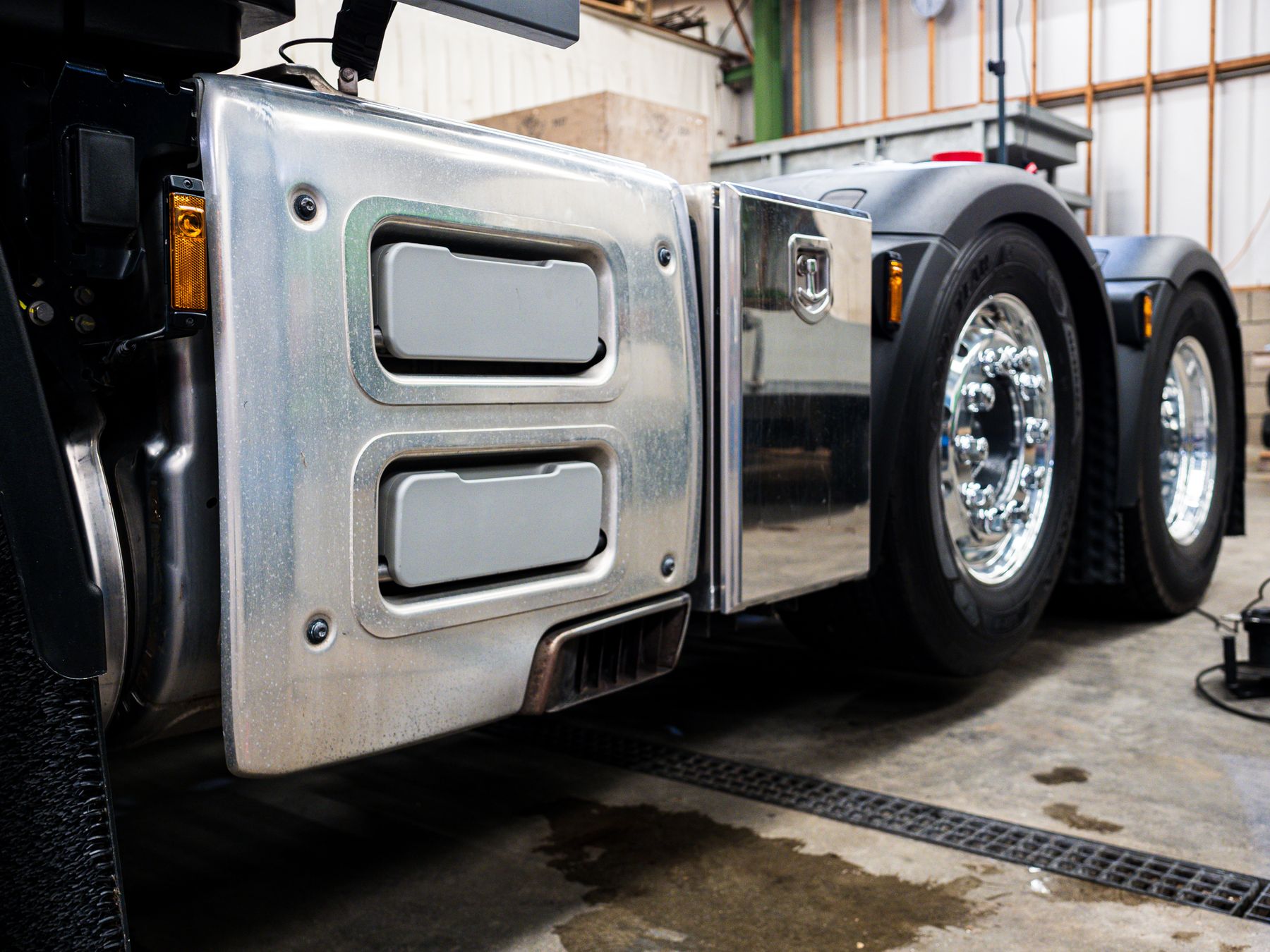

Brake and axle branches制动与车轴分支
Define braking, sensors and motion clearance separately. Plan lighting, braking, charging and auxiliary circuits separately.制动、传感器及运动空间分别定义。选配时，灯光、制动、充电及辅助回路分别规划。
Auxiliary power and body equipment辅助电源与上装
Give charging, liftgate and equipment loads separate protection budgets. Select conductors from circuit current, body length and return paths.充电、尾板或设备负载需要各自保护预算。选配时，回路电流、车体长度和回路线共同选线。
Doors and sliding structures车门与滑动结构
Provide slack and protection through opening, closing and sliding travel. Match external connectors, fixing and abrasion protection to frame motion.余量和防磨按打开、关闭与滑动全过程安排。选配时，外部接头、固定与耐磨配合车架运动。
Body-equipment auxiliary-power interfaces车厢辅助电源接口
For body auxiliaries, review power contacts, coupling, wire size and installation space, then define the assembly from the equipment drawings. Confirm regional connector format with the tow-vehicle configuration.车厢辅助设备的供电线需核对电源接点、锁紧方式、线规和安装空间，再按设备图纸定义组件。选配时，目标地区接口制式和牵引车配置一起确认。
Service adapters and ports检修转接与端口
Define interfaces from regional format, tools and actual pinout. Plan lighting, braking, charging and auxiliary circuits separately.地区制式、工具和实际针序共同确定接口。选配时，灯光、制动、充电及辅助回路分别规划。
ENGINEERING & PRODUCTION工程与制造
Adapt the connection to your equipment.围绕设备，调整连接细节。
Touched by me, better it’ll beTouched by me, better it’ll be

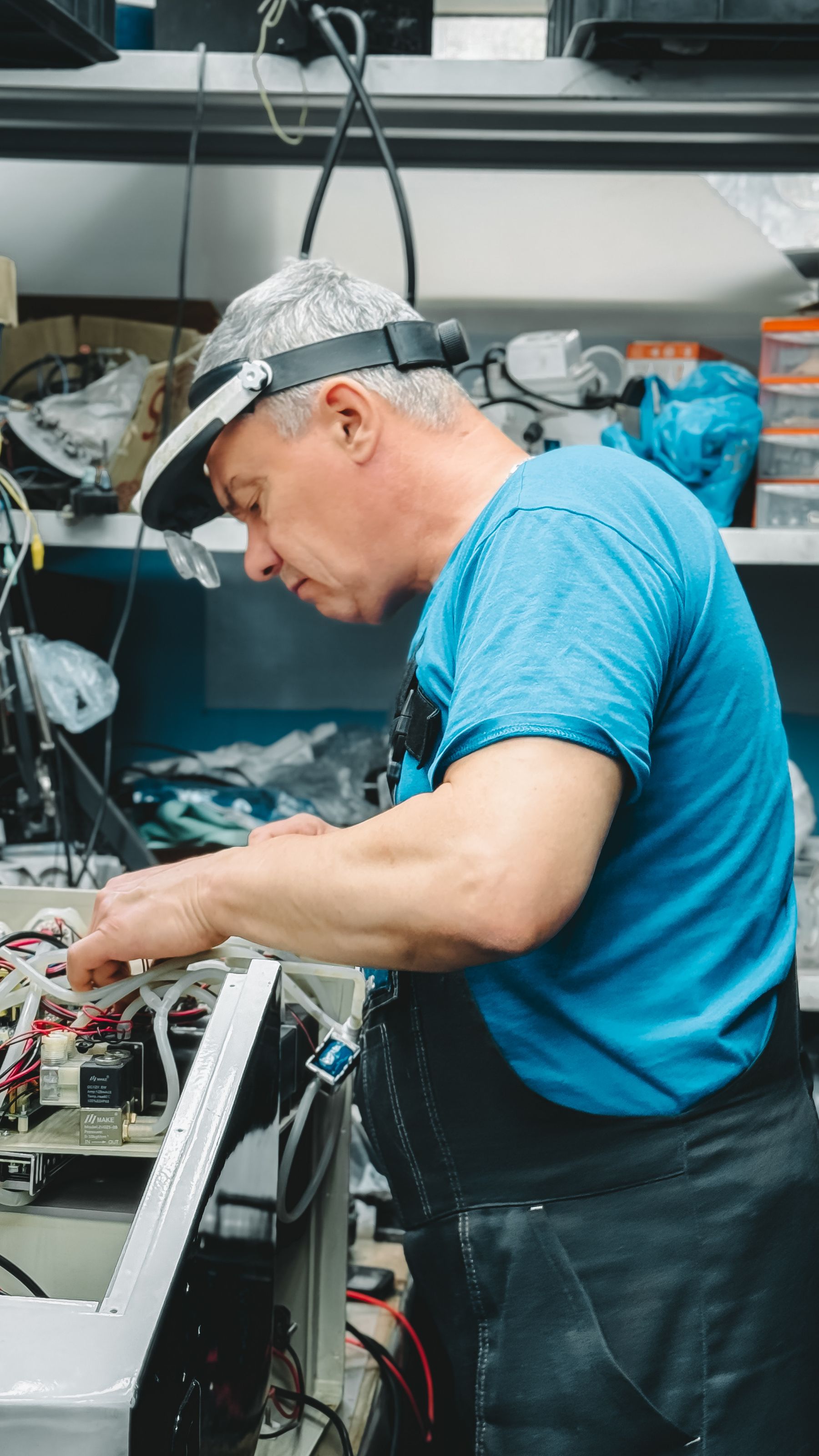

Custom wire harness manufacturing in China中国工厂 · 定制线束制造
Our China factory supports trailer harness projects through custom wire harness manufacturing and OEM/ODM development. Interface, circuit and installation data guide material selection, sample builds and manufacturing-document approval before repeat production.Super Smile-Tech 中国工厂围绕拖车线束的项目需求提供定制线束制造与 OEM/ODM 支持。我们从接口、电路与安装资料开始，协同物料选配、样品制作和制造文件确认，再按批准要求组织重复生产。

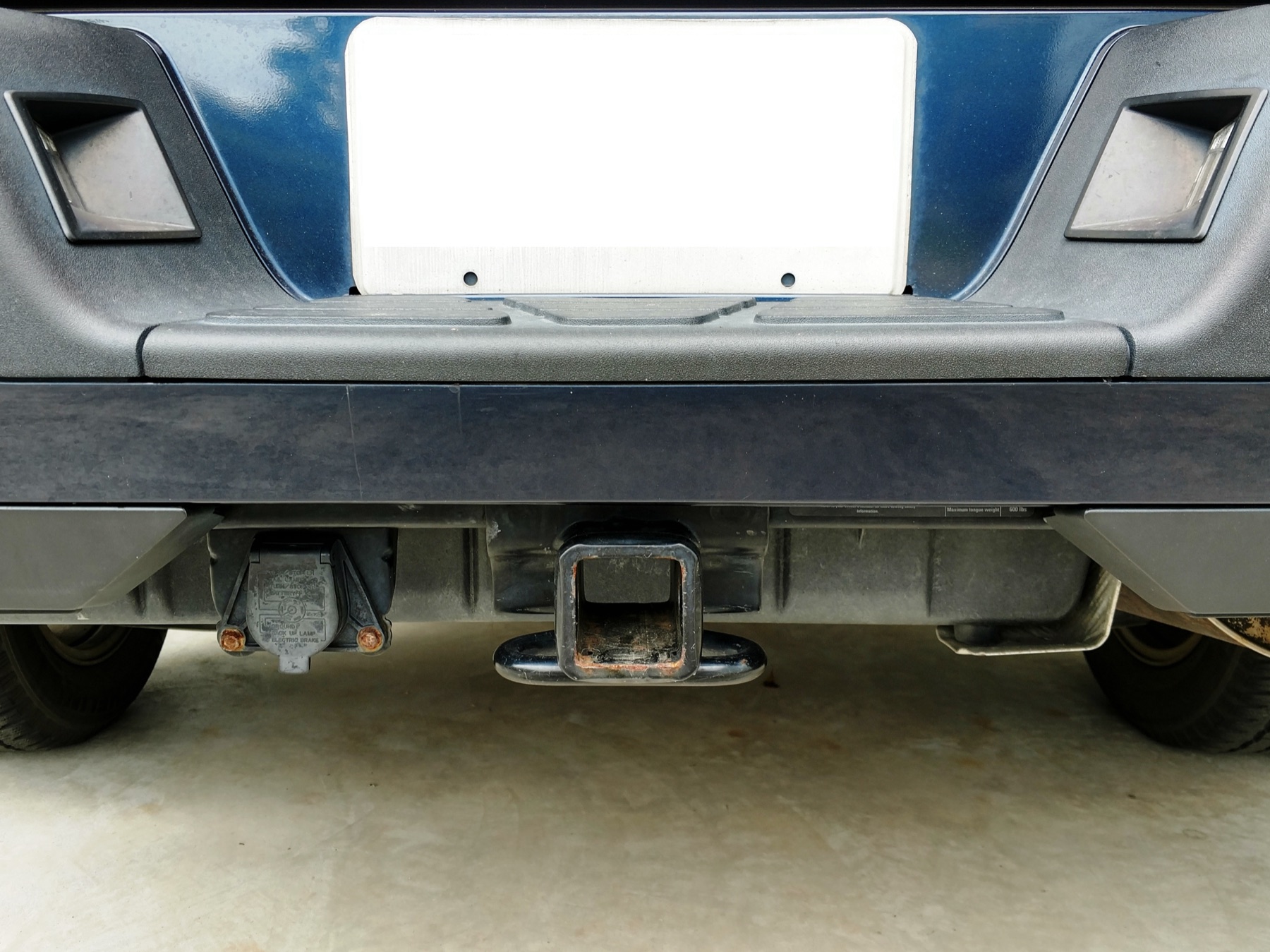

Regional trailer connector format and pinout目标地区拖车插座制式与针图
Confirm regional connector format with the tow-vehicle configuration.目标地区接口制式和牵引车配置一起确认。
Tow vehicle, trailer lighting and brake arrangement牵引车、拖车灯具与制动配置
Plan lighting, braking, charging and auxiliary circuits separately.灯光、制动、充电及辅助回路分别规划。
External sealing, fixing and abrasion conditions外部防水、线束固定和耐磨条件
Match external connectors, fixing and abrasion protection to frame motion.外部接头、固定与耐磨配合车架运动。
PRODUCT QUESTIONS产品问答
Product & customization questions产品与定制常见问题
Is a trailer harness a universal product?拖车线束是通用产品吗？
No. It is a broad family of tow-interface, chassis, lighting, brake, axle, auxiliary and equipment harnesses. Market, connector, voltage, trailer geometry, loads and installed options determine the released version.不是。它是由牵引接口、底盘、灯光、制动、车轴、辅助与设备线束组成的广泛家族，市场、连接器、电压、拖车几何、负载与安装选项共同决定放行版本。
Can two seven-pin trailer plugs use the same pinout?两个七针拖车插头一定使用相同针脚定义吗？
Not by assumption. Seven-position interfaces can belong to different standards and vehicle classes. Mating family, viewing direction, pin assignment, voltage, current and circuit function must be verified.不能直接假设。七位接口可能属于不同标准与车辆级别，必须核对对插家族、视图方向、针脚定义、电压、电流与回路功能。
Does a sealed connector make the complete harness waterproof?使用密封连接器就能让整根线束防水吗？
No. Housing, terminal, seal, cavity plug, mating part, cable exit, splice construction, covering, drainage, routing and assembly quality must work together under a defined exposure and test condition.不能。壳体、端子、线封、堵头、对插件、出线、接续结构、覆盖层、排水、走线与装配质量必须在规定暴露和测试条件下共同工作。
Start with your interface and installation requirements从您的接口与安装需求开始
Share mating interfaces, a circuit table, target lengths or a sample for the 4-pin flat plug color-coded wire trailer light harness. We can use them to review configuration and sample requirements.提供4针扁平插头多色导线拖车灯线束的对插接口、回路表、目标长度或参考样品，我们据此梳理选配与样品确认事项。
