Product type

Appliance Harness

Overview

Appliance harnesses distribute power and control signals among switches, heaters, motors, sensors, displays and control boards inside electrical equipment. Space, heat sources and assembly sequence strongly influence the design.

Ask About This Product Type Find Models & Material Part Numbers Back to Products

Popular Product Photos

01 / 15

01

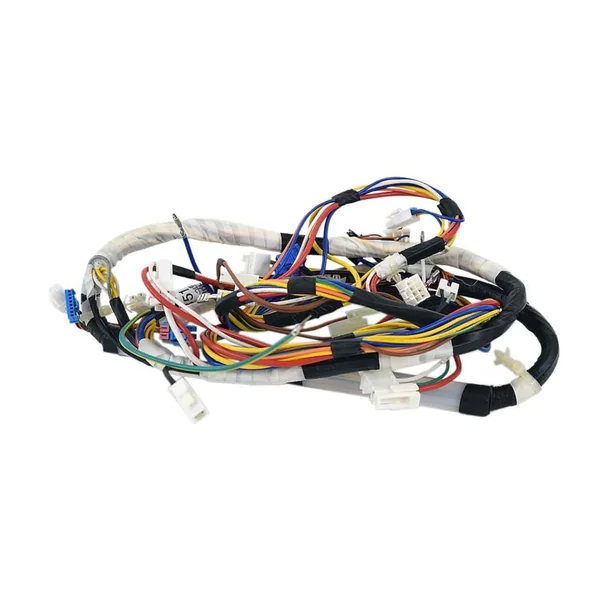

Multi-Branch Appliance HarnessEAD60843513

02

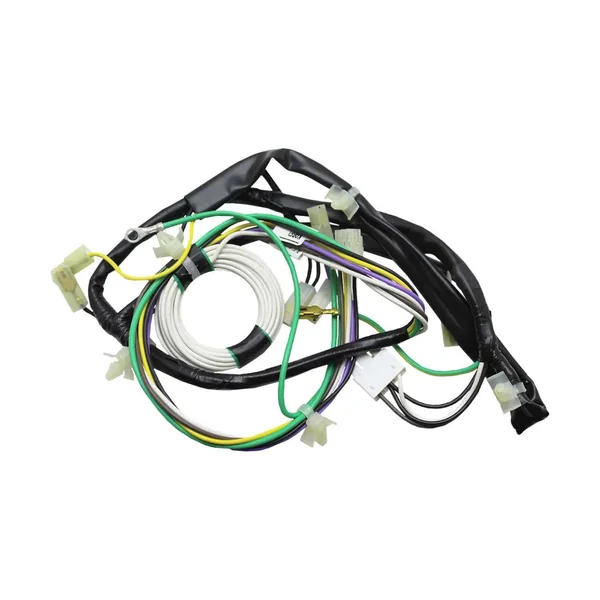

Lower Washing-Machine Harness64591014

03

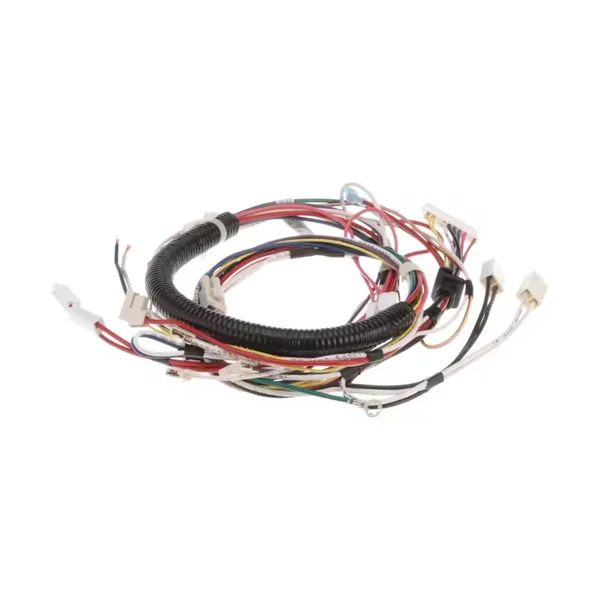

Main Wiring Appliance Harness5304504853

04

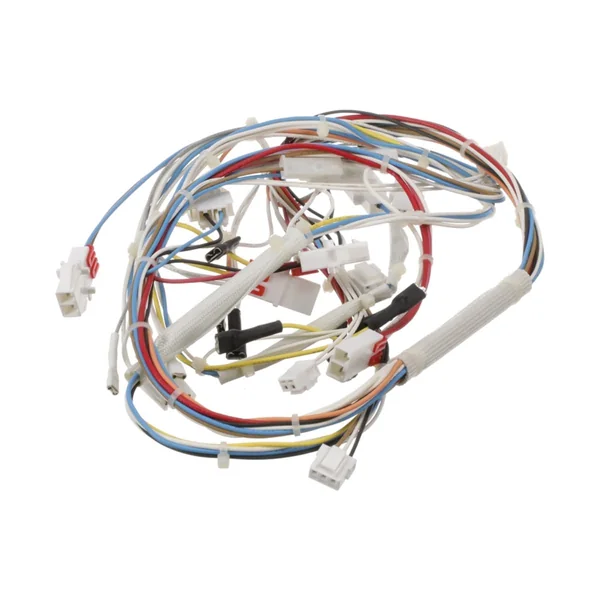

Single Plug Appliance HarnessEAD62040304

05

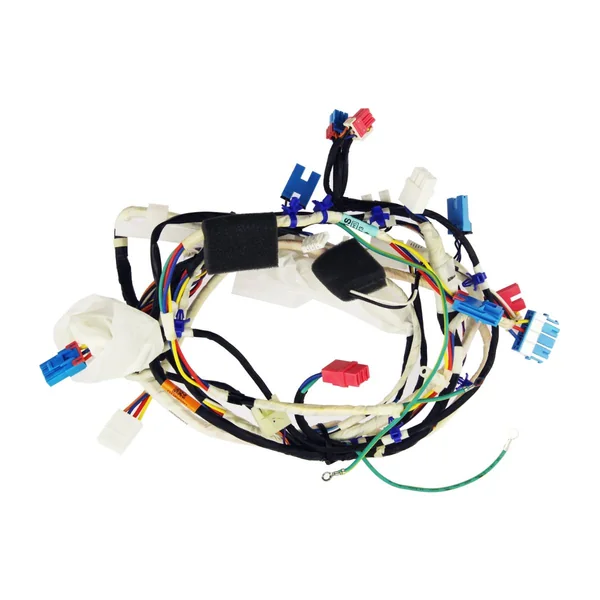

Washing-Machine Main Wiring HarnessEAD64545312

06

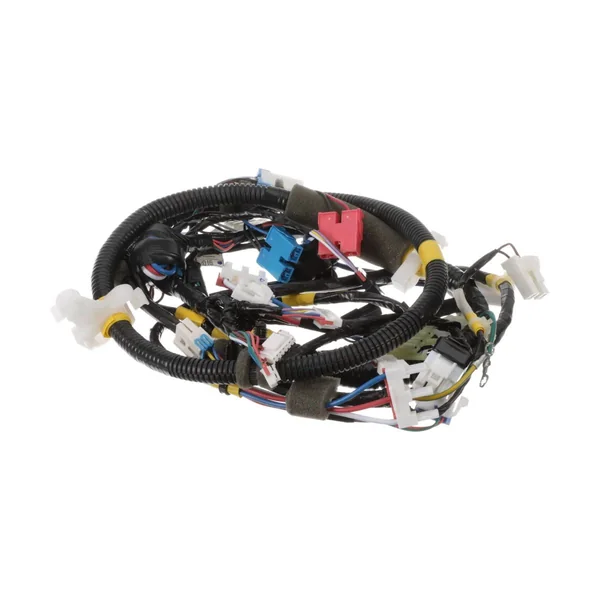

Main Power Multi-Branch HarnessDC93-00614A

07

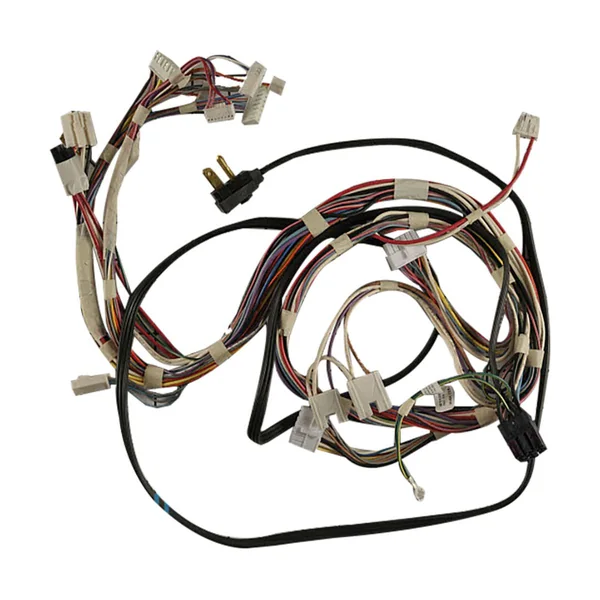

Refrigerator Multi-Plug Main HarnessW11396386

08

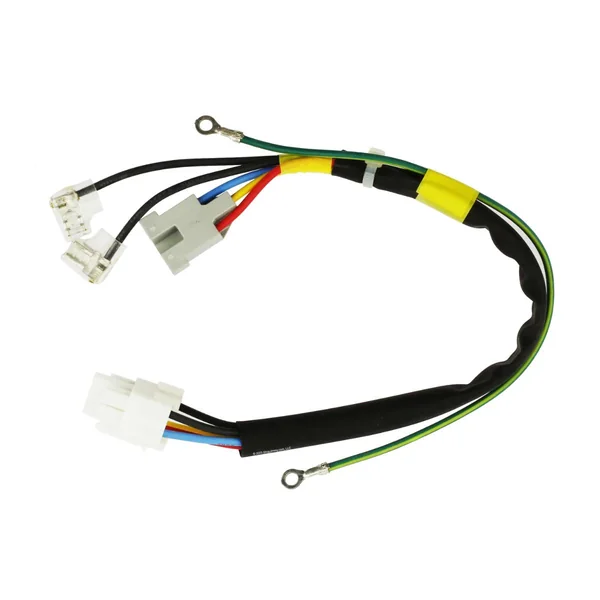

Refrigerator Ring-Terminal & Plug HarnessEAD61050843

09

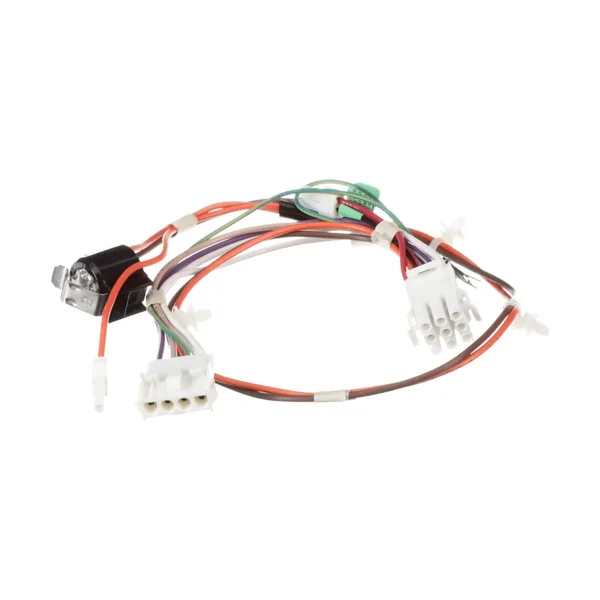

Appliance Dual Plugs HarnessWPW10290745

10

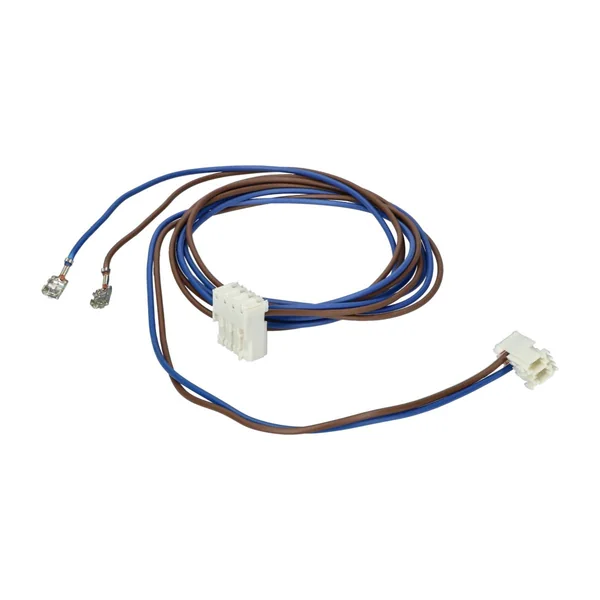

Dishwasher Terminal & Plug Wiring Harness

11

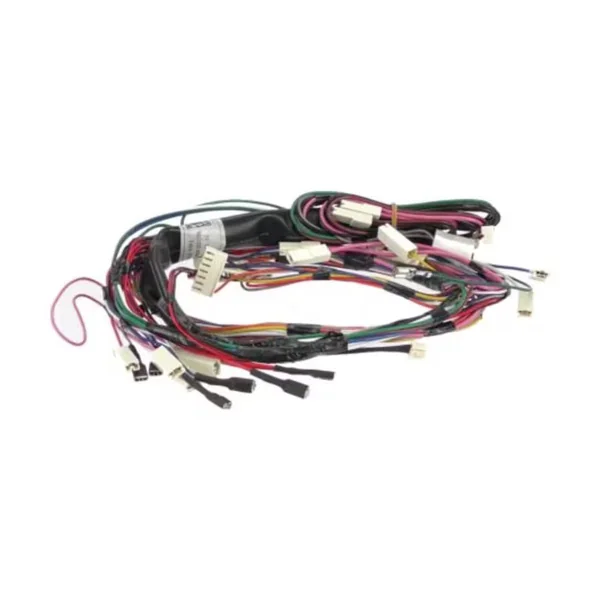

Appliance Main Wiring Harness17476000008482

12

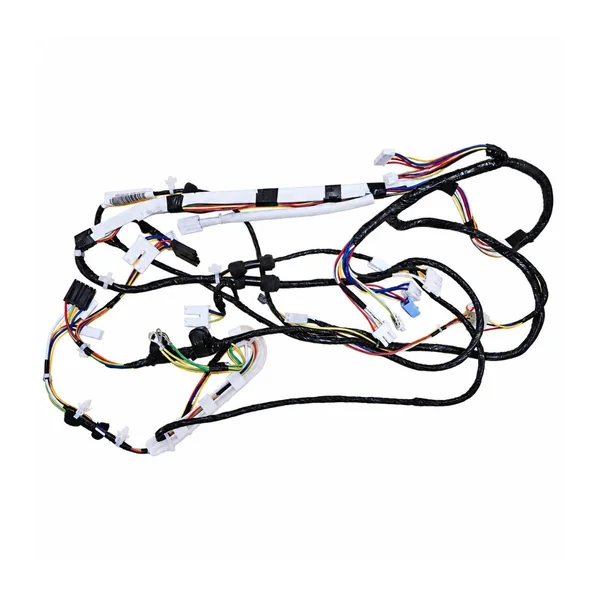

Washing-Machine Multi-Plug Harness17438100004865

13

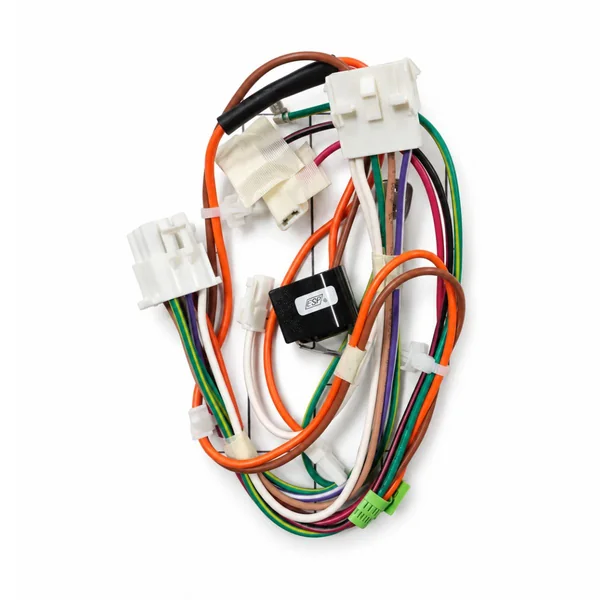

Refrigerator Freezer Plug HarnessW11260592

14

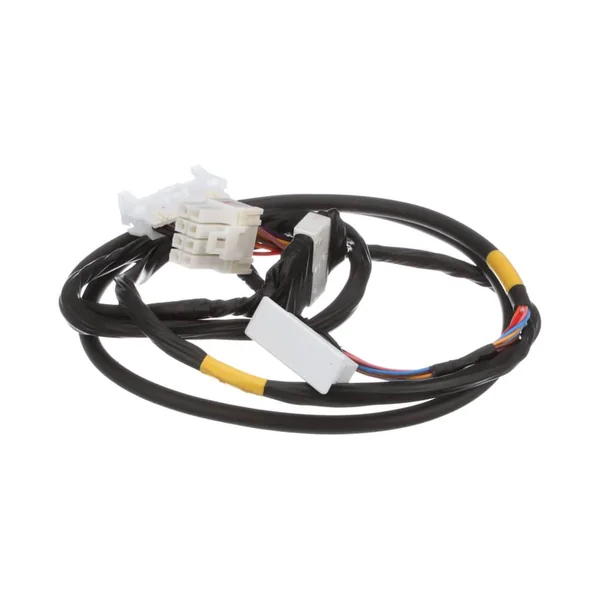

Refrigerator Plug Wiring HarnessDA96-00640A

15

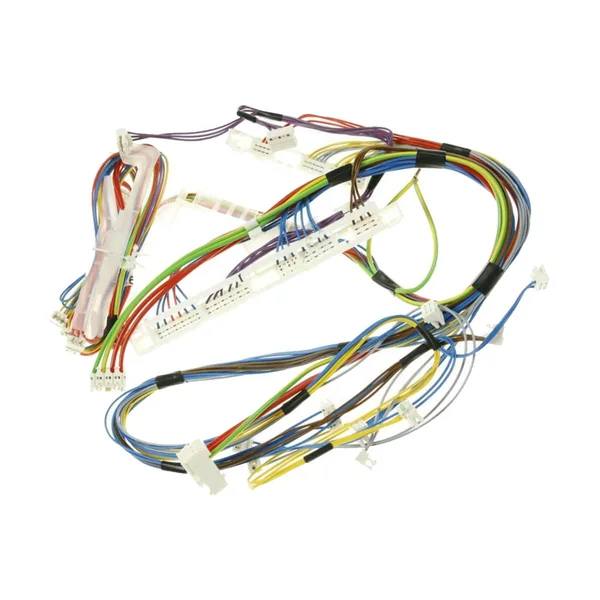

Appliance Multi-Plug Wiring Harness12029103 / 00755076

Product Introduction

Power, control and sensing connections inside electrical equipment

An appliance harness is not one standard cable. It is a broad family covering internal power leads, heater circuits, motor and compressor branches, sensor and switch wiring, display connections and compact multi-branch looms. The finished assembly is developed around the actual appliance architecture, current, temperature zones, component interfaces, installation path and production sequence.

Appliance Harness Configurations

Control board and interface harness

Connects the main PCB, relay board, display, keypad and local modules with defined pin routing, connector orientation, service loops and assembly order.

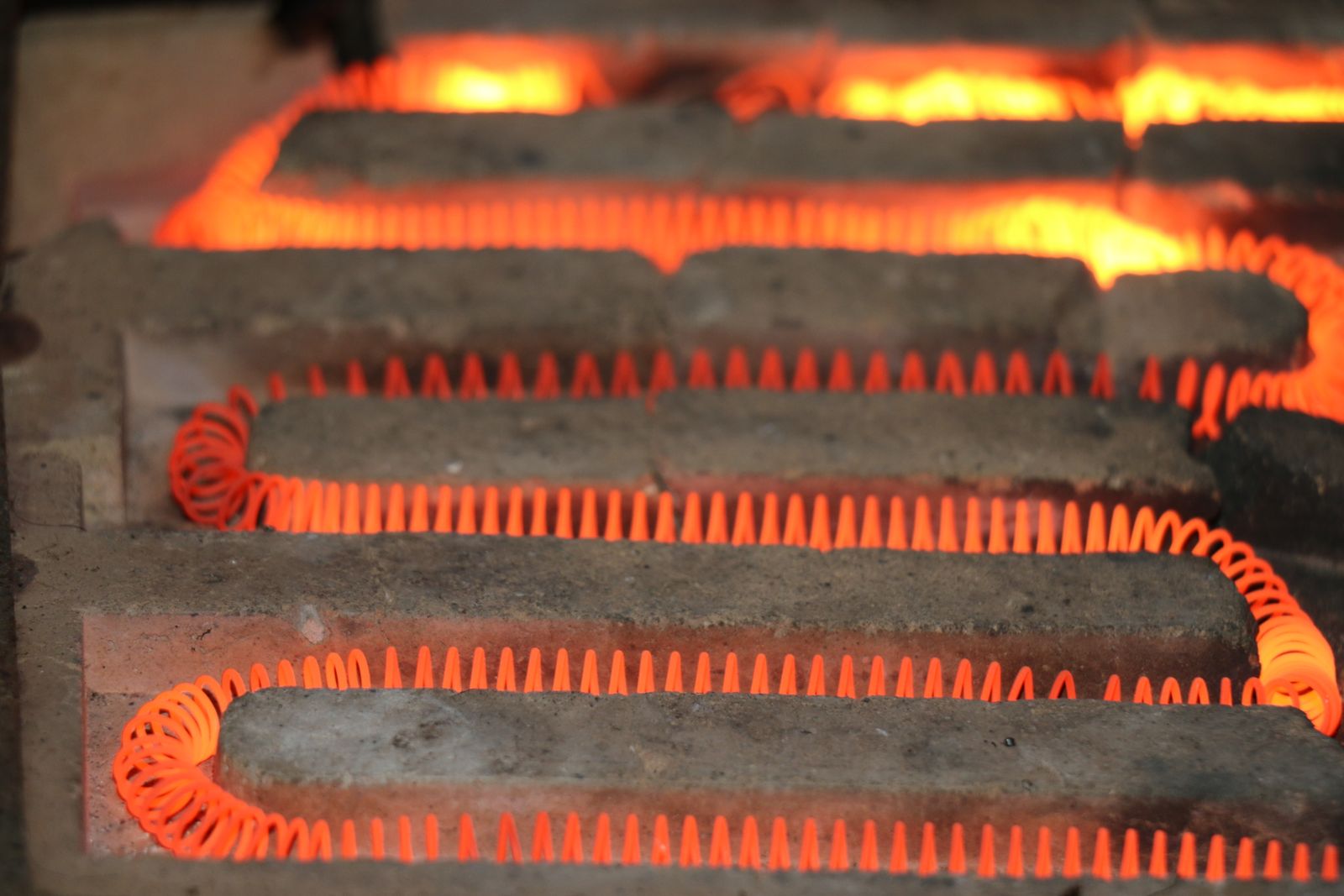

Heater and thermostat harness

Routes power and temperature-control circuits around heaters, thermostats, thermal cutoffs and temperature sensors while keeping insulation and terminals suitable for the actual heat zone.

Motor, fan and compressor harness

Combines motor power, start or run components, feedback, overload protection and grounding connections for fans, pumps, compressors and drive modules.

Sensor, switch and interlock harness

Links door switches, level devices, flow sensors, pressure switches, limit contacts and safety interlocks with clear branch identification and protected routing.

Display and user-interface harness

Provides compact power, communication and key-scan connections between displays, touch panels, indicator boards and the main controller in restricted front-panel spaces.

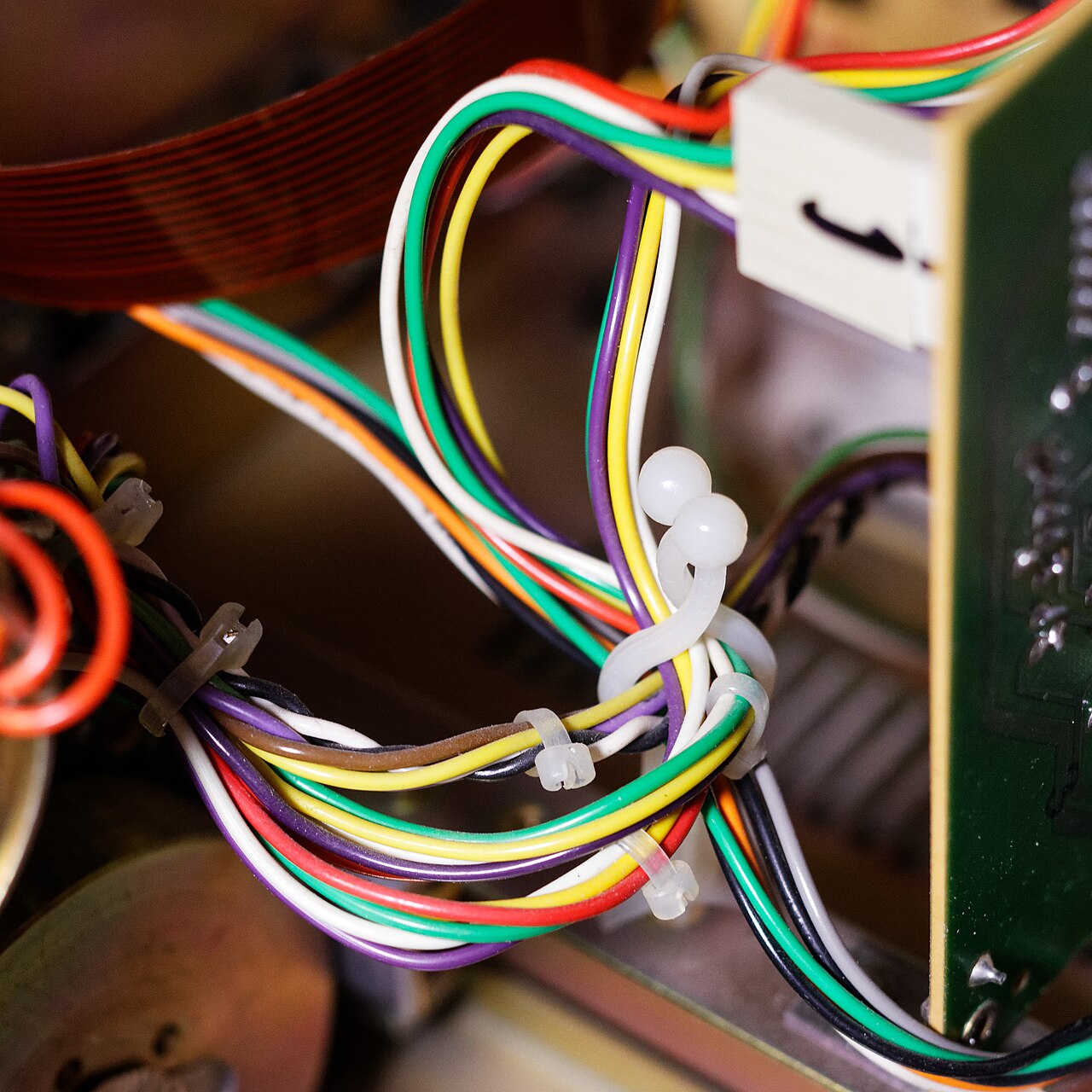

Compact multi-branch internal harness

Organizes many short internal circuits into a formed loom whose branch points, clips, labels and connector directions match the appliance assembly sequence.

Material Recommendations

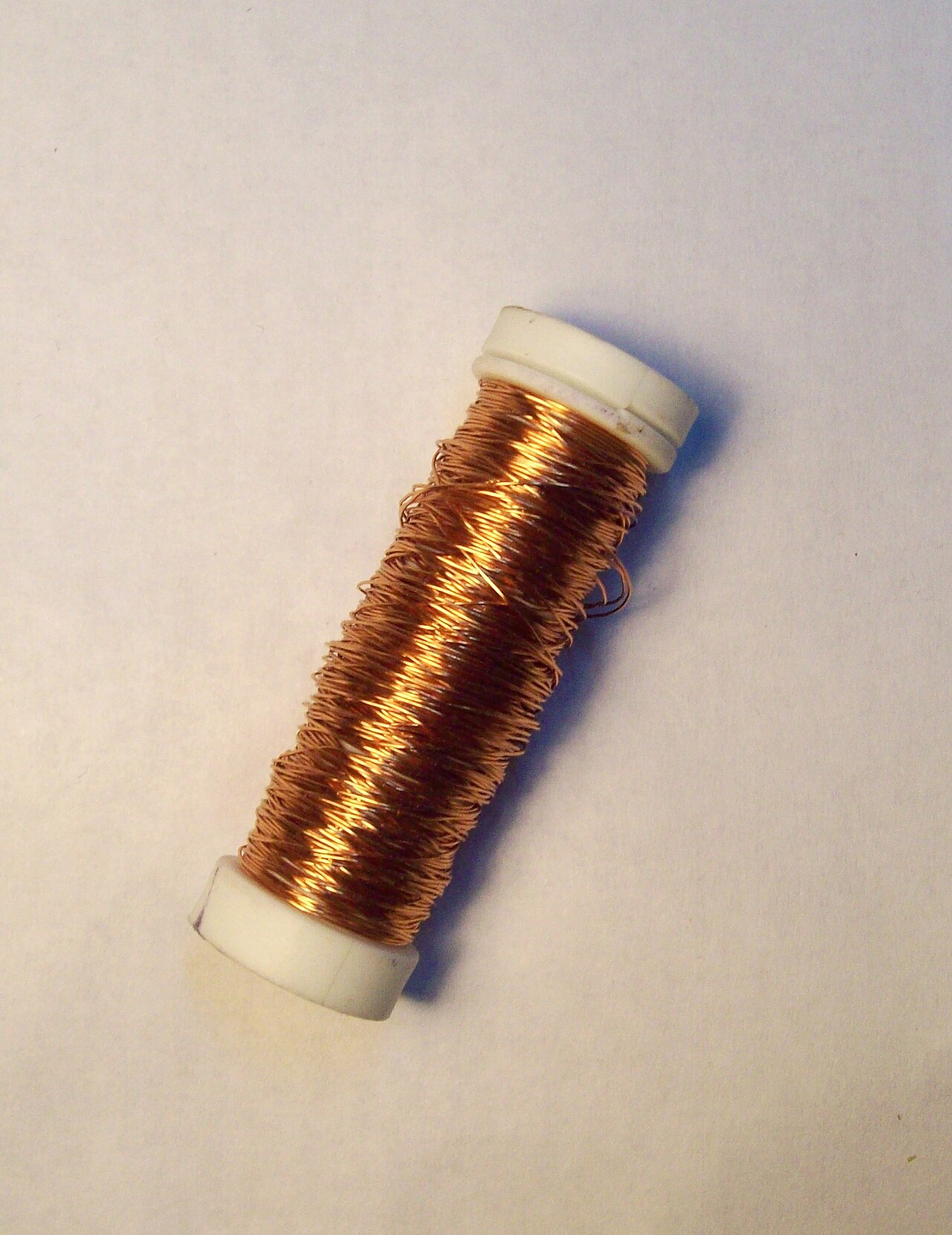

Conductor size and strand construction

Conductor size is selected from current, voltage drop, duty cycle, ambient temperature, bundling, terminal range and applicable equipment documentation. Fine-strand or other constructions are used only when movement and termination requirements justify them.

Insulation for normal and heated zones

PVC, XLPE, silicone, fluoropolymer or another specified insulation is reviewed against conductor temperature, nearby heat sources, flexing, moisture, chemicals and required flame behavior. One harness may contain more than one insulation system.

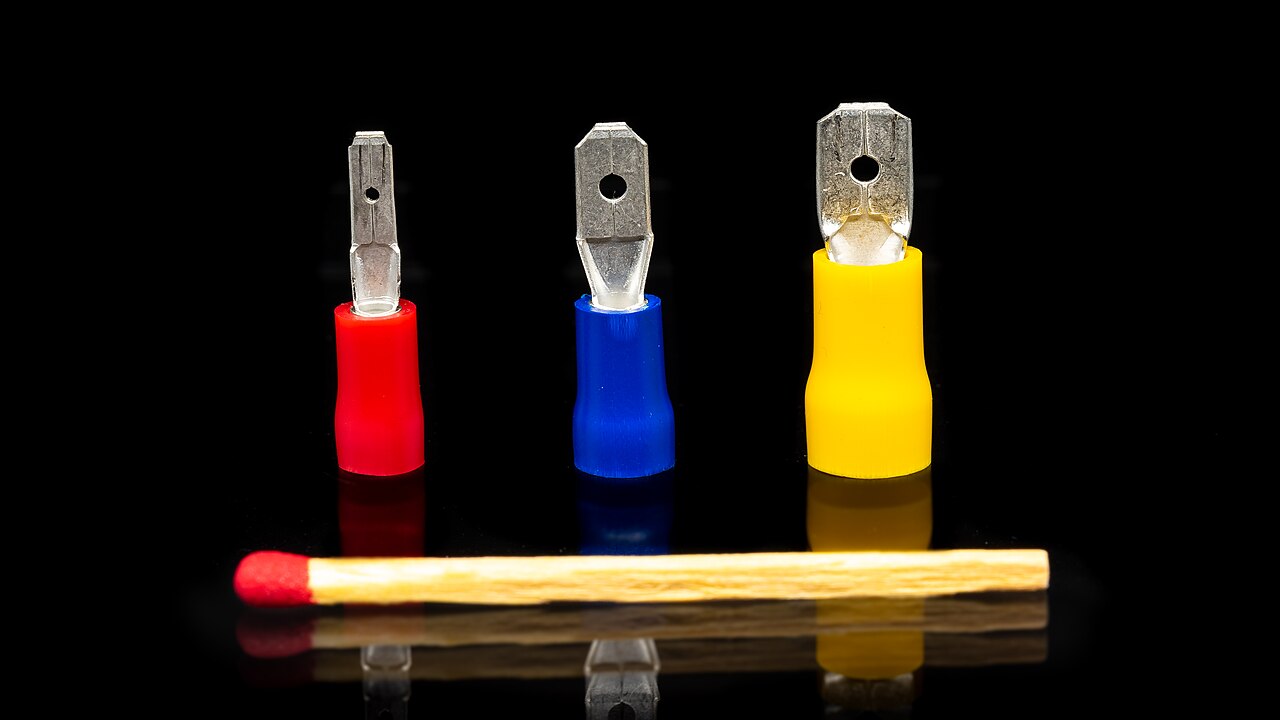

Terminals, housings and component interfaces

Terminal family, wire range, plating, housing keying, locking feature and mating component are treated as one connection system. Tabs, receptacles, ring terminals, board connectors and sealed interfaces are chosen from the real appliance layout.

Sleeves, clips, grommets and identification

Heat-resistant sleeves, corrugated tube, braid, edge grommets, clips, ties and labels keep circuits away from heat, sharp sheet metal, moving parts and service access. Protection is placed according to the installation path rather than added as decoration.

Appliance Wiring Solutions

Build from drawings and appliance layout

Circuit diagrams, pin tables, board drawings, component specifications and installation views are converted into a reviewed harness drawing with branch datums, lengths, interfaces, labels and inspection points.

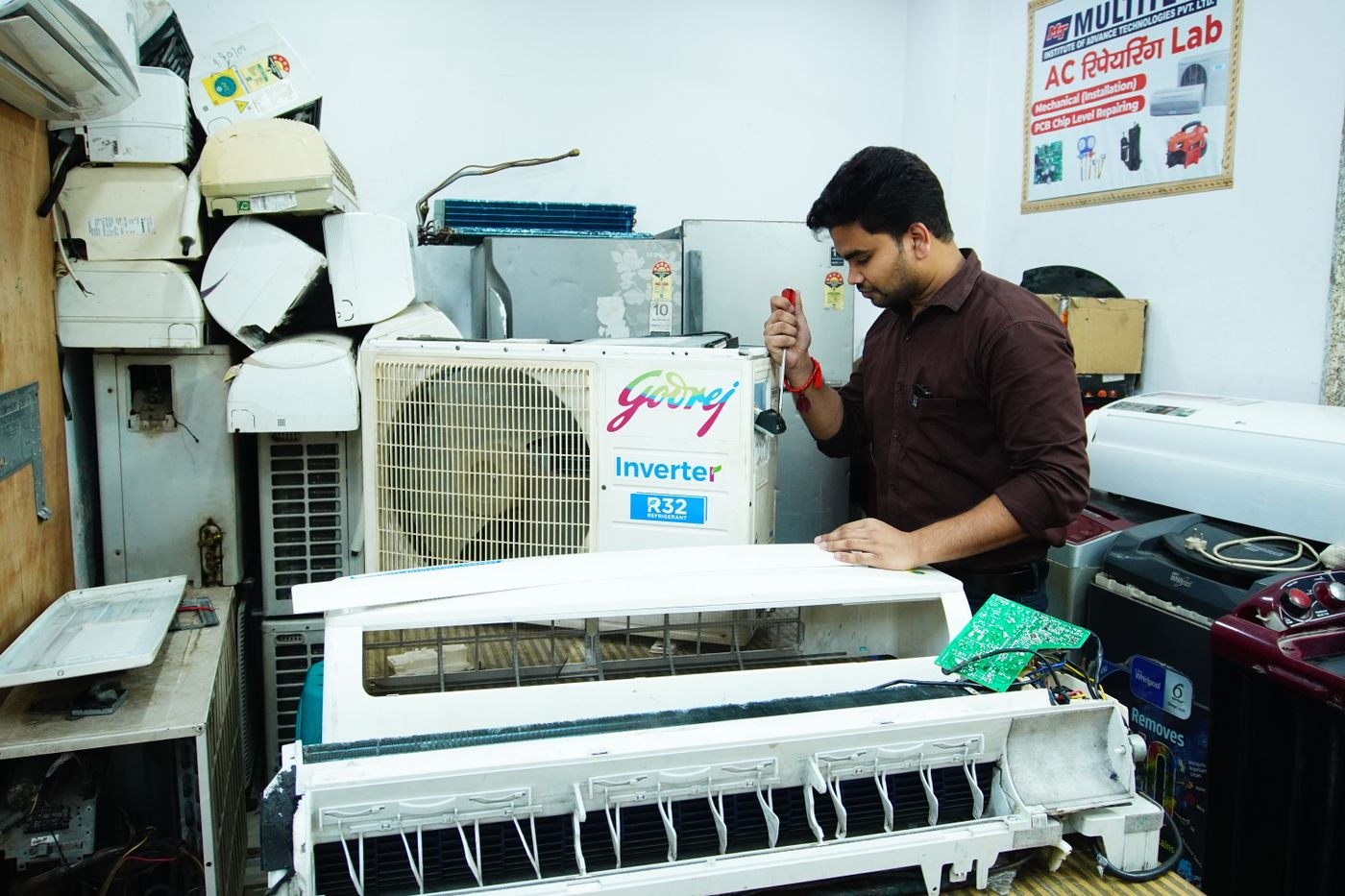

Develop from an appliance or reference sample

An appliance or existing loom can establish fit, route and visible interfaces. Hidden circuits, current, temperature rating, safety parts and acceptance requirements still need customer confirmation before replication.

Separate power, heat and sensitive control circuits

Branch layout, spacing, sleeves, routing and connector grouping are coordinated so higher-current or heated circuits do not create avoidable risk for low-level sensing and communication paths.

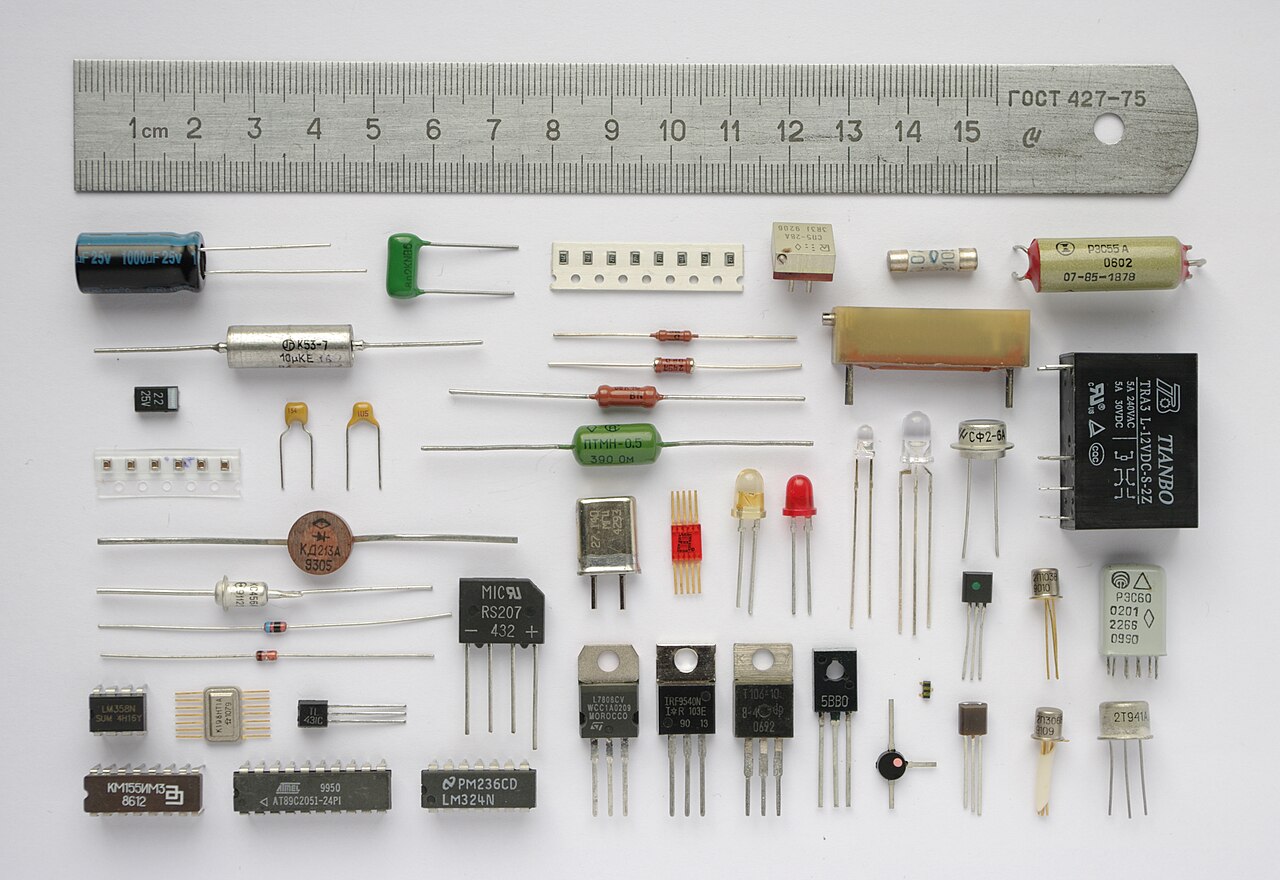

Review substitutions and difficult components

When an original connector, terminal or protection part is unavailable, alternatives are compared by mating fit, electrical rating, material, temperature, locking, approval documents and installation impact. Appearance alone is not enough.

Appliances and Applications

Cooking and heating appliances

Ovens, cookers, coffee equipment, water heaters and warming devices with heaters, thermostats, thermal protection, pumps and control boards.

Laundry and refrigeration equipment

Washing machines, dryers, refrigerators and freezers using motors, valves, pumps, compressors, fans, sensors, door switches and displays.

HVAC and air-moving equipment

Air handlers, fan coils, ventilation units, dehumidifiers and climate-control equipment with blowers, dampers, sensors and control modules.

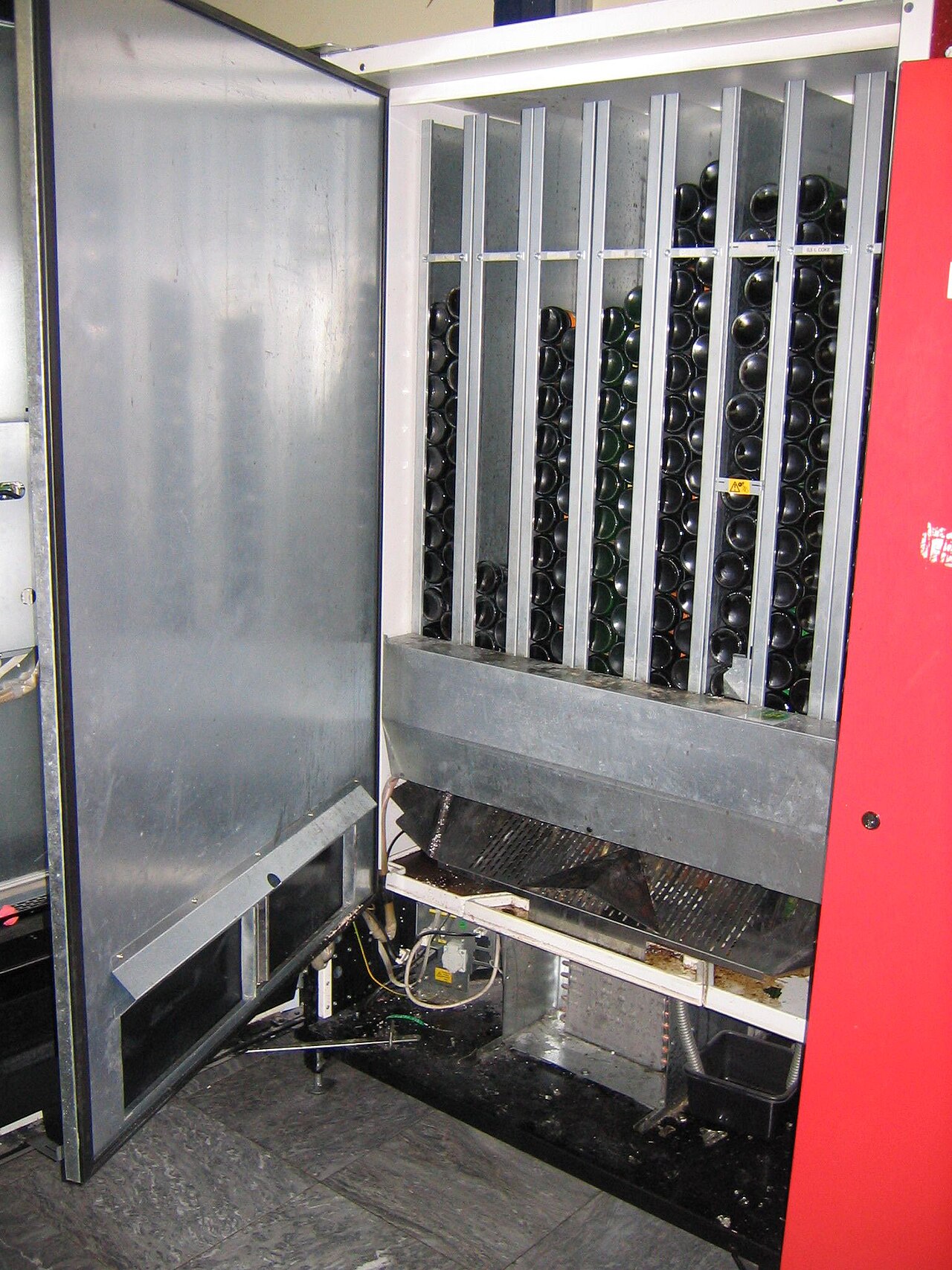

Pumps, dispensers and fluid appliances

Water dispensers, beverage machines, pumps and treatment appliances with level, flow, pressure, heating and valve-control circuits.

Commercial and vending equipment

Vending machines, food-service equipment, commercial dryers and unattended devices requiring organized branches, replaceable modules and clear service identification.

Compact electrical and office devices

Printers, purifiers, small fans, countertop devices and compact electronics where connector direction, bend radius and internal space are tightly constrained.

Appliance Harness Making Method

Requirement and circuit review
Confirm the appliance architecture, circuit diagram, component interfaces, loads, temperature zones, route, assembly order, quantity and required documents.
Construction and material definition
Define conductors, insulation, terminals, housings, branch datums, protection, clips, labels and any customer-approved alternatives.
First-article fit review
Build an engineering sample and check connector direction, branch position, service loop, route, clips and access against the actual appliance or agreed fixture.

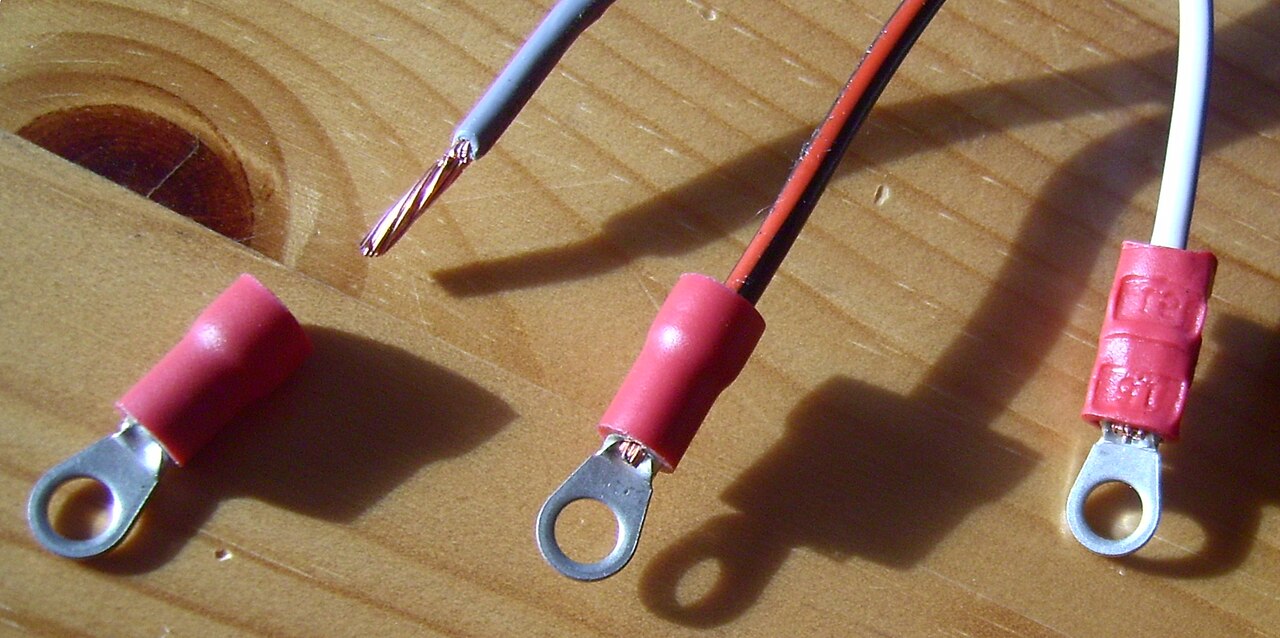

Cutting, termination and assembly
Cut, strip, crimp or otherwise terminate, insert, splice, sleeve, label and form the harness to the controlled work documents.
Electrical and workmanship inspection
Check circuit mapping, continuity, polarity, terminal insertion, retention, dimensions, labels and appearance. Insulation or other electrical tests are added when the approved plan requires them.

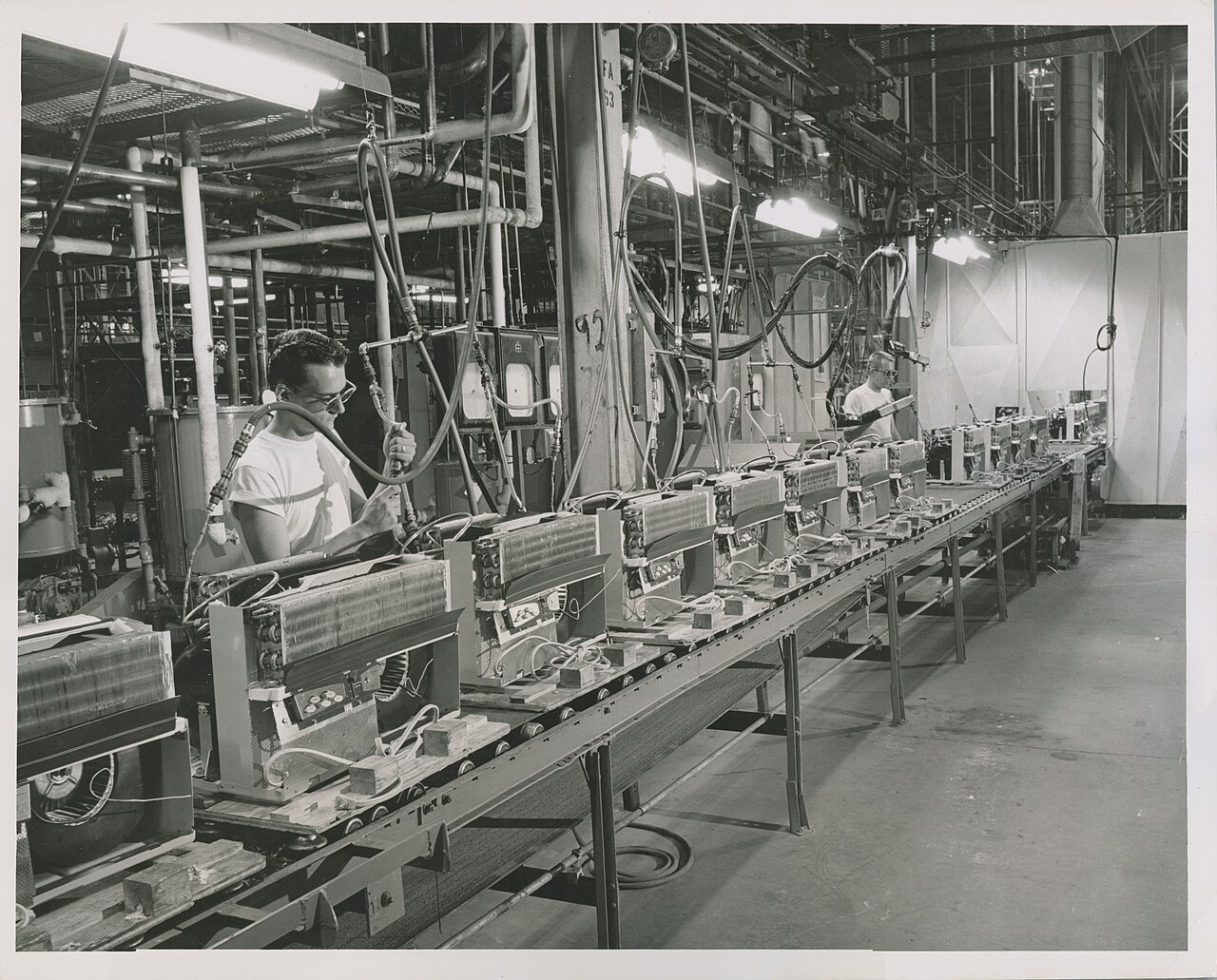

Controlled production release
After the first article is approved, drawing, BOM, work instructions, fixtures and inspection points are recorded so later batches reproduce the confirmed configuration.

Safety and Reliability Review

Temperature zones and thermal protection

Wire insulation, terminals, sleeves, spacing and attachment are reviewed against normal operating temperature, nearby heaters and defined abnormal conditions. The complete appliance safety assessment remains project-specific.

Current, voltage drop and terminal retention

Conductor size, branch loading, connection resistance, crimp geometry and terminal retention are coordinated for motors, heaters, compressors and other higher-load circuits.

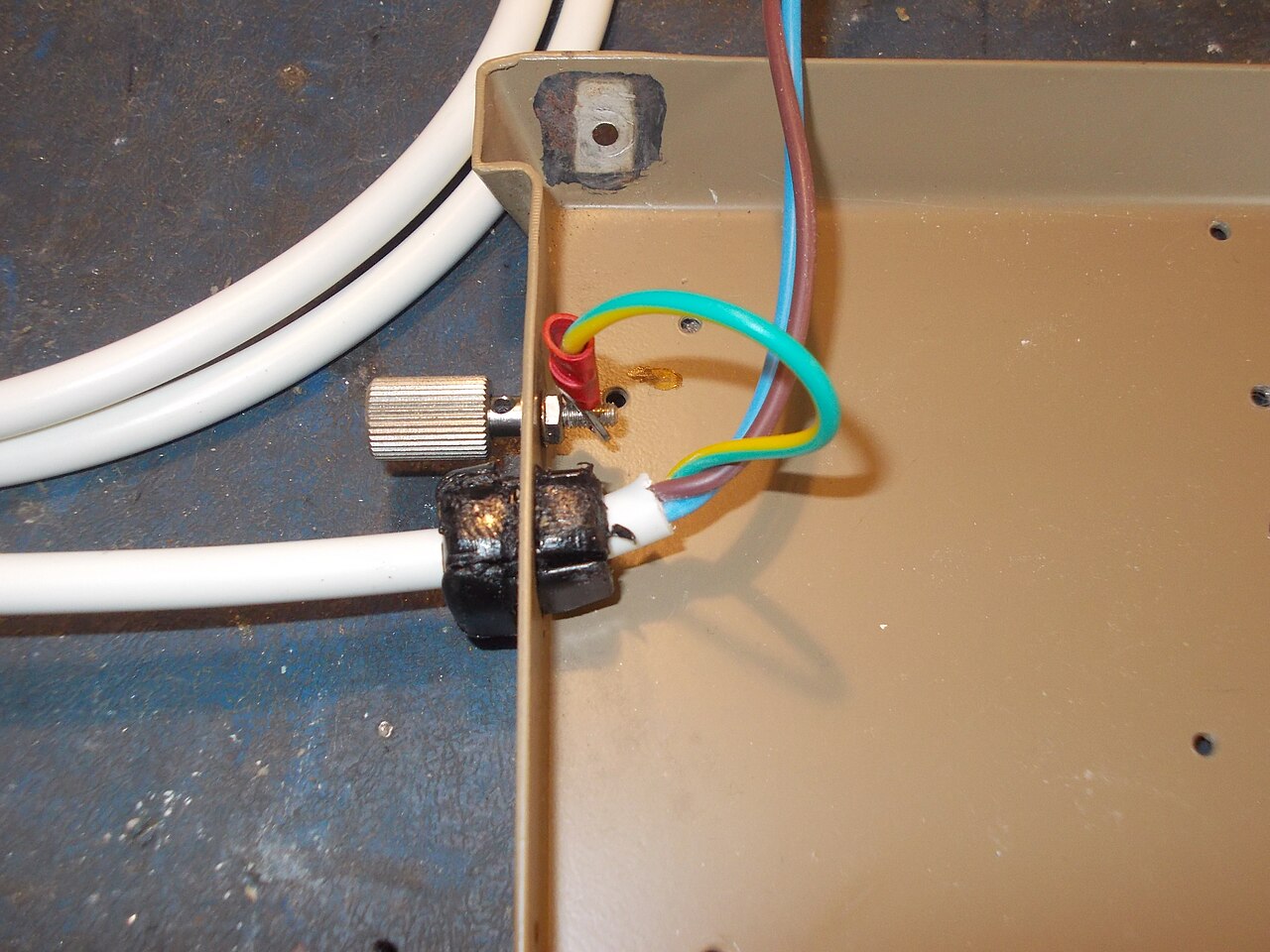

Vibration, sharp edges and strain relief

Clips, grommets, sleeves, service loops and branch positions keep repeated load away from terminals and prevent contact with sheet-metal edges, fans and moving mechanisms.

Inspection scope and compliance boundary

Continuity and appearance inspection are standard finished-harness checks. Temperature, flame, dielectric, endurance or complete-appliance compliance claims require agreed materials, methods, samples and responsible laboratories.

What the Finished Harness Improves

Faster and clearer appliance assembly

Defined branches, labels, connector directions and clips reduce routing decisions on the assembly line and help operators install the loom in the intended sequence.

More practical service access

Service loops, separable sections and readable identification help technicians reach replaceable modules without disturbing unrelated circuits.

Repeatable production configuration

An approved drawing, BOM, branch fixture and inspection plan carry the confirmed assembly into repeat orders and controlled revisions.

A harness matched to the actual appliance

Electrical load, heat, component interfaces, enclosure space, routing and installation are handled as one project instead of forcing a generic loom into the product.

Frequently Asked Questions

Is an appliance harness a fixed product model?

No. It is a broad family covering different appliances, loads, temperature zones, connectors, branches and assembly methods. The final harness is defined by the actual appliance and approved documents.

What information is needed for a quotation?

Provide the circuit diagram or pin table, appliance layout, component and mating-interface data, current and temperature information, branch dimensions, assembly restrictions, quantity and required inspections. A physical sample can supplement incomplete drawings.

Can you reproduce an existing appliance harness from a sample?

A sample can define visible materials, dimensions and interfaces, but hidden circuits, conductor ratings, safety components and acceptance criteria still require confirmation before production.

Which insulation material should be used near a heater?

There is no universal answer. Selection depends on conductor temperature, distance from the heat source, exposure time, current, movement, surrounding materials and applicable appliance requirements. The complete thermal zone must be reviewed.

Can connector or terminal substitutions be accepted?

Only after review and approval. Mating fit, terminal system, wire range, current, temperature, plating, locking, material and relevant documents must be compared before an alternative is released.

Which checks are performed before shipment?

Finished harnesses receive continuity and appearance inspection. Circuit mapping, polarity, terminal retention, dimensions, labels, insulation or other electrical and mechanical checks are added according to the approved project plan.
