01

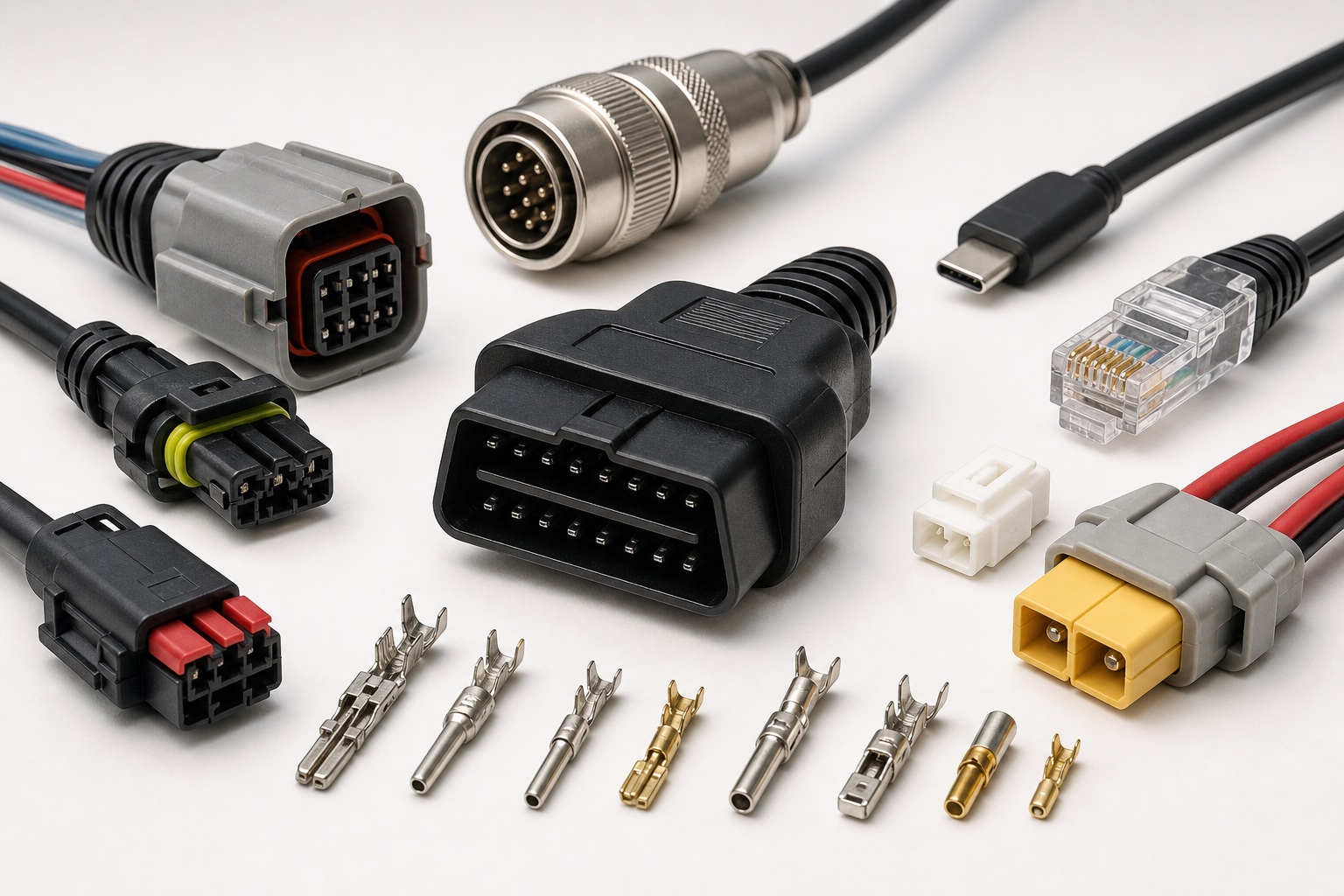

Connector & Terminal
OBD2, Deutsch, DB15, RJ45, Type-C, XT series, Anderson and customer-specified connectors.
CUSTOM CAPABILITY
Custom Wiring Harness Manufacturer
From drawings, samples, connector photos or pin definitions, we review the interface, cable structure and assembly requirements before sampling and production.
Define Every Connection
Connector selection, pin routing, cable structure and identification are confirmed against the information agreed for each project.
02

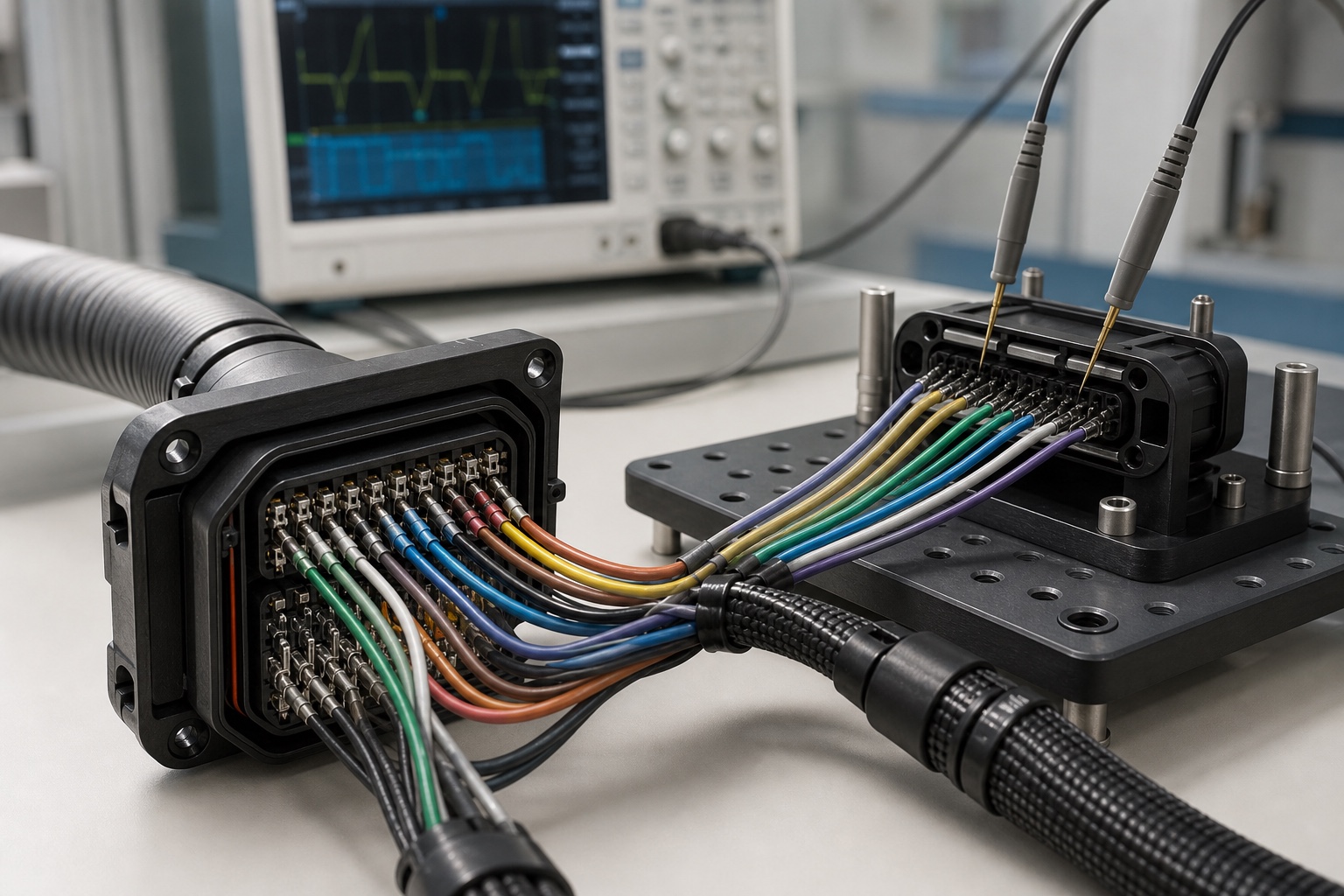

Pinout & Signal Route
Built according to pin definition, diagnostic protocol and equipment interface requirements.
03

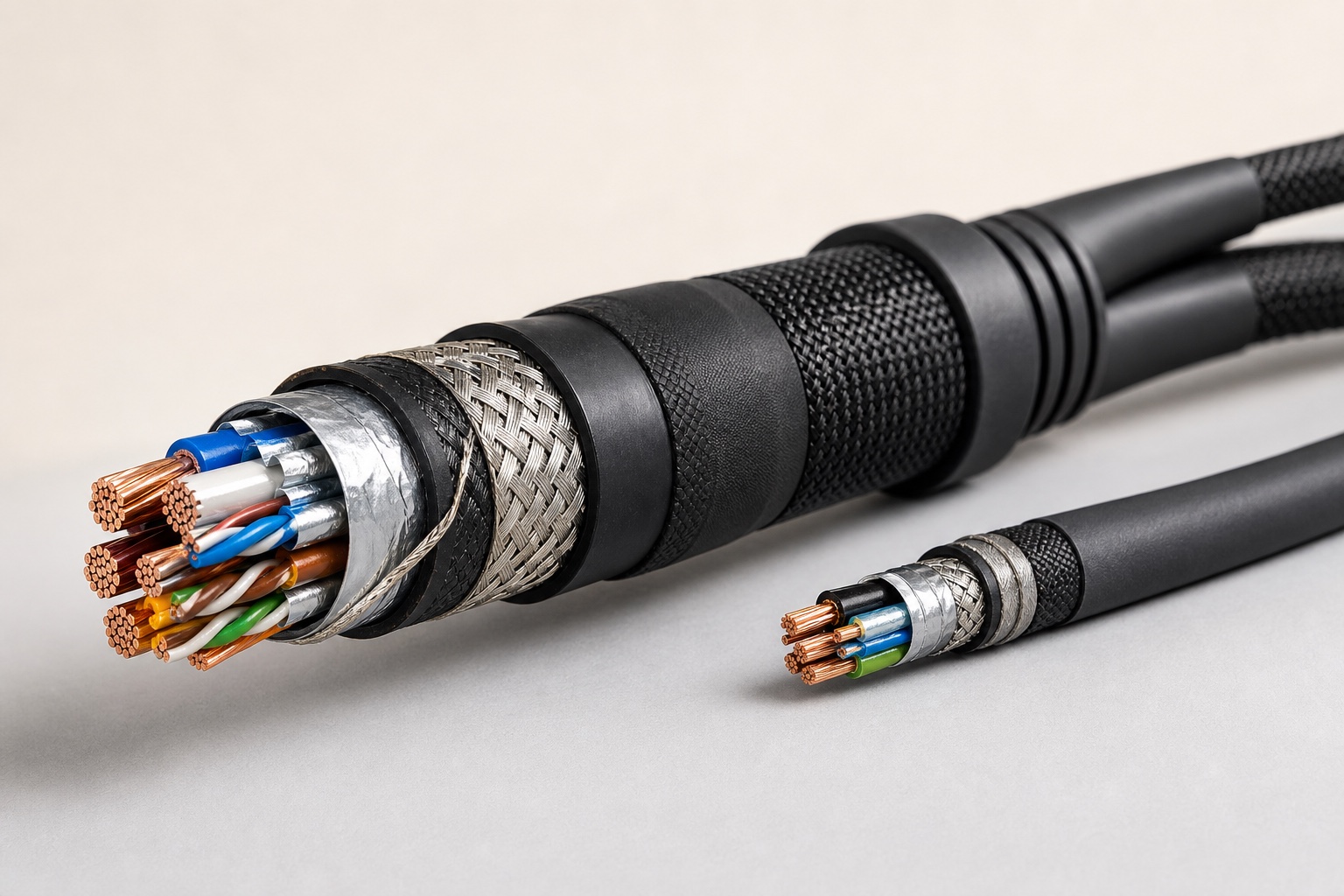

Cable Structure
Length, wire gauge, core count, shielding, jacket material and branching can all be adjusted.
04

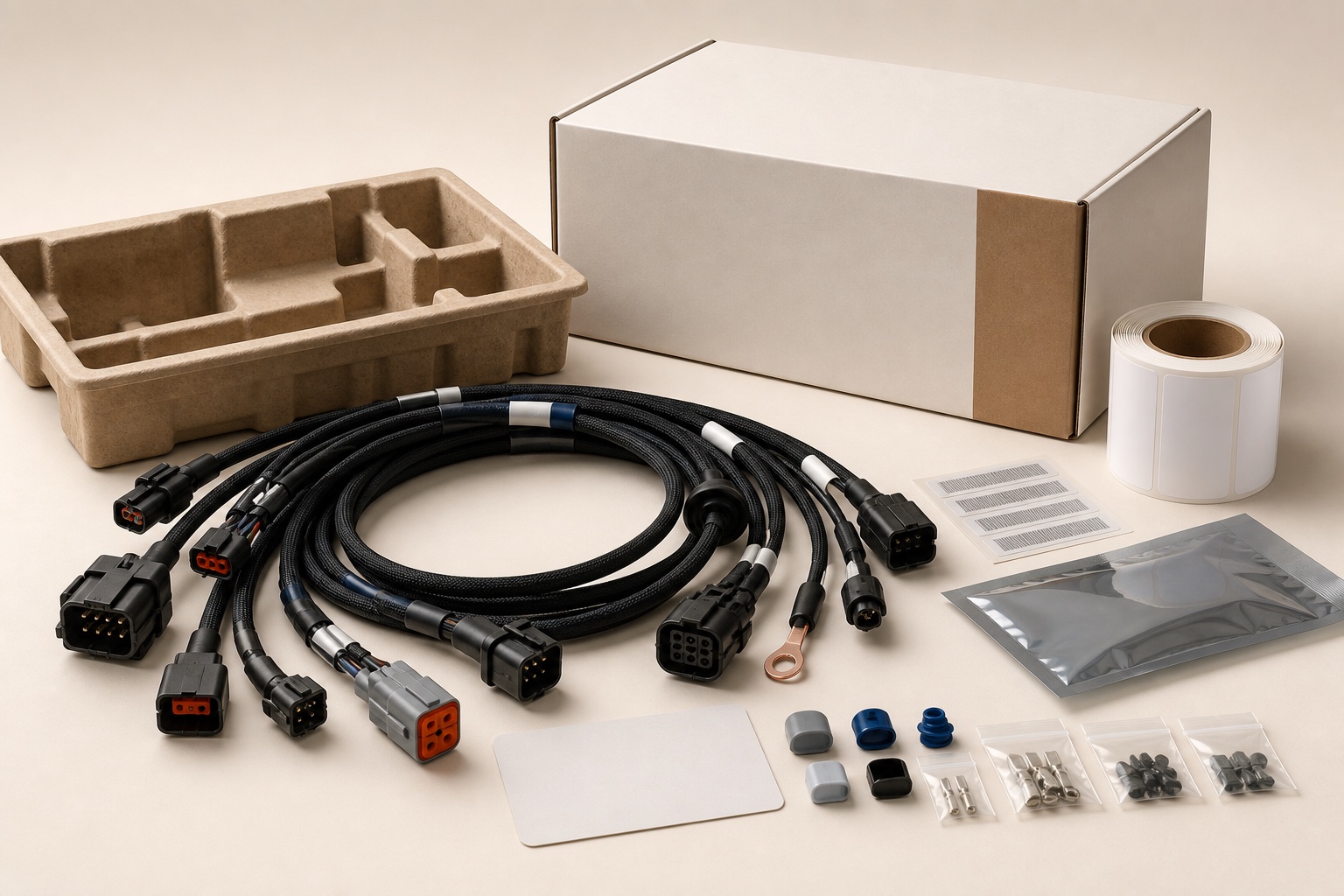

Branding & Packaging
Neutral packaging, buyer labels, model stickers, barcodes and instruction sheets.
Built Around Real Product Families
Our current catalogue shows the connector formats and assembly experience that can support a new custom requirement.
P081

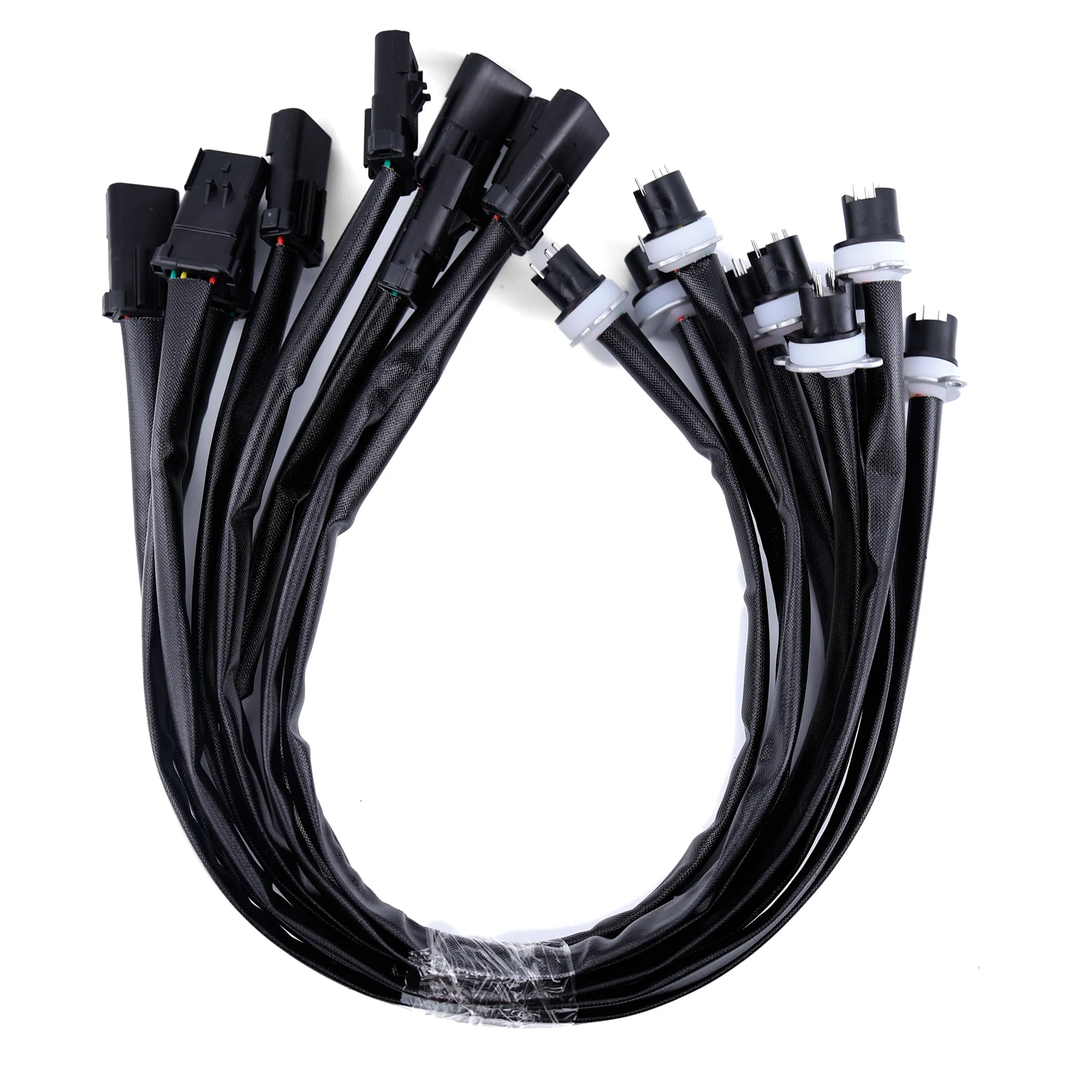

Turbo Actuator Series
Fiberglass tubes, motors and rubber grommets for turbo actuator harness assemblies.
P006

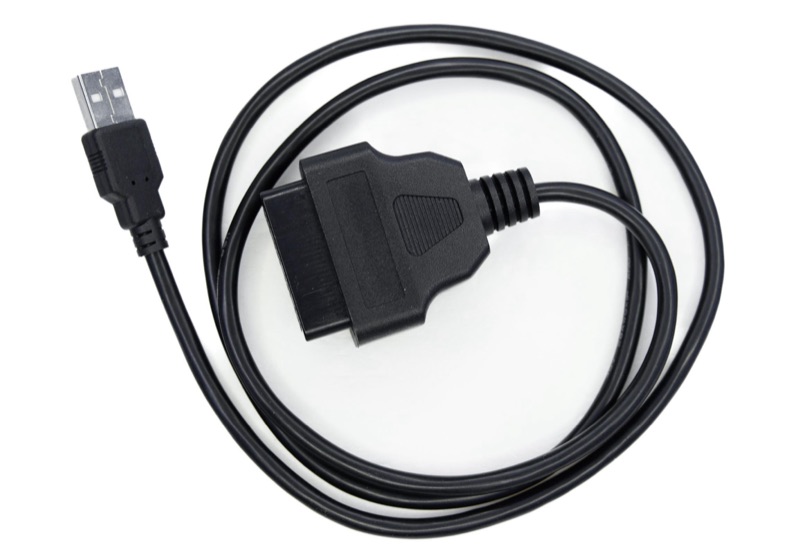

Universal Diagnostic Cables
OBD2 universal diagnostic cables, Autel series and Launch X431 series cables for mainstream scan tools and workshops.
P001

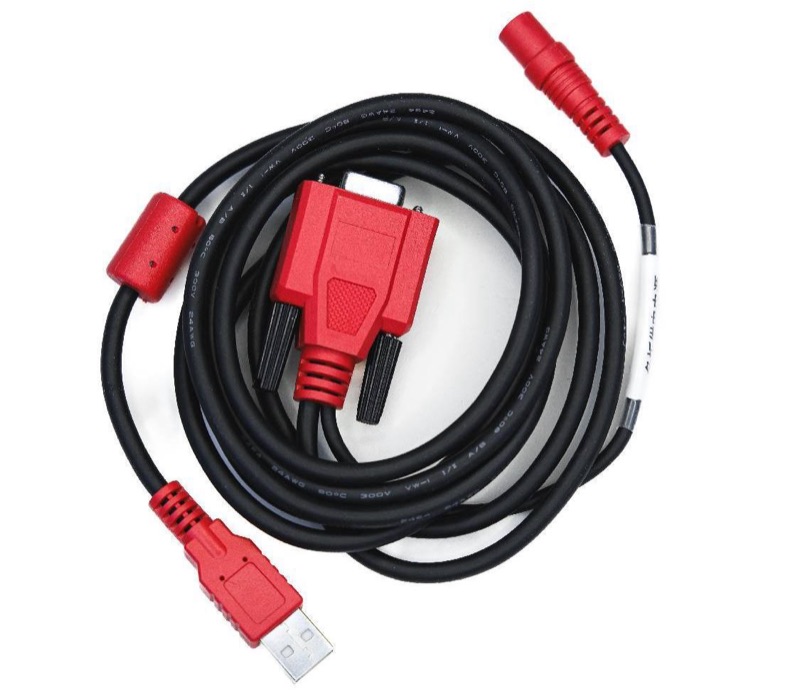

Heavy-Duty & Diesel Diagnostic
Heavy-duty diesel diagnostic cables, J1939, Cummins/common-rail, diesel harnesses and multi-output splitters.
P030

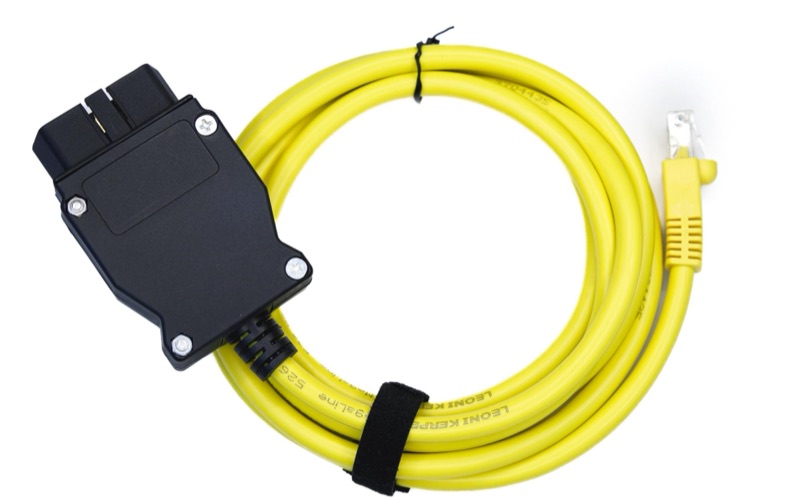

Specialty Diagnostic Cables
Tesla/EV, lithium battery and specialty vehicle diagnostic adapters and cables.
P076

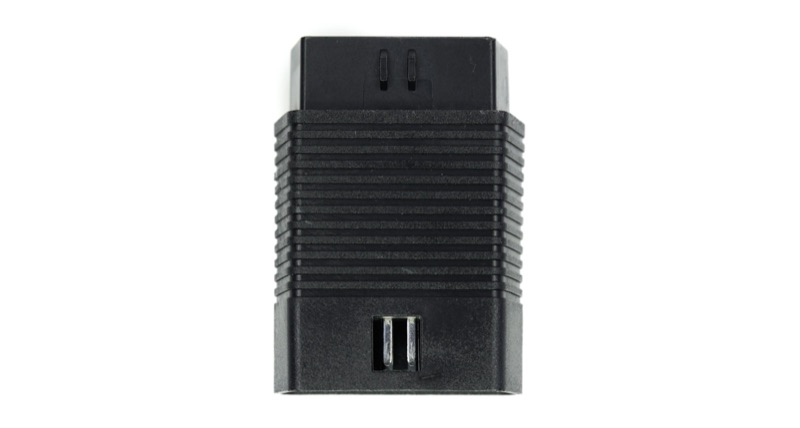

Adapter Series
USB, BMW, Autel MS906, iCarsoft i80 and Launch X431 small-square adapters.
A Controlled Path to Production
01
Send Your Info
Drawing, sample, connector photos, pinout or target device model.
02
Engineering Review
Confirm connector type, wiring route, material spec and feasibility.
03

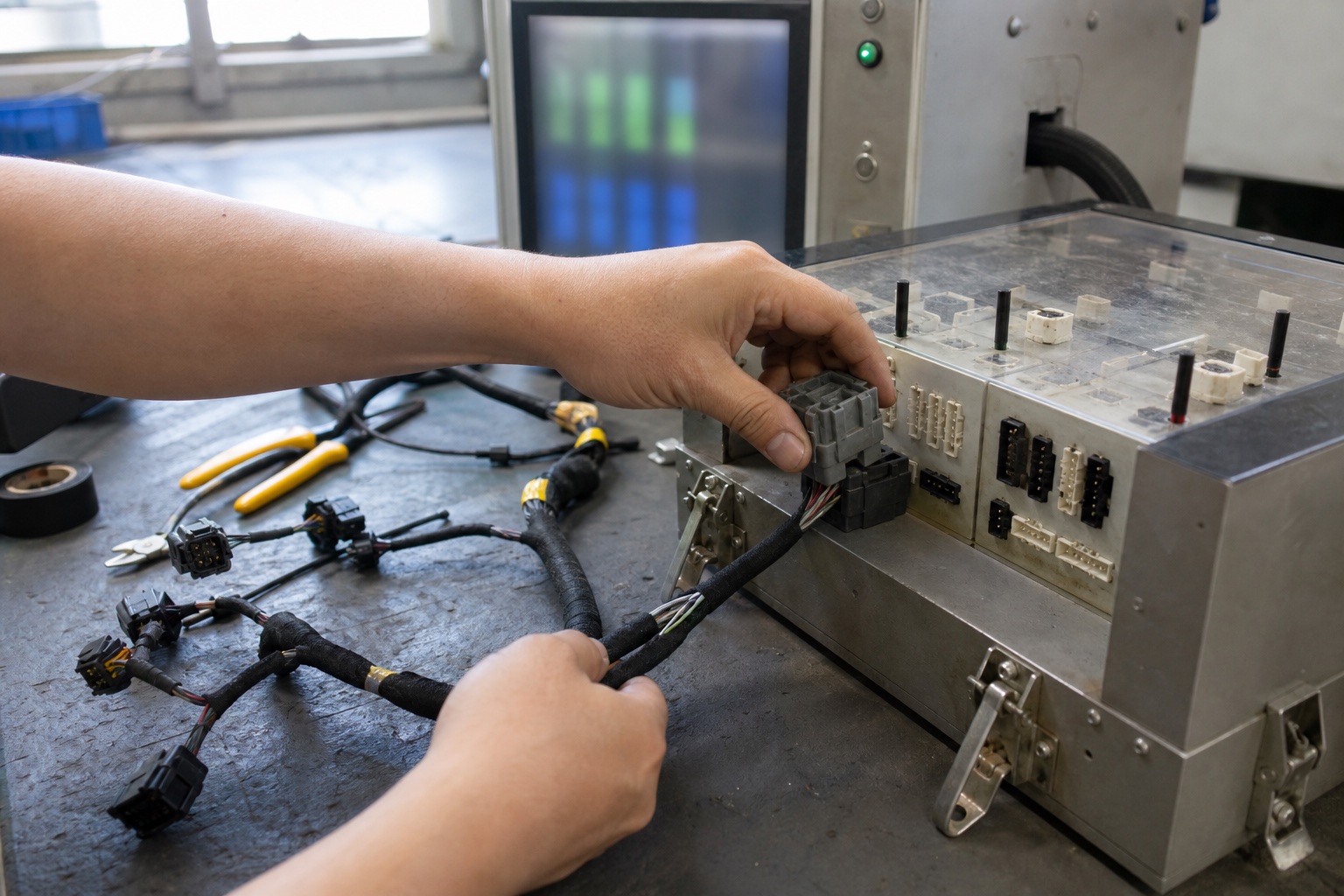

Sampling
Sample made for fit, continuity and function testing.
04

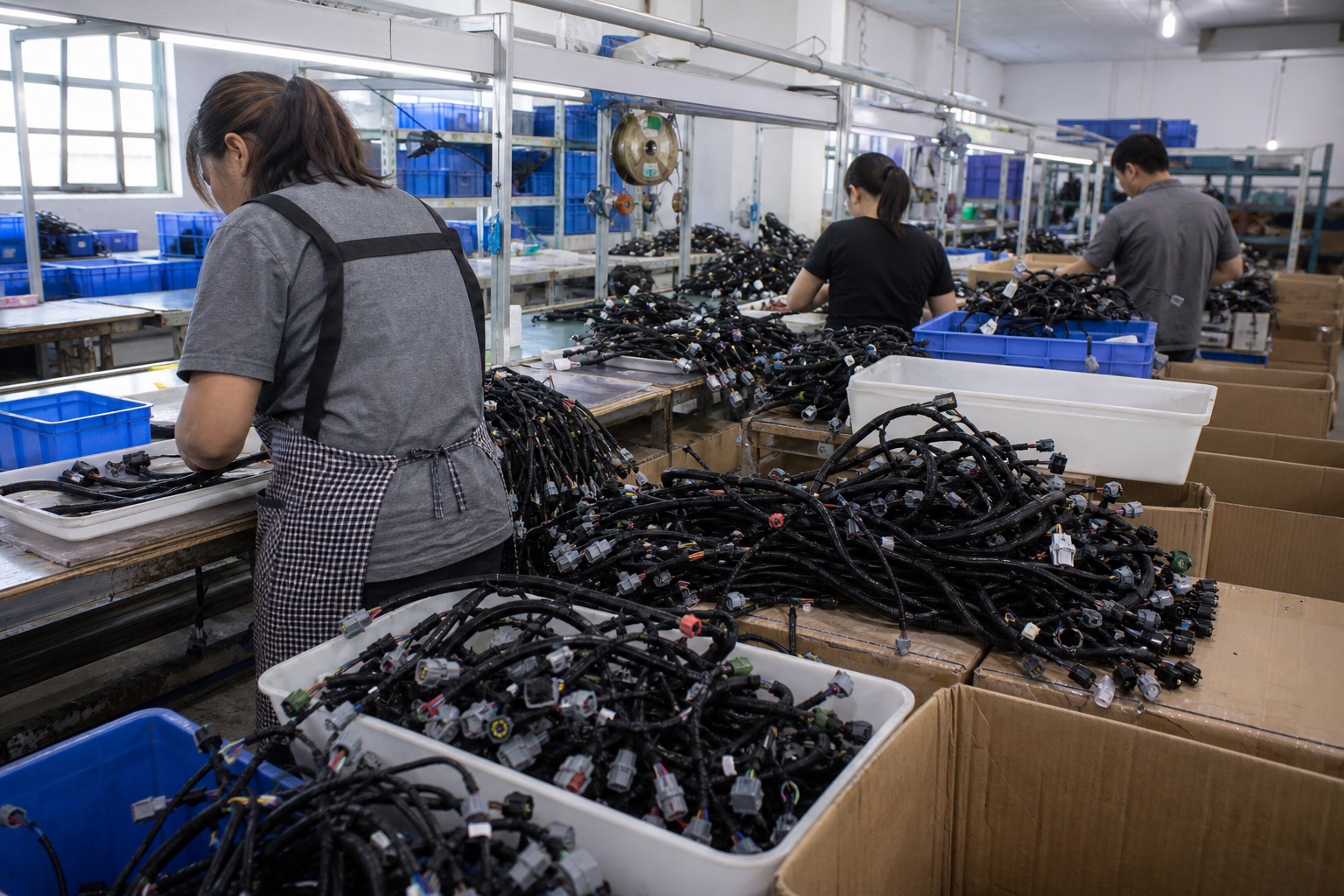

Mass Production
Mass production after approval, batch inspection before shipment.
QC / PROJECT BASIS
Checks Defined Before Production
Inspection is based on the drawing, approved sample and requirements agreed for the project. Records and acceptance points are confirmed before shipment.
- 01
Materials and connector compatibility reviewed before sampling
- 02
Pin mapping and assembly details checked against the approved specification
- 03
Continuity, appearance and functional checks agreed for the project
- 04
Final packaging and identification reviewed before shipment
Custom Harness FAQ
What should I send for a quote?
A drawing, sample, connector photos, pin definition or target-device information can be used as the starting point. More complete information reduces confirmation time.
Can you manufacture from a physical sample?
A sample can be reviewed together with photos and known specifications. The team will identify any details that still need confirmation before production.
Which harness details can be customized?
Connector and terminal choice, pin routing, wire length and gauge, cable structure, labels and packaging can be reviewed for each project.
How are sample and production quantities confirmed?
Quantity and schedule are confirmed after the design, material availability, testing requirements and manufacturing feasibility have been reviewed.
What is checked before shipment?
The inspection plan is agreed for the project and can include pin mapping, continuity, appearance, identification, packaging and specified functional checks.
Start With Your Drawing, Sample or Pinout
Send the available project information. Our team will review feasibility, missing details and the next confirmation step before quoting.
