Product type

Aptiv / Delphi Compatible Harnesses

Overview

Custom Aptiv-interface harnesses for vehicle and equipment projects, with defined circuits, materials, routing and inspection.

Ask About This Product TypeFind Models & Material Part NumbersBack to Products
Aptiv / Delphi Compatible Harnesses application reference
01 / 15

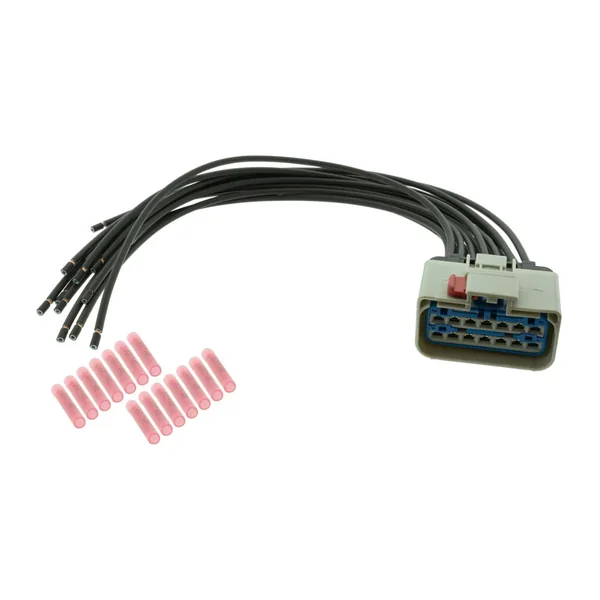

APEX2.8 14-Pin Multi-Core Pigtail
01
APEX2.8 14-Pin Multi-Core Pigtail

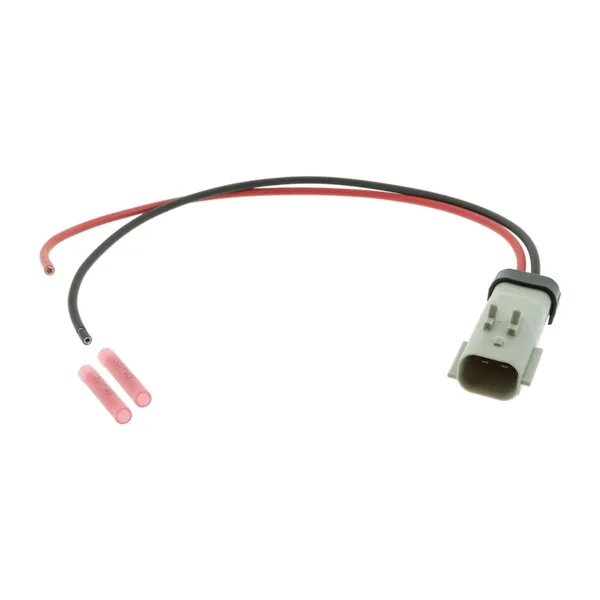

APEX2.8 2-Pin Grey Connector Pigtail
02
APEX2.8 2-Pin Grey Connector Pigtail

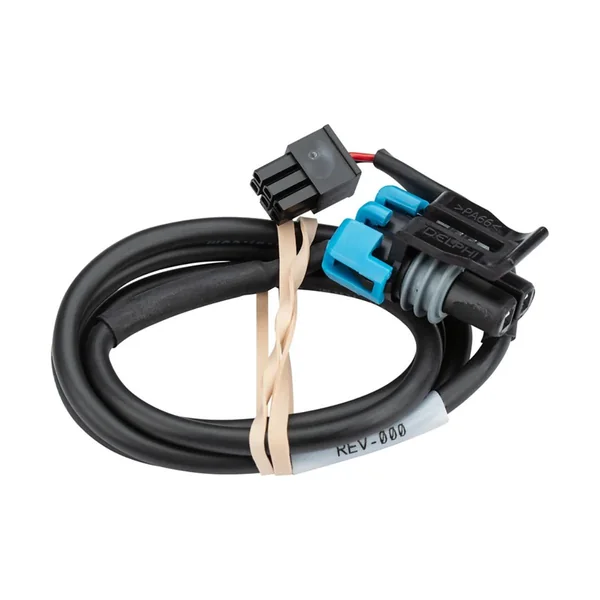

BIM-01-2-HLLY Instrument Adapter Branch Harness
03
BIM-01-2-HLLY Instrument Adapter Branch Harness

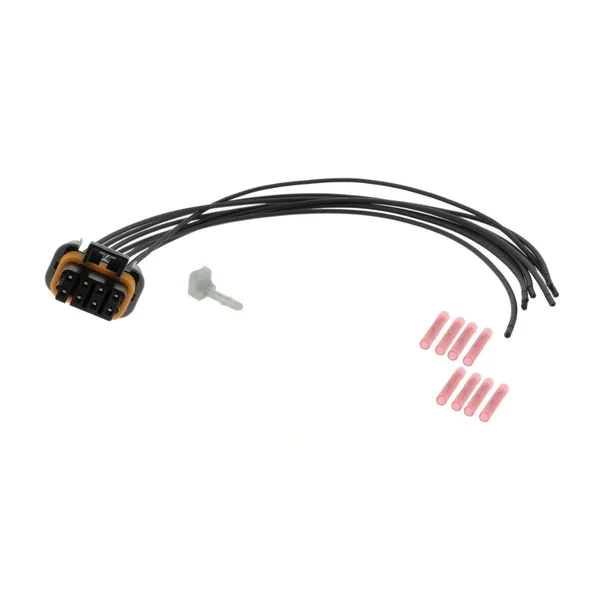

12047937 8-Pin Terminal Pigtail
04
12047937 8-Pin Terminal Pigtail

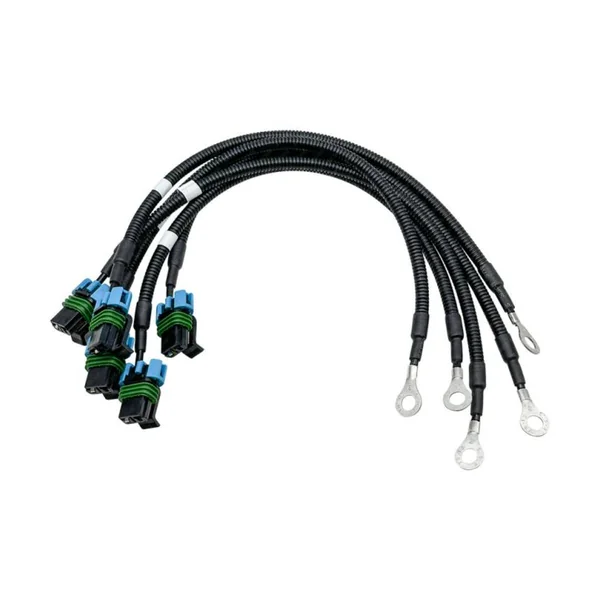

2-Pin Rectangular Connector to Ring-Terminal Harness Set
05
2-Pin Rectangular Connector to Ring-Terminal Harness Set

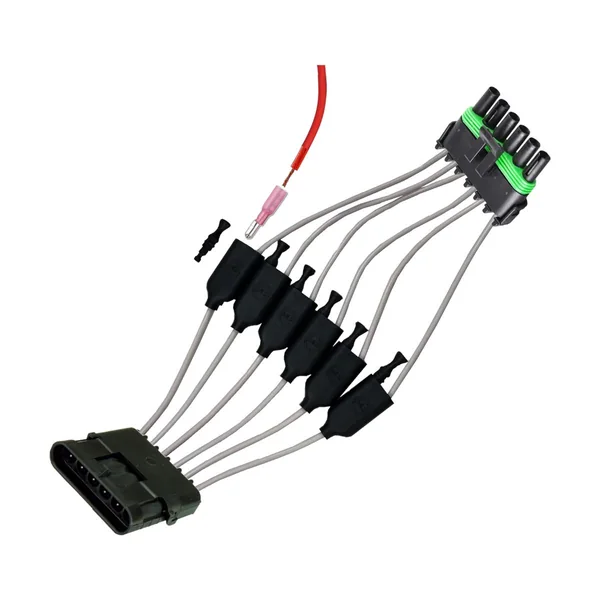

6-Pin Rectangular Connector to Ring-Terminal Branch Harness
06
6-Pin Rectangular Connector to Ring-Terminal Branch Harness

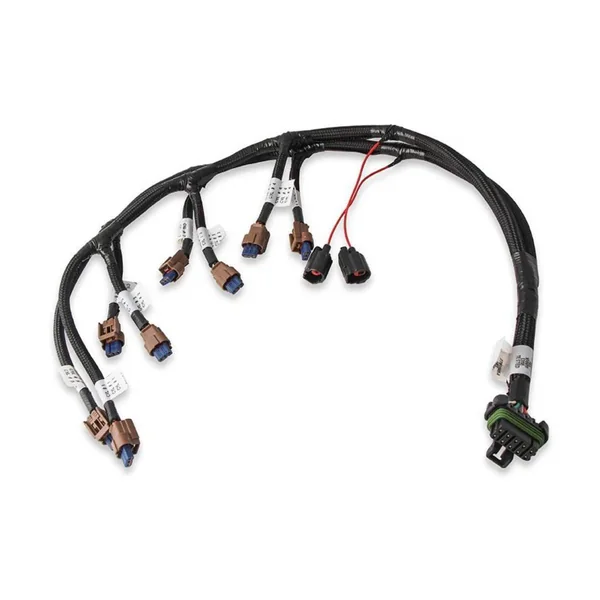

Automotive Rectangular Main Connector Multi-Way Control Harness
07
Automotive Rectangular Main Connector Multi-Way Control Harness

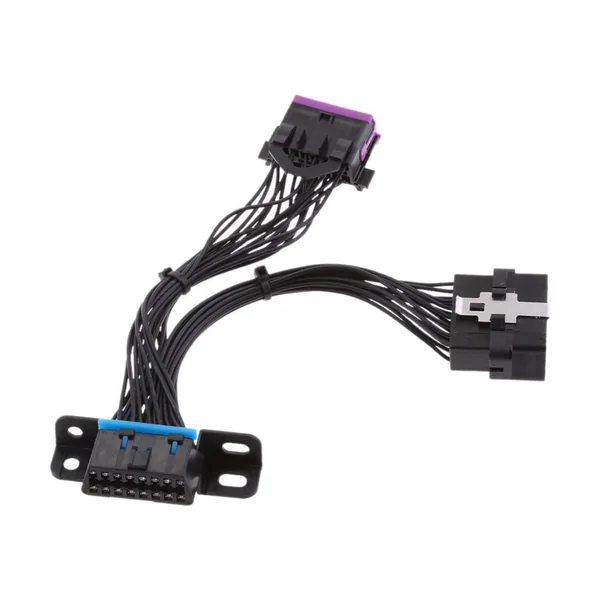

OBD-II to Panel Connector Y-Branch Diagnostic Harness
08
OBD-II to Panel Connector Y-Branch Diagnostic Harness

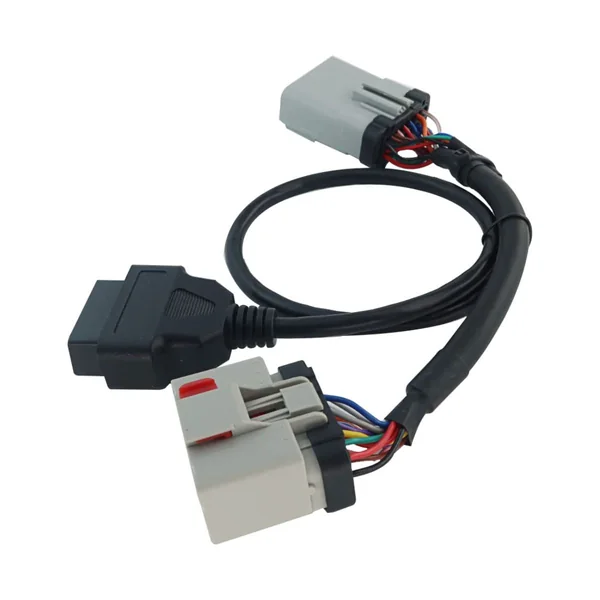

Automotive Rectangular Connector Double-Ended Branch Adapter Harness
09
Automotive Rectangular Connector Double-Ended Branch Adapter Harness

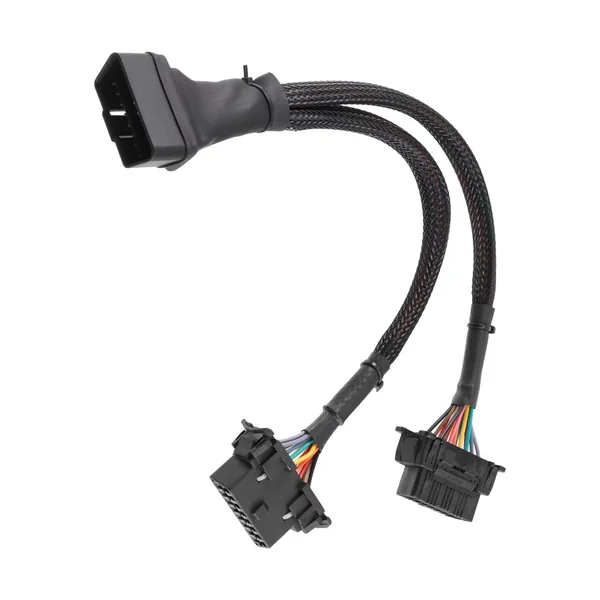

OBD-II Multi-Connector Adapter Harness
10
OBD-II Multi-Connector Adapter Harness

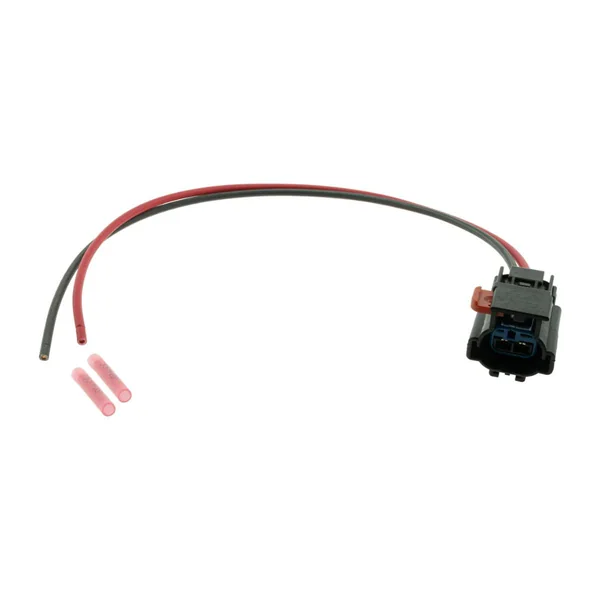

APEX2.8 2-Pin Black Connector Pigtail
11
APEX2.8 2-Pin Black Connector Pigtail

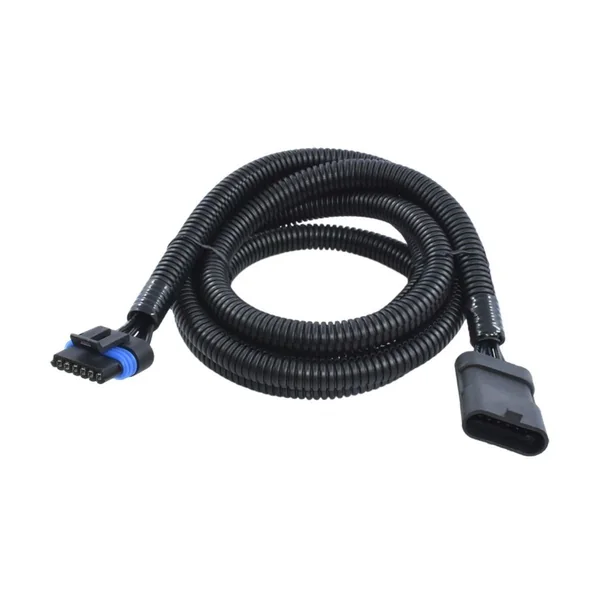

12162261 to 282108-1 Corrugated-Conduit Adapter Harness
12
12162261 to 282108-1 Corrugated-Conduit Adapter Harness

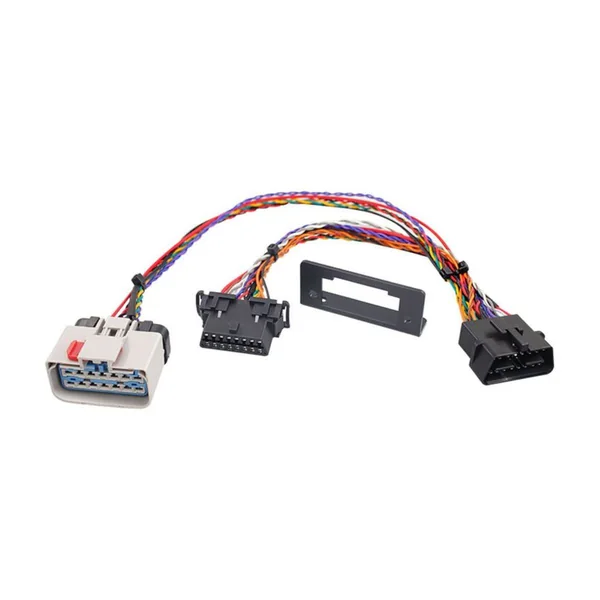

OBD-II to Circular Diagnostic Port Y-Branch Harness
13
OBD-II to Circular Diagnostic Port Y-Branch Harness

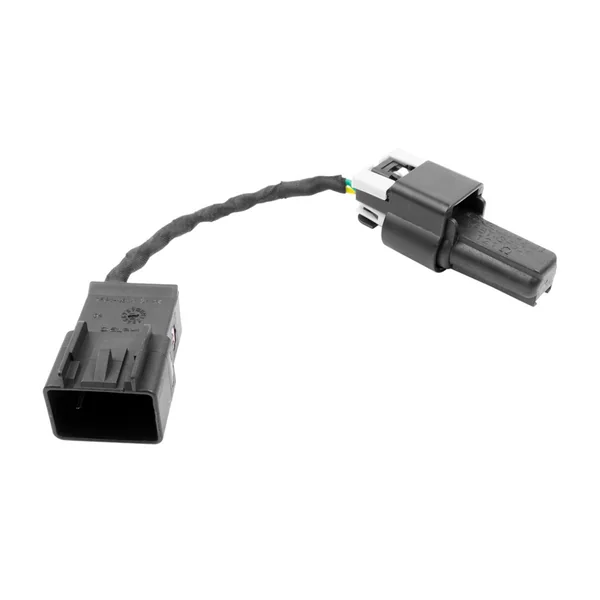

OBD-II to 2-Pin Connector Harness
14
OBD-II to 2-Pin Connector Harness

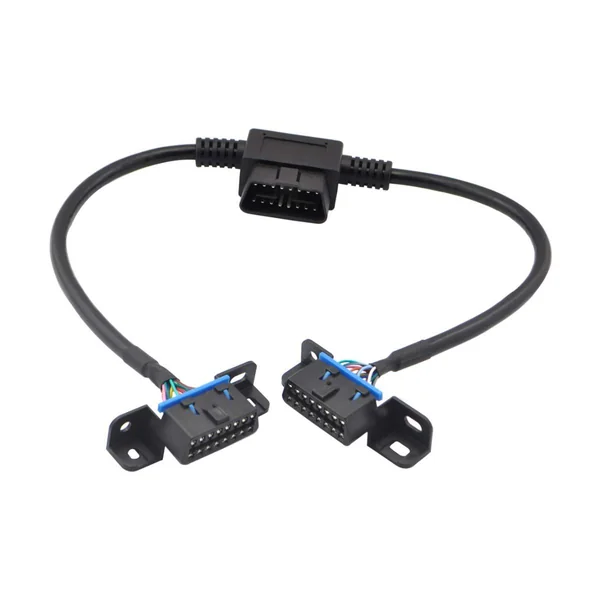

OBD-II 16-Pin 1-to-2 Panel Adapter Harness
15
OBD-II 16-Pin 1-to-2 Panel Adapter Harness

About Aptiv / Delphi Wiring Harnesses

Aptiv-interface cable assemblies connect power, sensing and control functions across vehicle and equipment architectures. This category includes sealed branches, powertrain looms, extension leads and project-reviewed high-voltage assemblies. Super Smile develops the requested harness from drawings, samples or confirmed mating references. The approved BOM identifies original branded components and any separately proposed alternatives. The following guide moves from connector families to manufacturing, applications and platform routing so an enquiry can describe the complete assembly rather than a connector photograph alone.

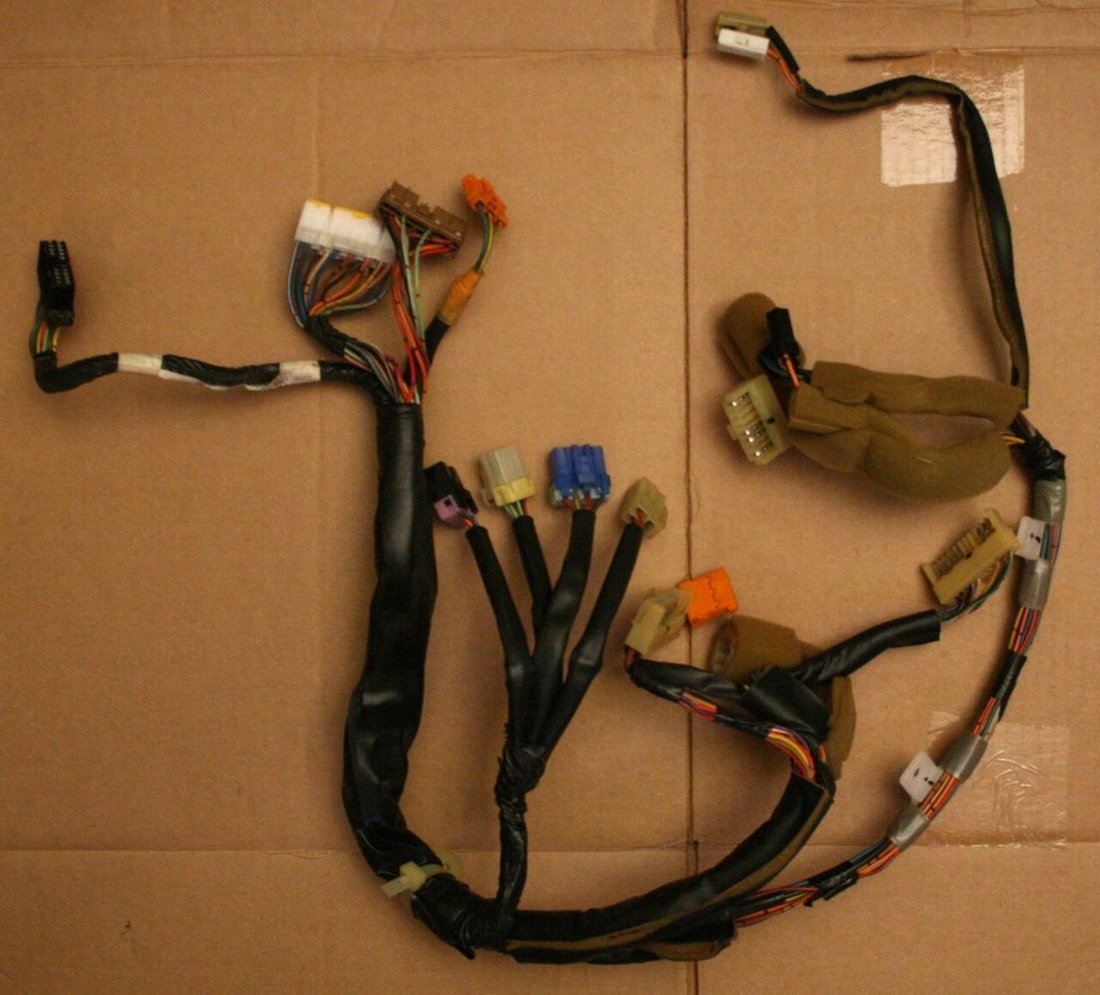

A vehicle instrument-cluster harness illustrates branch and connector diversity; not an Aptiv part identification.
A vehicle instrument-cluster harness illustrates branch and connector diversity; not an Aptiv part identification.

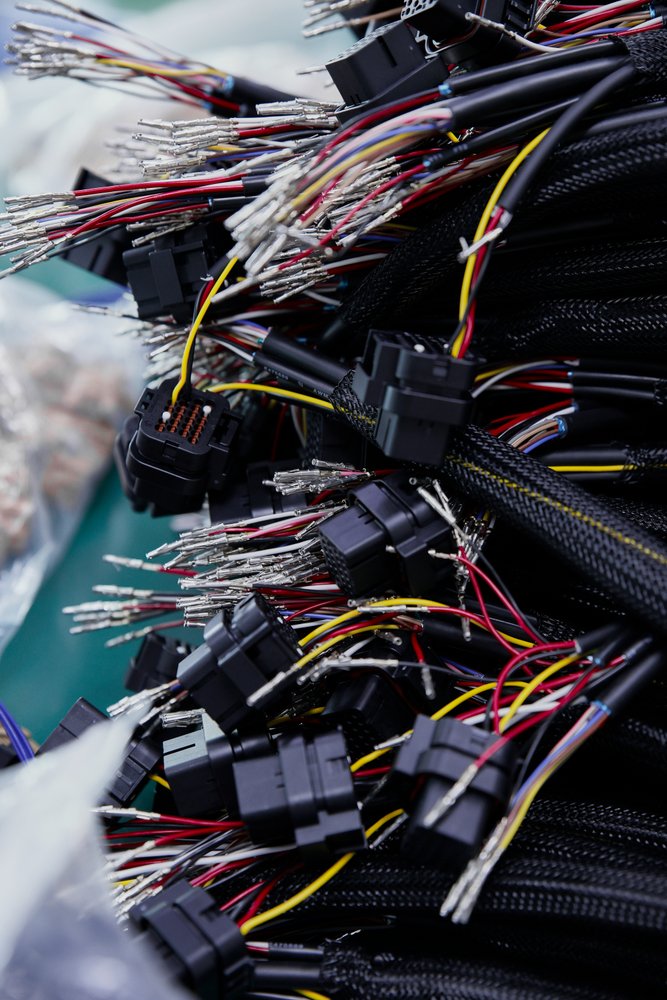

Super Smile terminated leads: identify housings and contacts by the approved BOM, not appearance alone.
Super Smile terminated leads: identify housings and contacts by the approved BOM, not appearance alone.

Classic Connector Families

Aptiv is not a single mating interface. Weather-Pack, Metri-Pack and GT describe different connection systems. Metri-Pack includes sealed and unsealed arrangements; an unsealed M/P 150 housing must not inherit a waterproof claim from another family member. GT 150 and GT 280 are useful catalogue search terms, not permission to substitute terminals or housings. Identify the complete male and female references, cavity layout, keying, contact finish and lock accessories. Keep a photograph for recognition, but release production against a controlled drawing and bill of materials.

Heavy rain illustrates exposure; it is not a waterproof test or a rating for an assembly.
Heavy rain illustrates exposure; it is not a waterproof test or a rating for an assembly.

Product Series: Sealed Harnesses

A sealed branch is a system of matched housing, interface seal, wire seals, contacts and unused-cavity treatment. The seal grips the insulation outside diameter, while the crimp grips the conductor; specifying AWG alone does not settle both requirements. Weather-Pack or a specified sealed Metri-Pack arrangement may suit an exposed branch when its approved application conditions match the project. Define the mated state, rear support, fluid exposure and required test method. A dust cap or rubber boot does not by itself convert an unsealed connector into a qualified sealed assembly.

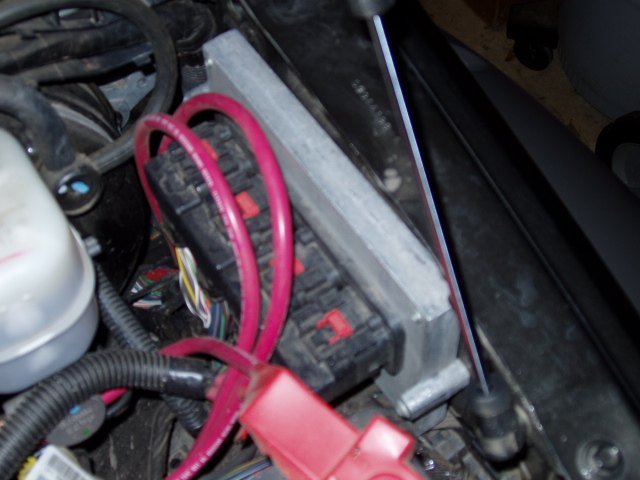

An installed engine-control module shows the crowded routing around powertrain electronics.
An installed engine-control module shows the crowded routing around powertrain electronics.

Product Series: Powertrain Harnesses

An engine and transmission loom combines circuits with very different jobs: temperature and pressure sensing, ignition control, solenoid actuation and auxiliary loads. Define each connection from the approved equipment interface rather than treating all branches alike. Routing near exhaust surfaces, moving pulleys or service covers requires local protection and deliberate support. Heat sleeve selection must consider the cable beneath it and the duration of exposure. Document breakout locations, connector orientation and permitted movement so the replacement assembly can be installed without pulling on contacts or obstructing maintenance.

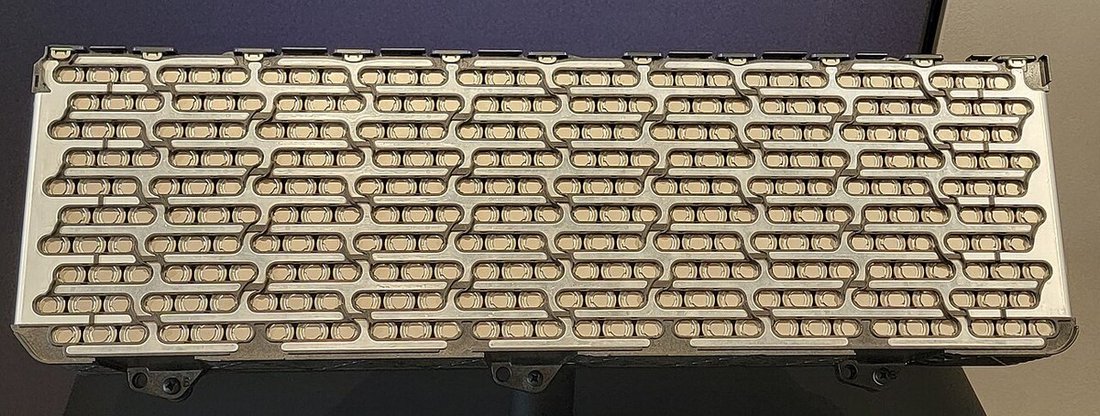

A traction-battery pack illustrates the scale of the high-voltage system review.
A traction-battery pack illustrates the scale of the high-voltage system review.

Product Series: High-Voltage Harnesses

High-voltage work starts with a project review, not an orange cable. Aptiv ShieldPack references such as HV280 identify systems with specific contact, sealing, shielding and interlock options. The selected connector must be checked against voltage, current, conductor size, clearance, creepage and installation constraints. HVIL routing and shield termination belong in the drawing when required. Component literature does not certify the finished harness. High-voltage manufacture and verification are accepted only after the material specification, tooling, safety process and inspection scope have been confirmed for the project.

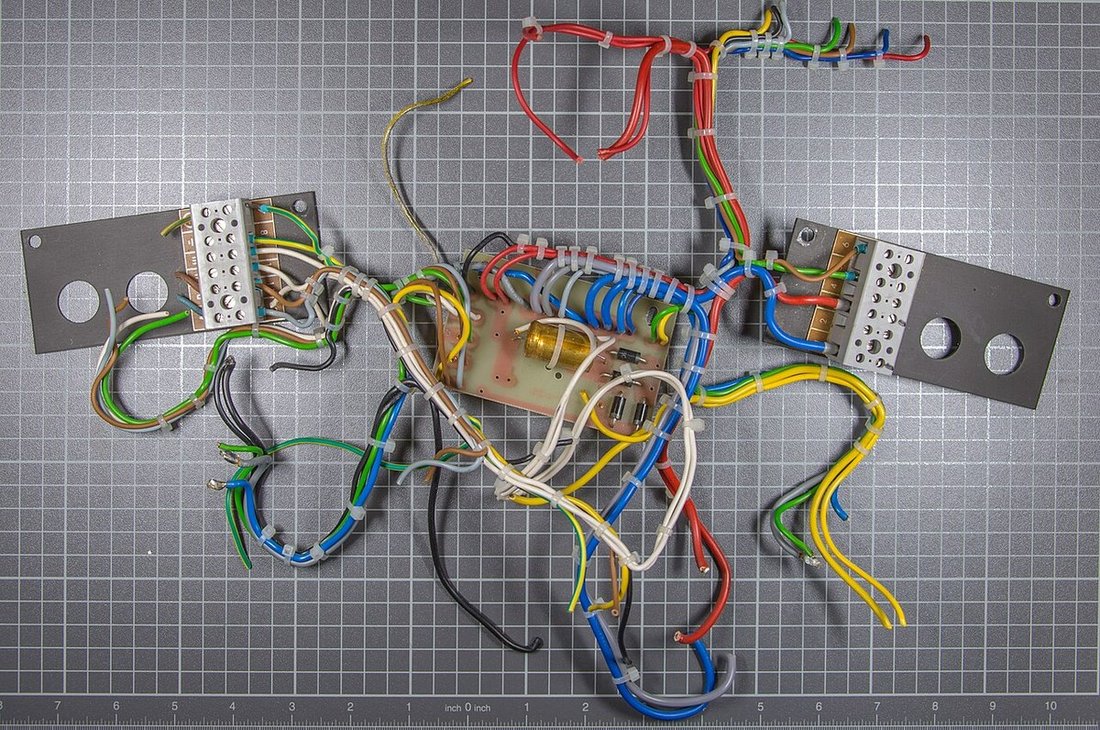

A wired inverter assembly illustrates defined branch lengths and termination positions.
A wired inverter assembly illustrates defined branch lengths and termination positions.

Product Series: Custom Extended Harnesses

Extending a cable changes more than its length. Additional conductor resistance affects voltage drop and heating; an added signal segment can also change capacitance, shielding continuity or communication behaviour. Define the original and new mating interfaces, pin-to-pin map, installed route and maximum load before choosing wire construction. Place service loops where they are supported, not where they can snag or chafe. For data circuits, obtain the protocol and channel requirements. A successful continuity test alone does not prove that an extended sensor or communications link will perform correctly in the equipment.

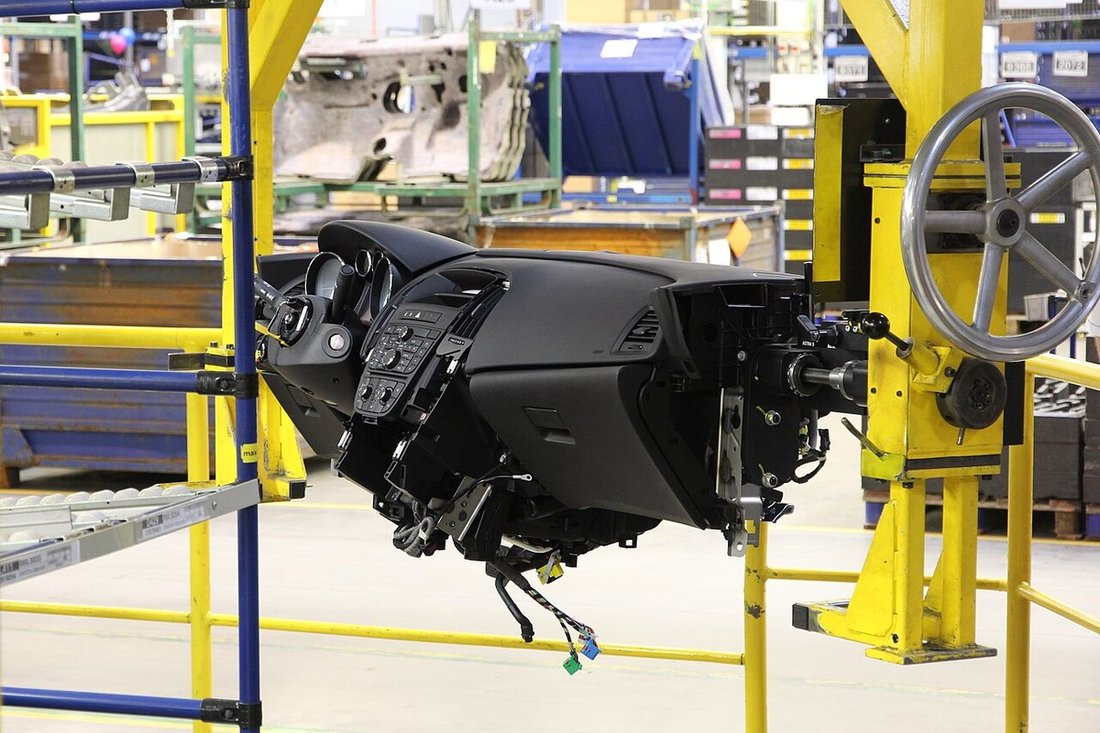

Dashboard assembly shows why service access and installation sequence matter.
Dashboard assembly shows why service access and installation sequence matter.

Custom Solutions for Vehicle Platforms

Passenger, commercial and special vehicles can share some connector families while requiring different harness designs. Start with the platform drawing, mounting points, variant list and service strategy. Separate common trunk wiring from optional branches so a missing feature does not leave an uncontrolled open circuit. Confirm the polarity and pin assignment even when two housings mate mechanically. Super Smile can review a defined assembly or replacement sub-harness against customer data; compatibility is tied to the approved configuration, not to a broad claim covering every vehicle carrying an Aptiv component.

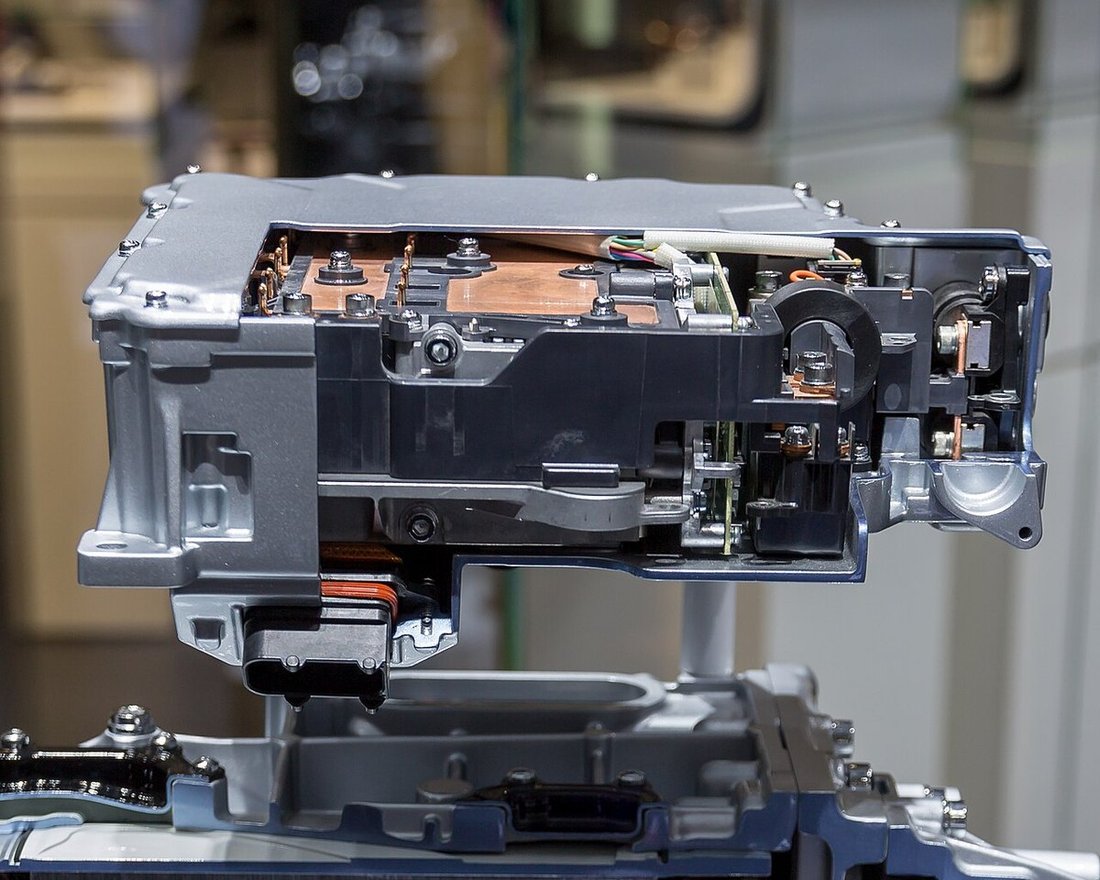

Electric-drive power electronics: a reference for interface and shielding discussions.
Electric-drive power electronics: a reference for interface and shielding discussions.

Custom Solutions for Electric Vehicles

An electric platform contains low-voltage sensing and control as well as high-voltage power distribution. Keep these systems distinct in drawings, identification and verification. A battery-temperature branch, coolant-pump lead and traction-power connection do not use the same qualification assumptions. Specify grounding, shielding, interlock functions and the required connector coding where applicable. Assembly review should include the service disconnect sequence and the space needed to operate locks. We assess the requested cable assembly within the supplied vehicle architecture; battery safety or whole-vehicle certification cannot be inferred from one connector selection.

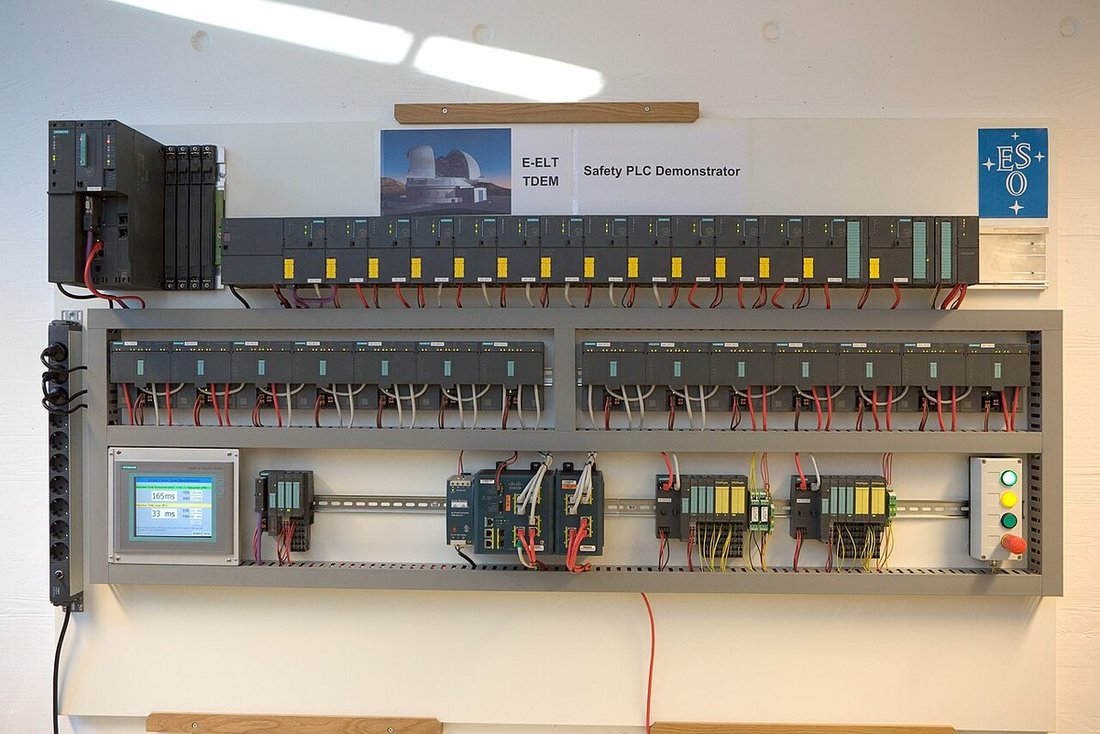

ESO safety-PLC technology demonstrator, shown as an industrial-control reference.
ESO safety-PLC technology demonstrator, shown as an industrial-control reference.

Custom Solutions for Industrial Equipment

A machine harness may join valve manifolds, limit switches, pumps, motor controllers and operator controls. Record which connections move and which remain fixed. The connector supports a serviceable interface, while clamps and cable construction manage mechanical loads along the route. Oil, cleaning agents, dust and repeated bending should be considered independently. For a replacement assembly, inspect the mating device and the installed branch geometry rather than copying a loose cable's relaxed shape. Drawings should identify the reference point for each length so installation and inspection use the same dimensions.

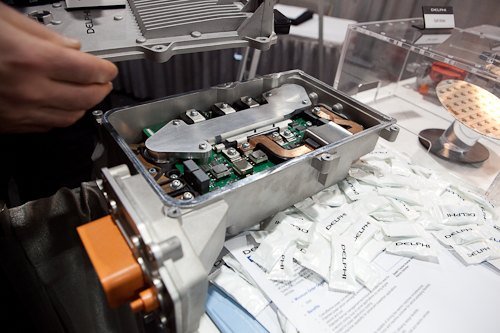

Delphi power-converter demonstration, 2012; historical context, not a current product offer.
Delphi power-converter demonstration, 2012; historical context, not a current product offer.

Aptiv and the Former Delphi Name

Delphi Automotive announced the Aptiv name for its mobility business in 2017 as part of the separation from Delphi Technologies. Legacy drawings, moulded markings and purchasing records may therefore use different names. A historical brand name is helpful for searching, but it is not a substitute for the complete part reference and current drawing revision. Cross-check superseded numbers, mating parts and terminal requirements in the manufacturer's catalogue. Keep the approved original part and any proposed alternative separate on the BOM. This page describes interface options and does not imply that Super Smile is an authorized Aptiv distributor.

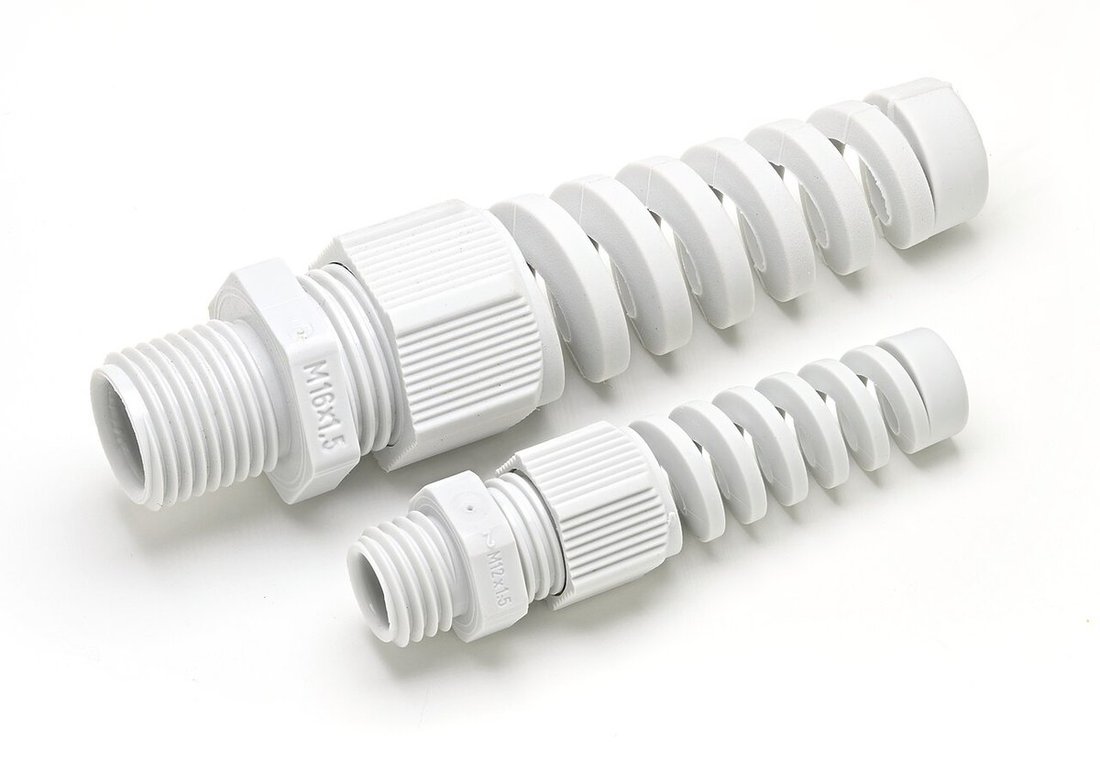

Cable-entry bend protection illustrates the mechanical side of a defined connection system.
Cable-entry bend protection illustrates the mechanical side of a defined connection system.

Core Advantages: A Defined Connection System

The practical value of a custom harness is controlled fit and repeatability. Matched interfaces reduce assembly ambiguity; suitable seals and protection address the actual environment; correct conductor and contact choices support the electrical duty. Weight can be reduced through route planning rather than by removing necessary copper or protection. These benefits depend on engineering decisions and process control, not on a brand name alone. We document the mating system, circuit map, dimensions and inspection criteria so purchasing, assembly and maintenance teams work from the same agreed configuration.

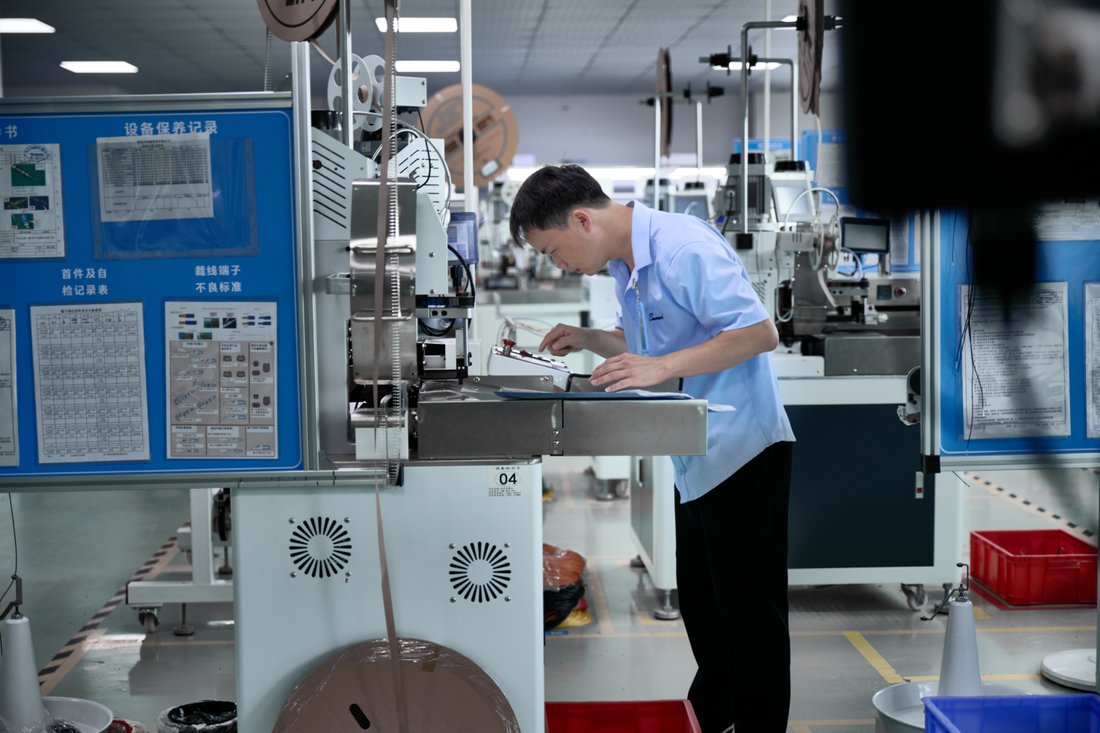

Super Smile production workstation; tooling is confirmed for the specified terminal.
Super Smile production workstation; tooling is confirmed for the specified terminal.

Production: Controlled Termination

Release wire cutting and stripping only after the conductor, insulation and terminal specification is settled. Use the contact-specific application instruction to set strip length, crimp tooling and the acceptance criteria. Inspect strands for damage and verify conductor capture and insulation support where the terminal design provides it. After insertion, confirm cavity assignment and terminal retention before closing secondary locks. A similar-looking terminal can need a different applicator or setting. Keep tooling and drawing revisions linked to the job so repeat batches do not inherit an undocumented adjustment.

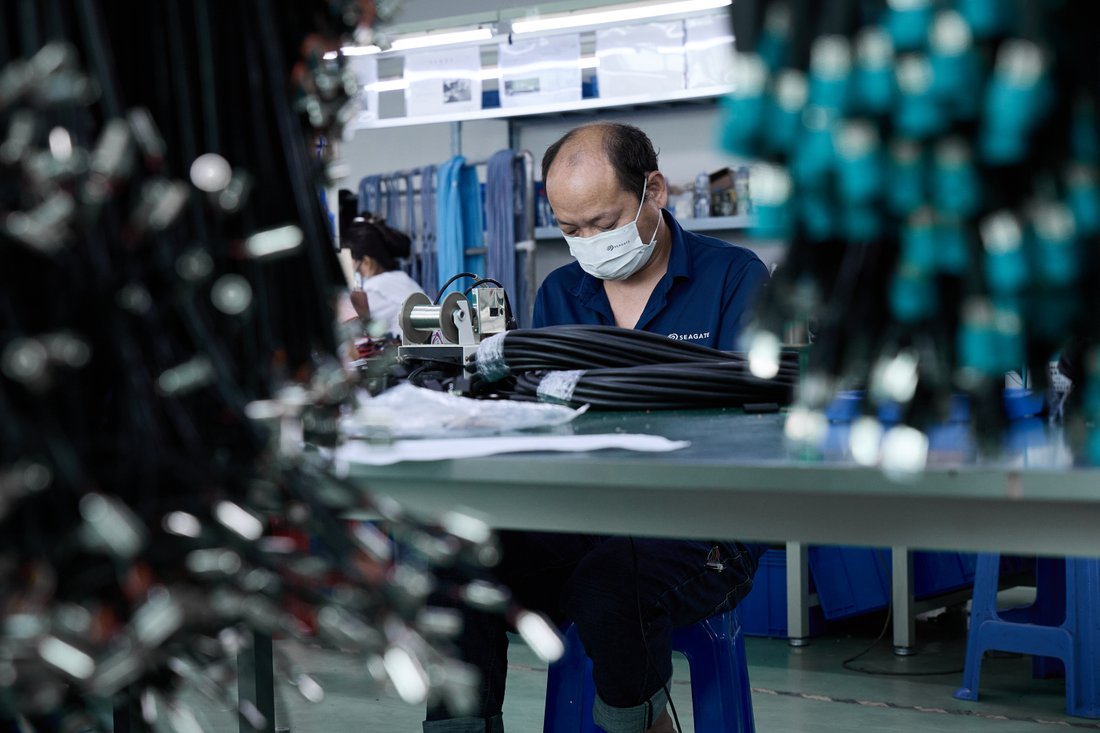

Super Smile assembly workbench; inspection scope follows the approved job requirements.
Super Smile assembly workbench; inspection scope follows the approved job requirements.

Quality Inspection Across the Assembly

Incoming checks identify the specified housings, terminals, seals and wire construction. In-process checks address strip quality, termination, cavity position and branch dimensions. Final electrical verification follows the agreed circuit map, including intended splices, blank cavities and any fitted components. Continuity is not a measurement of insulation resistance, sealing or communication performance. Additional tests must be specified with conditions and acceptance limits. Record the first-article results and agree how repeat production will be sampled or checked, rather than presenting a generic test list as evidence that every test has already been performed.

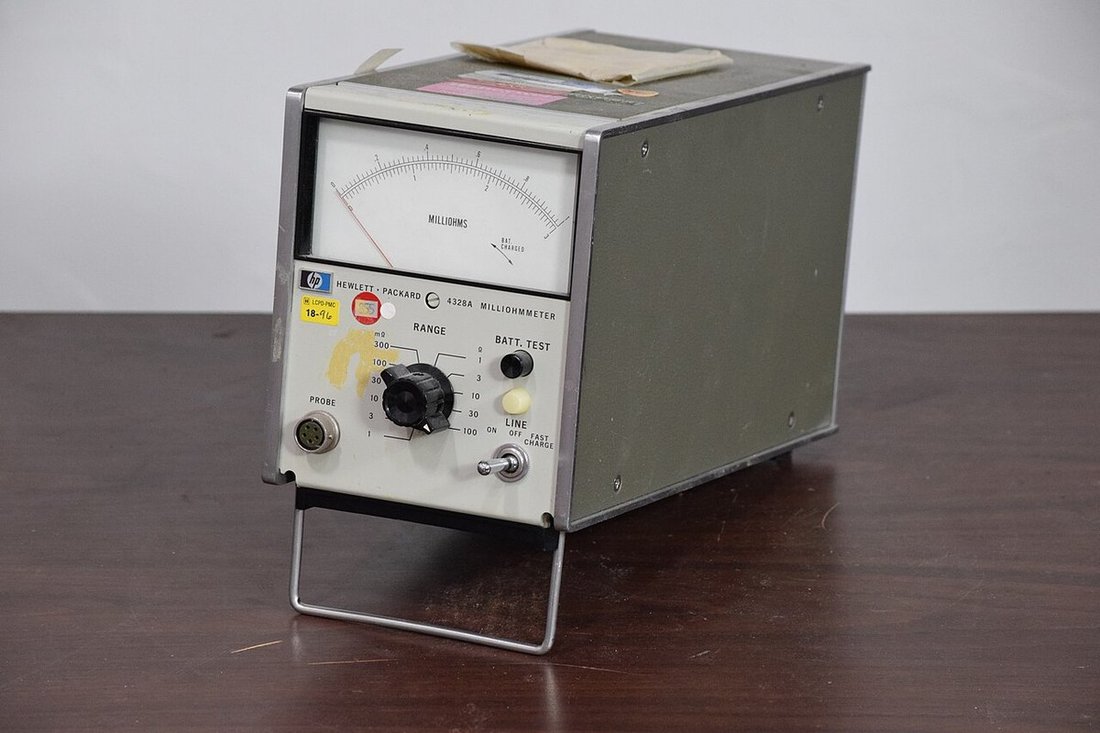

A milliohmmeter illustrates a specific measurement, not a complete qualification record.
A milliohmmeter illustrates a specific measurement, not a complete qualification record.

Compliance and Qualification Records

Separate component qualification, workmanship criteria and the finished assembly's project requirements. A manufacturer's rating applies to its stated configuration and test conditions, not automatically to a modified harness. Where a customer specifies standards such as IPC/WHMA-A-620 or an automotive connector test specification, agree the applicable revision, class, scope and evidence required before quoting. Material declarations and test records are different documents and should not be substituted for each other. We confirm which records are included with an order and which validation activities require a separately approved plan.

Passenger-cabin controls and displays form one installation zone, not the whole vehicle environment.
Passenger-cabin controls and displays form one installation zone, not the whole vehicle environment.

Industries: Passenger Vehicles

Cabin, body and engine-area branches have different exposure and packaging requirements. Lighting, seat functions, climate controls and sensors may use related connection technologies but require distinct pin maps and wire construction. Review the specific trim level and mating device before making a replacement. Secure the loom against trim edges and moving mechanisms, and preserve the intended service access. Airbag and other safety-related circuits require the customer's explicit approved design and verification route; a visually compatible connector is not sufficient authorization to alter them.

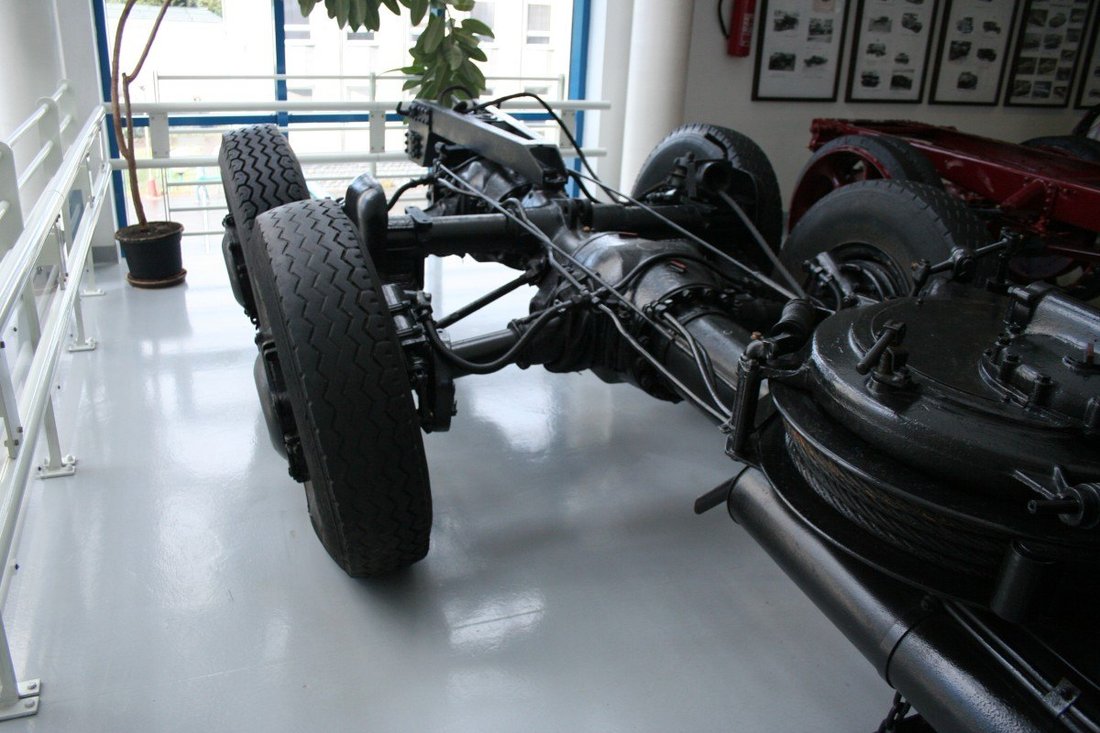

A commercial-vehicle chassis shows long routes and moving-system clearances.
A commercial-vehicle chassis shows long routes and moving-system clearances.

Industries: Commercial Trucks and Fleets

Long routes, cab movement, frame flex and frequent maintenance influence commercial-vehicle harnesses. Define the articulation points and avoid carrying cable weight through a connector latch. Distinguish power, lighting and communication branches even when they run in the same corridor. Labels should identify circuit function and revision so workshop replacement is controlled. Fleet commonality is useful only when vehicle variants have been checked. Keep a traceable record of the assembly version fitted to each application rather than promising one harness for every truck in a fleet.

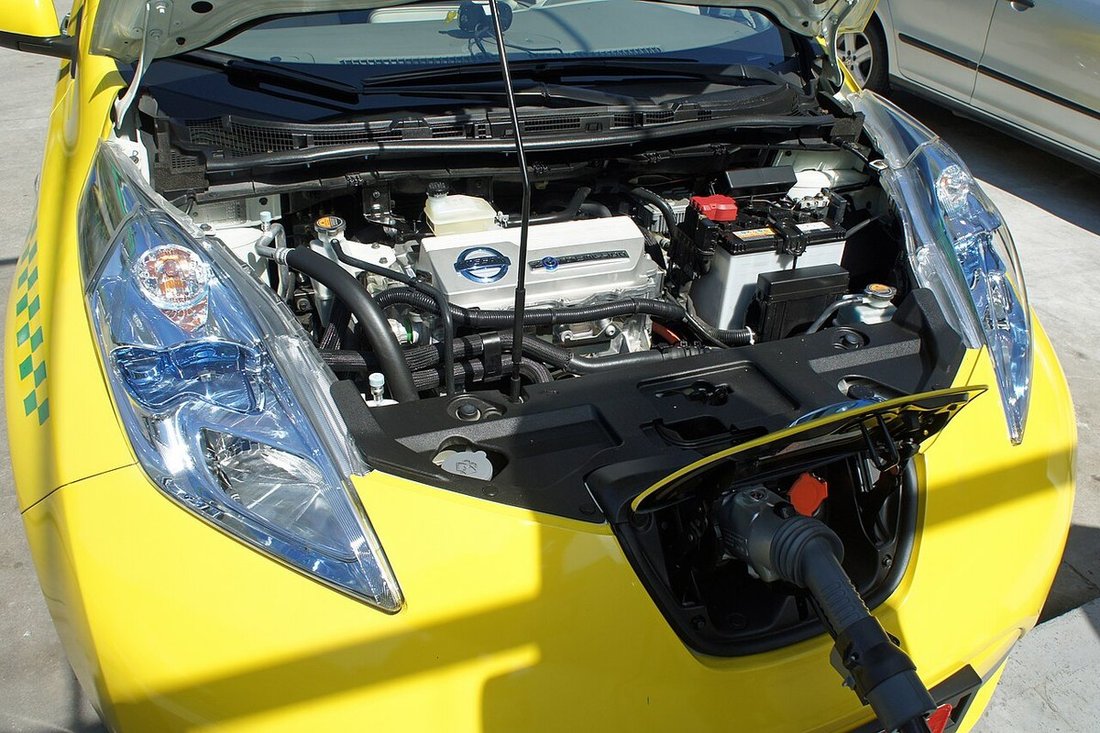

An electric vehicle's charging and motor bay illustrates distinct HV and auxiliary interfaces.
An electric vehicle's charging and motor bay illustrates distinct HV and auxiliary interfaces.

Industries: New-Energy Vehicles

Electric vehicles need accurate low-voltage interfaces for battery sensing, thermal management and control modules alongside their traction-power architecture. State whether the requested assembly carries measurement signals, auxiliary power or high voltage. Shielding, isolation and interlock requirements follow that classification. A low-voltage sealed plug is not a high-voltage substitute. For prototype programmes, freeze the mating references and pin map before comparing sample feedback, so a wiring revision is not mistaken for a component performance change.

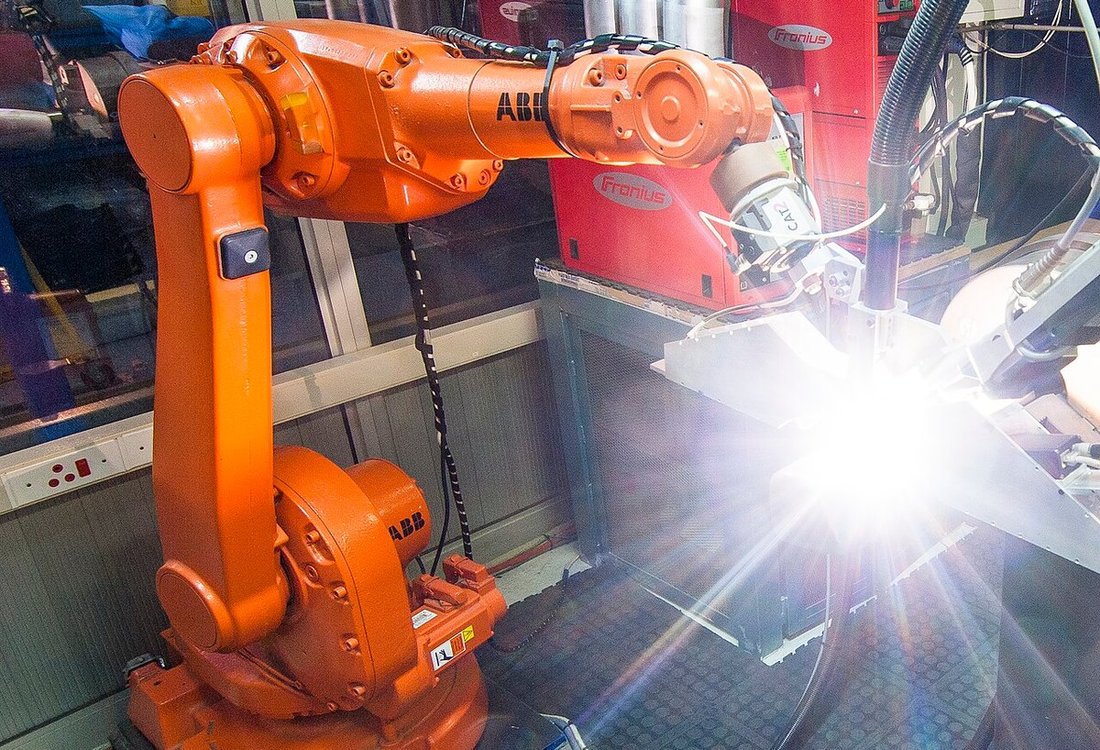

Robotic welding illustrates heat, motion and electromagnetic exposure around equipment wiring.
Robotic welding illustrates heat, motion and electromagnetic exposure around equipment wiring.

Industries: Machinery and Robotics

A fixed connection and a moving robot dress pack face different mechanical demands. Record bend radius, travel, torsion, cycle expectation and the space around each axis. The cable construction and support method must manage movement; the connector should not become the flex point. Keep electrical noise sources and sensitive measurement circuits in view when selecting routing and shielding. The applicable Aptiv interface is specified from the controller or device drawing. Dynamic suitability requires evaluation of the complete installed system, not only a terminal catalogue entry.

An outboard engine illustrates the spray and corrosion environment around marine equipment.
An outboard engine illustrates the spray and corrosion environment around marine equipment.

Industries: Marine and Off-Road Equipment

Salt, spray, mud and washdown are different exposures. A marine sensor lead may also face ultraviolet light and dissimilar-metal corrosion at mounting hardware. Match the chosen connection system, cable jacket and protective accessories to the specific installation and required validation. Locate service connectors above persistent water traps when the design allows it, and provide strain relief that does not damage the seal. A generic IP description does not establish salt-spray resistance or suitability for permanent immersion; those requirements need their own documented review.

Field irrigation equipment illustrates exposed outdoor machinery and distributed control points.
Field irrigation equipment illustrates exposed outdoor machinery and distributed control points.

Industries: Agricultural Equipment

Sprayers, irrigation equipment, harvesters and tractors can expose harnesses to dust, fertiliser, crop debris and relative movement between attachments. Define implement disconnect points, branch supports and the route through folding or lifting mechanisms. Chemical compatibility should be checked against the actual substance and concentration, not simply described as oil resistance. Clear cavity mapping and accessible locks make seasonal attachment changes more controlled. Specify the approved interface at both ends and any sensing or control requirements before treating two agricultural leads as interchangeable.

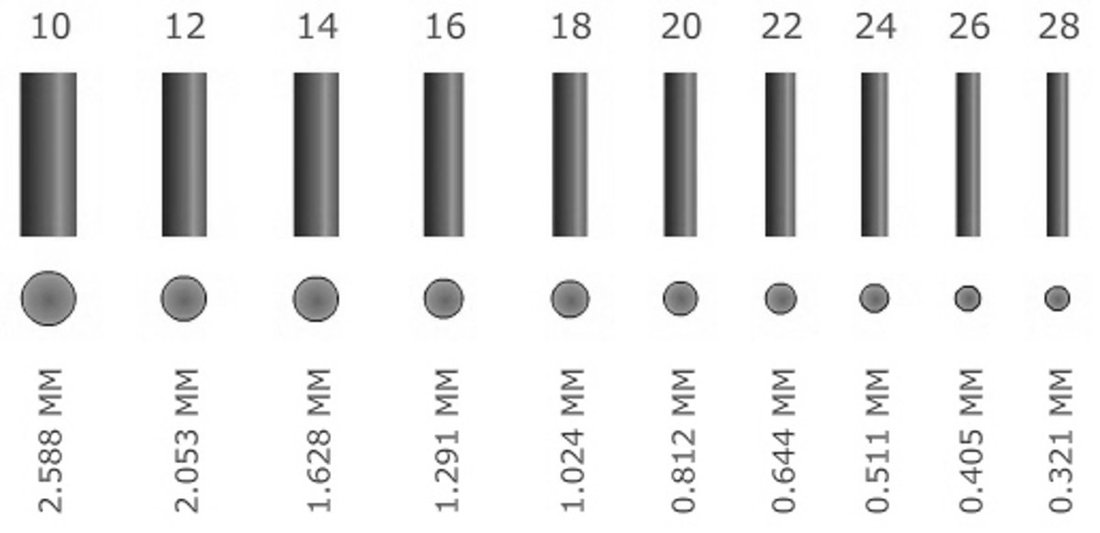

AWG diameter comparison diagram; conductor selection still requires electrical and thermal review.
AWG diameter comparison diagram; conductor selection still requires electrical and thermal review.

Lighter Harnesses Through Route Planning

Reducing unnecessary length can lower material use without reducing conductor size below the required electrical duty. Review branch topology, connector location and service allowance together. A shorter route is not better if it crosses a heat source or removes access needed for maintenance. Where alternative conductor materials or thinner insulation are proposed, review termination compatibility, voltage drop, thermal behaviour and mechanical durability before approval. We compare the defined options in the BOM and drawing; no percentage weight saving or vehicle range improvement is claimed without a measured baseline.

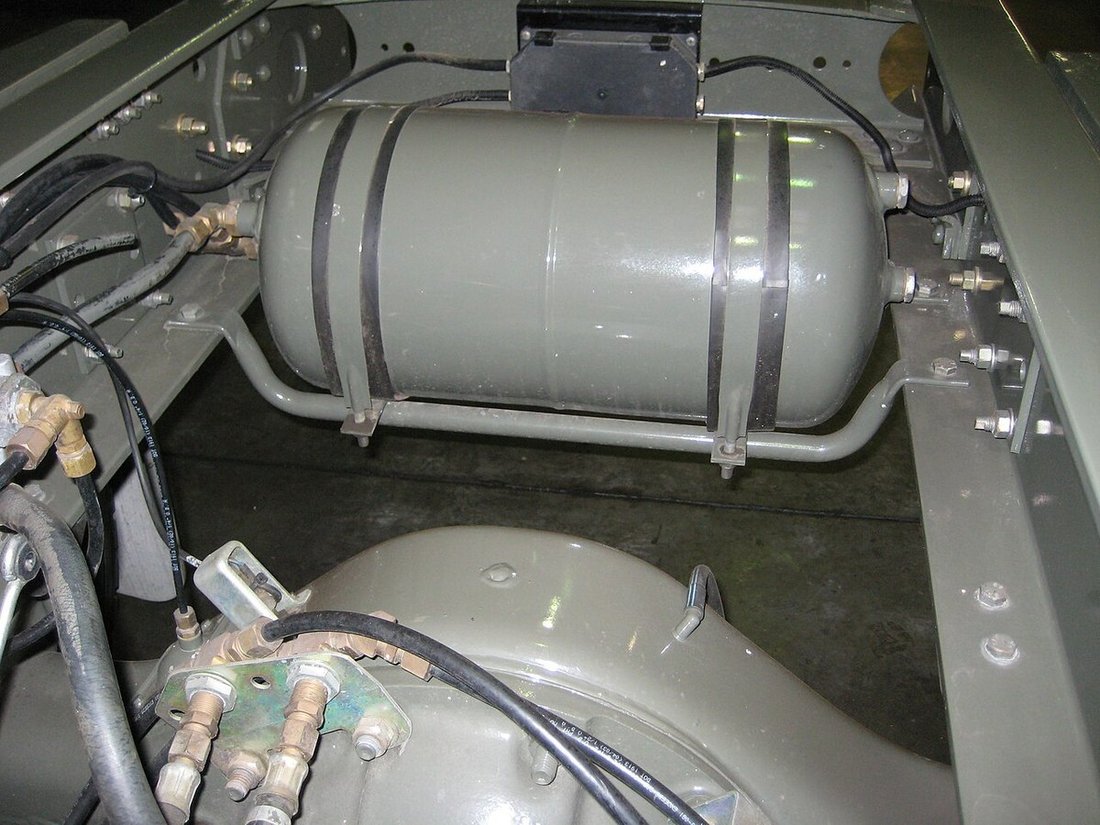

Chassis-mounted equipment and lines illustrate clearance and support planning.
Chassis-mounted equipment and lines illustrate clearance and support planning.

Tailored Routing for Each Vehicle Zone

Design review begins with the installation envelope. Chassis routes need clearance from suspension and steering movement; powertrain routes need local heat and vibration assessment. Interior branches must avoid seat tracks, trim fasteners and service panels. Underbody routes need protection against road debris and retained moisture. Mark clips, grommets, pass-throughs and inspection datums on the drawing rather than leaving them to assembly judgement. The same connector family can appear in several zones, but the cable, protection and verification requirements may be different in each one.

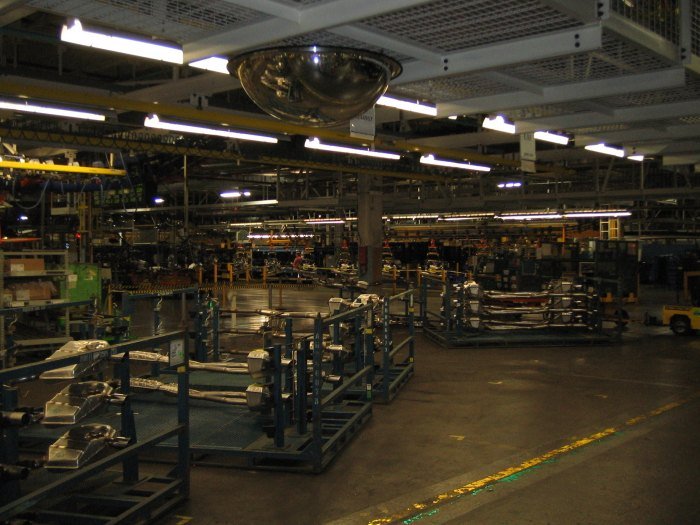

Vehicle assembly-line modules illustrate platform and variant management.
Vehicle assembly-line modules illustrate platform and variant management.

Systems Built for Platform Flexibility

A modular harness separates a shared trunk from defined optional branches. That can simplify servicing and variant management, provided the interfaces, pin assignments and protection remain controlled. An unused option needs a specified termination or cavity treatment. Adding a sensor or module also requires confirmation of the circuit capacity and communication architecture; an available connector position is not automatically a spare functional circuit. Use revision-controlled labels and a compatibility matrix in the engineering package so upgrades and replacement assemblies can be matched to the correct platform version.

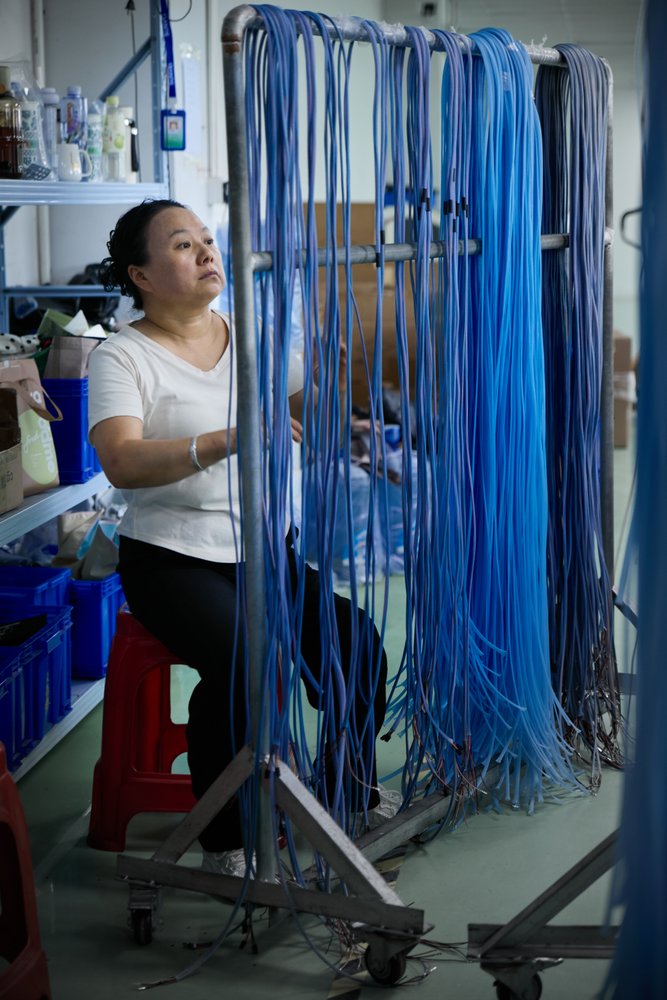

Super Smile wire-handling area; material readiness is checked against the approved BOM.
Super Smile wire-handling area; material readiness is checked against the approved BOM.

Sourcing the Specified Harness

Send the full mating references, pin map, wire requirements, installed dimensions, environment and sample and production quantities. Identify whether original branded components are mandatory and whether alternatives may be proposed for approval. A quotation should separate assembly scope, tooling, documentation and any specialised validation. Availability of the housing alone does not establish availability of terminals, seals and locks. We confirm the sourcing and delivery plan for the approved BOM rather than advertising universal stock. The final release should connect the agreed drawing revision to the supplied assembly and inspection record.

Engineering and Procurement Questions

Does an Aptiv label establish compatibility?

No. Confirm the complete mating references, cavity arrangement, keying, contacts and pin map. A shared brand or shell colour is not sufficient.

Are all Metri-Pack connectors sealed?

No. The portfolio contains sealed and unsealed configurations. Specify the exact version and its application conditions.

Can an extension use the original wire size?

It requires review. Length affects resistance and voltage drop, while signal circuits can also have channel constraints. Confirm load and protocol requirements.

What is included in a production quotation?

The quote should identify the approved BOM, assembly quantity, tooling, included inspections and documentation. Special validation and unapproved alternatives are separately scoped.

PART NUMBER / INTERFACE / MATERIAL

Models, Part Numbers & Sourcing

Find a cable model or material part number, then send it for a custom replacement or original-part sourcing review.

Back to Top ↑

240 references · Search by brand or part number

Connector & Material Part Numbers

Connector, wire and process-material references for project selection.

  • Aptiv

    13819159

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15432237

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15432235

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15432233

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15493005

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15493007

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15493009

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13733481

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15396711

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15396712

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15482337

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15396713

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13988133

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15482338

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13596791

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15482339

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13596792

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15482340

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15432208

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15432210

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15432212

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15492999

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15493001

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15493003

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13626010

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13611693

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13626012

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33118031

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33118034

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15482325

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15482326

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15482327

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15482328

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33118033

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33120088

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13894097

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15327913

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15327918

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15339412

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    12198198

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13943809

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15457847

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15457848

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15457849

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13943933

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13799599

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13799601

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13799603

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13882331

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    10774271

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    10774272

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    10756896

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15446673

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15446674

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15446675

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13799598

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13799600

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13799602

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    10756351

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    10756352

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    10756353

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33500680

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33505427

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33500683

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15339967

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15339838

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    12059168

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15337197

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    10730124

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13976098

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13976099

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13976100

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13976101

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13976102

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13984278

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13984290

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13984291

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13984302

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13984307

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13976114

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13976115

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13976116

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13976117

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13976118

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13984320

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13984321

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13984322

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13984323

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    13984326

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15363779

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15363604

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15327864

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15363605

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    15344647

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    12066082

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    35034194

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    35034363

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    35034195

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33136690

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33136691

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    35129604

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    35129605

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33156624

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33156623

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33219801

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33219796

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33219797

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33219798

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33219799

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33252407

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33252408

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33252409

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33252410

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33252411

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33276642

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33200044

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33276638

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33188785

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33276639

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33188784

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33276640

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33188783

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33276630

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33101162

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33276631

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33101320

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33276632

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33101321

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33276633

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33101322

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33276634

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33237993

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33276635

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33237994

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33276636

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33237995

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33276637

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33237996

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33283998

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33207220

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33283999

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33207221

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33284000

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33207222

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33284001

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33207223

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33284519

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33207134

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33284520

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33207138

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33284521

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33207143

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33284522

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33207144

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33273782

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33111401

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33273783

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33111402

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33276705

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33198862

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33276706

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33198863

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33337581

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33337577

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33337582

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33337578

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33337583

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33337579

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33337584

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33337580

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33276719

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33213199

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33276720

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33213200

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33276721

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33213201

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33276722

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33213202

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33253266

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33253267

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33253268

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33253269

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33253554

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33253557

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33253560

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33253563

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33254221

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33254220

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33254108

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33254107

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33285119

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33341146

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33341398

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33341399

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33285118

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33341143

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33341144

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33341145

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33341148

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33341400

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33341401

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33341402

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33253275

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33253276

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33253277

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33253551

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33254285

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33254281

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33254267

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33254231

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33254098

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33254088

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33254085

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33254084

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308974

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308975

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308976

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308977

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308731

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308735

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308962

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308973

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308978

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308979

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308980

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308981

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308961

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308963

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308964

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308965

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308982

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308909

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308910

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308911

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308912

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308913

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308914

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33308915

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33285164

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

  • Aptiv

    33285165

    CTCS connection component

    Custom compatible replacements · Original-parts sourcing

Configuration & Project Review

01 Interface & Application

Weather-Pack, Metri-Pack and GT are distinct systems; match the complete mating references.

02 Project Inputs

Confirm part references, pin mapping, wire dimensions, environment and quantities.

03 Release Requirements

Approve the BOM, tooling and first article before repeat production.

04 Mating & Termination

Identify the mating part number and termination method before confirming the assembly drawing.

05 Sample Review

Compare the sample with the approved pin map, dimensions and material list.

06 Build Records

Retain the approved part list and inspection results for repeat production.

Send the part number, drawing or sample to confirm the replacement configuration and sourcing plan.

PROJECT REVIEW / CUSTOM MANUFACTURING

Custom Wire Harness Manufacturing in China

Custom wire harness manufacturing from our China factory, with OEM/ODM project support.

A sample, clear connector photos or a description of the equipment and required quantity is enough to start a review.

Discuss Custom Manufacturing & Sourcing

Start with a part number, drawing, sample or equipment requirement.

Information for an accurate quotation

When available, include drawings and BOM, connector and mating part numbers, pinout, wire length and gauge, branch layout, quantity and required tests. Materials, inspection scope and delivery are confirmed for each project.
