Product type

Dashboard & Instrument-Cluster Harness

Overview

Dashboard and instrument-cluster harnesses link the cluster, cockpit switches, HVAC controls, display, body controller and junctions specified for a vehicle. We build full cross-car looms, cluster jumpers, center-console branches and repair pigtails. Each version follows an approved pin map, installation route and service boundary—not a universal dashboard plug.

Ask About This Product TypeFind Models & Material Part NumbersBack to Products

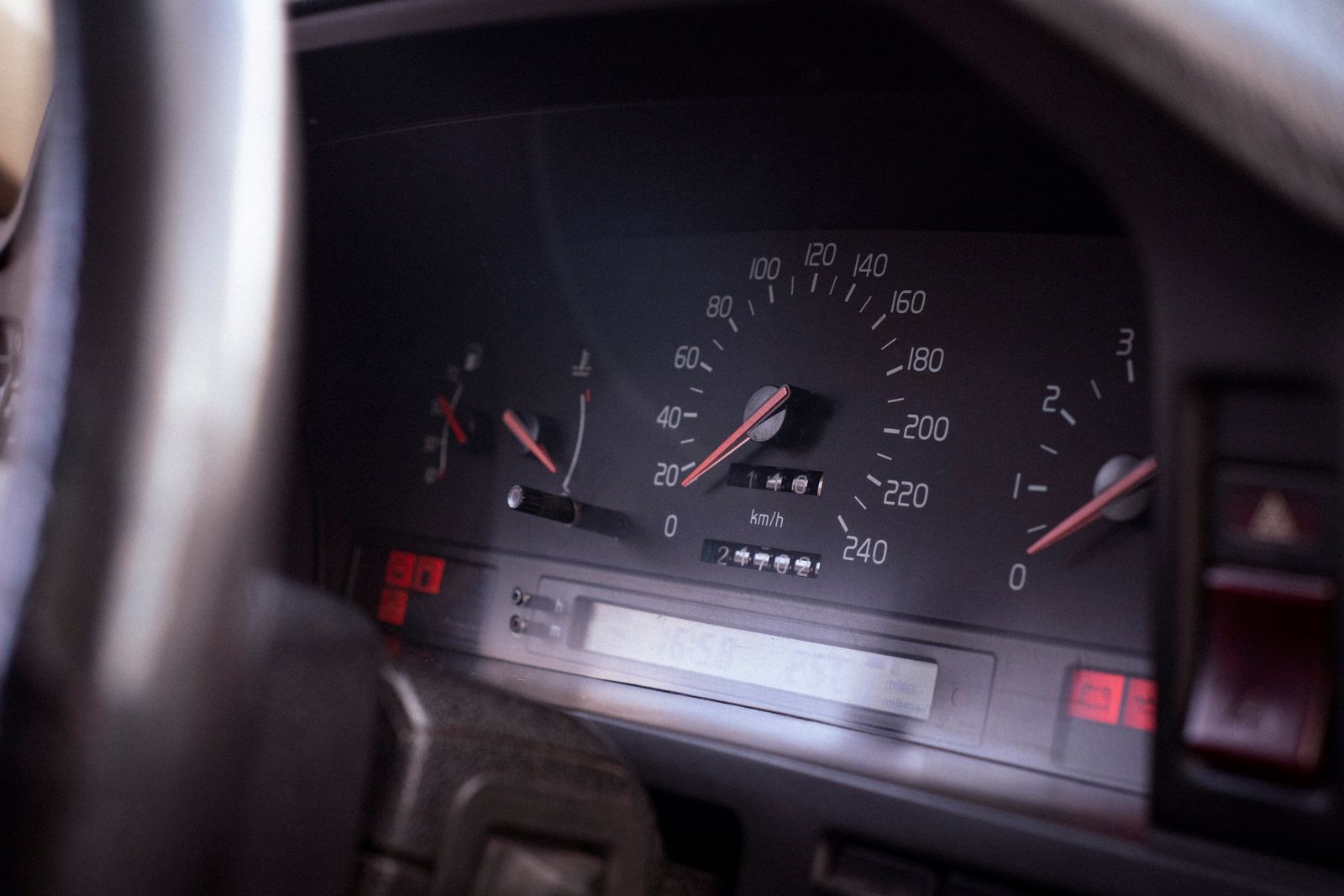

Dashboard & Instrument-Cluster Harness - Automotive
01 / 18

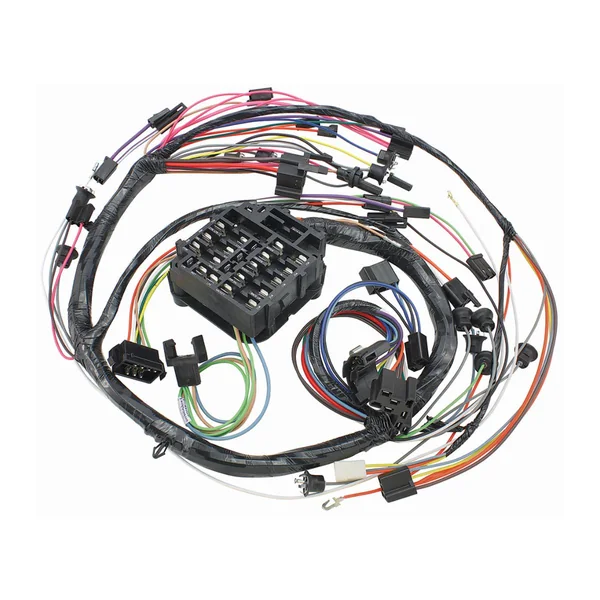

Dashboard Lamp Socket & Fuse Holder Harness
01
Dashboard Lamp Socket & Fuse Holder Harness11780

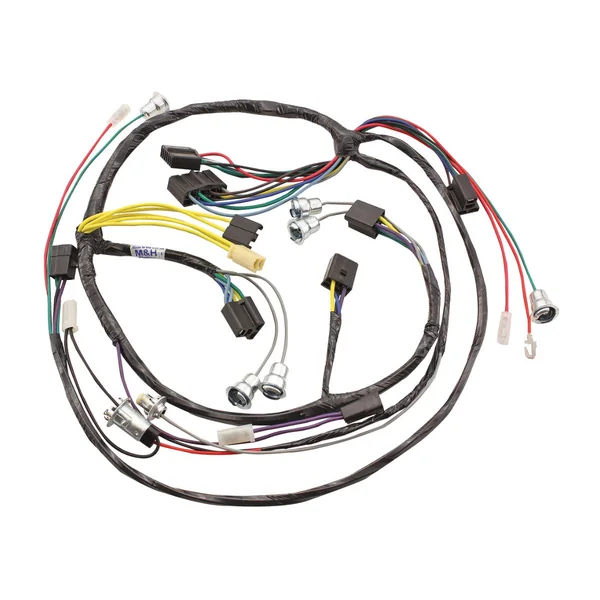

Instrument Cluster Lower Multi-Socket Branch Harness
02
Instrument Cluster Lower Multi-Socket Branch Harness22101

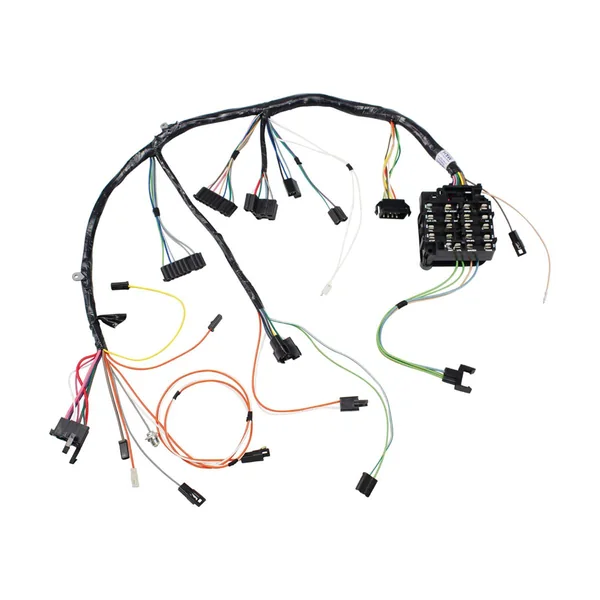

Instrument Cluster Color-Coded Wire & Plug Harness
03
Instrument Cluster Color-Coded Wire & Plug Harness13570

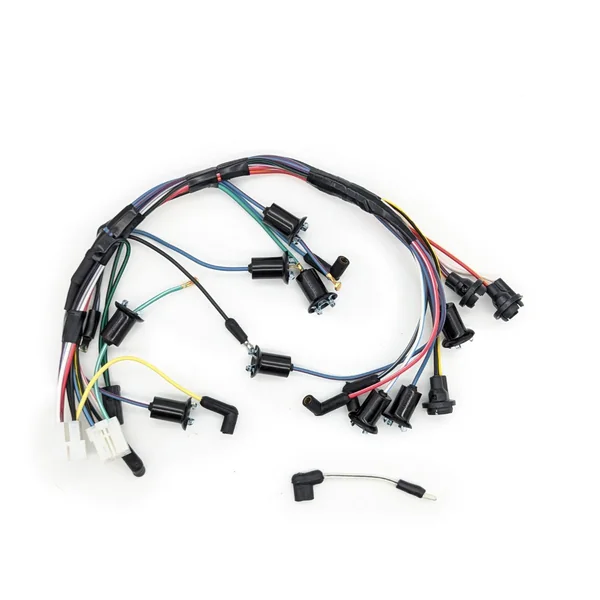

Instrument Cluster Multi-Socket & Rectangular Main Plug Harness
04
Instrument Cluster Multi-Socket & Rectangular Main Plug Harness

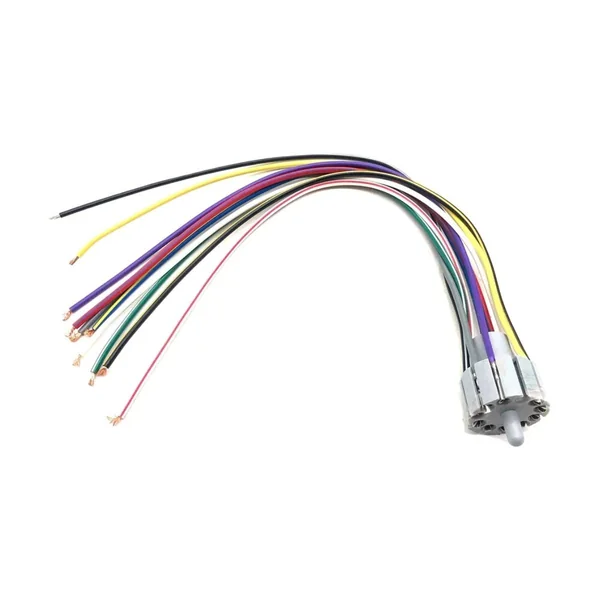

Commando/J Series Instrument Cluster Multi-Wire Plug Pigtail
05
Commando/J Series Instrument Cluster Multi-Wire Plug Pigtail

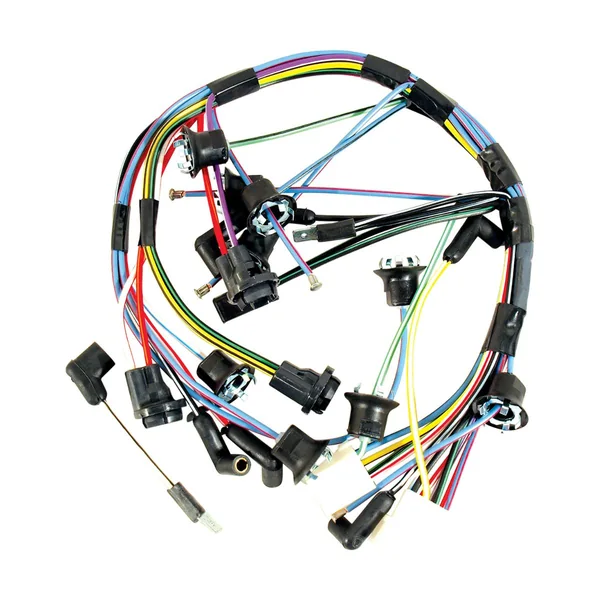

Instrument Cluster Lamp Socket & Tachometer Harness
06
Instrument Cluster Lamp Socket & Tachometer Harness1968

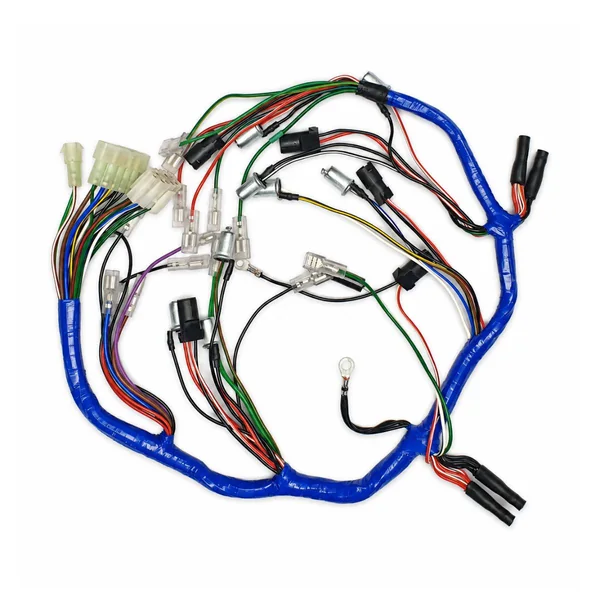

528E MGB Dashboard Lamp Socket & Terminal Harness
07
528E MGB Dashboard Lamp Socket & Terminal Harness

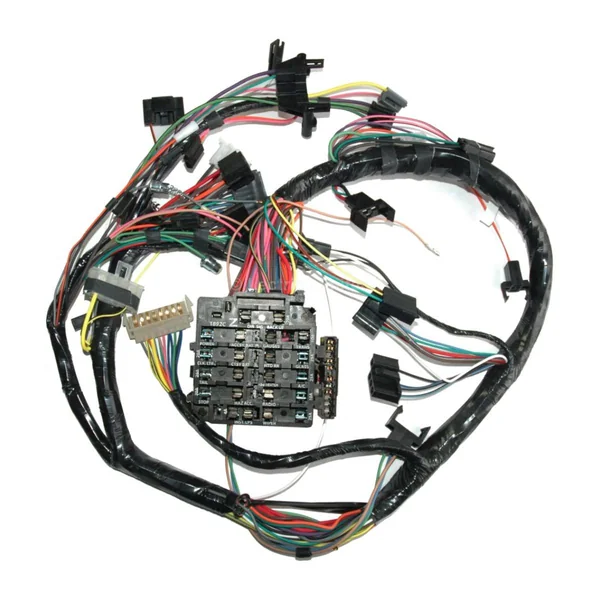

1974 Firebird/Trans Am Dashboard Multi-Branch Harness
08
1974 Firebird/Trans Am Dashboard Multi-Branch Harness

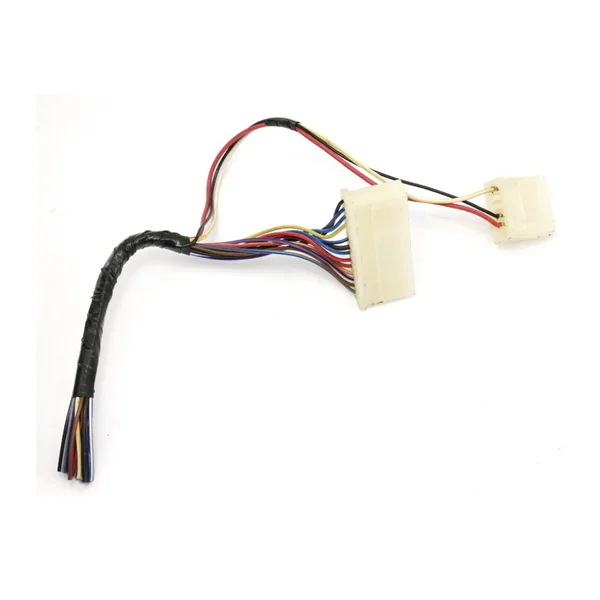

MK1 Instrument Cluster Dual Plugs Branch Harness
09
MK1 Instrument Cluster Dual Plugs Branch Harness

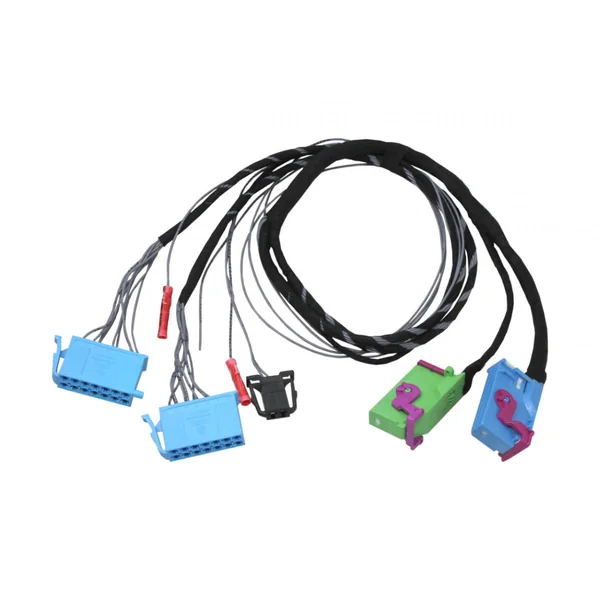

Golf 4 to Golf 3 Instrument Cluster Conversion Harness
10
Golf 4 to Golf 3 Instrument Cluster Conversion Harness

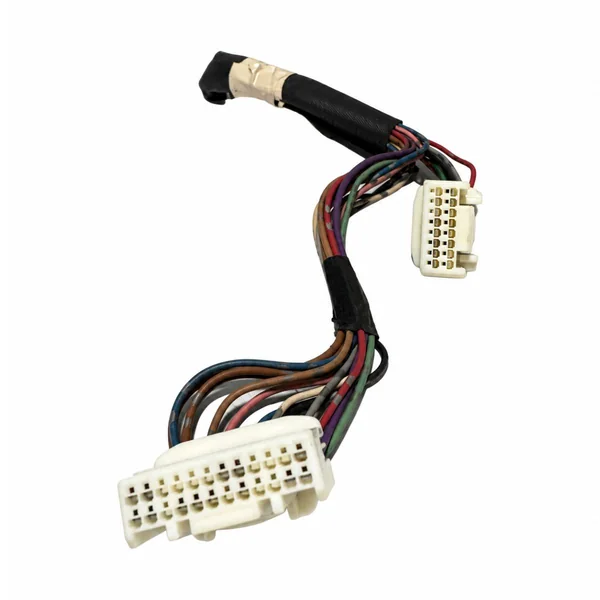

Camry 2007–2009 Instrument Cluster Dual Main Plugs Branch Harness
11
Camry 2007–2009 Instrument Cluster Dual Main Plugs Branch Harness

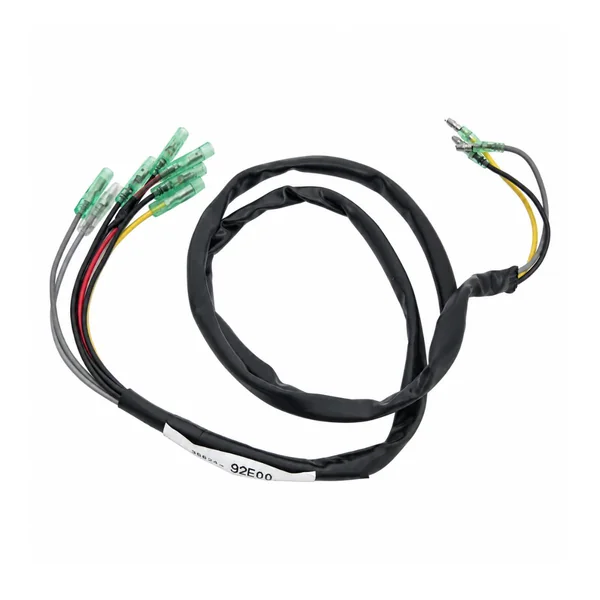

Instrument Cluster Terminal Harness
12
Instrument Cluster Terminal Harness36630-92E00

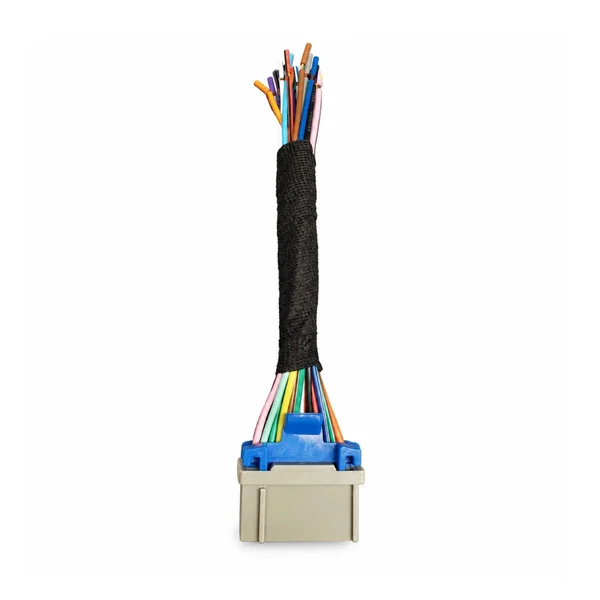

Instrument Cluster Latching Main Plug Pigtail
13
Instrument Cluster Latching Main Plug PigtailS10／Blazer

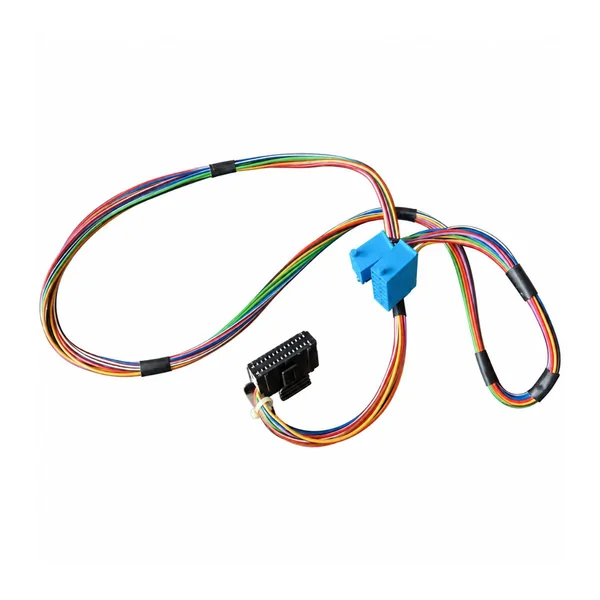

MK2 CE2 instrument-cluster connector harness
14
MK2 CE2 instrument-cluster connector harness

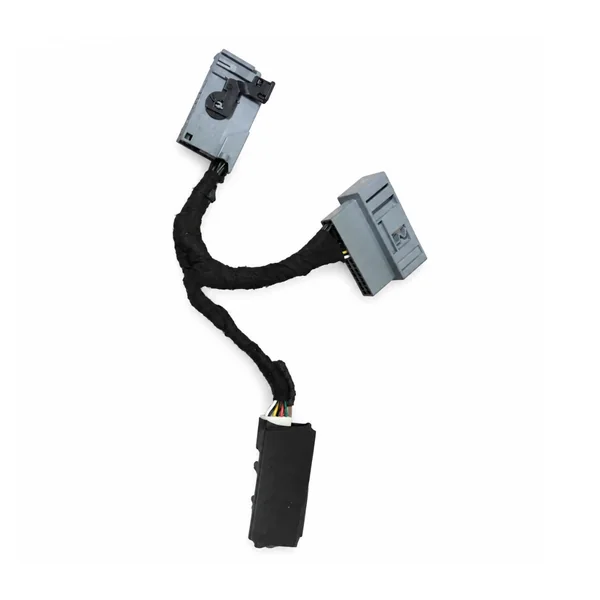

Insignia Instrument Cluster Retrofit 3-Plug Adapter Harness
15
Insignia Instrument Cluster Retrofit 3-Plug Adapter Harness

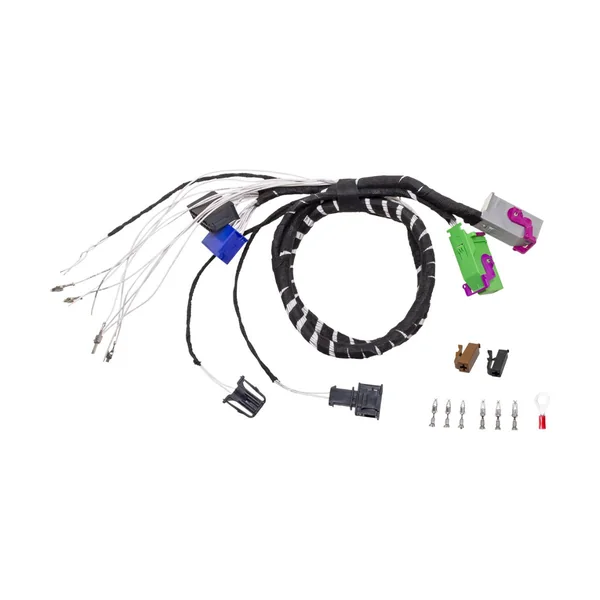

T4 Instrument Cluster Lighting Multi-Plug Adapter Harness
16
T4 Instrument Cluster Lighting Multi-Plug Adapter Harness

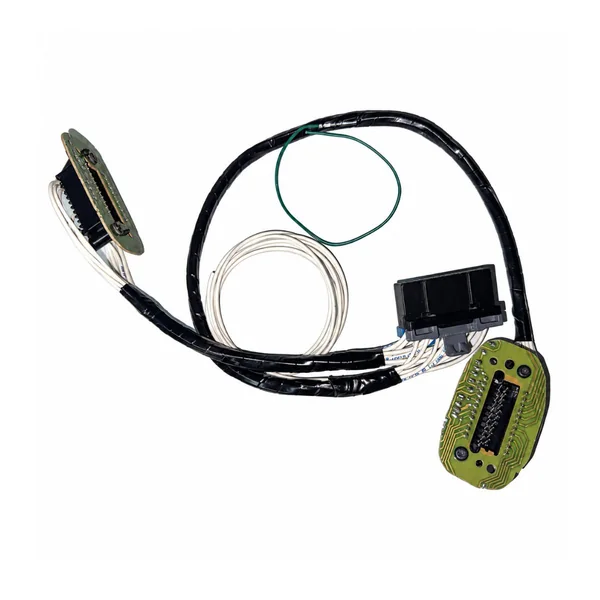

Impala SS/Caprice Instrument Cluster Conversion Harness
17
Impala SS/Caprice Instrument Cluster Conversion Harness

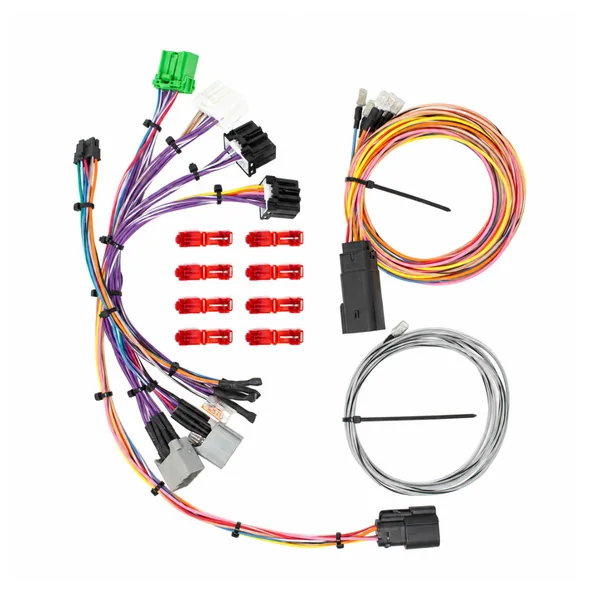

Instrument Cluster to RSX/EP3 Vehicle Harness Set
18
Instrument Cluster to RSX/EP3 Vehicle Harness SetS2000

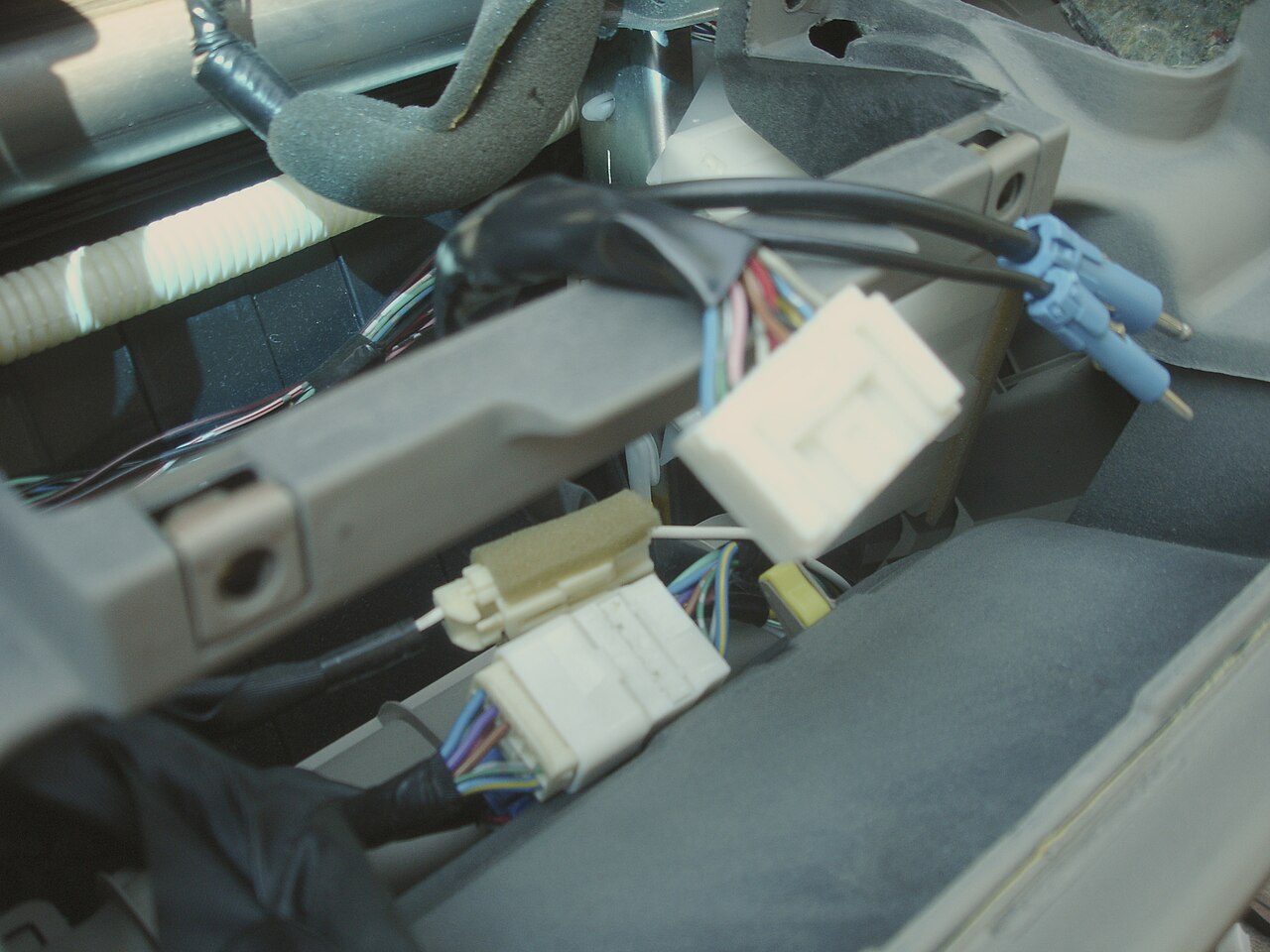

Dashboard & Instrument-Cluster Harness exposed dashboard wiring
CLUSTER / CONTROL / CROSS-CAR / SERVICE

From the visible cockpit to the hidden circuit map

An instrument-panel harness is not one cable behind a screen. It is a packaged network of short branches, cross-car routes and service disconnects. Start with the vehicle's actual electrical architecture, then decide which portion the customer needs us to build.

01

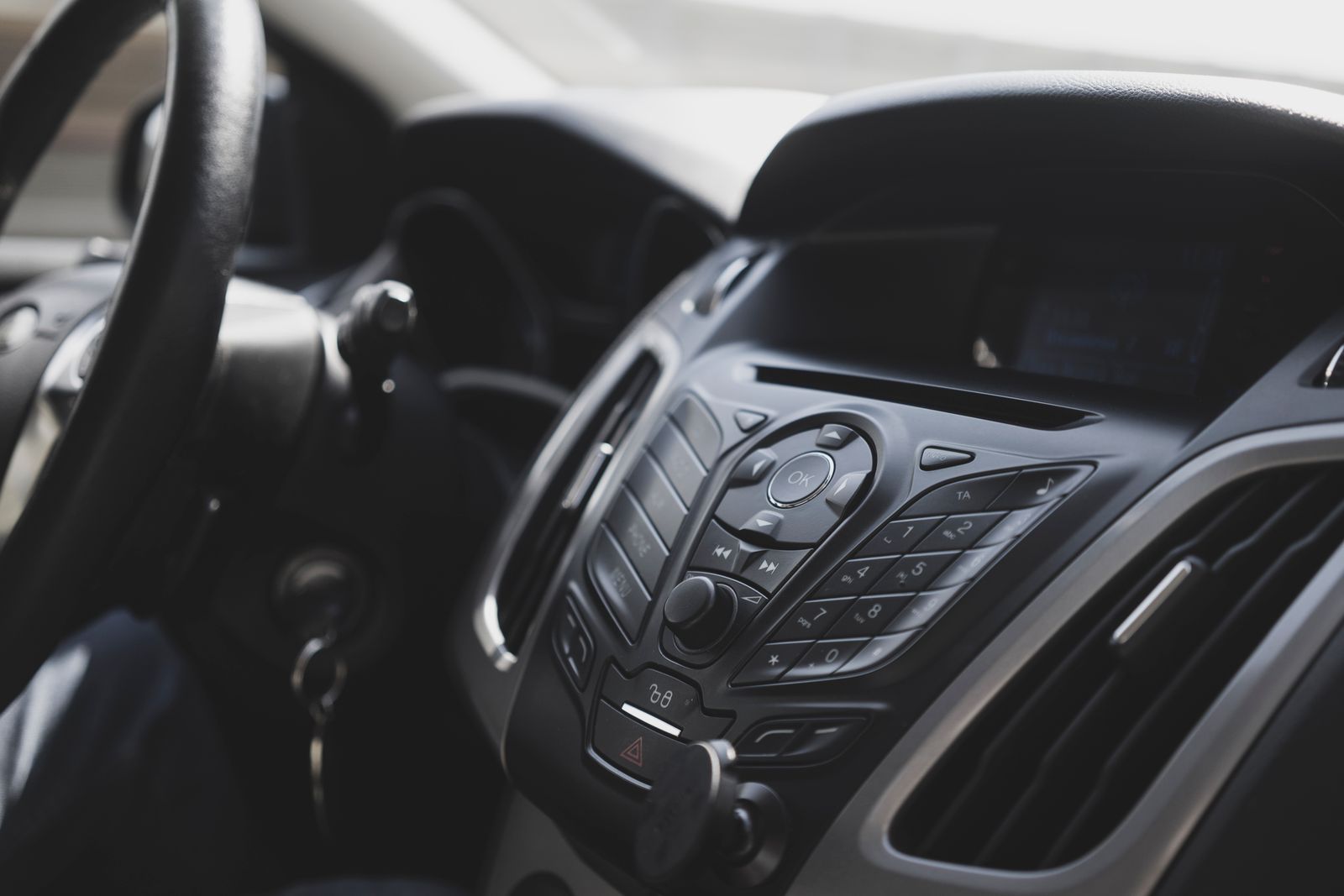

SCOPE & VARIANTS

Full cross-car loom or one defined branch?

A cross-car instrument-panel harness can bridge the left and right sides of a cockpit and break out to the cluster, center stack, HVAC, switch packs, junction block and body controller. Some projects need only a cluster-to-body jumper, a radio or display adapter, a console switch lead, or a service pigtail. The number of connectors is not the product definition: agree the cut points, ownership of adjacent modules, steering position, option content and allowable service disconnects first. The cockpit photograph shows application context, not a Super Smile finished harness.

Freeze the boundary

Mark every controller-side and device-side interface in the drawing.

Variant control

Trim and steering layout can change branch count and reach.

Full cross-car loom or one defined branch?
02

CLUSTER CIRCUITS

Power and data at the instrument cluster

A modern cluster may receive ignition or battery feeds, grounds, illumination control and vehicle information through CAN, LIN or another platform-specific link. Older architectures can also have direct sensor or lamp circuits. Therefore a connector with the right cavity count is not enough: the drawing must identify cavity view, power domains, bus pair or single-wire route, shield or termination requirements where specified, and the corresponding cluster and body-controller versions. Displayed warnings and gauges depend on software and vehicle configuration as well as wiring. The illuminated cluster photo is a visual endpoint, not proof of a particular electrical system.

Do not guess a bus

CAN, LIN and direct circuits are platform choices, not universal pins.

Check both endpoints

A cluster replacement may also require controller and configuration review.

Power and data at the instrument cluster
03

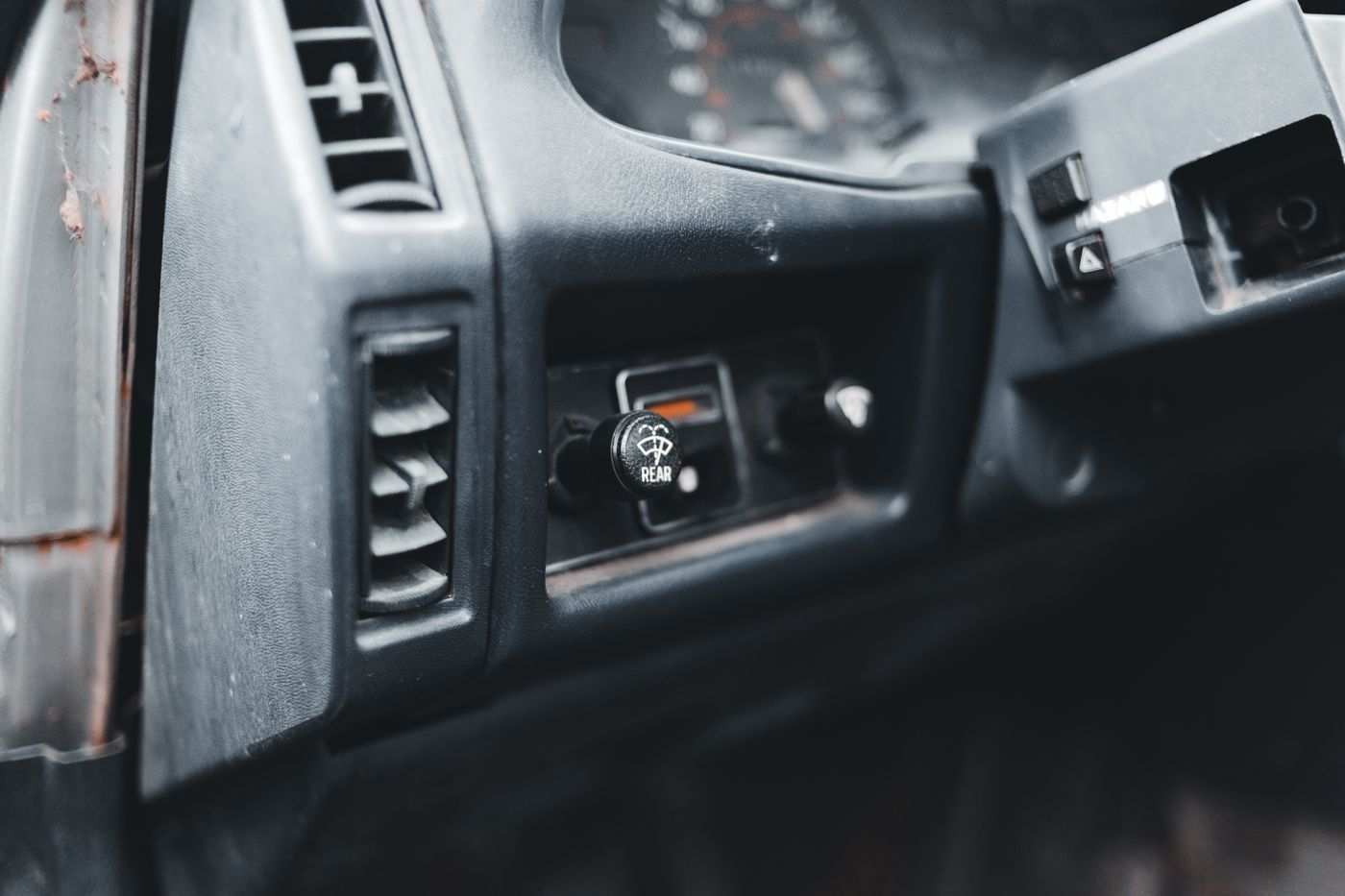

SWITCHES & HVAC

Small control branches still need a circuit identity

Hazard, defogger, steering-column, HVAC and accessory controls can sit only centimeters apart while using different supply, ground, illumination and communication schemes. Switch appearance does not tell whether it carries a direct load, a low-current input to the body controller, or a local LIN command. An adapter or replacement pigtail needs the exact switch assembly reference, pin orientation, mating connector and permitted load. Route branches so the center stack can be removed without pulling on terminals; leave defined service slack without creating a snag point. The pictured rear-window control illustrates a dashboard switch location only.

Define switch logic

A common-looking button can be an input, not a power switch.

Allow service access

Set connector reach and slack against the actual trim-removal path.

Small control branches still need a circuit identity
04

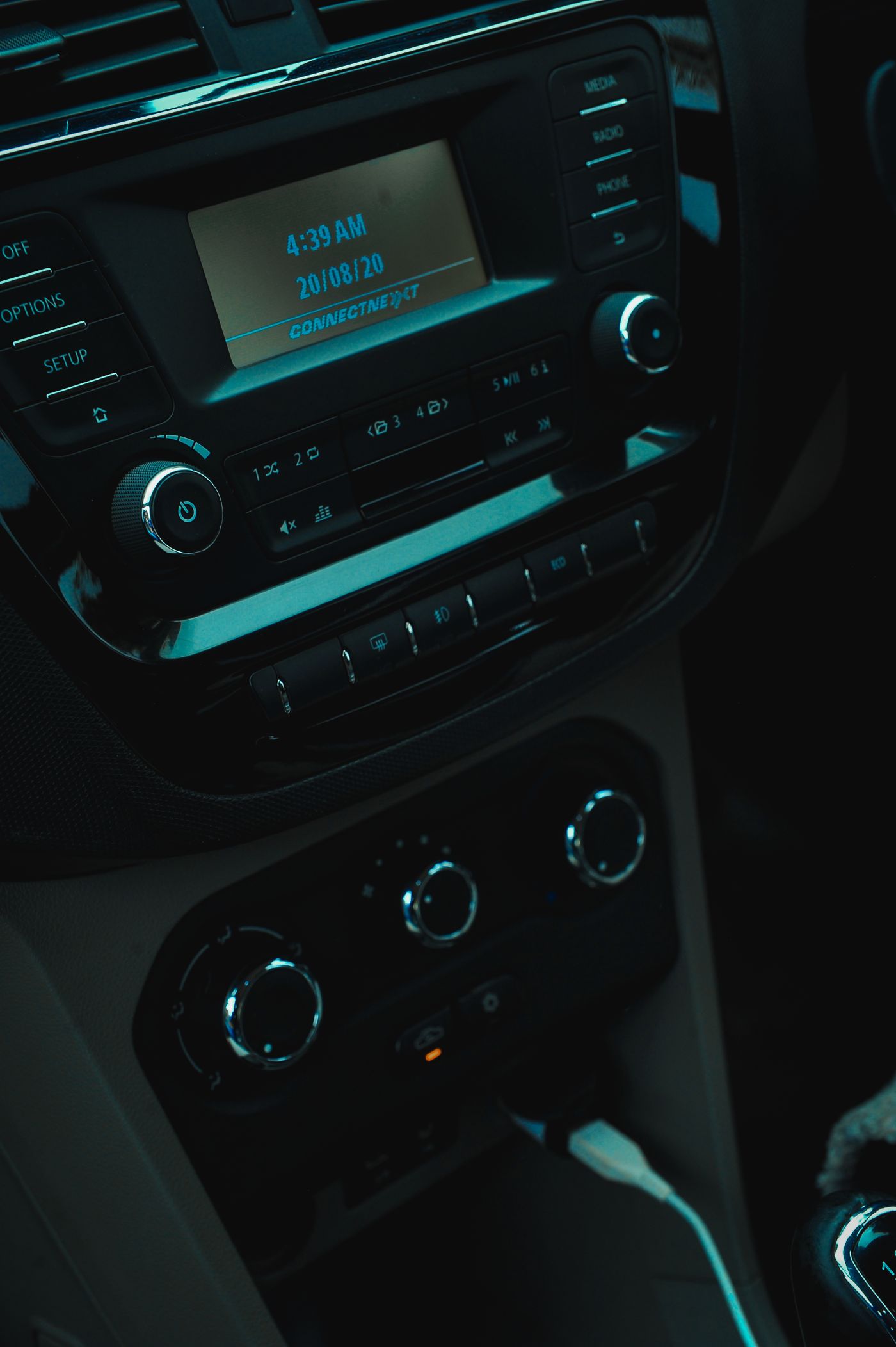

DISPLAY & INFOTAINMENT

Center-stack connections are more than audio power

A head unit, center display or telematics module may require separately defined power, ground, speaker, microphone, USB, antenna, camera or vehicle-data interfaces. These functions are not interchangeable simply because two housings look alike. An ISO-style head-unit connector may be relevant to some vehicles, while other platforms use different multiway or high-speed interfaces. Specify the exact module, pin table, signal direction and shielding or pair treatment for each project. The photographed center stack is an interface context; it does not imply that this particular vehicle uses every circuit listed here.

List each signal group

Audio, camera, USB and vehicle data need their own electrical definitions.

Avoid plug-name assumptions

Confirm the mating part and pinout before an adapter is released.

Center-stack connections are more than audio power
05

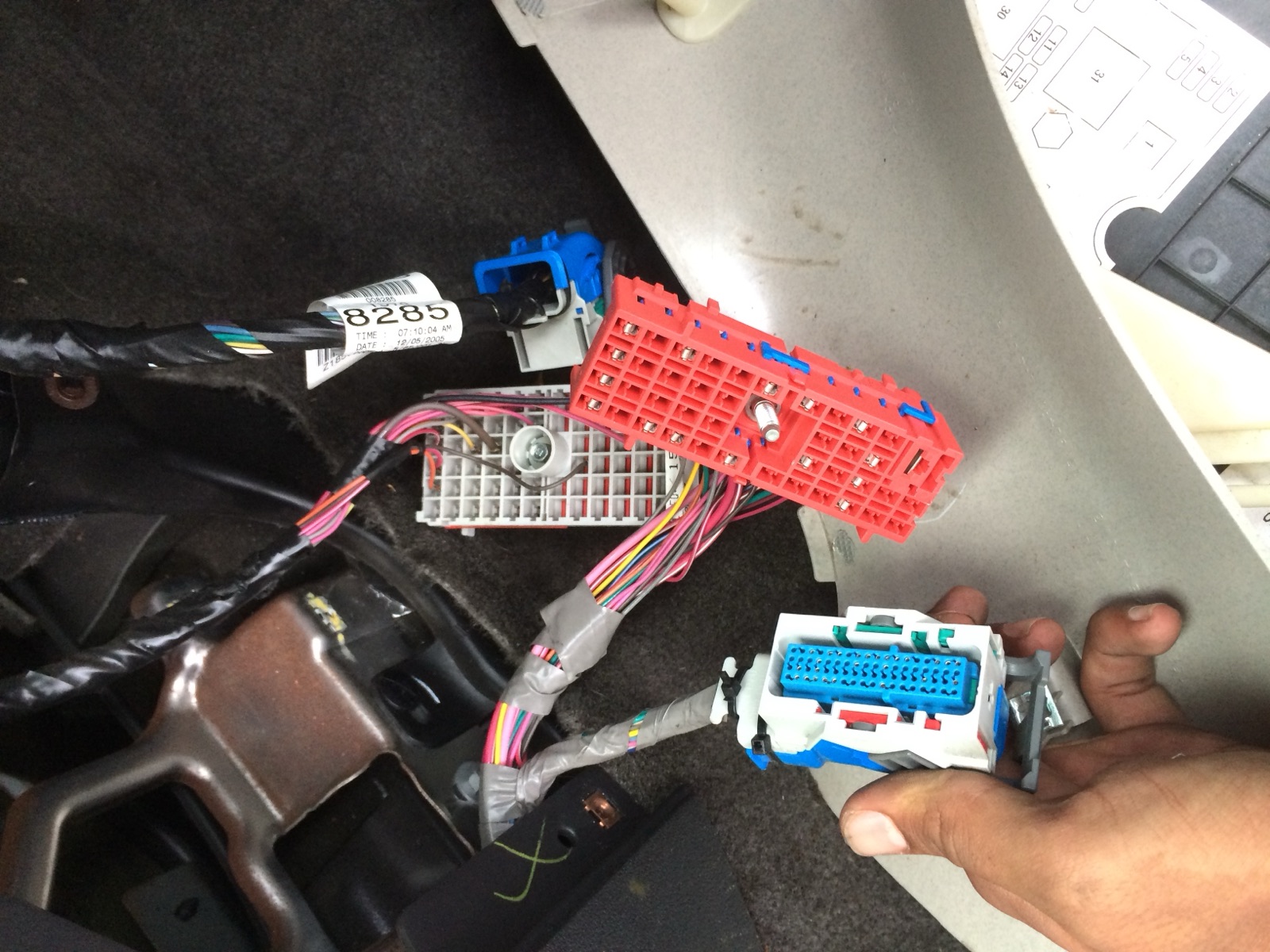

BODY & JUNCTION INTERFACE

The dashboard meets the rest of the vehicle here

Instrument-panel wiring typically meets body, door, steering-column and power-distribution circuits at defined junctions. Body-controller inputs and outputs may be multiplexed rather than carried as one wire per function. The harness must preserve the approved connector key, cavity, terminal and secondary-lock combination; an apparently spare cavity may be reserved or differently populated on another trim. Plan access to junction blocks, fuses and service disconnects before fixing branch length. The photographed in-car multiway plugs illustrate connector density, not a universal pin map or approved repair method.

Match the exact cavity map

Connector color and shape alone cannot identify a body circuit.

Keep access clear

Do not bury a disconnect behind an inaccessible carrier or duct.

The dashboard meets the rest of the vehicle here
06

ROUTE & SAFETY BOUNDARY

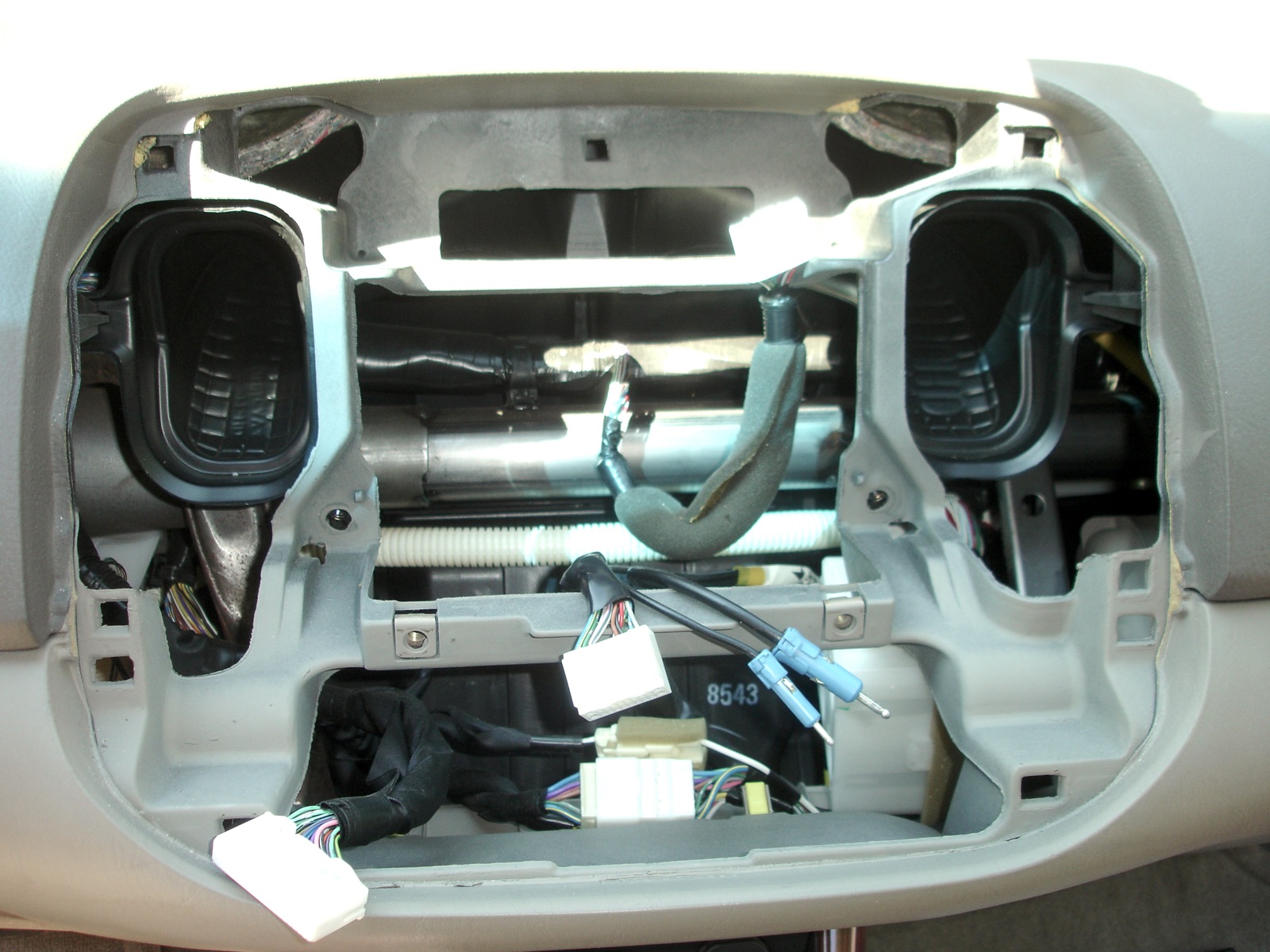

Design around the carrier, ducts and safety systems

The installed route passes cross-car beams, steering support, HVAC ducts, glovebox edges and trim fasteners. Define branch datums, clip and tie positions, anti-rattle protection, bend relief and clearances to sharp or moving parts. Cabin heat and material requirements come from the vehicle specification; a neat-looking wrap is not evidence of approved flammability or abrasion performance. Airbag and other SRS circuits are safety critical. Do not splice, extend or reproduce them from a photo or sample alone; any inclusion requires OEM drawings, traceability and a separately controlled validation plan. The open center-stack photo illustrates packaging and service access, not an SRS assembly.

Measure real service paths

Account for trim removal, not only installed-state reach.

Separate SRS approval

Continuity inspection is never a crash-safety qualification.

Design around the carrier, ducts and safety systems

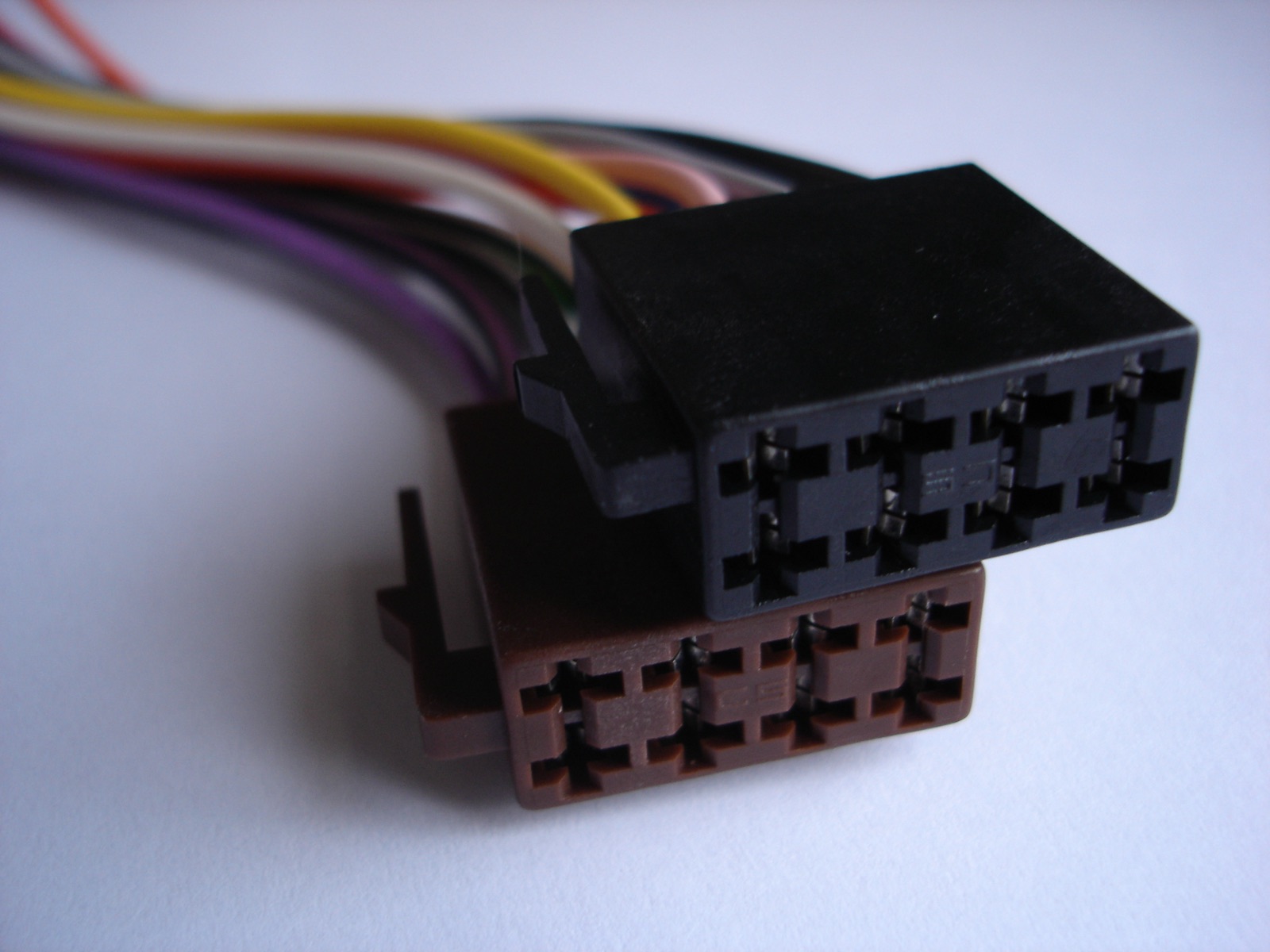

07

BUILD & FIRST ARTICLE

Turn an interface list into a repeatable build

For a new assembly or a replacement based on an old sample, reconcile connector part numbers, face and wire-side views, cavity numbers, wire sections, splice stations and branch dimensions before cutting material. Choose conductor, insulation, terminal and protection only after loads, data paths, installation temperature and required vehicle specifications are known. The first article should be checked for mating, terminal seating, lock position, clip location, clearance, labels and the approved circuit matrix. Continuity and short checks verify wiring identity; powered HMI operation, EMC, durability or vehicle safety need separately specified test methods and acceptance limits. The photo shows head-unit plug geometry as a reference, not a part we claim to supply.

Control views and versions

Face and wire-side views can reverse a cavity interpretation.

Release against agreed tests

No unperformed vehicle-function claim follows from a continuity pass.

Turn an interface list into a repeatable build

Dashboard Harness Questions

Is a cluster pigtail the same as a complete dashboard harness?

No. A pigtail covers a defined cluster interface; a cross-car harness can include switches, HVAC, displays, junctions and body-controller branches. Specify the exact breakpoints and vehicle variant.

Can matching cluster plugs be interchanged?

No. Confirm cavity view, pin map, power domains, network protocol, cluster and controller references, and software configuration. Plug fit alone does not prove displayed information or warning behavior.

Can you reproduce an airbag or SRS branch from an old sample?

Not from a sample alone. SRS circuits are safety critical and require OEM-approved drawings, component traceability, controlled process and separately defined validation. We would first review whether that scope is appropriate for the project.

What changes between left- and right-hand-drive layouts?

Cluster and steering-column positions, cross-car branch lengths, clip locations, service access and some option connections may change. They should be treated as controlled variants, not assumed mirror images.

What information should accompany a quotation request?

Please provide the vehicle platform and year, trim and steering layout, cluster and controller references, connector and cavity views, circuit table, route or sample, branch datums, material requirements, quantity and requested inspections.

Image sources and licenses

PART NUMBER / INTERFACE / MATERIAL

Models, Part Numbers & Sourcing

Find a cable model or material part number, then send it for a custom replacement or original-part sourcing review.
