Branched end layout分支端头布局
Conductors separate toward different ends, creating individual connection points. Branch lengths and directions can follow the equipment modules.导线向不同端头分出，形成独立接入位置。各支路可围绕设备模块分别安排长度与方向。
D-Sub Cable AssemblyD-Sub电缆组件

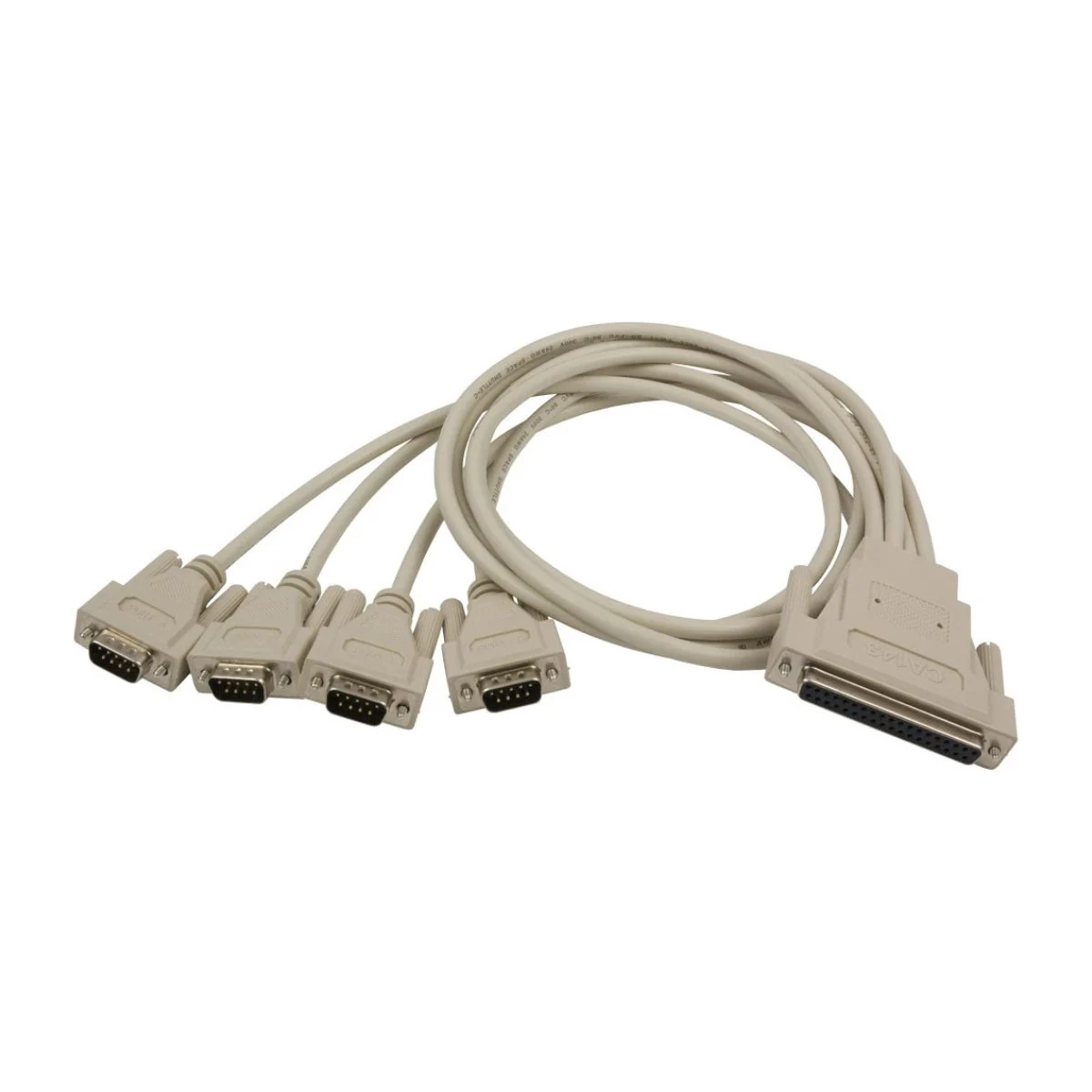

DB37 to 4-Way DB9 Branch HarnessDB37转四路DB9分支线束
DB37 to 4-Way DB9 Branch Harness combines branched end layout, d-sub interface end, end transition layout. Interface, circuit and installation data guide dimensions, material selection and sample review.DB37转四路DB9分支线束的结构重点包括分支端头布局、D-Sub接口端、端头转接与组合。接口、电路与安装资料将作为尺寸、物料和样品制作的确认依据。
- Branched end layout分支端头布局
- D-Sub interface endD-Sub接口端
- End transition layout端头转接与组合
CONSTRUCTION结构解析
Connection structure and design details连接结构与设计要点
Use the db37 to 4-way db9 branch harness form as a starting point and confirm these design points against drawings and the actual equipment.以DB37转四路DB9分支线束的结构形式为起点，结合图纸和实际设备确认以下设计要点。
D-Sub interface endD-Sub接口端
The D-Sub-form end allows equipment connection to be arranged around the mating face, fixing screws and rear cable route.端头采用D-Sub形式，可围绕插合面、固定螺钉和后部线缆走向安排设备连接。
End transition layout端头转接与组合
The assembly organizes a transition or combined connection, with end directions, transition sections and fixing arranged around the equipment positions.组件以转接或组合形式组织连接，可围绕两端设备位置安排端头方向、过渡段与固定。
CONFIGURATION结构与选配
Construction & customization options结构与定制配置
The table describes the construction and available configuration choices. Materials, dimensions, circuits and inspection requirements are agreed for each project.以下说明展示结构与可配置内容。具体材料、尺寸、电路和检验要求按项目确认。
| D-Sub shell size and standard/high-density layoutD-Sub壳号、标准或高密度排布 | Identify shell size with standard, high-density or mixed contact layouts.壳号与标准、高密度或混合触点排列一起识别。 |
|---|---|
| Male/female and solder-cup/crimp termination针孔端、焊杯或压接端接形式 | Define pin/socket gender and solder-cup, crimp or IDC termination.针式孔式和焊杯、压接、IDC端接分别定义。 |
| Backshell material, shielding and jackscrew specification尾壳材料、屏蔽和锁紧螺钉规格 | Match hoods, shielding and jackscrew threads to the panel.尾罩、屏蔽与螺钉螺纹匹配实际面板。 |
| Pin map and crossover definition电路针图与交叉接线定义 | Record pin-to-pin and crossover wiring with defined connector views.以明确视图记录逐针连接及交叉关系。 |
| Circuit and revision reference电路与版本依据 | Provide clear mating-face and wire-side photographs, the mating equipment, exact pin map, voltage and current, signal type, cable length and construction, hood and exit direction, fixing hardware, environment, quantity and validation requirements.建议提供插合面与接线面清晰照片、对插设备、准确针脚、电压电流、信号类型、线长与结构、尾罩与出线方向、固定硬件、环境、数量和验证要求。 |
| Sample and manufacturing configuration样品与制造配置 | Engineering freezes the connector, pin orientation, circuits, cable, hood and hardware before the first build. Termination and shield treatment are inspected before continuity, shorts, polarity, mating, locking, dimensions and project-specific signal or environmental validation.工程在首件前冻结连接器、针脚方向、回路、线缆、尾罩和固定硬件。端接与屏蔽处理完成检查后，再进行导通、短路、极性、插合、锁紧、尺寸以及项目专项信号或环境验证。 |
APPLICATIONS连接的应用
Application directions应用方向
These are connection directions for project discussion. Suitability depends on interfaces, circuits, installation conditions and project validation; configuration can be adapted to the equipment.以下为可讨论的连接方向。实际适用性取决于接口、电路、安装环境和项目验证，可按设备需求调整。
Serial interfaces and equipment setup串行接口与设备联调
Define serial connections from equipment interfaces and a pin table. Instruments or setup fixtures can then check signal paths and required service access. Identify shell size with standard, high-density or mixed contact layouts.从设备接口和针脚表定义串行连接，再通过仪器或联调工装确认信号路径与所需服务接入点。选配时，壳号与标准、高密度或混合触点排列一起识别。
Multichannel control多通道控制
Record channel numbers, shields and common terminals in the pin table. Define pin/socket gender and solder-cup, crimp or IDC termination.将通道编号、屏蔽和公共端落实到针表。选配时，针式孔式和焊杯、压接、IDC端接分别定义。
Service interfaces and circuit checks服务接口与回路检查
Arrange service-lead length and branches around accessible connections, with a clear pin definition for circuit-by-circuit checks. Match hoods, shielding and jackscrew threads to the panel.检修引线按可接近的连接位置安排长度与分支，并为逐回路检查保留清楚的针脚定义。选配时，尾罩、屏蔽与螺钉螺纹匹配实际面板。
Panel I/O connections面板I/O连接
Define service access from jackscrews, hood and mating-face orientation. Record pin-to-pin and crossover wiring with defined connector views.锁紧螺钉、尾罩与插合面方向共同定义维护入口。选配时，以明确视图记录逐针连接及交叉关系。
Interface replacement for existing equipment既有设备的接口替换评审
For an existing interface, first compare the original connector, mounting dimensions and circuit definition. Similar appearance does not establish mating or wiring compatibility. Identify shell size with standard, high-density or mixed contact layouts.替换旧接口时，先核对原接头、固定尺寸和电路定义；外形接近不能代替对插与接线检查。选配时，壳号与标准、高密度或混合触点排列一起识别。
Multipin numbering and adapter definition多接点编号与转接定义
Use cavity numbering, wire order and the opposite-end function table to define a multipin adapter. Confirm mounting dimensions and service clearance at the same time. Define pin/socket gender and solder-cup, crimp or IDC termination.多接点转接以孔位编号、线序和对端功能表为依据，同时确认连接器的安装尺寸与检修空间。选配时，针式孔式和焊杯、压接、IDC端接分别定义。
ENGINEERING & PRODUCTION工程与制造
Adapt the connection to your equipment.围绕设备，调整连接细节。
Touched by me, better it’ll beTouched by me, better it’ll be
Custom wire harness manufacturing in China中国工厂 · 定制线束制造
Our China factory supports d-sub cable assembly projects through custom wire harness manufacturing and OEM/ODM development. Interface, circuit and installation data guide material selection, sample builds and manufacturing-document approval before repeat production.Super Smile-Tech 中国工厂围绕D-Sub电缆组件的项目需求提供定制线束制造与 OEM/ODM 支持。我们从接口、电路与安装资料开始，协同物料选配、样品制作和制造文件确认，再按批准要求组织重复生产。
D-Sub shell size and standard/high-density layoutD-Sub壳号、标准或高密度排布
Identify shell size with standard, high-density or mixed contact layouts.壳号与标准、高密度或混合触点排列一起识别。
Male/female and solder-cup/crimp termination针孔端、焊杯或压接端接形式
Define pin/socket gender and solder-cup, crimp or IDC termination.针式孔式和焊杯、压接、IDC端接分别定义。
Pin map and crossover definition电路针图与交叉接线定义
Record pin-to-pin and crossover wiring with defined connector views.以明确视图记录逐针连接及交叉关系。
PRODUCT QUESTIONS产品问答
Product & customization questions产品与定制常见问题
Are DB9 and DE-9 the same connector?DB9 和 DE-9 是同一种接口吗？
DB9 is a common market name for the nine-contact connector, while DE-9 is the more accurate shell designation. Always confirm the mating face, contact sex, hardware and equipment interface rather than relying on the name alone.市场常把九针接口称为 DB9，而 DE-9 是更准确的外壳称呼。应核对插合面、触点性别、固定硬件和设备端接口，不能只依赖名称。
Can D-Sub cables with the same contact count be interchanged?针数相同的 D-Sub 电缆可以互换吗？
No automatic interchangeability exists. Pin map, contact sex, shell, screw hardware, shielding, cable and hidden components can differ even when the contact count is equal.不能直接互换。即使针数相同，针脚、触点性别、外壳、螺钉、屏蔽、线缆和隐藏元件也可能不同。
What is different about high-density D-Sub?高密度 D-Sub 有什么不同？
It places more contacts into a comparable shell size. Cavity pattern, pitch, terminals, wire range and tooling generally differ from standard-density versions.高密度结构在相近壳体尺寸内布置更多触点，其孔位、节距、端子、线径范围与工装通常不同于标准密度版本。
Start with your interface and installation requirements从您的接口与安装需求开始
Share mating interfaces, a circuit table, target lengths or a sample for the db37 to 4-way db9 branch harness. We can use them to review configuration and sample requirements.提供DB37转四路DB9分支线束的对插接口、回路表、目标长度或参考样品，我们据此梳理选配与样品确认事项。
