Product type

D-Sub Cable Assembly

Overview

D-Sub cable assemblies extend far beyond a single nine-contact serial lead. Standard-density, high-density, mixed power and signal, panel-mount, inline, shielded, breakout and application-specific configurations are developed around the exact equipment interface, pin map, cable structure and installation limits.

Ask About This Product TypeFind Models & Material Part NumbersBack to Products

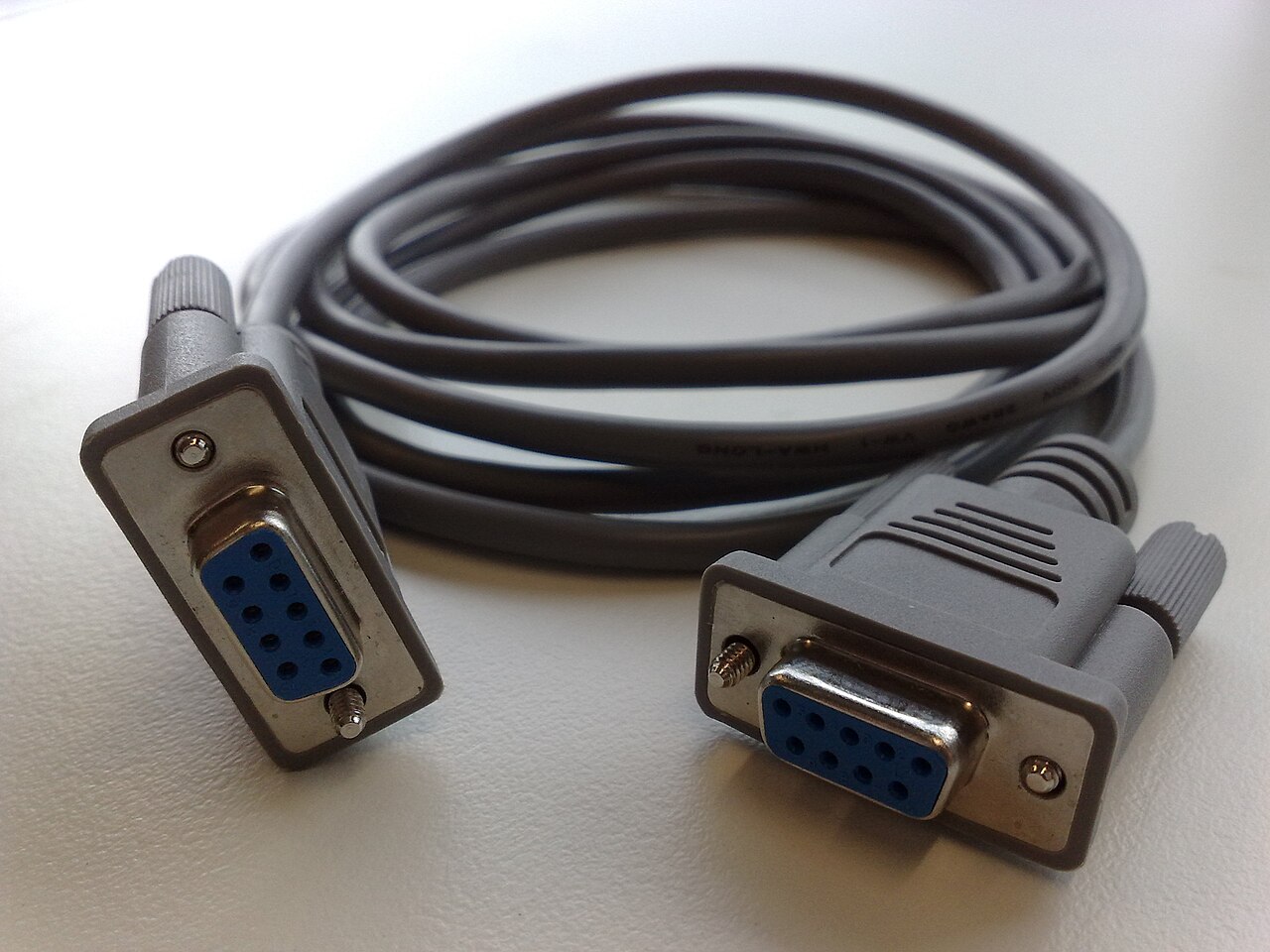

D-Sub Cable Assembly - Cable Assemblies
01 / 14

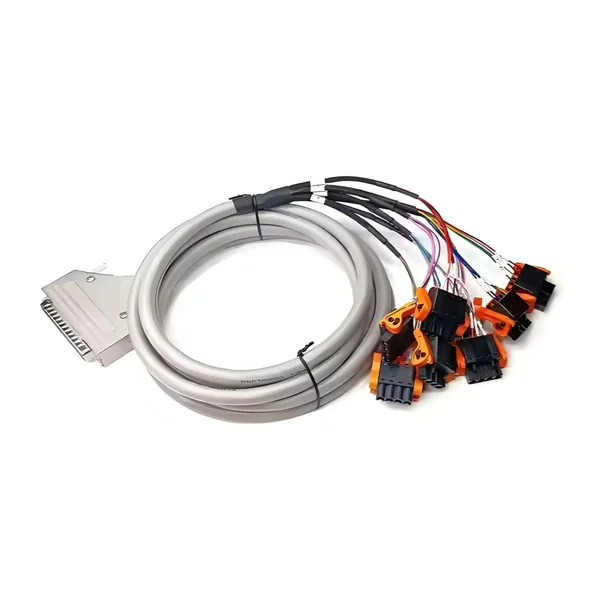

D-sub to Rectangular Terminal Plug Multi-Branch Harness
01
D-sub to Rectangular Terminal Plug Multi-Branch Harness

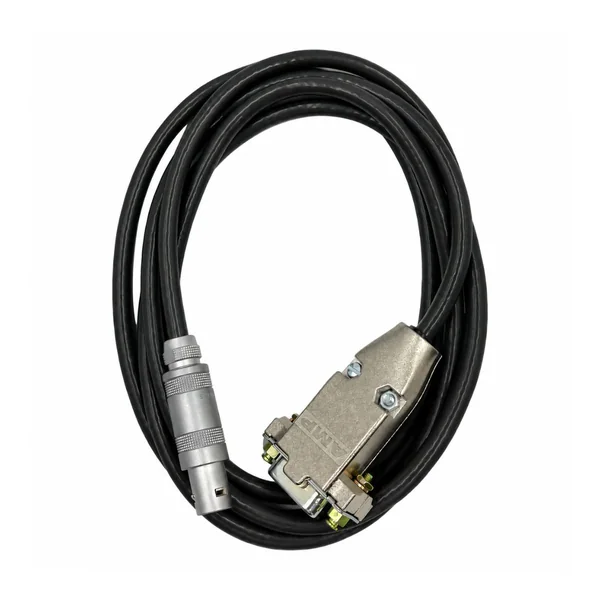

DB9 to LEMO 6-Pin Circular Connector Cable
02
DB9 to LEMO 6-Pin Circular Connector Cable

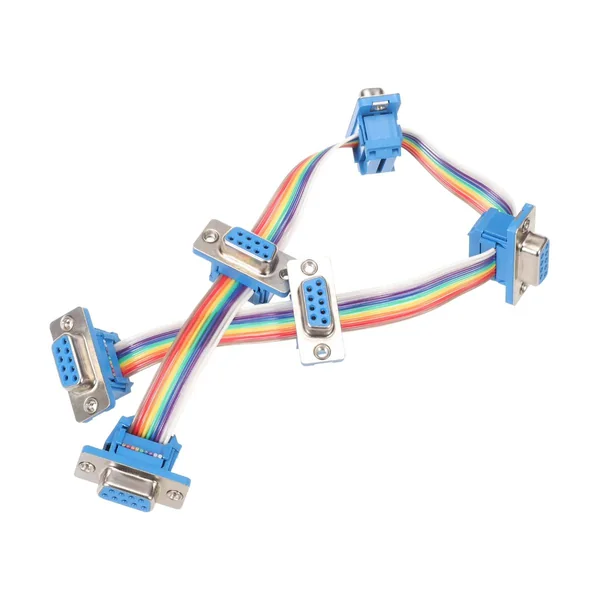

DB9 Rainbow Ribbon Cable Multiple -Port Adapter Harness
03
DB9 Rainbow Ribbon Cable Multiple -Port Adapter Harness

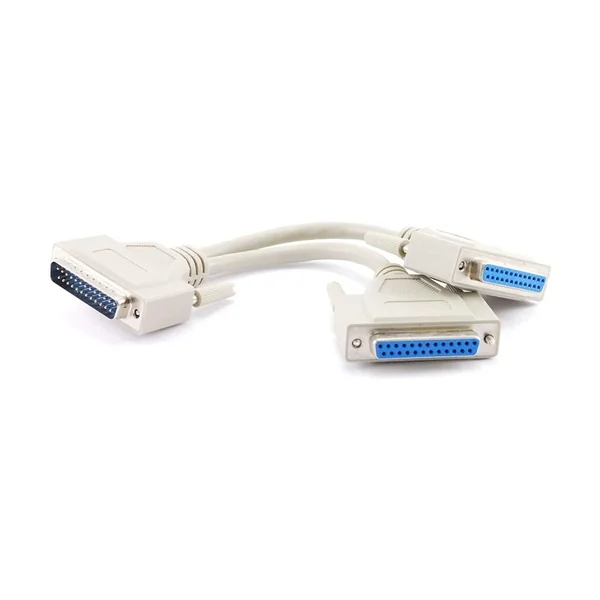

YS-005 DB25 1-Male-to-2-Female Y-Branch Harness
04
YS-005 DB25 1-Male-to-2-Female Y-Branch Harness

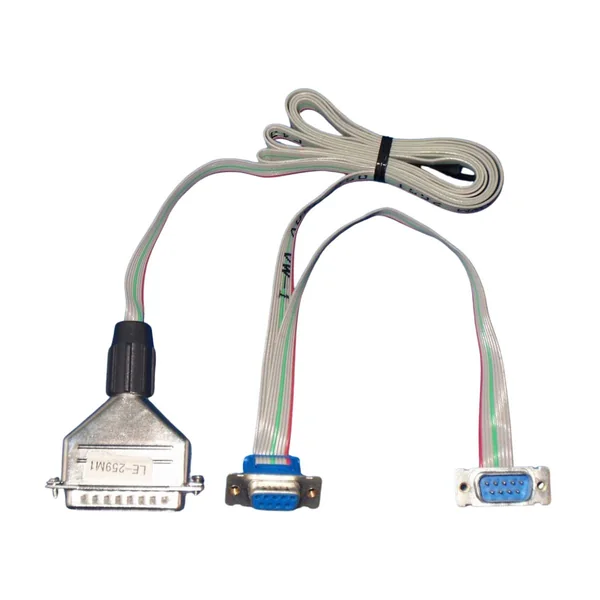

D-sub Diagnostic 2-Way Branch Harness
05
D-sub Diagnostic 2-Way Branch Harness

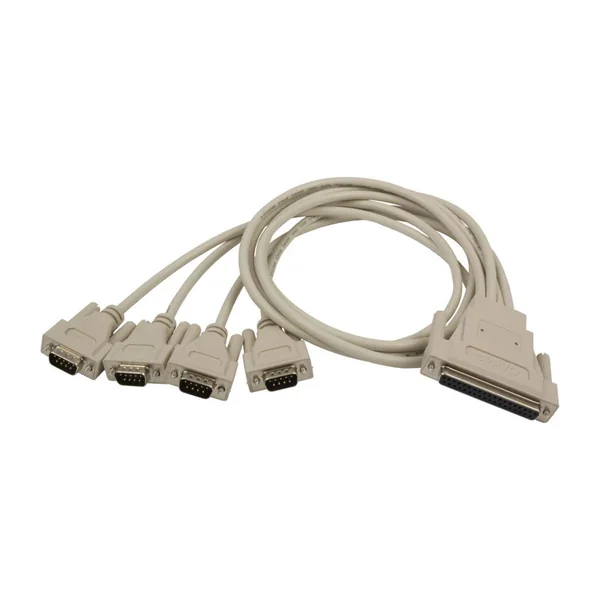

DB37 to 4-Way DB9 Branch Harness
06
DB37 to 4-Way DB9 Branch Harness

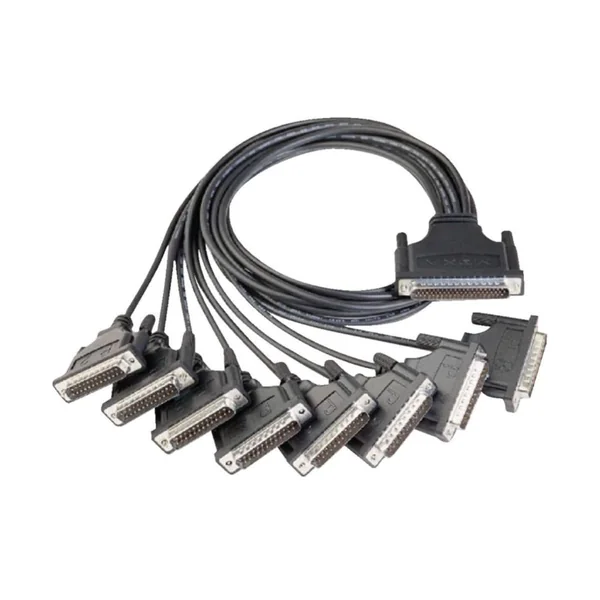

CBL-M62M25X8-100 OPT8C Serial Branch Harness
07
CBL-M62M25X8-100 OPT8C Serial Branch Harness

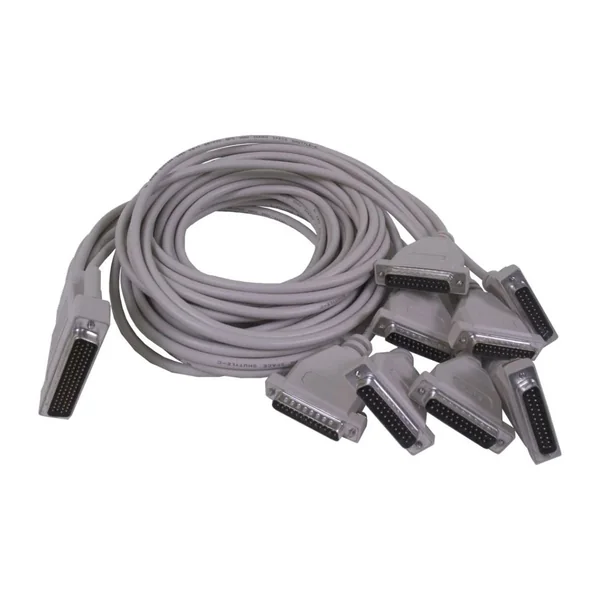

DB78 to 8-Way DB25 Branch Harness
08
DB78 to 8-Way DB25 Branch Harness

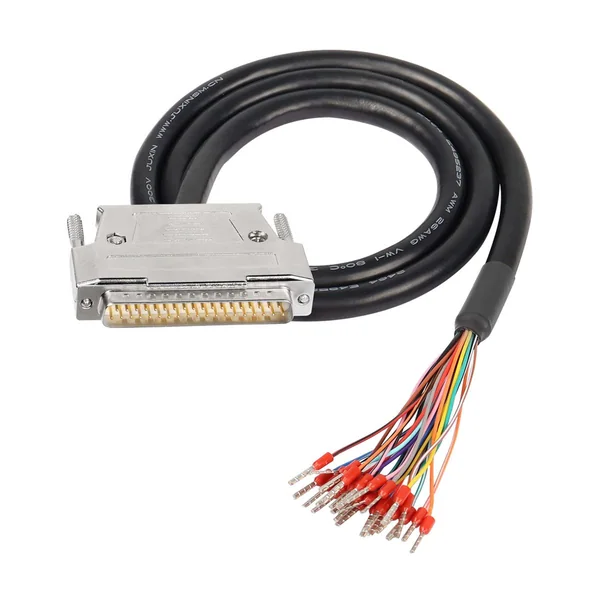

DB37 to Flying Leads Terminal Breakout Harness
09
DB37 to Flying Leads Terminal Breakout Harness

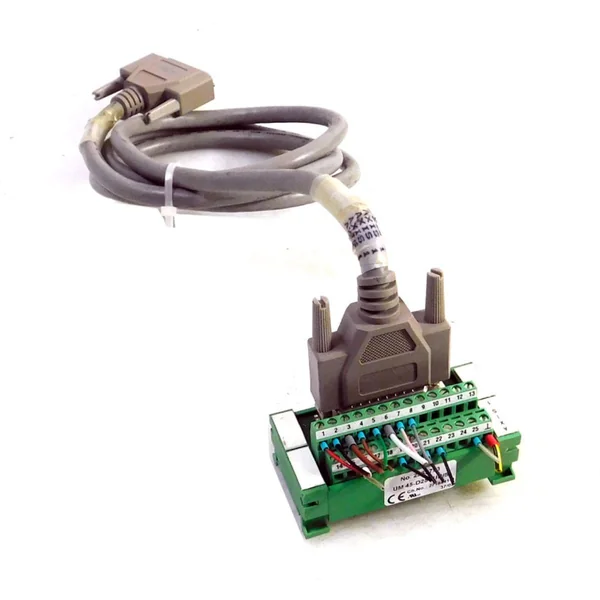

Terminal Board to D-sub Harness
10
Terminal Board to D-sub HarnessUM45-D25SUB-S

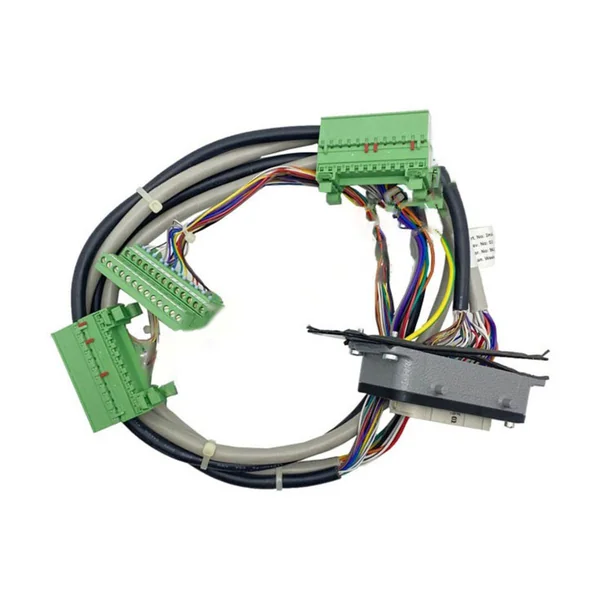

3HAC024479-001 IRC5 Robot Harness
11
3HAC024479-001 IRC5 Robot Harness

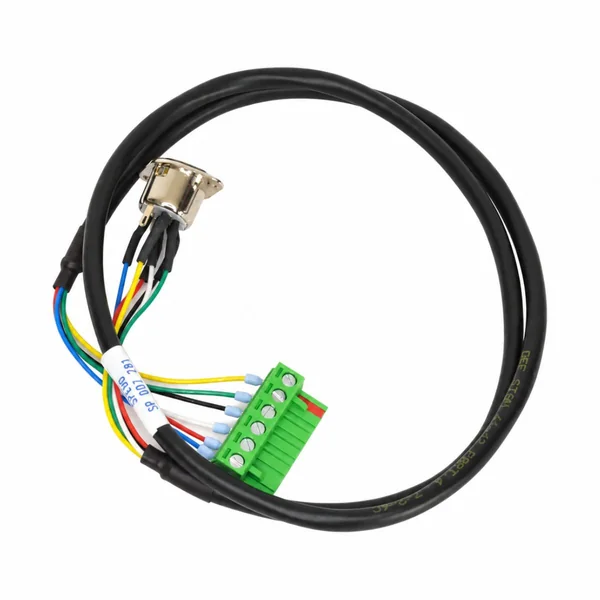

SP7281 D-sub to Terminal-Block Harness
12
SP7281 D-sub to Terminal-Block Harness

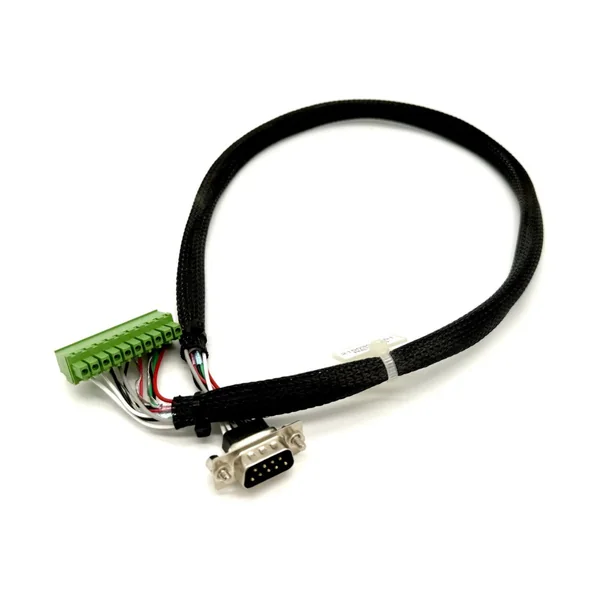

2100378-001 D-sub to Terminal-Block Harness
13
2100378-001 D-sub to Terminal-Block Harness

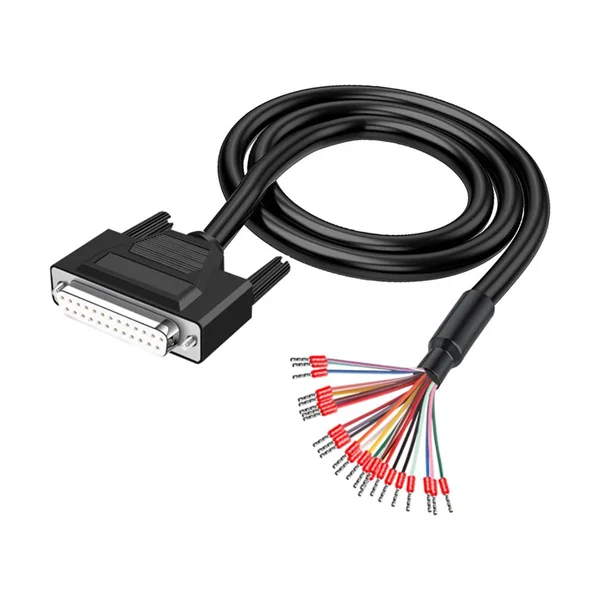

DB25 Female to Flying Leads Breakout Harness
14
DB25 Female to Flying Leads Breakout Harness
INTERFACE DOSSIER

D-Sub Cable Assembly Interface Dossier

D-Sub describes a connector family, not a universal cable. We develop complete assemblies from standard and high-density signal interfaces to hybrid power, coaxial, shielded, breakout and molded constructions. The job begins by freezing the mechanical interface and viewing direction, then continues through contacts, conductors, shielding, hardware, strain relief and verification.

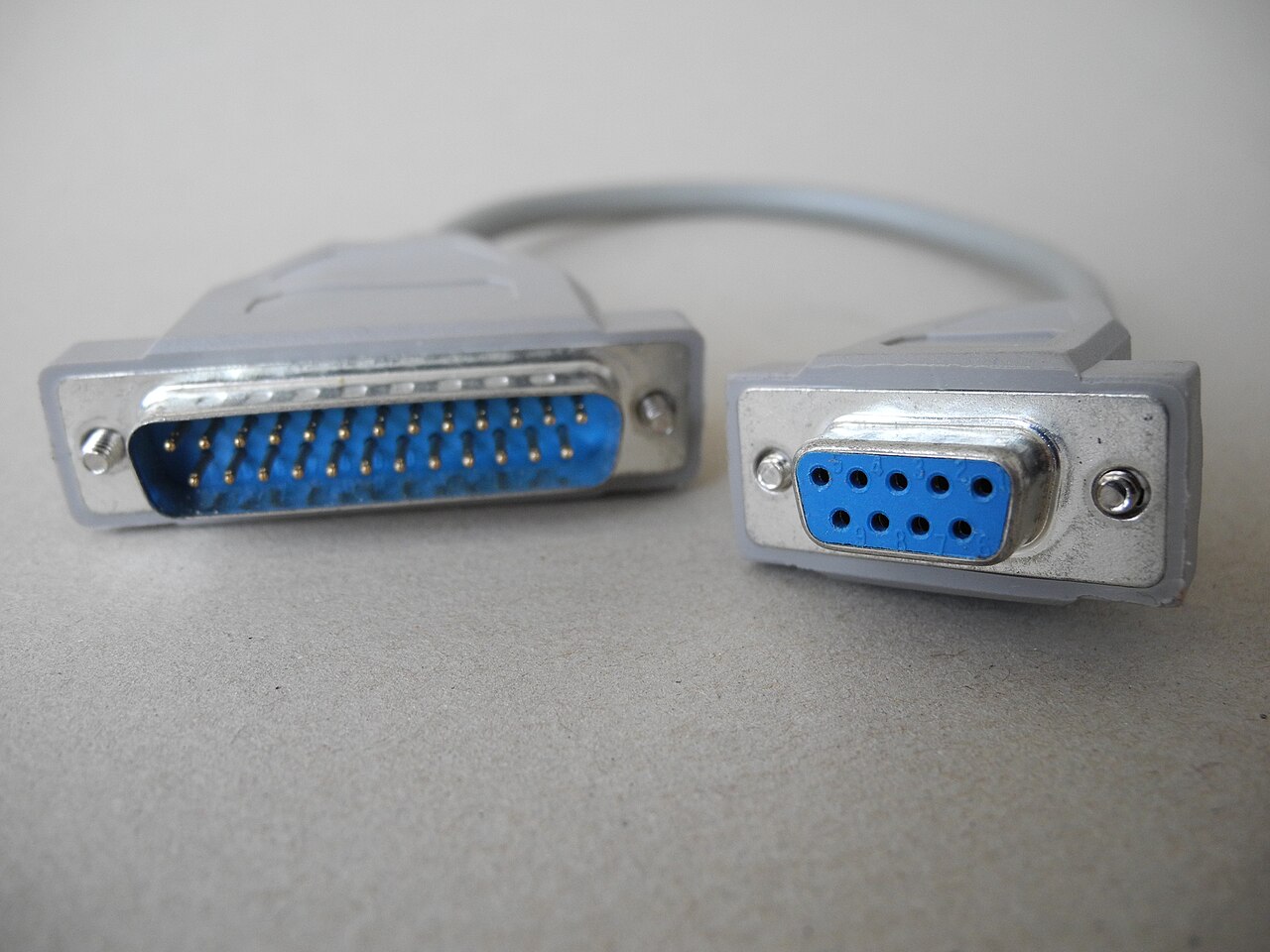

D-Sub Cable Assembly product family
01

FAMILY 01

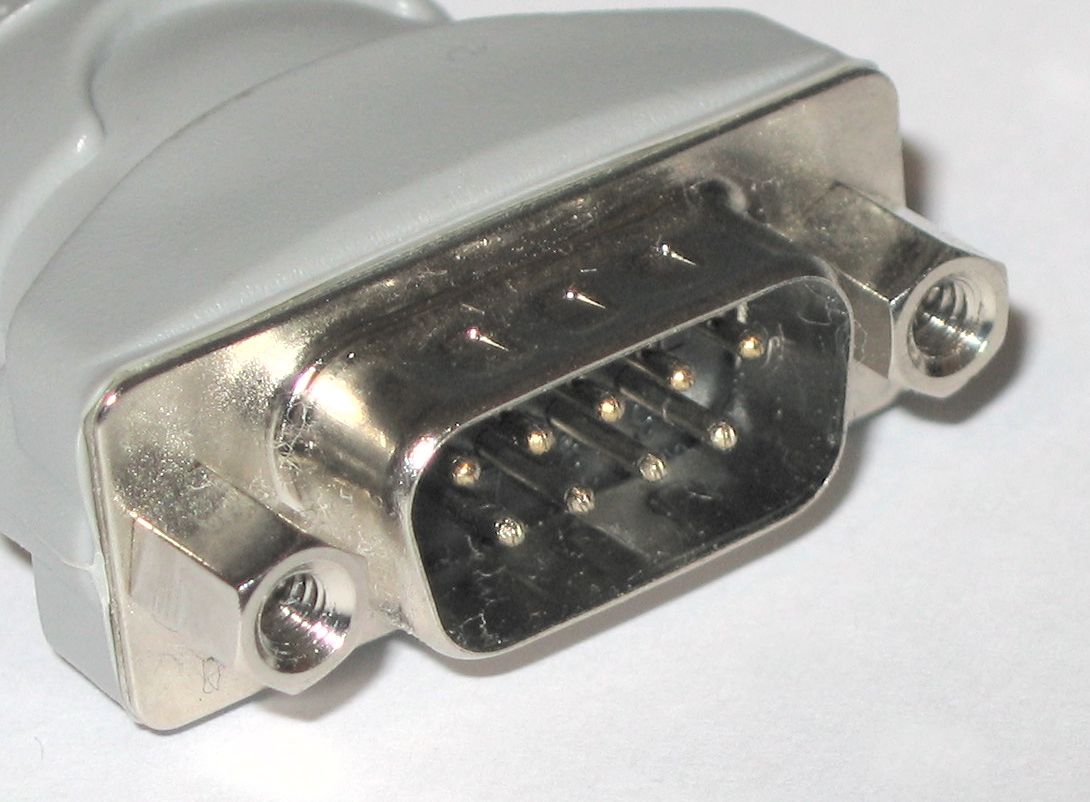

Standard-density D-Sub assemblies

Standard-density D-Sub assemblies

Standard-density interfaces remain common in serial communication, parallel I/O, instruments, industrial controls and installed equipment. Shell size and contact count must be identified from the complete family, not a casual nickname.

DE-9, DA-15 and DB-25

The letters identify shell size while the number identifies contacts. Drawings and orders should freeze the exact shell, arrangement and mating part.

Application does not define the pin map

Two serial or control cables can use the same shell but different pin assignments, grounds, shields or internal links.

02

FAMILY 02

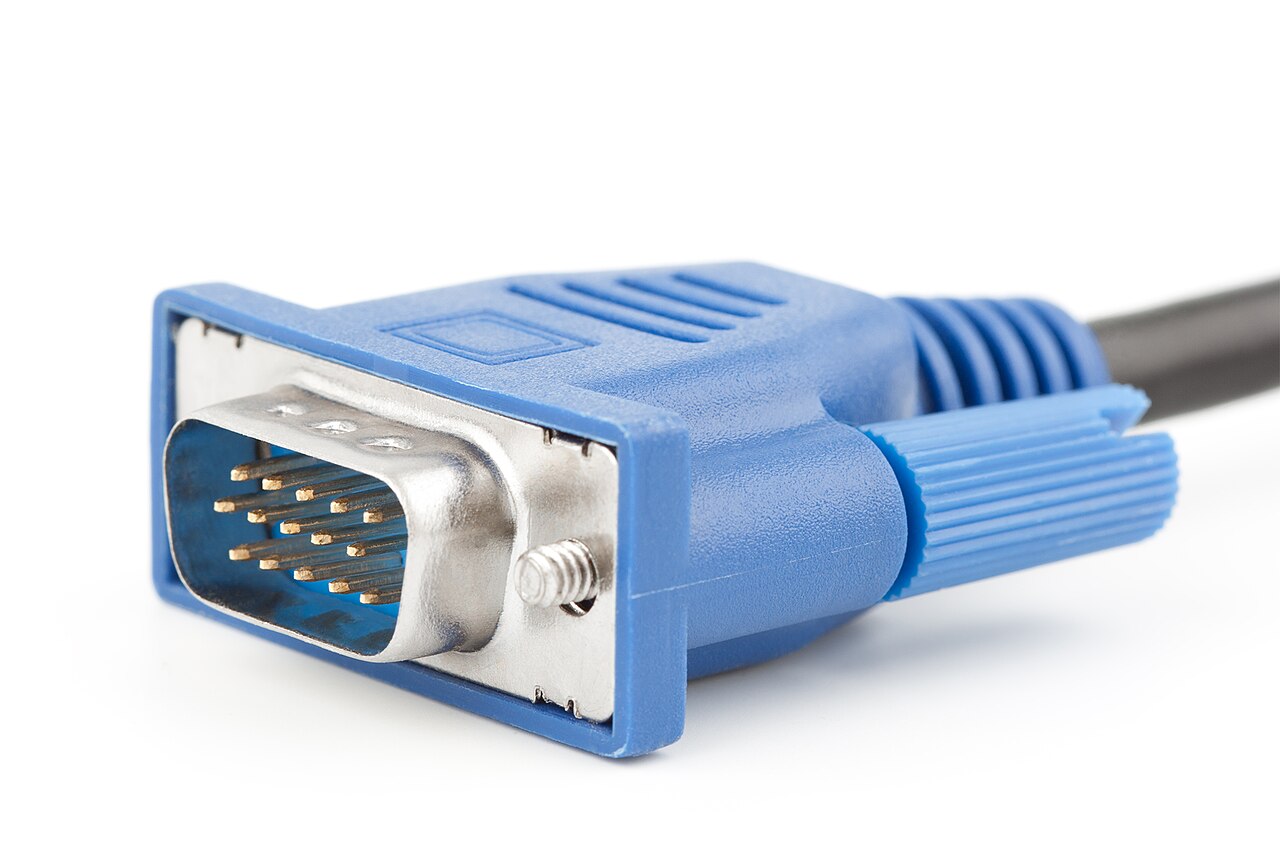

High-density interfaces

High-density interfaces

High-density versions place more contacts into a comparable shell envelope for compact equipment and multi-channel connections. Pitch, cavity pattern, terminal size, conductor range and tooling usually differ from standard-density parts.

Similar shell, different interface

Row count and cavity position must be checked from a clear mating-face view. Similar overall width does not establish compatibility.

Smaller contacts need tighter process control

Strip length, conductor size, insertion and adjacent-short inspection become more sensitive as contact spacing decreases.

03

FAMILY 03

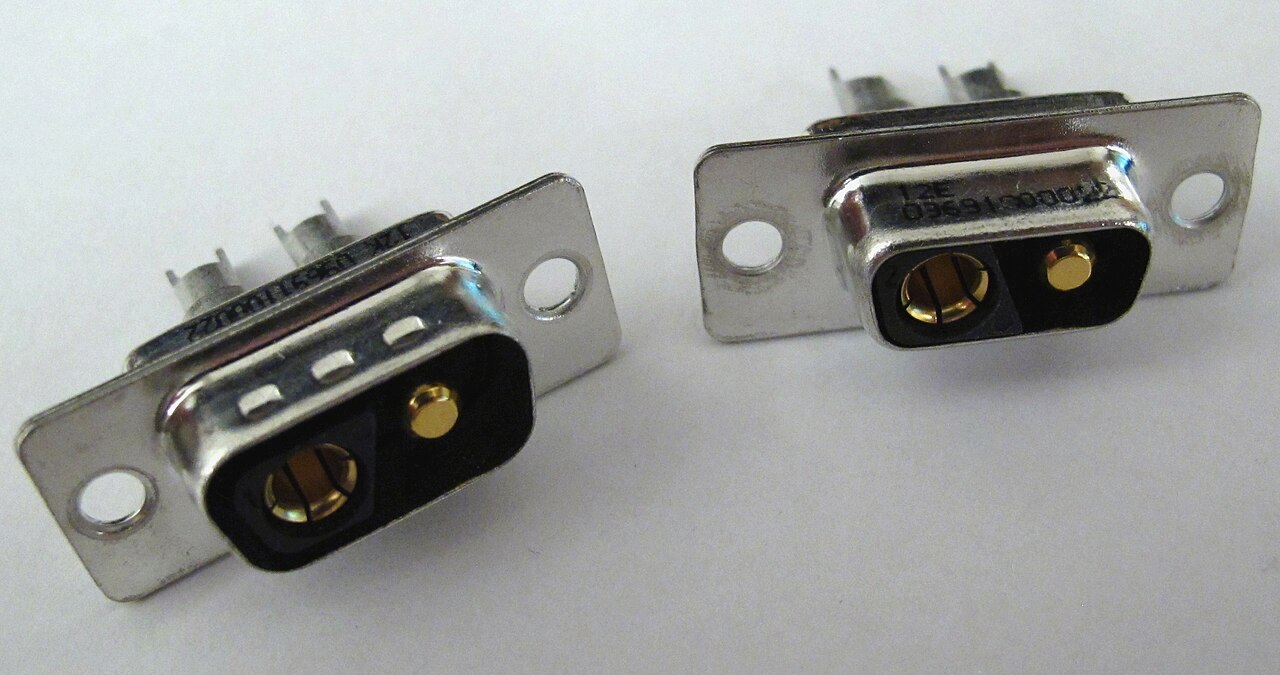

Mixed power, signal and coaxial contacts

Mixed power, signal and coaxial contacts

Combo D-Sub arrangements can place large power contacts, fine signal contacts or coaxial modules in one shell. Each contact type requires its own electrical, thermal, shielding, wire and termination review.

Separate ratings by circuit

A single total-current statement cannot describe a hybrid assembly. Current, voltage drop, temperature rise and fault protection are assigned per circuit group.

Space behind the shell

Large conductors, coaxial terminations and mixed bend radii can control hood size, exit direction and assembly sequence.

04

INSTALLATION 01

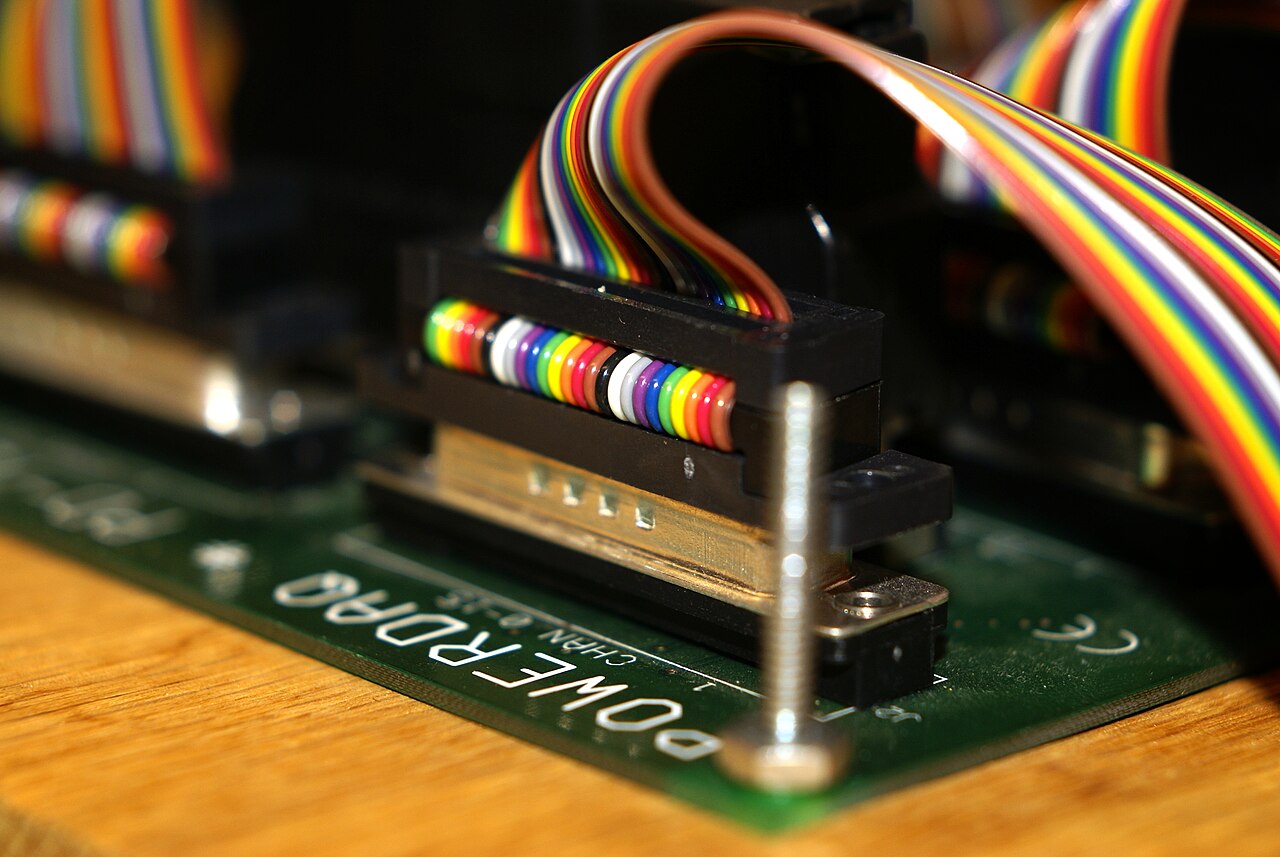

Panel-mounted equipment interfaces

Panel-mounted equipment interfaces

Panel D-Sub receptacles may use flanges, studs, rivet nuts or board-mounted structures. Mating depth, panel thickness, rear clearance and cable-side hardware are reviewed as one mechanical system.

Match the jackscrew hardware

Thread, length and access must match the equipment-side hardware. A connector that touches the panel may still be unable to lock.

Protect service access

Adjacent ports, covers and cabinet walls must leave room to operate both screws and remove the hood without pulling the cable.

05

INSTALLATION 02

Inline adapters and cable-to-cable links

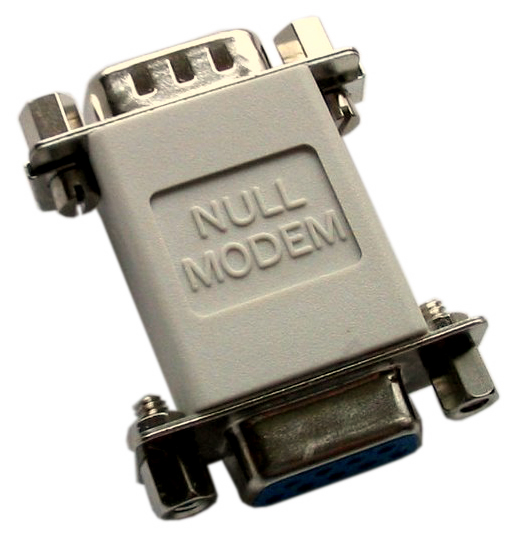

Inline adapters and cable-to-cable links

Inline D-Sub connections have no panel to support mass or pull load. Hood weight, screw access, cable fixation and the risk of unintended pin crossing become part of the harness design.

Adapter function must be explicit

A straight coupler, gender changer and null-modem adapter can look similar while performing different electrical functions.

Support the suspended connection

Fixation points and service loops keep connector mass and handling force away from contacts and solder joints.

06

IDENTIFICATION

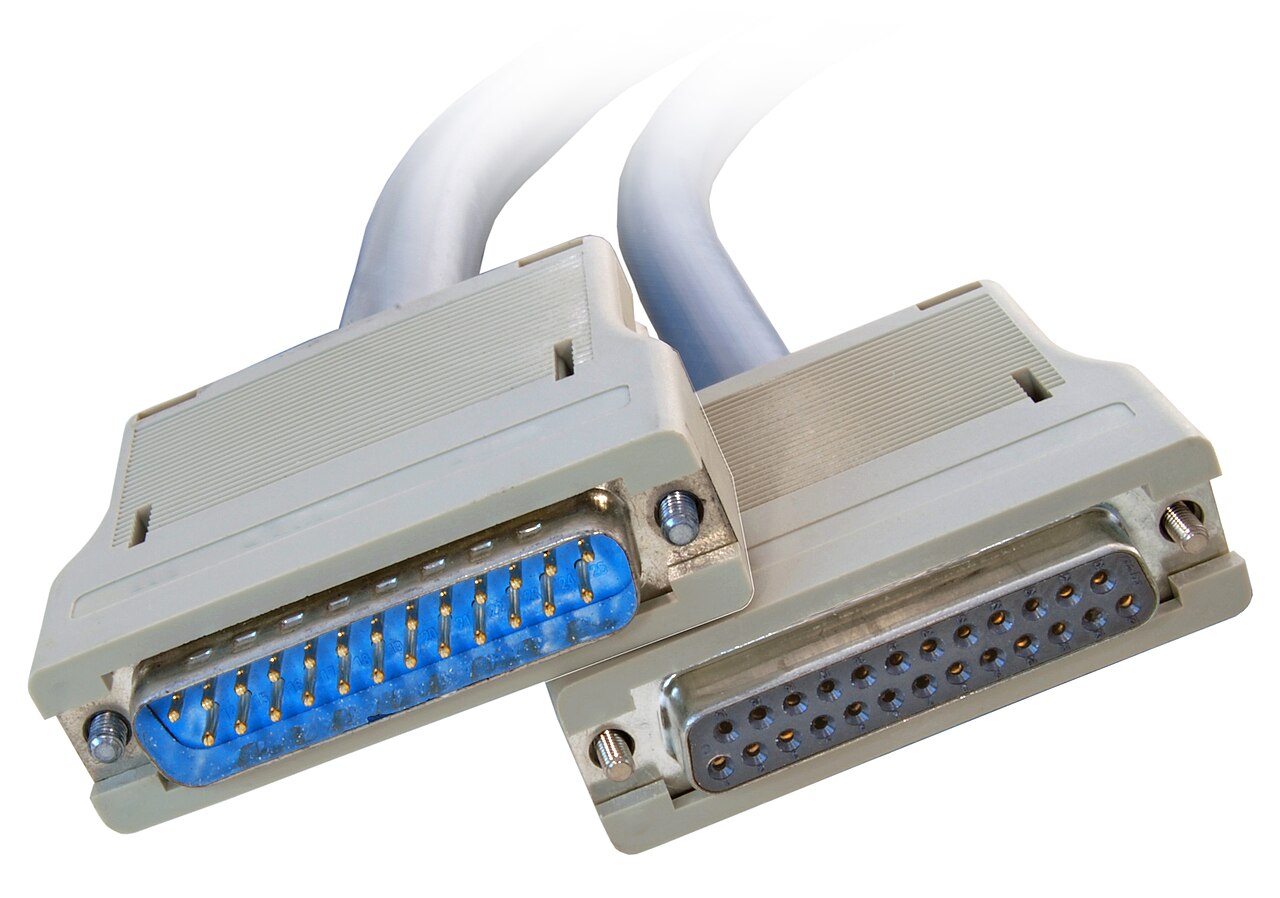

Plug, receptacle, pins and sockets

Plug, receptacle, pins and sockets

Shell gender and contact sex must be stated rather than inferred from equipment convention. Both mating-face and wire-side views are required because the same cavity pattern becomes mirrored when viewed from the rear.

Name the viewing direction

Every pin table and work instruction should state mating face or wire side to prevent a complete mirrored wiring error.

Photographs need four useful angles

Capture the mating face, rear structure, side profile and equipment port in focus, including markings and locking hardware.

07

CONTACT MAP

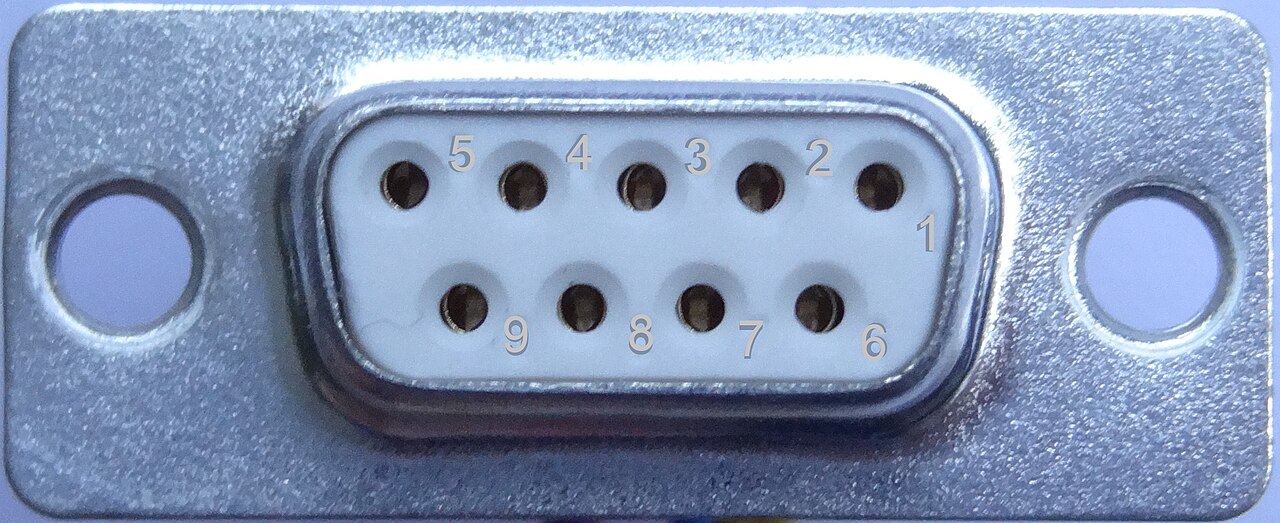

Cavity numbering and pin orientation

Cavity numbering and pin orientation

Contact numbering is the bridge between connector geometry and the circuit definition. Each cavity is assigned a start point, end point, conductor, signal role, shield relationship and inspection method.

Straight, crossed or proprietary

The same connector pair may be wired one-to-one, crossed, partially populated, commoned or entirely application-specific.

Empty cavities are still controlled

Unused contacts, reserved positions, optional circuits and deliberate no-connects are recorded so future revisions stay traceable.

08

TERMINATION

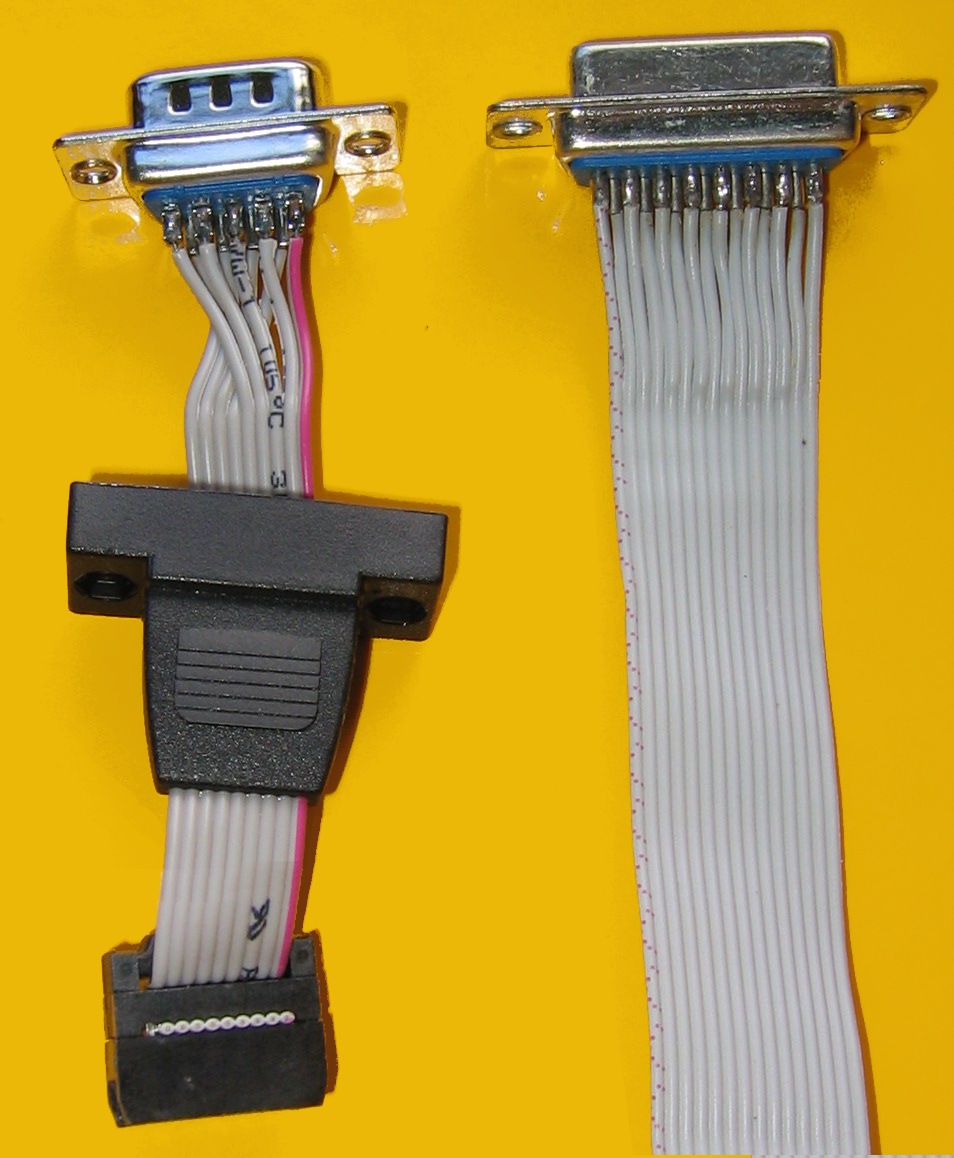

Crimp, solder-cup and IDC constructions

Crimp, solder-cup and IDC constructions

The connector series defines the permitted contact and termination system. Conductor size, strand construction, strip length, tool or solder heat and inspection criteria are matched as one controlled process.

Crimp control

Terminal range, applicator, conductor brush, insulation support and pull or section criteria are fixed before repeat production.

Solder heat and wicking

Solder quantity, dwell, insulation recession and wicking are controlled so flexible conductors and contact alignment are not damaged.

09

REAR HARDWARE 01

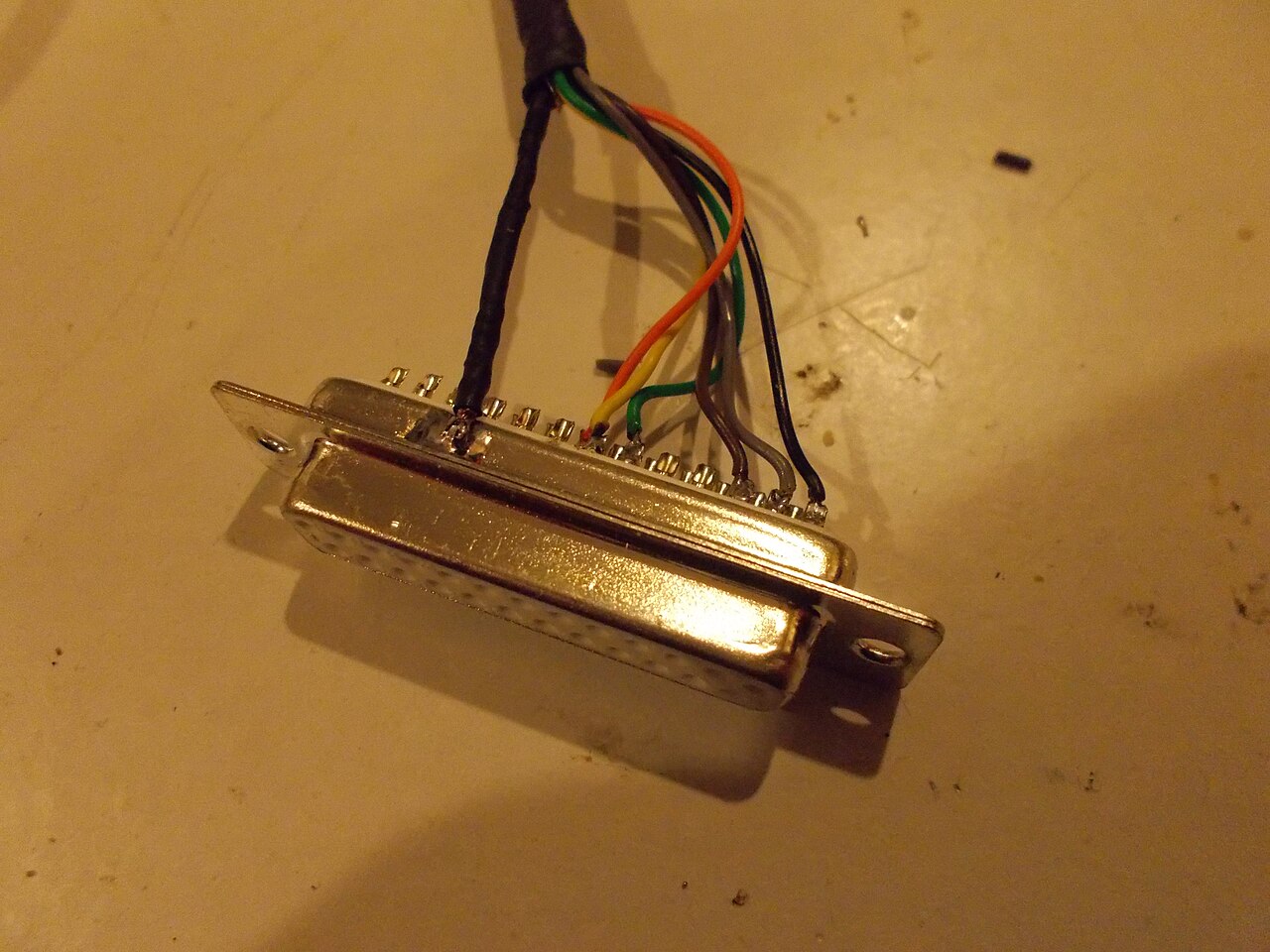

Plastic and metal hoods

Plastic and metal hoods

The hood protects terminations, carries the cable clamp and supports screw operation. Plastic, metallized and metal constructions differ in weight, shielding path, robustness, internal space and field service.

Metal appearance is not a shield claim

Shielding requires deliberate electrical contact from cable braid through clamp and hood to shell, panel and system ground.

Clamp the jacket

A correct clamp transfers pull and bending into the hood rather than the contacts. Excess force can crush the jacket; too little leaves terminations loaded.

10

REAR HARDWARE 02

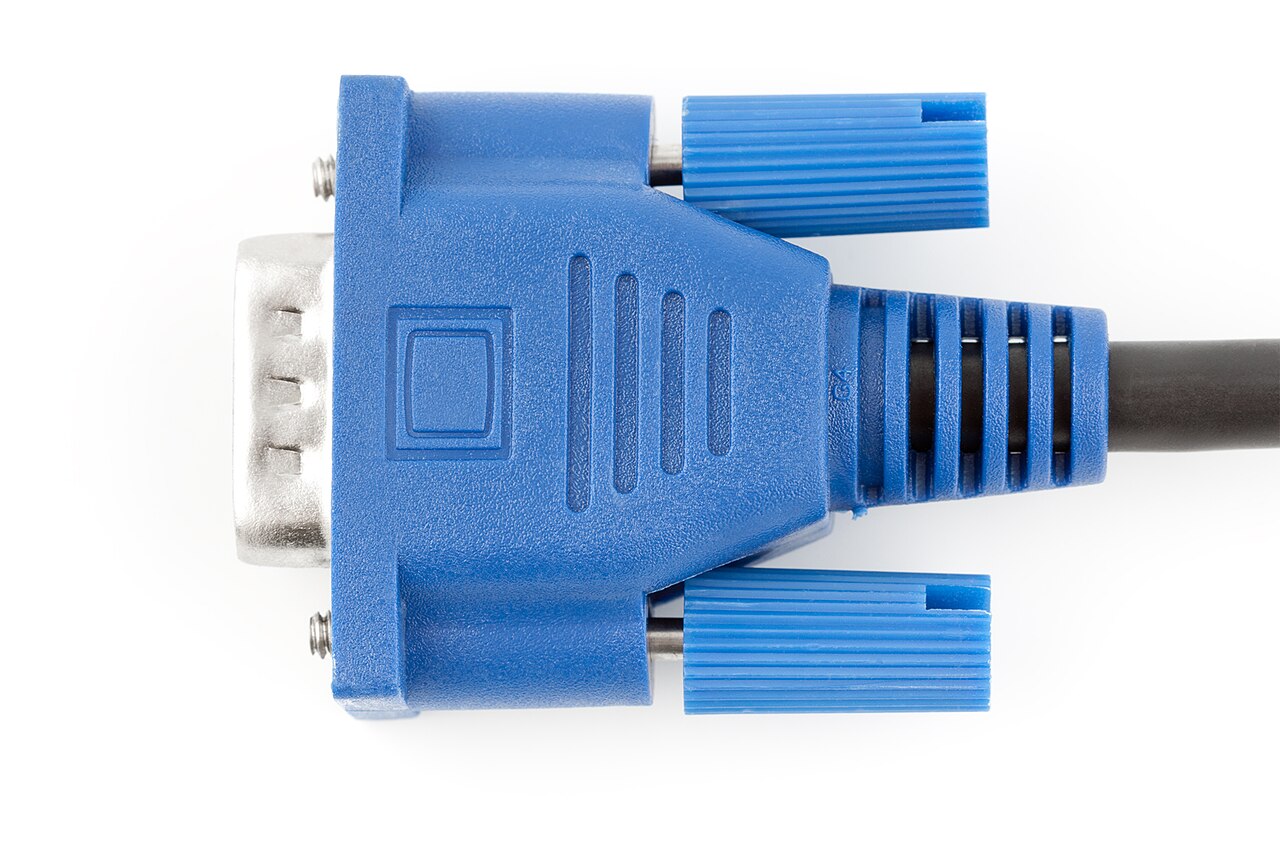

Jackscrews, exit direction and clearance

Jackscrews, exit direction and clearance

Straight, 45-degree and 90-degree exits change the equipment envelope, cable bend path and assembly order. Jackscrew thread, reach and grip must match the real panel hardware.

Freeze the clocking

For side exits, the drawing should define orientation relative to pin 1 or the panel so the cable clears nearby walls and ports.

False engagement is a real risk

Similar but different screw threads may begin to engage and then jam or fail to provide retention.

11

CABLE SYSTEM

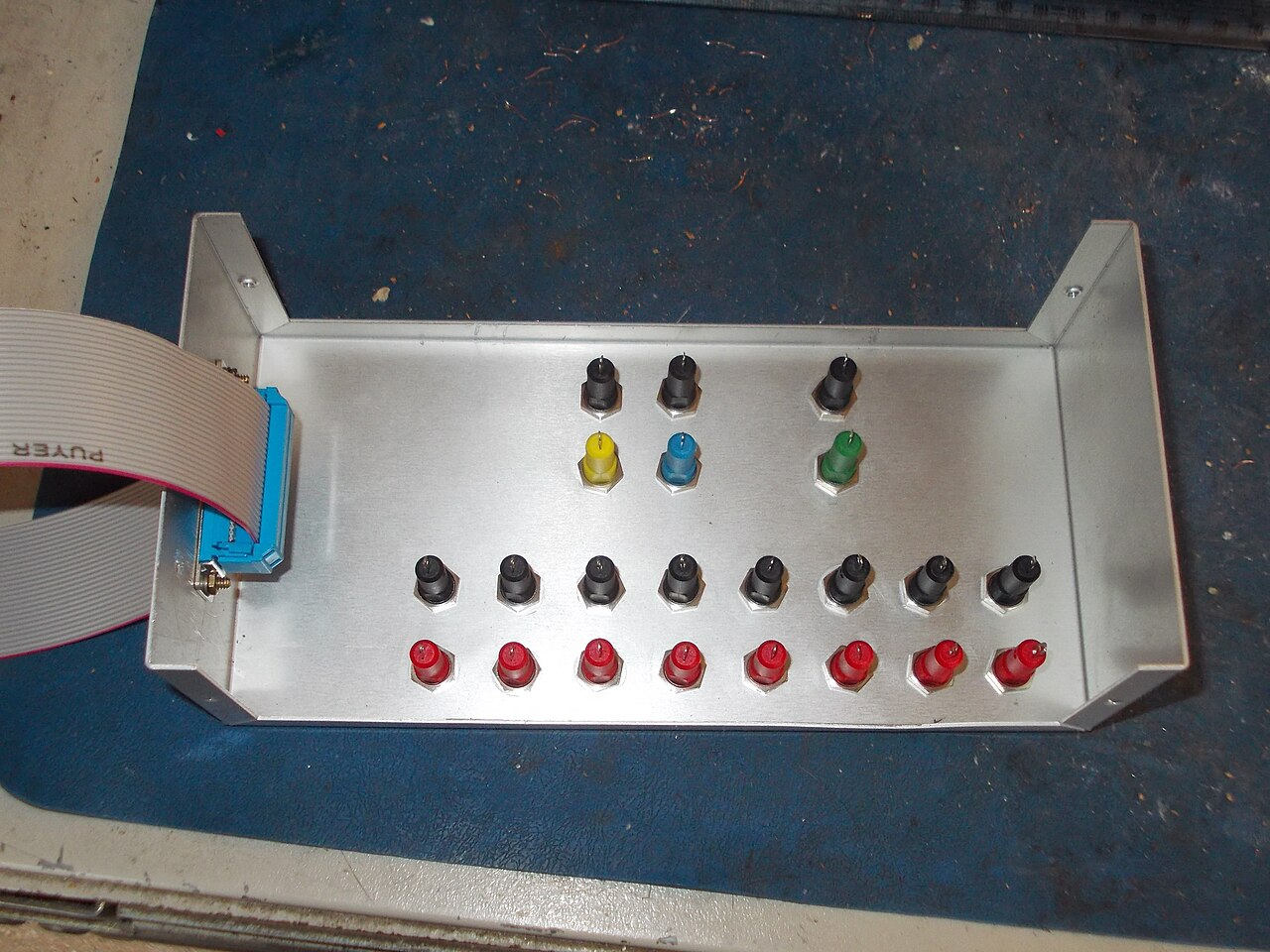

Twisted pairs, shielding and grounding

Twisted pairs, shielding and grounding

Serial links, differential signals, analog channels, video and sensitive measurement circuits may require twisted pairs, controlled impedance, individual shields, an overall shield or separation from power conductors.

Shield path follows system architecture

A drain wire can solve some low-frequency grounding needs but is not automatically equivalent to a 360-degree high-frequency termination.

Continuity is not signal integrity

A cable can pass point-to-point continuity while failing impedance, crosstalk, shielding or installed-system performance.

12

STRAIN RELIEF

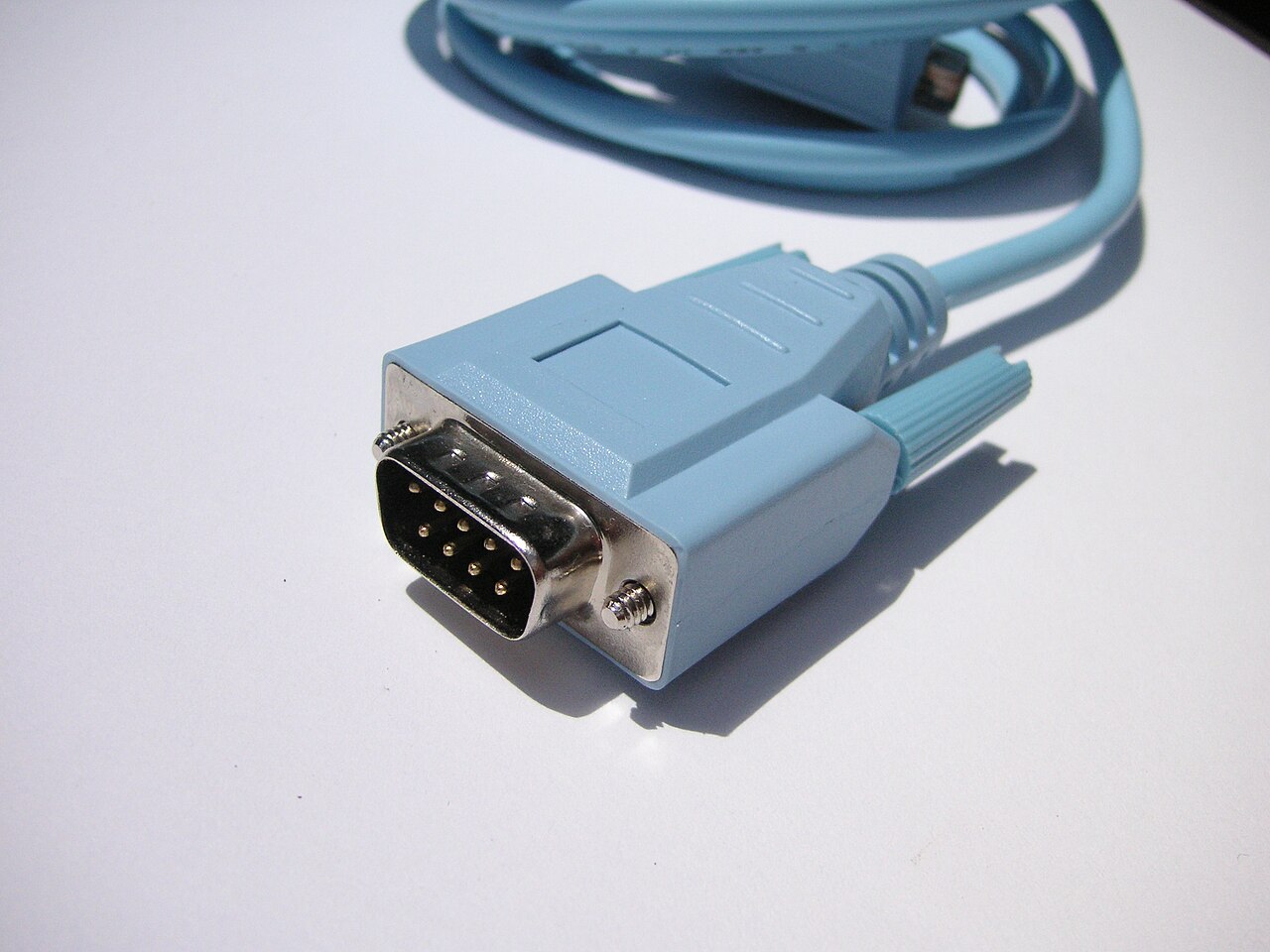

Molded transitions and cable protection

Molded transitions and cable protection

A molded rear transition can fix the exit, distribute handling loads and protect hidden terminations. Material compatibility, screw access, interface protection and process validation remain project-specific.

Molding does not create waterproofing by itself

Ingress protection depends on the complete mated connector, panel seal, rear seal, cable jacket and tested configuration.

Keep force away from contacts

The transition should guide bending into the cable over a controlled length rather than create a hard hinge at the hood exit.

13

CUSTOM ENGINEERING

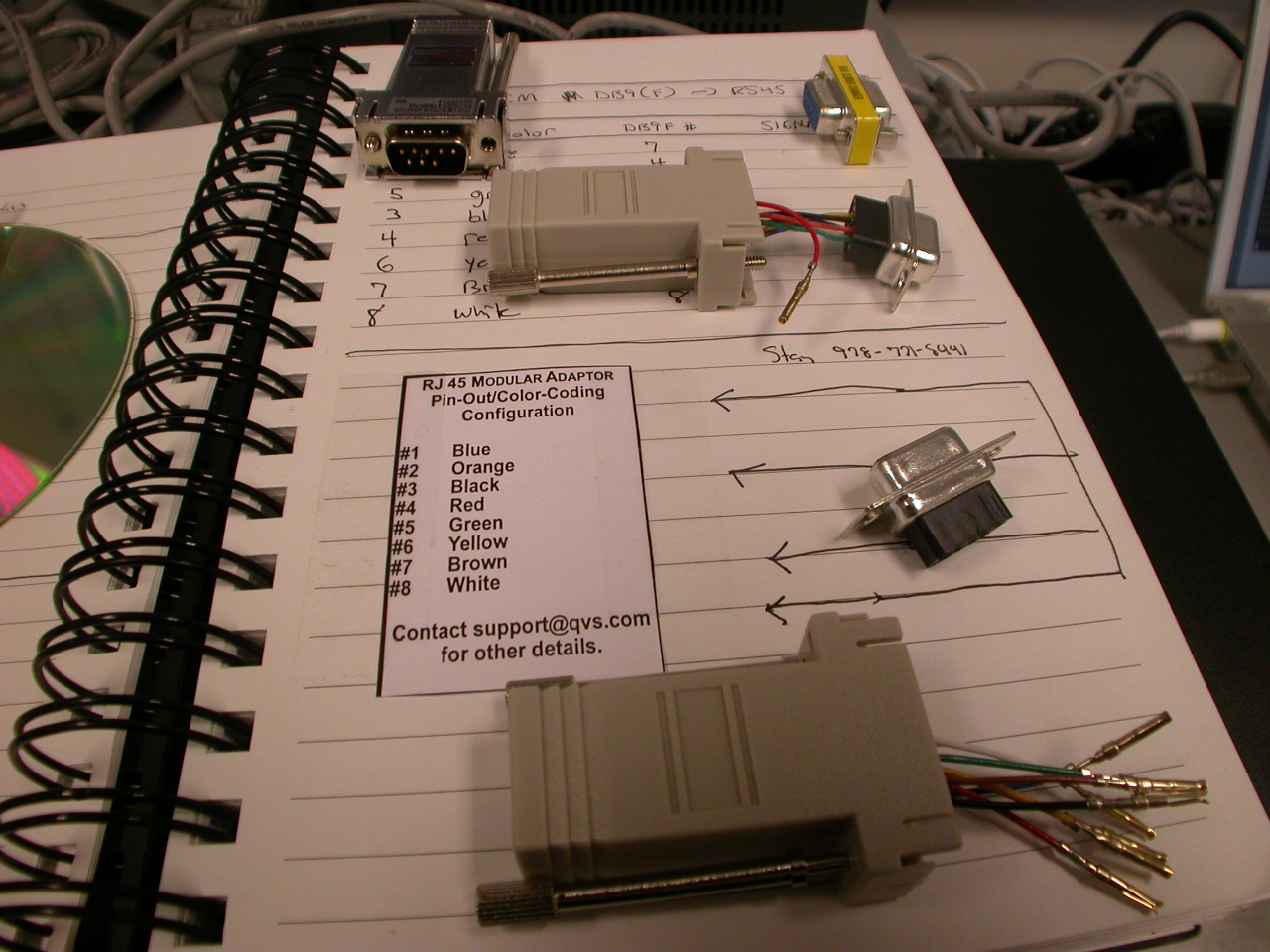

Developing from drawings, pin maps or samples

Developing from drawings, pin maps or samples

A complete drawing can define the assembly directly. A physical sample can establish dimensions and visible wiring, but hidden components, ratings, shield strategy, equipment function and proprietary responsibility still require confirmation.

Straight, crossed and special maps

We document every start and end point instead of inferring circuits from names such as serial cable, extension or adapter.

Substitution needs engineering approval

Shell, contacts, ratings, jackscrews, hood space, cable and mating fit are reviewed together before an alternative is released.

14

CONFIGURATION

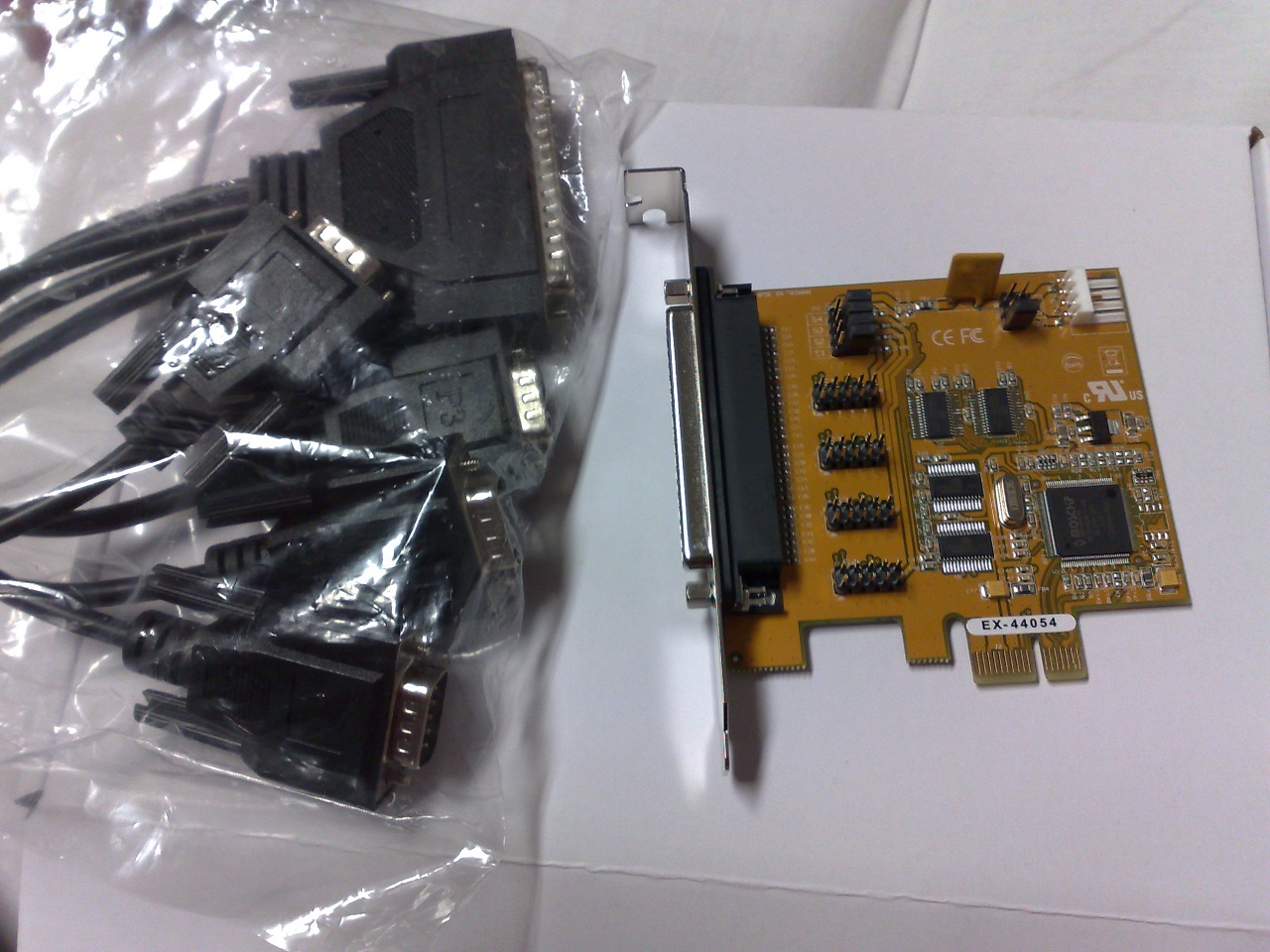

Breakouts, adapters and service harnesses

Breakouts, adapters and service harnesses

D-Sub can transition to terminal blocks, multiple serial ports, circular connectors, board headers or customer-specific interfaces. Shared circuits, fan-out, backfeed, shielding and mechanical support must be reviewed at every branch.

Branches change electrical behaviour

A fan-out is not only a mechanical split. Loading, termination, signal reflection and power distribution can change with branch count and length.

Service labels matter

Leg identification, equipment position and connector orientation reduce maintenance errors in dense cabinets and test systems.

15

SIGNAL AND TEST

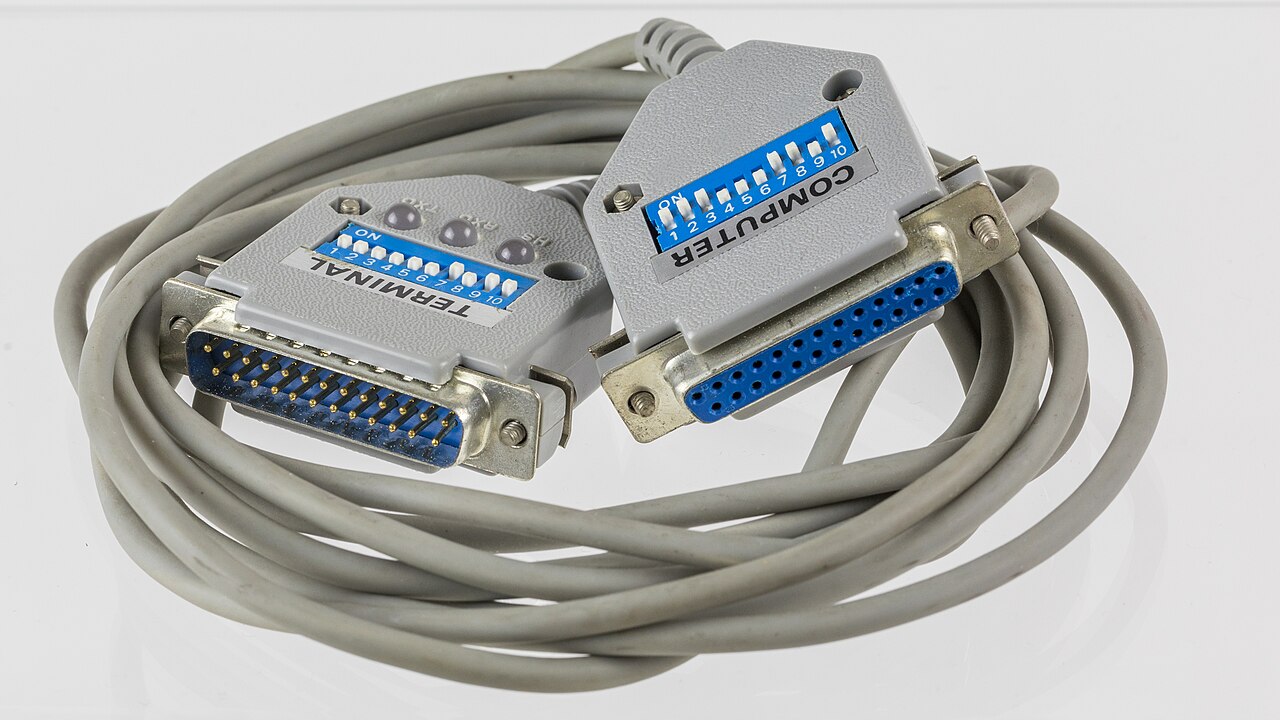

Serial communication and multi-channel control

Serial communication and multi-channel control

RS-232, RS-422, RS-485 and proprietary control links can share D-Sub shells while using different pin maps, reference grounds, terminations and shielding. The protocol name never replaces equipment documentation.

Functional test follows electrical inspection

Continuity, shorts and polarity confirm wiring; communication or analog tests confirm behaviour under the approved system conditions.

Test adapters need controlled pin maps

Breakout boxes and fixtures are released with their own revision, cavity map and verification record so test equipment does not introduce ambiguity.

16

BUILD PROCESS

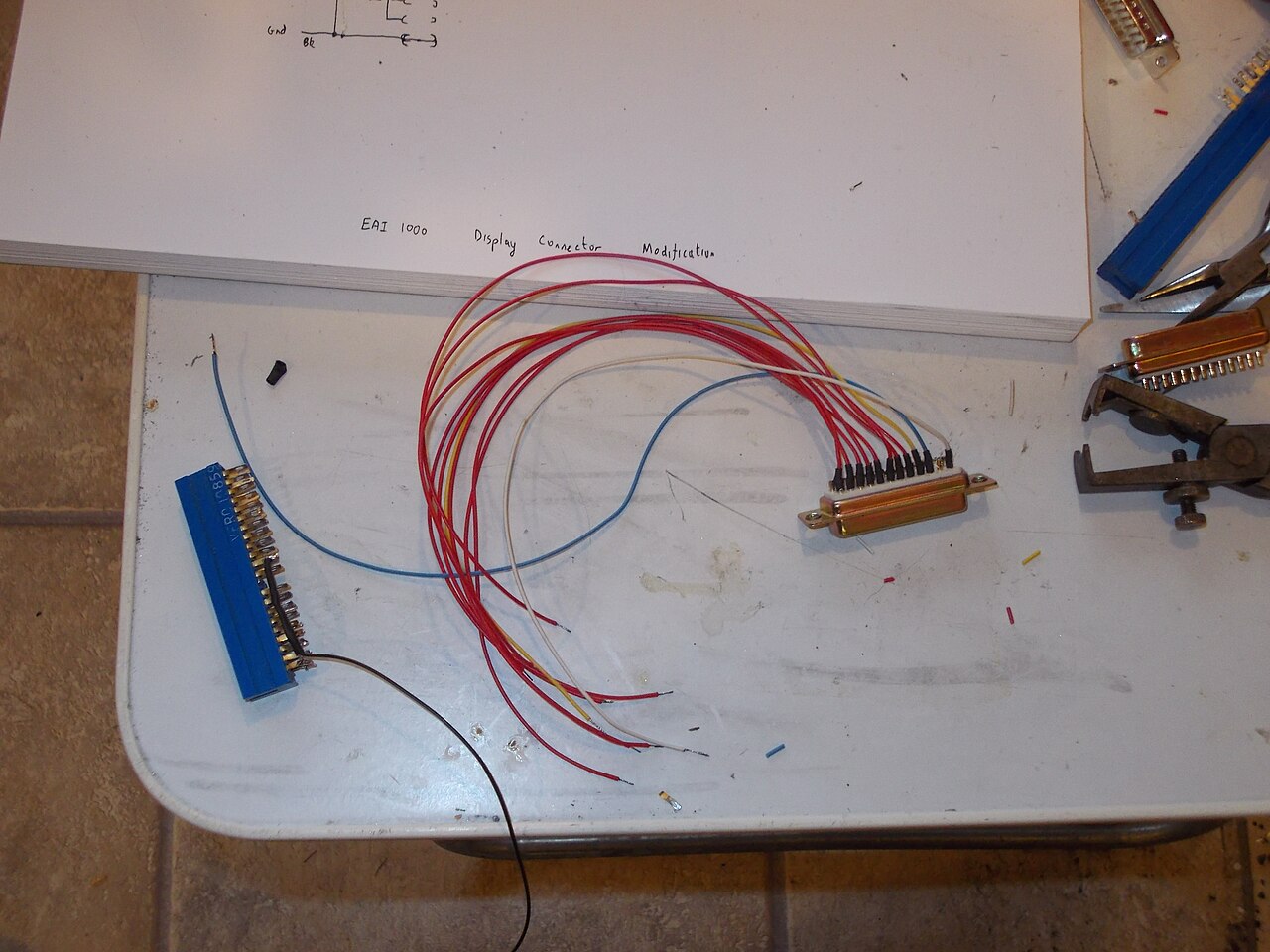

From circuit definition to controlled assembly

From circuit definition to controlled assembly

The build sequence is planned around the connector rear space, conductor preparation, shielding and hood assembly so no later operation damages completed terminations.

Prepare and terminate

Cut, mark, strip, twist and shield conductors as defined, then crimp, solder or IDC terminate with the specified tools and checks.

Assemble in the correct order

Contacts, insulators, shield clamps, strain relief, hood halves and jackscrews are fitted in an order that preserves access and orientation.

17

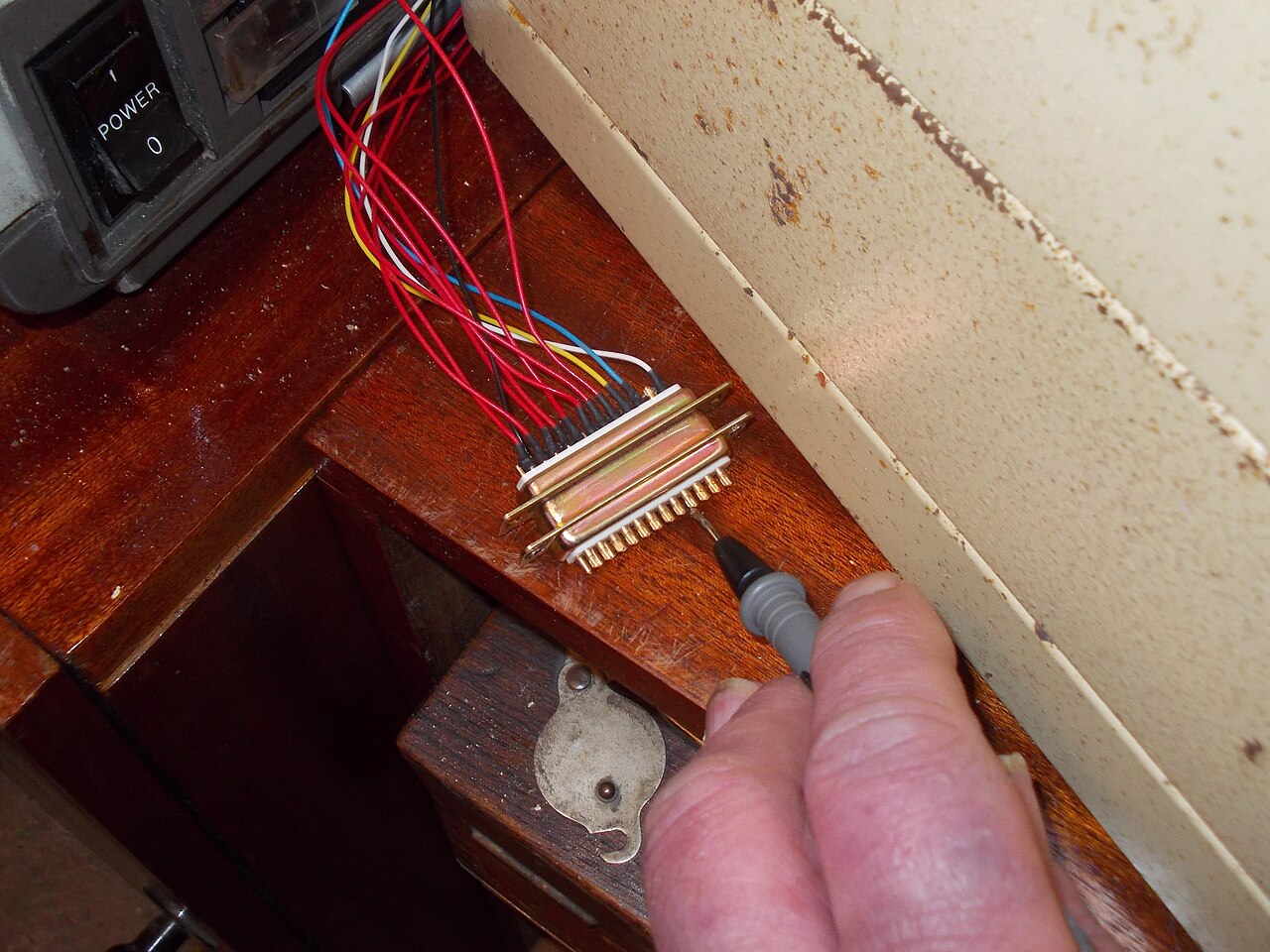

VERIFY AND RELEASE

Pin-level verification before repeat production

Pin-level verification before repeat production

Every finished assembly receives continuity and appearance inspection. The approved project plan adds shorts, polarity, shell ground, dimensions, labels, mating, screw engagement, terminal retention and signal, mechanical or environmental checks where required.

First article becomes the reference

Approved samples, drawing, BOM, process settings and inspection records are released together to control future batches.

Do not overstate test conclusions

Continuity proves point-to-point wiring, not protocol margin, shielding, ingress or lifetime unless those items are separately defined and tested.

D-Sub Cable Assembly Questions

Are DB9 and DE-9 the same connector?

DB9 is a common market name for the nine-contact connector, while DE-9 is the more accurate shell designation. Always confirm the mating face, contact sex, hardware and equipment interface rather than relying on the name alone.

Can D-Sub cables with the same contact count be interchanged?

No automatic interchangeability exists. Pin map, contact sex, shell, screw hardware, shielding, cable and hidden components can differ even when the contact count is equal.

What is different about high-density D-Sub?

It places more contacts into a comparable shell size. Cavity pattern, pitch, terminals, wire range and tooling generally differ from standard-density versions.

Does every D-Sub cable support RS-232?

No. D-Sub describes the mechanical connector family, not a communication protocol. The same shell may carry RS-232, RS-422, RS-485, CAN, analog I/O, video, power or proprietary circuits.

Can a metal hood guarantee shielding?

No. Effective shielding requires a defined connection from cable shield through the clamp and hood to the connector shell, panel and system ground, followed by project-appropriate validation.

Can you develop from an existing sample?

A sample can support dimensional and visible-circuit mapping. Hidden components, ratings, materials, shielding strategy, equipment function and intellectual-property responsibility still require customer confirmation.

What information is needed for quotation?

Provide connector views, mating equipment, part numbers if known, contact sex and viewing direction, complete pin map, circuit ratings, cable construction and length, hood, hardware, exit direction, environment, quantity and validation requirements.
