Transmission Harness变速箱线束

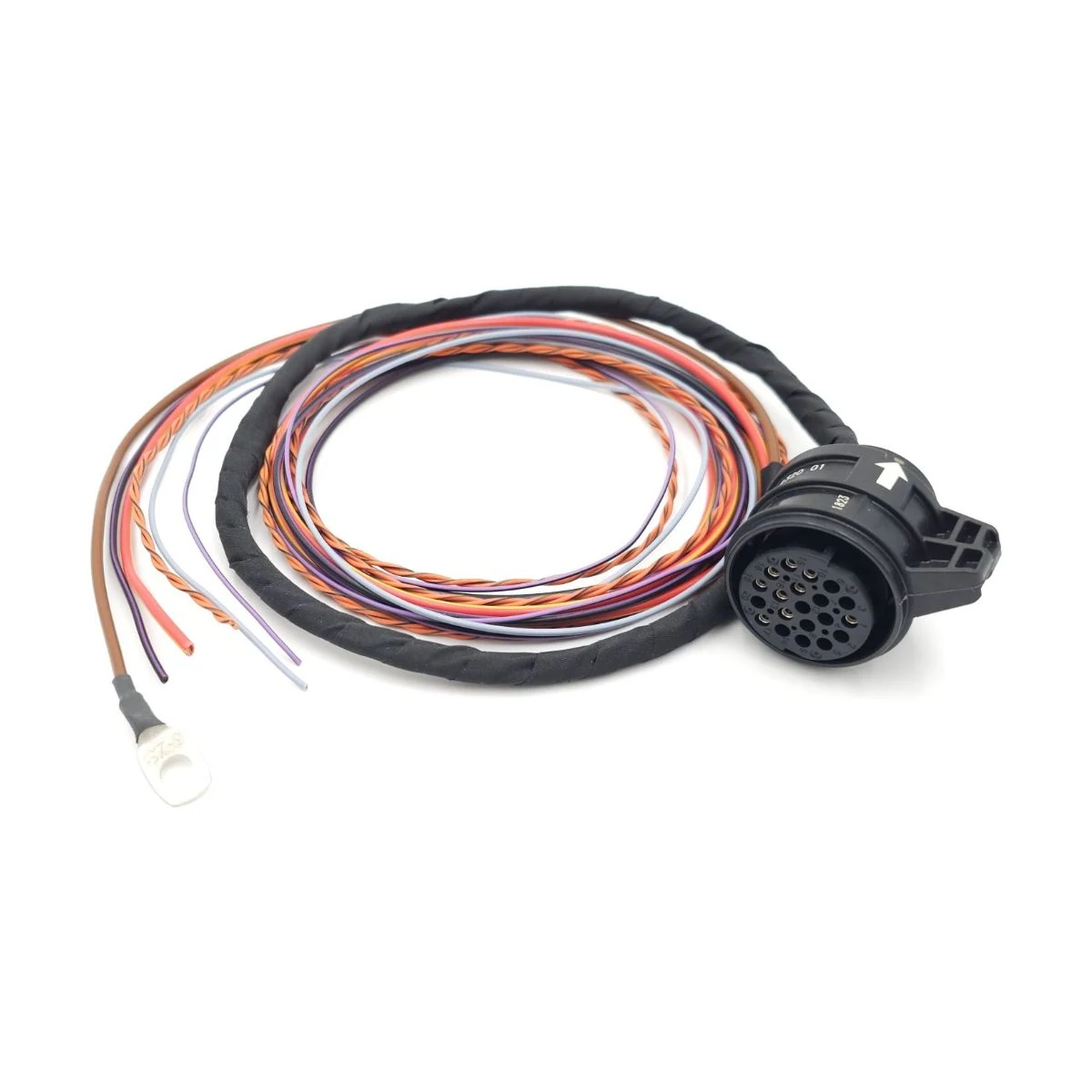

DQ250 02E Transmission Circular Main Plug PigtailDQ250 02E变速箱圆形主插头尾线
DQ250 02E Transmission Circular Main Plug Pigtail combines circular connection end, plug-in connection end, pigtail connection form. Interface, circuit and installation data guide dimensions, material selection and sample review.DQ250 02E变速箱圆形主插头尾线的结构重点包括圆形连接端、插接式端头、尾线连接形式。接口、电路与安装资料将作为尺寸、物料和样品制作的确认依据。
- Circular connection end圆形连接端
- Plug-in connection end插接式端头
- Pigtail connection form尾线连接形式
CONSTRUCTION结构解析
Connection structure and design details连接结构与设计要点
Use the dq250 02e transmission circular main plug pigtail form as a starting point and confirm these design points against drawings and the actual equipment.以DQ250 02E变速箱圆形主插头尾线的结构形式为起点，结合图纸和实际设备确认以下设计要点。
Plug-in connection end插接式端头
The end uses a plug-in form, with clearance arranged for insertion, removal and cable bends.端头采用插接形式，可围绕安装位置安排插入、退出及线缆弯曲空间。
Pigtail connection form尾线连接形式
A lead section extends behind the connector, allowing length, further termination and support to follow the equipment connection.插接端后保留引线段，便于按设备接线位置确定长度、后续端接与支撑。
Trunk and branch layout主干与分支
Locate trunk and branch datums from equipment fixing points. Allow room for mating, bends and servicing so branches do not transfer installation loads to contacts.以设备固定点确定主干和各支路的尺寸基准，预留插拔、弯曲和维护空间，避免支路把拉力传递到端子。
CONFIGURATION结构与选配
Construction & customization options结构与定制配置
The table describes the construction and available configuration choices. Materials, dimensions, circuits and inspection requirements are agreed for each project.以下说明展示结构与可配置内容。具体材料、尺寸、电路和检验要求按项目确认。
| Transmission model, controller and revision变速箱型号、控制器和版本 | Use transmission, controller and revision as the interface baseline.变速箱型号、控制器及版本确定接口基线。 |
|---|---|
| Solenoid, speed-sensor and communication pinout电磁阀、速度传感器及通信针图 | Define solenoids, speed, pressure and communication in the circuit table.电磁阀、速度、压力与通信按电路表分别定义。 |
| Internal/external harness and fluid exposure内置或外置线束及油液条件 | Use different material boundaries for internal immersed and external harnesses.内置油浸支路与箱外线束采用不同材料边界。 |
| Feedthrough seals, temperature and fixing贯穿密封、温度与固定结构 | Combine feedthrough sealing, thermal zones and fixing in the installation design.穿壳密封、热区和固定组成完整安装结构。 |
| Circuit and revision reference电路与版本依据 | For quotation, identify vehicle and transmission model, model year and variant, TCU or mechatronic reference, internal or external scope, connector part numbers and cavity views, solenoid and sensor assignments, operating voltage, route and clip datums, specified fluid and temperature exposure, drawings or an approved sample, quantities and the required inspection plan.询价请提供车型、变速箱型号、年款与变型、TCU 或机电液模块料号、内部或外部供货范围、连接器料号与孔位视图、电磁阀和传感器回路、电压、走线与固定基准、指定油液和温度暴露、图纸或批准样品、数量及所需检验计划。 |
| Sample and manufacturing configuration样品与制造配置 | Approved inputs become a circuit matrix, connector BOM, branch drawing, material record and first-article inspection plan. Checks can include cavity and wire identity, terminal seating, locks, branch dimensions, connector mating and agreed electrical tests.批准资料转化为回路矩阵、连接器物料表、分支图、材料记录与首件检验计划。可核对孔位与线号、端子入位、锁止、分支尺寸、对插及约定电气项目。 |
APPLICATIONS连接的应用
Application directions应用方向
These are connection directions for project discussion. Suitability depends on interfaces, circuits, installation conditions and project validation; configuration can be adapted to the equipment.以下为可讨论的连接方向。实际适用性取决于接口、电路、安装环境和项目验证，可按设备需求调整。
External transmission controls箱外控制连接
Match interfaces and length to controller and vehicle positions. Use transmission, controller and revision as the interface baseline.接口与线长配合控制器和车辆安装位置。选配时，变速箱型号、控制器及版本确定接口基线。
Internal solenoid branches箱内电磁阀分支
Define fluid exposure, temperature and drive circuits separately. Define solenoids, speed, pressure and communication in the circuit table.油液接触、温度和驱动分别定义。选配时，电磁阀、速度、压力与通信按电路表分别定义。
Housing cable entries and external interfaces壳体穿线与外部接口
Review cable entries and external interfaces against sealing boundaries, installation space, fixing and service sequence, using the original equipment structure. Use different material boundaries for internal immersed and external harnesses.穿线与外部接口需兼顾密封边界、安装空间、固定点及检修顺序，按原设备结构确认。选配时，内置油浸支路与箱外线束采用不同材料边界。
Shift status and feedback checks换挡状态与反馈检查
List ports, pins and signal definitions for status and feedback circuits, with measurement conditions and access set by the equipment owner. Combine feedthrough sealing, thermal zones and fixing in the installation design.状态与反馈回路需列明端口、针脚和信号定义，依据设备方要求安排测量条件与检查接入点。选配时，穿壳密封、热区和固定组成完整安装结构。
Service adapter leads维修转接引线
Review tool/transmission pinouts separately to prevent incorrect power. Use transmission, controller and revision as the interface baseline.工具端与箱体端针图分别审核，避免误供电。选配时，变速箱型号、控制器及版本确定接口基线。
Routing around the powertrain动力总成周边安装路径
For external powertrain leads, check heat sources, movement clearance, support points and interface direction, with suitable service allowance. Define solenoids, speed, pressure and communication in the circuit table.动力总成周边的外部引线需核对热源、运动间隙、支撑点和接口方向，保留维护所需余量。选配时，电磁阀、速度、压力与通信按电路表分别定义。
ENGINEERING & PRODUCTION工程与制造
Adapt the connection to your equipment.围绕设备，调整连接细节。
Touched by me, better it’ll beTouched by me, better it’ll be
Custom wire harness manufacturing in China中国工厂 · 定制线束制造
Our China factory supports transmission harness projects through custom wire harness manufacturing and OEM/ODM development. Interface, circuit and installation data guide material selection, sample builds and manufacturing-document approval before repeat production.Super Smile-Tech 中国工厂围绕变速箱线束的项目需求提供定制线束制造与 OEM/ODM 支持。我们从接口、电路与安装资料开始，协同物料选配、样品制作和制造文件确认，再按批准要求组织重复生产。
Transmission model, controller and revision变速箱型号、控制器和版本
Use transmission, controller and revision as the interface baseline.变速箱型号、控制器及版本确定接口基线。
Solenoid, speed-sensor and communication pinout电磁阀、速度传感器及通信针图
Define solenoids, speed, pressure and communication in the circuit table.电磁阀、速度、压力与通信按电路表分别定义。
Feedthrough seals, temperature and fixing贯穿密封、温度与固定结构
Combine feedthrough sealing, thermal zones and fixing in the installation design.穿壳密封、热区和固定组成完整安装结构。
PRODUCT QUESTIONS产品问答
Product & customization questions产品与定制常见问题
Is an external transmission lead the same as an internal mechatronic harness?箱外变速箱引线等同于箱内机电液线束吗？
No. They have different installation, fluid exposure, connector and cleanliness requirements. Define the breakpoints and whether a through-case interface belongs to the assembly.不等同。安装位置、油液暴露、连接器和洁净度要求都可能不同。必须明确断开点，以及穿壳接口是否属于供货范围。
Can a matching gearbox plug prove interchangeability?变速箱插头能对插就能互换吗？
No. Compare transmission and controller references, cavity view, circuit assignment, terminal system, sealing parts and software variant. A mating shell does not validate shifting behavior.不能。还要比较变速箱与控制器料号、孔位视图、回路分配、端子体系、密封件与软件变型。能插上不等于换挡行为正确。
Does continuity testing prove the feedthrough will not leak?导通测试能证明穿壳接口不漏油吗？
No. Continuity tests electrical mapping. Fluid containment needs the correct approved seals and installation, followed by the project-specific leak or pressure test.不能。导通只检查电气映射。油液密封需要正确的批准密封件和安装，并按项目规定进行渗漏或压力试验。
Start with your interface and installation requirements从您的接口与安装需求开始
Share mating interfaces, a circuit table, target lengths or a sample for the dq250 02e transmission circular main plug pigtail. We can use them to review configuration and sample requirements.提供DQ250 02E变速箱圆形主插头尾线的对插接口、回路表、目标长度或参考样品，我们据此梳理选配与样品确认事项。
