Transmission Harness

Overview

Transmission harnesses carry power, commands and feedback between a transmission control unit, mechatronic assembly, solenoids, speed or position sensors, range selector and the vehicle-side loom. The category includes external gearbox leads, sealed through-case interfaces and, where specified, oil-wet internal branches. The correct assembly depends on the exact transmission and vehicle variant, not a generic gearbox plug.

Ask About This Product TypeFind Models & Material Part NumbersBack to Products
Transmission Harness - Automotive
01 / 16

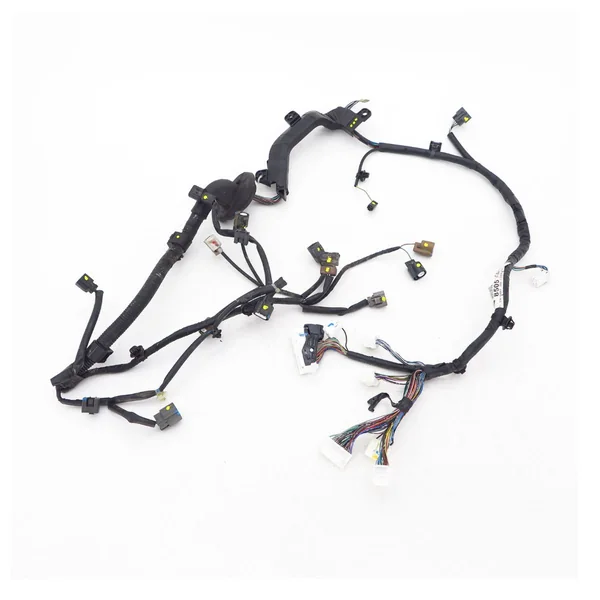

Transmission Multi-Plug Coiled Harness
01
Transmission Multi-Plug Coiled Harness8505A249
7518043 M54/E46 Automatic Transmission Multi-Branch Harness
02

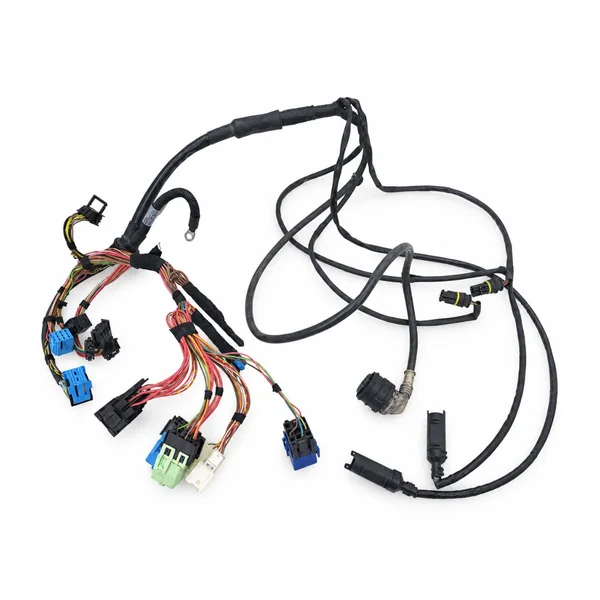

7518043 M54/E46 Automatic Transmission Multi-Branch Harness

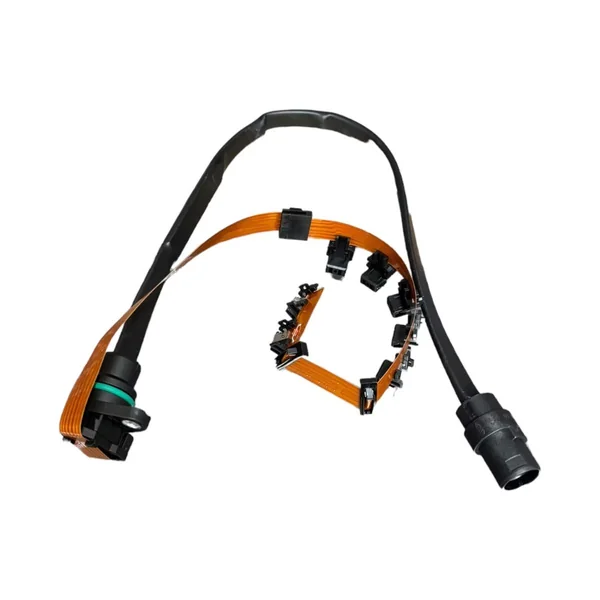

01M/AG4 HCT5201-1 Transmission Ribbon Cable
03
01M/AG4 HCT5201-1 Transmission Ribbon Cable
Internal Transmission Main Plug & Short-Branch Harness
04

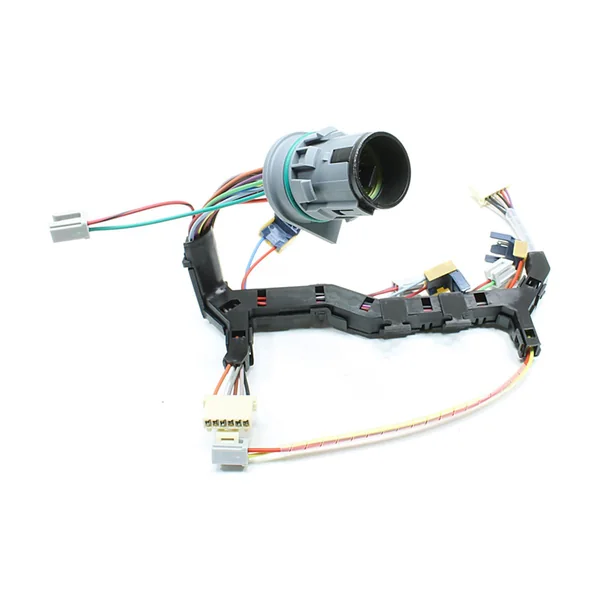

Internal Transmission Main Plug & Short-Branch Harness350-0087

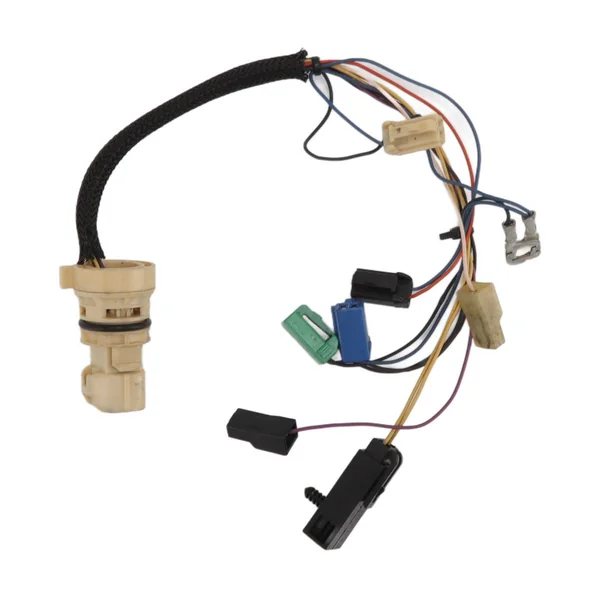

Internal Transmission Multi-Plug Harness
05
Internal Transmission Multi-Plug HarnessXS4Z7G276AB
Internal Transmission Harness & External Pigtail Set
06

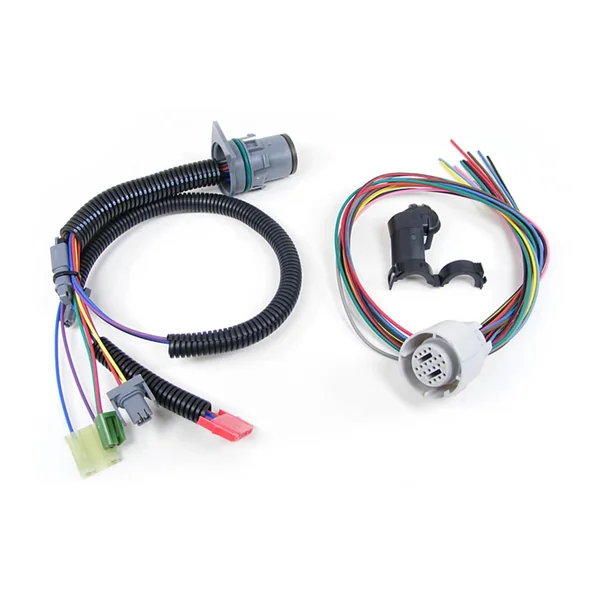

Internal Transmission Harness & External Pigtail Set4L80E／4L85E
Automatic Transmission Ribbon Cable
07
Automatic Transmission Ribbon Cable095／096
DQ250 02E Transmission Circular Main Plug Pigtail
08

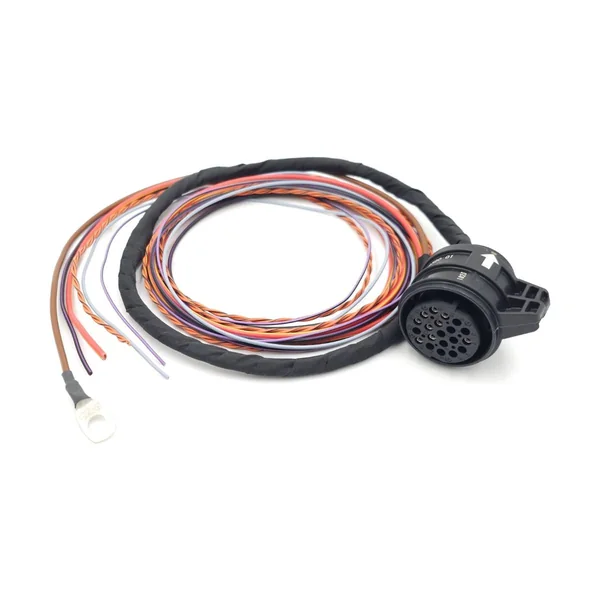

DQ250 02E Transmission Circular Main Plug Pigtail
Transmission Multi-Plug Branch Harness Set
09

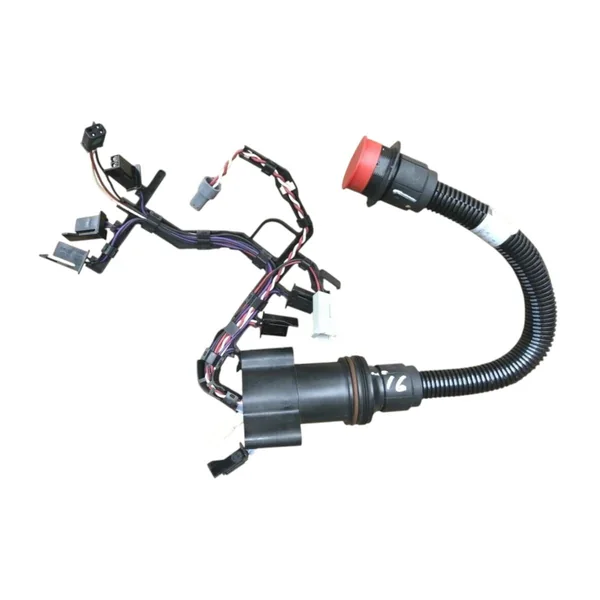

Transmission Multi-Plug Branch Harness Set29542682

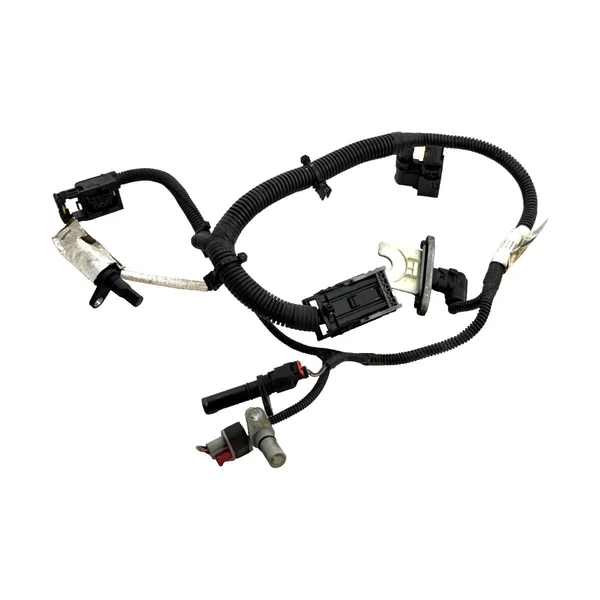

Focus 2012–2018 Automatic Transmission Short-Branch Harness
10
Focus 2012–2018 Automatic Transmission Short-Branch Harness
Internal Transmission Multi-Branch Harness
11

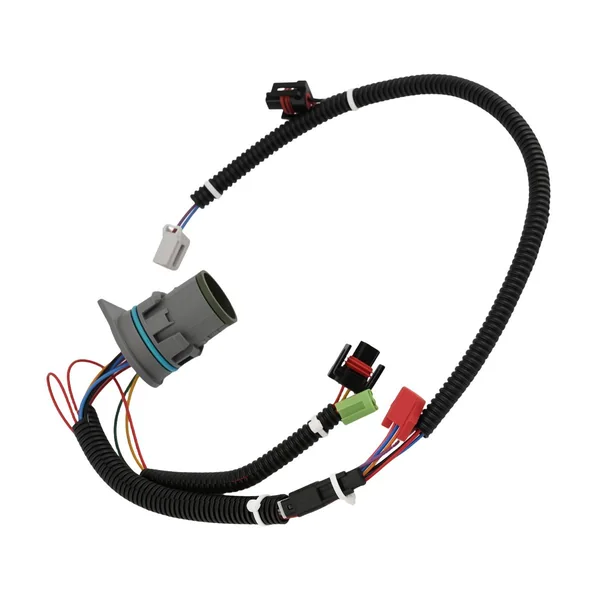

Internal Transmission Multi-Branch Harness24200161／24229664
09G 14-Pin Transmission Multi-Plug Harness
12

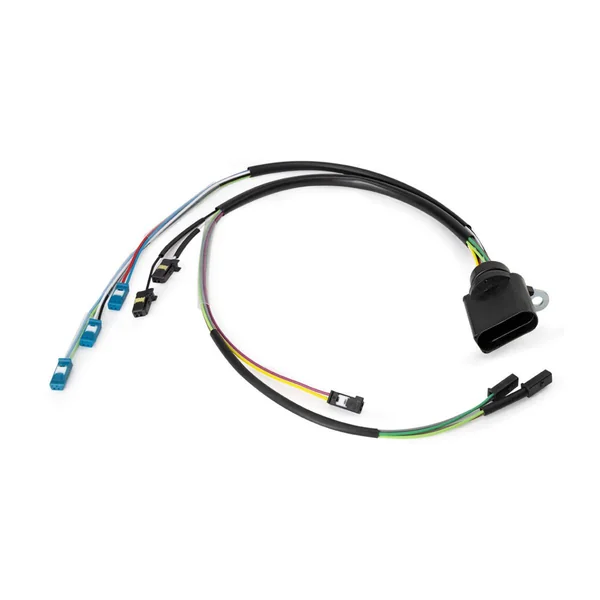

09G 14-Pin Transmission Multi-Plug Harness

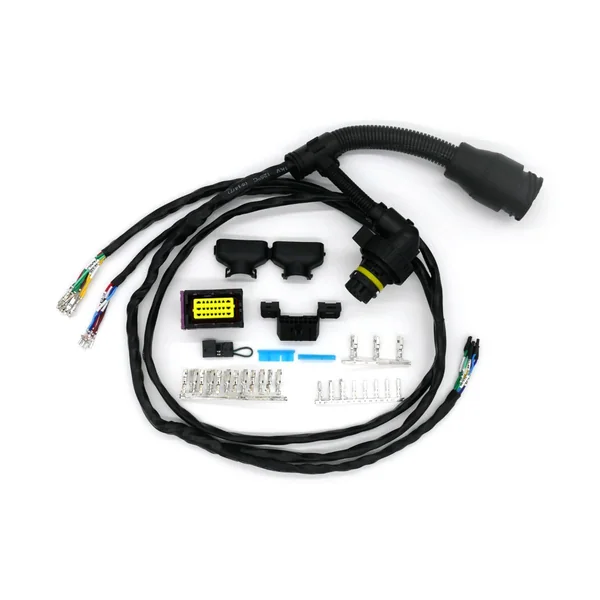

6HP Transmission Controller Adapter Harness Set
13
6HP Transmission Controller Adapter Harness Set
Internal Transmission Rail & Circular Main Plug Harness
14

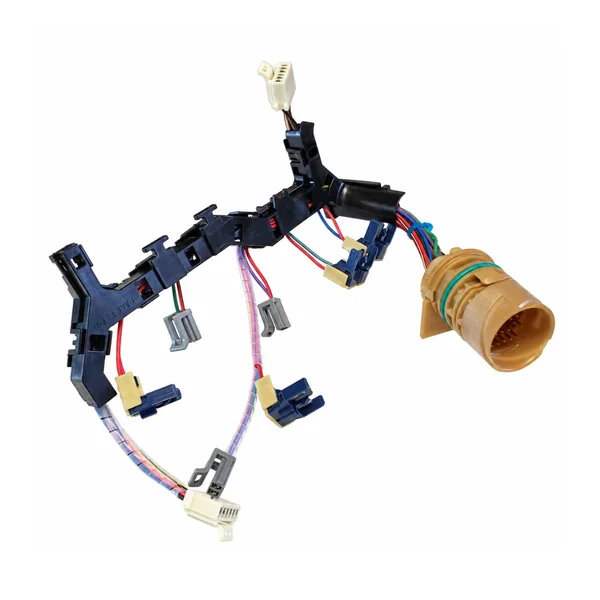

Internal Transmission Rail & Circular Main Plug Harness29545308

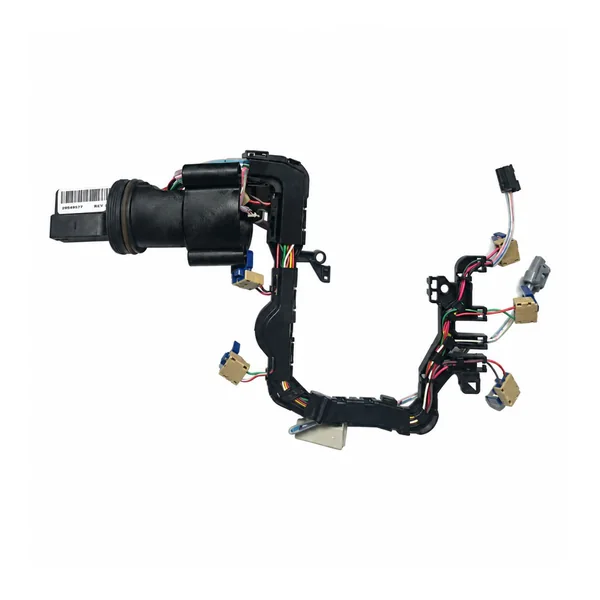

Transmission Rigid Rail Branch Harness
15
Transmission Rigid Rail Branch Harness29549577／29545354
Transmission Main Plug & Short-Branch Harness
16

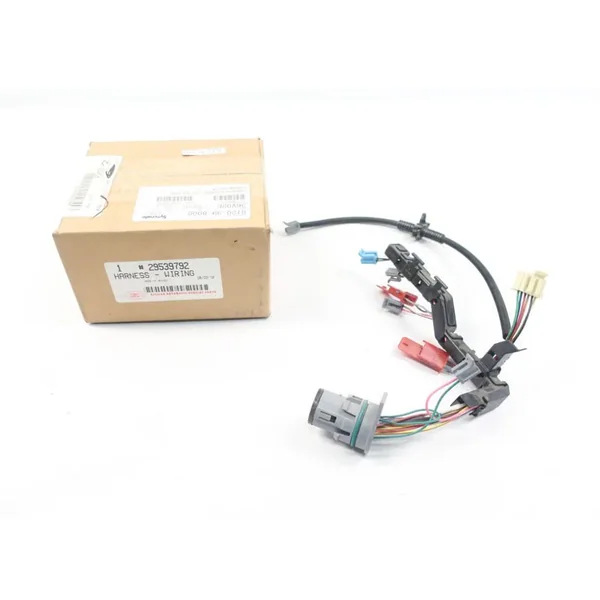

Transmission Main Plug & Short-Branch Harness29539792
OUTSIDE / THROUGH-CASE / OIL-WET

One gearbox, three electrical environments

Follow the circuit from the vehicle loom to the gearbox housing and then, when the design calls for it, into the oil-wet mechatronic space. Each boundary changes the connector, material, installation and evidence needed for release.

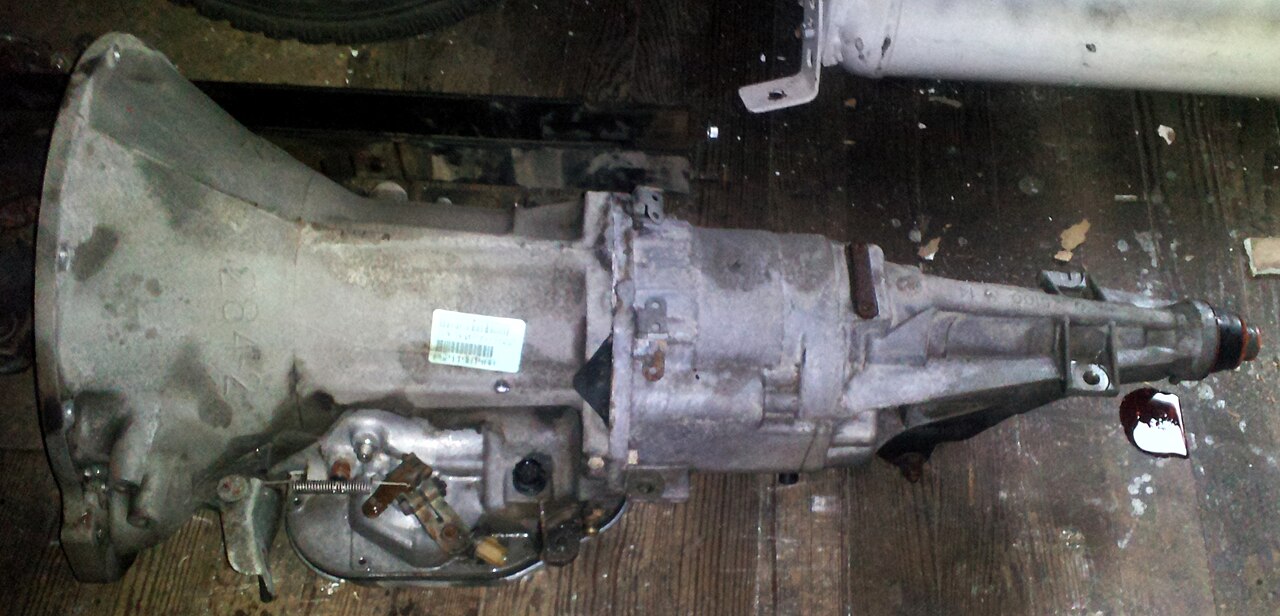

Transmission Harness transmission housing and connection context
01

Interface and control path

SCOPE

External lead, case interface or internal loom?

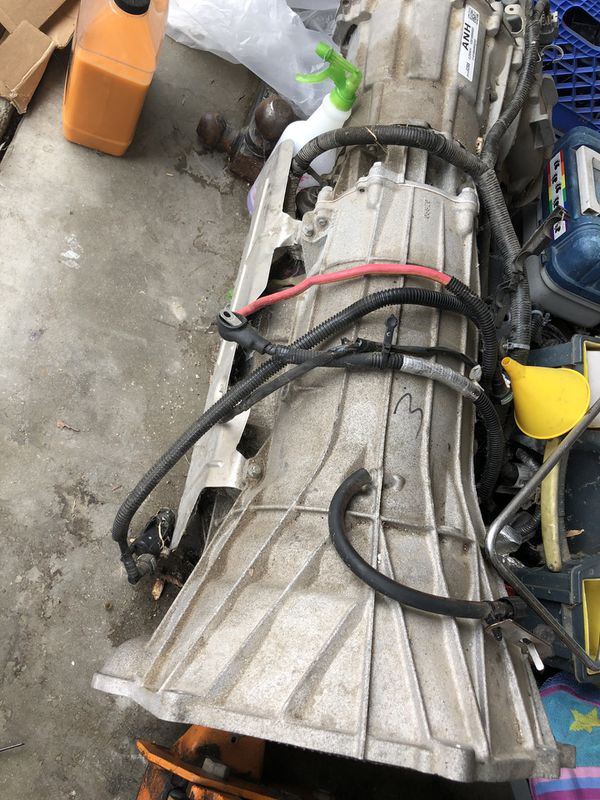

External lead, case interface or internal loom?

A transmission harness may stop at a vehicle-side plug, continue through a housing feedthrough, or distribute circuits inside the case. A detached gearbox photograph shows external wiring, but it cannot identify the correct replacement branch for another unit. Define the exact transmission code, controller location, breakpoints and mating halves before treating an old sample as the master. Automatic, dual-clutch and automated-manual units can package the same functions differently. Mark what remains part of the OEM mechatronic module and what can be supplied as a separate harness; this avoids an apparently complete assembly with an unassigned interface.

Locate every boundary

Record vehicle-side, housing and internal module connectors separately.

Control model variants

A gearbox family name alone is not a pin map.

CONTROL

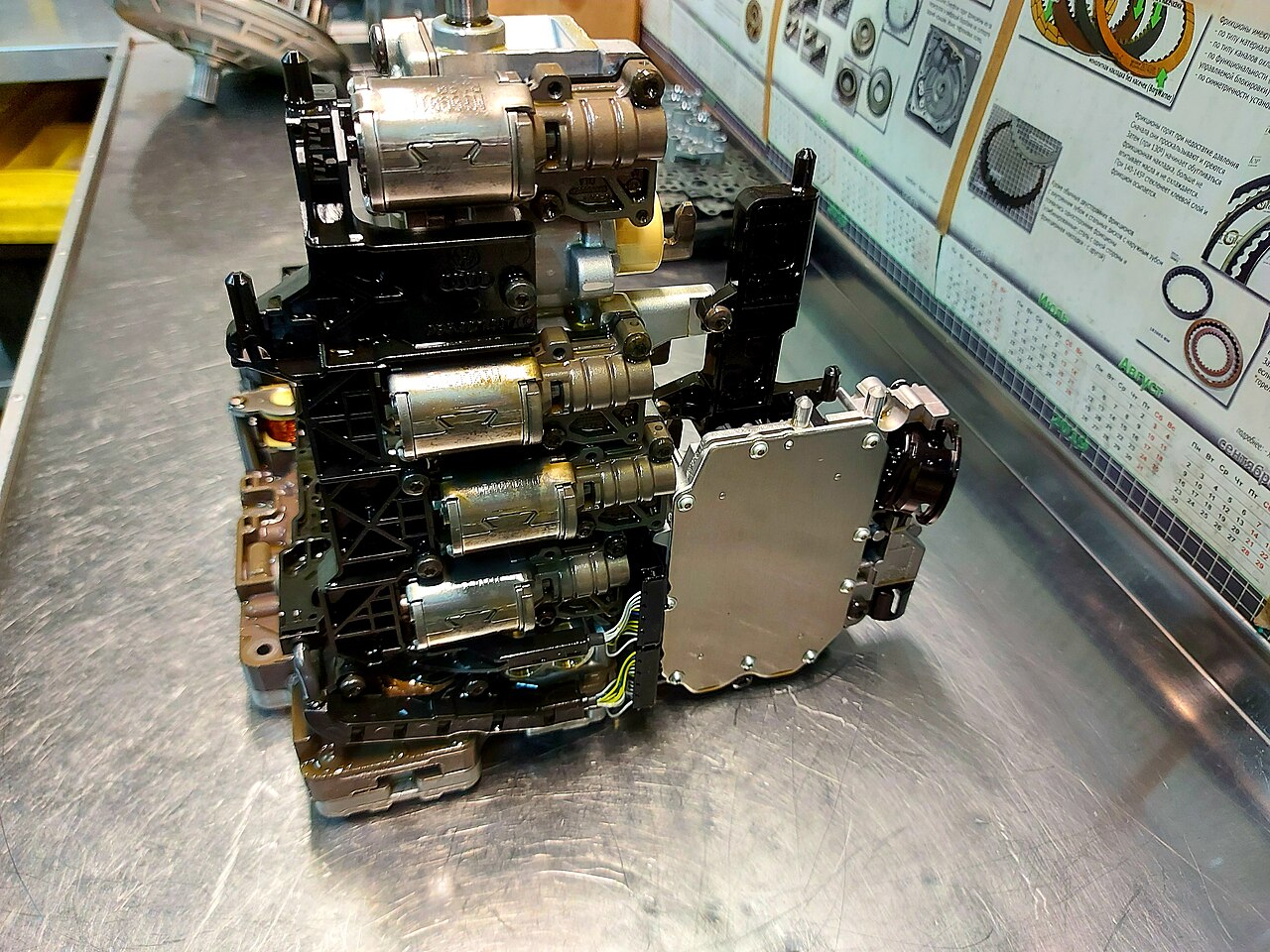

From TCU command to solenoid actuation

From TCU command to solenoid actuation

The transmission control unit evaluates sensor information and commands electrohydraulic or electromechanical actuators. On some designs the controller and valve-body mechatronics are integrated; on others the controller is attached to the gearbox or located elsewhere. That architecture decides whether a branch carries a low-level sensor signal, a supply and ground, an actuator drive or a communication line. The pictured mechatronic unit illustrates several closely packed solenoids and electrical paths; its pin allocation is not universal. For a new assembly, map each load and return path to the approved module data, account for simultaneous current and heat, and specify any required shielding or pair geometry.

Separate signal from drive

Do not size a sensor circuit as if it were a solenoid feed.

Validate the controller version

Electrical fit is not software or calibration compatibility.

02

Fluid boundary and sealing

OIL-WET ZONE

Internal branches live with the fluid

Internal branches live with the fluid

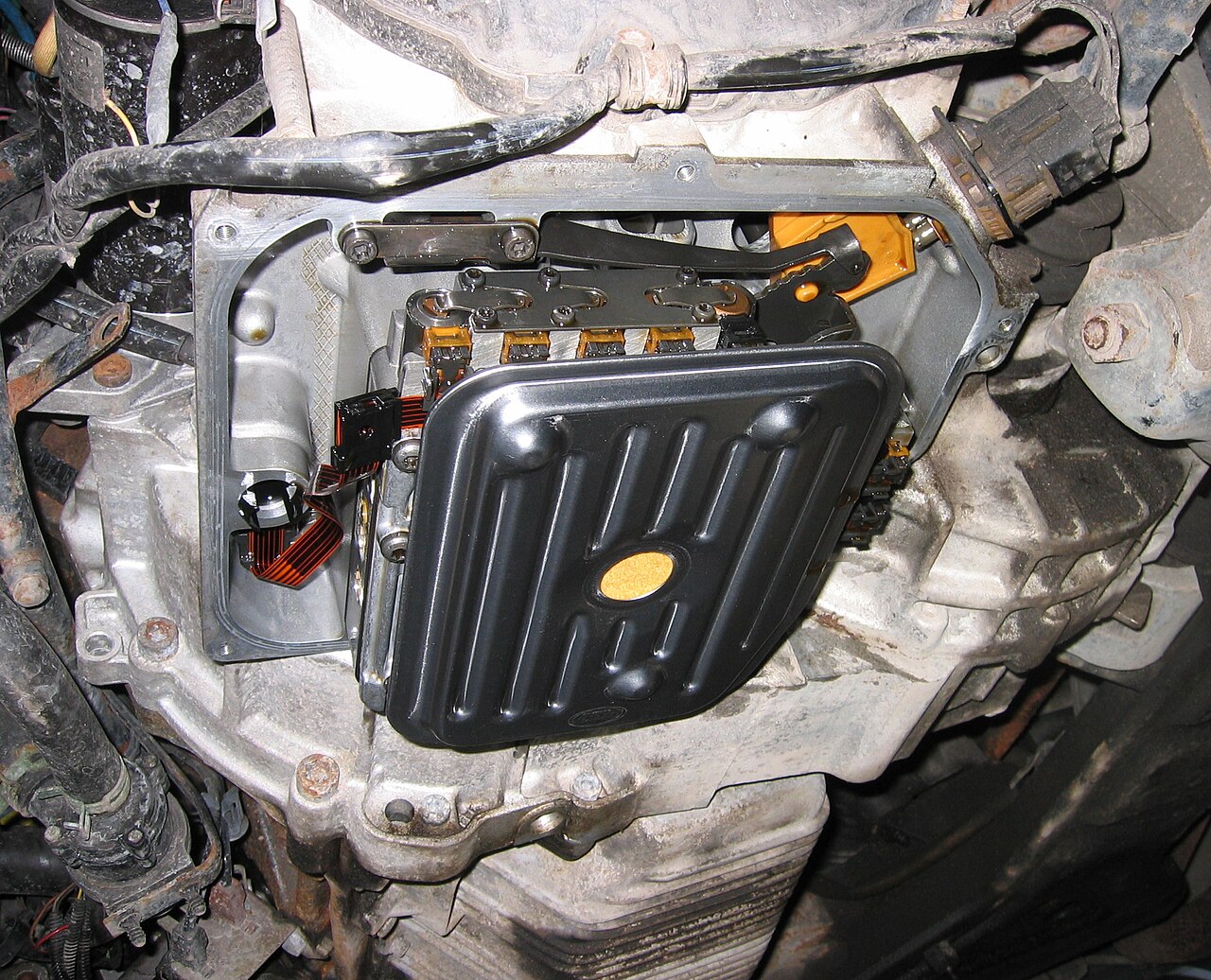

Inside an automatic transmission, a short lead, flat circuit or connector may sit beside a valve body under the oil pan. The open-housing photograph makes that environment visible. Wire insulation, contact finish, seals, overmold or carrier material must be assessed against the specified transmission fluid, additives, temperature and duration; appearance or a generic 'oil-resistant' label is not evidence. The route must avoid pinch points during pan or module installation and keep particles or loose strands out of the hydraulic system. If the component is to be supplied for oil immersion, cleanliness, material compatibility and the exact acceptance tests belong in the controlled drawing rather than in a general catalog promise.

Name the actual fluid

Approval must cover the specified fluid and exposure, not oil in general.

Keep hydraulics clean

Define handling and particle limits when the project requires them.

THROUGH-CASE

A dry outside depends on the case boundary

A dry outside depends on the case boundary

The connector passing through a gearbox housing is a mechanical seal and an electrical interface at once. A case full of fluid, as pictured, makes a leak path consequential. A correctly shaped plug cannot compensate for the wrong guide sleeve, O-ring, insertion depth, lock position or damaged bore. ZF service information for one 6HP design explicitly treats the mechatronic guide sleeve, electrical plug and final leak check as separate steps; that is an example, not a procedure for every transmission. A project drawing should identify the OEM-approved feedthrough and seals, assembly direction, retention and required leak test. External splash sealing and internal fluid containment are different requirements.

Match seals to hardware

Seal geometry belongs to the specified housing and feedthrough.

Do not infer leak tightness

Continuity and visual checks cannot replace an agreed leak test.

03

Feedback and controlled release

FEEDBACK

Speed, position and pressure have different jobs

Speed, position and pressure have different jobs

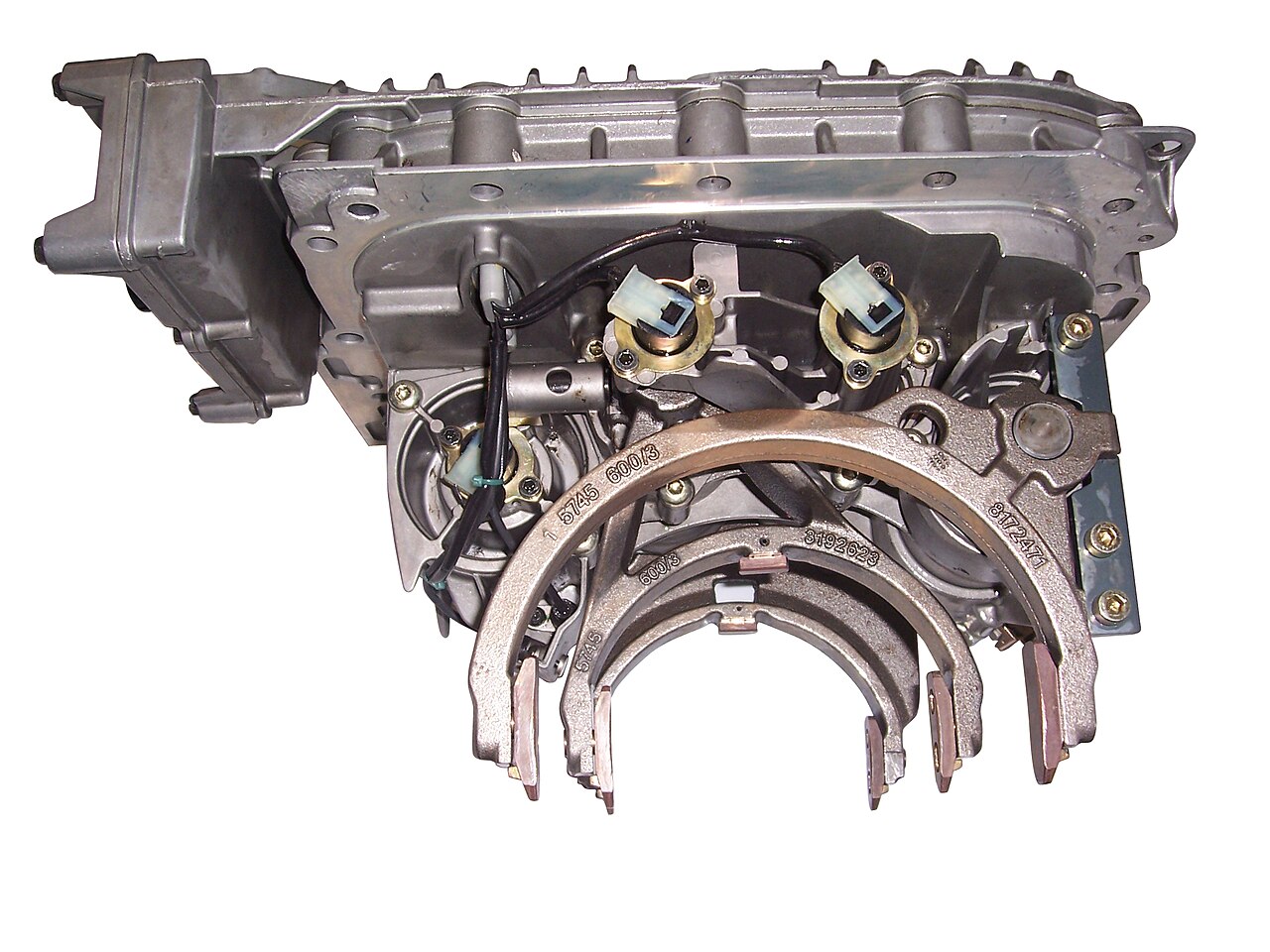

Depending on the transmission, input, output or intermediate speed sensors inform shift control; position sensing can report a selector, shift fork or parking state, while pressure sensing may reflect a hydraulic circuit. The photographed gear-change unit shows close mechanical and electrical packaging, not a specified sensor or approved replacement. Identify the actual device type, power or reference supply, return, output form and cavity view from the vehicle documentation. Sensor leads should be routed clear of sharp castings and moving linkages, with controlled retention and any platform-specified noise treatment. One misassigned cavity can produce a plausible continuity result and still send the wrong information to the TCU.

Use device-specific maps

A sensor, switch and solenoid need different test assumptions.

Retain near movement

Set clearance to the real linkage and service path.

SELECT & RELEASE

Selector logic and first-article evidence

Selector logic and first-article evidence

The cabin selector is one visible end of the system, but PRND markings do not reveal whether a vehicle uses a mechanical cable, switch contacts, a position sensor or shift-by-wire. Replacement pigtails and adapter leads must follow the exact platform circuit table; park, reverse and neutral-related signals can affect vehicle behavior and require OEM-defined safety review. Before cutting or crimping, reconcile both connector views, terminal and wire specifications, branch datums and the first-article test matrix. Check wire identity, terminal seating, locks, strain relief and fit on the approved mating parts. Electrical continuity confirms a mapped circuit, not shift quality, parking function, software state or roadworthiness; those need separately agreed system-level validation.

Do not infer selector type

The same cabin appearance can hide different electrical designs.

Release against evidence

Document what was inspected and what remains a vehicle-level test.

Transmission Harness Questions

Is an external transmission lead the same as an internal mechatronic harness?

No. They have different installation, fluid exposure, connector and cleanliness requirements. Define the breakpoints and whether a through-case interface belongs to the assembly.

Can a matching gearbox plug prove interchangeability?

No. Compare transmission and controller references, cavity view, circuit assignment, terminal system, sealing parts and software variant. A mating shell does not validate shifting behavior.

Does continuity testing prove the feedthrough will not leak?

No. Continuity tests electrical mapping. Fluid containment needs the correct approved seals and installation, followed by the project-specific leak or pressure test.

Can an old transmission sample define the full new harness?

A sample helps locate branches and connectors, but previous repairs, worn seals, hidden material grades and software variants can mislead. Cross-check it against current OEM drawings and approved mating parts before the first article.

What should be included in a transmission-harness inquiry?

Send the vehicle and transmission code, TCU or mechatronic part number, internal/external scope, pin table and connector views, routes and fixation, specified fluid and temperature, sample or drawing, quantity and required tests.
