Drag-Chain Cable
PRODUCT CATEGORY · TECHNICAL CABLE产品小类 · 技术电缆

Drag-Chain Cable拖链电缆

Design the cable, carrier and motion profile as one system把线缆、拖链与运动谱作为一个系统设计
For robots, CNC axes, gantries and automated equipment, repeated flexing must be defined before conductor, jacket or shield selection.面向机器人、CNC 轴、龙门与自动化设备，必须先定义重复弯曲工况，再选择导体、护套与屏蔽结构。
Ask About This Product Type咨询这一类产品Find Models & Material Part NumbersBack to Products返回产品中心
01 / 10

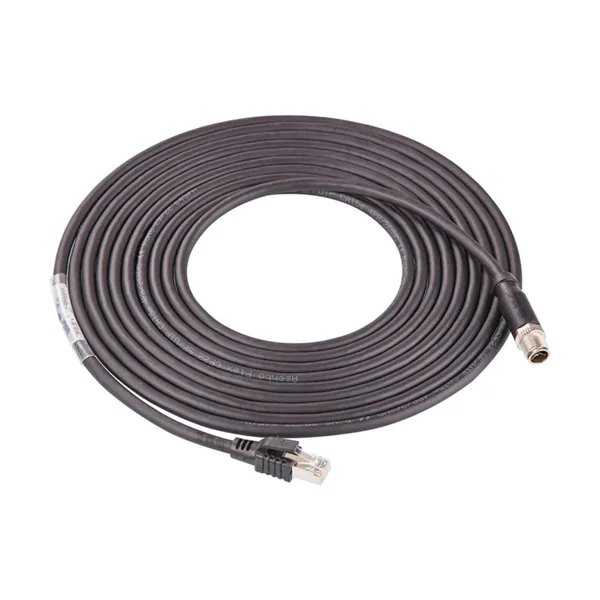

Robot Cable Reel
01
Robot Cable Reel

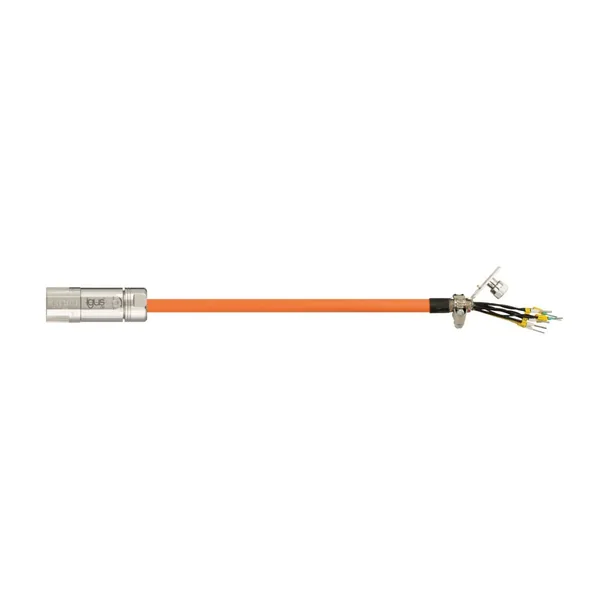

Servo Motor Cable Cutaway
02
Servo Motor Cable Cutaway

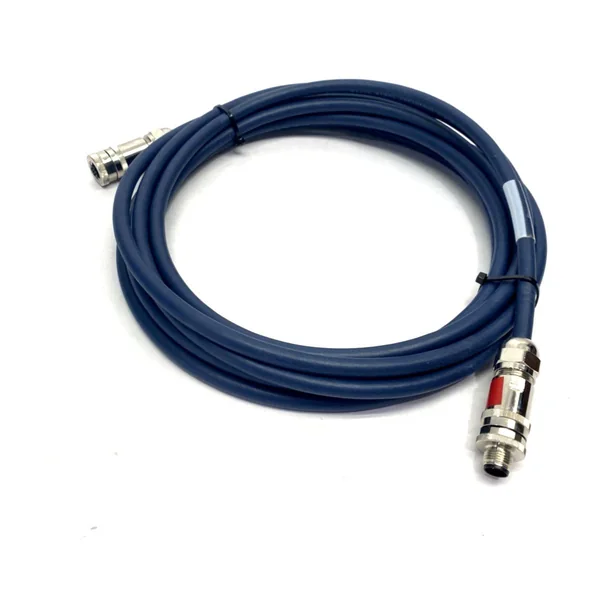

M12 5-Pin Double-Ended Control Cable
03
M12 5-Pin Double-Ended Control CableCFROBOT2-07-05-C

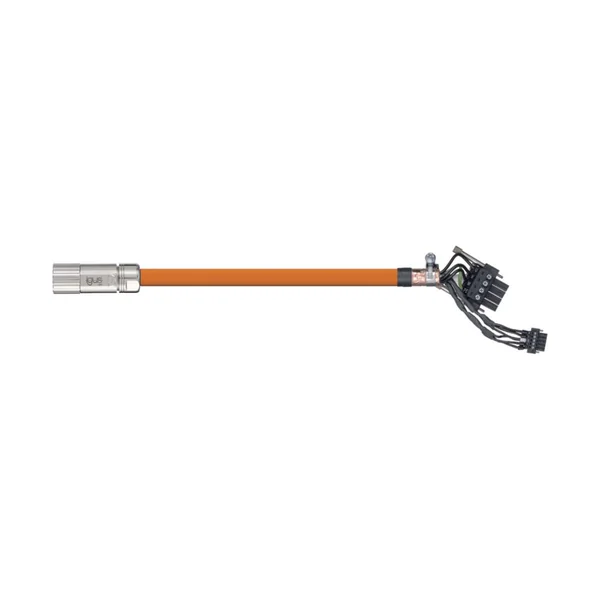

Circular Connector to Branch Terminal Servo Harness
04
Circular Connector to Branch Terminal Servo HarnessZK4500-0024-0050

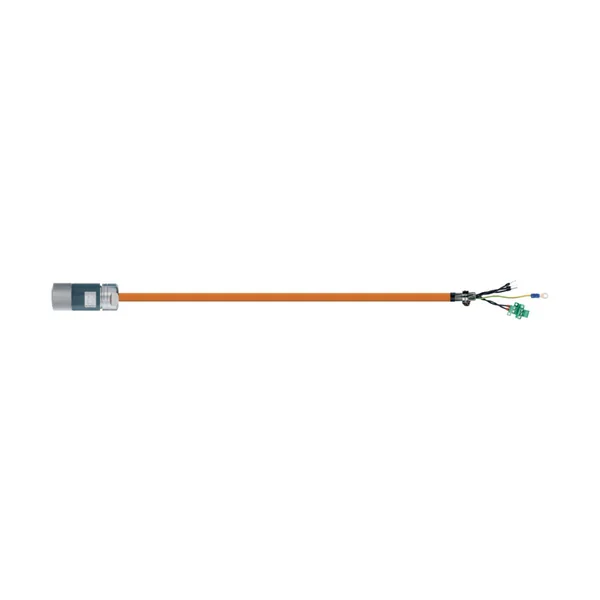

Servo Drive Connector & Branch Terminal Harness
05
Servo Drive Connector & Branch Terminal Harness6FX8002-5DA23-1AF0
Dual Circular Connectors Servo Harness
06
Dual Circular Connectors Servo HarnessRL2-500CBB-NN-005,0

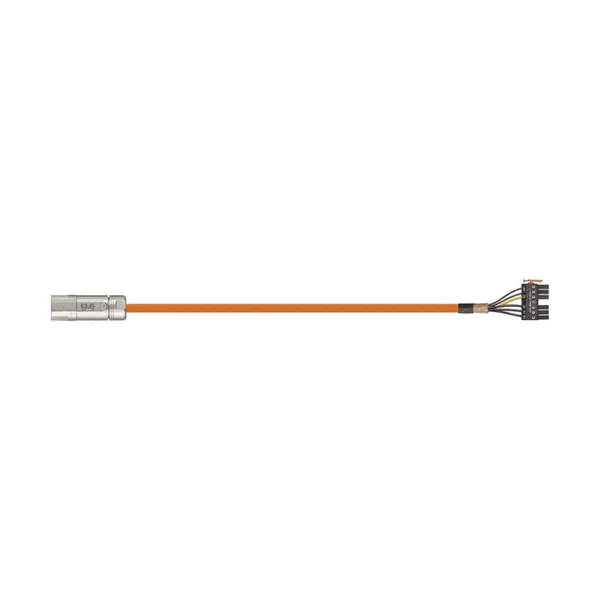

Circular Connector to Terminal Block Servo Harness
07
Circular Connector to Terminal Block Servo Harness6FX8002-5DS06-1CA0

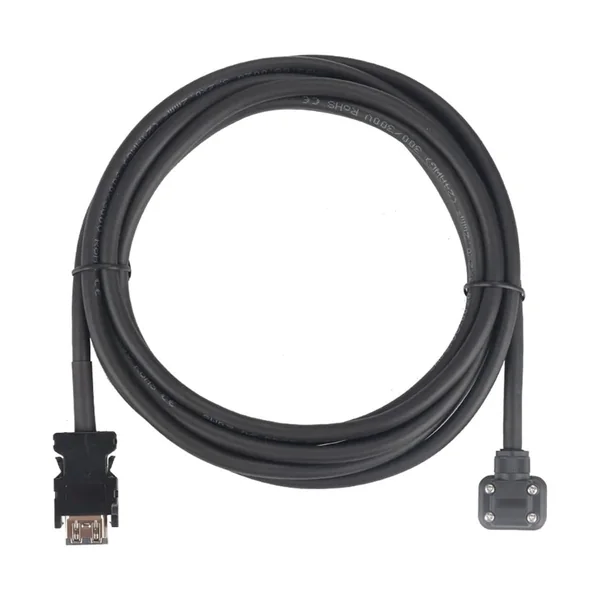

Servo encoder cable with two rectangular connectors
08
Servo encoder cable with two rectangular connectorsMR-J3ENCBL3M-A1-L

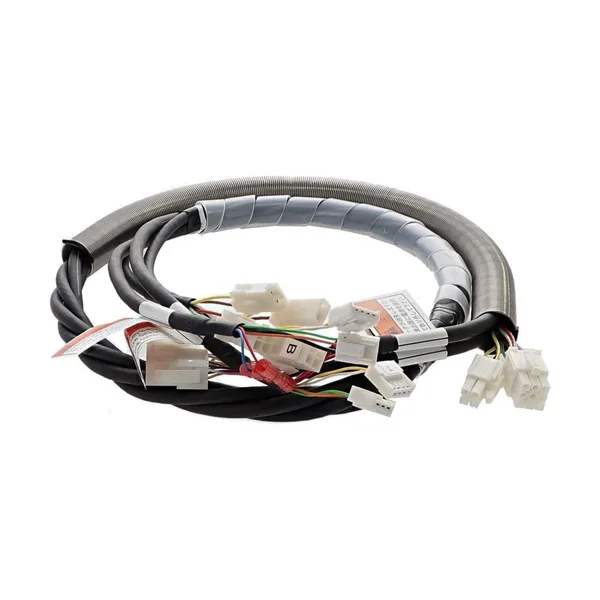

Robot B/T-axis multi-branch wiring harness
09
Robot B/T-axis multi-branch wiring harnessHW0270875-A

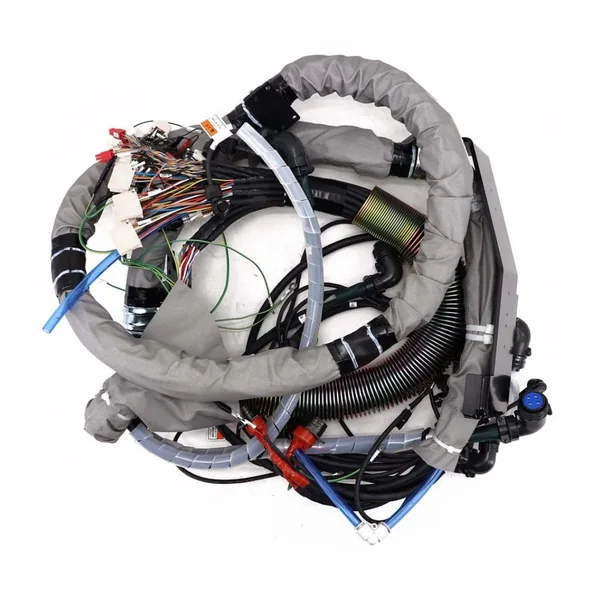

Multi-axis robot main wiring harness
10
Multi-axis robot main wiring harnessHW0174287-A
ENGINEERING OVERVIEW工程概览

Design the cable, carrier and motion profile as one system把线缆、拖链与运动谱作为一个系统设计

A drag-chain cable is not identified by softness alone. Travel, speed, acceleration, bend radius, cycle count, orientation, fill and environmental exposure create the real duty. The cable carrier controls the path, but it does not remove tensile, torsional or abrasion loads caused by poor installation.

拖链电缆不能只凭“柔软”判断。行程、速度、加速度、弯曲半径、循环次数、安装方向、填充率与环境暴露共同构成真实工况。拖链负责约束路径，但不能消除错误安装造成的拉伸、扭转或磨损。

01

SYSTEM DEFINITION

系统定义

Define the motion envelope定义运动包络

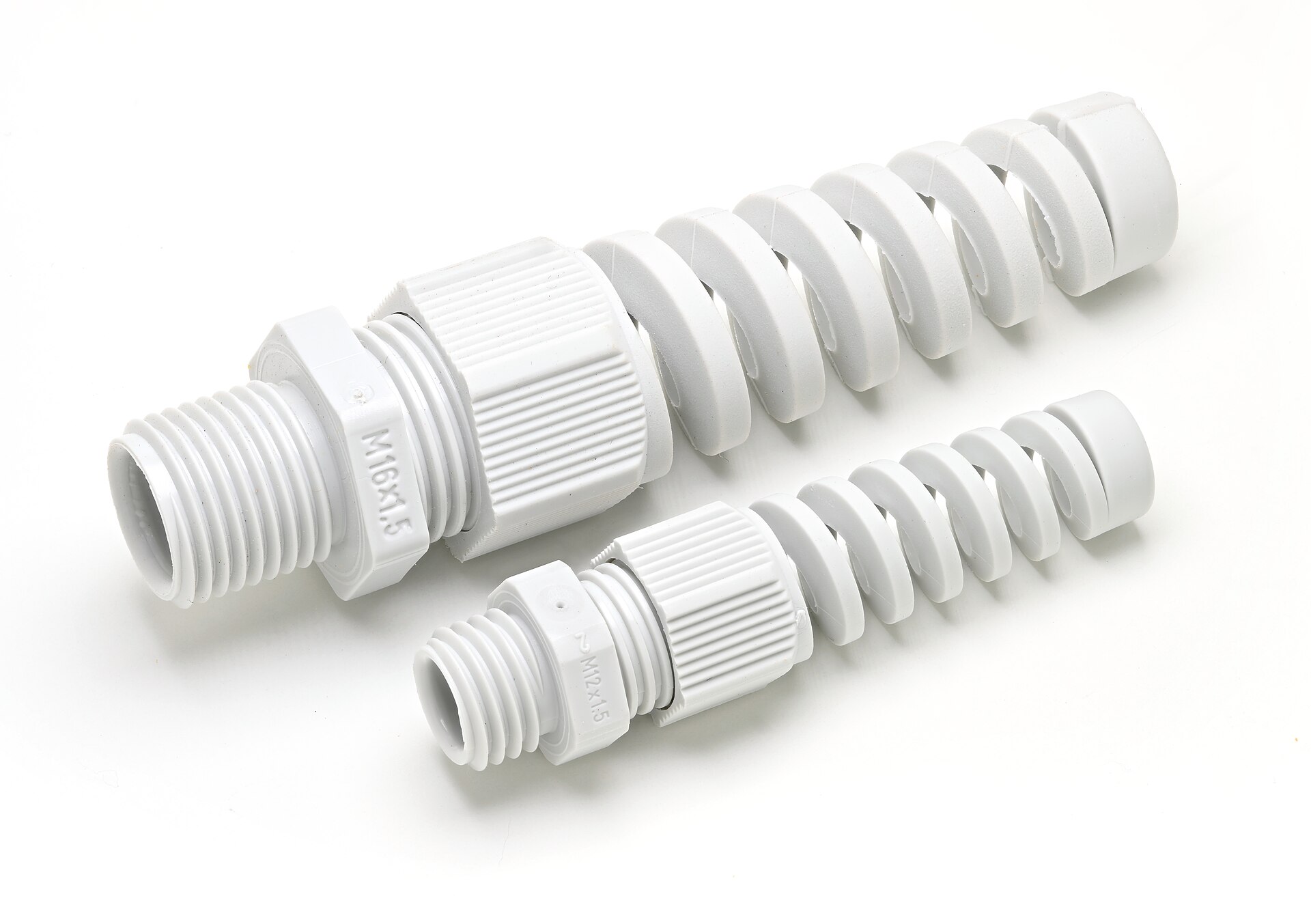

Define the motion before choosing the cable
Context image for define the motion before choosing the cable; it does not represent a Super Smile test result or certification.图片用于说明“先定义运动，再选择线缆”的相关场景，不代表超斯迈尔测试结果或认证。

Define the motion before choosing the cable

先定义运动，再选择线缆

Record travel length, cycle rate, acceleration, operating hours, minimum dynamic bend radius and whether the path is horizontal, vertical or unsupported. Continuous flexing and torsion are different loads: a robot wrist, linear axis and festoon system may require different conductor lay and reinforcement. A supplier cycle claim is meaningful only when its radius, speed, travel and installation conditions resemble the project.

应记录行程、循环频率、加速度、工作时长、最小动态弯曲半径，以及路径属于水平、垂直还是悬空。连续弯曲与扭转是两种不同负载；机器人手腕、直线轴和悬挂系统可能需要不同的导体绞合与加强结构。供应商循环寿命数据只有在半径、速度、行程和安装条件接近项目时才有意义。

Fine-stranded conductors need a coordinated core lay
Context image for fine-stranded conductors need a coordinated core lay; it does not represent a Super Smile test result or certification.图片用于说明“细绞导体还需要协调的缆芯绞合”的相关场景，不代表超斯迈尔测试结果或认证。

Fine-stranded conductors need a coordinated core lay

细绞导体还需要协调的缆芯绞合

High strand count can improve flexibility, but conductor class alone does not define flex life. Insulation wall, core lay length, separators, fillers, shield construction and jacket must move together without concentrating strain. Power, servo, encoder, Ethernet and sensor circuits may share a carrier while requiring different pair geometry, shielding and current capacity. Hybrid constructions should be reviewed by circuit rather than described as one generic robot cable.

较高股数可以改善柔性，但导体等级本身不能定义弯曲寿命。绝缘壁厚、缆芯节距、隔离层、填充、屏蔽与护套必须协同运动，避免应变集中。动力、伺服、编码器、工业以太网和传感器回路可能共用一条拖链，却需要不同的线对几何、屏蔽和载流能力。混合结构应按回路逐项审核，不能笼统称为“机器人电缆”。

02

CONSTRUCTION + INSTALLATION

结构与安装

Build the moving cable system构建运动线缆系统

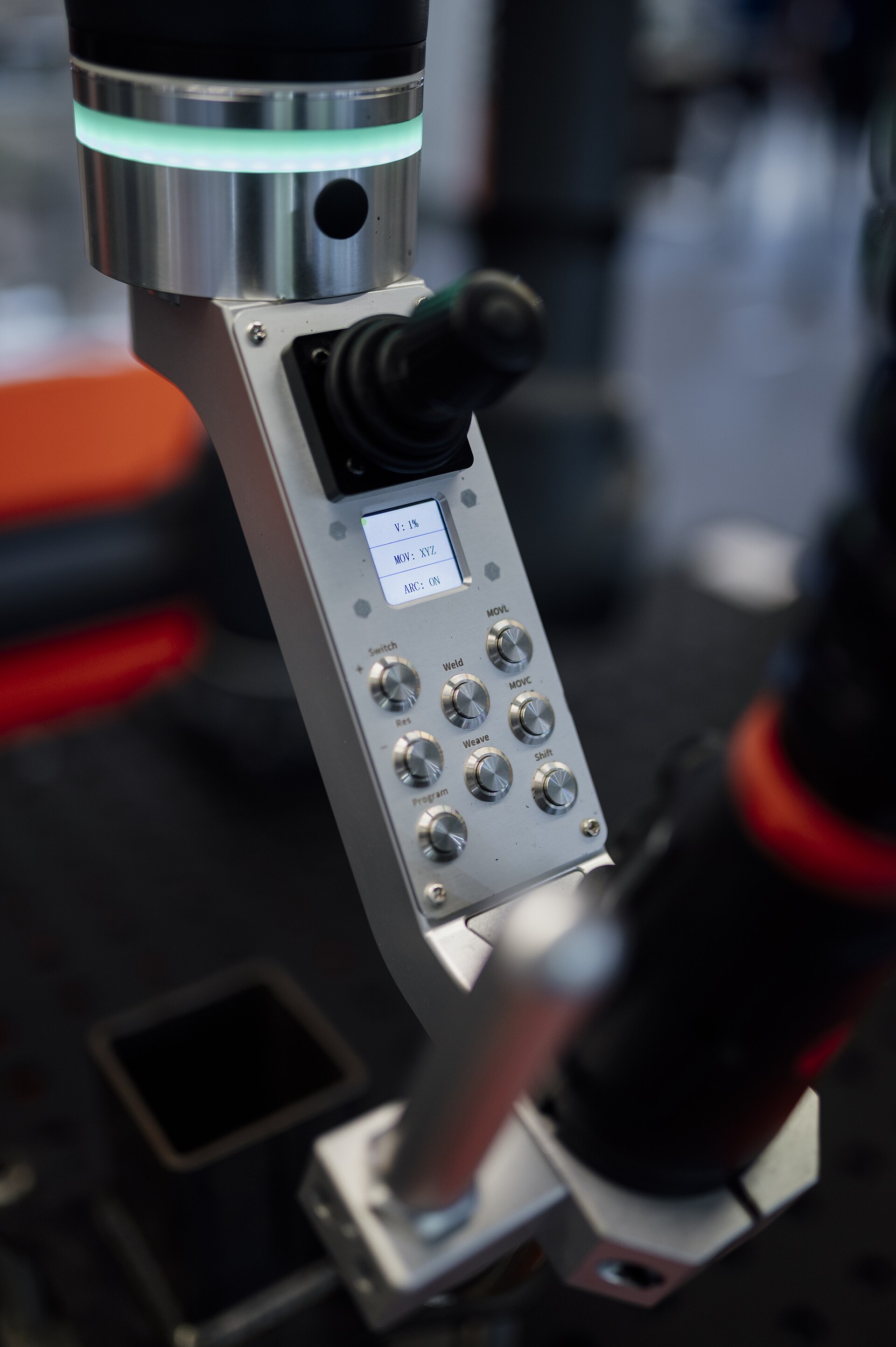

Carrier layout controls service life
Context image for carrier layout controls service life; it does not represent a Super Smile test result or certification.图片用于说明“拖链内部布置直接影响寿命”的相关场景，不代表超斯迈尔测试结果或认证。

Carrier layout controls service life

拖链内部布置直接影响寿命

Keep cables free to move along the neutral axis, separate very different diameters or weights, and avoid crossing or tightly bundling adjacent runs. Observe the carrier maker’s bend radius, internal height, separators and fill guidance. Provide strain relief at the fixed and moving ends without clamping the flex zone. Hose, pneumatic line and cable interaction should be checked through the complete travel before releasing the assembly.

线缆应能沿中性轴自由移动，不同直径或重量的线缆应适当分隔，避免交叉或紧密捆扎。需要遵循拖链厂商对弯曲半径、内部高度、隔片和填充率的要求。固定端与运动端应设置应力释放，但不能夹住动态弯曲区。气管、液压管与电缆之间的相互作用应在全行程内确认。

Jacket and shield follow the installed environment
Context image for jacket and shield follow the installed environment; it does not represent a Super Smile test result or certification.图片用于说明“护套与屏蔽必须服从安装环境”的相关场景，不代表超斯迈尔测试结果或认证。

Jacket and shield follow the installed environment

护套与屏蔽必须服从安装环境

PUR, TPE and other jacket compounds are selected against abrasion, oil, coolant, chips, temperature and cleaning agents, not by material name alone. A braided or foil shield must remain electrically useful after repeated motion; drain-wire fatigue and poor 360-degree termination can interrupt the EMC path. Confirm outer diameter, surface friction, cable weight and connector exit direction as part of the moving assembly.

PUR、TPE 等护套材料应根据磨损、油液、冷却液、切屑、温度和清洗剂选择，不能只看材料名称。编织或铝箔屏蔽在重复运动后仍需保持电气作用；排流线疲劳和不完整的 360° 端接会破坏 EMC 路径。外径、表面摩擦、线缆重量与连接器出线方向都应纳入运动组件审核。

03

EVIDENCE + RELEASE

证据与放行

Validate the installed cycle验证安装循环

Validate the actual cycle and inspect the failure mode
Context image for validate the actual cycle and inspect the failure mode; it does not represent a Super Smile test result or certification.图片用于说明“按真实循环验证，并检查失效模式”的相关场景，不代表超斯迈尔测试结果或认证。

Validate the actual cycle and inspect the failure mode

按真实循环验证，并检查失效模式

Prototype testing should reproduce the intended bend radius, travel, speed, acceleration, temperature and cable loading. Continuity monitoring can reveal intermittent opens, while conductor resistance, insulation, shield continuity and visual checks identify progressive damage. Record fixture geometry and cycle count so a later cable, terminal or route change can be assessed. General flexible-cable standards do not automatically certify a project-specific drag-chain life.

样件试验应复现预定弯曲半径、行程、速度、加速度、温度与载荷。在线导通监测可发现瞬断，导体电阻、绝缘、屏蔽连续性与外观检查则用于识别渐进损伤。应记录夹具几何与循环次数，便于后续线材、端接或路径变化时重新评估。通用柔性电缆标准不会自动证明某个项目的拖链寿命。

Engineering inputs工程输入资料

  1. 01Travel, bend radius, speed, acceleration and cycle target行程、弯曲半径、速度、加速度与循环目标
  2. 02Circuit list, current, voltage, data protocol and shield plan回路表、电流、电压、数据协议与屏蔽方案
  3. 03Carrier size, fill, orientation, environment and endpoints拖链尺寸、填充、方向、环境与两端接口

Common questions常见问题

Is a flexible cable automatically suitable for a drag chain?柔性电缆是否自动适合拖链？

No. Repeated-flex life depends on the complete construction and the actual bend radius, travel, speed, acceleration, installation and environment.

不是。重复弯曲寿命取决于完整结构，以及真实弯曲半径、行程、速度、加速度、安装与环境。

Images and technical scope图片与技术范围说明

Context images explain the material, process, environment or application. They do not represent Super Smile test results or third-party certification.场景图片用于解释材料、工艺、环境或应用，不代表超斯迈尔测试结果或第三方认证。

View image source notes查看图片来源说明

PART NUMBER / INTERFACE / MATERIAL

Models, Part Numbers & Sourcing

Find a cable model or material part number, then send it for a custom replacement or original-part sourcing review.

Back to Top ↑

400 references · Search by brand or part number

Cable & Harness Models

Preassembled motor, feedback and control cables for energy-chain motion.

  • igus

    MAT9761799

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9761798

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9761758

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9761701

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9761797

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9761702

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9761796

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9761795

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9761703

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9761704

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9761713

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9761714

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9761715

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9761711

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9761712

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9861797

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9861760

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9861796

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9861703

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9861795

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9730101

    Preassembled industrial bus cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9930102

    Preassembled industrial bus cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9640001

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9840101

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9630001

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9630103

    Preassembled industrial bus cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9730104

    Preassembled industrial bus cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9640010

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9840102

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9930105

    Preassembled industrial bus cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9630010

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9640015

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9840105

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9630015

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9670003

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9840103

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9670001

    Preassembled drive connection cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9660001

    Preassembled drive connection cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9820101

    Preassembled drive connection cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9670004

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9743601

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9743602

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9743603

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9453601

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9453602

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9453603

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9853601

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9853602

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9853603

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750260

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750261

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750262

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750263

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750264

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750265

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750266

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750267

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750268

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750269

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750270

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750271

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750273

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750274

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750275

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750276

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750277

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750278

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750279

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750280

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9730305

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9730301

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9730303

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9730302

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9730304

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9830305

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9830301

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9830303

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9830302

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9830304

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9386001

    Preassembled drive connection cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9387001

    Preassembled drive connection cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9381005

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9382005

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9383005

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9384005

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9383001

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9384001

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9920306

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9920301

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9440401

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT94602001

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT94603001

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT94600001

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT94601001

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9450401

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9550401

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9450403

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9550403

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT94503001

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT94503002

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT94501001

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT94502001

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT94501003

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT94502003

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT94500001

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT94500003

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9440402

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT94602002

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT94603002

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9753201

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9853201

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9853202

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9753202

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9853203

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9853204

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT97513990

    Preassembled hybrid drive cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9100014

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9100016

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9441335

    Preassembled drive connection cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9741335

    Preassembled drive connection cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9441334

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9941335

    Preassembled drive connection cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9841335

    Preassembled drive connection cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9100032

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9100018

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9100001

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9841318

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9451304

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9110034

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9100034

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9841302

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9110004

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9110020

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9841320

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9841309

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460501

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460504

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460502

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460505

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460503

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460506

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9560001

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9560002

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9560004

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9560005

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9540001

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9960501

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9540004

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9960504

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9540002

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9540005

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9960502

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9960505

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9560003

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9560006

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460602

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460649

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460650

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460651

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460652

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460653

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460654

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460655

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460656

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460657

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460658

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460659

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460660

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460661

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460662

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460677

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460678

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460679

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460680

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9460681

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9853420

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9853421

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9853422

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9853423

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9853424

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9853410

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9853411

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9853412

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9853413

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9853414

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9562501

    Preassembled motor or power cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9862501

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9552502

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9752502

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9742503

    Preassembled drive connection cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9852502

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9842503

    Preassembled drive connection cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9952502

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9450703

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9440702

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9440701

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9750703

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9850703

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9470003

    Preassembled servo cable

    Custom compatible replacements · Original-parts sourcing

  • igus

    MAT9480002

    Preassembled encoder or feedback cable

    Custom compatible replacements · Original-parts sourcing

Connector & Material Part Numbers

Drag-chain cable materials for motion-specific configuration.

  • LAPP

    1026797 / ÖLFLEX® CHAIN PN 5 G 2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023358 / ÖLFLEX® PETRO FD 865 CP 5G10

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023357 / ÖLFLEX® PETRO FD 865 CP 4G10

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023356 / ÖLFLEX® PETRO FD 865 CP 5G6

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023355 / ÖLFLEX® PETRO FD 865 CP 4G6

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023354 / ÖLFLEX® PETRO FD 865 CP 5G4

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023353 / ÖLFLEX® PETRO FD 865 CP 4G4

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023352 / ÖLFLEX® PETRO FD 865 CP 25G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023351 / ÖLFLEX® PETRO FD 865 CP 20G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023350 / ÖLFLEX® PETRO FD 865 CP 18G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023349 / ÖLFLEX® PETRO FD 865 CP 12G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023348 / ÖLFLEX® PETRO FD 865 CP 7G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023347 / ÖLFLEX® PETRO FD 865 CP 5G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023346 / ÖLFLEX® PETRO FD 865 CP 4G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023345 / ÖLFLEX® PETRO FD 865 CP 3G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023344 / ÖLFLEX® PETRO FD 865 CP 2X2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023343 / ÖLFLEX® PETRO FD 865 CP 36G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023342 / ÖLFLEX® PETRO FD 865 CP 30G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023341 / ÖLFLEX® PETRO FD 865 CP 25G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023340 / ÖLFLEX® PETRO FD 865 CP 20G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027605 / ÖLFLEX® FD 855 CP 2X0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027386 / ÖLFLEX® FD 855 CP 25G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027385 / ÖLFLEX® FD 855 CP 18G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027384 / ÖLFLEX® FD 855 CP 12G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027383 / ÖLFLEX® FD 855 CP 7G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027382 / ÖLFLEX® FD 855 CP 5G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027381 / ÖLFLEX® FD 855 CP 4G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027380 / ÖLFLEX® FD 855 CP 3G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026544 / ÖLFLEX® CHAIN 90 P 1X300

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026543 / ÖLFLEX® CHAIN 90 P 1G300

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026542 / ÖLFLEX® CHAIN 90 P 1X240

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026541 / ÖLFLEX® CHAIN 90 P 1G240

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026540 / ÖLFLEX® CHAIN 90 P 1X185

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026539 / ÖLFLEX® CHAIN 90 P 1G185

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026538 / ÖLFLEX® CHAIN 90 P 1X150

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026537 / ÖLFLEX® CHAIN 90 P 1G150

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026536 / ÖLFLEX® CHAIN 90 P 1X120

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026535 / ÖLFLEX® CHAIN 90 P 1G120

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026534 / ÖLFLEX® CHAIN 90 P 1X95

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026533 / ÖLFLEX® CHAIN 90 P 1G95

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026532 / ÖLFLEX® CHAIN 90 P 1X70

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026531 / ÖLFLEX® CHAIN 90 P 1G70

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026530 / ÖLFLEX® CHAIN 90 P 1X50

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026529 / ÖLFLEX® CHAIN 90 P 1G50

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026528 / ÖLFLEX® CHAIN 90 P 1X35

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026527 / ÖLFLEX® CHAIN 90 P 1G35

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026526 / ÖLFLEX® CHAIN 90 P 1X25

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026525 / ÖLFLEX® CHAIN 90 P 1G25

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026524 / ÖLFLEX® CHAIN 90 P 1X16

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026523 / ÖLFLEX® CHAIN 90 P 1G16

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026522 / ÖLFLEX® CHAIN 90 P 1X10

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026521 / ÖLFLEX® CHAIN 90 P 1G10

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026520 / ÖLFLEX® CHAIN 90 P 1X6

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026519 / ÖLFLEX® CHAIN 90 P 1G6

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026518 / ÖLFLEX® CHAIN 90 P 1X4

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026517 / ÖLFLEX® CHAIN 90 P 1G4

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026516 / ÖLFLEX® CHAIN 90 P 1X2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026515 / ÖLFLEX® CHAIN 90 P 1G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026514 / ÖLFLEX® CHAIN 90 P 1X1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1026513 / ÖLFLEX® CHAIN 90 P 1G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023339 / ÖLFLEX® PETRO FD 865 CP 18G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023338 / ÖLFLEX® PETRO FD 865 CP 12G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023337 / ÖLFLEX® PETRO FD 865 CP 7G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023336 / ÖLFLEX® PETRO FD 865 CP 5G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023335 / ÖLFLEX® PETRO FD 865 CP 4G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023334 / ÖLFLEX® PETRO FD 865 CP 3G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023333 / ÖLFLEX® PETRO FD 865 CP 2X1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023332 / ÖLFLEX® PETRO FD 865 CP 36G1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023331 / ÖLFLEX® PETRO FD 865 CP 30G1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023330 / ÖLFLEX® PETRO FD 865 CP 25G1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023329 / ÖLFLEX® PETRO FD 865 CP 20G1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023328 / ÖLFLEX® PETRO FD 865 CP 18G1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023327 / ÖLFLEX® PETRO FD 865 CP 12G1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023326 / ÖLFLEX® PETRO FD 865 CP 7G1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023325 / ÖLFLEX® PETRO FD 865 CP 5G1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023324 / ÖLFLEX® PETRO FD 865 CP 4G1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023323 / ÖLFLEX® PETRO FD 865 CP 3G1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023322 / ÖLFLEX® PETRO FD 865 CP 2X1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023321 / ÖLFLEX® PETRO FD 865 CP 36G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023320 / ÖLFLEX® PETRO FD 865 CP 30G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023319 / ÖLFLEX® PETRO FD 865 CP 25G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023318 / ÖLFLEX® PETRO FD 865 CP 20G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023317 / ÖLFLEX® PETRO FD 865 CP 18G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023316 / ÖLFLEX® PETRO FD 865 CP 12G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023315 / ÖLFLEX® PETRO FD 865 CP 7G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023314 / ÖLFLEX® PETRO FD 865 CP 5G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023313 / ÖLFLEX® PETRO FD 865 CP 4G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023312 / ÖLFLEX® PETRO FD 865 CP 3G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023311 / ÖLFLEX® PETRO FD 865 CP 2X0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023310 / ÖLFLEX® PETRO FD 865 CP 36G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023309 / ÖLFLEX® PETRO FD 865 CP 30G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023308 / ÖLFLEX® PETRO FD 865 CP 25G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023307 / ÖLFLEX® PETRO FD 865 CP 20G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023306 / ÖLFLEX® PETRO FD 865 CP 18G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023305 / ÖLFLEX® PETRO FD 865 CP 12G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023304 / ÖLFLEX® PETRO FD 865 CP 7G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023303 / ÖLFLEX® PETRO FD 865 CP 5G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023302 / ÖLFLEX® PETRO FD 865 CP 4G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023301 / ÖLFLEX® PETRO FD 865 CP 3G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0023300 / ÖLFLEX® PETRO FD 865 CP 2X0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028952 / ÖLFLEX® FD 891 P 2X2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028752 / ÖLFLEX® FD 891 P 2X0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028634 / ÖLFLEX® FD 891 P 4G25

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028624 / ÖLFLEX® FD 891 P 4G16

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028614 / ÖLFLEX® FD 891 P 4G10

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028604 / ÖLFLEX® FD 891 P 4G6

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028507 / ÖLFLEX® FD 891 P 7G4

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028504 / ÖLFLEX® FD 891 P 4G4

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028503 / ÖLFLEX® FD 891 P 3G4

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028412 / ÖLFLEX® FD 891 P 12G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028407 / ÖLFLEX® FD 891 P 7G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028405 / ÖLFLEX® FD 891 P 5G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028404 / ÖLFLEX® FD 891 P 4G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028403 / ÖLFLEX® FD 891 P 3G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028334 / ÖLFLEX® FD 891 P 34G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028325 / ÖLFLEX® FD 891 P 25G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028318 / ÖLFLEX® FD 891 P 18G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028312 / ÖLFLEX® FD 891 P 12G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028307 / ÖLFLEX® FD 891 P 7G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028305 / ÖLFLEX® FD 891 P 5G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028304 / ÖLFLEX® FD 891 P 4G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028303 / ÖLFLEX® FD 891 P 3G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028150 / ÖLFLEX® FD 891 P 50G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028134 / ÖLFLEX® FD 891 P 34G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028125 / ÖLFLEX® FD 891 P 25G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028118 / ÖLFLEX® FD 891 P 18G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028112 / ÖLFLEX® FD 891 P 12G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028107 / ÖLFLEX® FD 891 P 7G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028105 / ÖLFLEX® FD 891 P 5G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028104 / ÖLFLEX® FD 891 P 4G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028103 / ÖLFLEX® FD 891 P 3G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    1028007 / ÖLFLEX® FD 891 P 7G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027587 / ÖLFLEX® FD 855 P 41G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027586 / ÖLFLEX® FD 855 P 4G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027585 / ÖLFLEX® FD 855 P 36G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027584 / ÖLFLEX® FD 855 P 30G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027582 / ÖLFLEX® FD 855 P 25G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027580 / ÖLFLEX® FD 855 P 18G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027579 / ÖLFLEX® FD 855 P 12G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027578 / ÖLFLEX® FD 855 P 7G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027548 / ÖLFLEX® FD 855 P 5G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027547 / ÖLFLEX® FD 855 P 4G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027546 / ÖLFLEX® FD 855 P 3G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027545 / ÖLFLEX® FD 855 P 2X0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027541 / ÖLFLEX® FD 855 P 36G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027540 / ÖLFLEX® FD 855 P 30G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027538 / ÖLFLEX® FD 855 P 25G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027537 / ÖLFLEX® FD 855 P 20G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027536 / ÖLFLEX® FD 855 P 18G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027535 / ÖLFLEX® FD 855 P 12G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027534 / ÖLFLEX® FD 855 P 7G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027533 / ÖLFLEX® FD 855 P 6G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027532 / ÖLFLEX® FD 855 P 5G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027531 / ÖLFLEX® FD 855 P 3G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027530 / ÖLFLEX® FD 855 P 2X0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027376 / ÖLFLEX® FD 855 P 25G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027375 / ÖLFLEX® FD 855 P 18G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027374 / ÖLFLEX® FD 855 P 12G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027373 / ÖLFLEX® FD 855 P 7G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027372 / ÖLFLEX® FD 855 P 5G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027371 / ÖLFLEX® FD 855 P 4G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027370 / ÖLFLEX® FD 855 P 3G2,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027661 / ÖLFLEX® FD 855 CP 4G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027659 / ÖLFLEX® FD 855 CP 36G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027656 / ÖLFLEX® FD 855 CP 25G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027654 / ÖLFLEX® FD 855 CP 18G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027653 / ÖLFLEX® FD 855 CP 12G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027652 / ÖLFLEX® FD 855 CP 7G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027651 / ÖLFLEX® FD 855 CP 5G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027650 / ÖLFLEX® FD 855 CP 3G1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027649 / ÖLFLEX® FD 855 CP 2X1,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027646 / ÖLFLEX® FD 855 CP 36G1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027645 / ÖLFLEX® FD 855 CP 30G1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027643 / ÖLFLEX® FD 855 CP 25G1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027641 / ÖLFLEX® FD 855 CP 18G1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027640 / ÖLFLEX® FD 855 CP 12G1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027639 / ÖLFLEX® FD 855 CP 7G1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027638 / ÖLFLEX® FD 855 CP 5G1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027637 / ÖLFLEX® FD 855 CP 4G1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027636 / ÖLFLEX® FD 855 CP 3G1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027635 / ÖLFLEX® FD 855 CP 2X1

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027630 / ÖLFLEX® FD 855 CP 36G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027628 / ÖLFLEX® FD 855 CP 25G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027626 / ÖLFLEX® FD 855 CP 18G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027625 / ÖLFLEX® FD 855 CP 12G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027624 / ÖLFLEX® FD 855 CP 7G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027623 / ÖLFLEX® FD 855 CP 5G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027622 / ÖLFLEX® FD 855 CP 4G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027621 / ÖLFLEX® FD 855 CP 3G0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027620 / ÖLFLEX® FD 855 CP 2X0,75

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027616 / ÖLFLEX® FD 855 CP 36G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027615 / ÖLFLEX® FD 855 CP 30G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027613 / ÖLFLEX® FD 855 CP 25G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027612 / ÖLFLEX® FD 855 CP 20G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027611 / ÖLFLEX® FD 855 CP 18G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027610 / ÖLFLEX® FD 855 CP 12G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027609 / ÖLFLEX® FD 855 CP 7G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027608 / ÖLFLEX® FD 855 CP 6G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027607 / ÖLFLEX® FD 855 CP 5G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

  • LAPP

    0027606 / ÖLFLEX® FD 855 CP 3G0,5

    Drag-chain cable material

    Custom compatible replacements · Original-parts sourcing

Six Decisions Behind the Part Number

01 Motion Profile

Define travel, speed, acceleration and expected cycle duty.

02 Bend Radius

Check the selected cable diameter and minimum moving bend radius against the chain.

03 Cable & Interface

Match the actual drive interface, pin map and conductor construction.

04 Chain Routing

Set separation, free movement and strain relief at the fixed and moving ends.

05 Operating Exposure

Review temperature, oil, chips and enclosure conditions before choosing the jacket.

06 Configured Test

Agree electrical acceptance and any motion testing needed for the actual installation.

Send the part number, drawing or sample to confirm the replacement configuration and sourcing plan.

PROJECT REVIEW / CUSTOM MANUFACTURING

Custom Wire Harness Manufacturing in China

Custom wire harness manufacturing from our China factory, with OEM/ODM project support.

A sample, clear connector photos or a description of the equipment and required quantity is enough to start a review.

Discuss Custom Manufacturing & Sourcing

Start with a part number, drawing, sample or equipment requirement.

Information for an accurate quotation

When available, include drawings and BOM, connector and mating part numbers, pinout, wire length and gauge, branch layout, quantity and required tests. Materials, inspection scope and delivery are confirmed for each project.
