Fuel-System Harness

Overview

Fuel-system harnesses connect controllers with pump modules, injectors, pressure and temperature sensors, metering valves and related devices. Custom options include tank-module leads, pump branches, gasoline or diesel injector looms, sensor pigtails and repair assemblies. These are electrical components, not fuel hoses or pressure pipes.

Ask About This Product TypeFind Models & Material Part NumbersBack to Products
Fuel-System Harness - Automotive
01 / 16

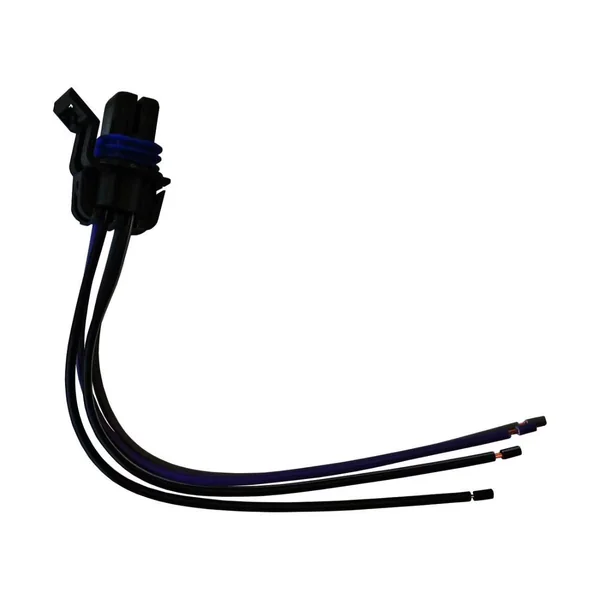

Fuel Pressure Sensor 3-Wire Plug Short Pigtail
01
Fuel Pressure Sensor 3-Wire Plug Short Pigtail

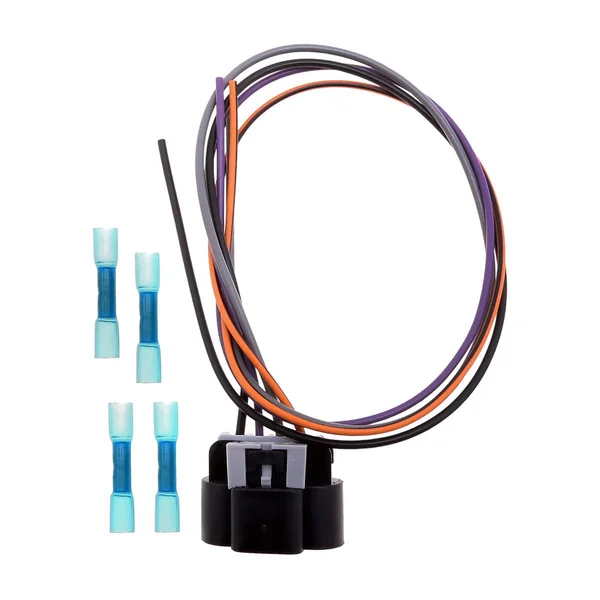

Fuel Pump 4-Wire Plug Pigtail
02
Fuel Pump 4-Wire Plug Pigtail888-601

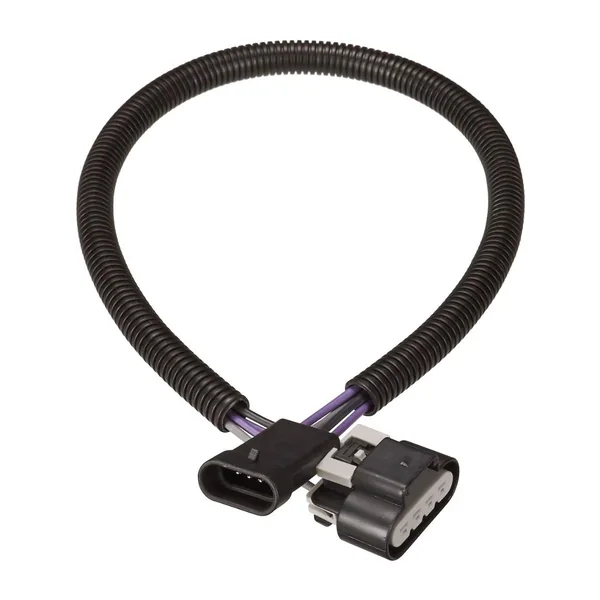

Fuel Pump Dual Rectangular Plug Corrugated-Conduit Harness
03
Fuel Pump Dual Rectangular Plug Corrugated-Conduit HarnessPN3030
Fuel Injector Rail Multi-Plug Harness
04

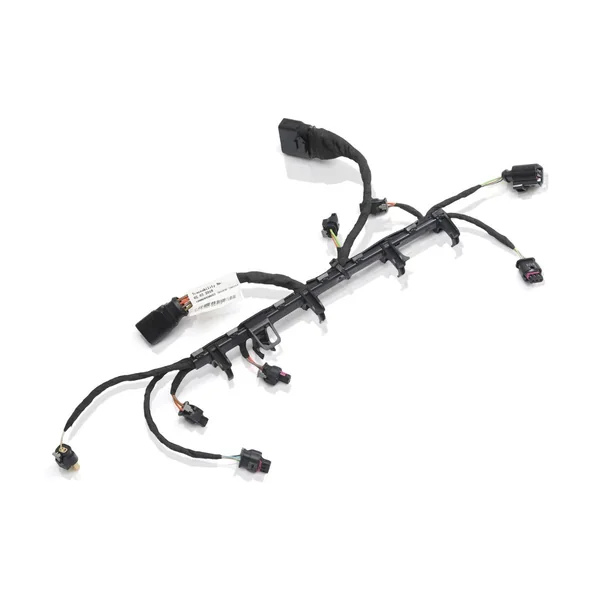

Fuel Injector Rail Multi-Plug Harness06L971627K

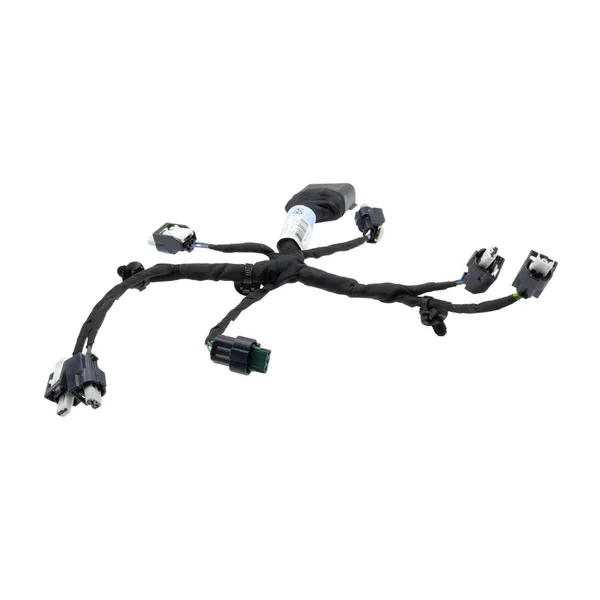

T-Branch Multi-Plug Direct-Injection Fuel Injector Harness
05
T-Branch Multi-Plug Direct-Injection Fuel Injector Harness

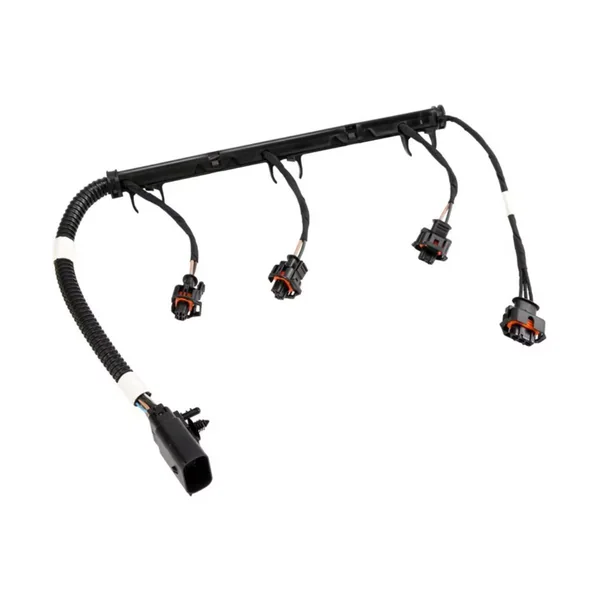

Fuel Injector Mounting Rail & 4-Plug Harness
06
Fuel Injector Mounting Rail & 4-Plug Harness12621096

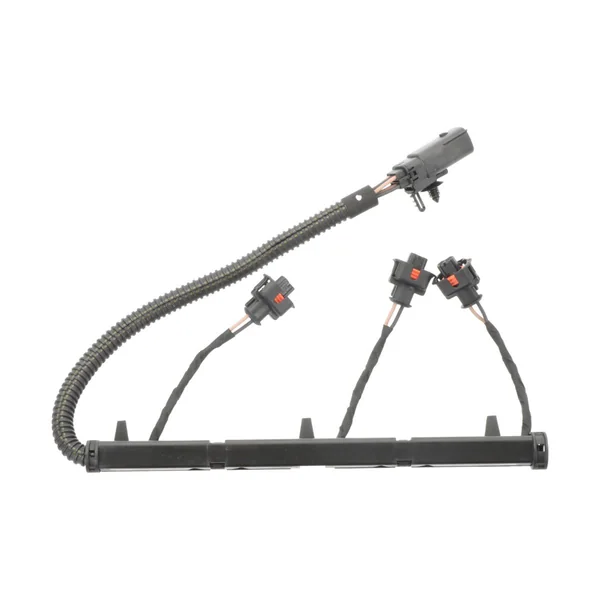

Fuel Injector Rail & Main Plug Harness
07
Fuel Injector Rail & Main Plug Harness12621095

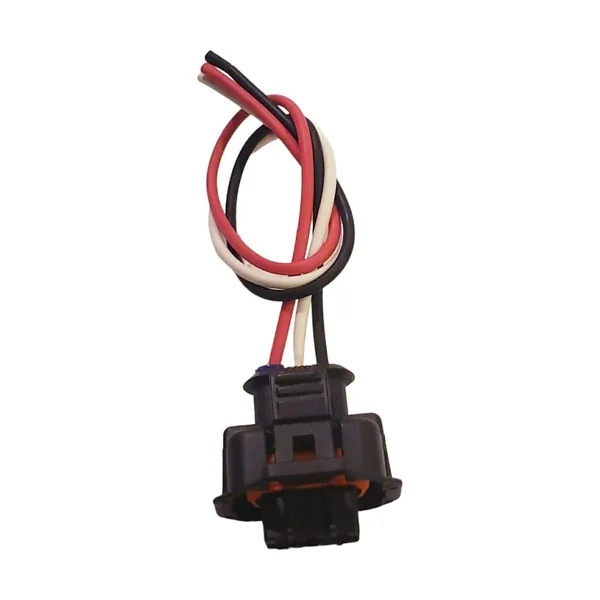

MAP Manifold Pressure Sensor 3-Wire Plug Pigtail
08
MAP Manifold Pressure Sensor 3-Wire Plug Pigtail

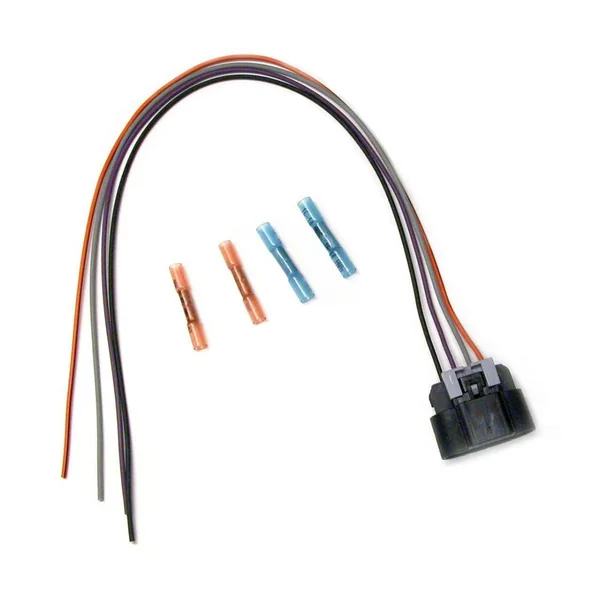

Fuel Pump Multi-Wire Plug & Terminals Set
09
Fuel Pump Multi-Wire Plug & Terminals SetFA10003

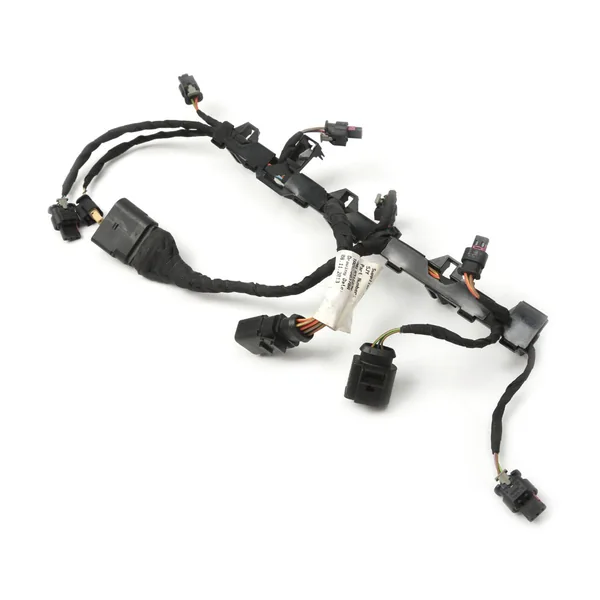

Fuel Injector Clip-Mounted Rail Harness
10
Fuel Injector Clip-Mounted Rail Harness06L971627K

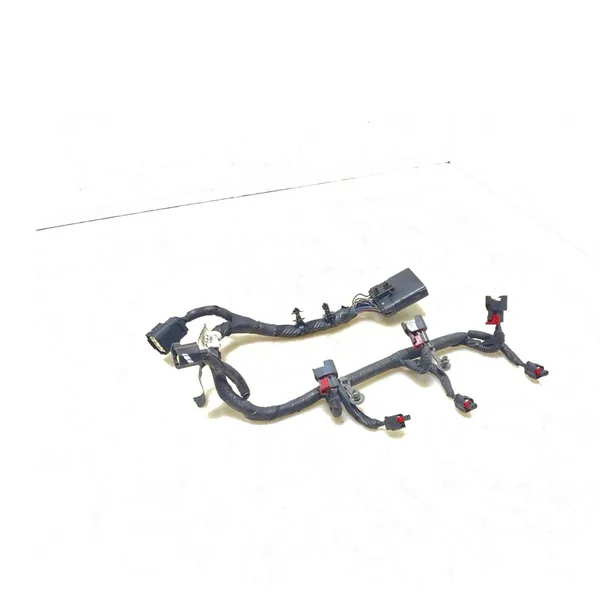

Fuel Injector Dual Rail Harness Set
11
Fuel Injector Dual Rail Harness Set68087837AF

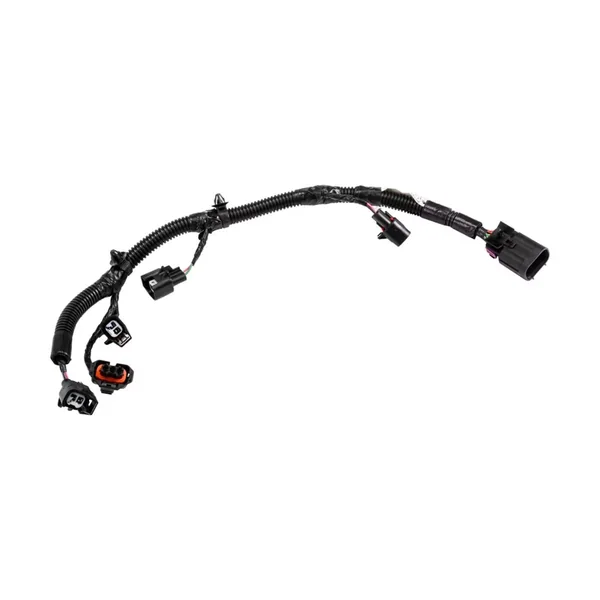

Fuel Injector 4-Plug & Main Plug Harness
12
Fuel Injector 4-Plug & Main Plug Harness12604950

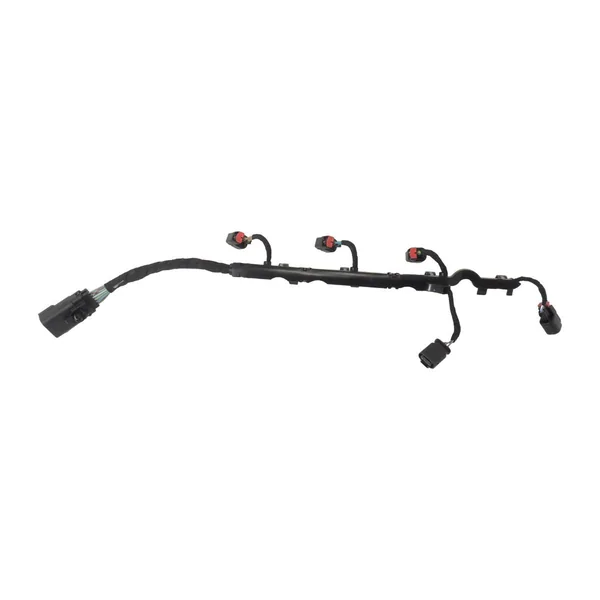

Fuel Injector Rail & Large Main Plug Branch Harness
13
Fuel Injector Rail & Large Main Plug Branch Harness

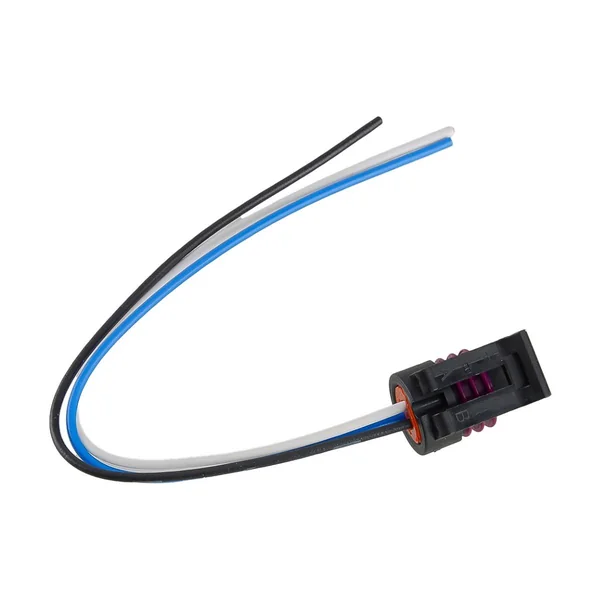

Fuel Pressure Sensor 3-Pin Color-Coded Pigtail
14
Fuel Pressure Sensor 3-Pin Color-Coded Pigtail

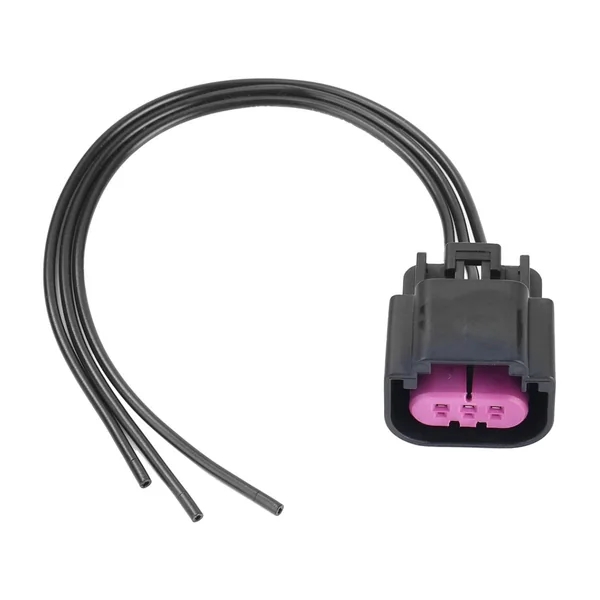

Fuel Sensor Plug Pigtail
15
Fuel Sensor Plug Pigtail13577394／13577379

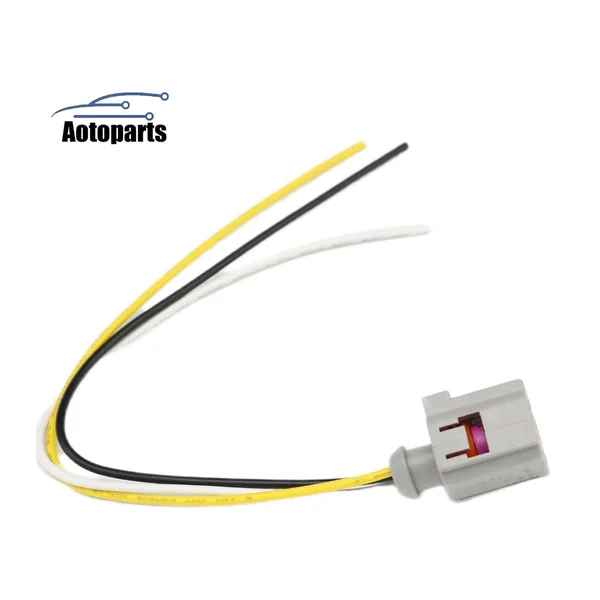

Fuel-Rail Pressure Sensor 3-Wire Plug Pigtail
16
Fuel-Rail Pressure Sensor 3-Wire Plug Pigtail
POWER / INJECTION / FEEDBACK

Map the electrical side of fuel delivery

One engine can contain several fuel-related sub-harnesses. The useful starting point is not a universal connector list but a circuit map: which device is powered, measured or switched, where it sits, and what the engine controller expects at that interface.

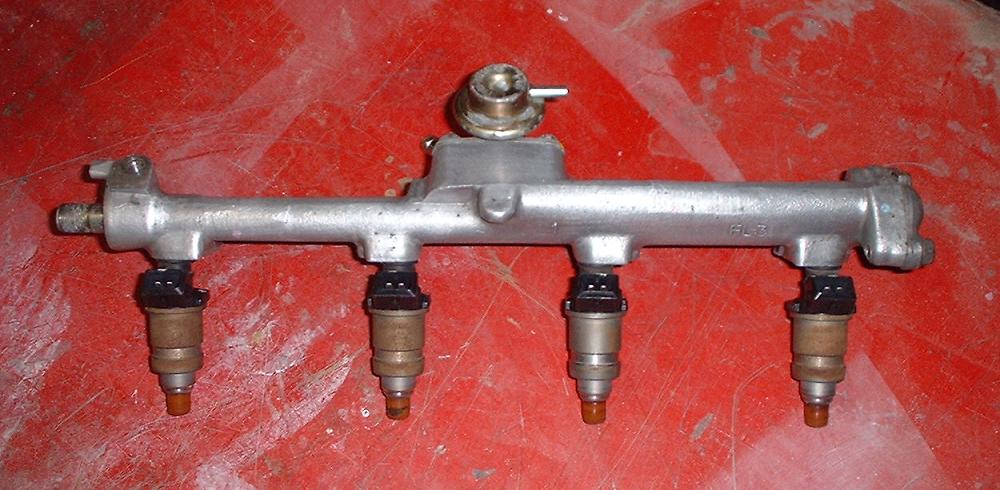

Fuel-System Harness fuel-rail context
01

CATEGORY BOUNDARY

Electrical assemblies, not fuel lines

Electrical assemblies, not fuel lines

A fuel-system wiring assembly can connect an in-tank pump and level sender, an external pump or filter-module device, injector banks, rail-pressure sensors, fuel-temperature sensors and metering valves. The fuel rail, hoses and pressure seals remain mechanical fluid components. This distinction matters at a quotation stage: electrical continuity and connector fit do not certify pressure containment or fluid tightness. The photographed tank outlet is installation context, not a wiring product.

Define the assembly boundary

Mark the controller-side and device-side breakpoints, branch count and service disconnects.

Keep claims separate

Electrical testing does not qualify the adjacent fuel plumbing.

02

PUMP & TANK MODULES

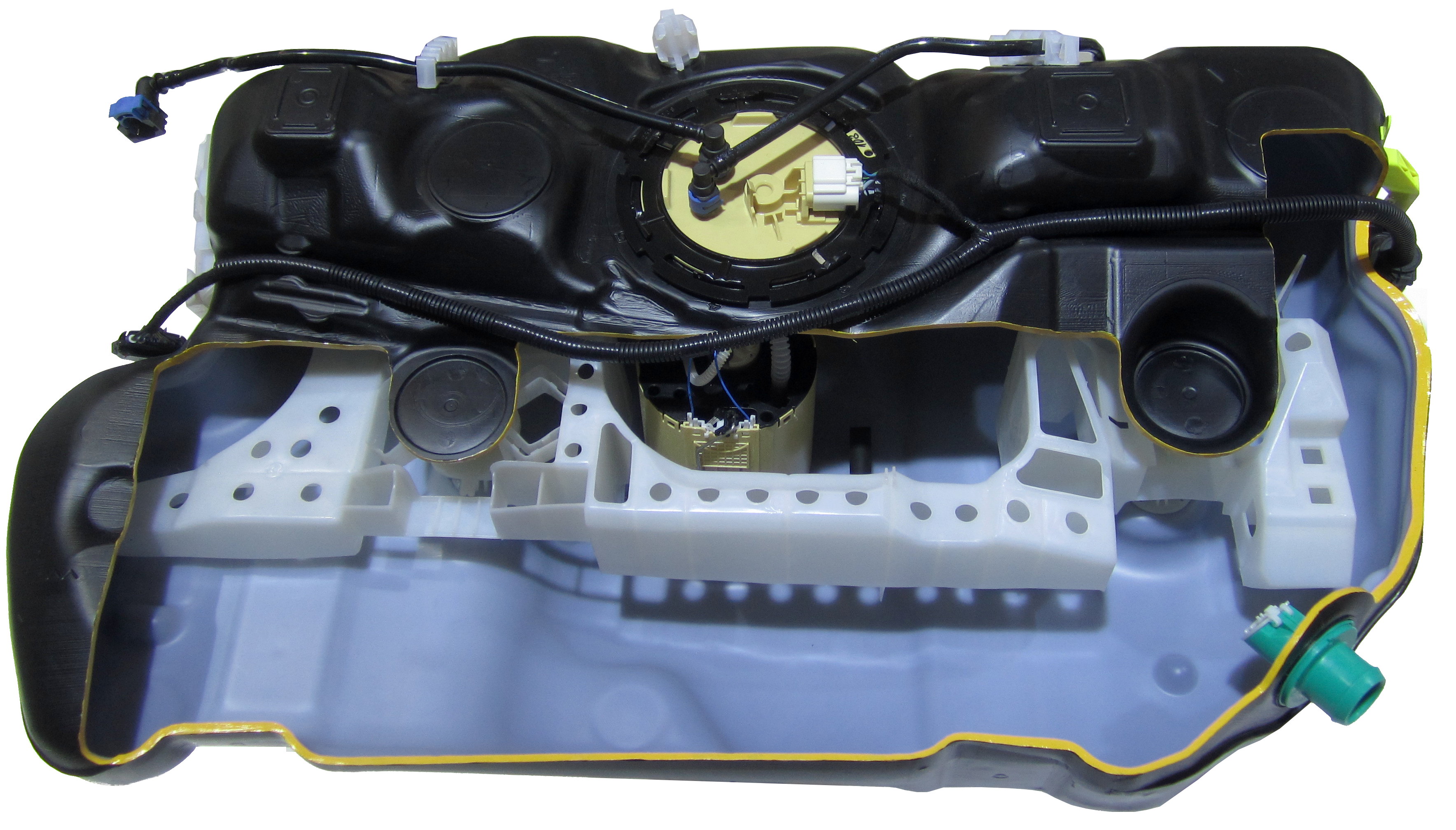

Pump power and sender signals follow different paths

Pump power and sender signals follow different paths

A tank module may combine an electric pump, level sender and sometimes additional sensing or control electronics in one serviceable package. Pump feed, return and protection are selected against operating and start-up current, run length, voltage drop, connector temperature and controller strategy. A sender or low-level sensor needs its specified reference, ground and signal route; do not casually share it with a noisy motor return. Confirm whether the customer needs an external connector lead, a tank-side assembly or both. The cutaway photograph shows a tank module and wiring route as context, not a specified finished assembly.

Calculate the complete loop

Supply and return resistance both affect the pump's available voltage.

Separate measurement returns

Level and pressure readings follow the controller's reference scheme.

03

GASOLINE INJECTION

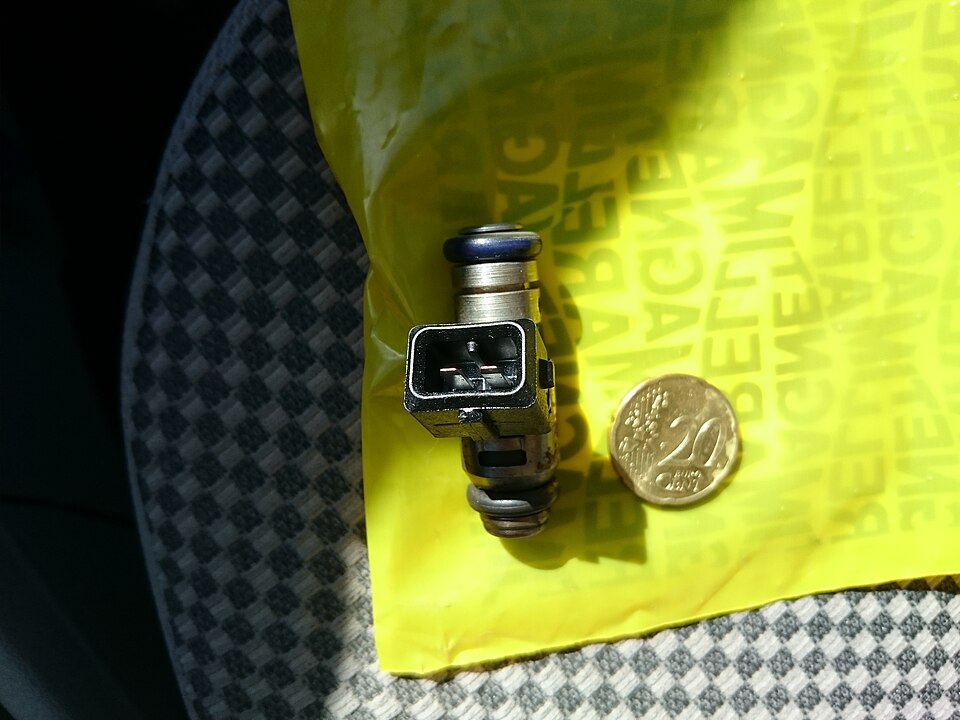

Injector branches preserve cylinder order and driver intent

Injector branches preserve cylinder order and driver intent

Port-injection and direct-injection systems may use different injectors, drivers, supply arrangements and packaging. A two-pin shape alone cannot identify the ECU output, shared feed, return path or waveform. The harness drawing should specify cylinder assignment, cavity view, terminal system, branch station and orientation at each injector. If a replacement is developed from a sample, wire colors and physical reach help, but controller pin data and the actual engine variant settle the electrical identity. The photo shows an injector's electrical interface rather than a finished Super Smile harness.

Index every cylinder

A correct-looking branch can still drive the wrong injector if cylinders are crossed.

Confirm the driver

Do not infer voltage, polarity or pulse behavior from the plug shell.

04

DIESEL COMMON RAIL

Common-rail branches are controller-specific

Common-rail branches are controller-specific

Diesel common-rail injector circuits, metering devices and rail sensing sit near high-pressure hardware, heat and vibration. Their electrical driver strategy is not interchangeable with a gasoline injector lead. Depending on the engine, injector actuation may involve voltages and switching behavior beyond ordinary low-voltage sensor wiring; exact limits come from the controller and component documentation. Route electrical branches clear of service access to high-pressure lines, keep the intended shielding or separation, and protect branch exits from engine movement and abrasion. The photographed injector is an example of the device, not a compatible part claim.

Protect service access

Do not bind the electrical loom into a high-pressure pipe service route.

Follow exact control data

Injector, rail and metering connections require the approved pin and driver map.

05

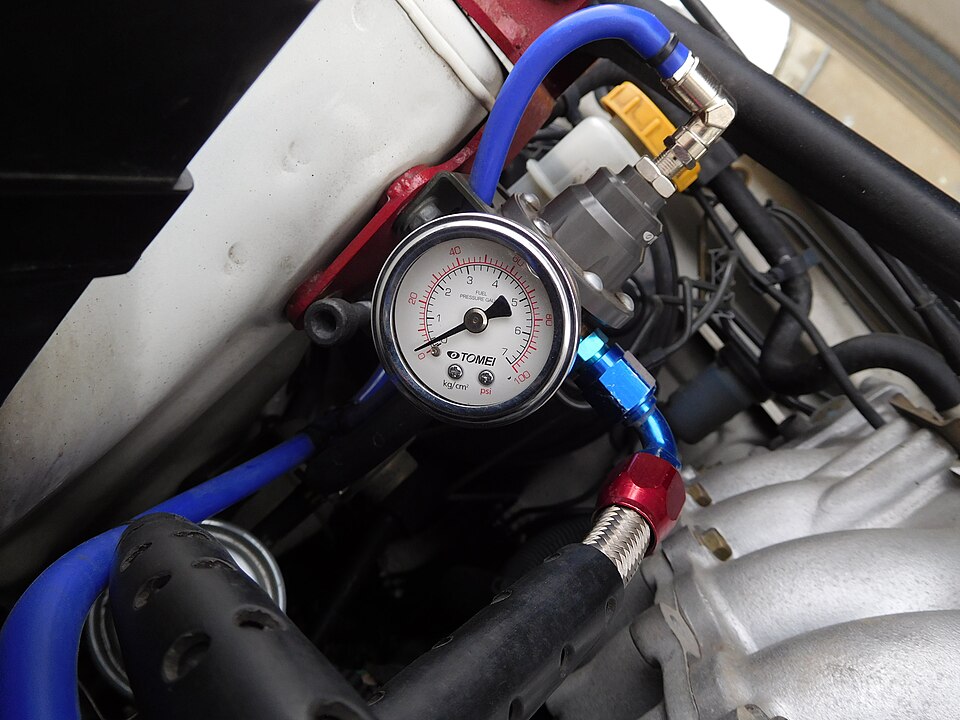

SENSING & FEEDBACK

Pressure and temperature signals need stable references

Pressure and temperature signals need stable references

A rail-pressure sensor, low-pressure sensor, fuel-temperature sensor or tank-level sender may use analogue or other controller-defined outputs. Wire count and connector keying are only the beginning: reference voltage, sensor ground, signal type, fault detection and permissible noise belong in the circuit table. Keep sensitive measurement routes away from pumps and switching injector branches where the controller requires it. The pressure gauge in the photo provides a fuel-system context; it is mechanical and should not be mistaken for an electrical pressure transducer supplied with this harness.

Map the signal, not just pins

The same cavity count can conceal different reference and output schemes.

Control noise paths

Routing and return separation follow controller requirements.

06

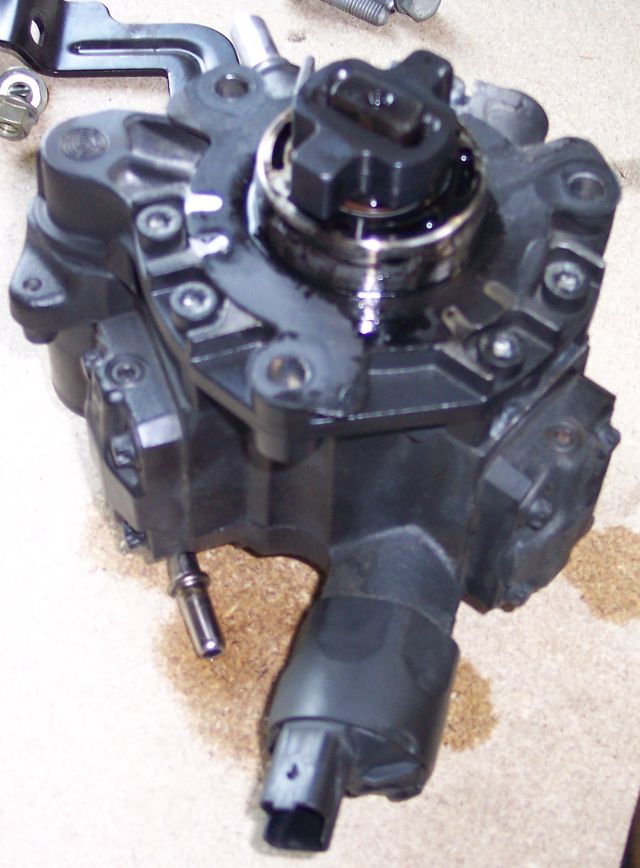

MATERIALS & PROTECTION

Select materials for the actual fuel-exposure zone

Select materials for the actual fuel-exposure zone

Engine heat, splash, fuel vapor, diesel mist, cleaning fluids, abrasion and vibration do not create one universal material specification. Choose conductor section, insulation, sleeve, tape, seals, cavity plugs and backshells for the installed zone and the exact mating connector system. Fuel-resistant claims belong to named material grades and test conditions; an oil-resistant sleeve or a sealed-looking shell is not proof of immersion suitability. Routing, clips, bend relief and distance from hot or sharp parts remain as important as the material datasheet. The pictured pump connector illustrates an electrical interface only.

Name the exposure

Splash, vapor, mist and immersion are different selection cases.

Check the full seal system

Housing, terminal, wire diameter, wire seal and unused-cavity closure must match.

07

SOLUTIONS & RELEASE

From an old sample to a controlled repeatable assembly

From an old sample to a controlled repeatable assembly

We can scope a complete engine-side fuel branch, a pump-module lead, an injector bank, a sensor pigtail or a replacement service loom. Start with a drawing or sample, then reconcile connector part numbers, cavity view, circuit identity, load, branch dimensions, fasteners and exposure zones against the actual vehicle and controller. A first article checks mating, routing, terminal seating, circuit map and agreed visual points. Production inspection may include continuity and short checks, but functional powered tests, pressure or ingress tests, thermal cycling and chemical resistance need separate procedures, samples and acceptance limits. The service photograph illustrates access constraints, not a company test record.

Freeze a first article

Approved changes update drawing, BOM and test fixture together.

Request evidence by test

A continuity pass is not a claim of vehicle-level or fluid-system validation.

Fuel-System Harness Questions

Is a fuel-system harness the same as a fuel line?

No. The harness carries electrical power and signals to pumps, injectors, valves and sensors. Hoses, rails and pipes carry fuel and require separate fluid-system engineering and verification.

Can a connector that fits an injector be used directly?

No. Confirm the injector and controller part numbers, cavity view, driver strategy, circuit assignment, terminal system and installed environment. A shared shell shape does not prove electrical compatibility.

Does a sealed connector make the whole harness fuel-resistant?

No. Fuel exposure must be defined by liquid, vapor or mist, duration and temperature. Wire insulation, seals, protection and the mated connector all need suitable material evidence and an agreed test if a resistance claim is required.

Can you make a replacement from a used vehicle sample?

A sample helps locate connectors and branches, but repairs, heat damage, hidden wire grades and different engine variants can mislead. Match it to the vehicle, controller and pin documentation before approving a first article.

What information is needed to quote a fuel-system harness?

Please send vehicle and engine model, ECU family, pump/injector/sensor references, pin and circuit table, mating connector details, system voltage and loads, route dimensions, exposure zones, sample or drawing, quantity and requested inspection.
