Hirose Compatible Cable Assemblies

Overview

Custom Hirose-interface harnesses for board wiring, miniature coax and equipment connections, with documented routing, materials and inspection.

Ask About This Product Type Find Models & Material Part Numbers Back to Products

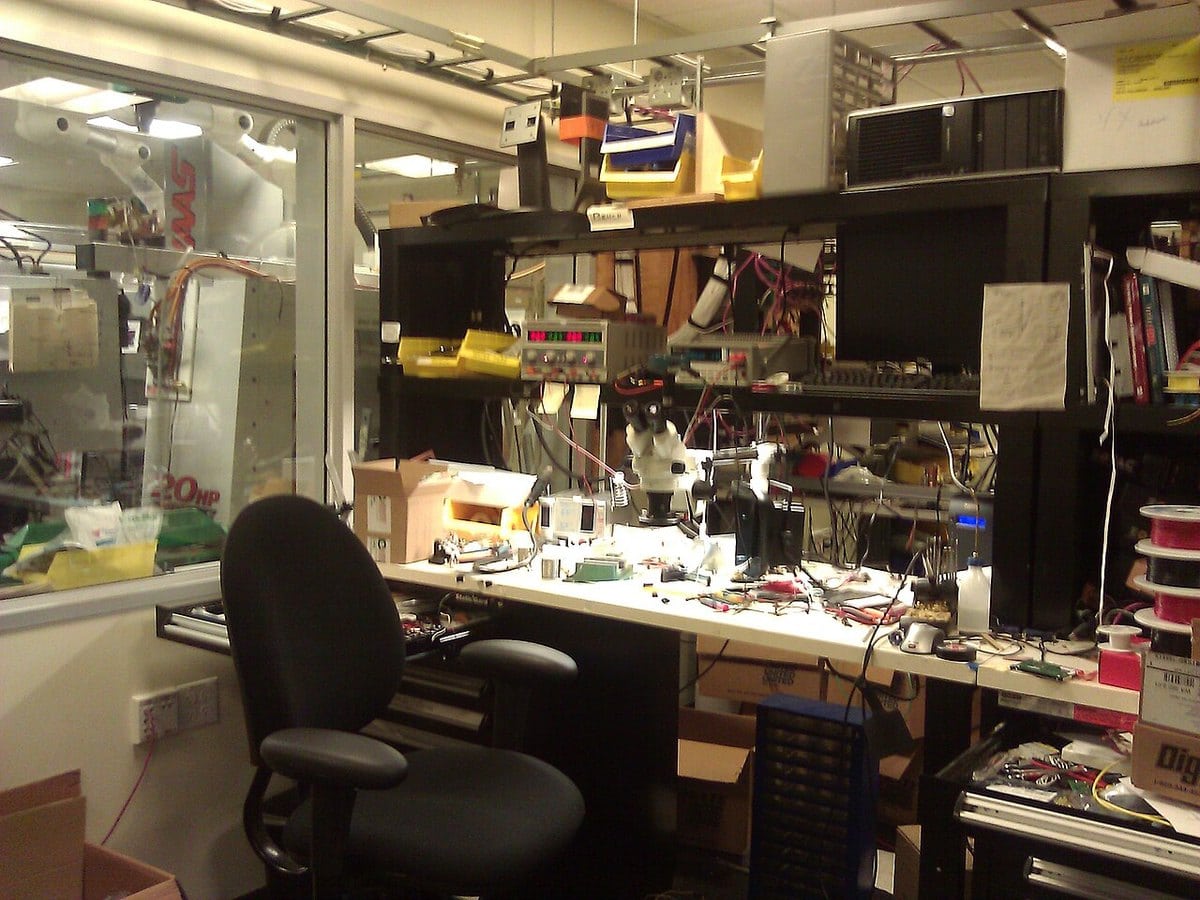

Hirose Compatible Cable Assemblies application reference

Popular Product Photos

01 / 11

01

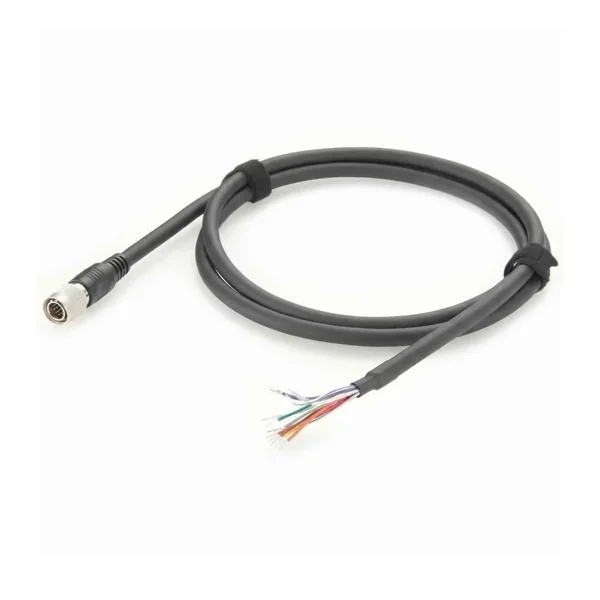

HR10A-10P-12P 12-Pin Circular Connector Pigtail

02

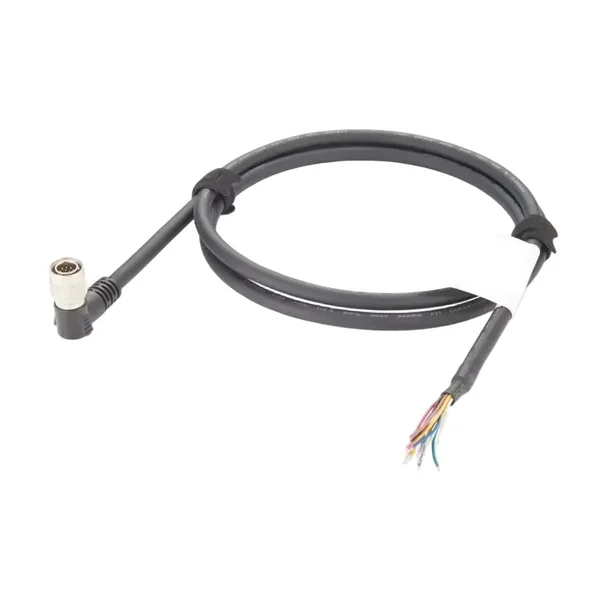

HR10A-10P-12P 12-Pin Right-Angle Circular Connector Pigtail

03

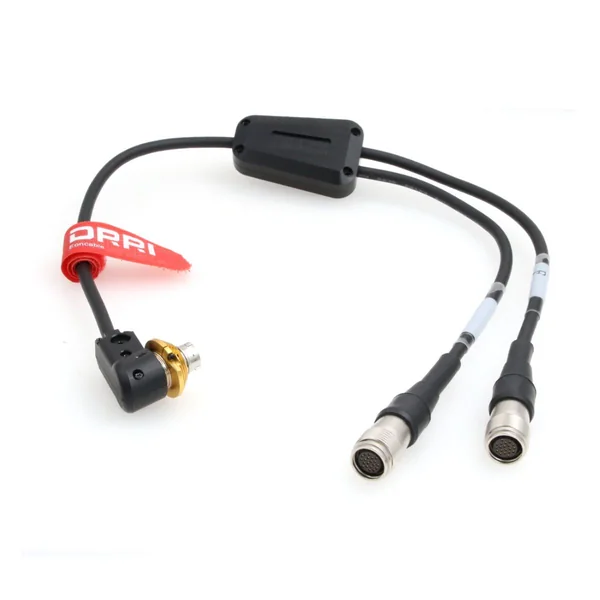

20-Pin Circular Connector Controller Branch Harness

04

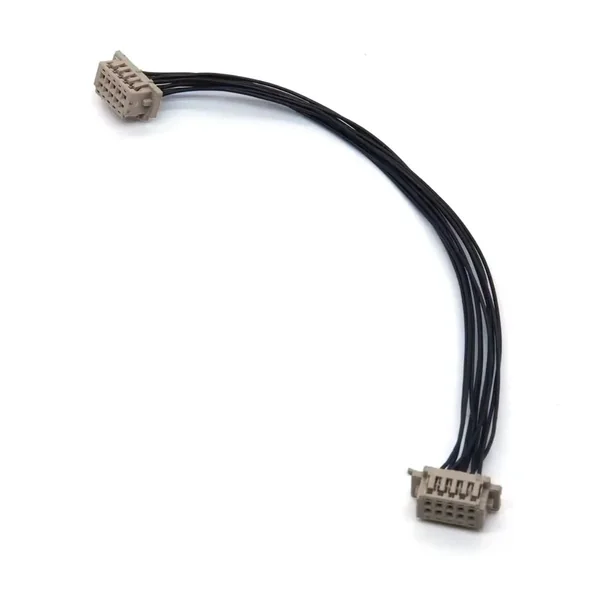

DF13 10-Pin Terminal Double-Ended Harness

05

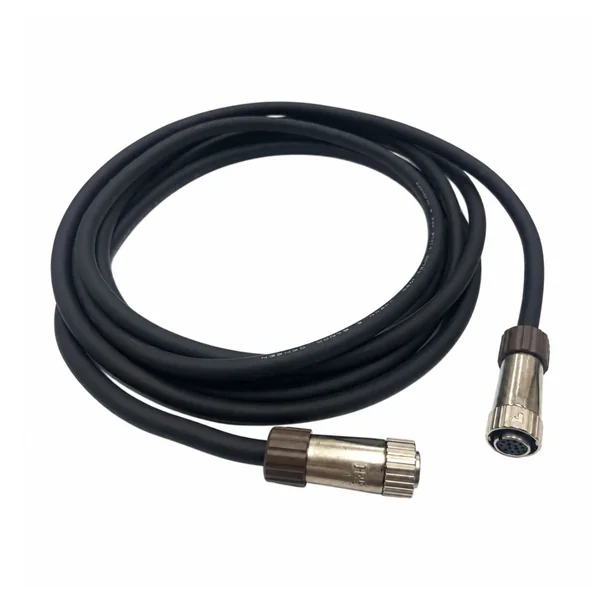

Circular Metal Connector Double-Ended Extension Harness

06

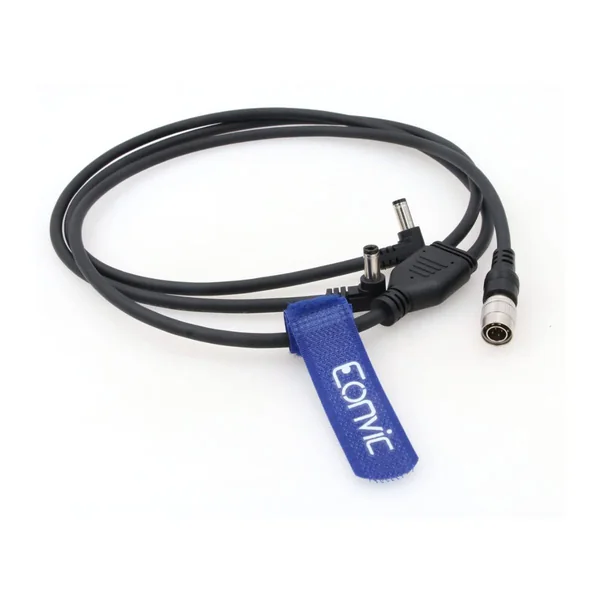

4-Pin Circular Connector to 2-Way DC Plug Harness

07

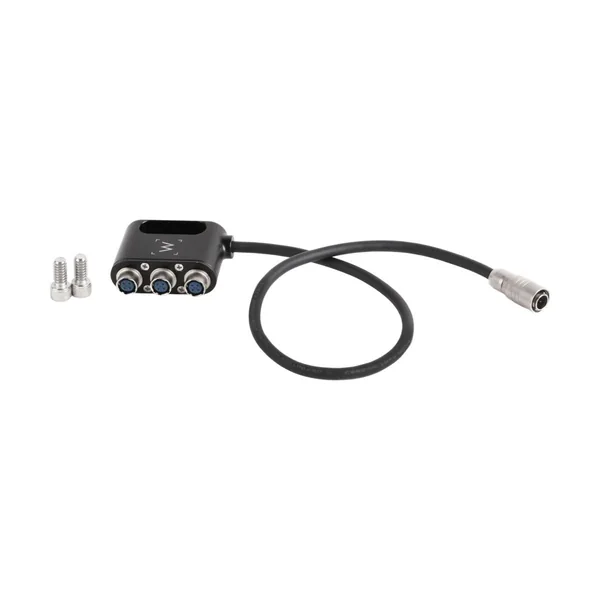

4-Pin Circular Connector to 3-Way D-Tap Power Distribution Harness

08

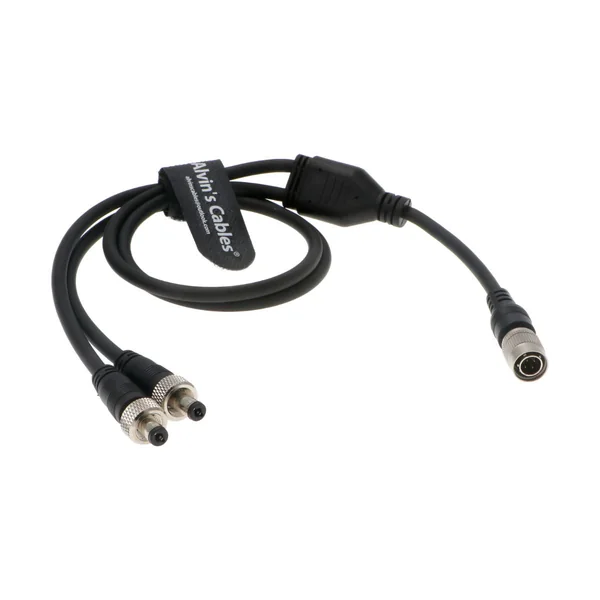

4-Pin Circular Connector to 2-Way Locking DC Power Harness

09

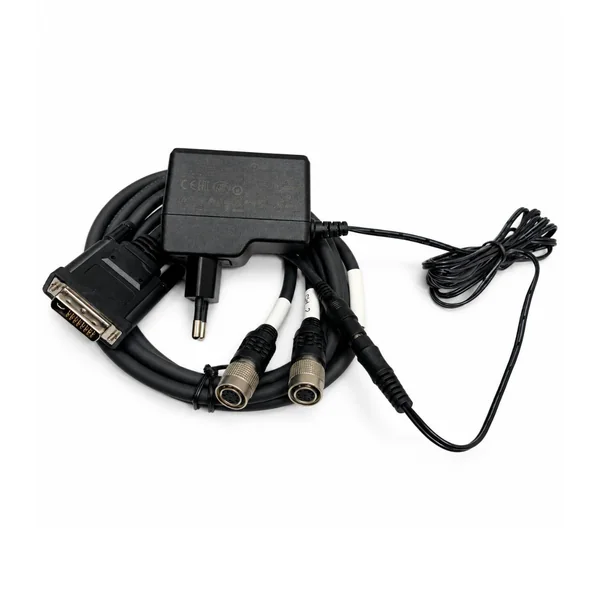

HR10A-10P-12S DVI to Dual Circular Connectors Power Harness

10

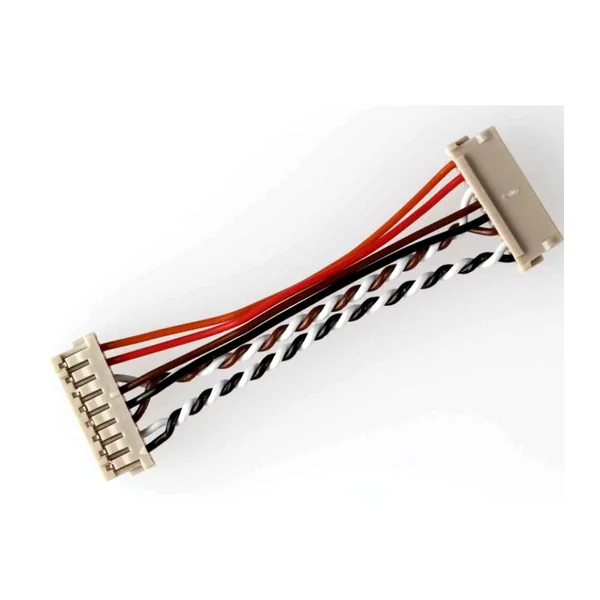

DF13 Double-Ended Twisted Wire Terminal Harness

11

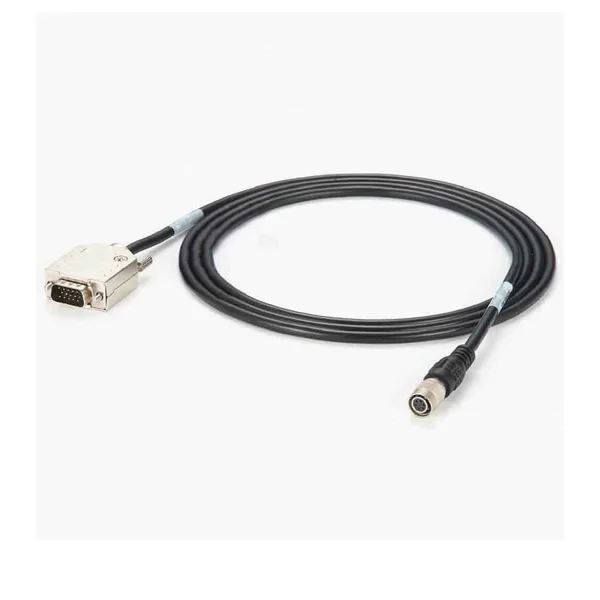

DB15 to 6-Pin Circular Connector HarnessHR10A-7P-6S

Hirose Harnesses and Cable Assemblies

A Hirose harness is a category of connections, not one fixed product. It may carry discrete control signals, power or an RF antenna channel, using a connector selected for the board, enclosure and service conditions. Super Smile reviews project-defined assemblies from drawings, samples and confirmed mating references. The following guide explains the available interface directions, their engineering trade-offs and the information needed to turn a prototype into a repeatable build. Brand and series names identify selection references, not automatic qualification of the finished cable.

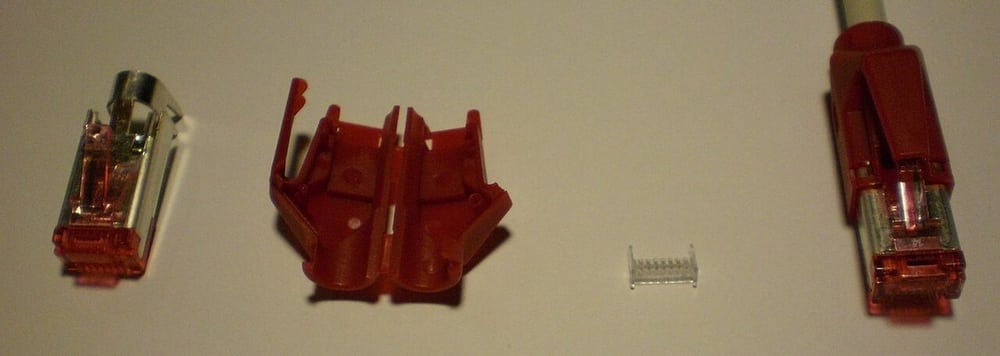

Hirose TM21 modular plug parts illustrate why the complete connector set matters.

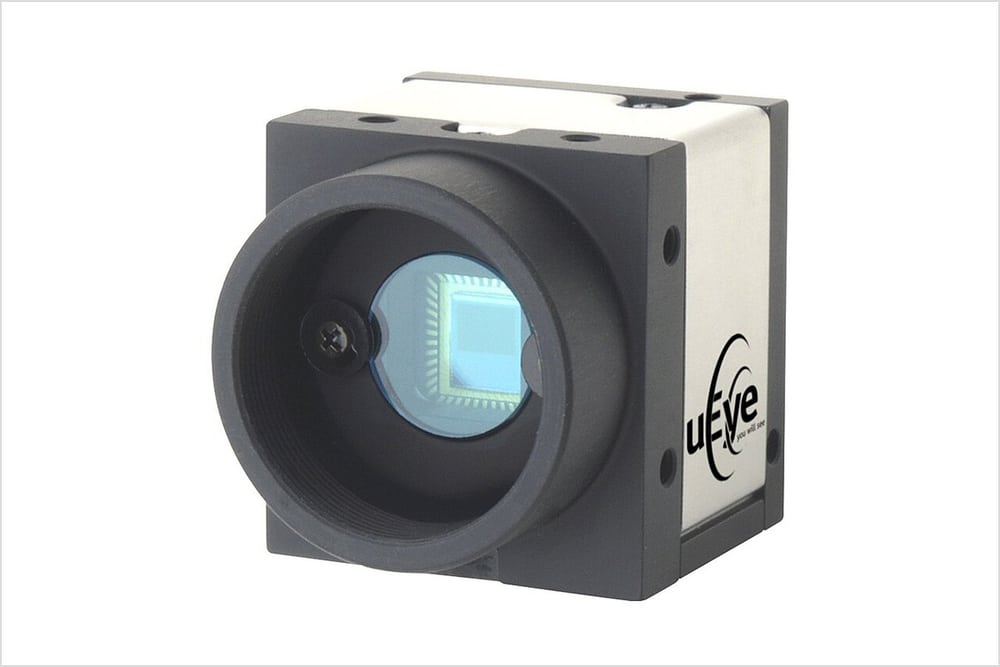

An industrial camera illustrates the space available for external equipment connections.

Hirose Connector Range

Hirose interfaces cover internal board wiring, miniature coax and external equipment connections. HR10 compact push-pull and HR30 waterproof plastic circular connectors address different installation needs; neither is identified by pin count alone. Start with the full connector reference, mating half and cable termination. Include the panel opening, cable exit and space needed to release the lock. A cable that fits electrically can still be inaccessible once the enclosure is assembled.

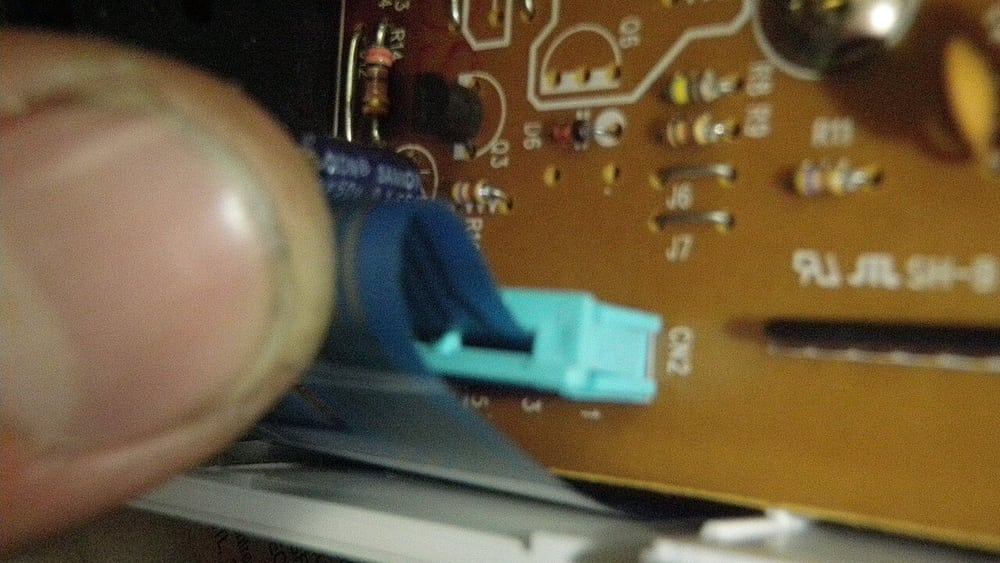

Board-mounted ribbon connection: housing access and cable exit are part of the layout review.

DF Wire-to-Board Harnesses

DF is a family prefix, not a single mating interface. DF13 uses 1.25mm pitch, while DF11 and DF51 are 2mm families with different configurations and locking arrangements. For DF51, distinguish the housing, matching header and specified contact; its side-lock arrangement needs access from the correct direction. Wire gauge, insulation diameter and the number of loaded circuits affect selection. Copy the complete part number from the drawing rather than ordering a generic 'Hirose 4-pin cable'.

Rain on a vehicle windshield represents external exposure, not an assembly waterproof test.

Automotive Interfaces and Sealing

Keep the complete series name: Hirose ZE05, ZH05 and ZE064W are not the JST ZE or ZH families. Hirose describes ZE05 for internal vehicle connections and ZE064W for external waterproof interfaces. GT17 is a shielded automotive data connector family, not a universal sealed power connector. Determine the actual mounting zone, counter-connector, seals and cable acceptance before discussing environmental performance. A positive lock improves retention; it does not by itself establish waterproofing or lifetime vibration performance.

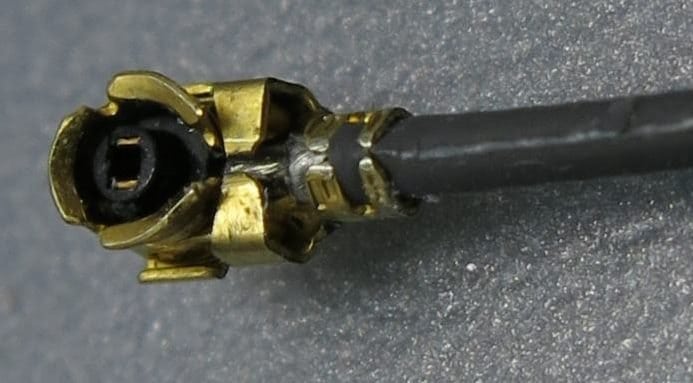

U.FL cable plug close-up; identify the complete mating interface before assembly.

U.FL and W.FL2 Micro-Coax

Miniature coax links connect radio modules to antennas while saving board height. U.FL and W.FL2 are separate interfaces with their own plug, receptacle, cable and handling specifications. Define impedance, working frequency, cable length and insertion-loss budget together. A thinner cable may route more easily but has different attenuation and mechanical limits. Align the mating axes and use the specified removal method; never lift a miniature plug by pulling its cable. Catalogue frequency claims apply to identified configurations, not every custom assembly.

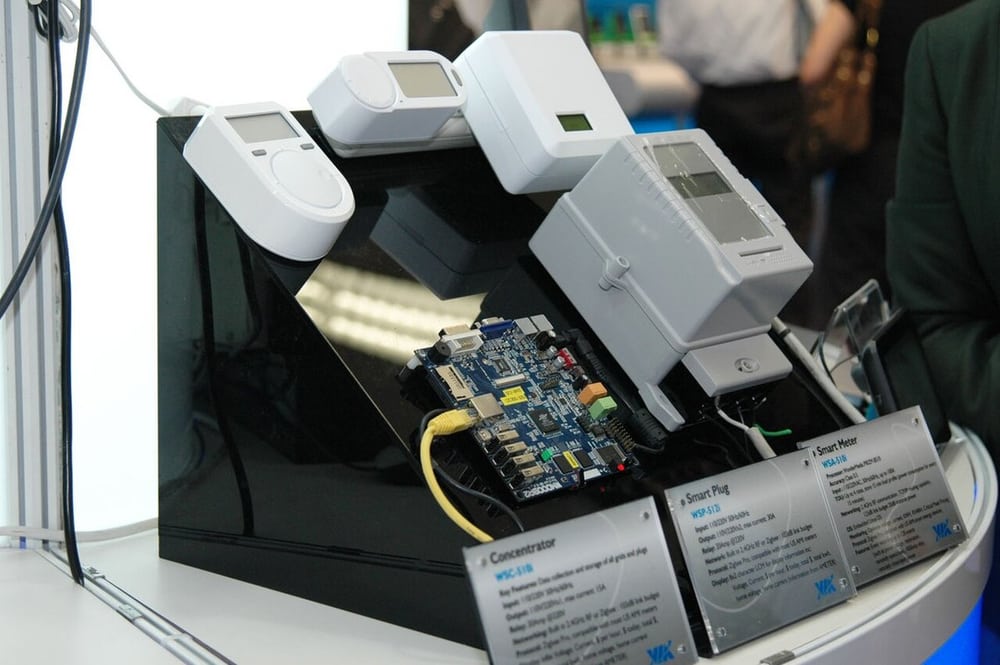

A smart-meter electronics demonstration bench connects several functional modules.

Custom Industrial Connections

A controller-to-sensor assembly can combine a board connector, shielded branch and serviceable external interface. Work from the machine's circuit diagram and installed route. Separate noisy switching power from sensitive feedback, define where shields terminate and support cables before they enter small housings. Cabinet-door movement, tool access and replacement order deserve the same attention as continuity. We review these details with the supplied drawings so branch dimensions describe the installed machine, not only a flat sample.

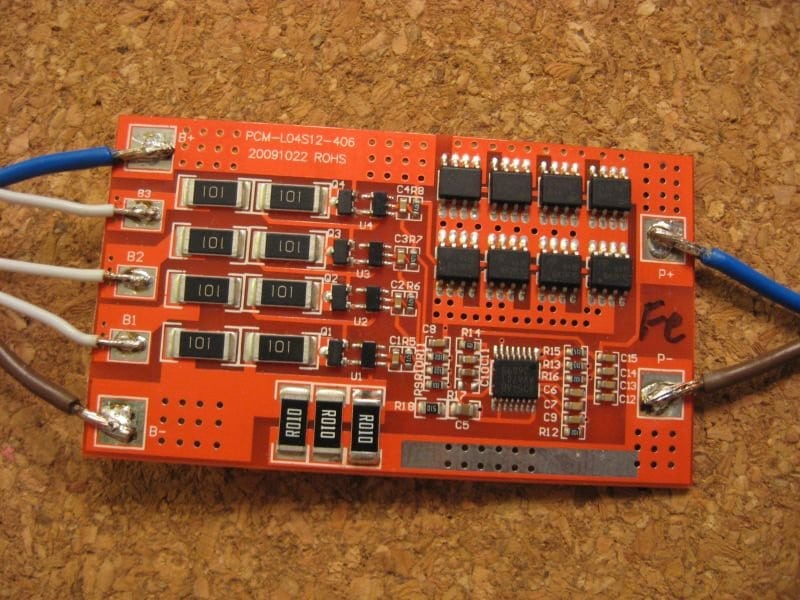

A small battery-management board illustrates low-voltage monitoring, not traction-power cabling.

EV Control and Monitoring Harnesses

Battery monitoring, auxiliary control and traction power are different circuits. A connector used inside an inverter or battery enclosure is not automatically suitable for carrying motor power. Identify working voltage, isolation boundaries, current, temperature and service procedures on the schematic. Keep sensing references and communications away from high-energy switching paths where practical. High-voltage or safety-related work requires a project-specific qualification plan and approved parts; a familiar automotive brand does not replace that review.

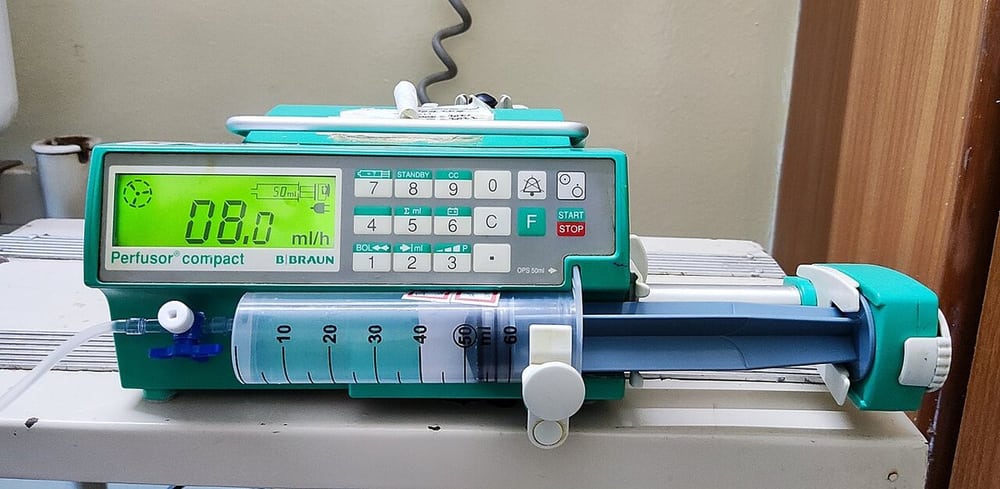

Syringe-pump equipment: maintenance and connection requirements follow the medical system.

Medical Equipment Integration

For monitors, pumps and diagnostic instruments, first distinguish internal wiring from an operator-accessible or patient-connected interface. Cleaning fluids, touch surfaces, leakage-current limits and EMC requirements belong to the finished equipment's risk assessment. A connector catalogue is not evidence that the complete cable is biocompatible, sterile or approved for patient contact. Provide the intended use and validation requirements early, including bend exposure, disinfection method and any traceability documents required for the delivered batch.

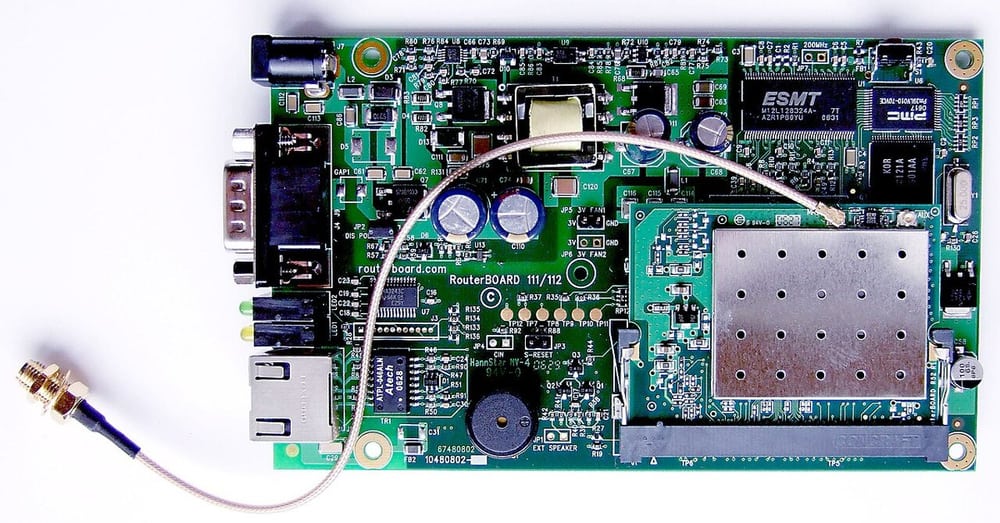

Router board with antenna pigtails shows the RF path between board and enclosure.

IoT Layout and Antenna Routing

In a compact gateway, the shortest physical wire route is not always the best RF route. Leave the antenna clearance specified by the module or antenna designer, avoid trapping coax under enclosure screws and keep the plug free from persistent side loading. Define the board connector and antenna-end connector independently, including polarity variants at external RF ports. Photographs and a marked enclosure drawing help identify cover interference, connector height and service-loop needs before a prototype is built.

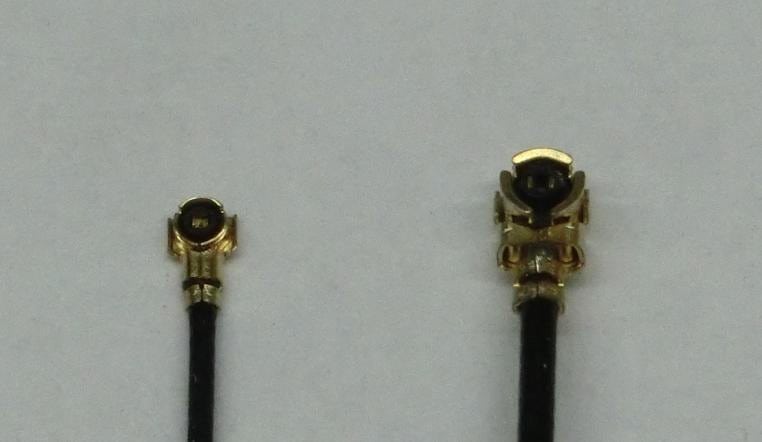

Two miniature coax interface sizes: a visual resemblance does not establish interchangeability.

Documented Mating Compatibility

A fit review compares the mating drawing, keying, cavity assignment, contact gender and locking travel. Housing colour and an audible click are insufficient evidence. A cable-side socket can use a different naming convention from the equipment's pin description, so identify the viewed face on every pinout. If alternatives are permitted, list them separately for approval rather than silently substituting a visually similar part. Brand names on this page identify interface references, not distributorship or universal interchangeability.

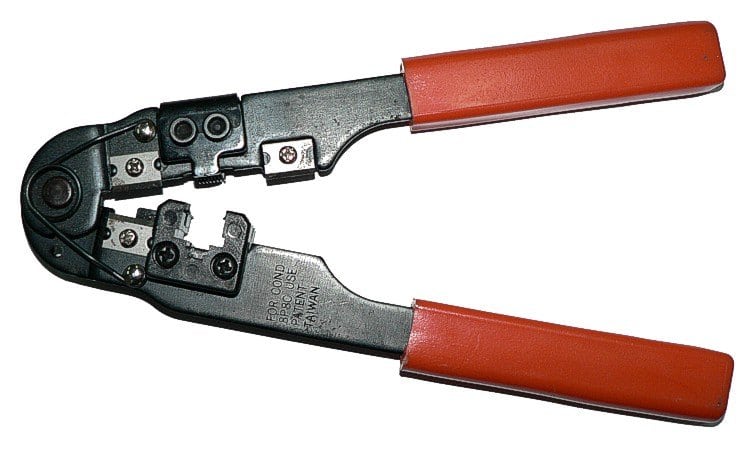

Crimp-tool example; actual terminals require their specified tool and setup.

Termination and Signal Stability

The conductor crimp and insulation support do different jobs. Use the specified terminal, wire construction and applicator combination, then verify the relevant strip length, crimp geometry and retention criteria. Soldered versions need controlled heat input and strain relief outside the stiffened wire section. For shielded or coaxial assemblies, inspect shield continuity and the transition at the connector as well as the centre conductor. A continuity buzzer can find an open circuit but cannot establish a high-frequency channel's loss or impedance.

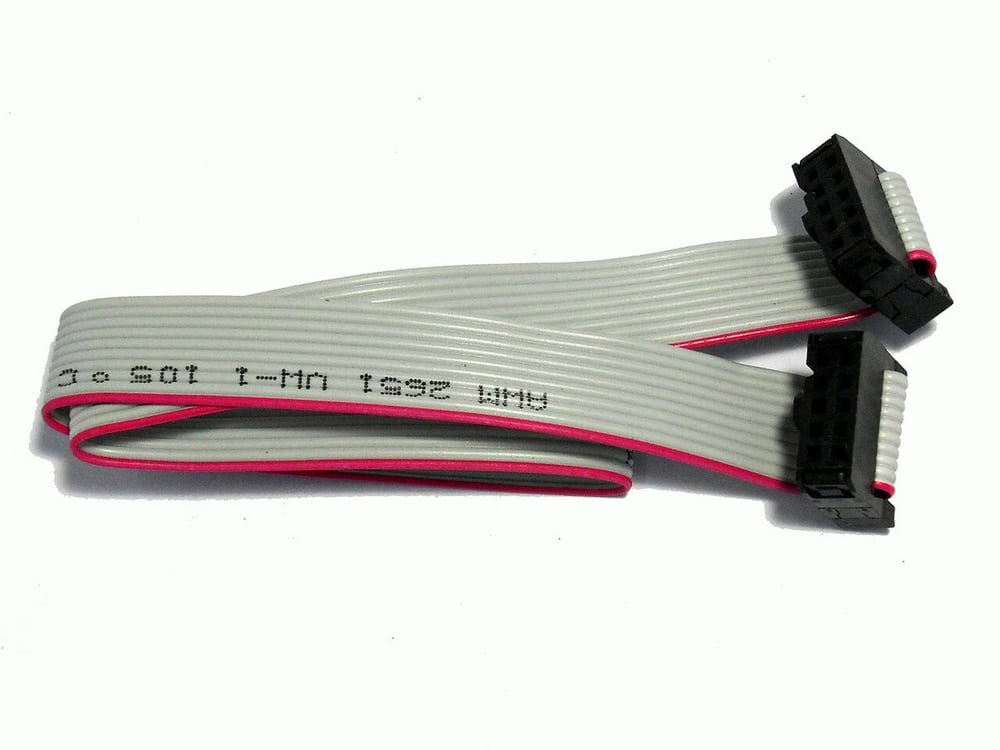

Ribbon cable separates conductor arrangement from the connector-selection decision.

Materials for the Actual Environment

Specify the conductor, insulation and jacket separately. PVC, XLPE, PUR, FEP and PTFE describe material families, not one universal level of flexibility, flame performance or chemical resistance. Check the particular compound against temperature, fluids, UV exposure and movement. Cable outside diameter must remain within the contact support, clamp and seal's permitted range. Combining individually suitable parts can still leave a leak path or a bending weak point if the assembled interfaces are not reviewed.

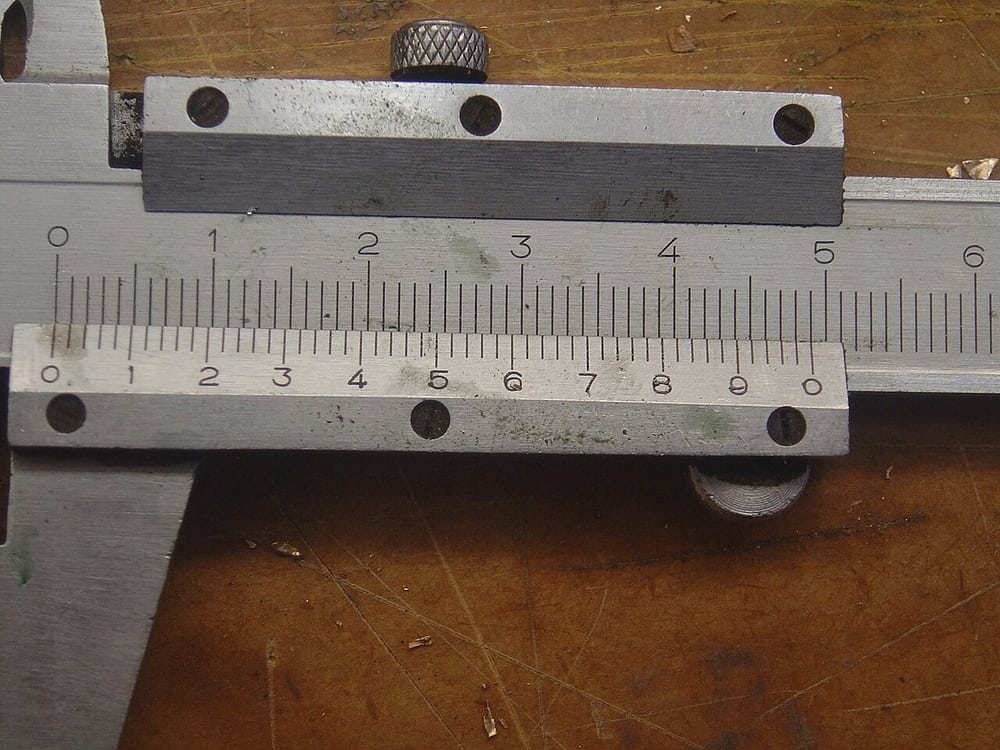

Caliper scale close-up: define the measurement datum and method on the drawing.

Length, Branches and Identification

Define length between repeatable reference points, such as mating faces or branch centres, rather than an ambiguous 'overall length'. Add tolerances, connector orientation, breakout protection and labels to the drawing. Wire colour helps assembly but should not replace cavity numbers or circuit identification. A prototype records the approved routing and service allowance; production follows the released revision. Customization changes the cable configuration, not the moulded connector's available pin count or mating geometry.

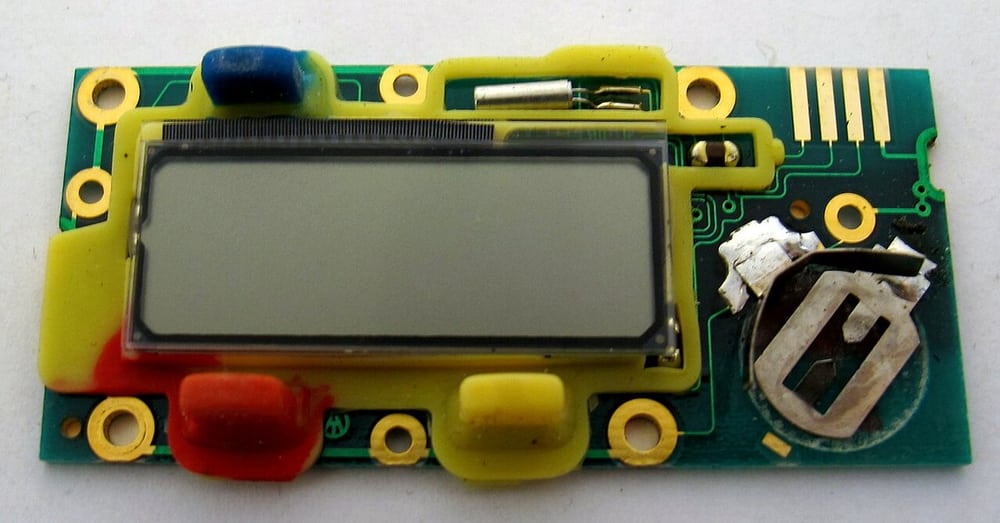

Electronics inside a digital caliper illustrate compact instrument packaging.

Consumer Electronics

Cameras, audio devices and portable instruments often need short internal interconnects between boards, controls and power modules. The useful design question is whether the cable can be assembled and serviced without damaging a small header. Review mating height, latch access and the order in which boards enter the enclosure. Fine pitch saves space, but connector choice must still follow current, wire size and handling requirements. This application context is not a claim that every consumer device uses the same DF connector.

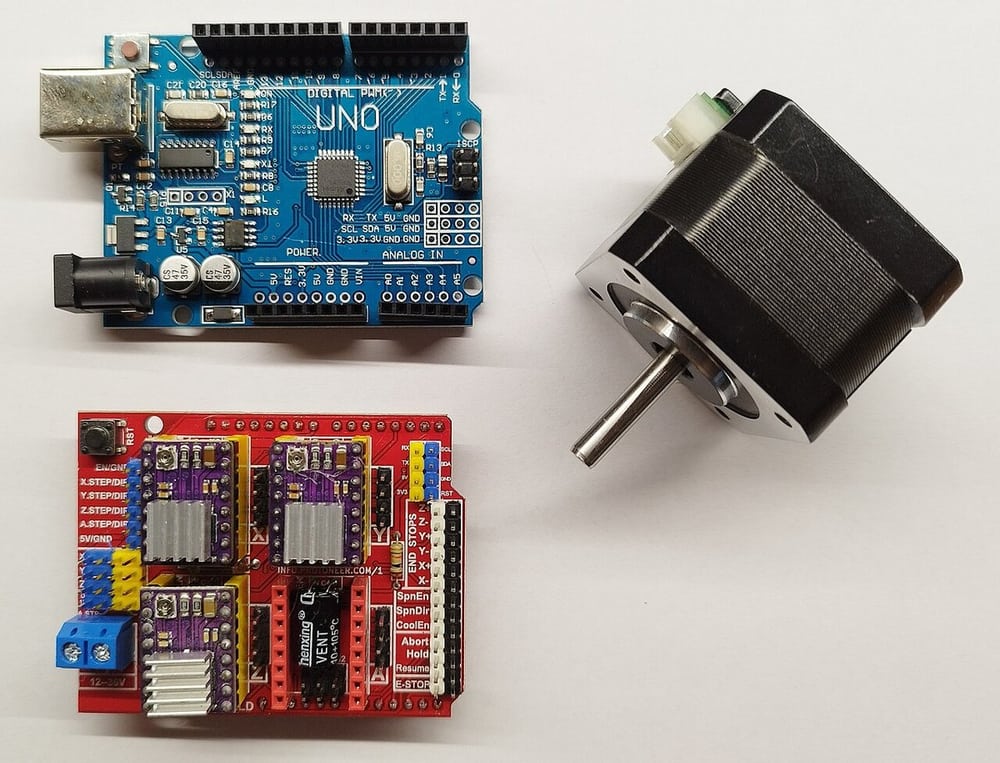

Controller board and stepper motor demonstrate the signal-to-actuator connection path.

Industrial Automation

PLC peripherals, machine vision and distributed sensors mix power, discrete I/O and data. Mark which cable sections remain fixed and which move during adjustment or maintenance. Give each branch a readable identifier and keep spare length away from hot or moving surfaces. A replaceable sensor connection can reduce service work only when the plug is reachable and the replacement cannot be mis-mated. Check those conditions in the installed equipment, not simply on the bench.

An electric vehicle at a charging point illustrates system context, not cable qualification.

Automotive and EV Applications

Instrument panels, lighting controls and battery-management electronics have very different exposure levels. A cabin installation may be sheltered from direct water yet subject to heat cycling and vibration; an external connection needs a defined sealing system. Review the approved automotive connector and wire specifications for the installation zone. Do not extend a low-voltage monitoring connector's approval to a traction cable, or infer pressure-wash resistance from the vehicle application's name.

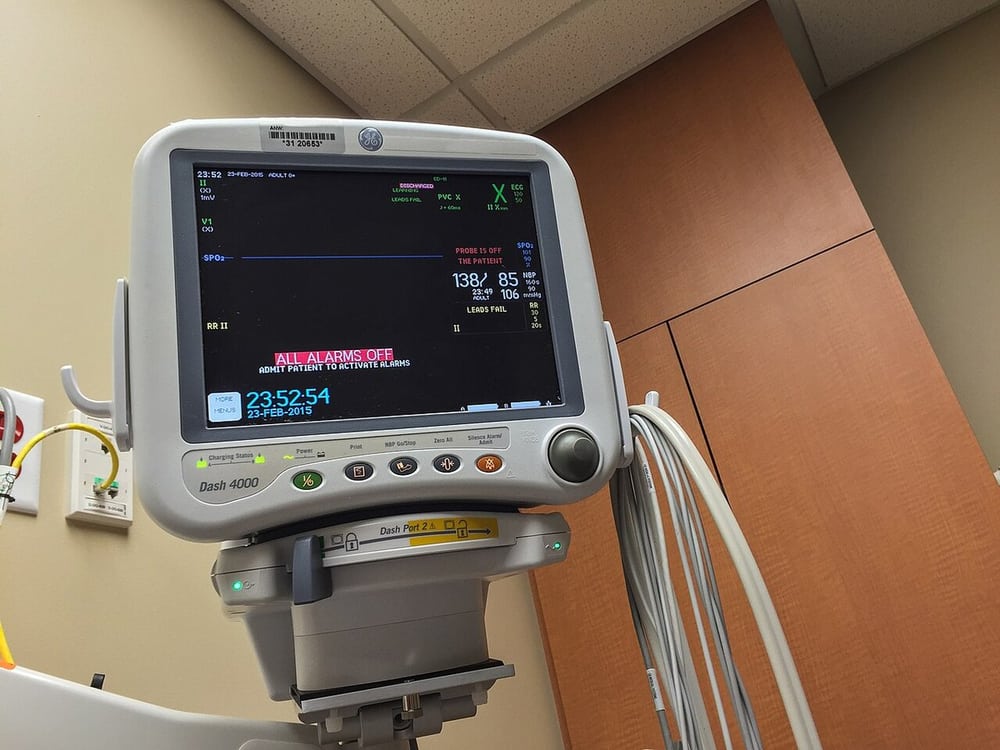

Patient-monitor equipment: internal electronics and accessible patient connections have different duties.

Medical Devices

An internal display cable, a detachable handpiece lead and a diagnostic sensor cable need different service and validation plans. Repeated cleaning may affect jackets and markings; frequent disconnection may require a connector with an appropriate mating-life specification. Identify whether the cable is a replaceable accessory or an internal component. Agree the relevant equipment-level standards and test responsibilities with the device manufacturer before quoting regulated or patient-related work.

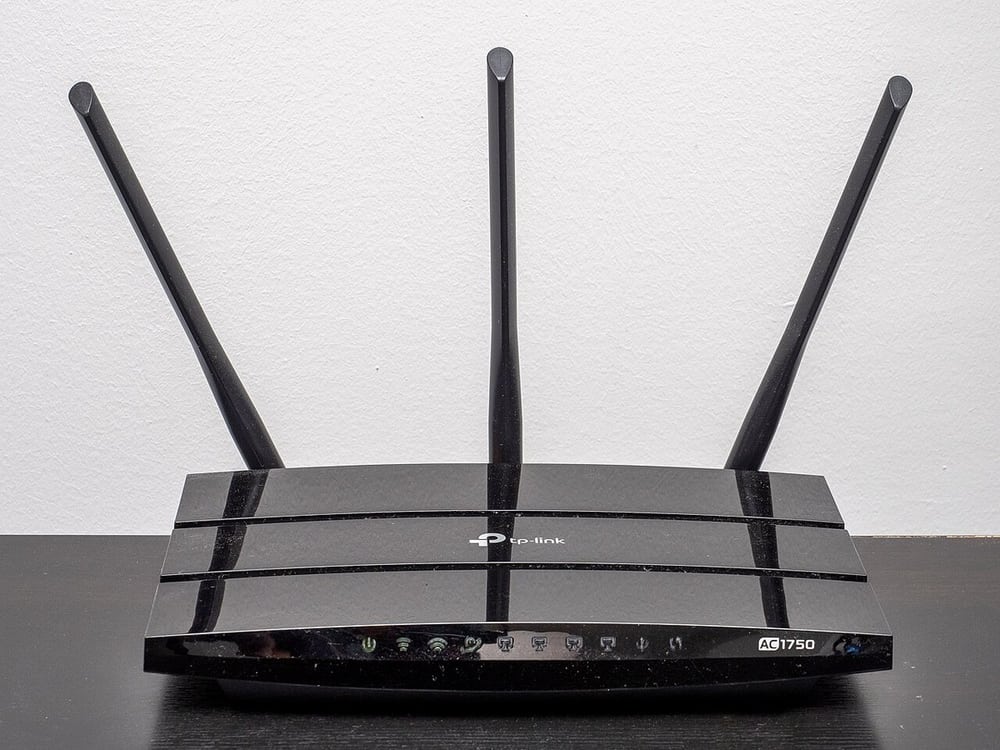

Wireless router and external antennas place cable routing within the complete radio system.

Telecom and Networking

Router antenna pigtails, radio modules and network equipment connect RF and digital channels that must be specified separately. For coax, document impedance and frequency-dependent loss. For differential data, define the pair arrangement, shielding and interface requirement. A shielded connector is not a guarantee that a custom cable supports every data rate. Test adapters, reference planes and acceptance limits need to match the channel being evaluated, particularly when comparing prototypes from different suppliers.

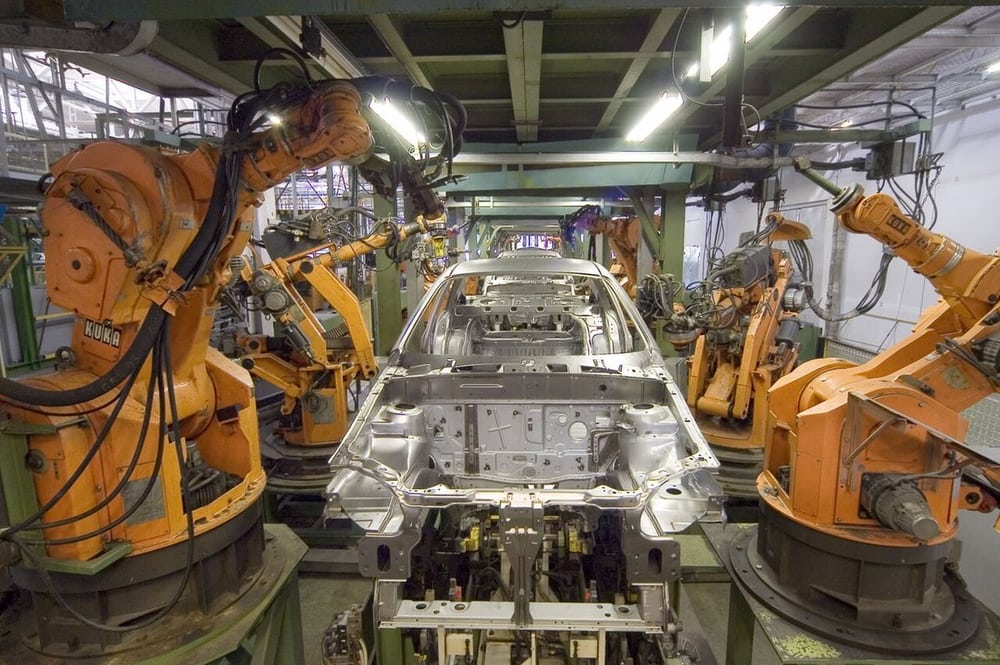

Industrial robot cells illustrate repeated motion and the need to separate moving and fixed routes.

Robotics and Motion Control

Connector retention and cable flex life are separate questions. Keep bending away from the termination, support the cable at the moving structure and distinguish repeated bending from torsion. The motion profile should include travel, acceleration, bend radius, rotation and the required service interval. Cable-carrier suitability cannot be inferred from a soft jacket alone. Prototype routing checks should look for rubbing, snagging and load transfer into small board connectors through the full movement.

Aircraft cockpit-panel exhibit; application context is not aerospace approval.

Aerospace and Defence Projects

These projects require a defined qualification route rather than a brand-based assurance. Connector series, wire construction, flammability, outgassing, traceability and acceptance records may all be controlled by the equipment specification. Ground test equipment and flight-installed harnesses are different scopes. Submit the actual standards and intended installation for capability review. A commercial Hirose interface or an aerospace application photograph does not establish military qualification, flight approval or space suitability for our assembly.

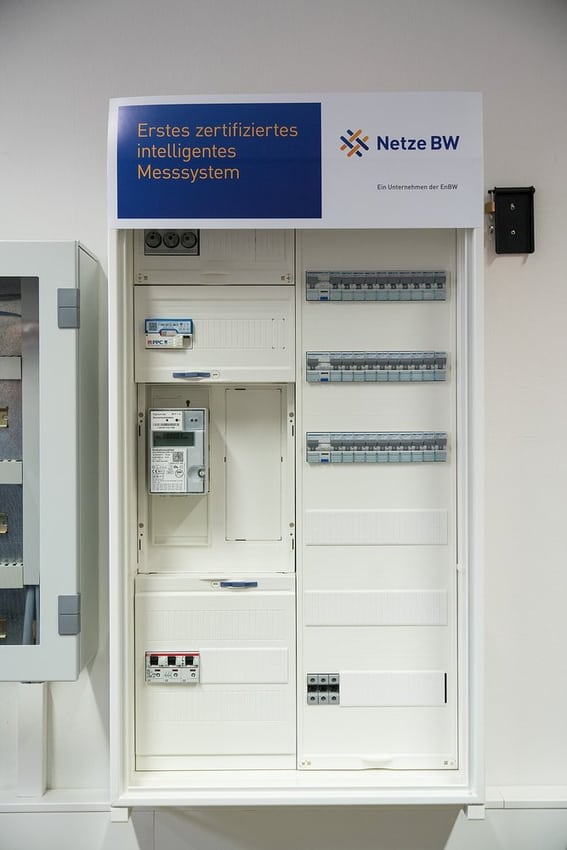

Smart-meter gateway installed in a cabinet: access and routing are enclosure-dependent.

Smart Home and IoT

Sensors, smart meters and connected appliances place antennas near power supplies, displays and metal covers. Verify wireless performance in the finished enclosure because a cable that works in an open prototype can behave differently after assembly. Define antenna spacing and routing constraints with the electronics designer. Small connectors should be supported during service, and label or colour variants should prevent crossed antenna branches. Keep test access available without repeatedly disturbing a limited-cycle micro-coax connection.

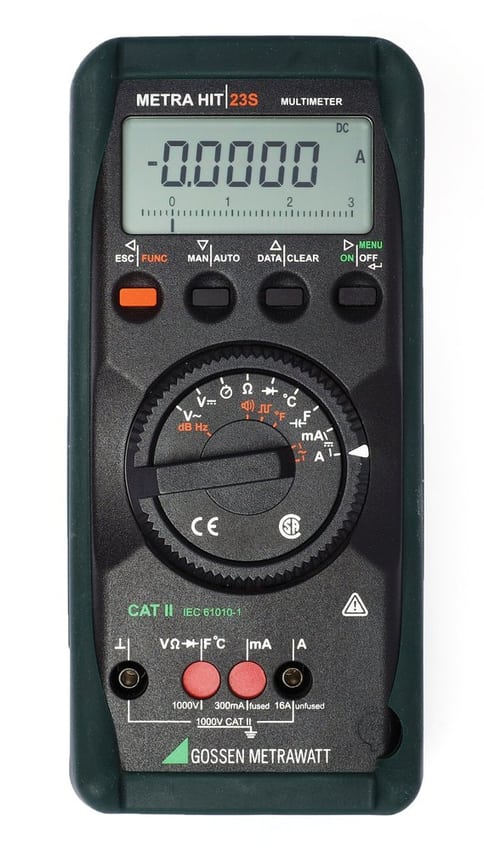

Digital multimeter reference; low-resistance measurements need a suitable method and fixture.

Contact Resistance

Contact resistance, wire resistance and complete-loop resistance are not interchangeable measurements. Record the test points and method before setting an acceptance limit. A two-wire measurement includes lead resistance; a four-wire method can help resolve low resistance when the fixture is appropriate. Current produces heating according to I²R, but the temperature rise also depends on cooling and neighbouring loaded contacts. Compare results under controlled conditions and against the selected component or assembly specification, not an invented universal milliohm value.

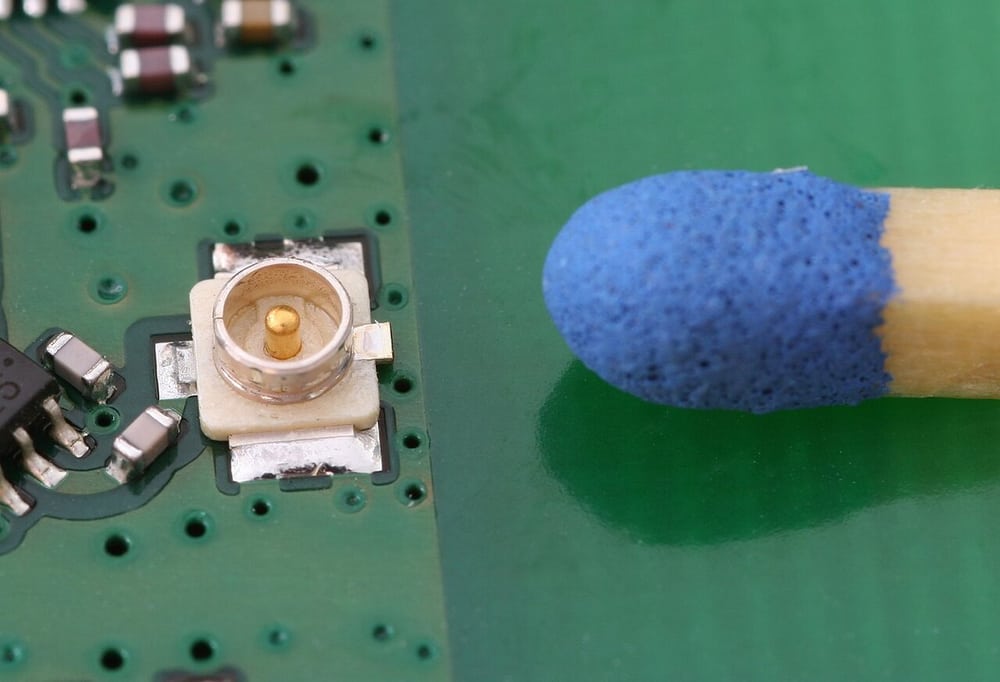

Miniature board connector beside a match head shows the scale of careful handling.

Mating and Unmating Cycles

A catalogue mating-cycle rating describes a specified test, not unlimited service use. Small internal RF connectors and repeatedly operated external circular connectors can have very different intended duty. Count prototype debugging and production testing as well as field maintenance when considering wear. Use the correct mating tool or handling method and inspect for damaged contacts or shells. Qualification cycling is normally a planned sample test, not a reason to consume the full rated life of every shipped connector.

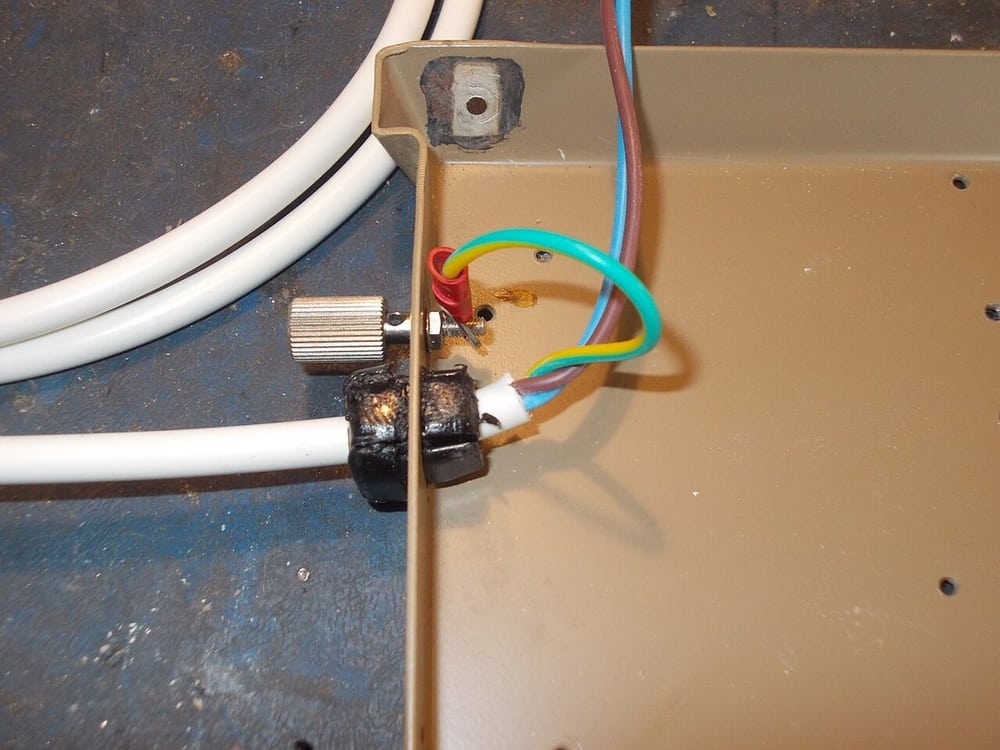

An internal cable clamp illustrates strain relief independently of contact retention.

Retention and Strain Relief

Terminal retention in a housing, crimp tensile strength and the force needed to release a connector lock are separate properties. The test fixture must apply load in the specified direction without masking the weak point. Cable clamps and supports should keep operating loads out of small contacts and PCB solder joints. Pull testing can be destructive, so define sampling and disposition of tested pieces. A firm hand pull or audible latch click is useful assembly feedback, not a measured validation result.

Rain seen through a windshield represents a wet environment, not an IP certification result.

Water and Dust Protection

An IP claim belongs to a defined configuration and test condition. Confirm whether the connector is tested mated, capped or unmated, and whether the cable entry and panel interface are included. HR30's published waterproof conditions, for example, do not automatically describe a complete enclosure with a custom cable. Bending near a seal, cable diameter variation and missing blanking plugs can change performance. Condensation and capillary migration through a cable also need attention; external sealing alone may not control every moisture path.

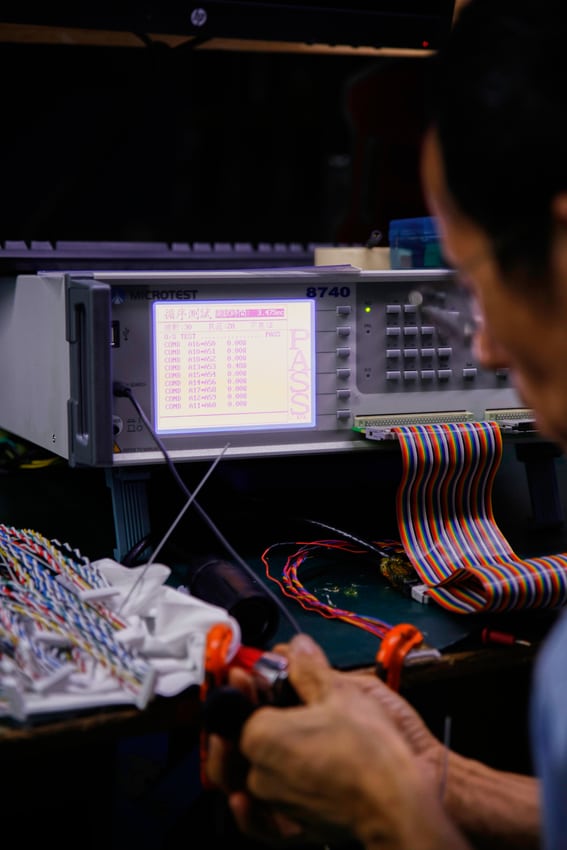

Super Smile workshop photograph: harness and test equipment at the inspection station.

Repeatable Quality Checks

The inspection plan should separate routine production checks from qualification and destructive sampling. Agree circuit continuity, short-circuit detection, visual criteria, dimensional checks and any additional electrical requirements. Record the approved drawing revision and the fixture or program used. A passed harness test does not establish RF bandwidth, environmental life or equipment safety unless those are specifically covered. Traceable results make a later failure investigation more useful than a generic '100% tested' label.

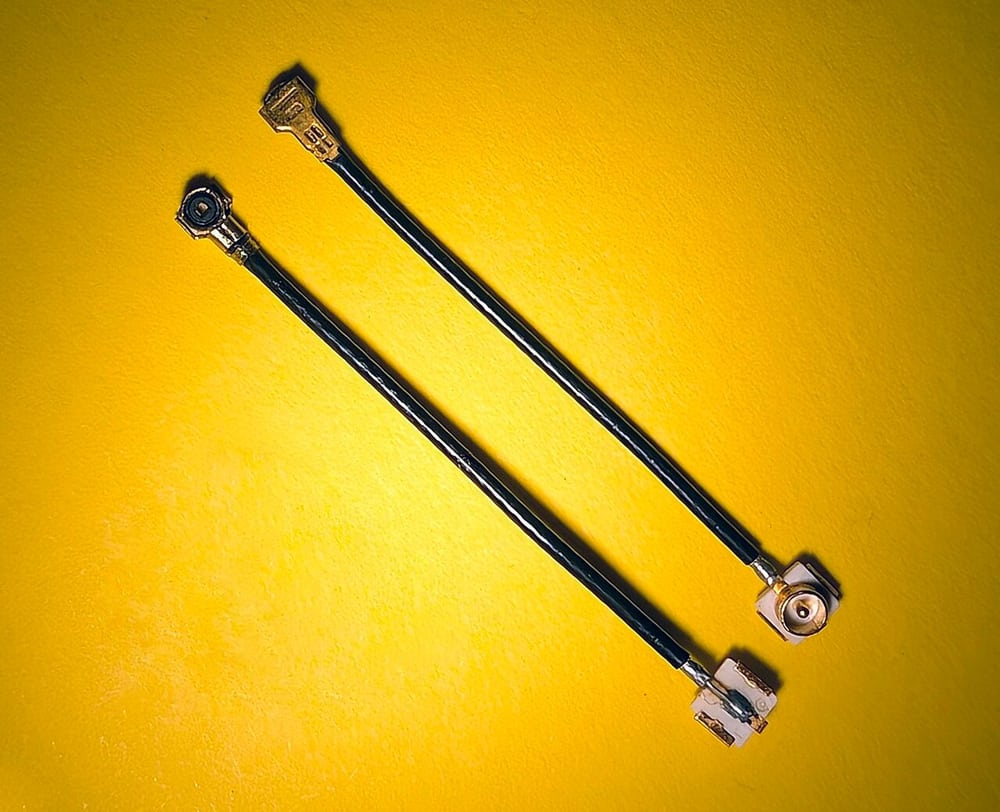

MHF4-to-U.FL adapter leads demonstrate distinct interface ends rather than universal compatibility.

Match the Series to the Circuit

For internal discrete wiring, compare complete DF configurations rather than pitch alone. For vehicle interfaces, separate an internal ZE05 connection from the selected external sealed system. For antenna links, match the exact U.FL or W.FL2 cable assembly and board receptacle. Mixed-function harnesses can combine separate signal, power and RF branches, but they still require clear electrical boundaries, shielding and mechanical support. Start with the circuit and installation, then select the interface; do not force the project around an available connector photograph.

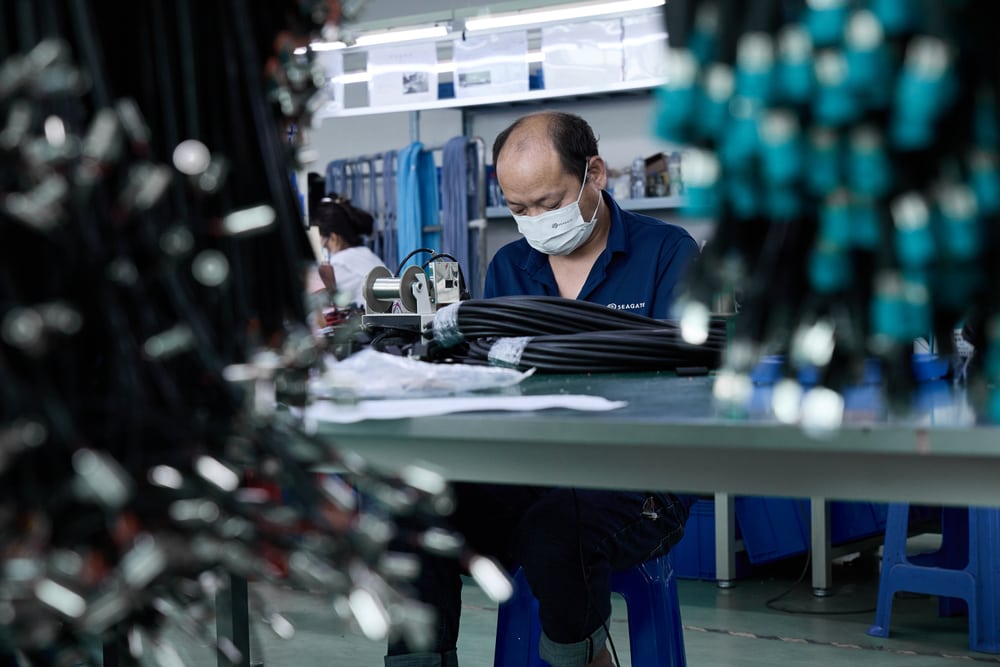

Super Smile workshop desk and harness references used as an engineering-context photograph.

Design Review

Provide the schematic, pinout, mating references, length datum and enclosure constraints. Mark unresolved functions rather than guessing from a sample's colour code. We review the proposed assembly against the supplied information and identify questions that affect materials, tooling or inspection. A photograph can start the discussion, but it cannot reveal hidden splices, shielding bonds or component ratings. Resolve those uncertainties before committing the production configuration.

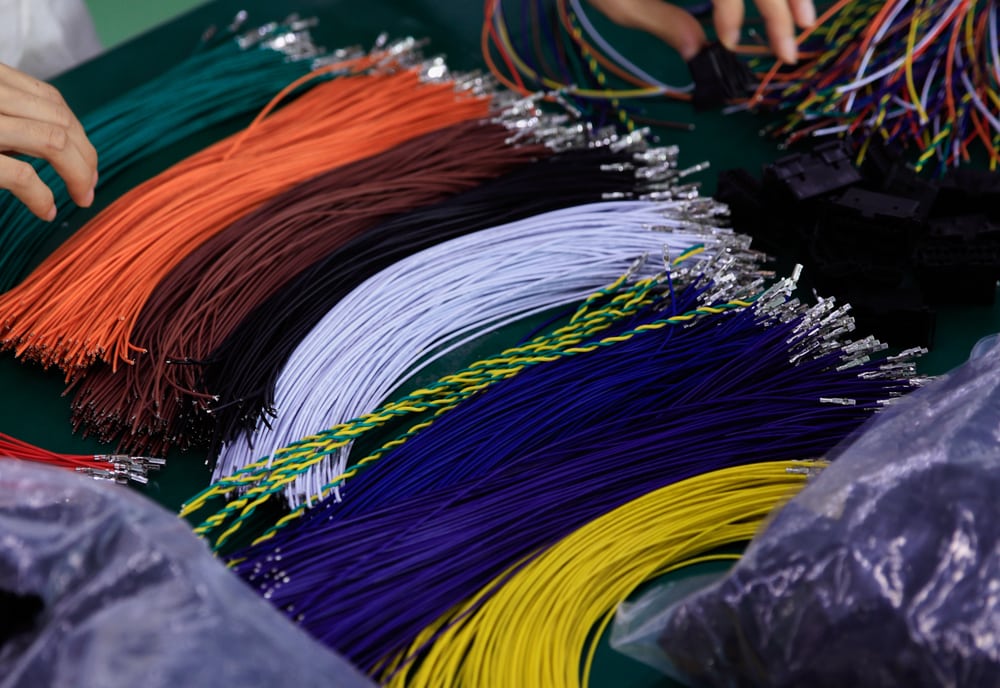

Super Smile wire preparation close-up: conductor and insulation details enter the material review.

Component Selection

The bill of materials should identify housings, contacts, seals, retainers, cable and protective accessories individually. Specify whether original Hirose parts are mandatory and whether alternatives may be considered. Check compatibility, availability and tooling for the complete set, not just the most visible housing. Purchasing descriptions should retain manufacturer references and approved revisions so a later reorder does not silently become a different assembly.

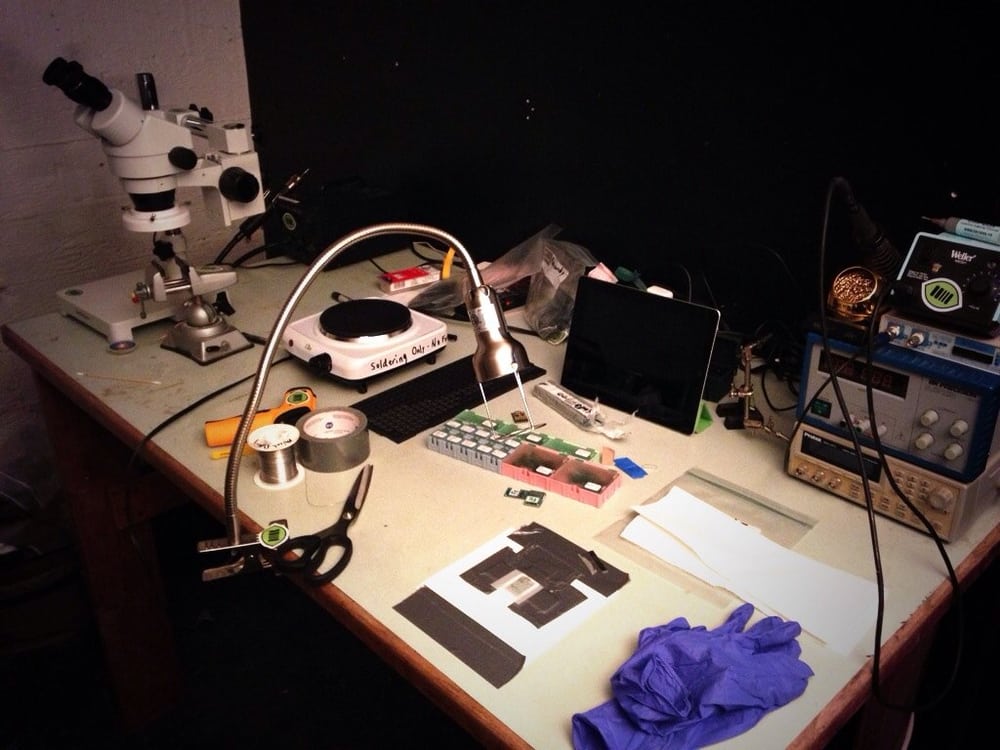

Electronics workbench with microscope and soldering equipment; prototype-work reference.

Sample Build

The first article translates the approved documents into a physical assembly. Record cutting, stripping, termination, insertion and protection details that affect repeatability. Keep the sample's part and wire references linked to its inspection record. If a bend or branch must move to fit the enclosure, revise the drawing instead of leaving the adjustment as undocumented workshop knowledge. A prototype is a controlled learning step, not automatic production approval.

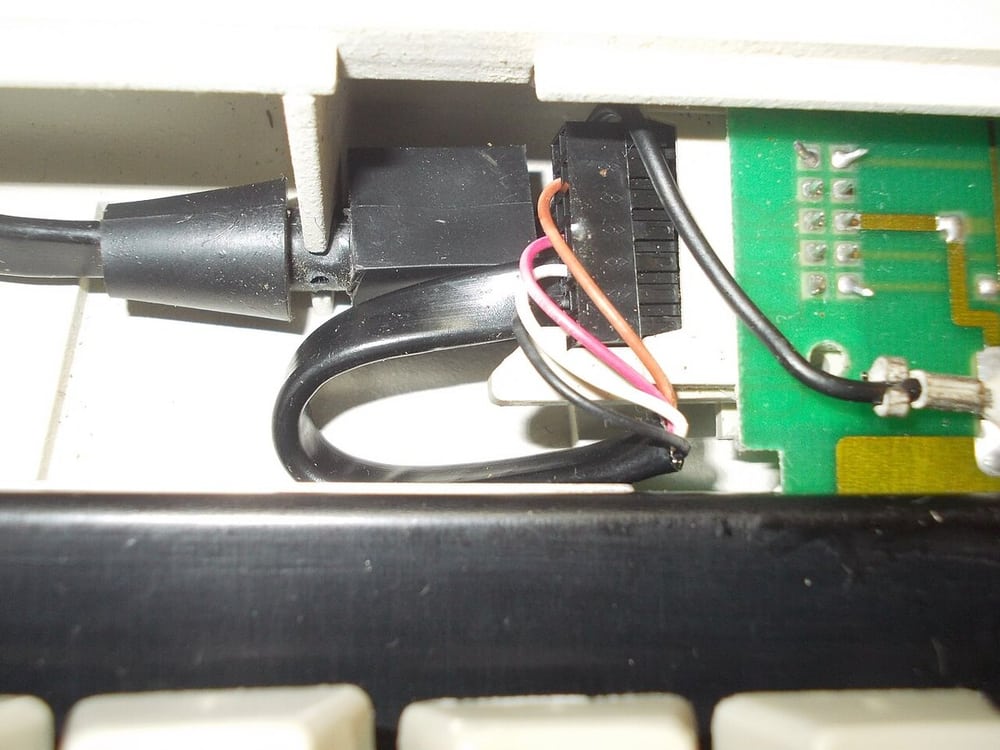

Cable routing and retention inside a keyboard illustrate enclosure-level fit checks.

Fit and Function Test

Check the sample with the real mating equipment or an agreed representative fixture. Confirm latch access, connector direction, branch reach and enclosure closure. Exercise moving covers or adjustable modules through their intended travel. Electrical function should follow the approved circuit definition and safe test procedure, not trial-and-error pin swapping. Record any difference between the sample fixture and the final installation so the remaining equipment-level checks are clear.

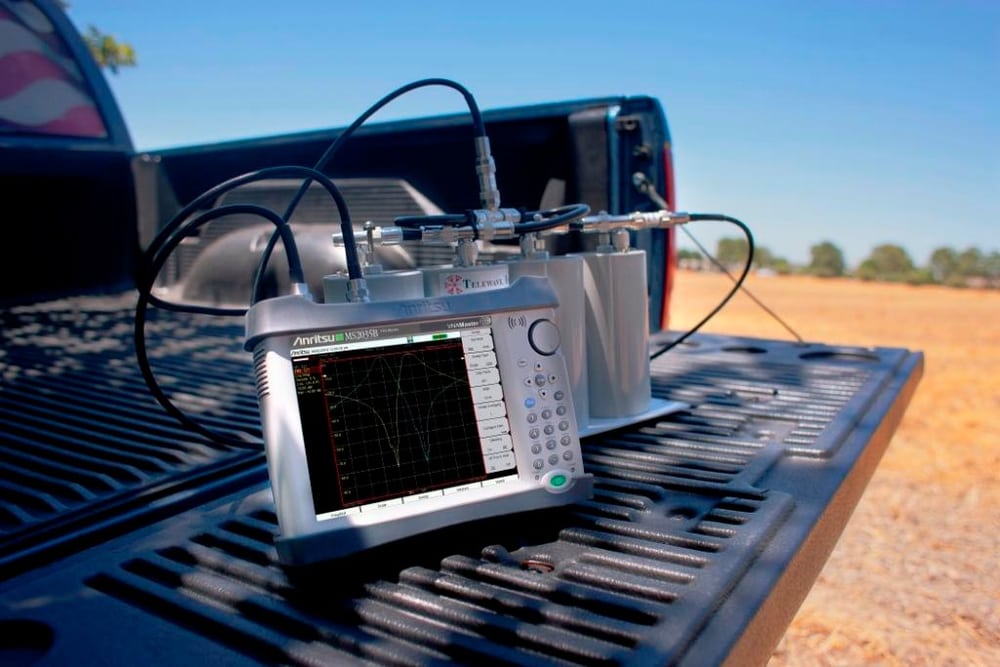

Portable vector network analyzer: RF checks require the appropriate instrument and calibration.

Electrical Testing

Select tests by circuit function. Continuity and short-circuit checks suit wire mapping; insulation or withstand testing requires agreed limits and protection for any connected electronics. RF assemblies may need insertion loss or return loss across the required band with suitable adapters and calibration. Compare like-for-like configurations and retain the method with the result. We confirm the required test scope, equipment and responsibilities before accepting specialized measurement commitments.

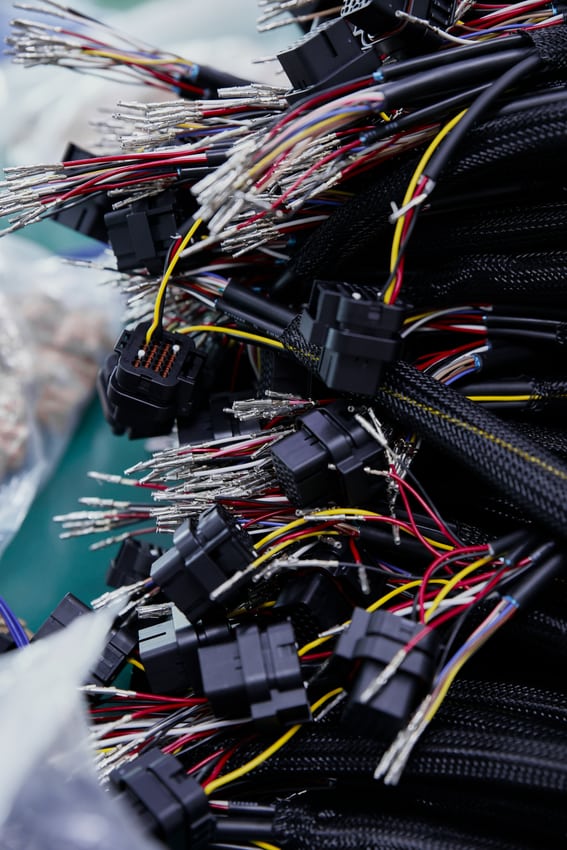

Super Smile harness bundles; photographs support identification but do not replace approved drawings.

Design Signoff

Approval should cover the drawing, BOM, sample deviations, inspection requirements and packaging, not just the sample's appearance. Name the revision that becomes the production reference. Later changes to a connector, wire compound or cable length may require renewed review, especially for sealed or RF assemblies. Keeping a clear change record allows purchasing, engineering and production to discuss the same configuration when an order is repeated.

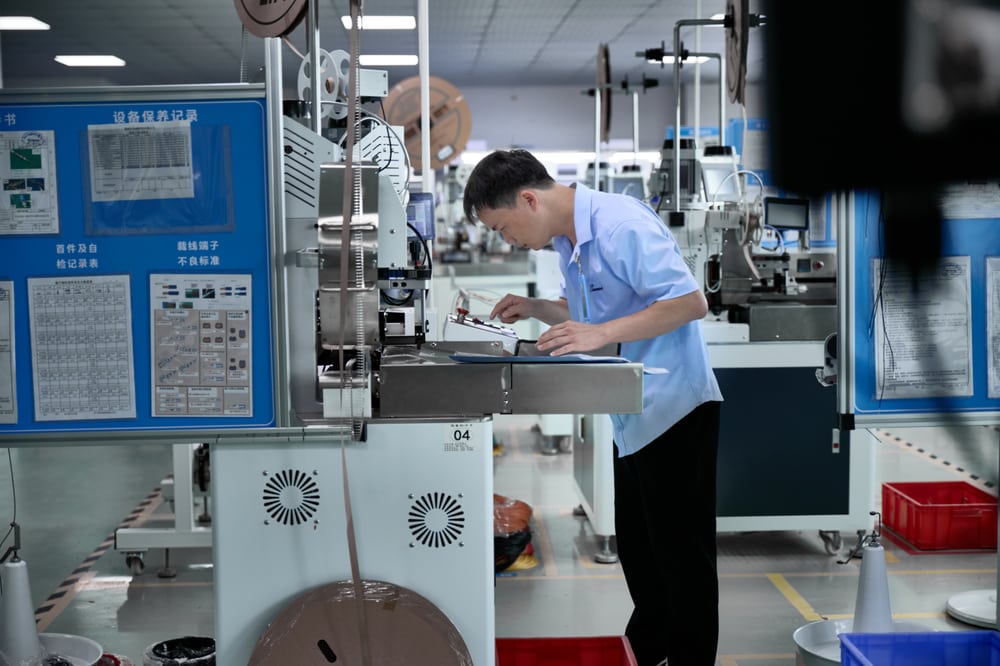

Super Smile production workstation; the released process defines each order's build.

Controlled Production

Repeat production follows the released material and process definition. Establish the relevant setup checks, identification rules and inspection points, and keep nonconforming material separate from accepted product. Tooling maintenance and operator instructions influence consistency as much as the initial sample. Any shortage-driven substitution must return to the approval process. Batch quantity and delivery timing are confirmed against the actual component set and manufacturing requirements.

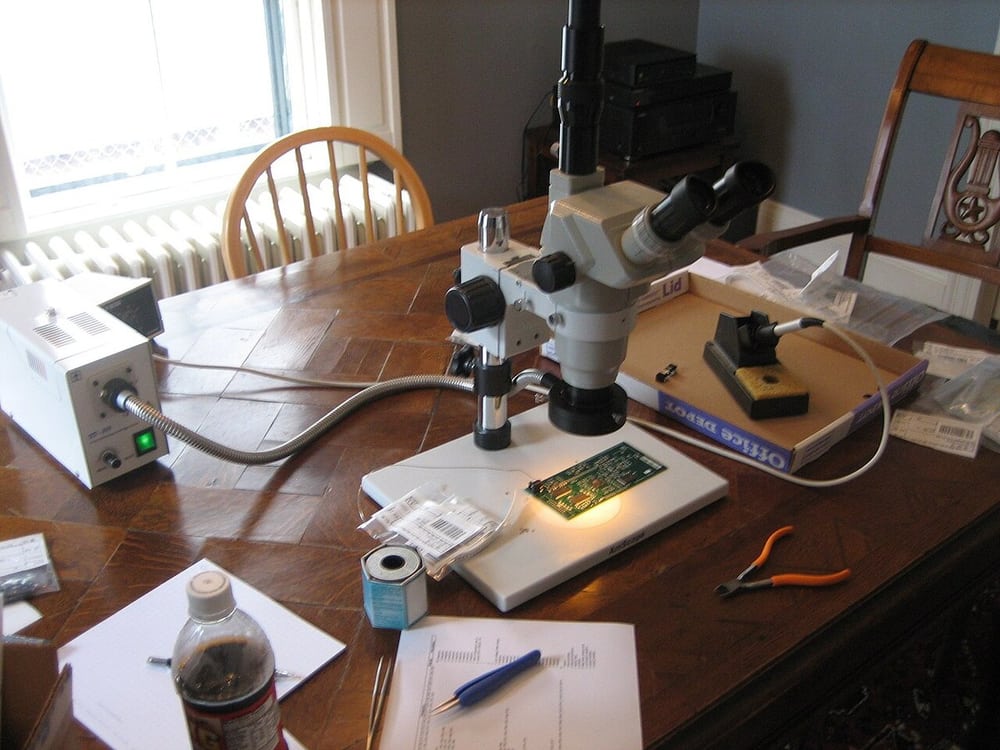

Microscope-assisted electronics work illustrates close visual access, not a completed inspection record.

Quality Review and Release

Review the inspection record against the order's acceptance criteria and check that labels identify the correct version. Routine checks and sampled destructive tests should not be confused in the release statement. Where a customer requires certificates or test reports, agree their content and batch linkage before manufacture. A report should describe what was actually checked; unperformed environmental, medical or RF tests must not appear as passed results.

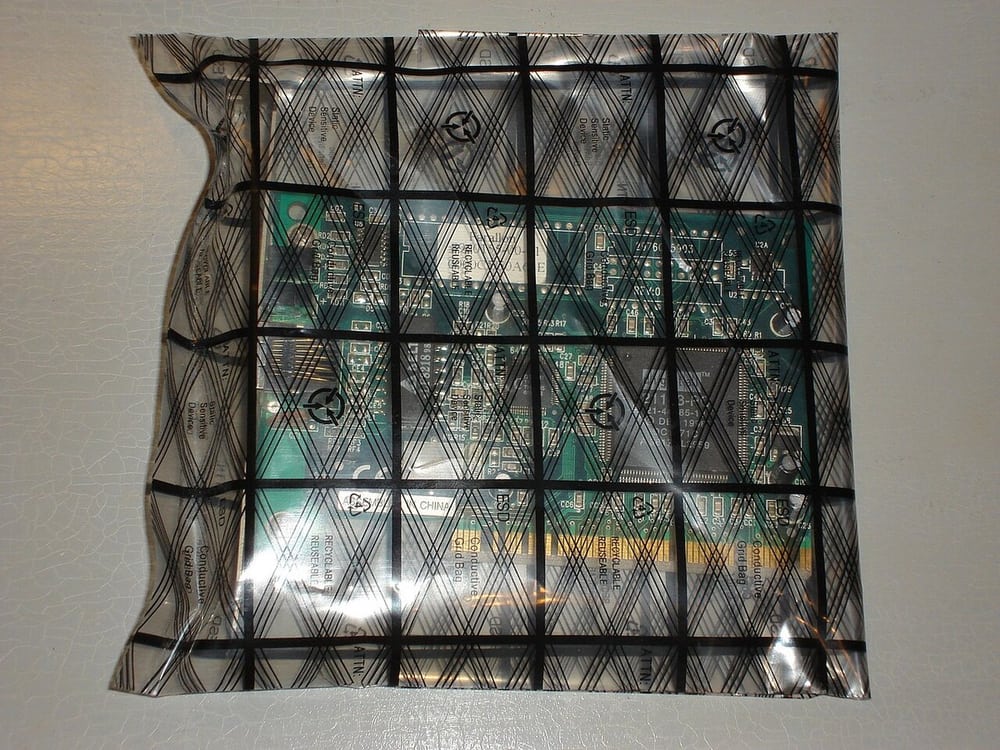

Circuit board in an antistatic bag illustrates protection during storage and handling.

Packaging, Labels and Shipping

Protect small connector faces from impact and contamination, and avoid bending a cable sharply at its termination. Bundle labels should remain readable without repeatedly unpacking sensitive micro-coax leads. Apply ESD protection where the supplied assembly requires it, rather than assuming every passive cable needs identical packaging. Confirm pack quantity, traceability labels and delivery documents with the order. Shipping protection preserves the approved sample condition; it does not replace incoming inspection at the customer's site.

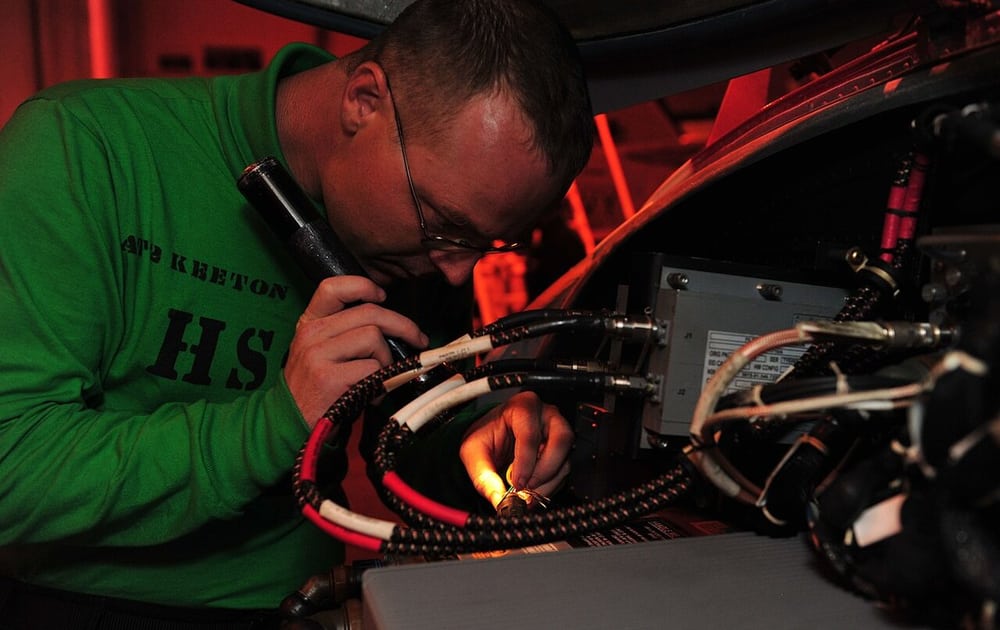

Technician identifying connector wiring; application reference, not Super Smile staff or a Hirose claim.

Prepare a Complete Enquiry

Send the complete Hirose part references or clear mating samples, circuit mapping, dimensions, cable requirements, use environment and quantity range. Tell us which items are fixed and which can be reviewed as alternatives. Include special test or document requirements before comparing prices. Super Smile reviews custom cable and harness projects against these inputs; this page does not claim Hirose authorization, universal stock or pre-qualified supply for every application described.

Engineering and Purchasing Questions

What does “Hirose compatible” mean?

It identifies an interface to be confirmed, not a promise that different series interchange. The approved BOM states whether original Hirose parts or separately reviewed alternatives are supplied.

Can wire length and pin assignments be customized?

Yes, subject to the selected connector's available configurations and an approved circuit drawing. Custom wiring does not change the connector's moulded mating geometry.

Are all automotive Hirose connectors waterproof?

No. Internal wiring, shielded data and external sealed interfaces have different specifications. Identify the complete series and assembled sealing conditions.

Are U.FL and W.FL2 interchangeable?

Do not assume so. Match the exact plug, receptacle, cable and tooling from the manufacturer's mating information.

Which catalogue should I provide?

The current series catalogue plus the complete part's drawing, mating reference and application instructions. A series name alone is insufficient for a controlled build.

What testing is included?

The order defines routine checks and any additional qualification or sampling. RF, ingress, life and regulated-equipment tests require an agreed method and scope.

Can medical equipment projects be reviewed?

Yes, with intended use, safety and validation requirements supplied for review. No blanket patient-contact, sterility or biocompatibility claim is made.

Image sources and usage notes

Soldering Bench with Microscope.jpgPsychlist1972 · CC BY 2.0
Hirose tm21 modular plug parts and crimped cable.jpgUser:MarcPG · CC BY-SA 3.0
Ids-machine-vision-cameras-usb2-2004.jpgLg123456 · CC BY-SA 4.0
PCB mount connector 1.JPGJstapko · CC BY-SA 3.0
Rain on windshield (52352547682).jpgJoshua Tree National Park · Public domain
U.FL-Kabelbuchse.jpgIngraban • Thing 22:07, 15. Apr. 2014 (CEST) · CC BY-SA 3.0 de
VIA Based Solution Smart Meter (4680911433).jpgVIA Gallery from Hsintien, Taiwan · CC BY 2.0
Akkuschutzschaltung mit Balancer 4S.jpgHadhuey · CC BY-SA 3.0
Syringe infusion pump.jpgShyamal · CC BY-SA 4.0
RouterBoard 112 with U.FL-RSMA pigtail and R52 miniPCI Wi-Fi card.jpgKozuch · CC BY-SA 4.0
IPEX4 vs IPEX.jpgMitja Stachowiak · CC0
Crimping tool TP.jpgBaran Ivo · Public domain
10 core Flat Ribbon Cable.jpgSuyash Dwivedi · CC BY-SA 4.0
Scale on vernier caliper DSC01343.JPGPeter Southwood · CC BY-SA 3.0
Digital caliper electronic PCB with LCD.jpgwdwd · CC BY-SA 4.0
Arduino UNO compatible board, CNC shield stepper motor controller, and a NEMA 17 stepper motor.jpgDotEagle · CC BY-SA 4.0
Cologne Germany Electric-Car-Charging-Point-at-TUV-Rheinland-01.jpgCEphoto, Uwe Aranas · CC BY-SA 3.0
Hospital Patient Monitor (17239884329).jpgTony Webster from San Francisco, California · CC BY 2.0
Wireless Router (50841204223).jpgajay_suresh · CC BY 2.0
KUKA Industrial Robots IR.jpgMixabest · CC BY-SA 3.0
Aircraft cockpit (3b).jpgCjp24 · CC BY-SA 4.0
Zertifiziertes Smart Meter Gateway.jpgFranziska Fahrbach · CC BY-SA 4.0
Multimeter Gossen Metra Hit.jpgHarke · CC BY-SA 3.0
U.FL connector.jpgAfrank99 · CC BY-SA 3.0
Mains Cable Strain Relief.jpgtony_duell · CC BY 2.0
Rain at the windshield (14831834479).jpgHenry Söderlund from Helsinki, Finland · CC BY 2.0
_MG_5482.jpgSuper Smile · Company-owned photograph
RF pigtail adapter MHF4 male to U.FL female 30 mm.jpgSiarhei Besarab · CC BY-SA 4.0
_MG_6492.jpgSuper Smile · Company-owned photograph
_MG_6437.jpgSuper Smile · Company-owned photograph
Setup for the soldering of electronic components.jpgMicah Elizabeth Scott from San Francisco, United States · CC BY-SA 2.0
Keyboard Cable Strain Relief (54216517205).jpgtony_duell · CC BY 2.0
Anritsu MS2035B portable vector network analyzer.jpgDtwitkowski · CC BY-SA 3.0
_MG_6466.jpgSuper Smile · Company-owned photograph
_MG_6485.jpgSuper Smile · Company-owned photograph
Soldering Surface-mount components with a Stereo microscope.jpgBrandon Stafford from Somerville, Massachusetts, USA · CC BY-SA 2.0
Antistatic bag.jpgZidane2k1 at English Wikipedia · CC BY-SA 3.0
US Navy 110730-N-GC412-046 Aviation Electronics Technician 2nd Class John Keeton re-pins a DTIU connector on an MH-60S Sea Hawk helicopter aboard U.jpgU.S. Navy photo by Mass Communication Specialist 3rd Class Will Tyndall · Public domain
Third-party reference photographs illustrate construction, materials or applications, not company products, approved installations, test results or brand authorization. Images are resized, display-cropped and tonally adjusted; adaptations retain the applicable original share-alike license. Photographs identified as Super Smile material are company-supplied product or manufacturing images; the approved specification determines the supplied version and process.

PART NUMBER / INTERFACE / MATERIAL

Models, Part Numbers & Sourcing

Find a cable model or material part number, then send it for a custom replacement or original-part sourcing review.

Connector & Material Part Numbers

Connector, wire and process-material references for project selection.

Hirose Electric
DF13-2630SCF(41) / CL0536-0300-5-41
DF13 socket crimp contact
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-2S-1.25C
DF13 wire-side socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
ZX62-B-5PA(33) / CL0242-0033-8-33
Micro-USB receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
ZX40-B-5S-UNIT(31) / CL0242-0002-4-31
Micro-USB unterminated plug unit
Custom compatible replacements · Original-parts sourcing
Hirose Electric
ZX40-B-SLDA / CL0242-0003-7-00
Micro-USB connector shield cover
Custom compatible replacements · Original-parts sourcing
Hirose Electric
ZX80-B-5S(30) / CL0242-0017-1-30
Micro-USB cradle plug connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90MW9-24P
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX81B-24S
USB Type-C PCB plug connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX60-24S-UNIT
USB Type-C unterminated plug unit
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX60-SLDA
USB Type-C plug shield shell
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15-2830PCFB
FX15 Crimp contact
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15-31S-0.5SV / FX15-31S-0.5SV(30)
FX15 Board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15M-21P-C
FX15 Cable plug connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15S-41P-GND
FX15 Connector ground plate
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15-31P-C
FX15 Cable plug connector cover
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF19G-8P-1H(52)
DF19 PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF19-14S-1C
DF19 Crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF19-2830SCFA
DF19 Crimp contact
Custom compatible replacements · Original-parts sourcing
Hirose Electric
GT43-1P-H(A)
GT43 Video coaxial board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
GT43-1P/S-CSB
GT43 Coaxial connector shielding plate
Custom compatible replacements · Original-parts sourcing
Hirose Electric
GT43-1P/S-R
GT43 Coaxial connector retainer
Custom compatible replacements · Original-parts sourcing
Hirose Electric
GT43-1PP-HU(D)
GT43 Video coaxial connector housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
GT43-2428/1.6-2.9PCF
GT43 Video coaxial contact
Custom compatible replacements · Original-parts sourcing
Hirose Electric
GT43P-HRMJ
GT43 SMA evaluation adapter
Custom compatible replacements · Original-parts sourcing
Hirose Electric
GT43D-1P-H(F)
GT43 Video coaxial board receptacle with ground spring
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-2S-2V(800)
KW30 vertical PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-2S-2H(800)
KW30 right-angle PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-2P-2C(800)
KW30 wire-side plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-3032PCFA(800)
30-32AWG KW30 plug crimp contact
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-2P-1.25DS(25)
DF13 right-angle PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-3032SCF
30-32AWG DF13 socket crimp contact
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-4DS-2C / CL0543-0568-6-00
DF11 crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-4DS-2V(22) / CL0543-2063-0-22
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-4DP-2V(27) / CL0543-2047-4-27
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-4DEP-2C / CL0543-0619-5-00
DF11 in-line plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-3S-1.25C
DF13 wire-side socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
ZX62D-B-5PA8(30) / CL0242-0056-3-30
Micro-USB receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
ZX20-B-5S-UNIT(30) / CL0242-0012-8-30
Micro-USB unterminated plug unit
Custom compatible replacements · Original-parts sourcing
Hirose Electric
ZX40-SLDB / CL0242-0004-0-00
Micro-USB connector shield cover
Custom compatible replacements · Original-parts sourcing
Hirose Electric
ZX80-B-5SA(30) / CL0242-0019-7-30
Micro-USB cradle plug connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90MW9-24P1
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX81B-24S1
USB Type-C PCB plug connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15-3032PCFA
FX15 Crimp contact
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15M-21S-0.5SH
FX15 Board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15M-31P-C
FX15 Cable plug connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15S-51P-GND
FX15 Connector ground plate
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF19G-14P-1H(52)
DF19 PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF19-20S-1C
DF19 Crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF19A-2830SCFA / DF19A-2830SCFA(41)
DF19 Crimp contact
Custom compatible replacements · Original-parts sourcing
Hirose Electric
GT43-1P-H(B)
GT43 Video coaxial board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
GT43-1S-HU(A)
GT43 Video coaxial connector housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
GT43-2428/1.6-2.9SCF
GT43 Video coaxial contact
Custom compatible replacements · Original-parts sourcing
Hirose Electric
GT43S-HRMJ
GT43 SMA evaluation adapter
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-3S-1V(800)
KW30 vertical PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-3S-1H(800)
KW30 right-angle PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-3P-1C(800)
KW30 wire-side plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-3P-1.25DS(25)
DF13 right-angle PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-3032SCFA
30-32AWG DF13 socket crimp contact
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-6DS-2C / CL0543-0502-8-00
DF11 crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-6DS-2V(22) / CL0543-2064-3-22
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11C-4DP-2V(57) / CL0543-0682-1-57
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-6DEP-2C / CL0543-0620-4-00
DF11 in-line plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-4S-1.25C
DF13 wire-side socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
ZX62R-B-5P(30) / CL0242-0028-8-30
Micro-USB receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
ZX40-A-5S-UNIT(30) / CL0242-0010-2-30
Micro-USB unterminated plug unit
Custom compatible replacements · Original-parts sourcing
Hirose Electric
ZX20-B-SLDC / CL0242-0022-1-00
Micro-USB connector shield cover
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90MWD2-24P
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15-3032PCFB
FX15 Crimp contact
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15M-31S-0.5SH
FX15 Board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15S-31P-C
FX15 Cable plug connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF19G-20P-1H(52)
DF19 PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF19-30S-1C
DF19 Crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF19A-3032SCFA / DF19A-3032SCFA(41)
DF19 Crimp contact
Custom compatible replacements · Original-parts sourcing
Hirose Electric
GT43-1P-H(C)
GT43 Video coaxial board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
GT43-1S-HU(C)
GT43 Video coaxial connector housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-4S-1V(800)
KW30 vertical PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-4S-1H(800)
KW30 right-angle PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-4P-1C(800)
KW30 wire-side plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-4P-1.25DS(25)
DF13 right-angle PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-8DS-2C / CL0543-0503-0-00
DF11 crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-6DS-2V(52) / CL0543-2064-3-52
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-6DP-2V(27) / CL0543-2048-7-27
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-8DEP-2C / CL0543-0621-7-00
DF11 in-line plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-5S-1.25C
DF13 wire-side socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
ZX62M-B-5P(30) / CL0242-0024-7-30
Micro-USB receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
ZX40-A-SLDA / CL0242-0011-5-00
Micro-USB connector shield cover
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90MWD2G-24P
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15S-31S-0.5SH
FX15 Board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15S-41P-0.5SD
FX15 Cable plug connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF19G-30P-1H(52)
DF19 PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF19G-8S-1C(06)
DF19 Crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
GT43-1P-H(D)
GT43 Video coaxial board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
GT43-1S-HU(D)
GT43 Video coaxial connector housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-5S-1V(800)
KW30 vertical PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-5S-1H(800)
KW30 right-angle PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-5P-1C(800)
KW30 wire-side plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-5P-1.25DS(25)
DF13 right-angle PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-10DS-2C / CL0543-0504-3-00
DF11 crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-8DS-2V(22) / CL0543-2065-6-22
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11C-6DP-2V(57) / CL0543-0683-4-57
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-10DEP-2C / CL0543-0622-0-00
DF11 in-line plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-6S-1.25C
DF13 wire-side socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
ZX62-AB-5PA(31) / CL0242-0045-7-31
Micro-USB receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90MW6-16P
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15S-41S-0.5SH
FX15 Board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15S-41P-C
FX15 Cable plug connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF19K-20P-1H(52)
DF19 PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF19G-14S-1C(06)
DF19 Crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
GT43-1P-H(E)
GT43 Video coaxial board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
GT43-1S-HU(F)
GT43 Video coaxial connector housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-6S-1V(800)
KW30 vertical PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-6S-1H(800)
KW30 right-angle PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-6P-1C(800)
KW30 wire-side plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-6P-1.25DS(25)
DF13 right-angle PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-12DS-2C / CL0543-0505-6-00
DF11 crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-8DS-2V(52) / CL0543-2065-6-52
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-8DP-2V(27) / CL0543-2049-0-27
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-12DEP-2C / CL0543-0623-2-00
DF11 in-line plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-7S-1.25C
DF13 wire-side socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
ZX62D-AB-5P8(30) / CL0242-0027-5-30
Micro-USB receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90MW8-16P
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15S-51S-0.5SH
FX15 Board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15S-51P-0.5SD
FX15 Cable plug connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF19K-30P-1H(52)
DF19 PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF19G-20S-1C(06)
DF19 Crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
GT43-1P-H(F)
GT43 Video coaxial board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
GT43-1S-HU(H)
GT43 Video coaxial connector housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-7S-1V(800)
KW30 vertical PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-6S-1H(805)
KW30 right-angle PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-7P-1C(800)
KW30 wire-side plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-7P-1.25DS(25)
DF13 right-angle PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-14DS-2C / CL0543-0506-9-00
DF11 crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-10DS-2V(22) / CL0543-2066-9-22
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11C-8DP-2V(57) / CL0543-0684-7-57
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-14DEP-2C / CL0543-0624-5-00
DF11 in-line plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-8S-1.25C
DF13 wire-side socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
ZX62RD-AB-5P8(30) / CL0242-0025-0-30
Micro-USB receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90MW8-16P1
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15SC-41S-0.5SH
FX15 Board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15S-51P-C
FX15 Cable plug connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF19L-14P-1H(52)
DF19 PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF19G-30S-1C(06)
DF19 Crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
GT43-1P-H(H)
GT43 Video coaxial board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-8S-1V(800)
KW30 vertical PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-7S-1H(800)
KW30 right-angle PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-8P-1C(800)
KW30 wire-side plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-8P-1.25DS(25)
DF13 right-angle PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-16DS-2C / CL0543-0507-1-00
DF11 crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-10DS-2V(52) / CL0543-2066-9-52
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-10DP-2V(27) / CL0543-2050-9-27
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-16DEP-2C / CL0543-0625-8-00
DF11 in-line plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-9S-1.25C
DF13 wire-side socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
ZX62MD2-B-5PA(30)
Micro-USB receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90BW1-24P
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15SC-41S-0.5SV
FX15 Board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15SW-31P-C
FX15 Cable plug connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF19L-20P-1H(52)
DF19 PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-9S-1V(800)
KW30 vertical PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-8S-1H(800)
KW30 right-angle PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-9P-1C(800)
KW30 wire-side plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-9P-1.25DS(25)
DF13 right-angle PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-18DS-2C / CL0543-0508-4-00
DF11 crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-12DS-2V(22) / CL0543-2067-1-22
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11C-10DP-2V(57) / CL0543-0685-0-57
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-18DEP-2C / CL0543-0626-0-00
DF11 in-line plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-10S-1.25C
DF13 wire-side socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90BW1-24P1
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15SC-51S-0.5SH
FX15 Board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF19L-30P-1H(52)
DF19 PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-10S-1V(800)
KW30 vertical PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-9S-1H(800)
KW30 right-angle PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-10P-1C(800)
KW30 wire-side plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-10P-1.25DS(25)
DF13 right-angle PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-20DS-2C / CL0543-0509-7-00
DF11 crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-12DS-2V(52) / CL0543-2067-1-52
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-12DP-2V(27) / CL0543-2051-1-27
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-20DEP-2C / CL0543-0627-3-00
DF11 in-line plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-11S-1.25C
DF13 wire-side socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90BW-16P(001)
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
FX15SC-51S-0.5SV
FX15 Board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF19KR-20P-1H(52)
DF19 PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-15S-1V(800)
KW30 vertical PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-10S-1H(800)
KW30 right-angle PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-15P-1C(800)
KW30 wire-side plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-11P-1.25DS(25)
DF13 right-angle PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-22DS-2C / CL0543-0510-6-00
DF11 crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-14DS-2V(22) / CL0543-2068-4-22
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11C-12DP-2V(57) / CL0543-0686-2-57
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-22DEP-2C / CL0543-0628-6-00
DF11 in-line plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-12S-1.25C
DF13 wire-side socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90BW-16P1
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
KW30-15S-1H(800)
KW30 right-angle PCB receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-12P-1.25DS(25)
DF13 right-angle PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-24DS-2C / CL0543-0511-9-00
DF11 crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-14DS-2V(52) / CL0543-2068-4-52
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-14DP-2V(27) / CL0543-2052-4-27
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-24DEP-2C / CL0543-0629-9-00
DF11 in-line plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-13S-1.25C
DF13 wire-side socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX70M-24P1
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-14P-1.25DS(25)
DF13 right-angle PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-26DS-2C / CL0543-0512-1-00
DF11 crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-16DS-2V(22) / CL0543-2069-7-22
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11C-14DP-2V(57) / CL0543-0687-5-57
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-26DEP-2C / CL0543-0630-8-00
DF11 in-line plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-14S-1.25C
DF13 wire-side socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX70M-24P2
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-15P-1.25DS(25)
DF13 right-angle PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-28DS-2C / CL0543-0513-4-00
DF11 crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-18DS-2V(22) / CL0543-2070-6-22
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-16DP-2V(27) / CL0543-2053-7-27
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-28DEP-2C / CL0543-0631-0-00
DF11 in-line plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-15S-1.25C
DF13 wire-side socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX70M1-24P
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-30DS-2C / CL0543-0514-7-00
DF11 crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-18DS-2V(52) / CL0543-2070-6-52
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11C-16DP-2V(57) / CL0543-0688-8-57
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-30DEP-2C / CL0543-0632-3-00
DF11 in-line plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-10DS-1.25C
DF13 wire-side socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90M3-24P
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-32DS-2C / CL0543-0515-0-00
DF11 crimp socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-20DS-2V(22) / CL0543-2071-9-22
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-18DP-2V(27) / CL0543-2054-0-27
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11-32DEP-2C / CL0543-0633-6-00
DF11 in-line plug housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-20DS-1.25C
DF13 wire-side socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90M-16P
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-20DS-2V(52) / CL0543-2071-9-52
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11C-18DP-2V(57) / CL0543-0689-0-57
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-30DS-1.25C(10)
DF13 wire-side socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90MF-16P
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-22DS-2V(22) / CL0543-2072-1-22
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-20DP-2V(27) / CL0543-2055-2-27
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF13-40DS-1.25C(10)
DF13 wire-side socket housing
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX80B1-24P
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-24DS-2V(22) / CL0543-2073-4-22
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11C-20DP-2V(57) / CL0543-0690-0-57
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX80B2-24P
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-26DS-2V(22) / CL0543-2074-7-22
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-22DP-2V(27) / CL0543-2056-5-27
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90B1-24P
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-30DS-2V(22) / CL0543-2076-2-22
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11C-22DP-2V(57) / CL0543-0691-2-57
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90B1B-24P
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-30DS-2V(52) / CL0543-2076-2-52
DF11 SMT board receptacle
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-24DP-2V(27) / CL0543-2057-8-27
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90B2-24P
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11C-24DP-2V(57) / CL0543-0692-5-57
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90B2-24P1
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-26DP-2V(27) / CL0543-2058-0-27
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90B-16P
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11C-26DP-2V(57) / CL0543-0693-8-57
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90B-16P1
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-28DP-2V(27) / CL0543-2059-3-27
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
CX90MWP1-24P
USB Type-C receptacle connector
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11C-28DP-2V(57) / CL0543-0694-0-57
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-30DP-2V(27) / CL0543-2060-2-27
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11C-30DP-2V(57) / CL0543-0695-3-57
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11CZ-32DP-2V(27) / CL0543-2061-5-27
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing
Hirose Electric
DF11C-32DP-2V(57) / CL0543-0696-6-57
DF11 SMT PCB header
Custom compatible replacements · Original-parts sourcing

Configuration & Project Review

01 Interface & Application

Identify the complete series, mating pair and cable construction before selection.

02 Project Inputs

Provide pinout, mating parts, dimensions, environment and required evidence.

03 Release Requirements

Review the specification, confirm samples and release the production version.

04 Mating & Termination

Identify the mating part number and termination method before confirming the assembly drawing.

05 Sample Review

Compare the sample with the approved pin map, dimensions and material list.

06 Build Records

Retain the approved part list and inspection results for repeat production.

Send the part number, drawing or sample to confirm the replacement configuration and sourcing plan.

Hirose Compatible Cable Assemblies

Hirose Harnesses and Cable Assemblies

Hirose Connector Range

DF Wire-to-Board Harnesses

Automotive Interfaces and Sealing

U.FL and W.FL2 Micro-Coax

Custom Industrial Connections

EV Control and Monitoring Harnesses

Medical Equipment Integration

IoT Layout and Antenna Routing

Documented Mating Compatibility

Termination and Signal Stability

Materials for the Actual Environment

Length, Branches and Identification

Consumer Electronics

Industrial Automation

Automotive and EV Applications

Medical Devices

Telecom and Networking

Robotics and Motion Control

Aerospace and Defence Projects

Smart Home and IoT

Contact Resistance

Mating and Unmating Cycles

Retention and Strain Relief

Water and Dust Protection

Repeatable Quality Checks

Match the Series to the Circuit

Design Review

Component Selection

Sample Build

Fit and Function Test

Electrical Testing

Design Signoff

Controlled Production

Quality Review and Release

Packaging, Labels and Shipping

Prepare a Complete Enquiry

DF13-2630SCF(41) / CL0536-0300-5-41

DF13-2S-1.25C

ZX62-B-5PA(33) / CL0242-0033-8-33

ZX40-B-5S-UNIT(31) / CL0242-0002-4-31

ZX40-B-SLDA / CL0242-0003-7-00

ZX80-B-5S(30) / CL0242-0017-1-30

CX90MW9-24P

CX81B-24S

CX60-24S-UNIT

CX60-SLDA

FX15-2830PCFB

FX15-31S-0.5SV / FX15-31S-0.5SV(30)

FX15M-21P-C

FX15S-41P-GND

FX15-31P-C

DF19G-8P-1H(52)

DF19-14S-1C

DF19-2830SCFA

GT43-1P-H(A)

GT43-1P/S-CSB

GT43-1P/S-R

GT43-1PP-HU(D)

GT43-2428/1.6-2.9PCF

GT43P-HRMJ

GT43D-1P-H(F)

KW30-2S-2V(800)

KW30-2S-2H(800)

KW30-2P-2C(800)

KW30-3032PCFA(800)

DF13-2P-1.25DS(25)

DF13-3032SCF

DF11-4DS-2C / CL0543-0568-6-00

DF11CZ-4DS-2V(22) / CL0543-2063-0-22

DF11CZ-4DP-2V(27) / CL0543-2047-4-27

DF11-4DEP-2C / CL0543-0619-5-00

DF13-3S-1.25C

ZX62D-B-5PA8(30) / CL0242-0056-3-30

ZX20-B-5S-UNIT(30) / CL0242-0012-8-30

ZX40-SLDB / CL0242-0004-0-00

ZX80-B-5SA(30) / CL0242-0019-7-30

CX90MW9-24P1

CX81B-24S1
