IX rectangular data interfacesIX矩形数据接口
Both ends use compact rectangular IX-form data interfaces. Match insertion direction and retention access to the equipment ports.两端采用紧凑矩形IX形式接口，插合方向和锁紧操作空间需与设备端配合。
Harting Interface Cable ProjectHarting接口电缆项目

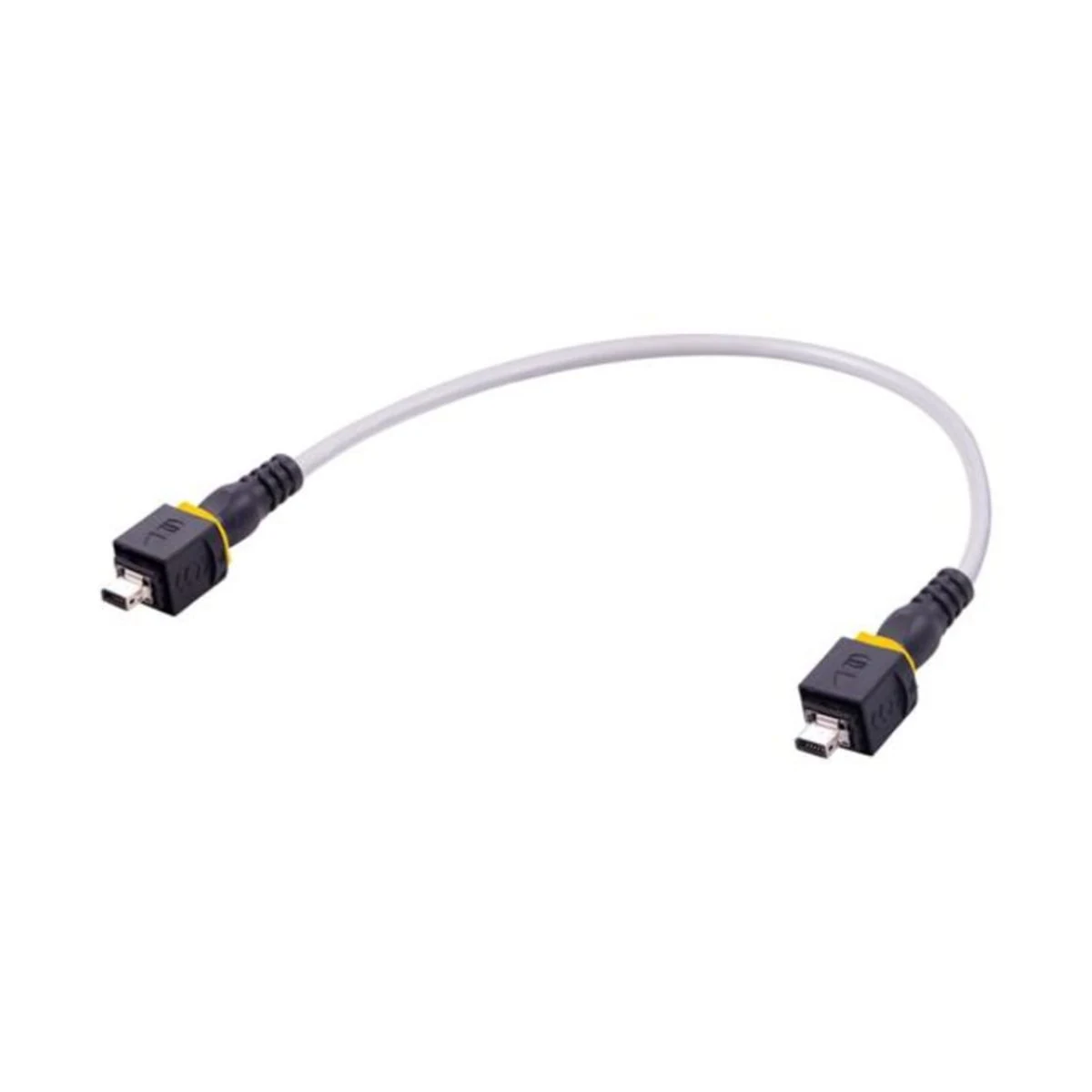

IX Double-Ended Network HarnessIX接口双端网络线束
This IX double-ended lead organizes an equipment data connection through compact rectangular interfaces, a short patch section and supported cable exits. Confirm pin mapping, cable construction, rate and installation requirements from project data.这款IX双端连接线以紧凑矩形接口、短段跳接线身和端头出口组织设备数据连接。实际针脚、线缆结构、速率与安装要求依据项目资料确认。
- IX rectangular data interfacesIX矩形数据接口
- Short two-ended patch layout双端短跳接布局
- Black cable exits and light-colored jacket黑色端头出口与浅色线身
CONSTRUCTION结构解析
Connection structure and design details连接结构与设计要点
Use the ix double-ended network harness form as a starting point and confirm these design points against drawings and the actual equipment.以IX接口双端网络线束的结构形式为起点，结合图纸和实际设备确认以下设计要点。
Short two-ended patch layout双端短跳接布局
A short cable section joins both ends. Arrange patch length and bends around adjacent equipment or module positions.两端由短段线缆连接，可围绕相邻设备或模块位置安排跳接长度和弯曲。
Black cable exits and light-colored jacket黑色端头出口与浅色线身
Black connector exits meet a light-colored jacket. Plan fixing points and bend starts from the clearance behind each interface.黑色端头出口连接浅色护套线身，固定点和弯曲起点可按接口后方空间规划。
CONFIGURATION结构与选配
Construction & customization options结构与定制配置
The table describes the construction and available configuration choices. Materials, dimensions, circuits and inspection requirements are agreed for each project.以下说明展示结构与可配置内容。具体材料、尺寸、电路和检验要求按项目确认。
| Both interfaces and complete part numbers两端接口与完整料号 | Define the full family, orientation and mating parts for both ends, such as RJ45, IX or M12. A brand name does not define the interface.明确RJ45、IX或M12等两端接口的完整系列、方向与对插件，不以品牌名称替代接口定义。 |
|---|---|
| Pins, pairs and signal definition针脚、线对与信号定义 | Record pin and pair mapping on both sides, equipment signal requirements and the target communication rate.记录双方针脚与线对对应、设备信号要求和目标通信速率。 |
| Cable construction, length and shielding线缆结构、长度与屏蔽 | Select pairs, impedance, shielding and length for the target link. Confirm complete-assembly capability with both devices.按目标链路选配线对结构、阻抗、屏蔽及长度，完整组件能力需结合两端设备确认。 |
| Retention, cable exits and installation space锁紧、出线与安装空间 | Check latch or threaded retention, jacket diameter, exit direction and rear bend and service clearance.核对锁扣或螺纹锁紧、护套外径、出线方向及后方弯曲和维护空间。 |
| Network equipment and power boundary网络设备与供电边界 | Provide device ports, network function, a pin map, length and installation environment. Define circuits and validation separately if PoE or another power function is required.提供设备端口、网络用途、针脚表、线长和敷设环境。若要求PoE或其他供电，需单独定义回路与验证要求。 |
| Sample and link validation样品与链路验证 | Check termination, pairs, shield path and dimensions on the first article. Validate communication performance beyond continuity against the equipment and project requirements.首件核对端接、线对、屏蔽路径及尺寸；导通以外的通信性能按设备与项目约定验证。 |
APPLICATIONS连接的应用
Application directions应用方向
These connection directions concern equipment data interfaces. Confirm fit, circuits and performance from the actual equipment data.以下连接方向围绕设备数据接口展开，实际适配、回路与性能依据具体设备资料确认。
Controllers and industrial networks控制器与工业网络
Select cable construction from controller ports, network architecture and complete interface data. Confirm protocol and rate separately.依据控制器端口、网络架构和完整接口资料选择线缆结构；协议与速率另行确认。
Cabinet and panel data extensions机柜与面板数据延伸
Arrange data interfaces, length and strain support around rear-panel space. Keep ports and latches accessible.结合面板后方空间安排数据接口、长度和应力支撑，保留端口插拔与锁扣操作位置。
Links between network equipment网络设备间布线
Organize patching and routing around equipment ports. Define both link endpoints, pair mapping and shield grounding.按设备端口组织跳接与走线，明确链路两端、线对关系和屏蔽接地要求。
Robot-peripheral data interfaces机器人外围数据接口
Plan communication connections from peripheral-module ports. Review fixed and moving sections separately; cycle life needs exact cable and test evidence.按外围模块端口安排通信连接，固定与运动段分别审核；循环寿命需要具体线缆与试验依据。
Data links within automation cells自动化单元数据连接
Plan data paths between controllers and equipment modules. Check interfaces, route length and the equipment-defined communication validation.在控制器与设备模块之间规划数据路径，核对接口、布线长度及设备规定的通信验证方法。
Equipment service and network patching设备维护与网络跳接
Check both interfaces and pin definitions when replacing leads. Set patch length and labels for the port locations and validate the complete link.维护换线时核对两端接口和针脚定义，按端口位置安排跳接长度与标签，验证完整链路。
ENGINEERING & PRODUCTION工程与制造
Adapt the connection to your equipment.围绕设备，调整连接细节。
Touched by me, better it’ll beTouched by me, better it’ll be
Custom wire harness manufacturing in China中国工厂 · 定制线束制造
Our China factory supports custom equipment data-cable assemblies through wire harness manufacturing and OEM/ODM development. Complete interface data and circuit definitions guide materials, dimensions, samples and inspections before manufacture against approved documents.Super Smile-Tech 中国工厂围绕设备数据连接组件提供定制线束制造与 OEM/ODM 支持。从完整接口资料与回路定义开始，确认物料、尺寸、样品和检验要求，再按批准文件组织制造。
Both interfaces and complete part numbers两端接口与完整料号
Define the full family, orientation and mating parts for both ends, such as RJ45, IX or M12. A brand name does not define the interface.明确RJ45、IX或M12等两端接口的完整系列、方向与对插件，不以品牌名称替代接口定义。
Cable construction, length and shielding线缆结构、长度与屏蔽
Select pairs, impedance, shielding and length for the target link. Confirm complete-assembly capability with both devices.按目标链路选配线对结构、阻抗、屏蔽及长度，完整组件能力需结合两端设备确认。
Sample and link validation样品与链路验证
Check termination, pairs, shield path and dimensions on the first article. Validate communication performance beyond continuity against the equipment and project requirements.首件核对端接、线对、屏蔽路径及尺寸；导通以外的通信性能按设备与项目约定验证。
PRODUCT QUESTIONS产品问答
Product & customization questions产品与定制常见问题
Does a matching interface shape guarantee data compatibility?接口外形相同就能保证数据兼容吗？
No. Confirm the full family, pin and pair mapping, equipment communication, cable construction and actual link requirements.不能。还需确认完整系列、针脚与线对、设备通信方式、线缆结构和实际链路要求。
Does continuity acceptance establish network performance?导通合格是否代表网络通信性能合格？
No. Pairs, termination, impedance, shielding, length and both devices affect communication and need appropriate link validation.不能。通信还受线对结构、端接、阻抗、屏蔽、长度和两端设备影响，需要相应链路验证。
Does an RJ45 or M12 interface establish PoE capability?有RJ45或M12接口就可以承载PoE吗？
No. Confirm the power function, pin allocation, conductor and contact limits, temperature rise and equipment compatibility separately.不能。供电功能、针脚分配、导体与接点能力、温升及整机兼容需另行确认。
Start with your interface and installation requirements从您的接口与安装需求开始
Share mating interfaces, a circuit table, target lengths or a sample for the ix double-ended network harness. We can use them to review configuration and sample requirements.提供IX接口双端网络线束的对插接口、回路表、目标长度或参考样品，我们据此梳理选配与样品确认事项。
