Product type

Harting Interface Cable Project

Overview

Cable assemblies built around a specified HARTING Han interface for removable machines, control cabinets and equipment modules. The complete part references, mating half, circuit drawing and installation duty define the assembly; similarly named hoods, inserts and contacts are not automatically interchangeable.

Ask About This Product TypeFind Models & Material Part NumbersBack to Products
Harting Interface Cable Project - Connectors & Brands
01 / 11

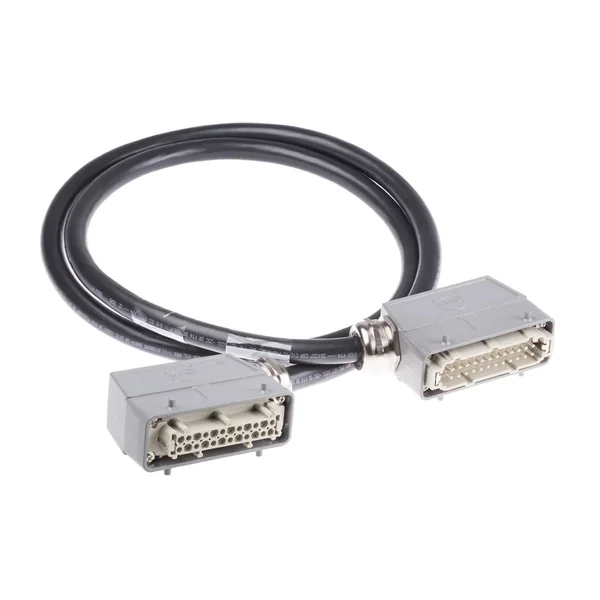

HanE24 Double-Ended Industrial Connector Harness
01
HanE24 Double-Ended Industrial Connector Harness20871461302200

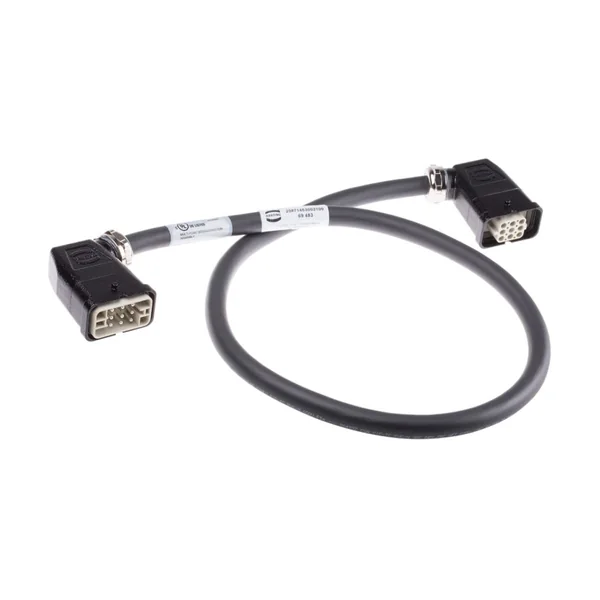

HanQ8 Double-Ended Industrial Connector Harness
02
HanQ8 Double-Ended Industrial Connector Harness20871453002100

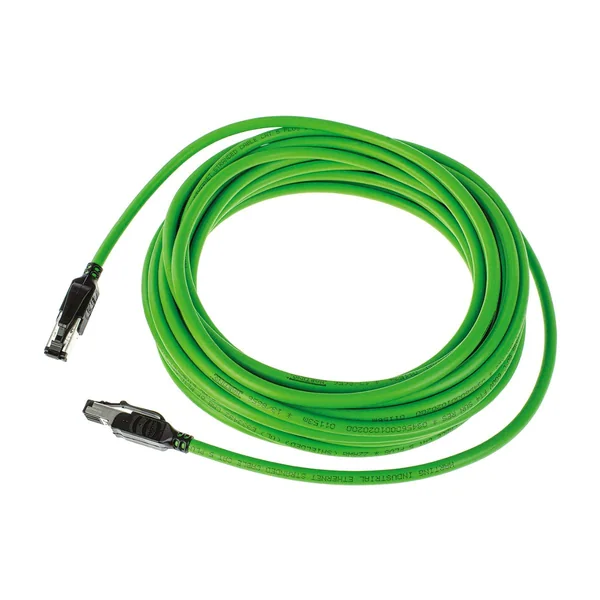

RJ45 Double-Ended Network Harness
03
RJ45 Double-Ended Network Harness09457711151

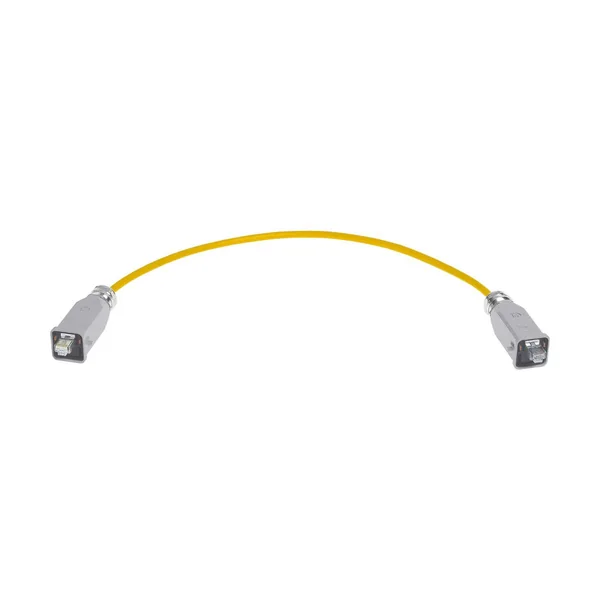

Rectangular Metal Connector Data Harness
04
Rectangular Metal Connector Data Harness09457151523

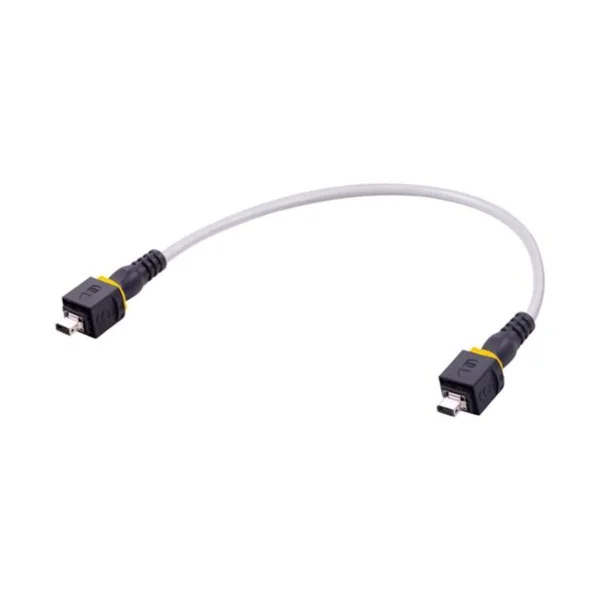

IX Double-Ended Network Harness
05
IX Double-Ended Network Harness33483535A21100

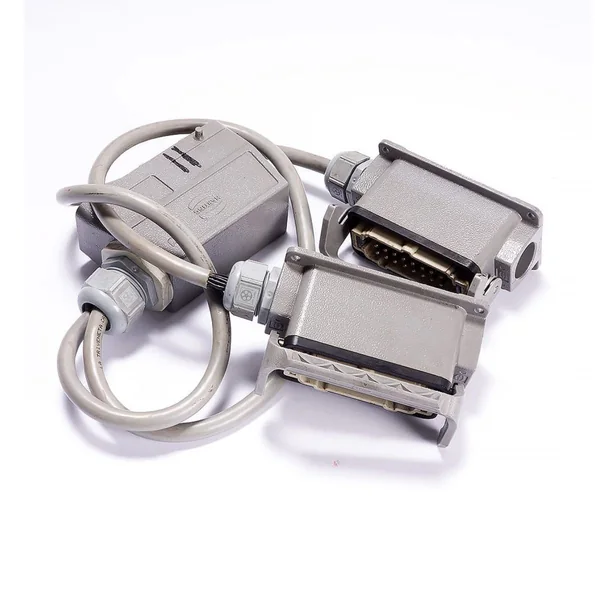

Industrial Rectangular Metal Connector Y-Branch Harness
06
Industrial Rectangular Metal Connector Y-Branch Harness
Han16B Rectangular Connector to 4-Way Circular Socket Harness
07
Han16B Rectangular Connector to 4-Way Circular Socket Harness

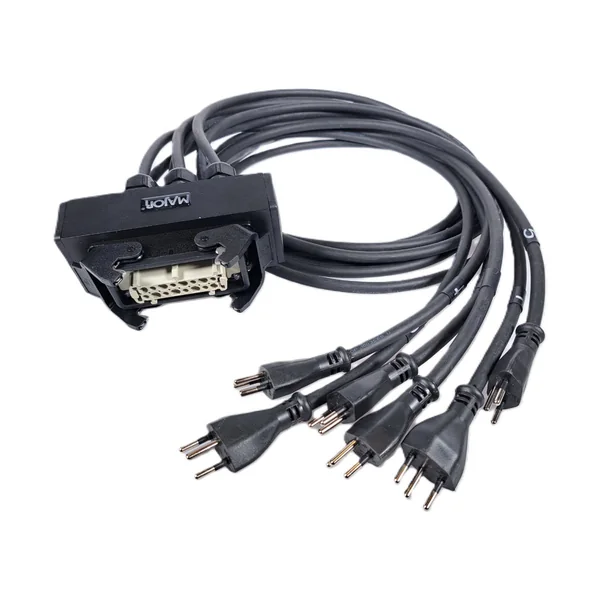

Rectangular Connector to 6-Way T12 Power Harness
08
Rectangular Connector to 6-Way T12 Power Harness4000161

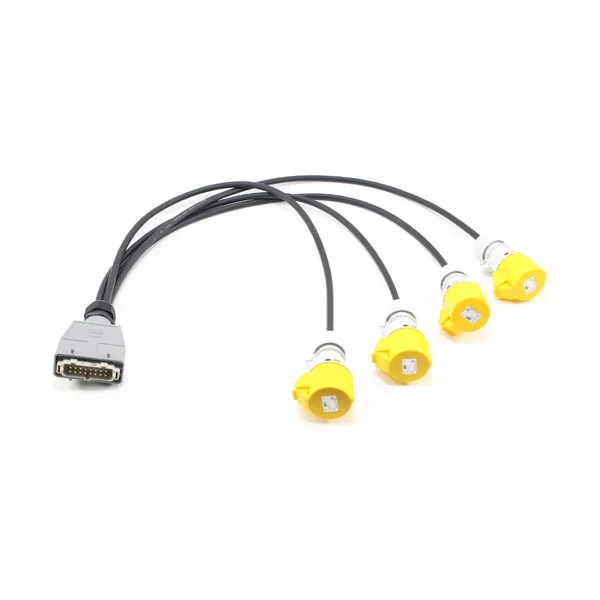

Industrial Rectangular Connector to 4-Way CEE Socket Harness
09
Industrial Rectangular Connector to 4-Way CEE Socket Harness

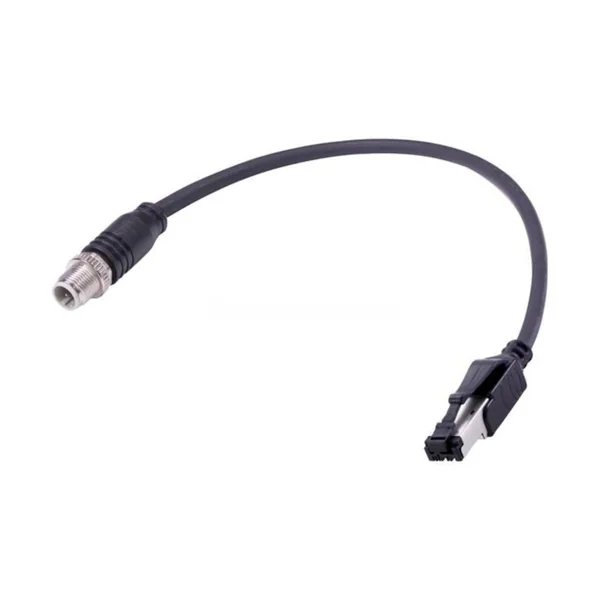

M12 to RJ45 Network Harness
10
M12 to RJ45 Network Harness09480222011040

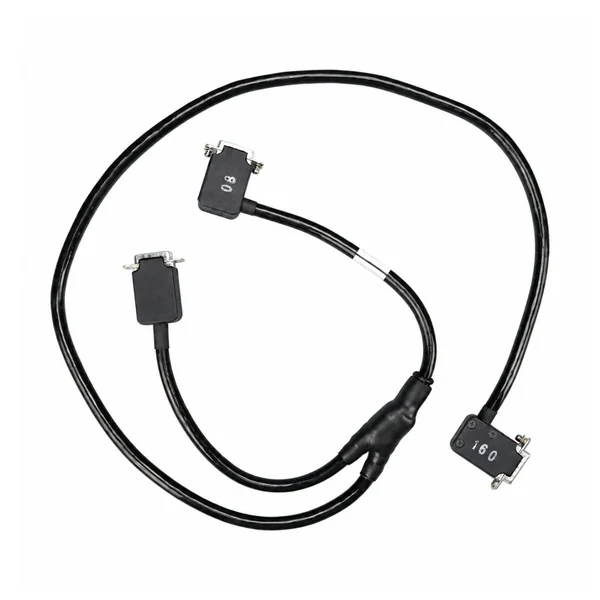

Rectangular Metal Connector 3-Way System Harness
11
Rectangular Metal Connector 3-Way System Harness
HOOD / INSERT / CONTACT / CABLE

A Han interface is a system, not just a plug

Start at the equipment boundary: which side stays fixed, which side disconnects, and where power, control and data circuits go. Then specify hood, base, insert or modules, contacts, seals and locks from the manufacturer's documentation. Images illustrate related structures and contexts; only part-number-verified components form a project configuration.

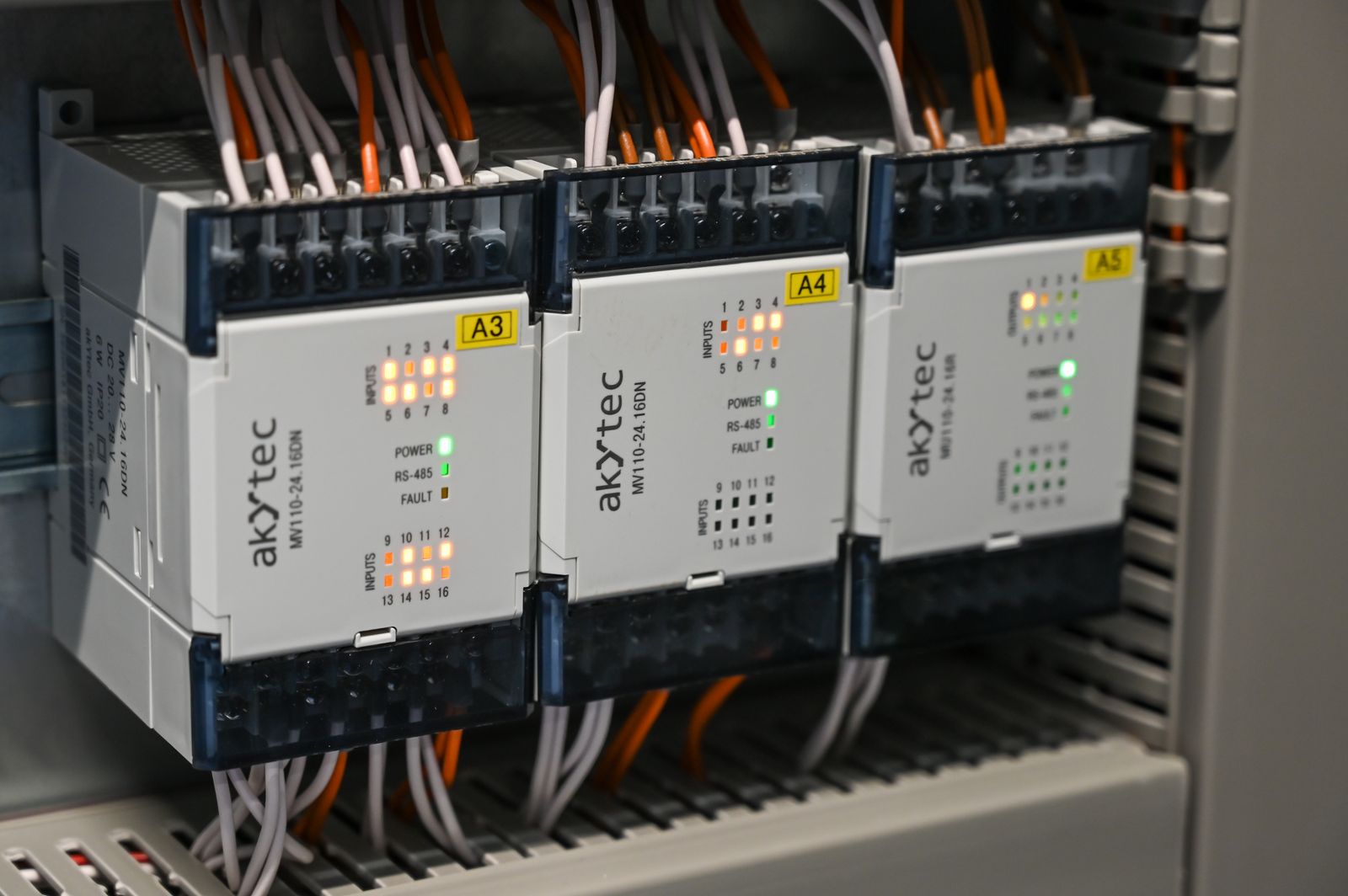

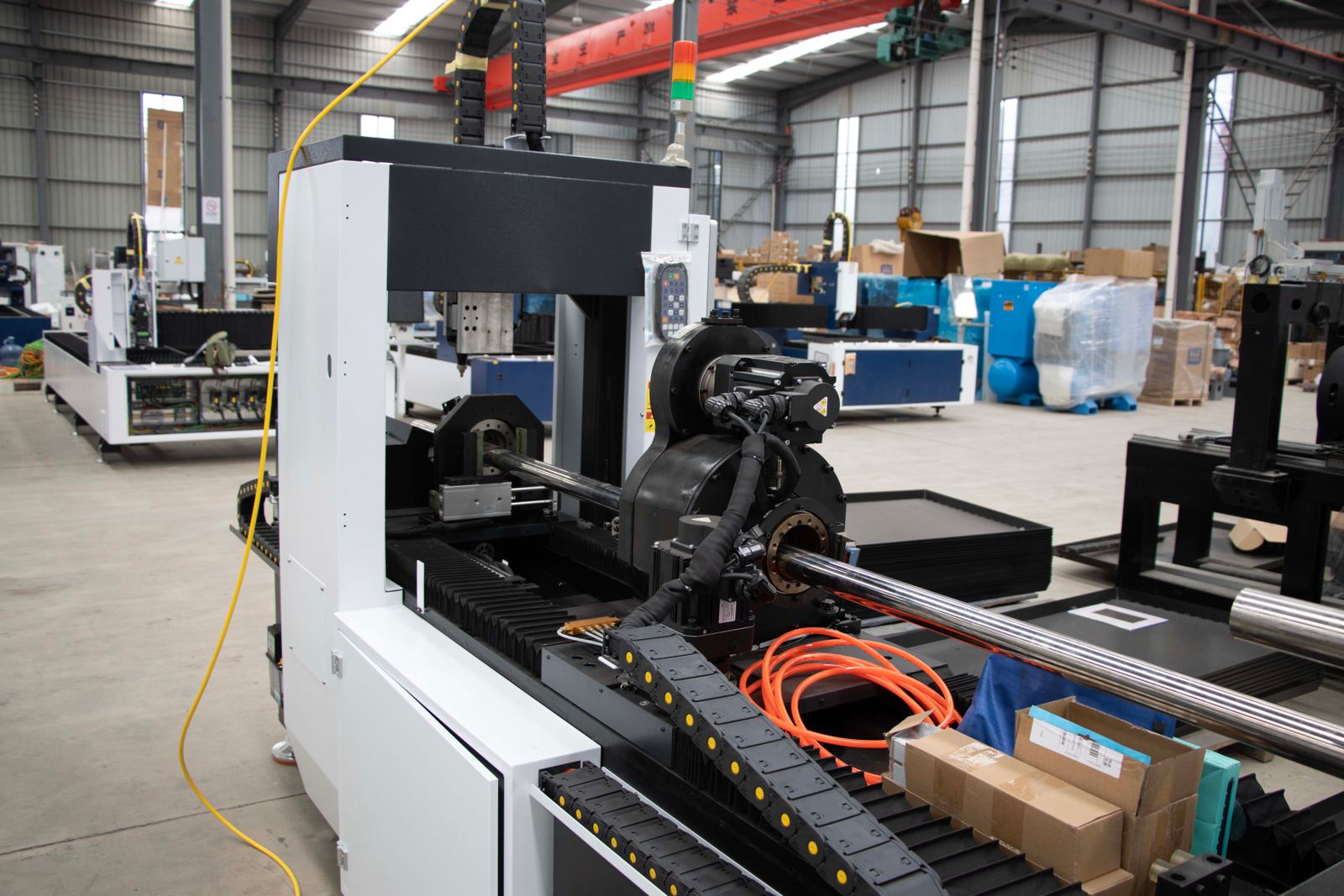

Harting Interface Cable Project industrial control wiring context
01

Interface architecture and modules

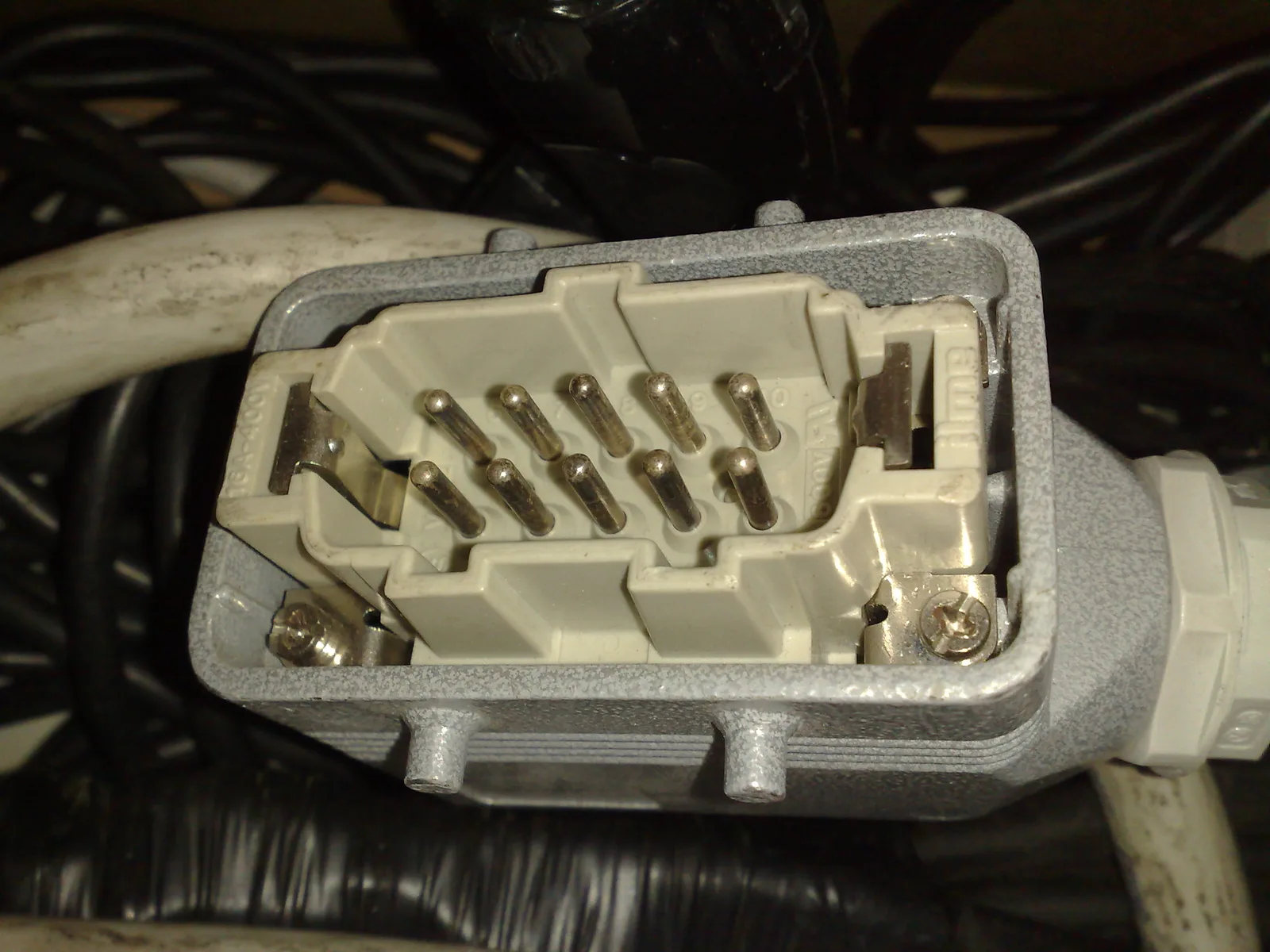

HOOD & MATING

Specify the complete hood, housing and latch combination

Specify the complete hood, housing and latch combination

A rectangular heavy-duty interface works as a system of cable hood, equipment housing, insert, locking hardware and cable entry. The same housing size does not guarantee the same latch position, exit direction, mounting holes or protection level. Check full part references and mating-face views on both sides; document top/side entry, single/double latch and mounting and service clearances. The pictured ten-pole connector is a generic real-world example, not a HARTING product or a Super Smile shipment.

Label fixed and removable sides

Show which half mounts to the panel and which travels with the cable.

Treat latch and entry as parts

“Han plug” alone is not a buildable purchase specification.

INSERT OR MODULES

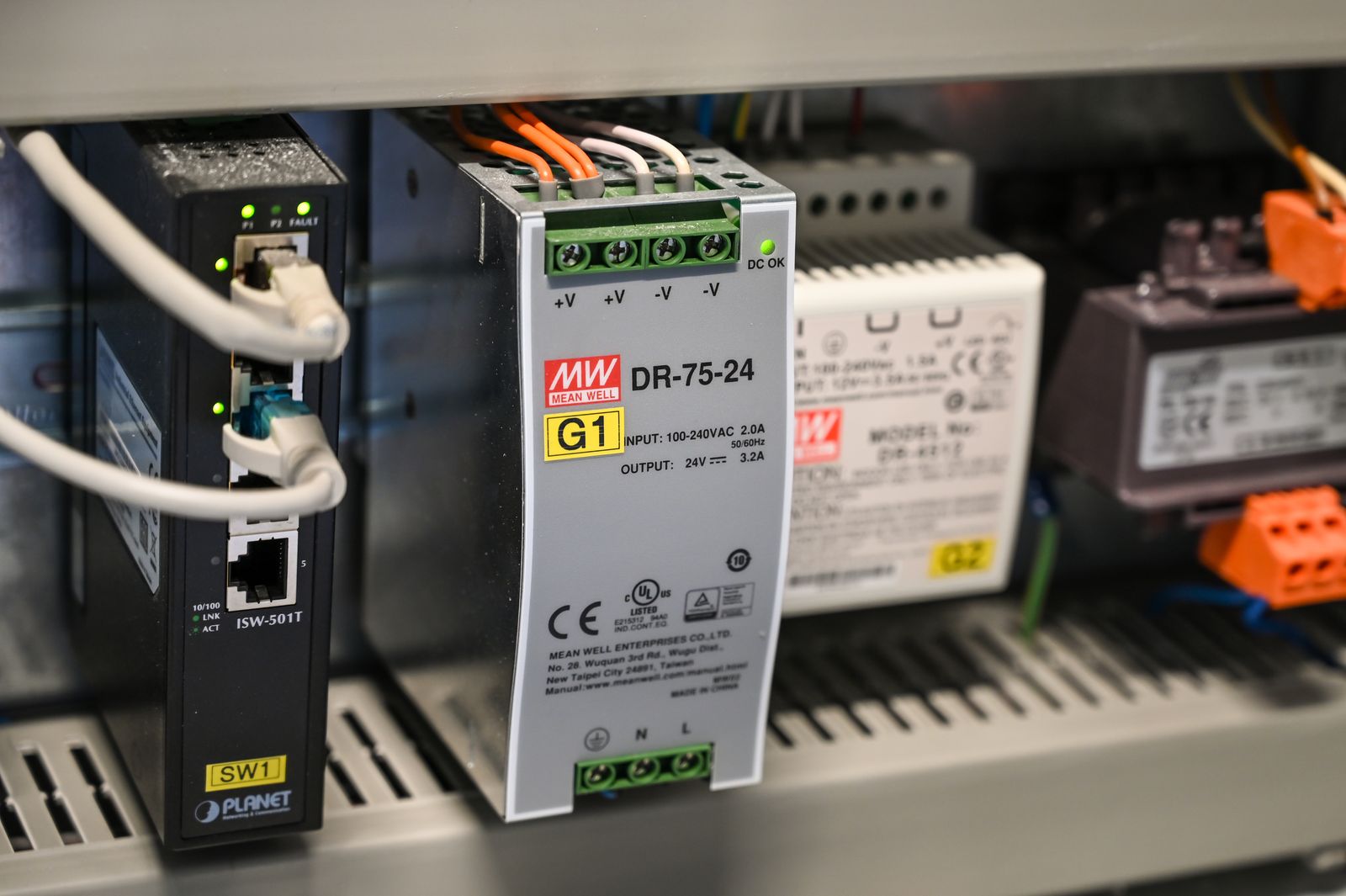

A monobloc insert is not a visual substitute for Han-Modular

A monobloc insert is not a visual substitute for Han-Modular

Han E, Han D, Han DD and Han-Modular follow different configuration paths. A modular system can arrange power, signal or data in approved frame-and-module combinations, but each module has its own contact form, position, wire range and rating. The pictured controls show coexisting equipment circuits, not Han modules. Group circuits by load, separation and signal integrity first; then select inserts or modules using the manufacturer's configuration, size and rating data. A common hood alone does not authorize a mixed build.

Circuit first, module second

Review power, control, data and shielding separately.

Make service traceable

Map frame positions and module references to the drawing.

02

Termination, cable entry and protection

WIRE PREPARATION

Cutting, termination and contact retention are separate checks

Cutting, termination and contact retention are separate checks

Choose conductor cross-section, strip length and method from the approved contact and wire range. Han variants use different crimp, screw or spring-cage terminations; tooling and instructions cannot be copied across contacts. The cutting photo illustrates preparation only, not a crimp or project inspection record. After termination, check exposed conductor, insulation position, full contact seating and retention during mating. Continuity cannot replace a termination-quality or retention check.

Specify termination method

Match contact number, tool and conductor range.

Record checks separately

Visual, retention and electrical checks need distinct criteria.

ENTRY & SEAL

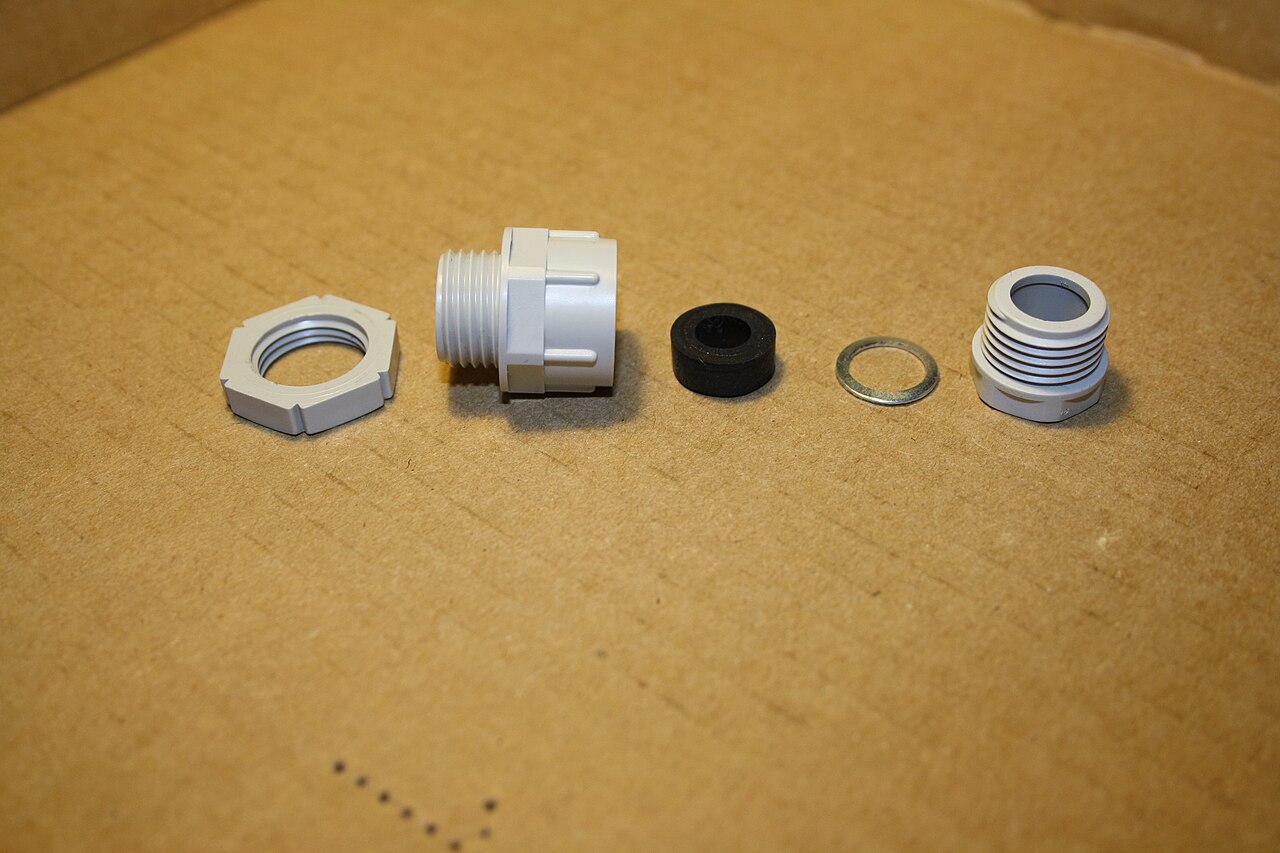

Match gland, jacket and bend relief to the cable

Match gland, jacket and bend relief to the cable

Housing protection cannot be assessed apart from cable entry and mated condition. The selected gland's clamping range must match the actual jacket diameter; seals and jacket must suit the installation, oil, dust, cleaning and temperature exposure. The photo shows a disassembled generic cable gland and seal, not specified Han parts. For a movable module, document fixing points, bend radius, pull risk and service loop so the latch and contacts do not become strain-relief devices.

Measure the actual jacket

Nominal conductor size does not set gland clamping diameter.

Assess the complete assembly

Check hood, seal, entry and mating half together.

03

Installation and first-article release

EQUIPMENT BOUNDARY

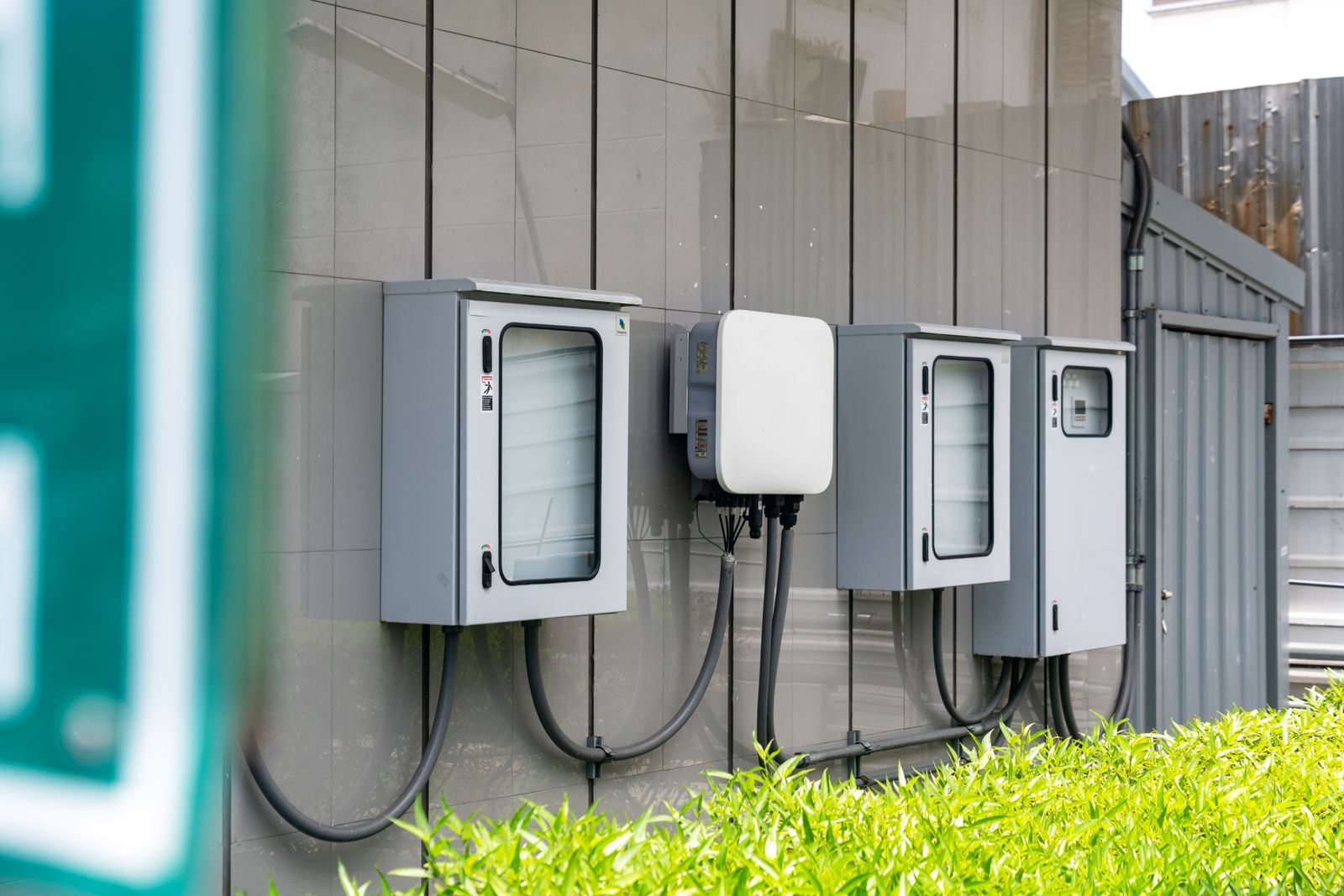

Removable machines and enclosures need different routing

Removable machines and enclosures need different routing

A Han interface may sit at the boundary between a removable module and fixed wiring, but the position determines the cable design. Machine modules require mating access, latch operation, movement allowance and mis-mating prevention; enclosures and outdoor equipment add cable-entry direction, water path, support and service access. The image is a generic outdoor electrical-box context, not evidence of HARTING use. Ask the customer to mark the fixed half, mating direction, cable support and worst-case service position before setting length and exit angle.

Orientation before length

More cable cannot correct a conflicting exit direction.

Check removal path

Allow operating room for both latch and cable.

FIRST-ARTICLE REVIEW

Inspect against the approved mating half, not a cable alone

Inspect against the approved mating half, not a cable alone

A used sample helps identify size and cable exit, but may hide substituted inserts or field repairs. Check the first article against the approved BOM and circuit drawing: module position, pins, wire IDs, contact seating, latch closure, cable-entry retention, length and continuity; mate with the approved opposite half when available. The image is general equipment-inspection context, not a test record for this product. Insulation, dielectric, ingress or vibration validation needs explicitly agreed methods, samples and acceptance values; it cannot be inferred from a continuity pass.

Freeze both connector halves

Trace hood, insert, contacts and mating revisions.

Keep claims within the test

Continuity is not ingress protection or equipment certification.

Harting interface questions

Is the Han housing size enough to specify a cable?

No. Confirm both hoods and housings, insert or modules, contacts, latches, cable entry, pinout and cable specification.

Can Han-Modular directly replace a monobloc insert?

Not by size alone. The frame, cavities, contacts, load and separation conditions need a new engineering review and customer approval.

Does the hood's IP marking rate the entire cable assembly?

No. Actual protection depends on the specified housing, seals, gland, cable diameter, assembly and properly mated condition; confirm the project claim against exact data and tests.

Can one interface carry power and data?

Han-Modular offers combination paths, but a mixed build depends on approved modules, spacing, ratings, shielding and the project's electrical-separation requirements.

What information matters most for a quotation?

Send complete part references or clear mating-face photos of both halves, pin map, loads, wire and length, exit direction, environment, quantity and acceptance criteria. If references are unresolved, start with an interface review rather than promising compatibility.

Image sources and licenses

PART NUMBER / INTERFACE / MATERIAL

Models, Part Numbers & Sourcing

Find a cable model or material part number, then send it for a custom replacement or original-part sourcing review.

Back to Top ↑

481 references · Search by brand or part number

Cable & Harness Models

Finished cable and harness references for this interface or application.

  • HARTING

    21 34 929 2405 005

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 28 010 1001 005

    T1 Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4805 002

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5585 003

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7743 003

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 2405 010

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 28 010 1001 010

    T1 Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4805 003

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5585 004

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7743 005

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 2405 015

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 28 010 1001 020

    T1 Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4805 004

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5585 005

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7743 010

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 2405 020

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 28 010 1001 030

    T1 Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4805 005

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5585 010

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7743 020

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 2405 050

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 28 010 1001 050

    T1 Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4805 007

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5585 020

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7743 030

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 2405 075

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 28 010 1001 075

    T1 Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4805 010

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5585 030

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7743 050

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 2405 100

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 28 010 1001 100

    T1 Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4805 015

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5585 050

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7743 060

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 3405 005

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 28 010 1001 150

    T1 Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4805 020

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5585 075

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7743 070

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 3405 010

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 28 010 1001 200

    T1 Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4805 025

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5585 100

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7743 100

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 3405 015

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4805 030

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5585 150

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7743 120

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 3405 020

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4805 050

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5585 200

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7743 150

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 3405 050

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4805 075

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5586 003

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7743 200

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 3405 075

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4805 100

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5586 004

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7743 250

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 3405 100

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4804 002

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5586 005

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7743 300

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 920 0405 005

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4804 003

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5586 010

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7743 350

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 920 0405 010

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4804 004

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5586 020

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7743 400

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 920 0405 015

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4804 005

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5586 030

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7744 003

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 920 0405 020

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4804 007

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5586 050

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7744 005

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 920 0405 050

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4804 010

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5586 075

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7744 010

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 920 0405 075

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4804 015

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5586 100

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7744 020

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 920 0405 100

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4804 020

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5586 150

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7744 030

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 930 0405 005

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4804 025

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5586 200

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7744 050

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 930 0405 010

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4804 030

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5587 003

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7744 070

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 930 0405 015

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4804 050

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5587 004

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7744 100

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 930 0405 020

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4804 075

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5587 005

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7744 140

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 930 0405 050

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    33 48 343 4804 100

    Mini PushPull ix Industrial cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5587 010

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7744 150

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 930 0405 075

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5587 020

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7744 200

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 930 0405 100

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5587 030

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7744 250

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 949 4405 005

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5587 050

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7744 300

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 949 4405 010

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5587 075

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7744 350

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 949 4405 015

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5587 100

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 474 7744 400

    DualBoot RJ45 cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 949 4405 020

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5587 150

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 949 4405 050

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5587 200

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 949 4405 075

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5588 003

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 949 4405 100

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5588 004

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 2477 005

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5588 005

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 2477 010

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5588 010

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 2477 015

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5588 020

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 2477 020

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5588 030

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 2477 050

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5588 050

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 2477 075

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5588 075

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 2477 100

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5588 100

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 3477 005

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5588 150

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 3477 010

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5588 200

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 3477 015

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5589 003

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 3477 020

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5589 004

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 3477 050

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5589 005

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 3477 075

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5589 010

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 929 3477 100

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5589 020

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 920 0477 005

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5589 030

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 920 0477 010

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5589 050

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 920 0477 015

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5589 075

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 920 0477 020

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5589 100

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 920 0477 050

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5589 150

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 920 0477 075

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 5589 200

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 920 0477 100

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7585 003

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 930 0477 005

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7585 004

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 930 0477 010

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7585 005

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 930 0477 015

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7585 010

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 930 0477 020

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7585 020

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 930 0477 050

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7585 030

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 930 0477 075

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7585 050

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 930 0477 100

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7585 075

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 949 4477 005

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7585 100

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 949 4477 010

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7585 150

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 949 4477 015

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7585 200

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 949 4477 020

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7586 003

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 949 4477 050

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7586 004

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 949 4477 075

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7586 005

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    21 34 949 4477 100

    M12 Ethernet cord assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7586 010

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7586 020

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7586 030

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7586 050

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7586 075

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7586 100

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7586 150

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7586 200

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7587 003

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7587 004

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7587 005

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7587 010

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7587 020

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7587 030

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7587 050

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7587 075

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7587 100

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7587 150

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7587 200

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7588 003

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7588 004

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7588 005

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7588 010

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7588 020

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7588 030

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7588 050

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7588 075

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7588 100

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7588 150

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7588 200

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7589 003

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7589 004

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7589 005

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7589 010

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7589 020

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7589 030

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7589 050

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7589 075

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7589 100

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7589 150

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 48 858 7589 200

    RJ45 PushPull cable assembly

    Custom compatible replacements · Original-parts sourcing

Connector & Material Part Numbers

Connector, wire and process-material references for project selection.

  • HARTING

    09 93 001 0501

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 06 264 2833

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 93 001 0502

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 06 264 2834

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 93 000 6262

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 06 264 6833

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 93 000 6263

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 06 264 6834

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 93 000 6264

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 45 281 2800

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 93 001 0101

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 45 181 2800

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 93 001 0102

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 45 281 2560

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 93 001 0301

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 45 281 2561

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 93 001 0302

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 45 281 2562

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 93 001 0303

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 45 281 9000

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 93 001 0304

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 45 281 9001

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 16 055 2001

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 45 281 9002

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 16 055 2101

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 45 181 2560

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 16 075 2001

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 45 181 2561

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 16 075 2101

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 45 181 2562

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 16 107 2001

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 45 181 9000

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 16 107 2101

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 45 181 9001

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6104

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 45 181 9002

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6103

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 51 521 0001

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6105

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 51 221 0001

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6102

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 51 221 0002

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6101

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 51 121 0001

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6106

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 51 121 0003

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6204

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 51 121 0002

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6203

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 51 121 0004

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6205

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 51 800 0002

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6202

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 51 800 0003

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6201

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 35 229 0401

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6206

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 35 229 0402

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6124

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 35 229 0403

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6123

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 35 220 0401

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6125

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 35 220 0402

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6122

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 35 220 0403

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6121

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 45 151 1140

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6126

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 45 151 1141

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6224

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 45 151 1142

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6223

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 45 151 1570

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6225

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 45 151 1571

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6222

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 45 151 1572

    HARTING interface connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6221

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 000 6226

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 38 012 3002

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 38 012 3102

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6121

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6114

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6105

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6104

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6102

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6107

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6220

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6214

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6205

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6204

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6202

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6207

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6122

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6115

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6118

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6116

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6123

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6119

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6222

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6215

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6218

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6216

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6223

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6221

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6109

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6110

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 6114

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 6116

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 6125

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 6214

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 6216

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 6225

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 12 000 9922

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 001 3003

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 001 3103

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 6150

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 6120

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 6121

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 6122

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 6123

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 6250

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 6220

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 6221

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 6222

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 6223

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 7120

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 7121

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 7122

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 7123

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 001 3004

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 001 3104

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 7536

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 7537

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 6636

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 6637

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 036 3002

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 036 3102

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 027 3021

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 027 3121

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 027 3022

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 027 3122

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 000 9809

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 67 000 7576

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 67 000 5576

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 67 000 8576

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 67 000 7476

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 67 000 5476

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 67 000 8476

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 006 3021

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 006 3121

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6127

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6106

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6227

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6206

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6117

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 000 6217

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 000 9807

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 000 9808

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 001 3031

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 6112

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 000 6113

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 001 3072

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 001 3073

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 001 3172

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 001 3173

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 001 2632

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 001 2732

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 31 006 3001

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 31 006 3101

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 31 000 6104

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 31 000 6105

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 31 000 6101

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 31 000 6102

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 31 000 6103

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 31 000 6204

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 31 000 6205

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 31 000 6201

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 31 000 6202

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 31 000 6203

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    39 50 001 0452

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    39 50 001 0454

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 503 0102

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 15 513 0102

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 032 2601

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 33 032 2701

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 30 132 0428

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 30 132 0429

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 30 132 0528

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 30 132 0301

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 30 132 0271

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 30 132 0272

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 30 132 0728

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 30 132 0441

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 30 132 0449

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 30 132 0541

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 30 132 0304

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 30 132 0307

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 30 132 0275

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 30 132 0276

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 30 132 2275

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 30 132 2276

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 30 132 0738

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 032 0361

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 14 032 0371

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 62 806 2301

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 62 810 2305

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 62 810 2301

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 62 816 2301

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 62 824 2301

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 62 816 2303

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 62 824 2306

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 40 006 0391

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 40 010 0391

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 40 016 0391

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 40 024 0391

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 40 016 0442

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 40 016 0443

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 40 016 0552

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 40 016 0553

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 40 016 0371

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 016 9933

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 016 9934

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 40 024 0442

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 40 024 0443

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 40 024 0552

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    19 40 024 0553

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 40 024 0371

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 024 9933

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 11 024 9934

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 40 000 9811

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 40 000 9812

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 40 000 9906

    Han connector component

    Custom compatible replacements · Original-parts sourcing

  • HARTING

    09 40 000 9907

    Han connector component

    Custom compatible replacements · Original-parts sourcing

Configuration & Project Review

01 Interface & Application

Han is a family of rectangular industrial connectors, not one fixed pinout. A configuration may include hood, housing, monobloc insert or Han-Modular frame, power/signal/data modules, contacts, latches and cable entry. Electrical and environmental performance belongs to the specified complete assembly and its installation conditions.

02 Project Inputs

For quotation, provide the Han series and housing size; part numbers for each hood, base, insert or module and contact; mating-face view, pin and circuit map, load and voltage, conductors and jacket, cable-exit direction, gland and latch choice, environment, quantity and acceptance criteria. Compatible work does not imply HARTING authorization or certification.

03 Release Requirements

Approved inputs become a controlled BOM, circuit drawing, termination and assembly instructions, first-article checkpoints and agreed inspections. Check insert orientation, contact position and seating, latch closure, cable-entry retention, length and continuity. IP, vibration or rated-load performance requires the exact product data and separately defined project evidence.

04 Mating & Termination

Identify the mating part number and termination method before confirming the assembly drawing.

05 Sample Review

Compare the sample with the approved pin map, dimensions and material list.

06 Build Records

Retain the approved part list and inspection results for repeat production.

Send the part number, drawing or sample to confirm the replacement configuration and sourcing plan.

PROJECT REVIEW / CUSTOM MANUFACTURING

Custom Wire Harness Manufacturing in China

Custom wire harness manufacturing from our China factory, with OEM/ODM project support.

A sample, clear connector photos or a description of the equipment and required quantity is enough to start a review.

Discuss Custom Manufacturing & Sourcing

Start with a part number, drawing, sample or equipment requirement.

Information for an accurate quotation

When available, include drawings and BOM, connector and mating part numbers, pinout, wire length and gauge, branch layout, quantity and required tests. Materials, inspection scope and delivery are confirmed for each project.
