Product type

JST Compatible Assemblies

Overview

Custom JST-interface wiring for compact electronics, sensors, equipment and lighting, with series identification, defined pinouts and application-specific materials.

Ask About This Product TypeFind Models & Material Part NumbersBack to Products

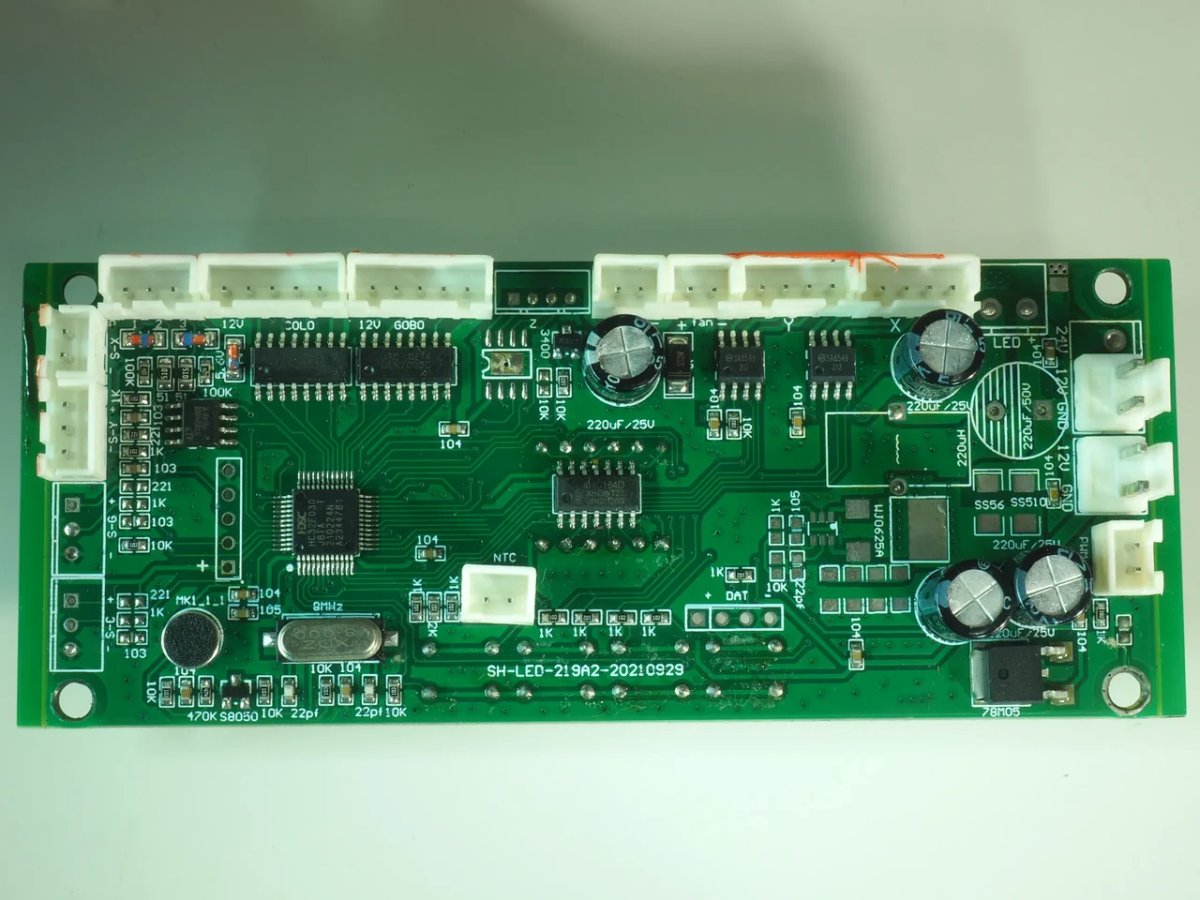

JST Compatible Assemblies application reference
01 / 11

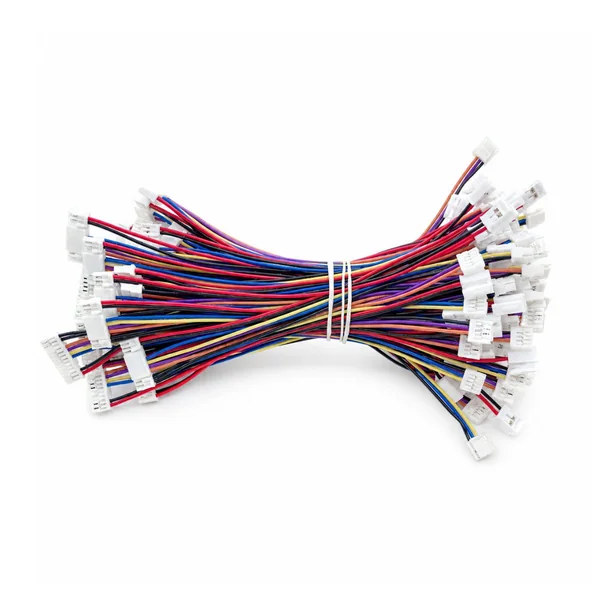

Fine-Pitch White Terminals Double-Ended Harness Set
01
Fine-Pitch White Terminals Double-Ended Harness Set
White Terminals Multi-Way Looped Harness
02
White Terminals Multi-Way Looped Harness

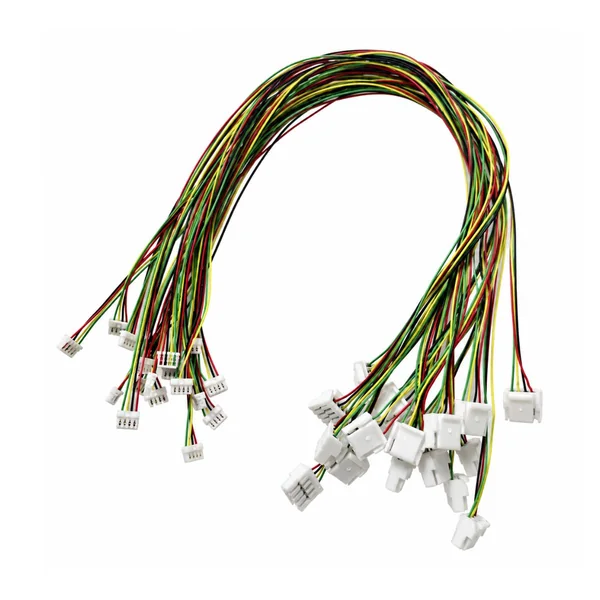

GH Fine-Pitch Multi-Core Pigtail Set
03
GH Fine-Pitch Multi-Core Pigtail Set

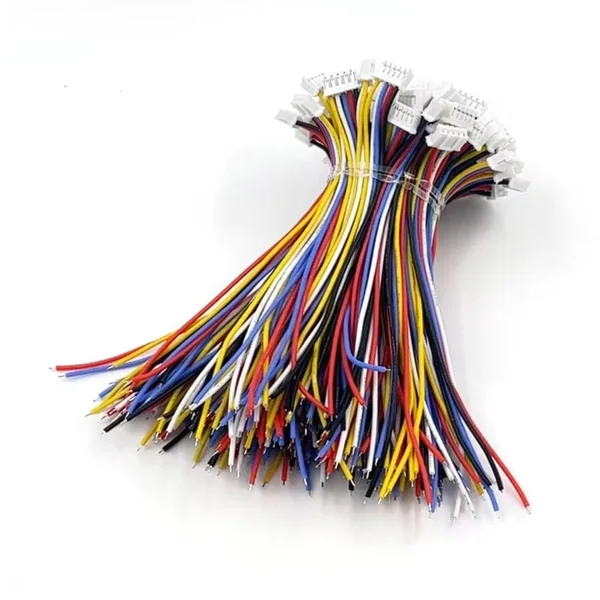

Fine-Pitch Assorted Flying-Lead Pigtail Set
04
Fine-Pitch Assorted Flying-Lead Pigtail Set

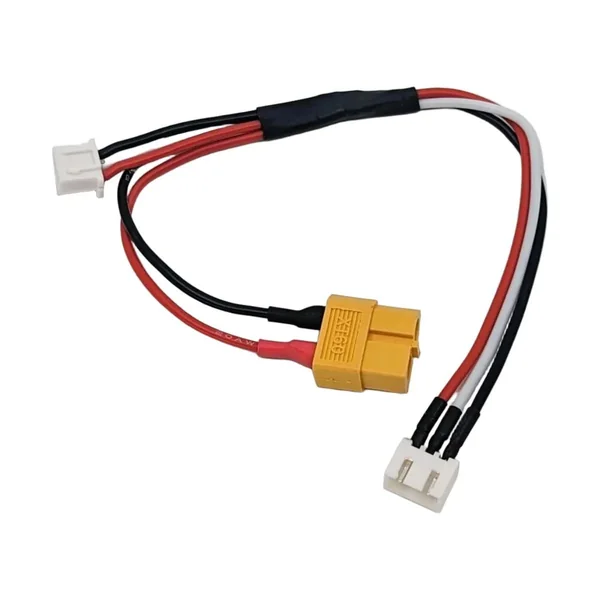

XT60 to XH Battery Balance Charging Harness
05
XT60 to XH Battery Balance Charging Harness

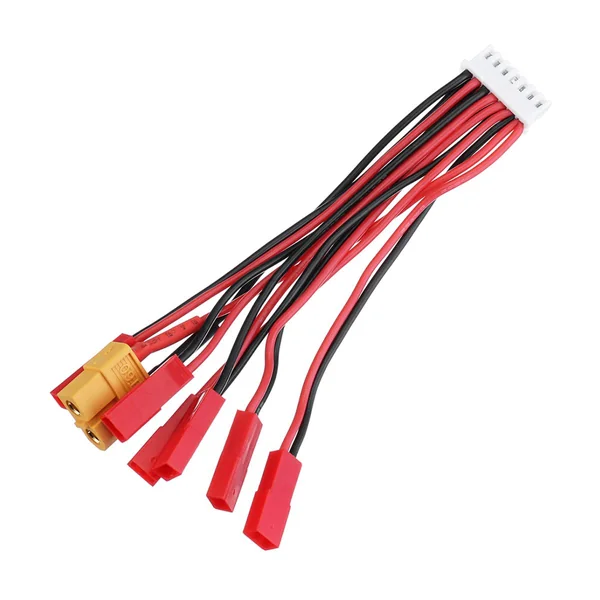

XT60 Connector Multi-Way Battery Charging Branch Harness
06
XT60 Connector Multi-Way Battery Charging Branch Harness

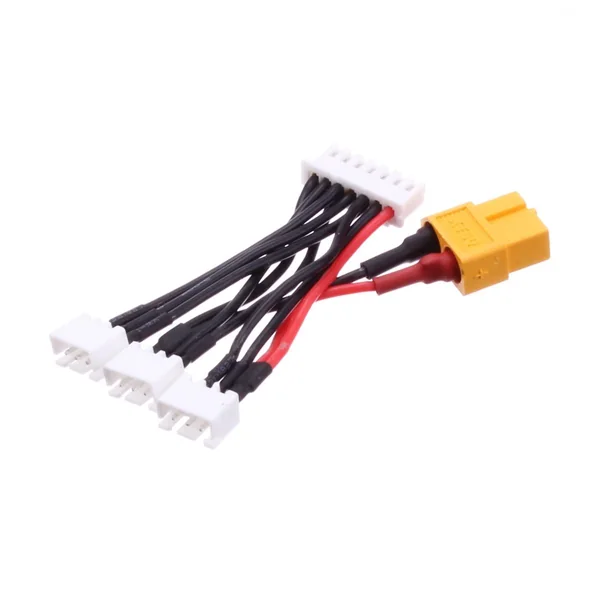

Battery Series Charging Adapter Harness
07
Battery Series Charging Adapter HarnessOSHM1060

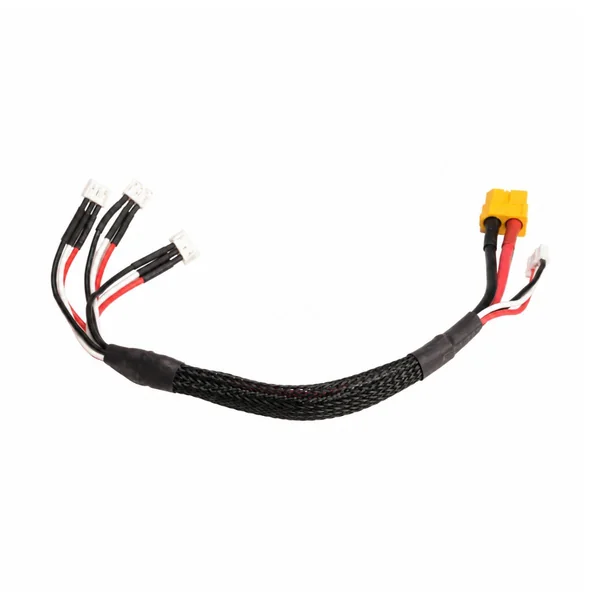

XT60 to 3-Way PH Charging Harness
08
XT60 to 3-Way PH Charging Harness

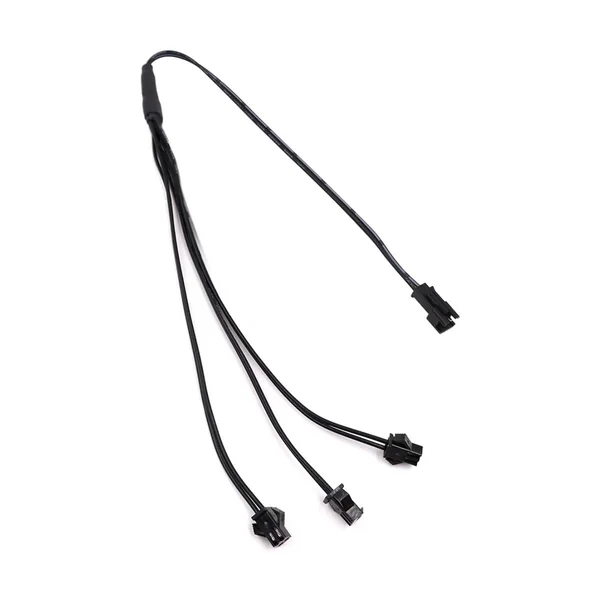

2-Pin Connector 1-to-4 Branch Harness
09
2-Pin Connector 1-to-4 Branch Harness

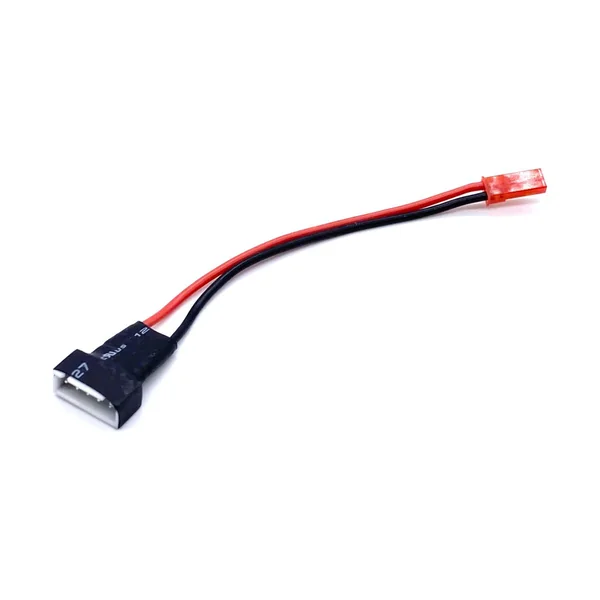

Servo to Battery Balance Connector Harness
10
Servo to Battery Balance Connector Harness

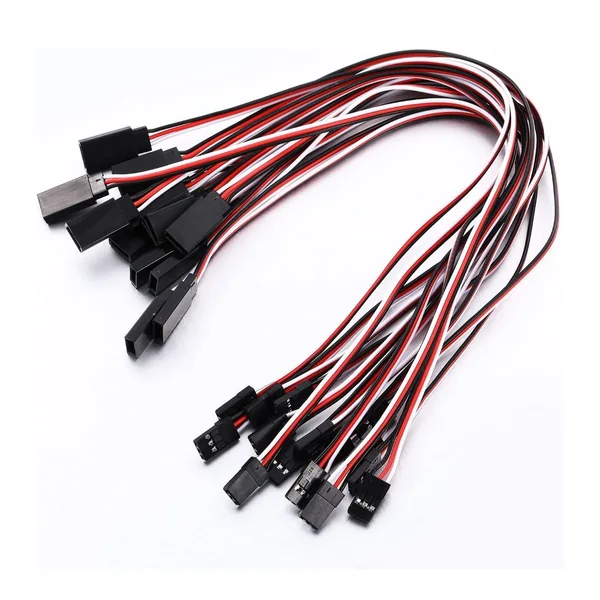

3-Pin Servo Double-Ended Extension Harness Set
11
3-Pin Servo Double-Ended Extension Harness Set

JST Harnesses · Brand and Product Overview

A JST-interface harness can be a single pre-crimped lead, a board connection, an inline extension or a multi-branch equipment assembly. Super Smile can review these configurations from your drawing, approved sample and confirmed mating references. The connector family, wire and circuit definition come before the product nickname. We distinguish specified original parts from any proposed alternative in the approved BOM; brand references do not imply endorsement or authorized distribution. The following guide explains product choices, customization, applications and the evidence needed to release a repeatable assembly.

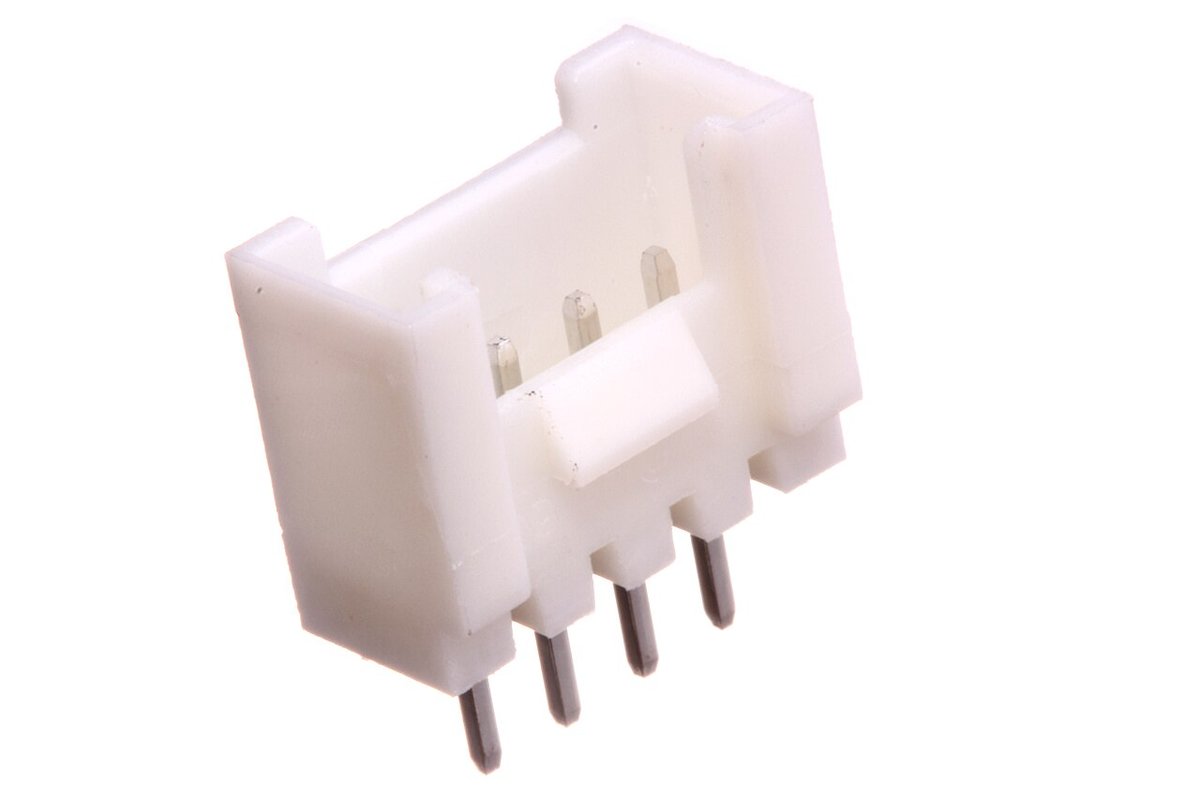

Compact interconnect reference; exact series and circuit order must be confirmed.
Compact interconnect reference; exact series and circuit order must be confirmed.

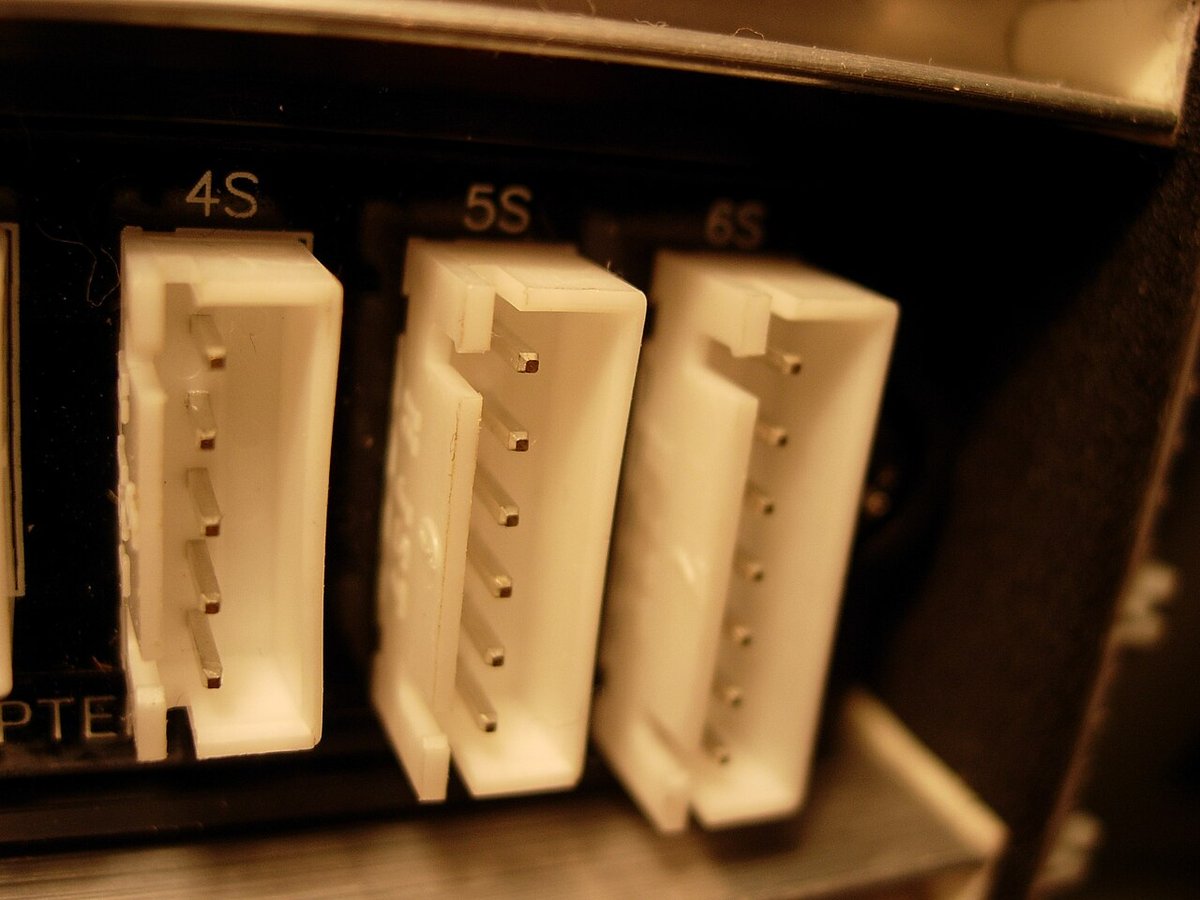

XH balance-interface example: verify pitch, cavity count and pin numbering rather than the housing color.
XH balance-interface example: verify pitch, cavity count and pin numbering rather than the housing color.

JST Connector Types

PH uses a 2.0 mm pitch, XH 2.5 mm, SH 1.0 mm, ZH 1.5 mm, GH 1.25 mm and VH 3.96 mm. These are separate systems, not size options for one interchangeable plug. Pitch is the center-to-center distance between adjacent contacts; measure several positions where possible and check the housing drawing. Identify the mating header, terminal, number of circuits and entry direction together. GH has a positive locking arrangement, while other families use different retention structures. A photograph of a white housing alone cannot confirm its manufacturer or series. Supply markings and dimensions before requesting a replacement.

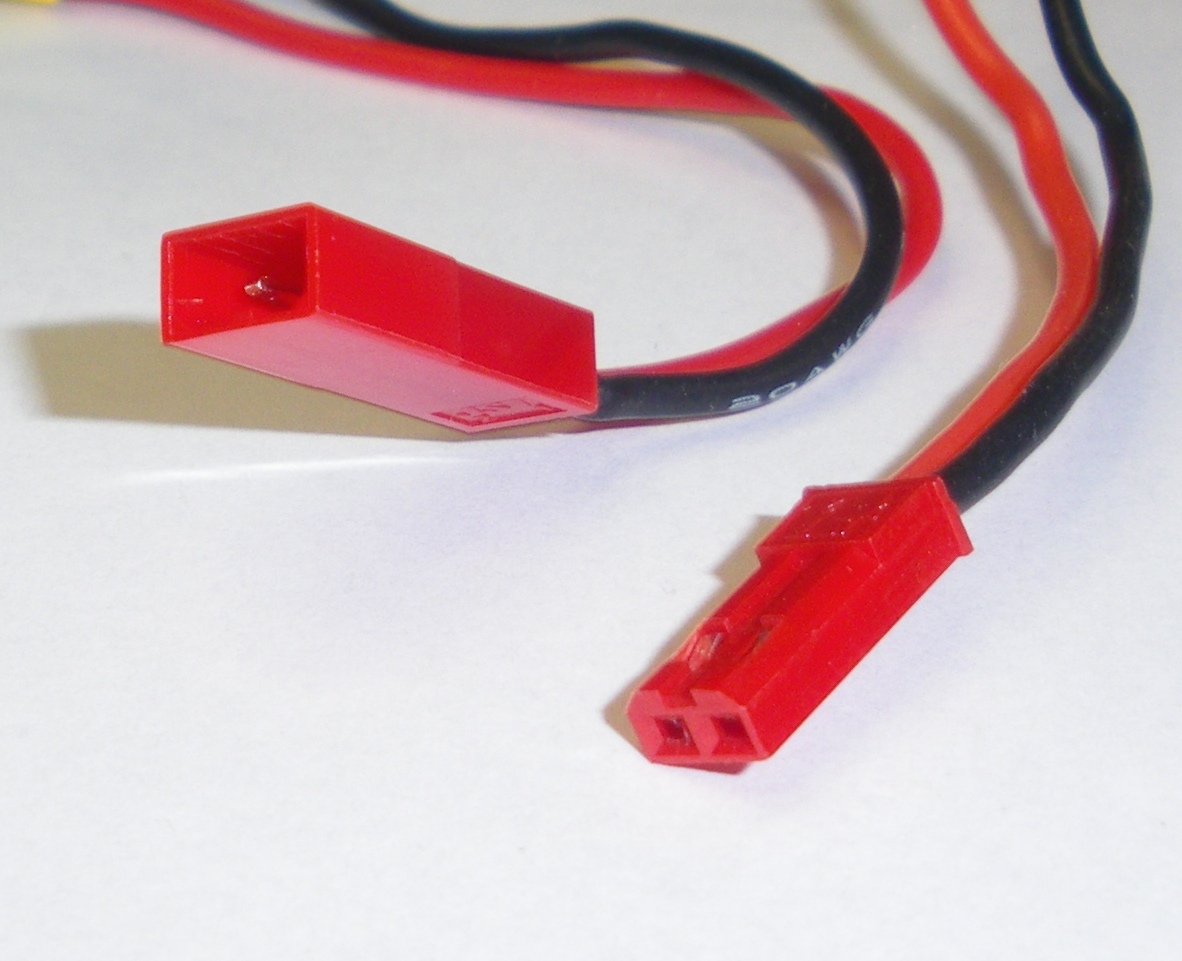

JST RCY mating leads illustrate a detachable inline pair; RCY is a different family from SM.
JST RCY mating leads illustrate a detachable inline pair; RCY is a different family from SM.

Full Product Range · Mating Harnesses

A detachable inline lead needs two compatible cable-side halves, not merely a plug described as male and another described as female. Specify housing gender separately from the pin or socket contact. JST SM is a 2.5 mm wire-to-wire system with an arm lock; its components should not be confused with PH or XH board headers. Define both ends, polarity, total length, free branch lengths and the mating view used for numbering. If a connector must pass through a panel, review the cutout and cable-installation sequence before selecting the locking arrangement. A click confirms mechanical engagement, not correct electrical polarity.

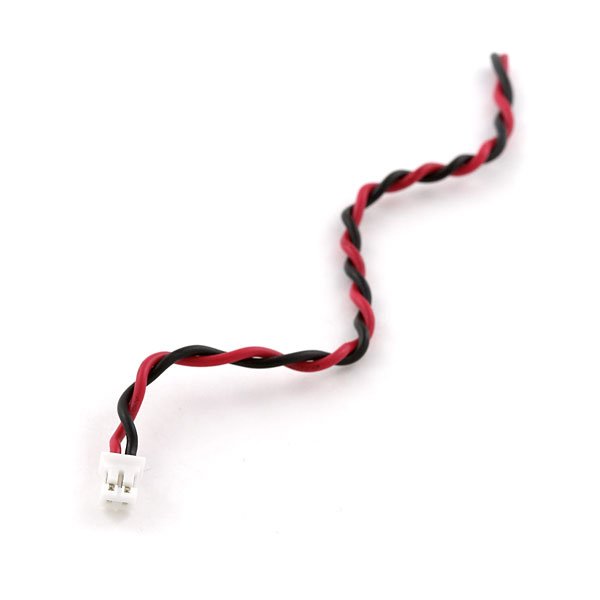

A two-wire prepared lead illustrates one-ended termination; its polarity comes from the equipment drawing.
A two-wire prepared lead illustrates one-ended termination; its polarity comes from the equipment drawing.

Single- and Double-Ended Terminal Leads

A single-ended lead has one prepared connector or contact end and a second end defined for the next assembly operation. A double-ended lead connects two specified interfaces; it does not mean that the harness has only two circuits. Options include individual pre-crimped wires, multi-position housings, stripped tails, ferrules or a second connector family. Record the cut length and its measurement datum, strip length, conductor construction and insulation diameter. Pre-crimped contacts must remain protected during packing. Unhoused terminals require an insertion plan so the next operator can populate cavities without reversing the circuit order.

Rainwater is the exposure to consider; this environmental photo is not a connector ingress-test result.
Rainwater is the exposure to consider; this environmental photo is not a connector ingress-test result.

Waterproof and Temperature-Specific Harnesses

Sealed and heat-resistant are different requirements. The JWPF wire-to-wire catalog describes an IPX7 configuration under IEC 60529 / JIS C 0920; this is not evidence that every JST connector is waterproof, pressure-wash resistant or suitable for permanent immersion. Its stated temperature limit also includes current-related temperature rise. Review seals, wire insulation diameter, unused cavities, mating condition and the route by which water could travel along the cable. For hot equipment, select the exact connector and wire specification against the local temperature profile. An environmental image illustrates the exposure being discussed, not a passed test on our product.

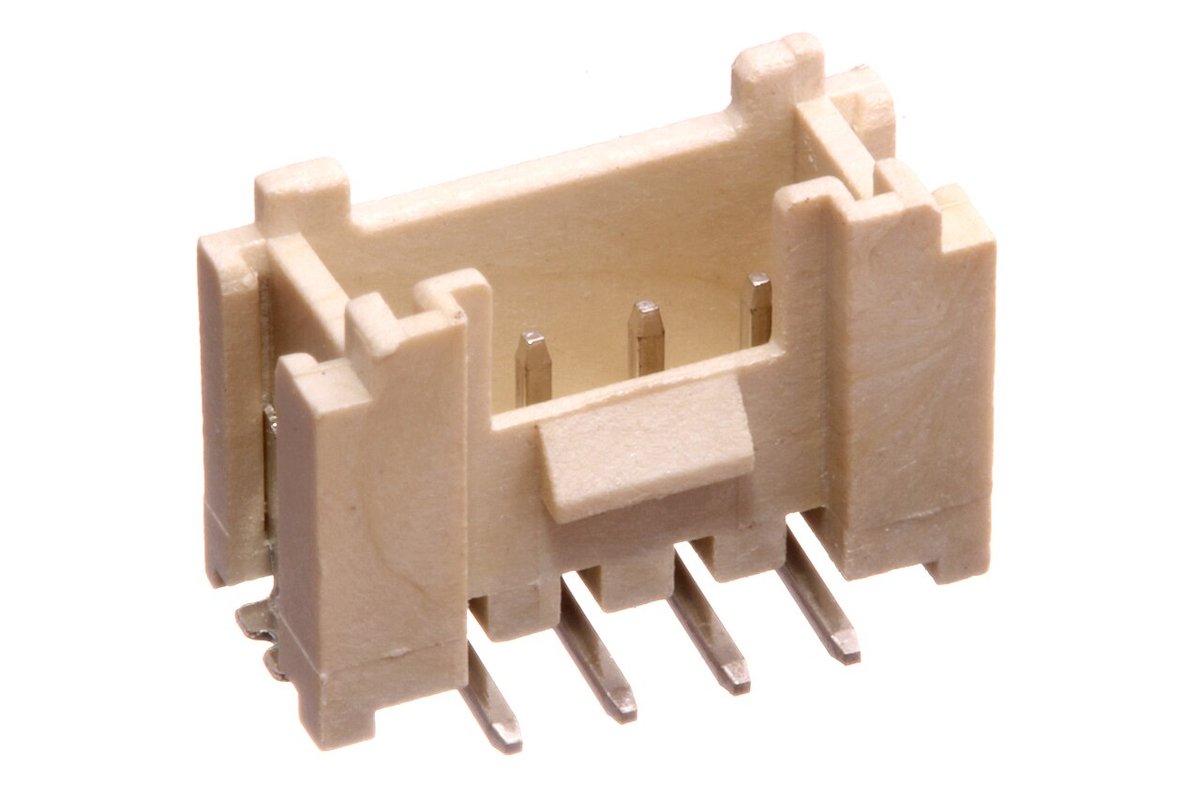

Multi-position board interface reference; every occupied and unused cavity needs a defined assignment.
Multi-position board interface reference; every occupied and unused cavity needs a defined assignment.

Multi-Pin Integrated Harnesses

A multi-pin assembly can combine switches, sensors, indicators and supply branches in one defined loom. More positions make cavity identification and breakout control more important, not less. Mark connector references, pin-one orientation, branch datums and any intentionally unpopulated positions in the drawing. Define whether grounds are separate, joined at a splice or returned to the board. Do not increase an interface current rating simply by paralleling contacts: load sharing and protection require an engineering review. A controlled wire list and first-article check turn a complex harness into a repeatable assembly rather than a bundle matched by color.

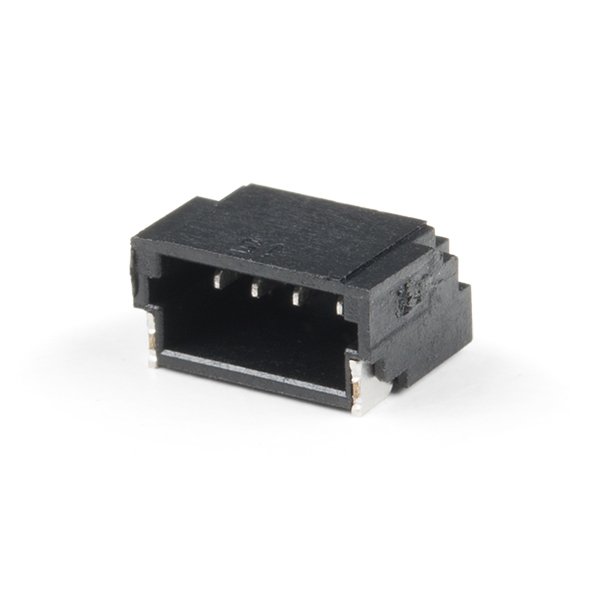

Compact Qwiic / JST connector reference: a small interface still needs a defined electrical pinout.
Compact Qwiic / JST connector reference: a small interface still needs a defined electrical pinout.

Customization · Smart Home and Precision Electronics

A sensor hub, smart lock or compact instrument has limited space for both the connector and the operator's fingers. Begin with the board interface and the actual enclosure, then define cable exit, slack and service access. PH, SH, ZH or GH may be candidates only when their mating parts and operating limits match the design. Small connectors do not define a communication protocol: supply voltage, ground, clock and data order still come from the equipment circuit. Separate sensitive analog routes from noisy switching paths where the system design requires it. Review wire length and shielding as electrical decisions rather than decorative cable options.

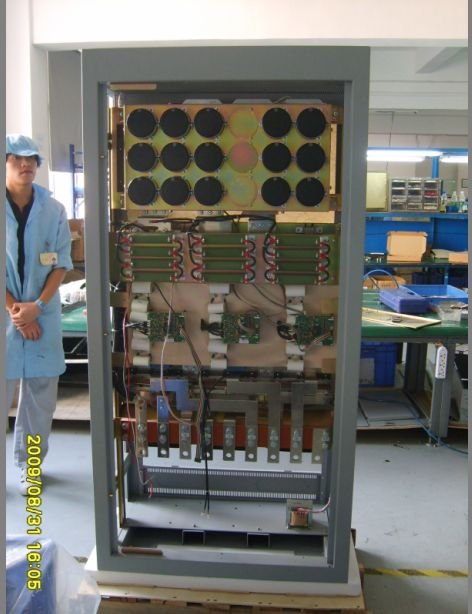

Drive cabinet application reference; internal control wiring and high-power circuits have separate requirements.
Drive cabinet application reference; internal control wiring and high-power circuits have separate requirements.

Customization · Industrial Equipment

Internal control wiring may connect a controller to fans, sensors, small drives or an operator panel. The required connector is determined by the approved equipment interface, not by the word industrial. VH is a 3.96 mm wire-to-board family, but its published current conditions differ with wire and header selection. A current value for one combination cannot be transferred to every VH assembly. Review continuous and transient load, enclosure temperature, bend space and restraint near the connector. Service loops should permit maintenance without rubbing against sharp sheet metal. External exposed wiring may need a different sealed system from the protected internal board connection.

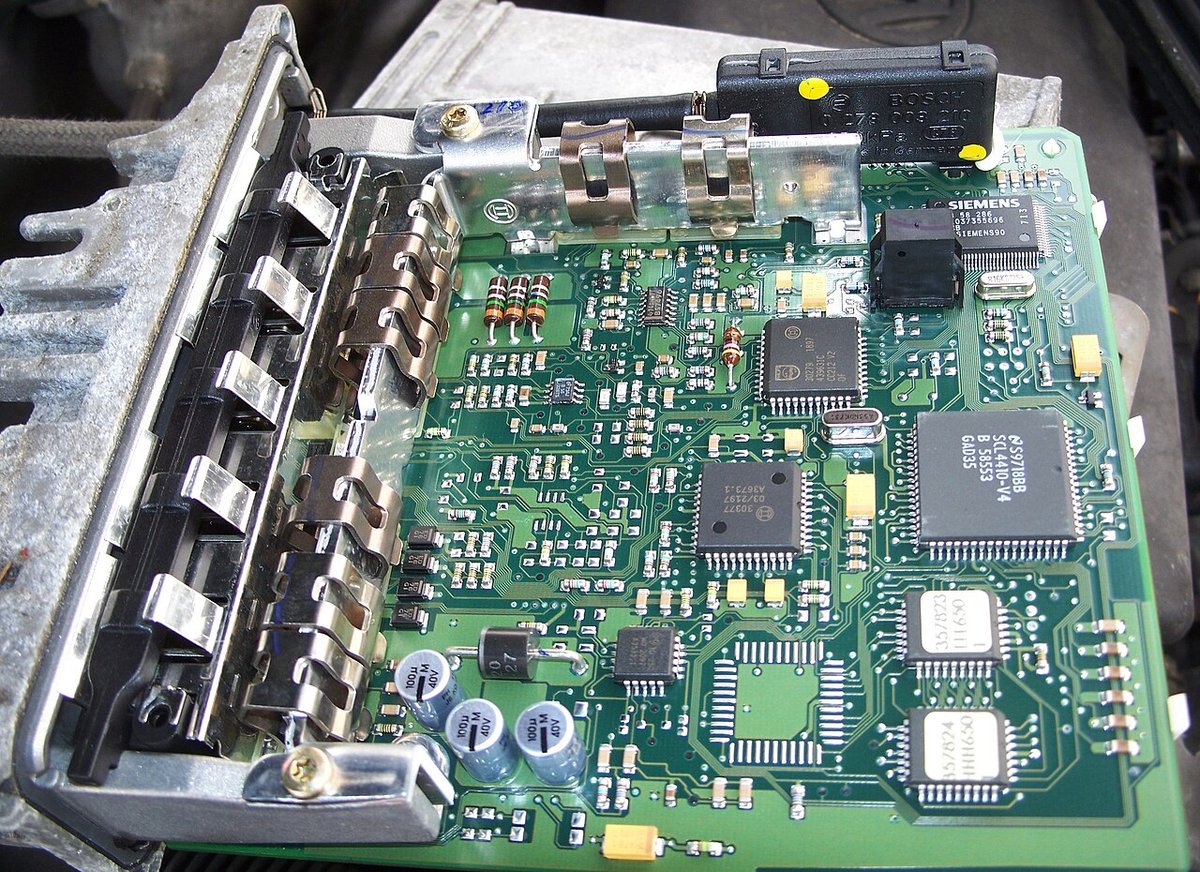

Vehicle control-module interior illustrates the equipment context, not a claim that this module uses JST parts.
Vehicle control-module interior illustrates the equipment context, not a claim that this module uses JST parts.

Customization · Automotive Electronics

Vehicle electronics introduce vibration, temperature cycling, supply transients and service constraints that are not resolved by choosing a familiar connector name. Establish whether the assembly is inside a protected module, in the cabin or exposed outside the vehicle. Confirm the exact approved interface, conductor insulation and retention requirements for that location. If the customer specifies a vehicle test standard, identify the required clauses, samples, fixtures and acceptance limits before quotation. We do not infer automotive qualification from a JST brand marking or promise a universal drop-in replacement. An approved pin map remains essential even where two housings mate mechanically.

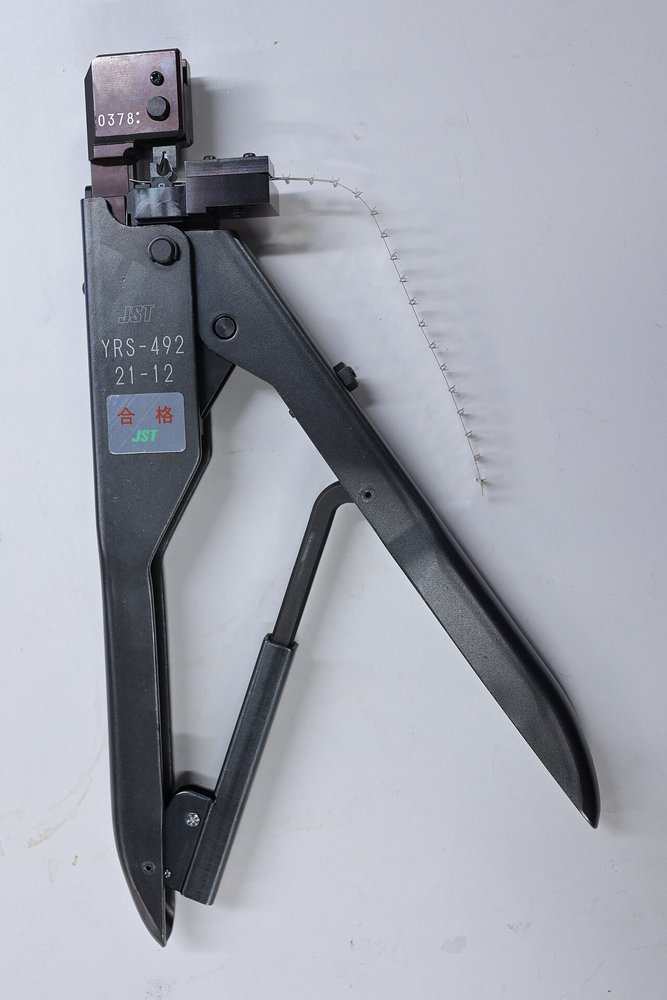

JST CZH crimp-tool reference: tooling is terminal-specific, not universal across all JST families.
JST CZH crimp-tool reference: tooling is terminal-specific, not universal across all JST families.

Harness Kit Advantages

The useful advantage of a kit is a consistent assembly definition: approved components, known wire preparation, readable identification and an agreed inspection plan. Genuine specified JST parts and any proposed substitute must be distinguished on the BOM and quotation. Material choices include conductor size and strand construction, insulation thickness and the terminal's permitted wire range. Flexible customization covers circuit count, lengths, branch arrangements and labels, subject to the chosen interface. Cost control starts by resolving ambiguous ends and unnecessary operations before production. Small pilot quantities can confirm fit and assembly sequence without turning an unverified prototype into a claim of proven field durability.

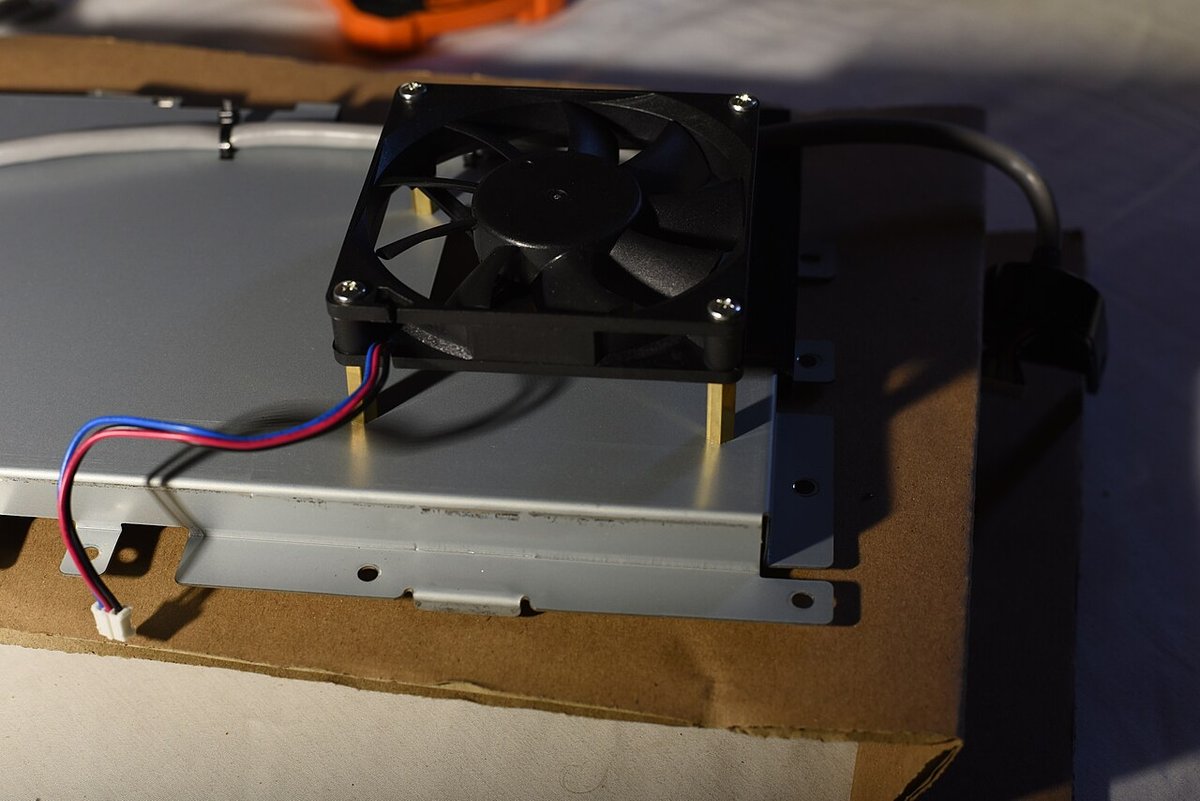

An instrument cooling-fan connection illustrates internal routing and access for maintenance.
An instrument cooling-fan connection illustrates internal routing and access for maintenance.

Applications · Consumer Electronics

Speakers, appliances, cameras and handheld devices use compact internal leads for different combinations of power and signal. The design must allow assembly without pulling on the terminal or bending the PCB header. Check polarity at battery and charging connections against the actual board: wire color and a two-position housing are not enough to establish a standard pinout. Where a enclosure can be opened for service, include a repeatable unplugging method and accessible slack. Product electrical safety and thermal behavior are assessed at equipment level; a small connector's catalog entry does not certify the complete device.

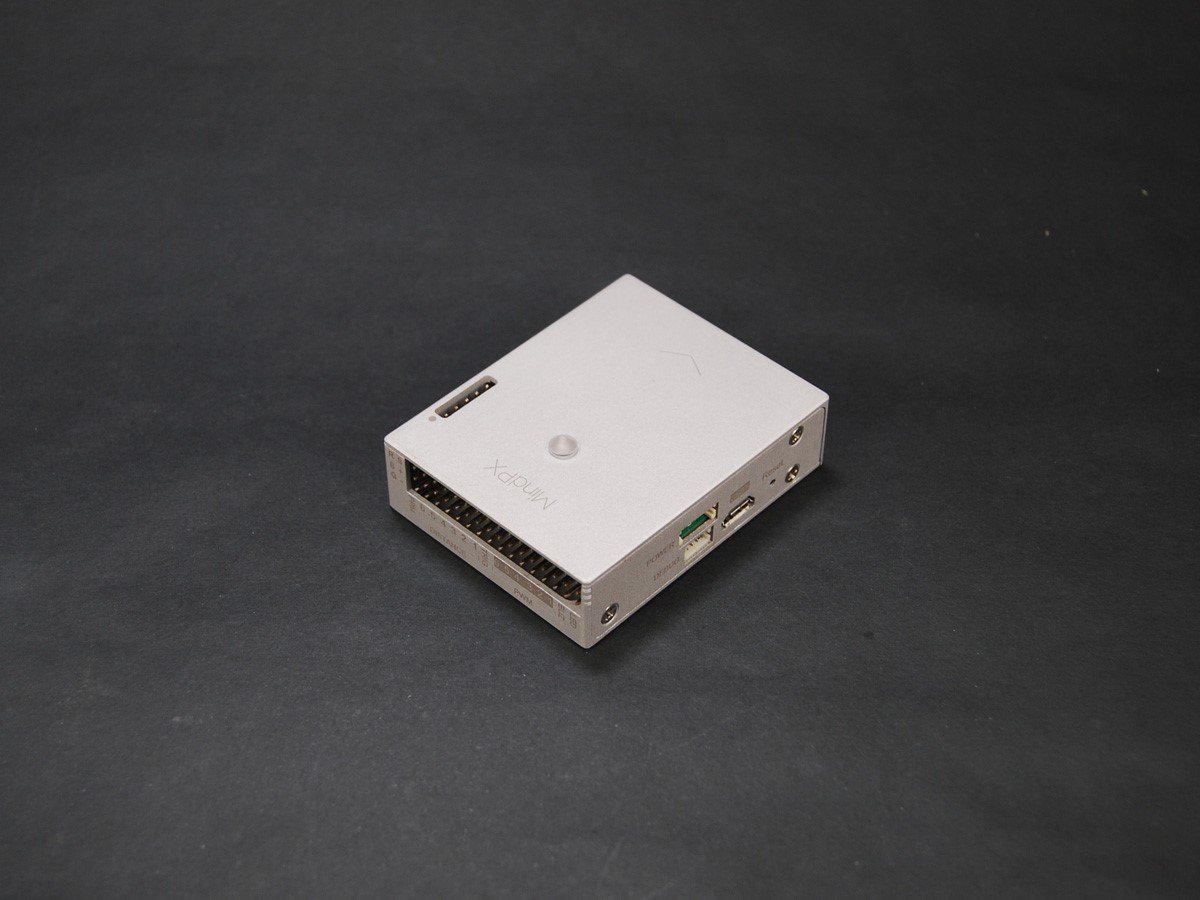

MindPX controller reference: verify endpoint mapping and cable restraint in the complete aircraft.
MindPX controller reference: verify endpoint mapping and cable restraint in the complete aircraft.

Applications · RC Models and Drones

Lightweight sensor and flight-controller leads require exact pin order, secure routing and clearance from propellers or moving mechanisms. GH and other compact families may appear in controller ecosystems, but a shared connector family does not ensure identical voltage or signal assignment. Document each endpoint and its circuit function before making an adapter. Keep strain away from soldered board headers, and avoid unsupported cable mass at small contacts. The harness may carry telemetry, positioning or control signals; the aircraft's electromagnetic, vibration and flight validation remain system responsibilities. Do not treat a connector photograph as proof of compatibility with a particular flight controller.

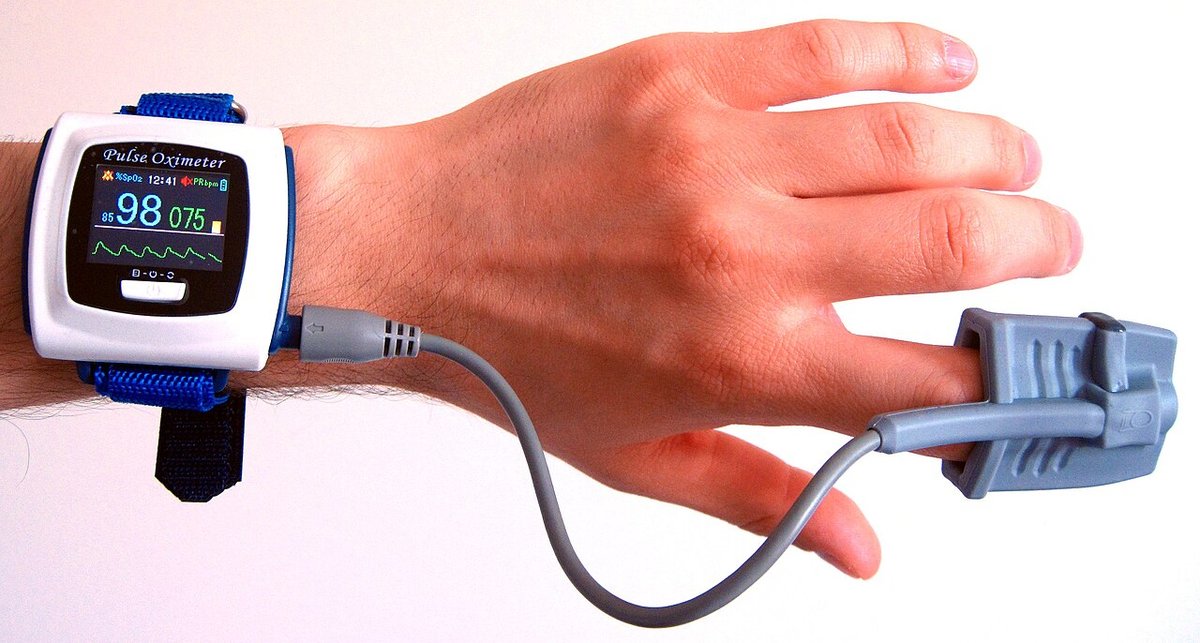

Wearable oximeter application reference; medical suitability is assessed for the specified device and circuit.
Wearable oximeter application reference; medical suitability is assessed for the specified device and circuit.

Applications · Medical Devices

Medical-device projects can include internal display, control and sensor harnesses, but the intended use defines the risk and evidence required. Distinguish wiring inside an enclosure from patient-connected circuits, disposable accessories or parts exposed to cleaning and sterilization. Confirm approved materials, leakage-related requirements, traceability and any customer-mandated verification before accepting the design. A JST interface name is not medical-device approval. Where the customer controls the device design, our harness documentation should clearly identify supplied boundaries and agreed tests. Changes in wire insulation, terminal finish or component source require the appropriate review rather than an informal substitution.

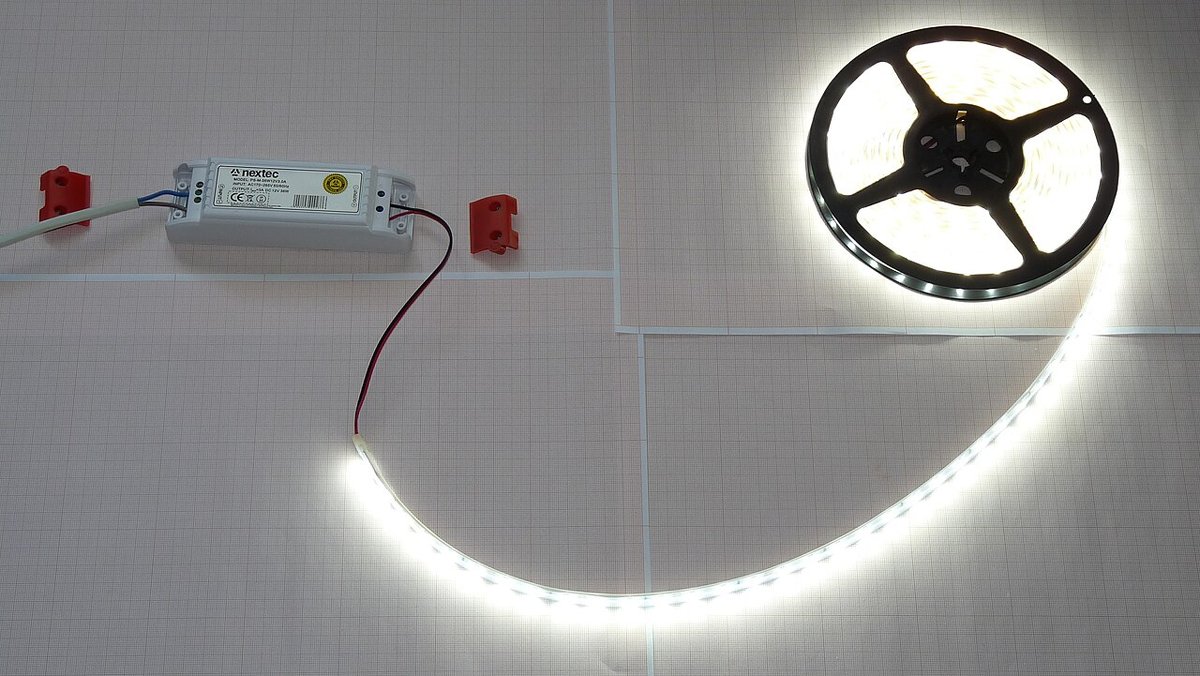

LED strip and supply illustrate the distinction between supply wiring, control and module connections.
LED strip and supply illustrate the distinction between supply wiring, control and module connections.

Applications · LED Lighting

LED modules can need supply leads, dimming wires or separate data connections. Identify voltage, current direction and pin assignment before selecting a familiar two-, three- or four-wire connector. An SM-style locking inline connection is not automatically waterproof, and a sealed assembly still needs suitable cable entries and strain relief. Longer supply runs need a voltage-drop review at the intended load. For addressable lighting, preserve the specified signal reference and routing rather than assuming that every connector can carry any data scheme. Separate replaceable light modules at practical service points while keeping the wiring protected from heat around the driver or LED board.

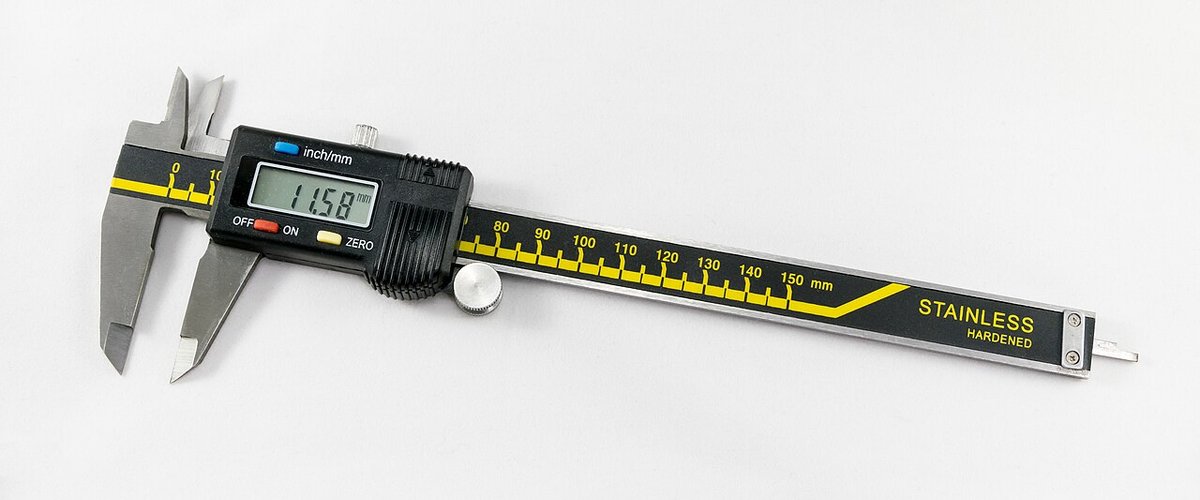

Dimensional inspection supports fit review; pitch alone does not establish connector compatibility.
Dimensional inspection supports fit review; pitch alone does not establish connector compatibility.

DFM Feedback Before Assembly

Early review connects the circuit drawing to the real assembly sequence. First resolve the mating interface and cavity view, then check fit, latch access and cable bending within the enclosure. Match insulation diameter and conductor size to the terminal rather than choosing a tool solely by wire gauge. Review whether seals, sleeves, ferrules or labels must be fitted before a connector is populated. A first article should check dimensions and routing in the actual mating equipment where available. Record approved deviations on the drawing, not only in an email. These checks help prevent a correctly crimped harness from becoming impossible to install.

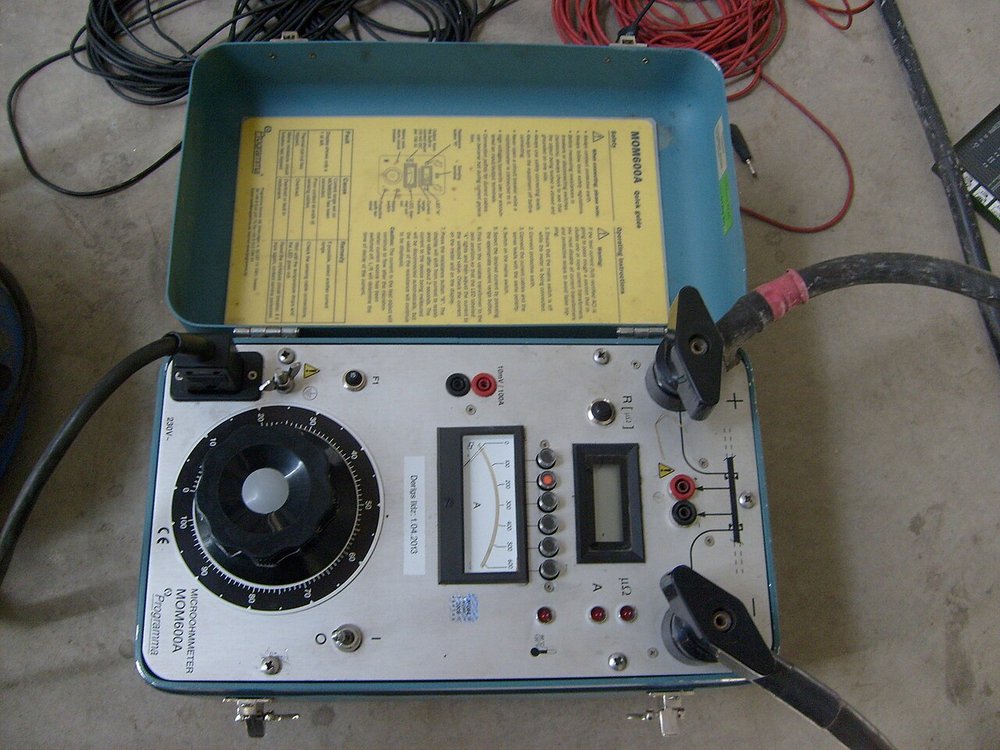

Low-resistance measurement equipment reference; select the method and test conditions for the actual joint.
Low-resistance measurement equipment reference; select the method and test conditions for the actual joint.

Contact Resistance and Service Reliability

Contact resistance depends on the selected contact system and the condition of both mating surfaces. A continuity tester can identify an open circuit, but it cannot by itself characterize a low-resistance joint or long-term stability. Where required, specify a suitable low-resistance measurement method, test current, sampling and acceptance criteria. Review crimp height, conductor capture and insulation support against the terminal's application specification. Insertion cycles, temperature exposure and vibration are separate test conditions; do not assume a universal 500-cycle rating across JST families. Any durability statement for the supplied harness needs evidence tied to its actual materials, construction and agreed test configuration.

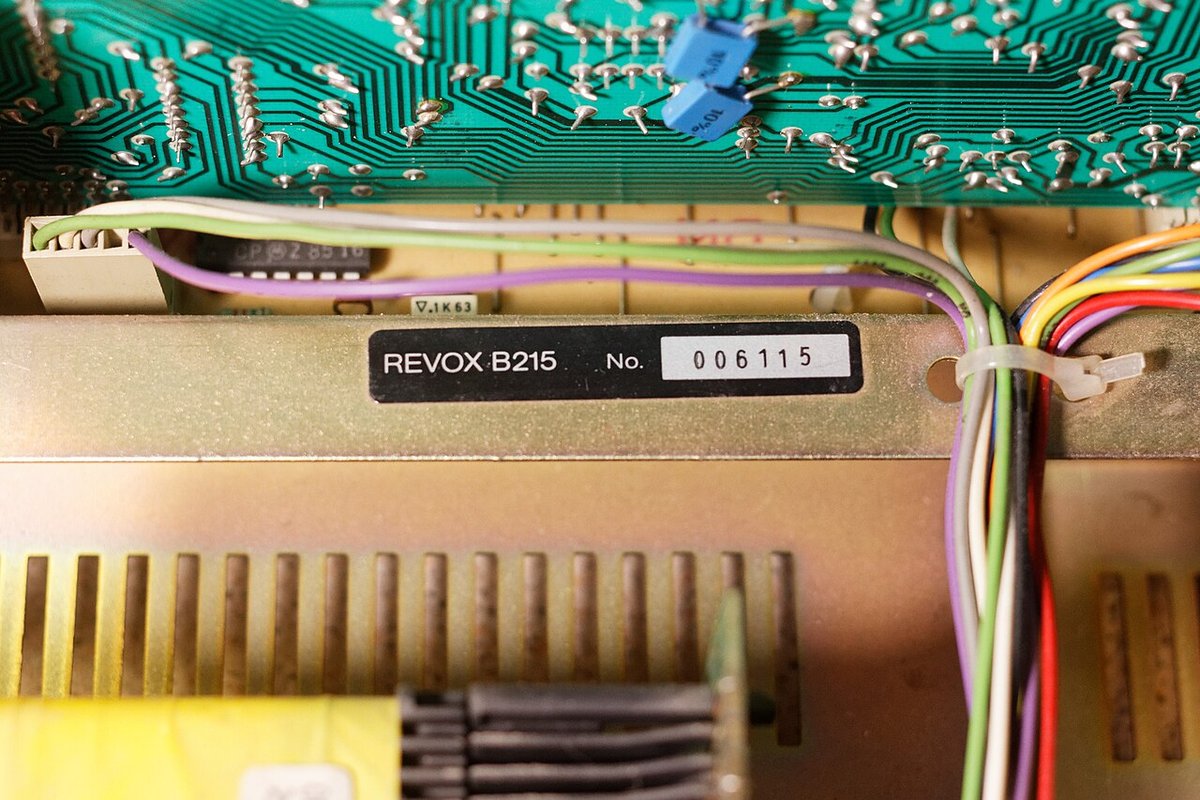

Equipment identification example illustrates linking records to a physical unit; it is not our production label.
Equipment identification example illustrates linking records to a physical unit; it is not our production label.

Lot and Material Traceability

Define the required record package when the order is reviewed. It may link the assembly revision, approved BOM, component labels, wire lots, production date and inspection results to a shipment batch. Keep original specified components distinguishable from approved alternatives so later investigation can reconstruct what was supplied. A build history should include approved changes and first-article feedback, not just a final packing list. Customer audits and regulated applications may need additional retention periods or records; agree these before production. Traceability supports investigation and change control, but it is not a substitute for correct design or the tests required by the application.

JST Harness Questions

Are JST XH and a 2.54 mm connector interchangeable?

Do not assume so. JST specifies XH at 2.5 mm. Pitch, contact geometry, keying and housing dimensions must all match; a similar-looking 2.54 mm product is not automatically compatible.

Does a two-pin PH cable have a standard battery polarity?

The connector geometry does not establish the equipment's polarity. Confirm the board pinout, mating view and wire assignment before building or connecting the cable.

Can you provide wire-to-wire and waterproof versions?

We can review specified inline and sealed interfaces, including SM or JWPF where appropriate. Their geometry and environmental limits differ; a seal or locking latch alone does not qualify the whole harness.

What is needed for a quotation and prototype?

Provide both mating references, circuit list, wire specification, dimensions, operating environment and quantities. Identify original-part requirements, approved substitutions, inspection records and any special validation before the prototype is released.

PART NUMBER / INTERFACE / MATERIAL

Models, Part Numbers & Sourcing

Find a cable model or material part number, then send it for a custom replacement or original-part sourcing review.

Back to Top ↑

240 references · Search by brand or part number

Connector & Material Part Numbers

Connector, wire and process-material references for project selection.

  • JST

    SAGH-002GU-P0.3

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SSH-003T-P0.2-H

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SSH-003GA-P0.2

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SSHL-003T-P0.2

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SSHL-003GA1-P0.2

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLVP-21V-S-1

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SACHL-003G-P0.2

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    NSHR-02V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SACHF-003GAC-P0.2

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SNSHD-003T-P0.2

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SSHJ-003T-P0.2

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SSFG-003T-P0.2

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SLBTAD-01T-M0.5

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SGEZD-002T-C0.2A

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GERDR-10V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM02B-NSHSS-A-TB

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SACH-003G-P0.2

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SXH-001T-P0.6

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    AGHR-03V-1-H

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-02V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHDR-20V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLP-02V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLDP-20V-S(B)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLVP-31V-S-1

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    ACHLR-02V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    NSHR-03V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    ACHFR-03V-H

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    NSHDR-16V-Z

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHJP-02V-S(HF)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SFGR-05V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    LBTAR-03V-2K-K(HF)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GEZR-02V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GERDR-12V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM03B-NSHSS-A-TB

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SACH-003G-P0.2B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SXH-001T-P0.6N

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM03B5.6-AGHS-GG-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-03V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHDR-30V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLP-05V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLDP-30V-S(B)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM21B-SHLVS-G-TBT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM02B-ACHLKS-GAN-ETF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    NSHR-04V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    ACHFR-04V-H

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    NSHDR-20V-Z

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHJP-06V-S(HF)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM05B-SFGH-TF(HF)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    LBTAR-05V-2K-K(HF)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GEZR-03V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GERDR-14V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM04B-NSHSS-A-TB

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    ACHR-02V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SXH-002T-P0.6

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM03B3.9-AGHS-GH-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-04V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHDR-40V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLP-06V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLDP-40V-S(B)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM31B-SHLVS-G-TBT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    NSHR-05V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    ACHFR-06V-H

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    NSHDR-24V-Z

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM06B-SHJS-TB(HF)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    LBTAR-07V-2K-K(HF)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GEZR-04V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GERDR-16V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM05B-NSHSS-A-TB

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    ACHR-03V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    XHP-1

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-05V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHDR-50V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLP-07V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLDP-50V-S(B)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM21B-SHLVS-G-TB

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    NSHR-06V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM03B-ACHFKS-GACN-ETF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    NSHDR-28V-Z

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM02B-SHJH-TF(HF)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    LBTAR-09V-2K-K(HF)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GEZR-05V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GERDR-18V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM06B-NSHSS-A-TB

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    ACHR-01V-A-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    XHP-2

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-06V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM20B-SRDS-G-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLP-08V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLDP-20V-S-1(B)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM31B-SHLVS-G-TB

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    NSHR-07V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM04B-ACHFKS-GACN-ETF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    NSHDR-32V-1-Z

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM06B-SHJH-TF(HF)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM03B-LBTAKS-TD-N2T-K(HF)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GEZR-06V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GERDR-20V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM07B-NSHSS-A-TB

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    ACHR-04V-A-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    XHP-3

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-07V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM30B-SRDS-G-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLP-10V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLDP-30V-S-1(B)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    NSHR-08V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM06B-ACHFKS-GACN-ETF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    NSHDR-40V-2-Z

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM05B-LBTAKS-TD-N2T-K(HF)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GEZR-07V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GERDR-22V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM10B-NSHSS-A-TB

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    ACHR-05V-A-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    XHP-4

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-08V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM40B-SRDS-G-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLP-11V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLDP-40V-S-1(B)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    NSHR-09V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM16B-NSHDZS-TFT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM07B-LBTAKS-TD-N2T-K(HF)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GEZR-08V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GERDR-24V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM06B-NSHSS-A-TB

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM02B-ACHSS-GAN-ETF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    XHP-5

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-09V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM50B-SRDS-G-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLP-12V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLDP-50V-S-1(B)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    NSHR-10V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM20B-NSHDZS-TFT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM09B-LBTAKS-TD-N2T-K(HF)

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GEZR-09V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GERDR-26V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM03B-ACHSS-GAN-ETF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    XHP-6

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-10V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM20B-SRDS-A-G-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLP-14V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM20B-SHLDS-G-TFT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    NSHR-11V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM24B-NSHDZS-TFT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GEZR-10V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GERDR-28V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM01B-ACHSS-A-GAN-ETF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    XHP-7

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-11V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM30B-SRDS-A-G-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLP-16V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM30B-SHLDS-G-TFT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    NSHR-12V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM28B-NSHDZS-TFT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GEZR-11V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GERDR-30V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM04B-ACHSS-A-GAN-ETF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    XHP-8

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-12V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM40B-SRDS-A-G-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLP-20V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM40B-SHLDS-G-TFT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    NSHR-13V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM32B-NSHDZS-1-TFT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GEZR-12V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GERDR-32V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM05B-ACHSS-A-GAN-ETF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    XHP-9

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-13V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM50B-SRDS-A-G-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLP-22V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM50B-SHLDS-G-TFT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    NSHR-14V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM40B-NSHDZS-1-TFT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GEZR-13V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GERDR-34V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    XHP-10

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-14V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM20B-SRDS-G-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLP-26V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM20B-SHLDS-G-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    NSHR-15V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM16B-NSHDZS-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GEZR-14V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GERDR-36V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    XHP-11

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-15V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM30B-SRDS-G-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHLP-30V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM30B-SHLDS-G-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM02B-NSHSS-TBT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM20B-NSHDZS-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GEZR-15V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GERDR-38V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    XHP-12

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-16V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM40B-SRDS-G-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM02B-SHLS-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM40B-SHLDS-G-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM03B-NSHSS-TBT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM24B-NSHDZS-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM02B-GEZK-TBT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    GERDR-40V-K

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    XHP-13

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-20V-S-B

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM50B-SRDS-G-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM05B-SHLS-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM50B-SHLDS-G-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM04B-NSHSS-TBT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM28B-NSHDZS-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM03B-GEZK-TBT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM10B-GERDK-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    XHP-14

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-02V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM06B-SHLS-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM05B-NSHSS-TBT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM32B-NSHDZS-1-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM04B-GEZK-TBT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM12B-GERDK-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    XHP-15

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-03V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM07B-SHLS-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM06B-NSHSS-TBT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM40B-NSHDZS-1-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM05B-GEZK-TBT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM14B-GERDK-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    XHP-16

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-04V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM08B-SHLS-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM07B-NSHSS-TBT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM06B-GEZK-TBT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM16B-GERDK-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    XHP-20

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-05V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM10B-SHLS-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM08B-NSHSS-TBT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM07B-GEZK-TBT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM18B-GERDK-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    XHP-2(10.0)-U

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SHR-06V-S

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    SM11B-SHLS-TF

    JST connector component

    Custom compatible replacements · Original-parts sourcing

  • JST

    BM09B-NSHSS-TBT

    JST connector component

    Custom compatible replacements · Original-parts sourcing

Configuration & Project Review

01 Interface & Application

JST identifies a manufacturer, not a universal plug. PH, XH, SH, GH, SM and JWPF differ in pitch, mating geometry and application limits.

02 Project Inputs

Send the mating part number, cavity view, circuit list, wire size, lengths, environmental conditions and required verification.

03 Release Requirements

Review the interface and BOM, confirm the first article, then manufacture and inspect against the approved documents.

04 Mating & Termination

Identify the mating part number and termination method before confirming the assembly drawing.

05 Sample Review

Compare the sample with the approved pin map, dimensions and material list.

06 Build Records

Retain the approved part list and inspection results for repeat production.

Send the part number, drawing or sample to confirm the replacement configuration and sourcing plan.

PROJECT REVIEW / CUSTOM MANUFACTURING

Custom Wire Harness Manufacturing in China

Custom wire harness manufacturing from our China factory, with OEM/ODM project support.

A sample, clear connector photos or a description of the equipment and required quantity is enough to start a review.

Discuss Custom Manufacturing & Sourcing

Start with a part number, drawing, sample or equipment requirement.

Information for an accurate quotation

When available, include drawings and BOM, connector and mating part numbers, pinout, wire length and gauge, branch layout, quantity and required tests. Materials, inspection scope and delivery are confirmed for each project.
