USB Cable AssemblyUSB电缆组件

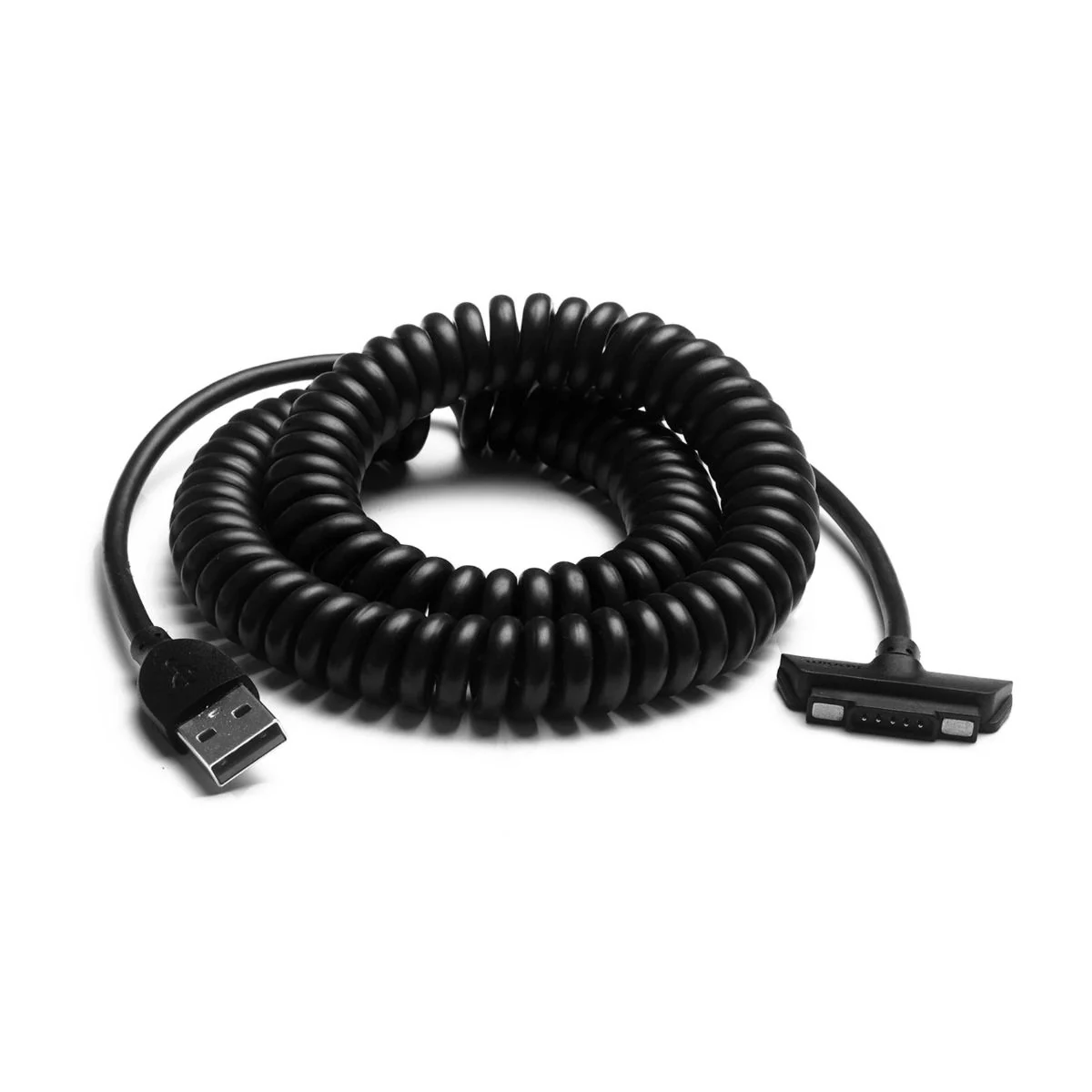

Magnetic USB Coiled Data Cable磁吸接口USB弹簧数据线
Magnetic USB Coiled Data Cable combines usb-c interface form, coiled or spiral form. Interface, circuit and installation data guide dimensions, material selection and sample review.磁吸接口USB弹簧数据线的结构重点包括USB-C接口形式、卷绕或螺旋形态。接口、电路与安装资料将作为尺寸、物料和样品制作的确认依据。
- Interface and circuit review接口与回路对应审核
- Length and installation configuration线长与安装结构定制
- Manufacture from approved sample样品确认后组织制造
CONSTRUCTION结构解析
Connection structure and design details连接结构与设计要点
Use the magnetic usb coiled data cable form as a starting point and confirm these design points against drawings and the actual equipment.以磁吸接口USB弹簧数据线的结构形式为起点，结合图纸和实际设备确认以下设计要点。
Coiled or spiral form卷绕或螺旋形态
The cable is arranged in a coiled or spiral form, with straight tails and ends placed for storage or connection positions.线缆以卷绕或螺旋形态排列，直线尾段与端头可以结合收纳或连接位置安排。
Signal path信号路径
Define signal type, pair allocation, shield continuity and termination as well as the connector shape. Establish transmission performance from the actual cable, length and system validation.在接口外形之外确认信号类型、线对分配、屏蔽连续性和端接方法；传输能力应按实际线材、长度及整机验证结果确定。
Conductor and insulation selection导体与绝缘选配
Select conductors and insulation from circuit loads, diameter limits, bending and exposure. A material name does not replace ratings or validation results.从电路负载、外径限制、弯曲方式与环境条件选择导体和绝缘体系；材料名称不应直接代替额定参数或验证结果。
CONFIGURATION结构与选配
Construction & customization options结构与定制配置
The table describes the construction and available configuration choices. Materials, dimensions, circuits and inspection requirements are agreed for each project.以下说明展示结构与可配置内容。具体材料、尺寸、电路和检验要求按项目确认。
| USB interface format, role and intended functionUSB接口形态、角色与目标功能 | Define function through interface and host/device or source/sink roles.接口与主从、供受电角色共同定义功能。 |
|---|---|
| Data version, target rate and cable length数据版本、目标速率与线缆长度 | Select data construction from rate, generation and cable length.速率、代际与线长共同决定数据结构。 |
| Supply current, voltage and Type-C configuration供电电流、电压与Type-C配置 | Confirm power separately from Type-C identification, negotiation and electronics.供电与Type-C识别、协商或电子器件分别确认。 |
| Shielding, active components and test items屏蔽、主动器件与测试项目 | Set jacket, shielding and validation boundaries for both devices.护套、屏蔽与测试边界结合实际两端设备。 |
| Circuit and revision reference电路与版本依据 | Provide both endpoints, mating equipment, required USB function and generation, device role, data and power duty, pin map, cable length, panel and exit direction, shielding, jacket, molding, environment, quantity and validation requirements.建议提供两端接口、对插设备、所需 USB 功能与代际、设备角色、数据与供电要求、针脚、线长、面板与出线方向、屏蔽、护套、包胶、环境、数量和验证要求。 |
| Sample and manufacturing configuration样品与制造配置 | Engineering freezes the interface, circuits, conductor and differential-pair structure, shield path, internal components, mechanics and labels before the first build. Continuity is followed by project-specific voltage-drop, temperature, negotiation, data-link, mechanical or environmental validation where required.工程在首件前冻结接口、回路、导体与差分对结构、屏蔽路径、内部器件、机械结构和标识。导通之后，再按项目执行压降、温升、协商、数据链路、机械或环境验证。 |
APPLICATIONS连接的应用
Application directions应用方向
These are connection directions for project discussion. Suitability depends on interfaces, circuits, installation conditions and project validation; configuration can be adapted to the equipment.以下为可讨论的连接方向。实际适用性取决于接口、电路、安装环境和项目验证，可按设备需求调整。
Equipment data interfaces设备数据接口
Interface generation, device role and data duty define cable architecture. Define function through interface and host/device or source/sink roles.接口代际、设备角色与数据任务决定线缆架构。选配时，接口与主从、供受电角色共同定义功能。
Panel service ports面板维护口
Set extension positions for insertion, fixing and rear clearance. Select data construction from rate, generation and cable length.延长位置同时考虑插入方向、固定和背部空间。选配时，速率、代际与线长共同决定数据结构。
Embedded equipment links嵌入式设备连接
Define power, identification and proprietary pins together. Confirm power separately from Type-C identification, negotiation and electronics.供电、识别与设备专用针脚需要同时定义。选配时，供电与Type-C识别、协商或电子器件分别确认。
Data connections for instruments仪器设备的数据连接
Define instrument data leads from the interface version, pin map, installed route and host-side connection. Set jacket, shielding and validation boundaries for both devices.仪器与设备的数据引线需按接口版本、针脚、安装路径和主机端连接方式确认。选配时，护套、屏蔽与测试边界结合实际两端设备。
Power and charging links供电与充电连接
Review source/sink roles, wire resistance and negotiation devices together. Define function through interface and host/device or source/sink roles.供受电角色、线阻与协商器件需要配套审核。选配时，接口与主从、供受电角色共同定义功能。
Fixtures and service leads测试夹具与维护线
Define length, exits and protection separately for test and installed use. Select data construction from rate, generation and cable length.临时测试与长期安装的长度、出线和保护边界分别说明。选配时，速率、代际与线长共同决定数据结构。
ENGINEERING & PRODUCTION工程与制造
Adapt the connection to your equipment.围绕设备，调整连接细节。
Touched by me, better it’ll beTouched by me, better it’ll be
Custom wire harness manufacturing in China中国工厂 · 定制线束制造
Our China factory supports usb cable assembly projects through custom wire harness manufacturing and OEM/ODM development. Interface, circuit and installation data guide material selection, sample builds and manufacturing-document approval before repeat production.Super Smile-Tech 中国工厂围绕USB电缆组件的项目需求提供定制线束制造与 OEM/ODM 支持。我们从接口、电路与安装资料开始，协同物料选配、样品制作和制造文件确认，再按批准要求组织重复生产。
USB interface format, role and intended functionUSB接口形态、角色与目标功能
Define function through interface and host/device or source/sink roles.接口与主从、供受电角色共同定义功能。
Data version, target rate and cable length数据版本、目标速率与线缆长度
Select data construction from rate, generation and cable length.速率、代际与线长共同决定数据结构。
Shielding, active components and test items屏蔽、主动器件与测试项目
Set jacket, shielding and validation boundaries for both devices.护套、屏蔽与测试边界结合实际两端设备。
PRODUCT QUESTIONS产品问答
Product & customization questions产品与定制常见问题
Does every Type-C cable support high-speed data and high power?所有 Type-C 电缆都支持高速数据和大功率吗？
No. Type-C identifies the connector system. Data lanes, power duty, Configuration Channel wiring, electronic marking, directionality and equipment capability determine the usable functions.不能。Type-C 只识别接口系统，实际功能取决于数据通道、供电负载、Configuration Channel 接线、电子标记、方向性与双方设备能力。
Does passing continuity prove a high-speed USB cable is good?导通合格能证明高速 USB 电缆性能吗？
No. Continuity proves point-to-point connection. High-speed performance also depends on impedance, loss, crosstalk, termination, length, bending and the complete channel.不能。导通只证明点对点连接，高速性能还取决于阻抗、损耗、串扰、端接、长度、弯曲与完整链路。
Can you build a charging-only cable?可以制作仅供电 USB 线吗？
Yes, when the required identification, CC or other circuits, current, voltage drop, temperature rise and misuse controls are explicitly defined and approved.可以，但必须明确并批准所需识别、CC 或其他回路、电流、压降、温升以及防误用措施。
Start with your interface and installation requirements从您的接口与安装需求开始
Share mating interfaces, a circuit table, target lengths or a sample for the magnetic usb coiled data cable. We can use them to review configuration and sample requirements.提供磁吸接口USB弹簧数据线的对插接口、回路表、目标长度或参考样品，我们据此梳理选配与样品确认事项。
