Product type

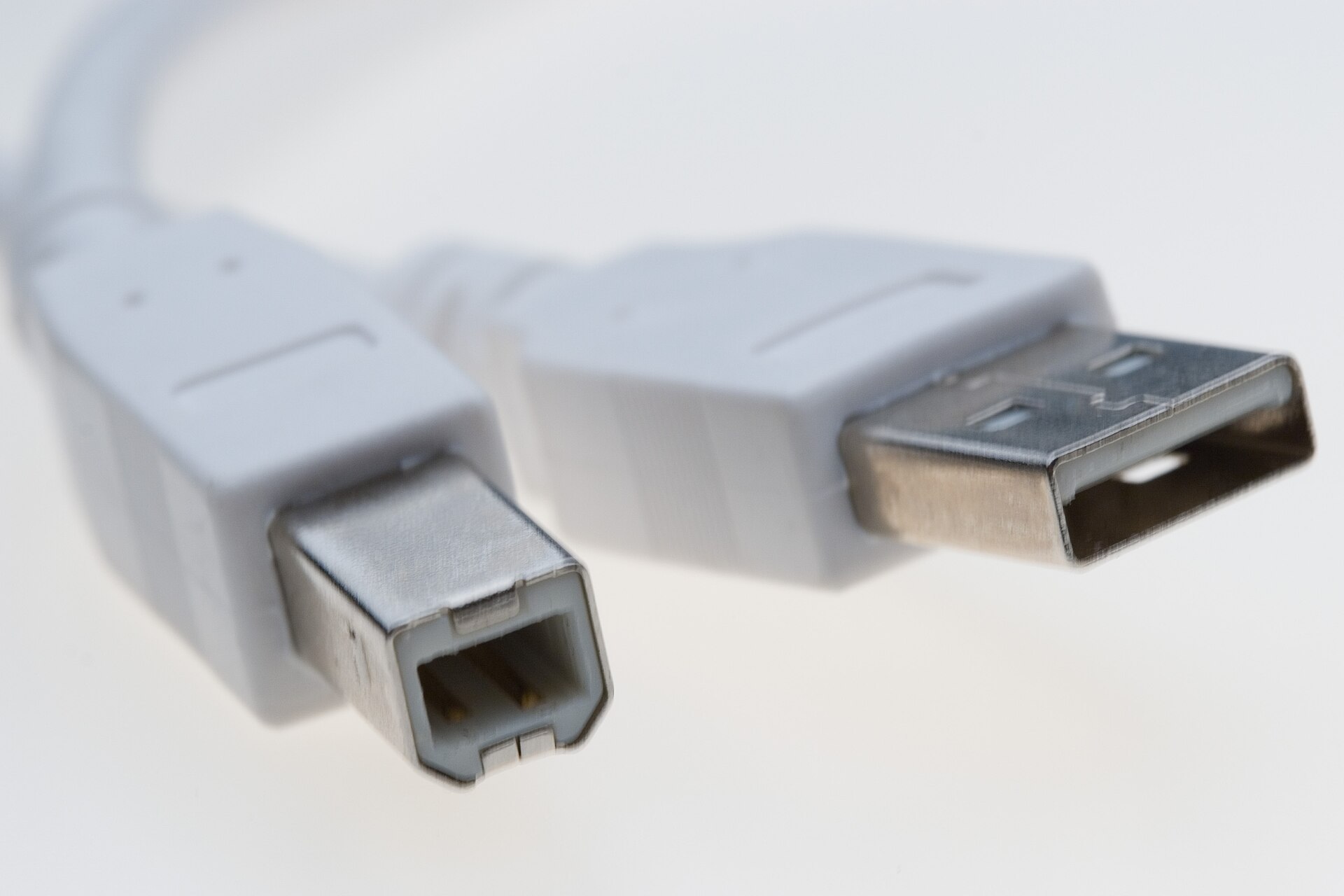

USB Cable Assembly

Overview

USB cable assemblies cover legacy Type-A and Type-B interfaces, Mini and Micro formats, reversible Type-C, panel-mounted extensions, molded leads, charging-only constructions, high-speed data paths and USB-to-equipment interfaces. The connector shape is only the starting point; function, pin map, power duty, cable architecture, shielding, electronics, installation and validation define the finished assembly.

Ask About This Product TypeFind Models & Material Part NumbersBack to Products
USB Cable Assembly - Cable Assemblies
01 / 11

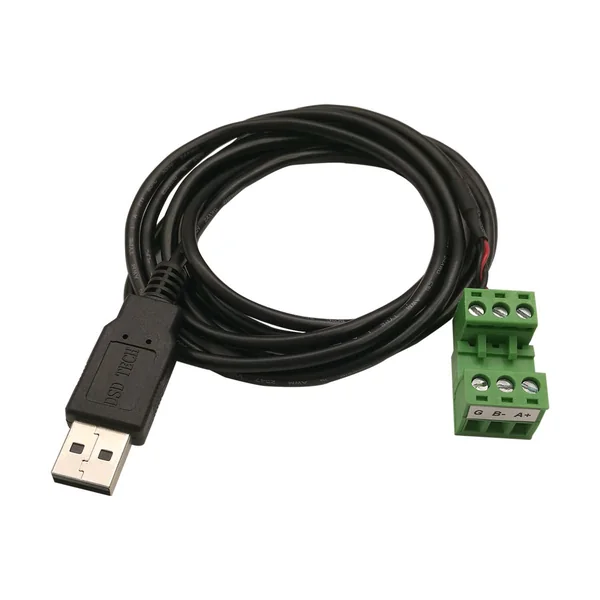

SH-U14 USB to RS485 Terminal-Block Harness
01
SH-U14 USB to RS485 Terminal-Block Harness

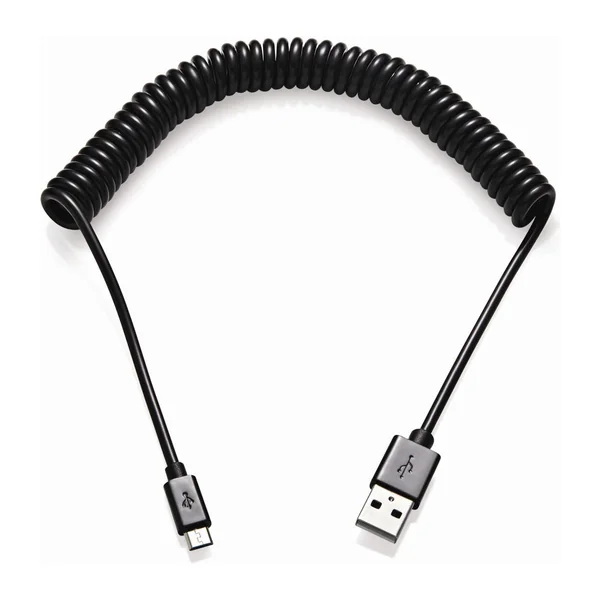

USB-A to Micro-USB Coiled Cable
02
USB-A to Micro-USB Coiled Cable

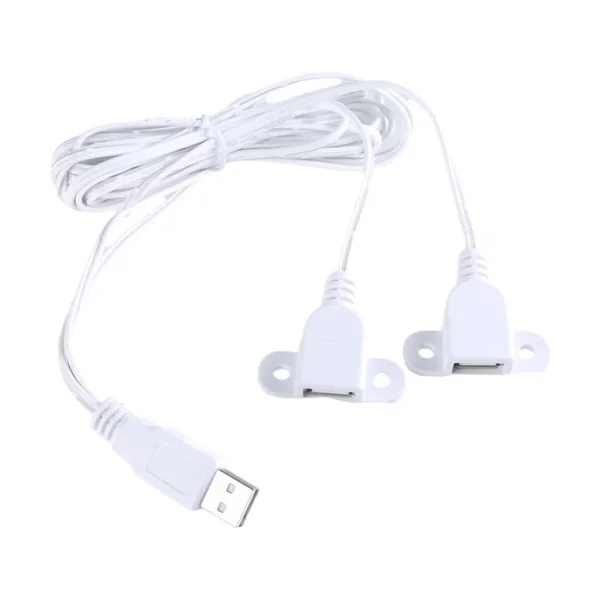

USB-A 2-Way Panel Socket Branch Harness
03
USB-A 2-Way Panel Socket Branch Harness
USB-A & USB-C Branch Adapter Cable
04
USB-A & USB-C Branch Adapter Cable

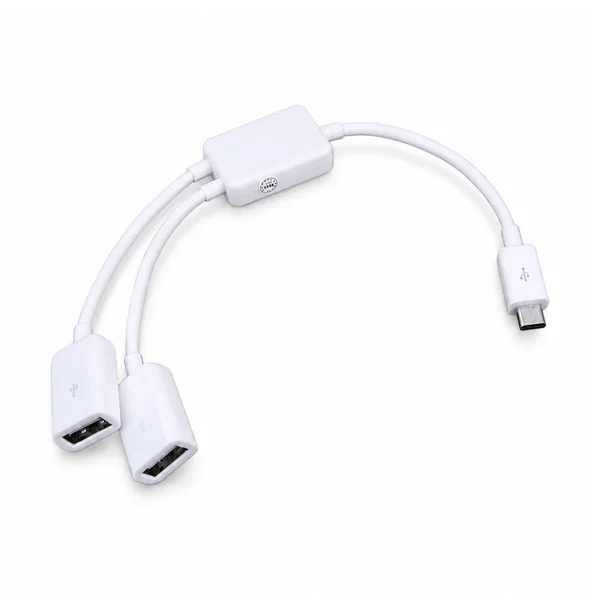

Micro-USB OTG 2-Way USB Branch Harness
05
Micro-USB OTG 2-Way USB Branch Harness

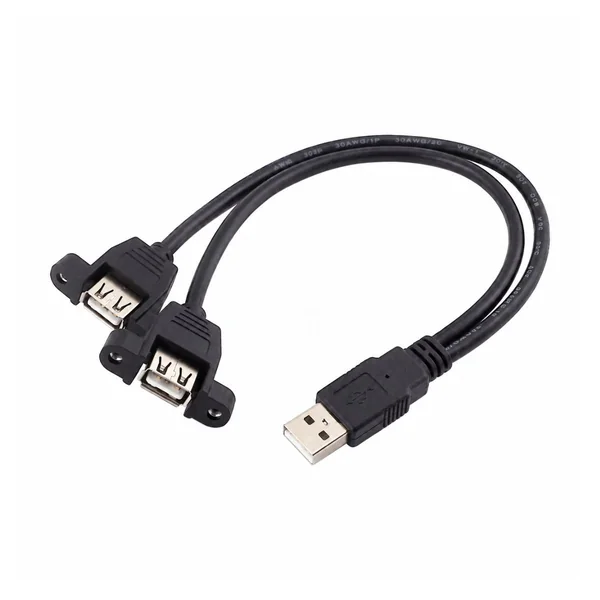

USB-A to 2-Way Screw-Mount Socket Harness
06
USB-A to 2-Way Screw-Mount Socket Harness

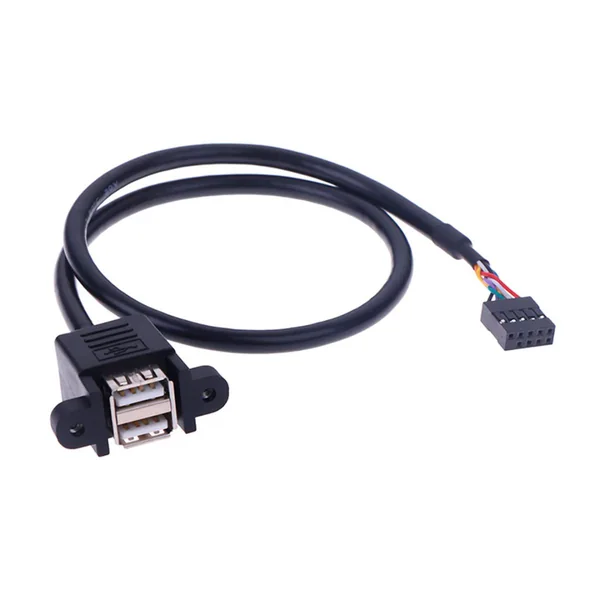

9PIN Motherboard Connector to Dual-Stack USB Panel Harness
07
9PIN Motherboard Connector to Dual-Stack USB Panel Harness
9PIN Motherboard Connector to Dual USB Socket Harness
08
9PIN Motherboard Connector to Dual USB Socket Harness

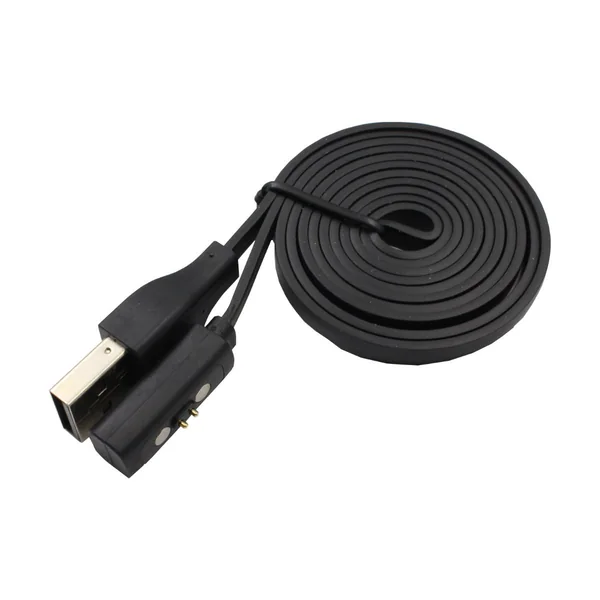

Pebble Time Steel USB Flat Magnetic Charging Cable
09
Pebble Time Steel USB Flat Magnetic Charging Cable

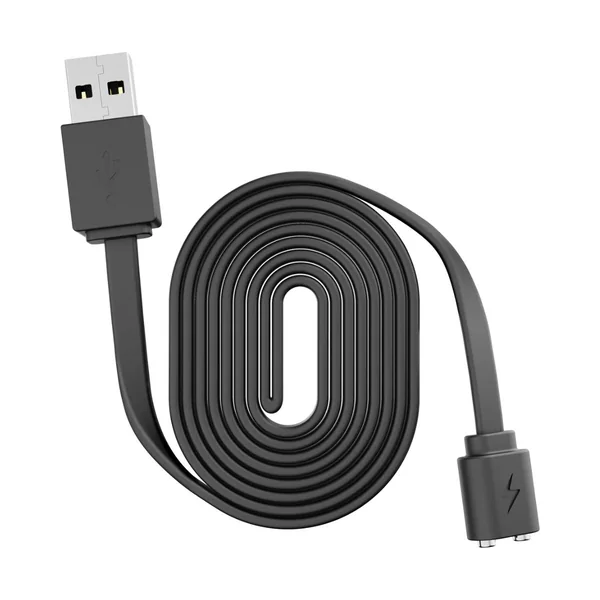

USB Flat Magnetic Charging Cable
10
USB Flat Magnetic Charging Cable

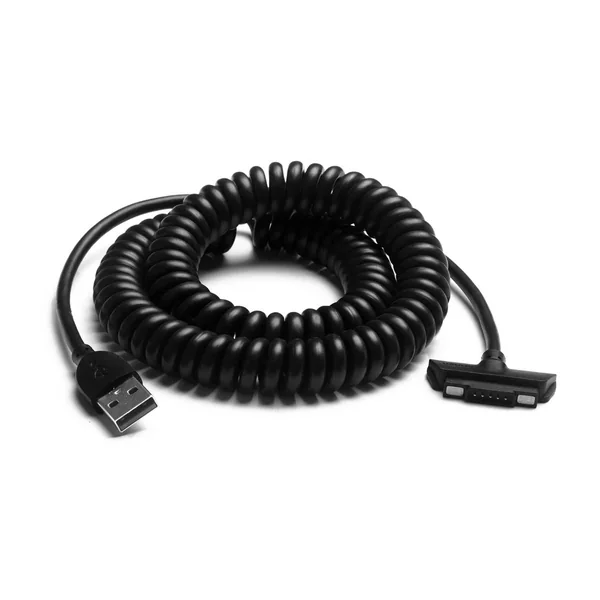

Magnetic USB Coiled Data Cable
11
Magnetic USB Coiled Data CableXP7-XP6-XP5
SIGNAL / POWER / MECHANICS

USB Cable Assembly Signal & Power Map

USB assemblies are developed from the complete signal and power path rather than from the two visible plugs. We define the connector family, USB function, device roles, conductors, differential pairs, shielding, Configuration Channel, electronics, panel geometry, overmolding and verification as one controlled product.

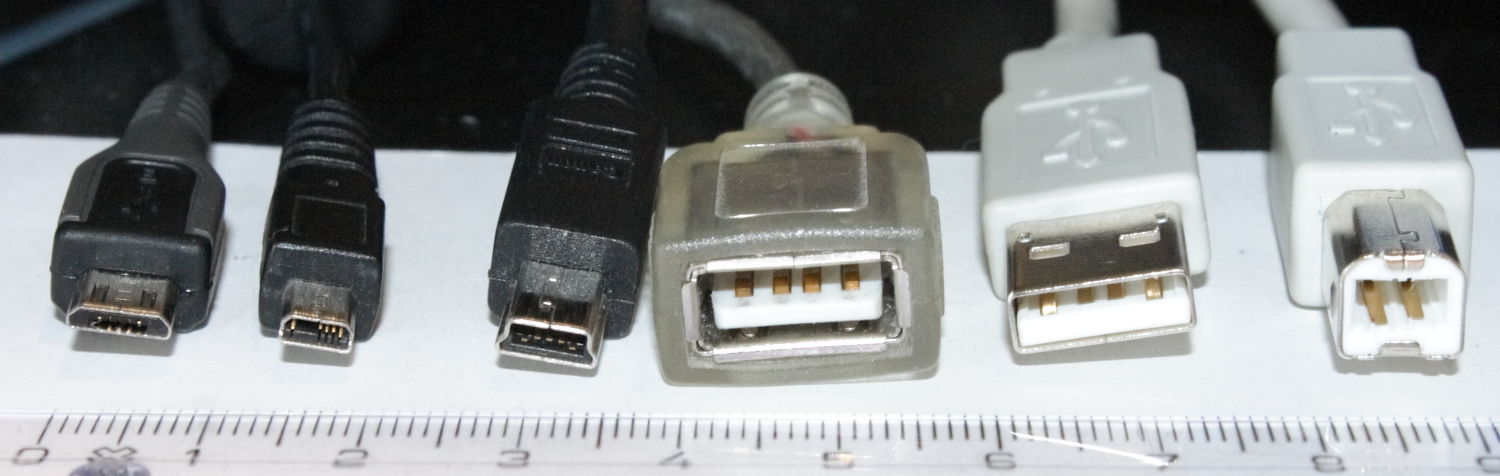

USB Cable Assembly interface family
01

LEGACY PATH

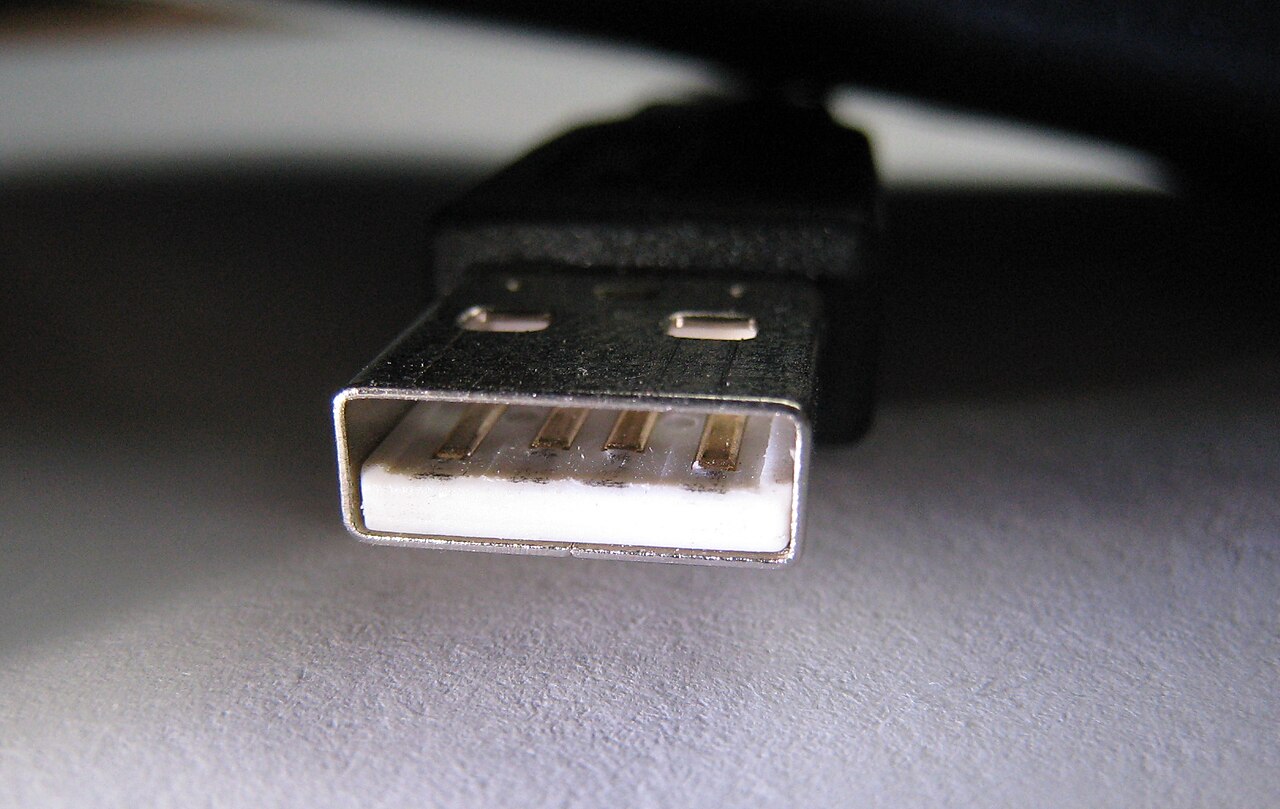

USB 2.0 and installed equipment

USB 2.0 and installed equipment

USB 2.0 remains common in printers, instruments, embedded controllers, service ports and low-speed control. Type-A, Type-B, Mini and Micro formats may carry data and power, power only or an application-specific circuit.

Identify the exact endpoint

Plug or receptacle, mating face, equipment port and available clearance are recorded before the cable is defined.

Shape does not prove the wiring

A familiar connector does not confirm that every data, power or identification contact is populated in the expected way.

02

TYPE-C

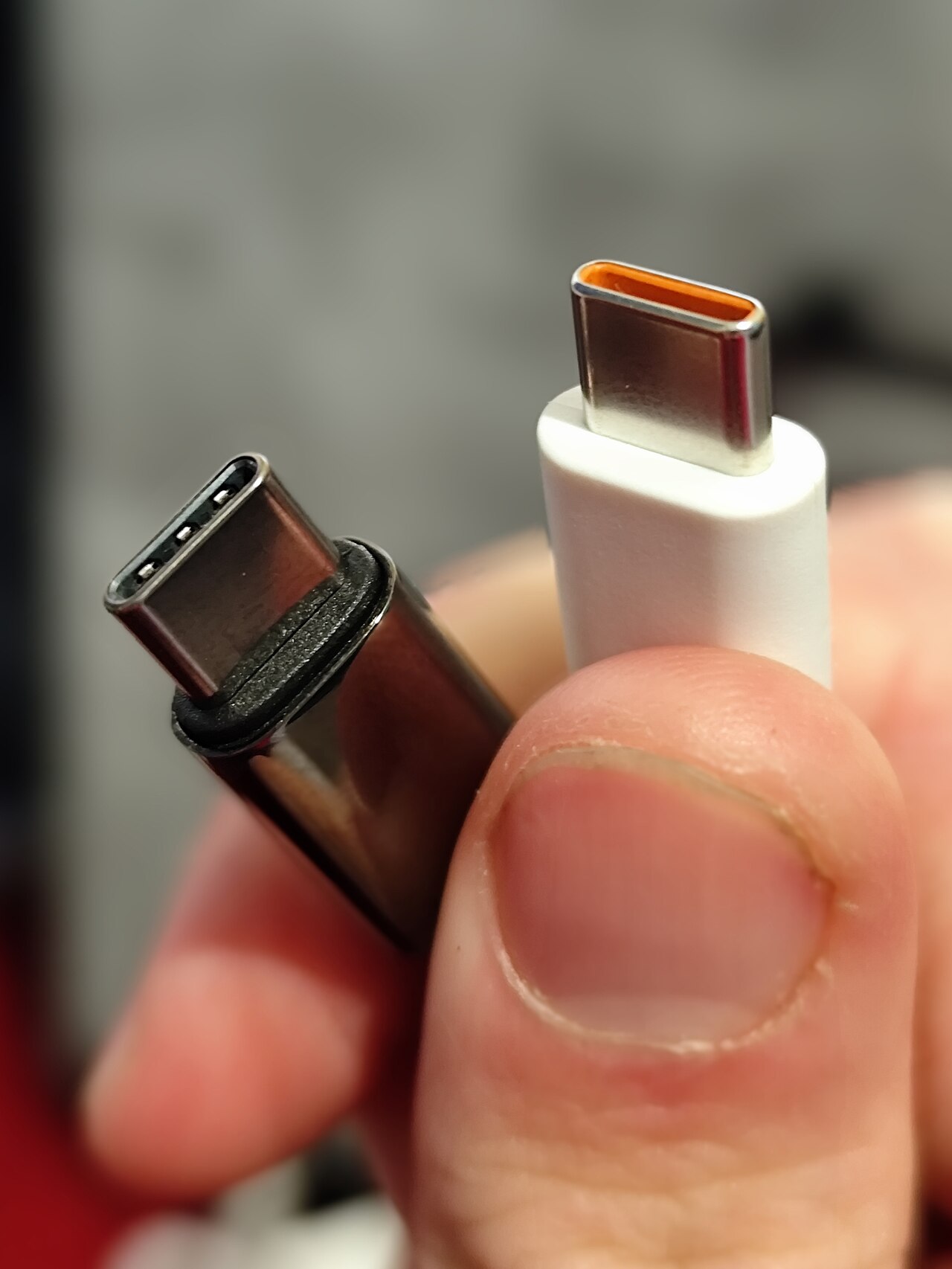

Reversible Type-C configurations

Reversible Type-C configurations

Type-C describes a reversible connector system, not a fixed performance level. USB 2.0 Type-C, full-featured data cables, charging-only leads and electronically marked assemblies use different internal constructions.

Freeze both device roles

Source, sink, host, device and dual-role behavior affect the required connection and validation plan.

Do not infer speed or power

Capability is established by the complete cable, internal components, equipment and applicable specification.

03

HIGH-SPEED PATH

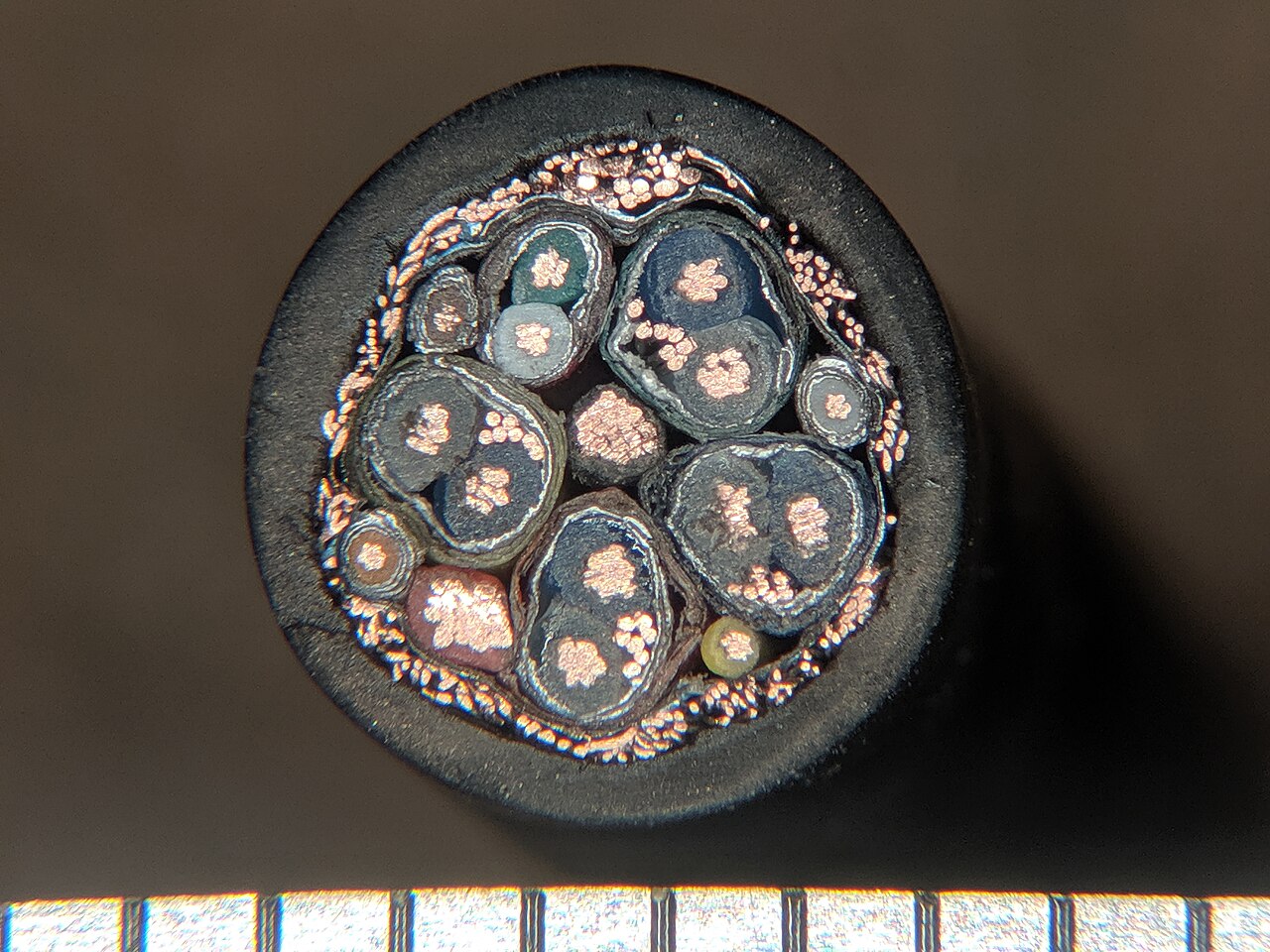

SuperSpeed cable architecture

SuperSpeed cable architecture

High-speed USB can add shielded differential lanes beyond the basic USB 2.0 pair. Conductor geometry, dielectric, pair balance, length, shield structure, connector transition and bending all influence channel margin.

Continuity is not a data test

Point-to-point continuity cannot reveal insertion loss, return loss, crosstalk or marginal terminations.

Protect the transition zones

Excessive untwist, flattening, sharp bends and uncontrolled molding near the connector can disturb the channel.

04

INSTALLATION

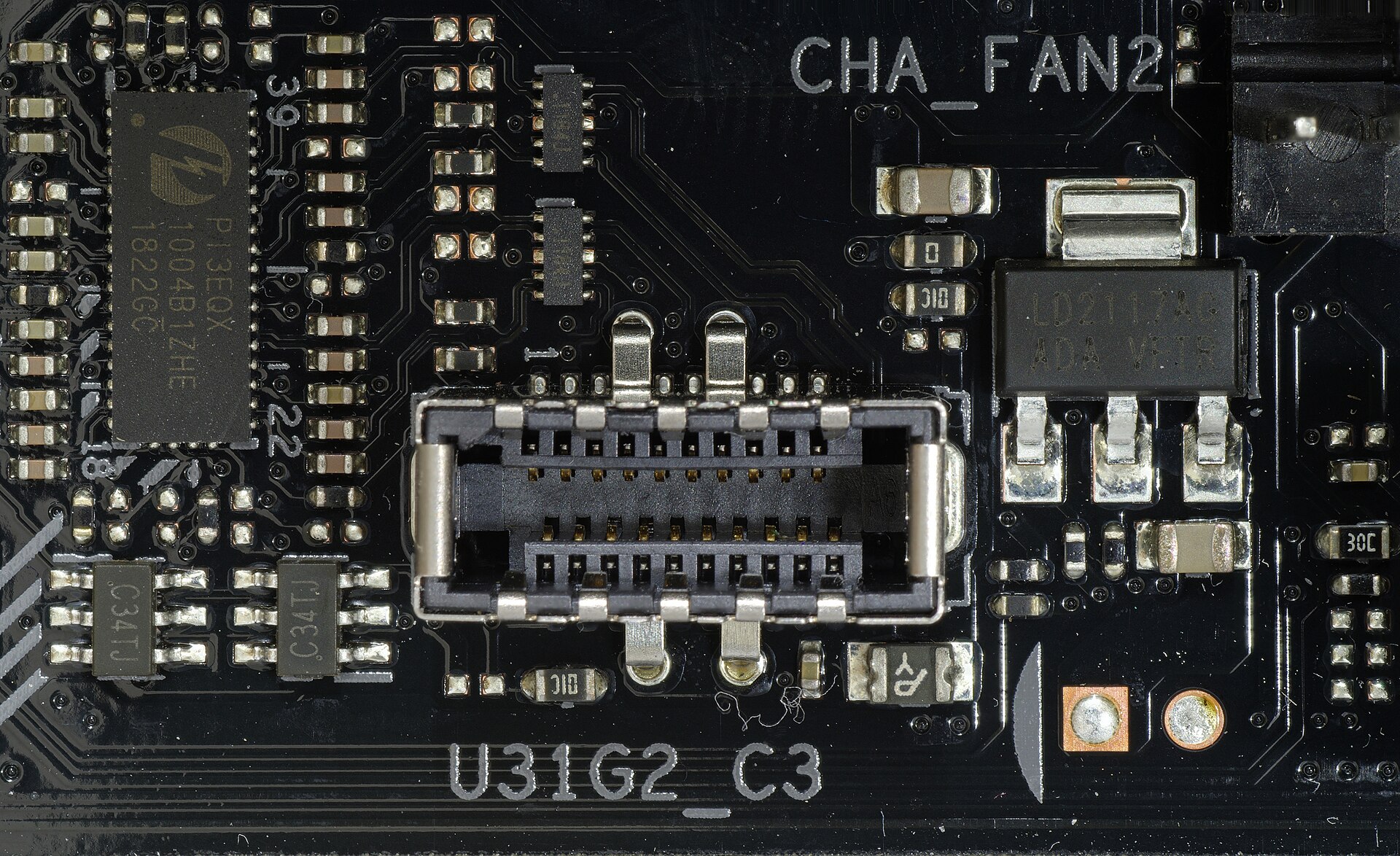

Panel, internal and angled assemblies

Panel, internal and angled assemblies

Panel extensions and compact equipment leads are defined around the opening, flange or fixing hardware, internal connector, cable route and service access. Straight and angled exits change the mechanical envelope and assembly order.

Clock the exit direction

Left, right, up and down bends are stated relative to a visible mating-face reference, not a loose verbal description.

Include the enclosure

Panel thickness, screw access, adjacent ports, rear clearance and bend radius form one installation system.

05

INTERFACE MAP

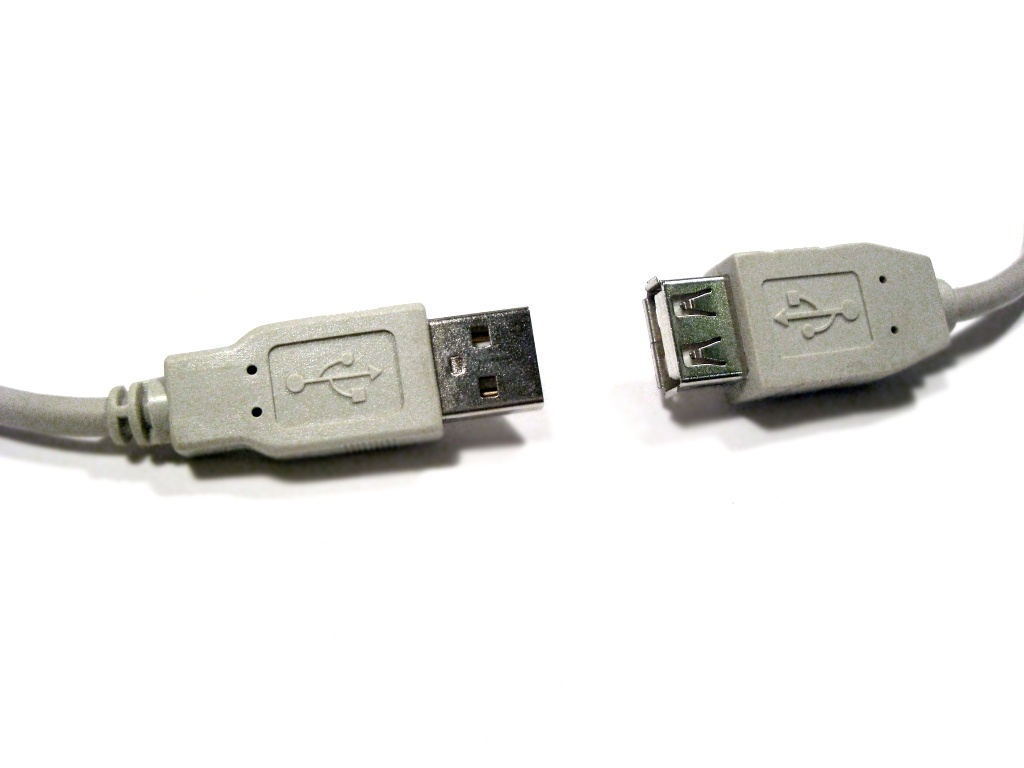

Plug, receptacle and mating direction

Plug, receptacle and mating direction

Orders should name the connector family, plug or receptacle, orientation and mating part. Similar Mini, Micro or proprietary camera interfaces can appear close in size while remaining mechanically and electrically incompatible.

Photograph useful views

A focused mating face, side profile, equipment port and cable exit reveal more than one distant product photograph.

Match the real mating part

Samples and part numbers help prevent a visually similar but non-mating selection.

06

DEDICATED FUNCTION

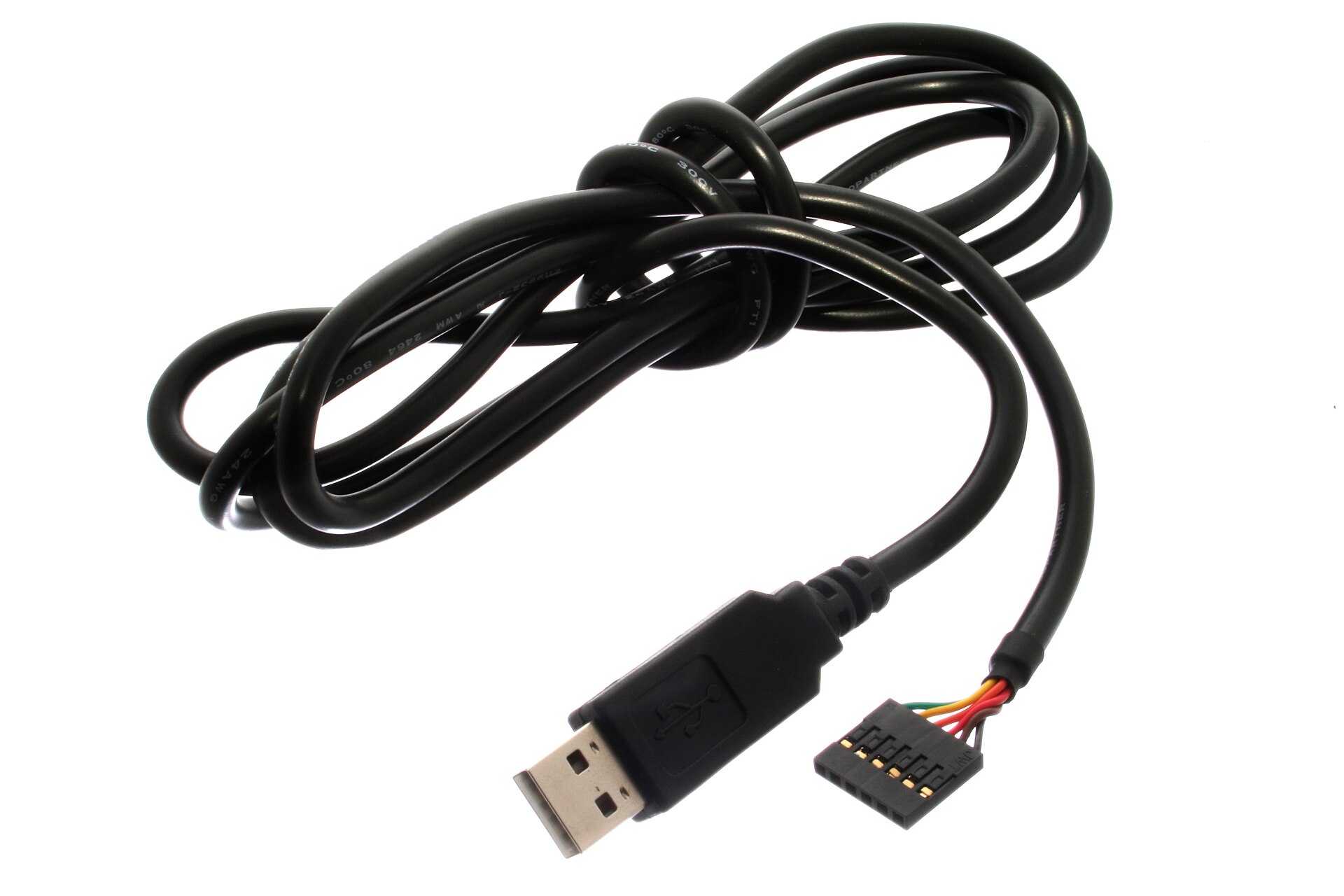

USB to equipment-specific interfaces

USB to equipment-specific interfaces

A USB lead may terminate in a board connector, circular connector, loose wires or a proprietary service plug. If protocol conversion, identification resistors or active electronics are present, the assembly becomes an electrical product rather than a passive wire map.

Separate wiring from conversion

Circuit, firmware, driver, logic levels and operating-system responsibility are defined when conversion electronics are involved.

Freeze the proprietary endpoint

Equipment model, socket, pin map and function are confirmed instead of copying connector color or cable appearance.

07

CONFIGURATION

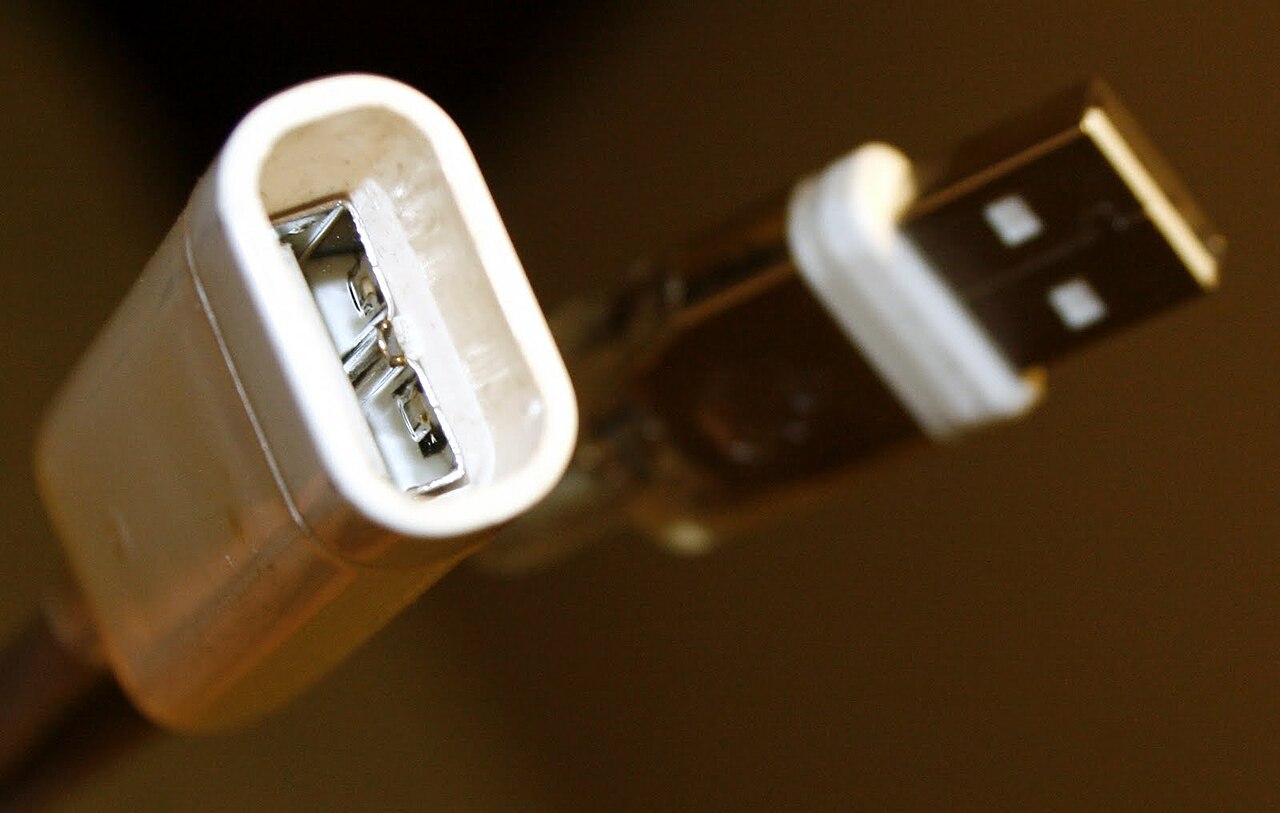

Approved standard and captive arrangements

Approved standard and captive arrangements

Type-A to Type-B, Type-A to Micro, Type-A to Type-C and Type-C to Type-C are only mechanical descriptions. A complete configuration states generation, data lanes, power, device roles, directionality and any captive or proprietary constraint.

Avoid unsafe look-alikes

A cable that physically mates is not automatically a standards-compliant or safe extension for another product.

Control external identification

Labels, color, molded marks and packaging distinguish products that share an appearance but not capability.

08

CABLE CORE

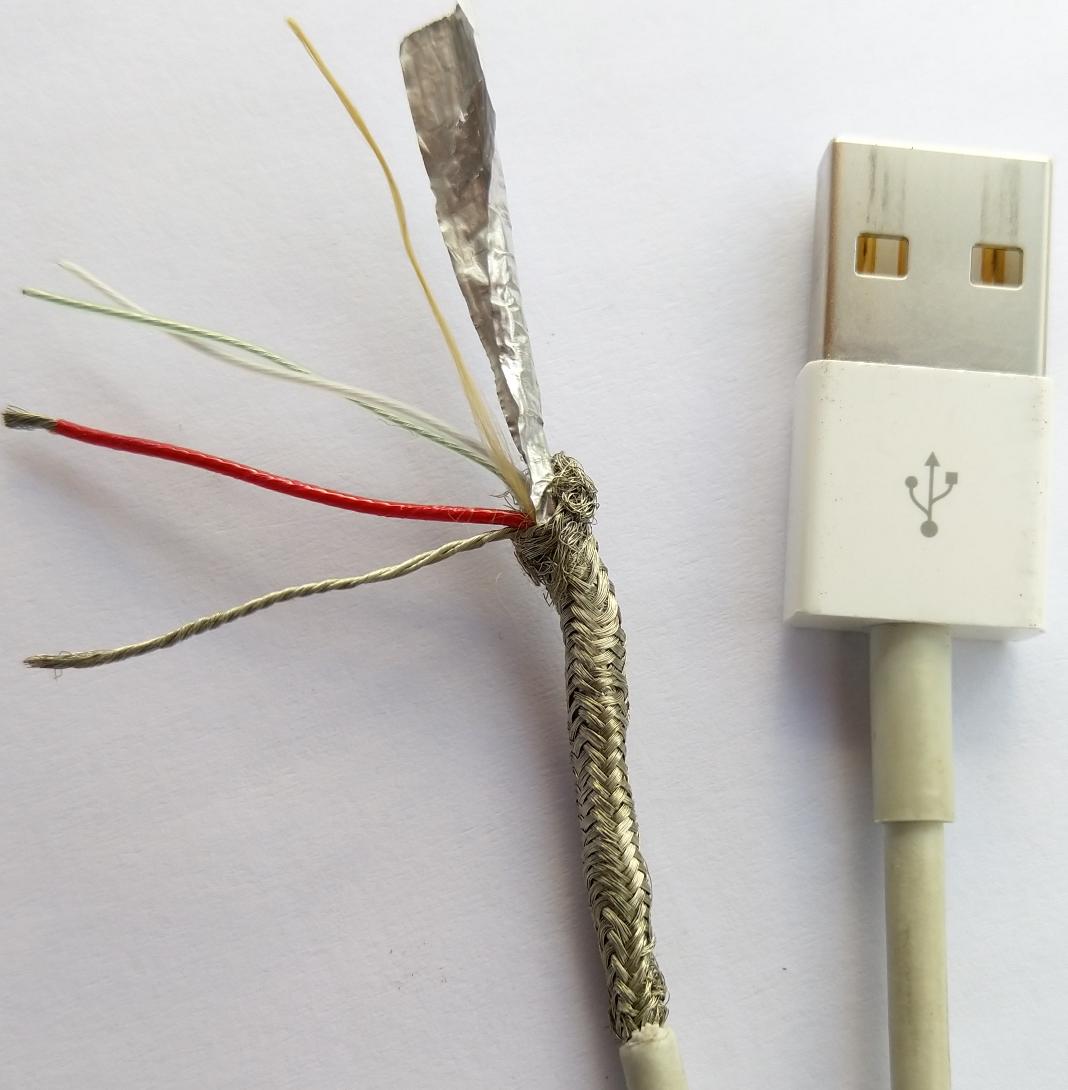

Power conductors, pairs and shielding

Power conductors, pairs and shielding

VBUS and ground are selected for current, length, allowable voltage drop, temperature and terminal range. Data pairs require controlled geometry, while foil, braid and drain arrangements need a deliberate connection to the connector shell or specified ground.

Bigger conductors change mechanics

Lower resistance can increase cable diameter, bend stiffness, termination space and molding pressure.

Shield presence is not shield continuity

The electrical path across braid, foil, drain, shell and equipment ground must be defined and inspected.

09

TERMINATION

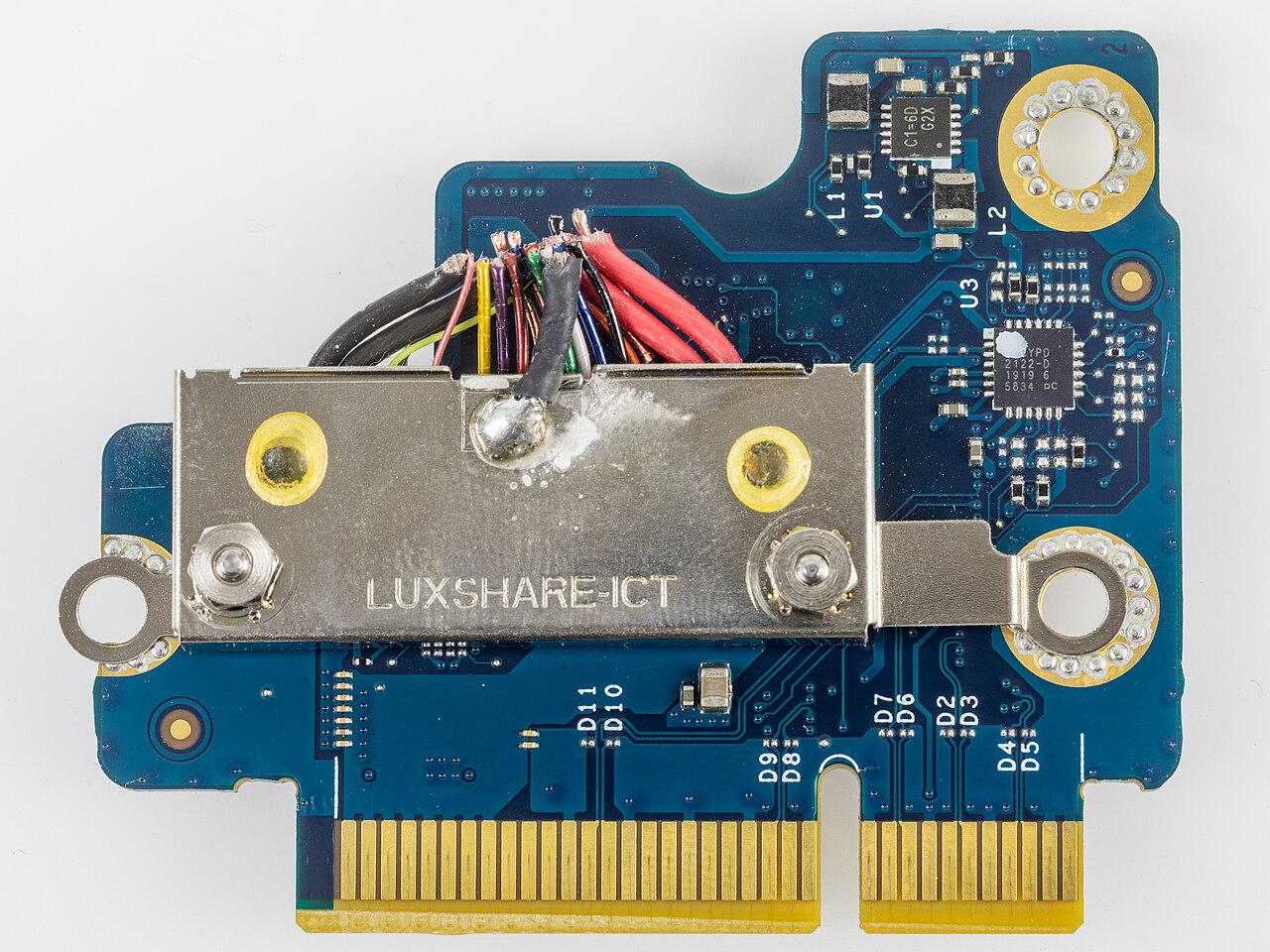

Terminals, soldering and connector boards

Terminals, soldering and connector boards

Compact USB connectors may use stamped terminals, solder joints, flex circuits or small printed boards. Strip length, heat input, solder quantity, pair untwist, shield preparation, board support and insulation clearance are controlled together.

Protect fine conductors

Excess heat or solder wicking can create a rigid transition that fails under repeated cable movement.

Inspect hidden work before molding

Pin map, polarity, soldering, shield path and component orientation are verified before the assembly becomes inaccessible.

10

ACTIVE COMPONENTS

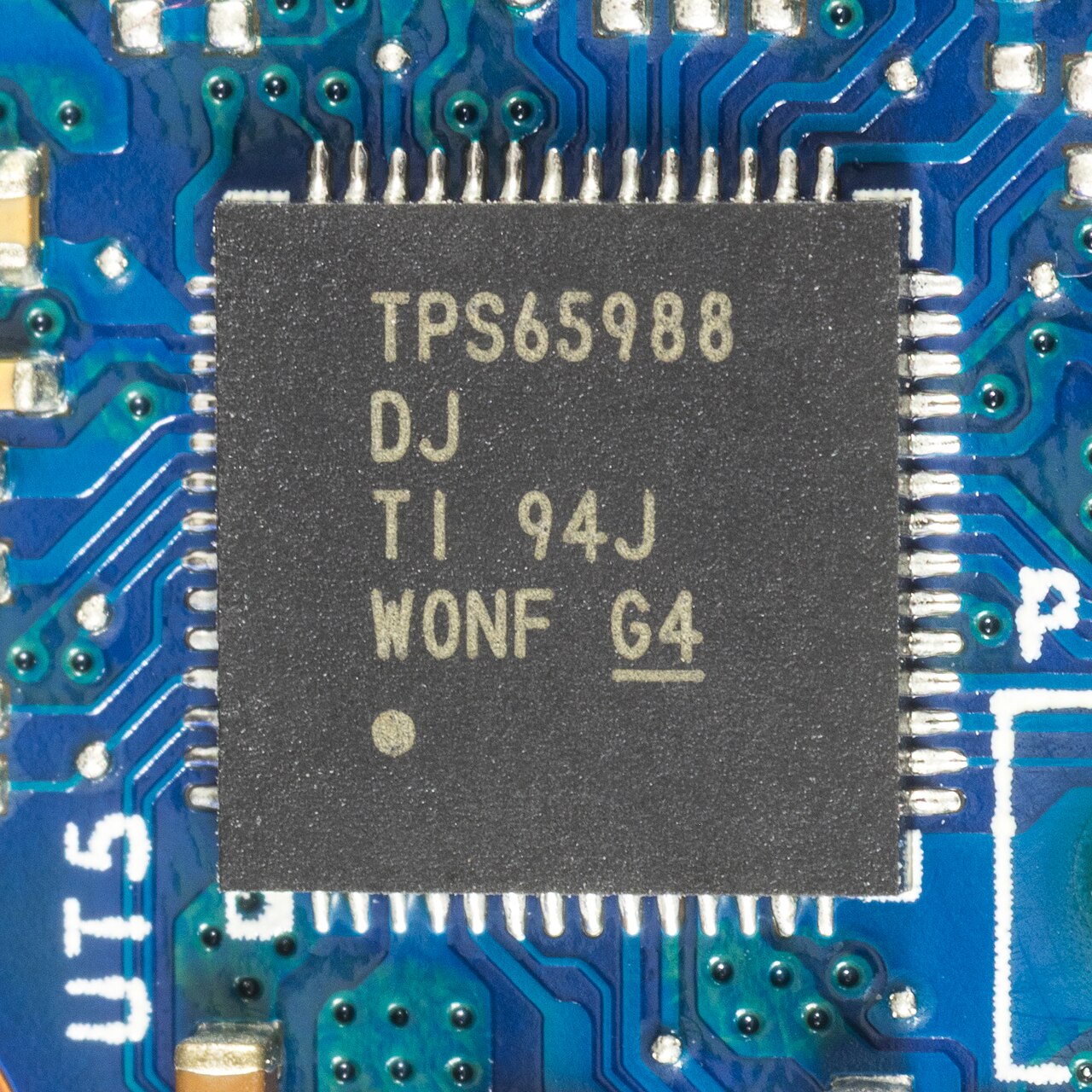

CC, electronic marking and internal electronics

CC, electronic marking and internal electronics

Some Type-C and conversion assemblies include Configuration Channel components, electronic markers, controllers or protection devices. Component identity, programming, orientation, thermal path and functional checks become part of the released BOM and process.

An e-marker is not a label

It is an internal electronic function whose declared capability must agree with the real cable construction.

Control revisions as electronics

Chip, firmware, passive network and test fixture revisions require traceable change control.

11

CONNECTOR BUILD

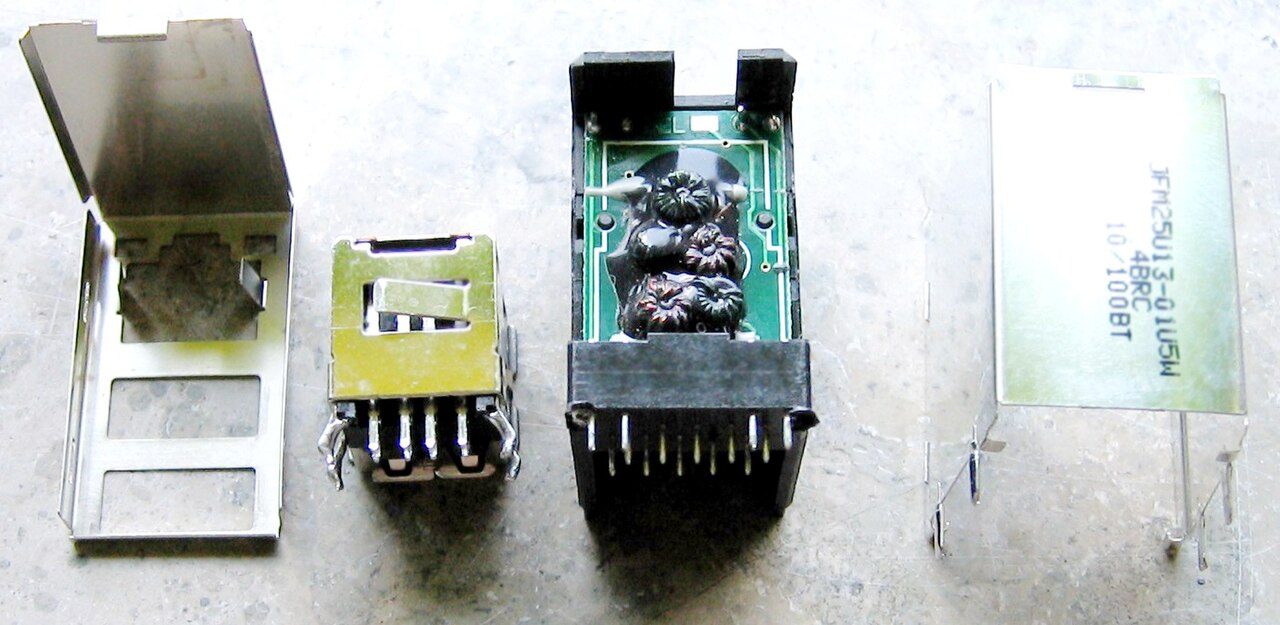

Shell, insert and contact construction

Shell, insert and contact construction

Connector shells guide mating and can support shielding; inserts position contacts; contacts carry power and signals. Plating, retention, terminal range, coplanarity and mating wear affect a cable far beyond its visible exterior.

Use a compatible contact system

Housing, contact, conductor and tool are selected as one qualified termination system.

Protect the mating zone

Molding, adhesive and handling must not contaminate, distort or preload the connector interface.

12

MECHANICAL LIFE

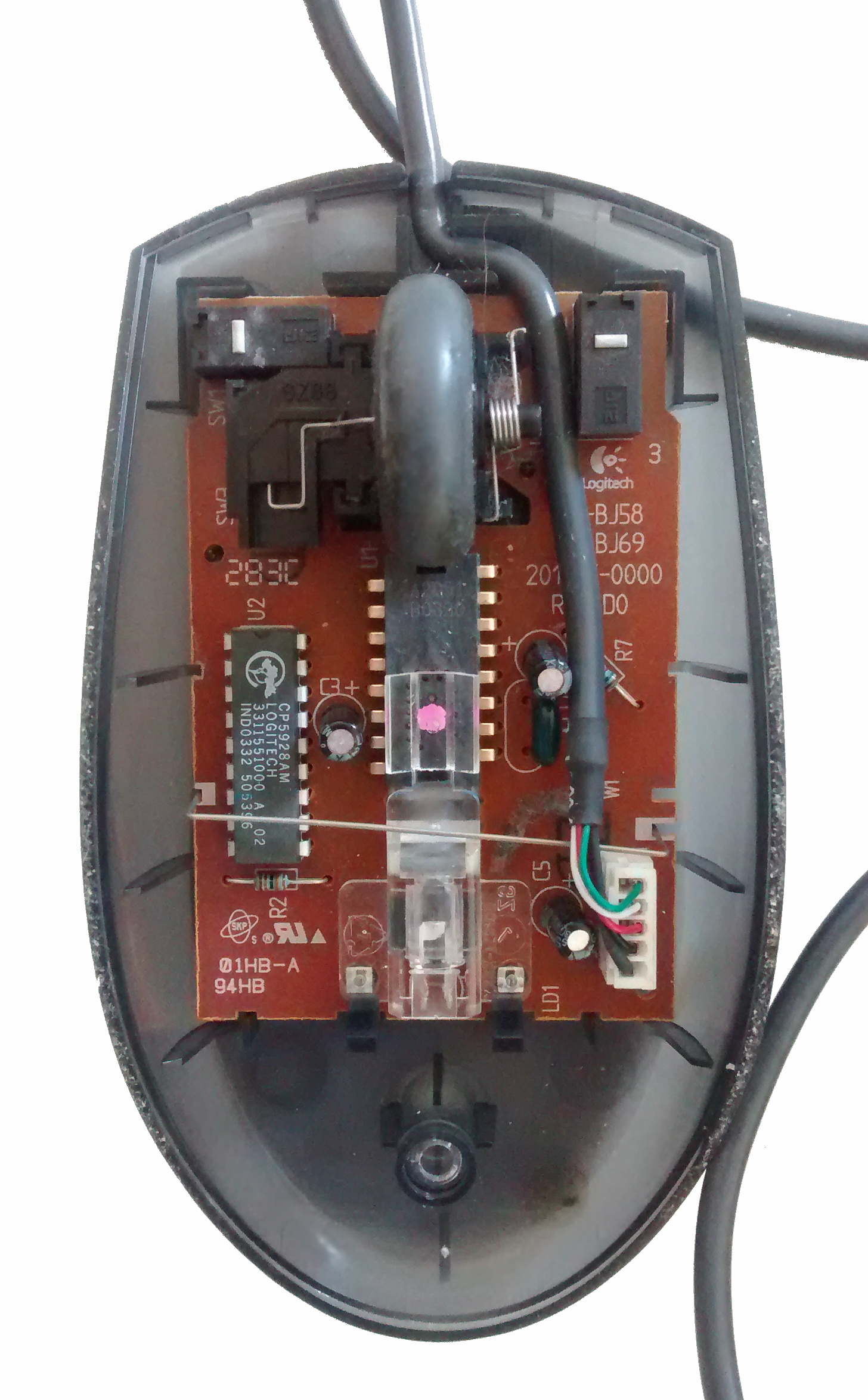

Overmolding and strain relief

Overmolding and strain relief

Overmolding can create grip, bend transition, orientation and protection, but it must match jacket adhesion, connector support, internal components, pressure, temperature and the intended cable route. The transition should bend progressively rather than at one sharp point.

Model the installed bend

A short, stiff boot may look robust yet transfer bending directly into the first unsupported conductor section.

Molding is not an ingress rating

Ingress performance belongs to the complete connector, enclosure, cable and test configuration.

13

BASIC VERIFICATION

Continuity, shorts, polarity and resistance

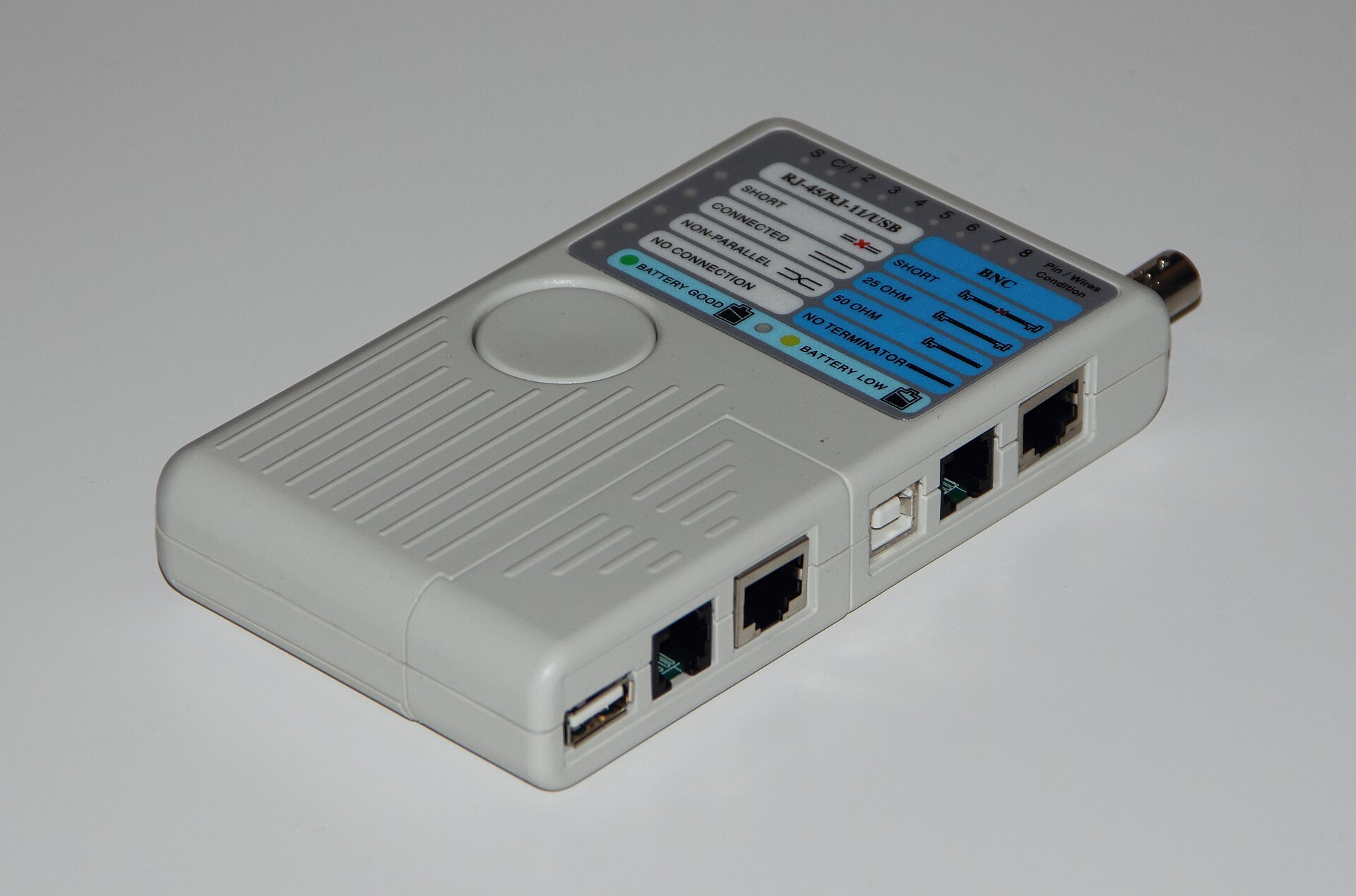

Continuity, shorts, polarity and resistance

Every released assembly is checked against the approved circuit map. Test coverage can include continuity, shorts, polarity, shield and shell connection, component state, resistance or voltage drop, dimensions, labels and mating.

Use project-specific fixtures

A dedicated mating fixture protects connectors and checks every populated, reserved and linked circuit consistently.

Set meaningful limits

Pass limits follow conductor length, current duty, components and measurement method rather than a generic cable-test setting.

14

LINK VALIDATION

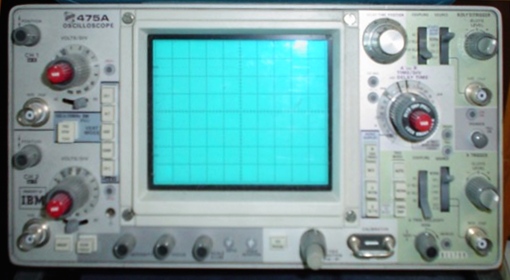

Data, negotiation and system-level testing

Data, negotiation and system-level testing

When project risk requires it, validation extends beyond wiring to real data transfer, negotiation behavior, protocol or electrical measurements and operation with representative equipment. The method and acceptance boundary are agreed before production release.

Test the intended configuration

Cable, source, sink or host, adapters, length and operating mode should represent the actual installation.

State what the test proves

A functional transfer check does not automatically establish compliance, full channel margin or every supported alternate mode.

15

ENVIRONMENT BOUNDARY

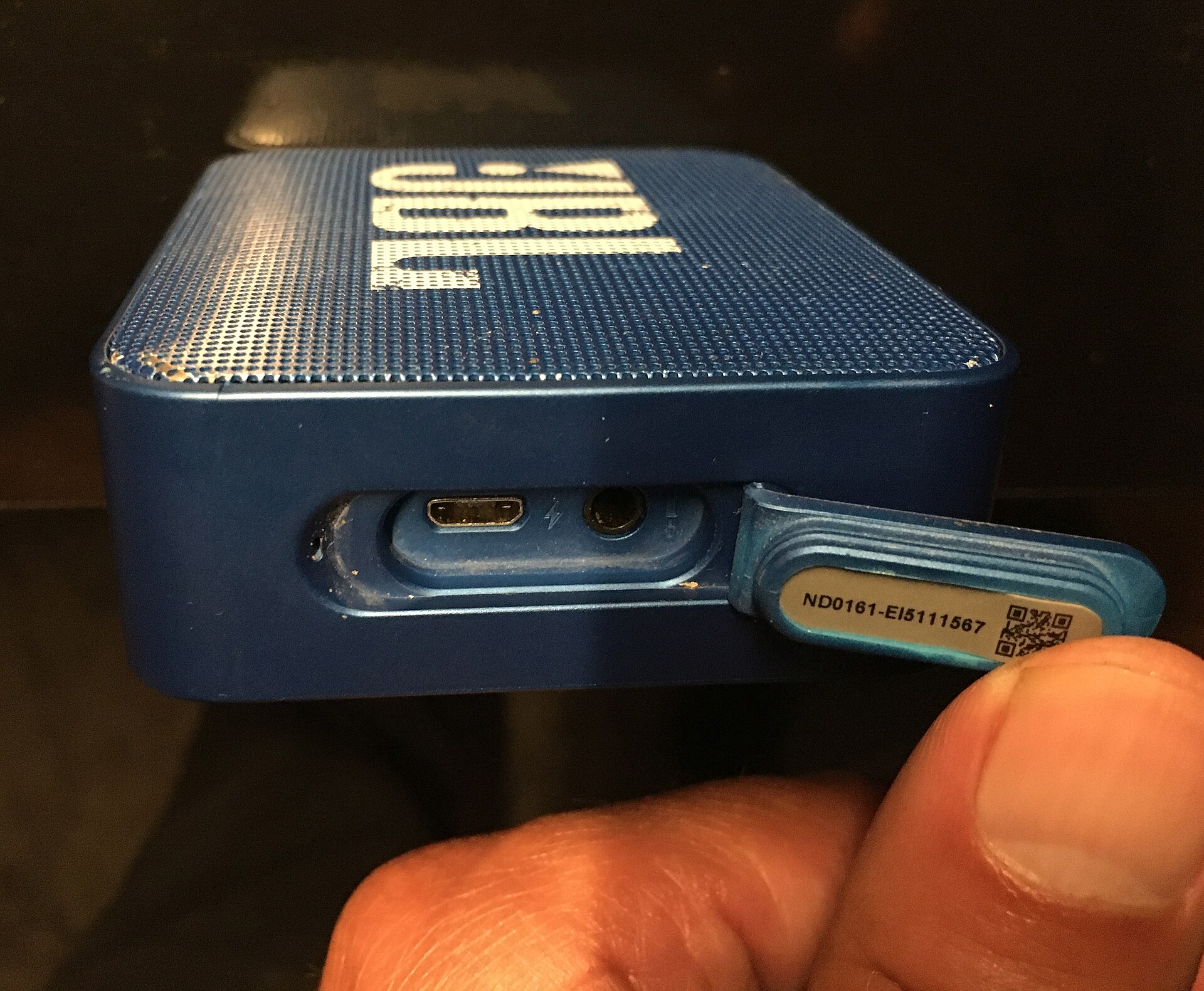

Ingress, cleaning and field exposure

Ingress, cleaning and field exposure

Rain, spray, condensation, dust and cleaning chemistry act on the complete installed interface. A sealed cover, panel gasket, connector, cable jacket, molding and mounting orientation must work together; a molded plug alone does not establish an IP rating.

Define mated and unmated states

Protection may differ while connected, capped, open for service or mounted in another orientation.

Validate the complete boundary

Test method, exposure, duration, mounting and post-test electrical checks are specified for the actual product claim.

16

REPEAT PRODUCTION

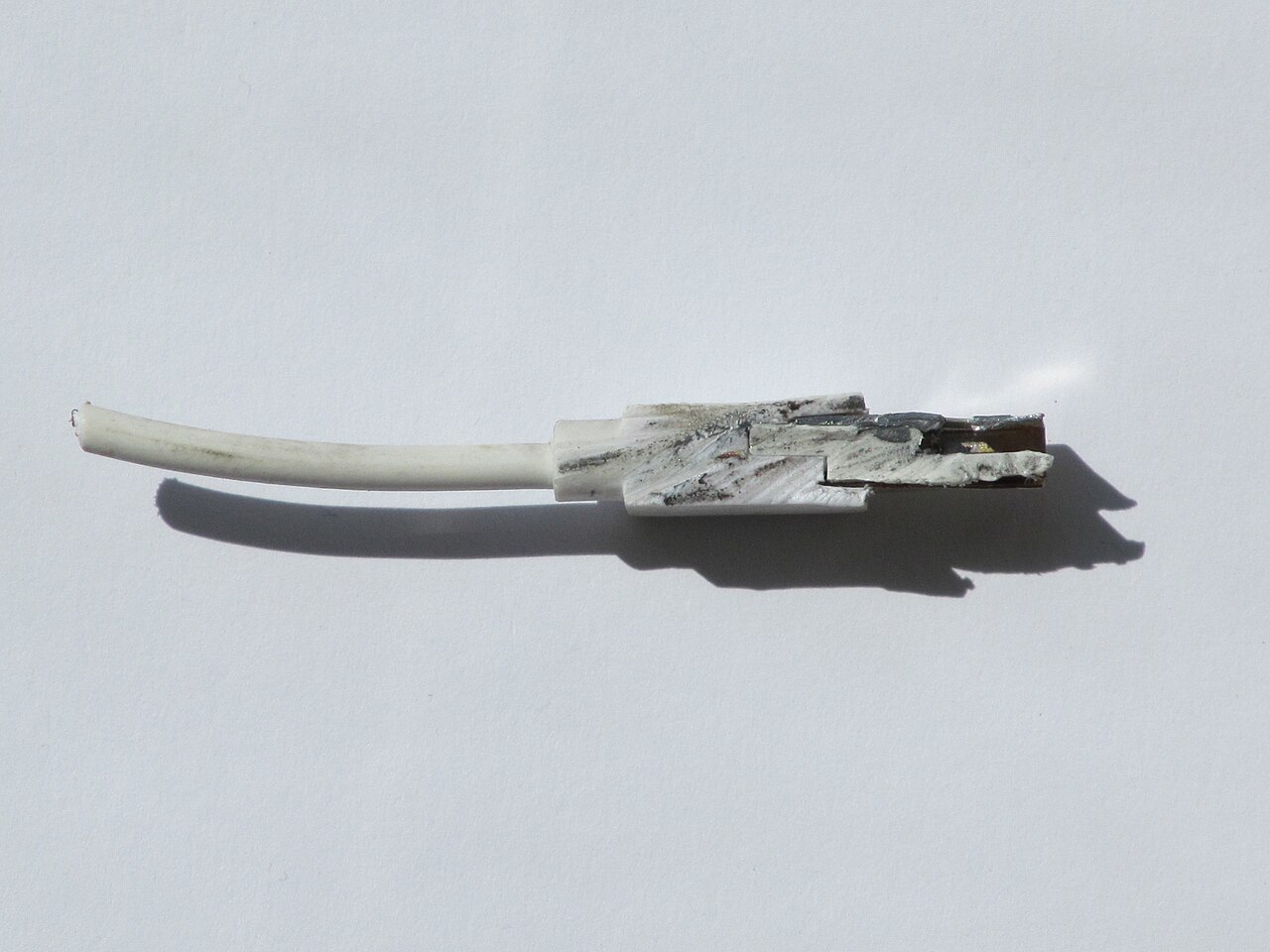

From approved sample to controlled batches

From approved sample to controlled batches

The first article freezes the interface, pin map, cable, components, molding, dimensions, markings, packaging and test plan. Approved drawings, BOM, process settings and inspection records then control later production rather than appearance alone.

Keep capability traceable

Part number and label must distinguish cables with different speed, power, direction or internal electronics.

Review every change

Connector, cable, component, resin, tool or process substitutions are assessed against the original electrical and mechanical requirements.

USB Cable Assembly Questions

Does every Type-C cable support high-speed data and high power?

No. Type-C identifies the connector system. Data lanes, power duty, Configuration Channel wiring, electronic marking, directionality and equipment capability determine the usable functions.

Does passing continuity prove a high-speed USB cable is good?

No. Continuity proves point-to-point connection. High-speed performance also depends on impedance, loss, crosstalk, termination, length, bending and the complete channel.

Can you build a charging-only cable?

Yes, when the required identification, CC or other circuits, current, voltage drop, temperature rise and misuse controls are explicitly defined and approved.

Can overmolding make a USB cable waterproof?

Not by itself. Ingress protection depends on the complete mated connector, enclosure, panel seal, cable, molding, mounting direction and defined test method.

Can a sample be copied without drawings?

A sample can support dimensional and visible-circuit mapping, but hidden electronics, USB capability, ratings, materials, intellectual-property responsibility and equipment behavior still require confirmation.

What information is needed for quotation?

Provide both endpoints, mating devices, required USB generation and functions, data and power duty, pin map, length, panel and bend direction, shielding, jacket, molding, environment, quantity, labels and validation requirements.
