Product type

Outdoor Waterproof Harness

Overview

Outdoor waterproof harnesses are designed for equipment exposed to rain, splash, dust, condensation or other defined environments. Waterproof performance belongs to the complete mated connection and cable-entry system, not to the cable alone.

Ask About This Product Type Find Models & Material Part Numbers Back to Products

Outdoor Waterproof Harness - Custom Harness

Popular Product Photos

01 / 11

01

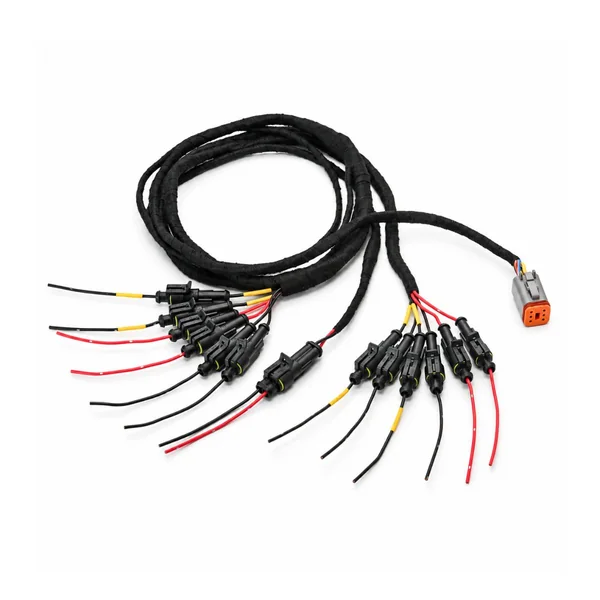

Sealed-Connector Power Branch Harness

02

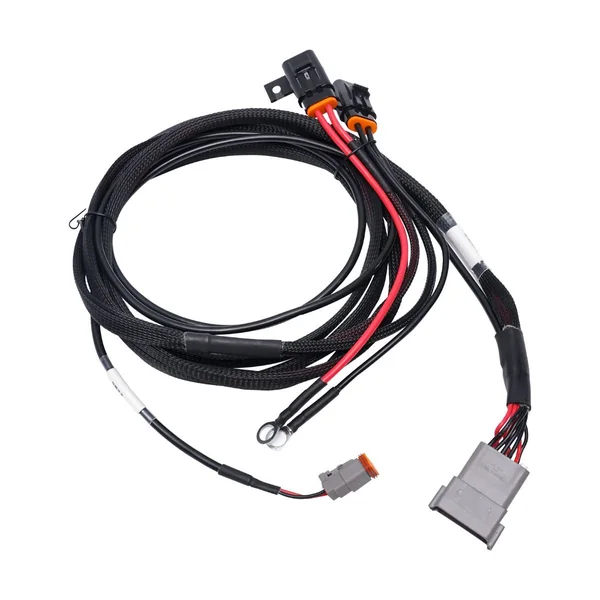

Corrugated-Conduit Power & Control Harness

03

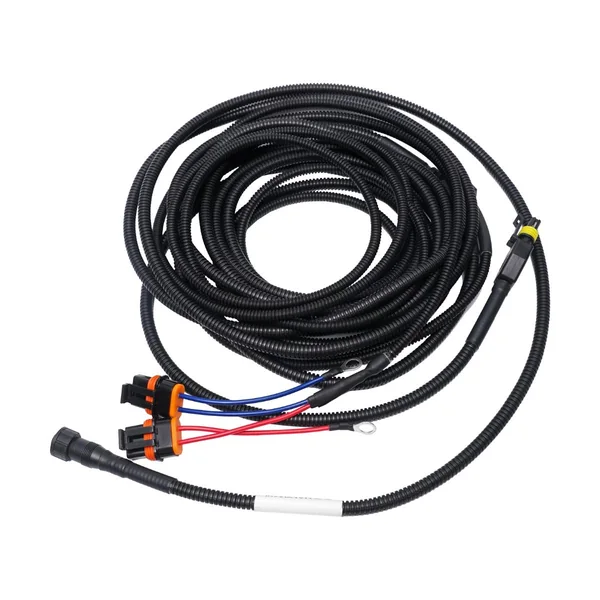

Sealed Plug & Ring-Terminal Coiled Harness

04
Blue Connector Multi-Branch Equipment Harness

05

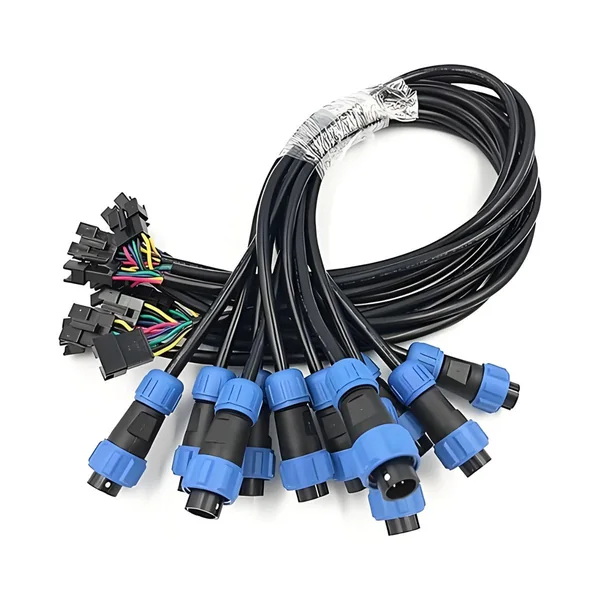

Blue Threaded Plug Outdoor Lighting Harness

06

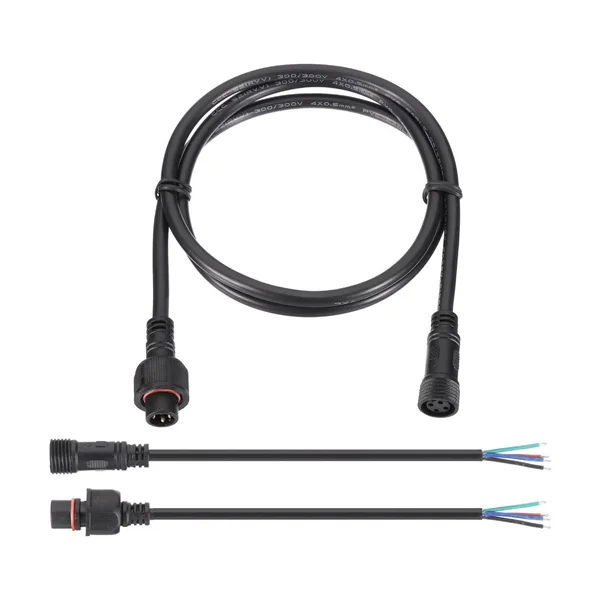

Circular Male-to-Female Plugs Extension Harness Set

07
Threaded Circular Connector 1-to-2 Y-Branch Harness

08
Irrigation Equipment Terminals Pigtail

09
M12 8-Port Sensor Distribution Box Harness

11

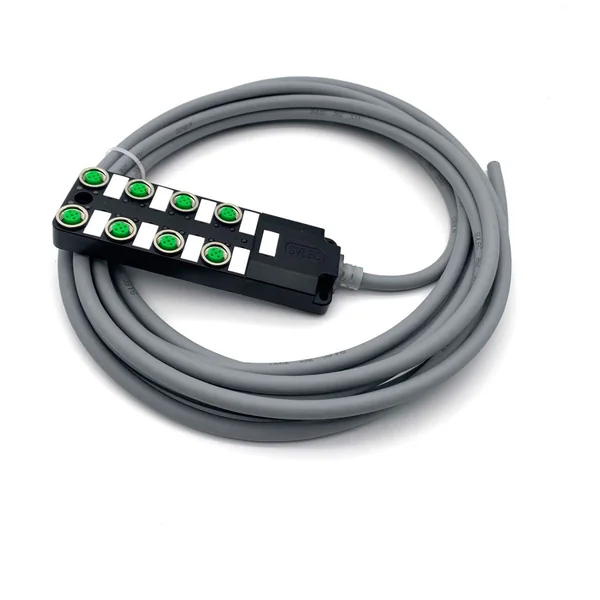

M12 8-Way Sensor Distribution Box Harness

Product Introduction

Sealed connections designed around the real exposure

An outdoor waterproof harness is a complete cable-entry and mated-connector system, not simply a cable with a sealed-looking plug. Housing seals, individual wire seals, cavity plugs, rear covers, jacket diameter, branch joints, strain relief, mating condition and installed orientation all influence ingress. We develop the harness around the stated exposure and an agreed test method, then limit performance claims to the validated configuration.

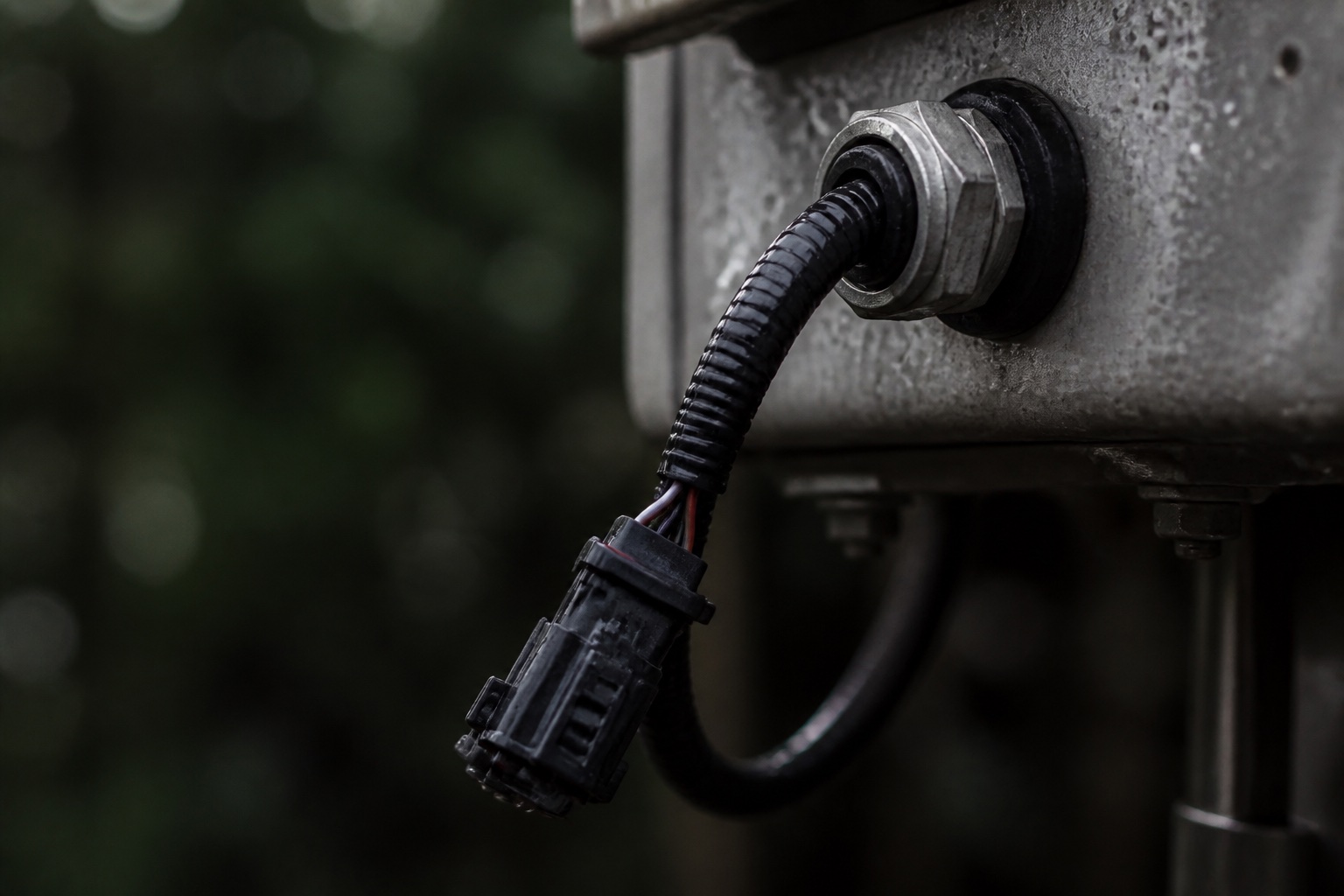

Outdoor Waterproof Harness product range

Outdoor Waterproof Harness Types

Rain and splash exposed equipment harness

For outdoor cabinets, pumps, valves and field devices exposed to directional rain or splash. Connector orientation, drip paths and cable entry are reviewed with the enclosure.

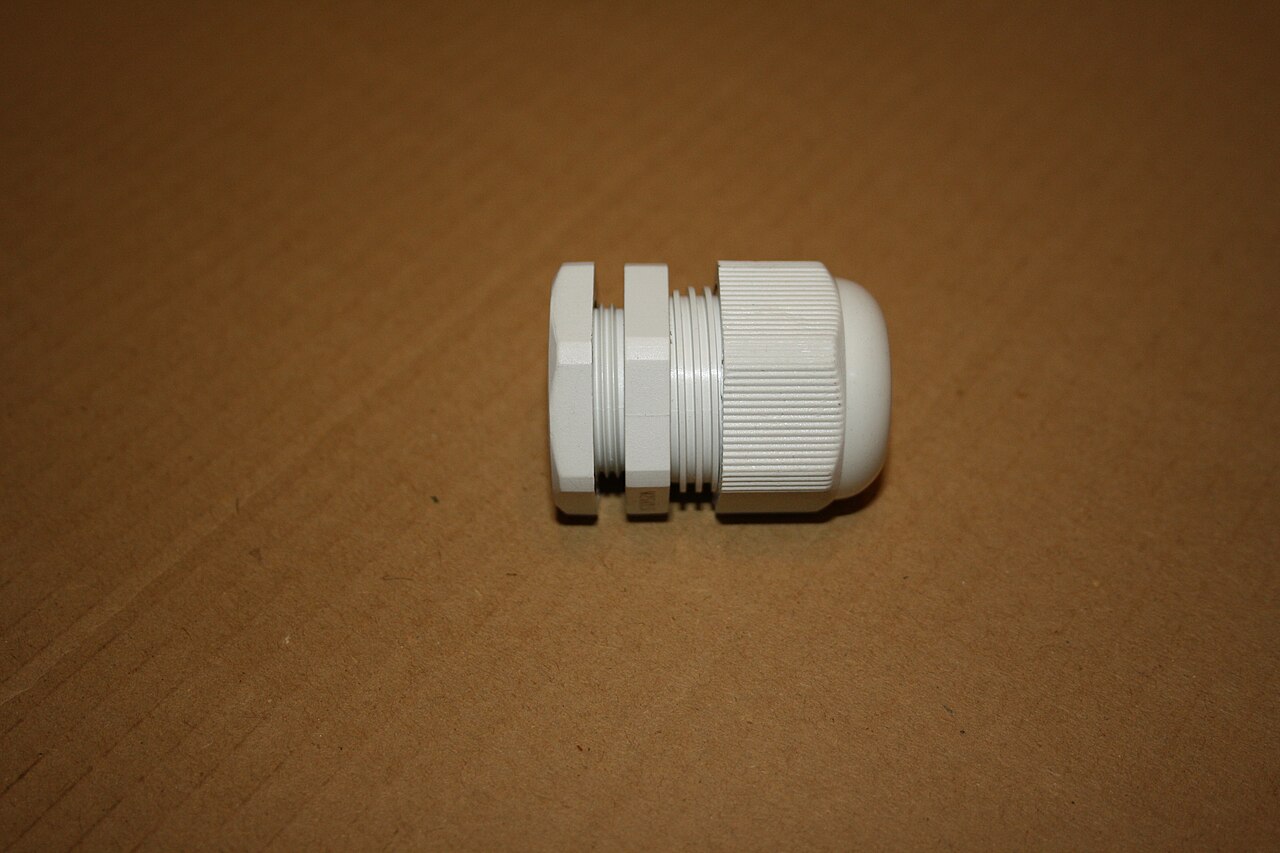

Jacketed outdoor cable assembly

Uses an outdoor-suitable jacket and sealed interfaces for exposed runs. UV, temperature, water, oil and flexibility requirements are treated separately.

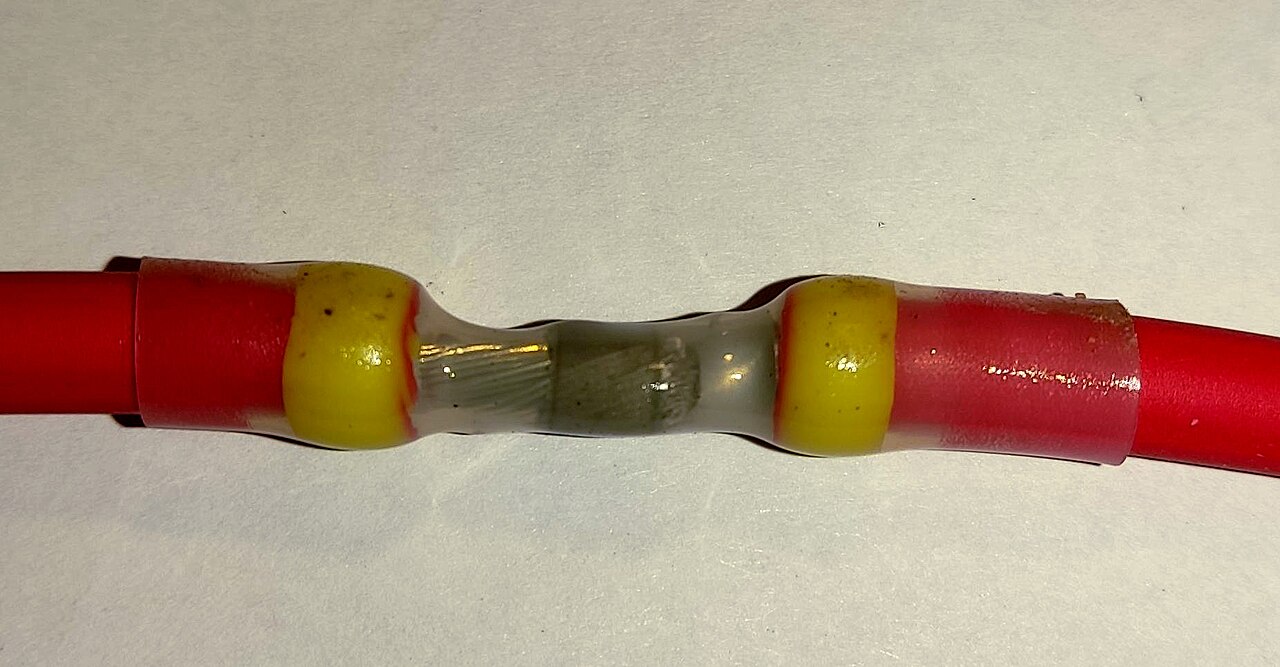

Sealed branch and splice harness

Branch joints can use sealed splice construction, adhesive heat-shrink, overmolding or protected junctions according to the cable geometry and service need.

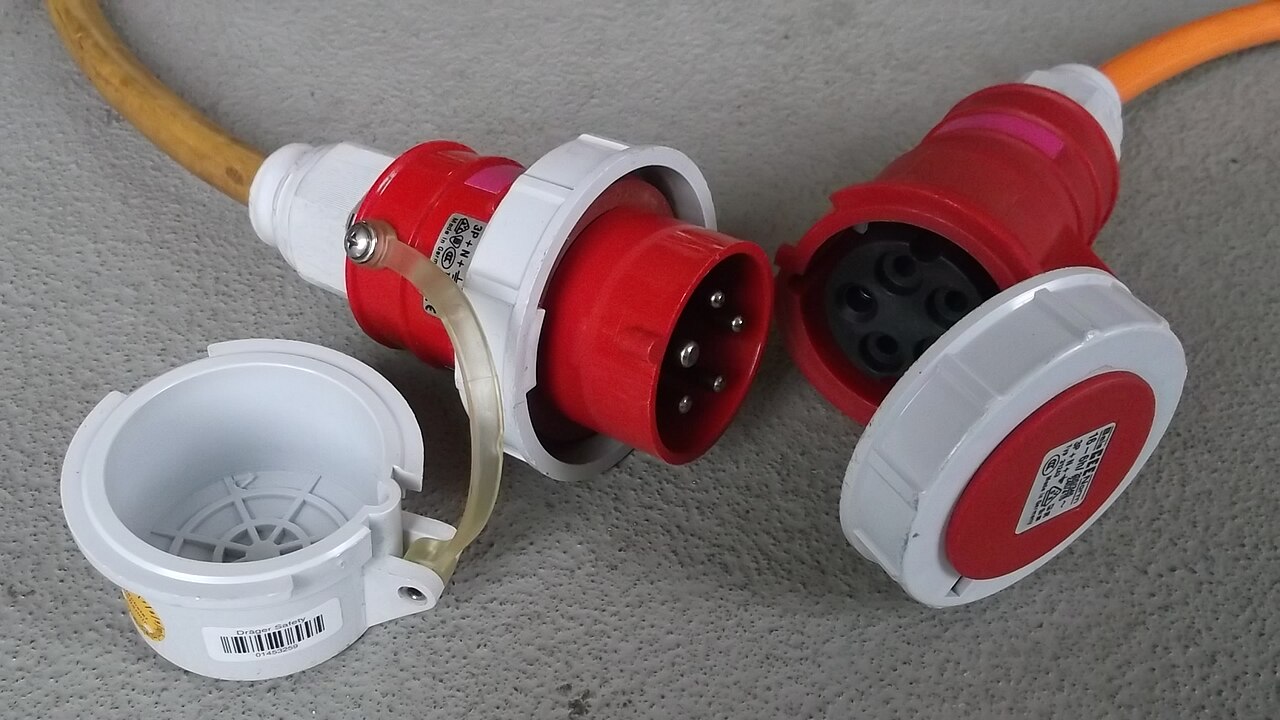

Multi-connector outdoor equipment loom

Combines power, control, sensors and communication branches while keeping each cavity seal, unused port and interface direction under configuration control.

Moving outdoor harness

Adds flex routing, bend control and connector strain relief for outdoor mechanisms. Movement cannot be allowed to unload or distort the rear seal.

Condensation and temperature-cycle harness

For equipment cycling between hot, cold or humid states, materials, venting, low points and condensation paths are reviewed instead of considering rainfall alone.

Sealing and Material Recommendations

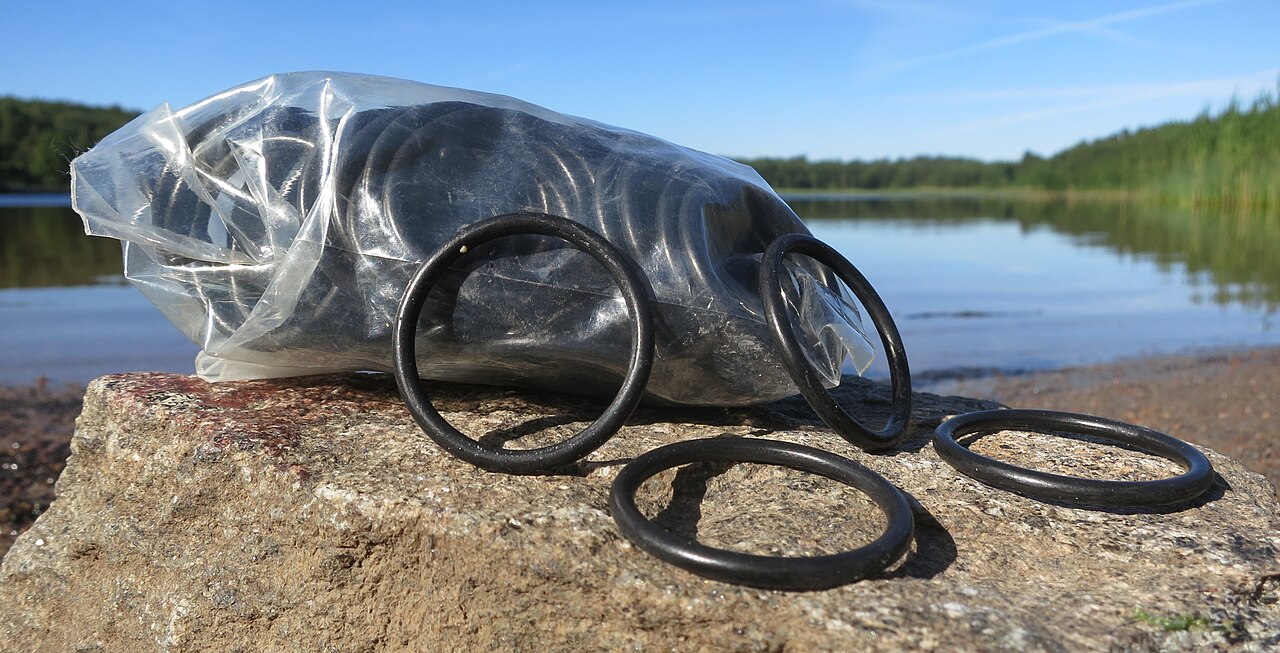

Housing seals, wire seals and cavity plugs

Every seal must match the exact housing, terminal, wire insulation diameter and cavity condition. Unused cavities receive the specified plugs rather than improvised filling.

Conductor, insulation and jacket system

Current, voltage drop, temperature, flexing and environment define the conductor and insulation; jacket chemistry is checked for sunlight, water, oils and cleaners as applicable.

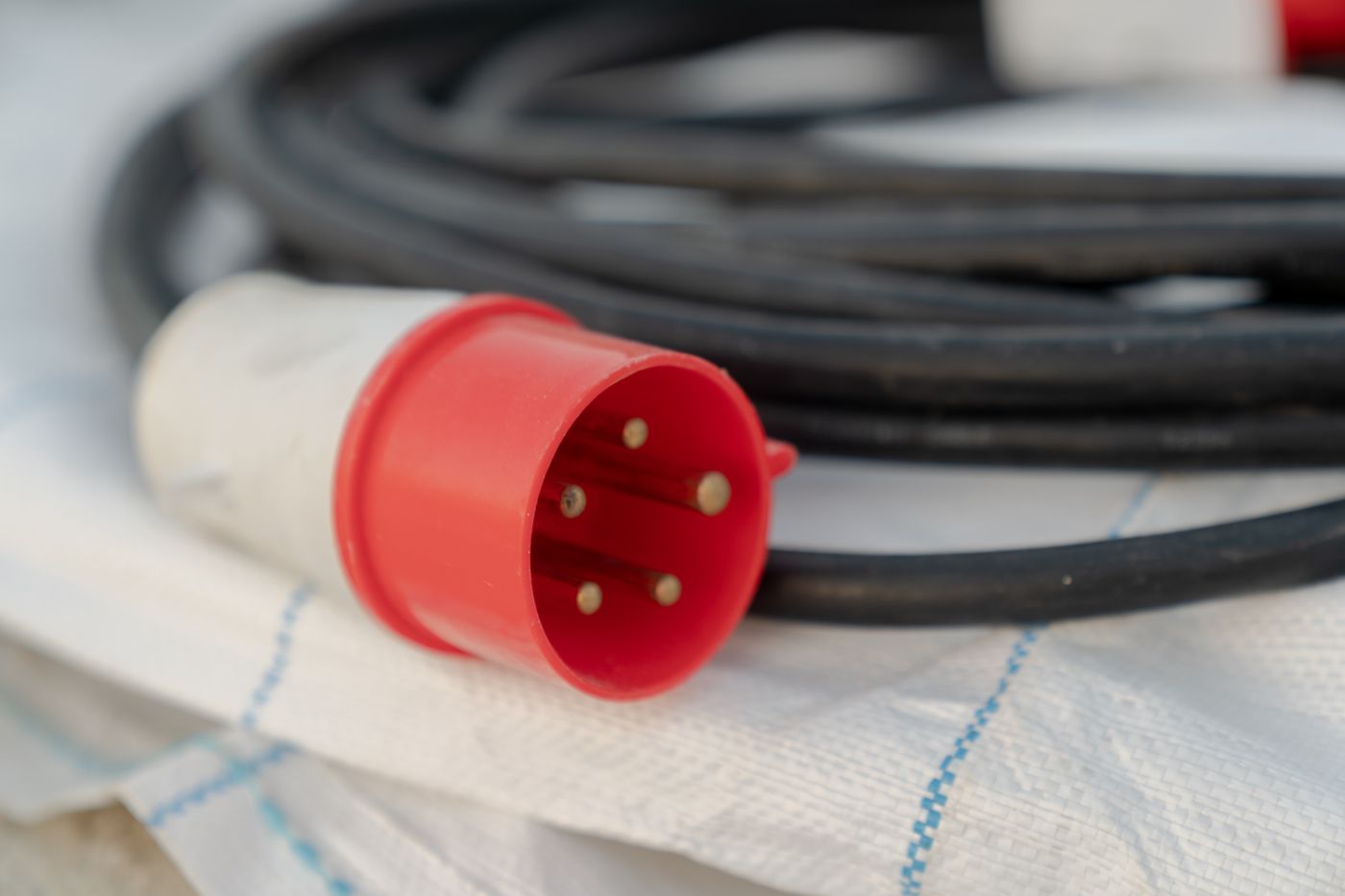

Backshells, clamps and strain relief

Rear covers, glands, boots and clamps protect the cable entry only when sized and tightened for the specified jacket and installation loads.

Shield and grounding compatibility

Where shielding is required, conductive paths and terminations are designed without creating a leak path or compromising the connector sealing stack.

Waterproof Harness Solutions

Define the actual exposure before selecting parts

Rain, immersion, pressure wash, mud, salt, chemicals, UV and condensation are different duties. The project states which conditions and test references apply.

Review the complete mated interface

Both halves, seals, terminals, cavity plugs, locks, backshells and cable entry are reviewed together, including responsibility for the equipment-side connector.

Control branch joints and low points

Splices, breakouts and label positions are arranged so capillary paths, unsupported bends and water collection do not undermine the sealed interfaces.

Match inspection to the final installation

Continuity, seal assembly and agreed ingress checks are performed on a representative configuration. Final enclosure and mating conditions remain part of system validation.

Outdoor Applications

Outdoor automation and production equipment

Connects sensors, actuators, controls and field modules around exposed production or material-handling systems.

Construction and mobile machinery auxiliaries

Supports defined low-voltage controls, lighting, sensors and attachments exposed to vibration, mud and service handling.

Outdoor robots and moving mechanisms

Combines sealing with controlled movement, bend radius, fixation and rear-seal strain relief.

Agricultural and processing equipment

Addresses washdown, dust, moisture and replaceable field connections on handling and processing equipment when specifically defined.

Pumps, fans and outdoor appliances

Routes power and controls between motors, switches, sensors and enclosures with sealed cable entries.

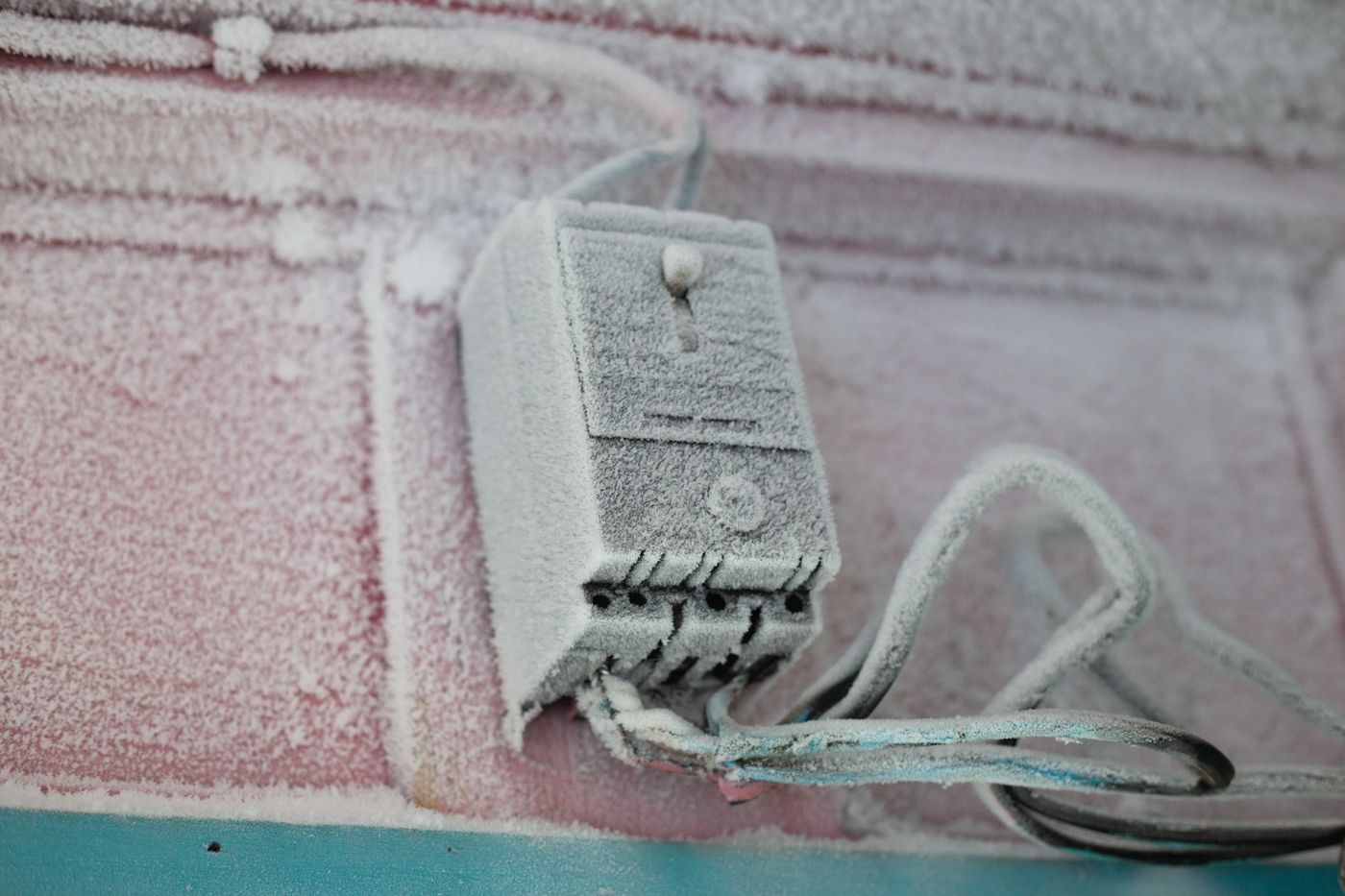

Outdoor monitoring and measurement

Connects probes, instruments, communication nodes and service ports where signal integrity and environmental sealing must coexist.

Waterproof Harness Making Method

Exposure and requirement review
Confirm installation, mating state, direction, water source, temperature, chemicals, movement, target method and acceptance limits.
Sealing-stack definition
Define housings, terminals, seals, plugs, jacket diameters, backshells, branch treatment and strain relief as one configuration.
Controlled crimp and seal assembly
Prepare wires without damaging insulation or seals, crimp to the approved setup, insert cavities and verify lock and seal seating.
Branch and cable-entry finishing
Apply approved heat-shrink, boots, glands, overmolding or protective covering while preserving drainage, bend and service access.
Electrical and visual inspection
Check continuity, polarity, cavity population, locks, seals, plugs, cable entry, labels and workmanship before environmental testing.
Agreed ingress validation and release
Test only the representative assembly and method agreed for the project, record results and release the exact validated revision.

Ingress and Environmental Review

Temperature cycling and condensation

Seal hardness, jacket movement, internal air exchange and condensation can change across temperature cycles; these effects require project-defined evaluation.

Vibration, bend load and seal disturbance

Cable weight and movement at the connector rear can disturb seals. Routing, clamps, service loop and strain relief are part of reliability.

Mated-condition and unused-cavity checks

Ingress conclusions depend on correct mating, locks, cavity plugs and equipment-side interfaces, not only the supplied harness half.

Claims tied to method and configuration

Ingress, salt, UV, chemical or washdown claims require defined specimens, conditioning, methods and acceptance limits.

What a Defined Sealing System Improves

Fewer field leaks caused by interface mismatch

Wire diameter, seals, plugs and mating hardware are reviewed as a compatible system instead of isolated parts.

More repeatable sealing assembly

Controlled preparation, insertion, locking, strain relief and inspection points reproduce the approved sealed configuration.

Clearer system responsibility

Harness-side, equipment-side and final installed validation responsibilities are identified before performance is claimed.

Protection matched to real service

Materials and tests follow rain, splash, condensation, movement or chemicals actually present, avoiding both under-design and unsupported over-design.

Frequently Asked Questions

Is a waterproof connector enough to make the harness waterproof?

No. Both mated halves, seals, cavity plugs, wire diameters, cable entries, branches, strain relief and installed orientation affect the complete result.

Can you provide a specific IP rating?

A target can be reviewed when the complete configuration, specimen, test method and acceptance criteria are defined. The category name alone is not an IP claim.

What information is needed for development?

Provide both mating interfaces, pin map, wire and cable diameters, unused cavities, installation direction, exposure, movement, quantity and the required test reference.

How are waterproof branches made?

Depending on geometry and service needs, branches may use sealed splices, adhesive heat-shrink, boots, overmolding or protected junctions. The method is project specific.

Does the harness need to be tested while mated?

Usually the claimed interface performance belongs to the correctly mated system. Test condition and responsibility for the equipment-side half must be agreed before validation.

Which checks are performed before shipment?

Finished harnesses receive continuity and appearance inspection plus checks of seals, locks, plugs, entries and workmanship. Ingress or environmental tests follow the approved project plan.

PART NUMBER / INTERFACE / MATERIAL

Models, Part Numbers & Sourcing

Find a cable model or material part number, then send it for a custom replacement or original-part sourcing review.

Cable & Harness Models

Moulded M8 and M12 cable assemblies with documented connector sealing.

Binder
77 3419 0000 50003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3420 0000 50003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 20003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3427 0000 20708-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 20003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3434 0000 20708-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 70003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 50003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 50003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3627 0000 20003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3630 0000 20003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3634 0000 20003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3834 0000 20003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 20403-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3727 0000 20908-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 20403-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3734 0000 20908-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 80003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 80003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3419 0000 50003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3420 0000 50003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 50003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3427 0000 50708-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 50003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3434 0000 50708-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 70003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 50003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 50003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3627 0000 50003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3630 0000 50003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3634 0000 50003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3834 0000 50003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 40403-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3727 0000 40908-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 40403-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3734 0000 40908-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 80203-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 80203-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3419 0000 50004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3420 0000 50004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 20003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3427 0000 20708-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 20003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3434 0000 20708-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 70004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 50004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 50004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3627 0000 20003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3630 0000 20003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3634 0000 20003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3834 0000 20003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 20403-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3727 0000 20908-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 20403-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3734 0000 20908-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 80003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 80003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3419 0000 50004-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3420 0000 50004-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 50003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3427 0000 50708-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 50003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3434 0000 50708-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 70004-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 50004-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 50004-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3627 0000 50003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3630 0000 50003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3634 0000 50003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3834 0000 50003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 40403-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3727 0000 40908-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 40403-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3734 0000 40908-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 80203-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 80203-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3419 0000 50005-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3420 0000 50005-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 20004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3427 0000 20712-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 20004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3434 0000 20712-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3434 0000 70003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 50005-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 50005-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3627 0000 20004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3630 0000 20004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3634 0000 20004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3834 0000 20004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 20404-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3727 0000 20912-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 20404-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3734 0000 20912-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 80004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 80004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3419 0000 50005-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3420 0000 50005-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 50004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3427 0000 50712-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 50004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3434 0000 50712-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3434 0000 70003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 50005-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 50005-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3627 0000 50004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3630 0000 50004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3634 0000 50004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3834 0000 50004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 40404-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3727 0000 40912-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 40404-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3734 0000 40912-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 80204-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 80204-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3419 0000 50708-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3420 0000 50708-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 20004-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3427 0000 20712-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 20004-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3434 0000 20712-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 50006-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 50006-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 50006-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 50006-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3608 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 20706-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3508 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 50006-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 50006-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 50006-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 50006-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3608 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 50706-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3508 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 20008-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 20008-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 20008-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 20008-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3608 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 20706-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3508 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 50008-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 50008-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 50008-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 50008-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3608 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 50706-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3508 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 20004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 20004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 20004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 20004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 20008-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 20008-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 20008-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 20008-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3608 0000 20004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 20708-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3508 0000 20004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 50004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 50004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 50004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 50004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 50008-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 50008-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 50008-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 50008-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3608 0000 50004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 50708-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3508 0000 50004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 20004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 20004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 20004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 20004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3608 0000 20004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 20708-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3508 0000 20004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 50004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 50004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 50004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 50004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3608 0000 50004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 50708-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3508 0000 50004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 20005-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 50005-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 20005-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 50005-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3606 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 20703-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3506 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 50005-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 50005-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 50005-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 50005-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3606 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 50703-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3506 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 20005-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 50006-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 20005-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 50006-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 20004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 20004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 20004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 20004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3606 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 20703-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing

Connector & Material Part Numbers

Sealed circular connector components for outdoor interface selection.

Binder
99 0429 43 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 82 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 287 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1437 914 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1431 814 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0525 14 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0527 14 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1433 814 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 19 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 44 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 162 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1431 824 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0525 24 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1433 824 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 58 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 10 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 82 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 287 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1436 914 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1432 814 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0524 14 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0528 14 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1434 814 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 19 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 92 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 162 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1432 824 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0524 24 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1434 824 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 58 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 57 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 282 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 287 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1487 914 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1439 814 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0525 12 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0527 12 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0529 14 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 19 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 69 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 162 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1439 824 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0525 52 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0529 24 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 58 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 30 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 282 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 287 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1486 914 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1438 814 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0524 12 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0528 12 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0530 14 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 19 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 292 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 286 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1438 824 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0524 52 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0530 24 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 58 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 43 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 82 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0487 287 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1491 914 12
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1489 814 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0537 14 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0529 12 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 44 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 286 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1489 824 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0537 24 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0529 52 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 57 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 82 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0486 287 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1492 914 12
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1488 814 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0536 14 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0530 12 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 92 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1488 824 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0536 24 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0530 52 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 57 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 282 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 186 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1429 814 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1489 812 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0537 12 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 69 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 286 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1429 824 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0537 52 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 10 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 282 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 186 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1430 814 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1488 812 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0536 12 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 292 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1430 824 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0536 52 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 07 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0487 282 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 186 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1429 812 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1429 991 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1525 814 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 92 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1429 822 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1525 824 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 57 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0486 282 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 186 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1430 812 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1430 991 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1526 814 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 27 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1430 822 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1526 824 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 158 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 684 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0487 186 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1437 814 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1429 992 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1525 812 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 292 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1437 824 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1525 822 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 07 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 684 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0486 186 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1436 814 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1430 992 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1526 812 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 161 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1436 824 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1526 822 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 314 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 684 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 142 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1437 812 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1437 991 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1537 814 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 92 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1437 822 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1537 824 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 158 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 684 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 142 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1436 812 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1436 991 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1538 814 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 324 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1436 822 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1538 824 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 14 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 142 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1487 814 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1437 992 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1537 812 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 292 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1487 822 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1537 822 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 314 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 142 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1486 814 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1436 992 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1538 812 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 24 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1486 822 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1538 822 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 12 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1487 812 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1487 992 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1527 814 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 27 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1491 822 12
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 14 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1486 812 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1486 992 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1528 814 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 52 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1492 822 12
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 14 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1491 812 12
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1539 814 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 161 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 12 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1492 812 12
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3379 500 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3361 25 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3385 00 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3400 100 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3360 25 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3402 00 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3403 282 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3412 282 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3379 550 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3361 00 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3387 00 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3376 100 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3360 00 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3378 00 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3391 282 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3390 282 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3383 500 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3363 25 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3379 110 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3400 00 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3362 25 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3400 110 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3412 280 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3383 550 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3363 00 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3383 110 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3376 00 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3362 00 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3376 110 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3390 280 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3379 00 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3361 300 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3365 00 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3400 500 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3360 300 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3364 00 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3412 281 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3383 00 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3363 300 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3367 00 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3400 550 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3362 300 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3366 00 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3390 281 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3379 100 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3361 100 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3376 500 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3360 100 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3383 100 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3363 100 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing

Six Decisions Behind the Part Number

01 Complete Seal Path

Review the connector, cable exit, branch joints and free ends together.

02 Mated Interface

Confirm mating parts, seal geometry and the specified locking method.

03 Outdoor Jacket

Select the jacket for actual sunlight, temperature, moisture and abrasion exposure.

04 Water Entry Points

Define protection at splices, enclosure entries and any exposed conductor ends.

05 Installation Loads

Set bend clearance, clamp locations and strain relief around sealed interfaces.

06 Configured Validation

Confirm the required water-exposure test for the finished harness. Connector ratings alone do not define whole-harness protection.

Send the part number, drawing or sample to confirm the replacement configuration and sourcing plan.

Outdoor Waterproof Harness

Rain and splash exposed equipment harness

Jacketed outdoor cable assembly

Sealed branch and splice harness

Multi-connector outdoor equipment loom

Moving outdoor harness

Condensation and temperature-cycle harness

Housing seals, wire seals and cavity plugs

Conductor, insulation and jacket system

Backshells, clamps and strain relief

Shield and grounding compatibility

Define the actual exposure before selecting parts

Review the complete mated interface

Control branch joints and low points

Match inspection to the final installation

Outdoor automation and production equipment

Construction and mobile machinery auxiliaries

Outdoor robots and moving mechanisms

Agricultural and processing equipment

Pumps, fans and outdoor appliances

Outdoor monitoring and measurement

Exposure and requirement review

Sealing-stack definition

Controlled crimp and seal assembly

Branch and cable-entry finishing

Electrical and visual inspection

Agreed ingress validation and release

Temperature cycling and condensation

Vibration, bend load and seal disturbance

Mated-condition and unused-cavity checks

Claims tied to method and configuration

Fewer field leaks caused by interface mismatch

More repeatable sealing assembly

Clearer system responsibility

Protection matched to real service

77 3419 0000 50003-0200

77 3420 0000 50003-0200

77 3429 0000 20003-0200

77 3427 0000 20708-0200

77 3430 0000 20003-0200

77 3434 0000 20708-0200

77 3430 0000 70003-0200

77 3729 0000 50003-0200

77 3730 0000 50003-0200

77 3627 0000 20003-0200

77 3630 0000 20003-0200

77 3634 0000 20003-0200

77 3834 0000 20003-0200

77 3729 0000 20403-0200

77 3727 0000 20908-0200

77 3730 0000 20403-0200

77 3734 0000 20908-0200

77 3429 0000 80003-0200

77 3430 0000 80003-0200

77 3419 0000 50003-0500

77 3420 0000 50003-0500

77 3429 0000 50003-0200

77 3427 0000 50708-0200

77 3430 0000 50003-0200

77 3434 0000 50708-0200

77 3430 0000 70003-0500

77 3729 0000 50003-0500

77 3730 0000 50003-0500

77 3627 0000 50003-0200

77 3630 0000 50003-0200

77 3634 0000 50003-0200

77 3834 0000 50003-0200

77 3729 0000 40403-0200

77 3727 0000 40908-0200

77 3730 0000 40403-0200

77 3734 0000 40908-0200

77 3429 0000 80203-0200

77 3430 0000 80203-0200

77 3419 0000 50004-0200

77 3420 0000 50004-0200

77 3429 0000 20003-0500

77 3427 0000 20708-0500

77 3430 0000 20003-0500

77 3434 0000 20708-0500

77 3430 0000 70004-0200
