Product type

Pigtail & Branch Harness

Overview

Pigtail and branch harnesses divide one main connection into multiple tails or provide a service lead from an existing circuit. Branch geometry and splice construction are central to the design.

Ask About This Product TypeFind Models & Material Part NumbersBack to Products
Pigtail & Branch Harness - Custom Harness
01 / 11

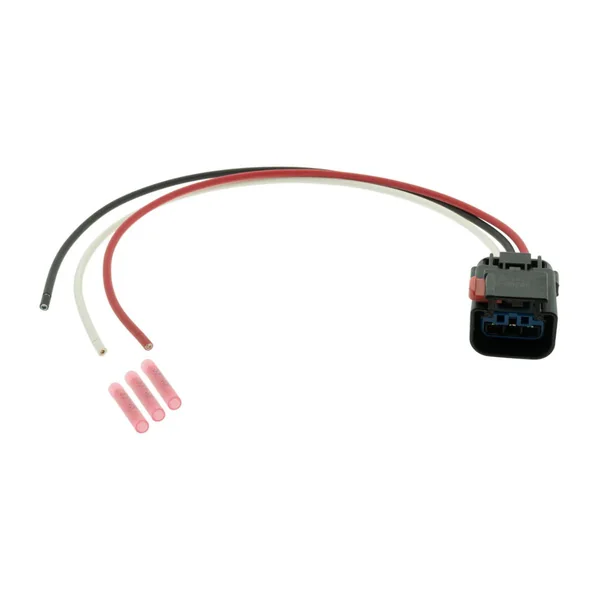

APEX 3-Position Female Connector Pigtail
01
APEX 3-Position Female Connector Pigtail

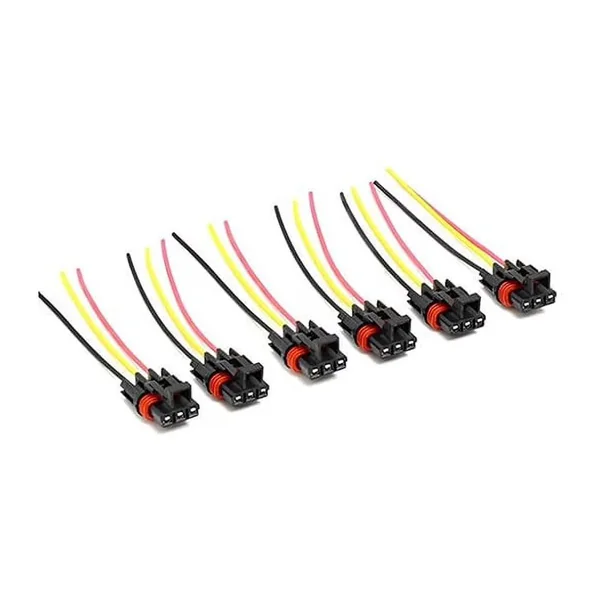

Vehicle Accessory 3-Position Plug Pigtail Set
02
Vehicle Accessory 3-Position Plug Pigtail Set

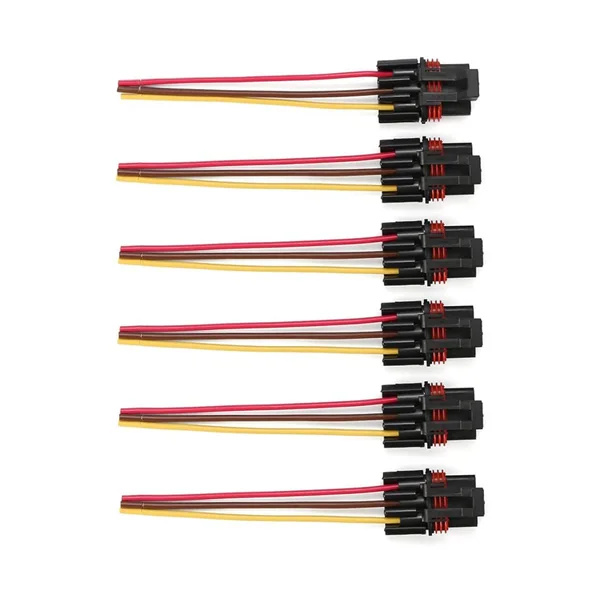

Vehicle Power 3-Wire Plug Pigtail Set
03
Vehicle Power 3-Wire Plug Pigtail Set
Circular Connector 1-to-2 Y-Branch Harness
04
Circular Connector 1-to-2 Y-Branch Harness
White Plug 1-to-2 LED Accessory Harness
05
White Plug 1-to-2 LED Accessory Harness
Dual Circular Plugs Y-Branch Power Branch Harness
06
Dual Circular Plugs Y-Branch Power Branch Harness
Rectangular Connector Y-Branch Braided Branch Harness
07
Rectangular Connector Y-Branch Braided Branch Harness
1-to-5 Multi-Connector Branch Harness
08
1-to-5 Multi-Connector Branch Harness
Circular Plug 1-to-4 Power Harness
09
Circular Plug 1-to-4 Power Harness

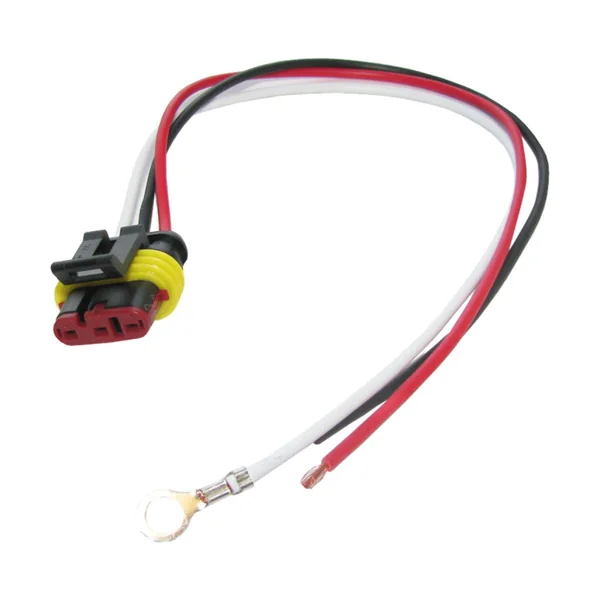

3-Position Plug to Ground Ring Terminal Pigtail
10
3-Position Plug to Ground Ring Terminal Pigtail

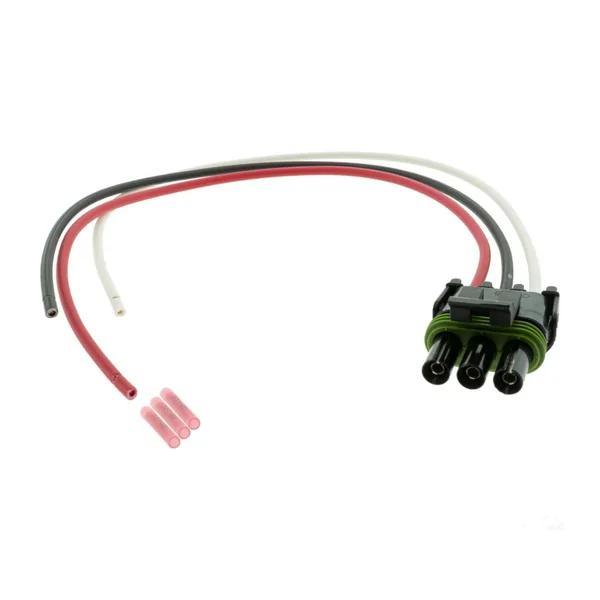

Weather Pack 3-Position Connector Pigtail
11
Weather Pack 3-Position Connector Pigtail12015793

Product Introduction

Connector tails, service leads and controlled branch geometry

Pigtail and branch harnesses cover much more than a connector with loose wires. The category includes connector pigtails, open-ended service leads, Y branches, multi-drop looms, sealed sensor tails, repair adapters and power or signal breakouts. Each design must define pin mapping, branch current, splice construction, tail length, sealing, strain relief and the exact datum used to measure every leg.

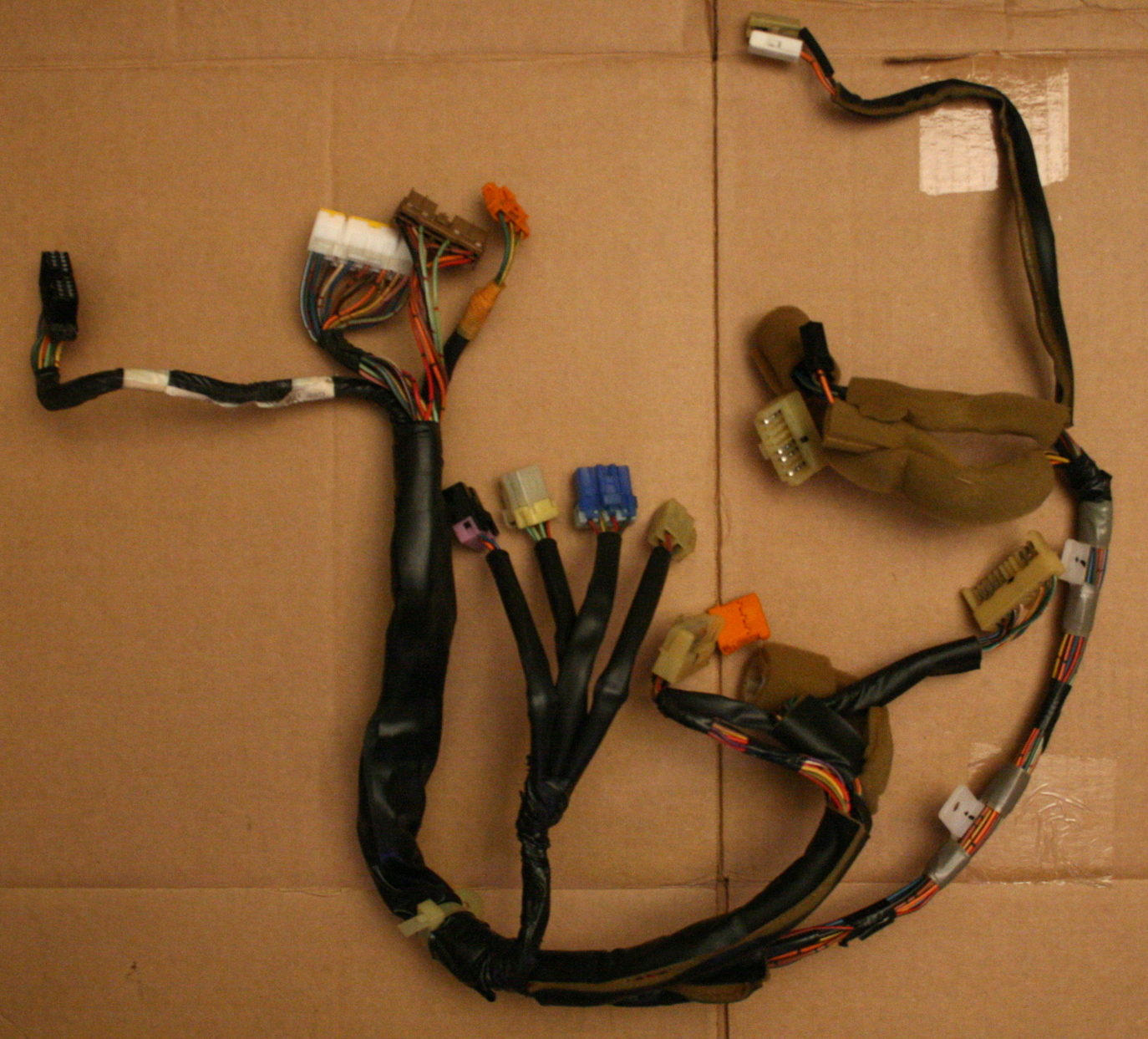

Pigtail & Branch Harness product range

Pigtail and Branch Configurations

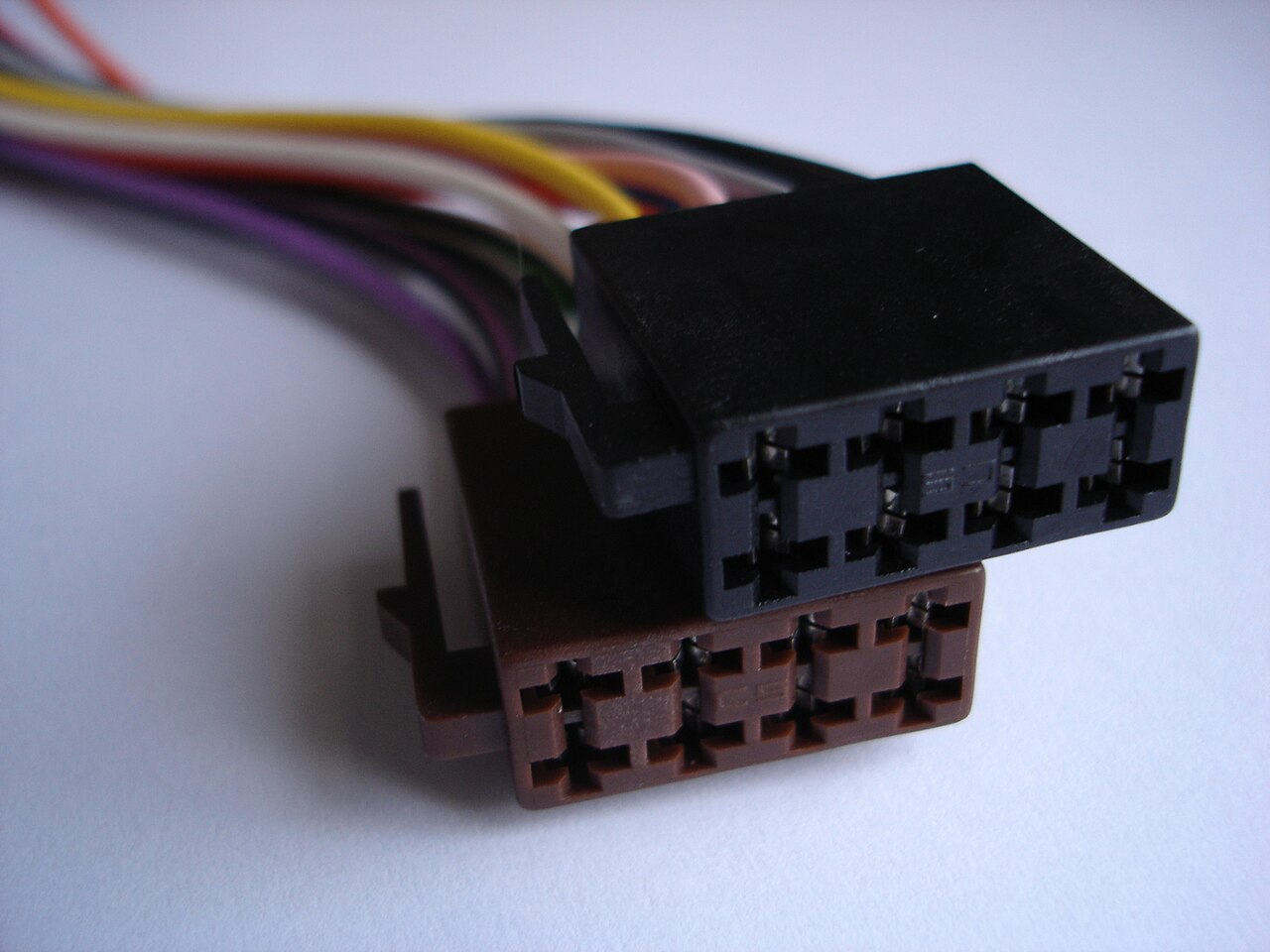

Connector pigtails with open leads

Connector pigtails with open leads

A defined connector and contact system on one end with stripped, tinned, crimped or unfinished leads on the other. Wire colour, cavity number, exposed length and end preparation are controlled for field termination.

Terminal and ring-lug pigtails

Terminal and ring-lug pigtails

Short leads fitted with ring, fork, blade, receptacle or ferrule terminals for switches, studs, busbars and terminal blocks. Terminal size and bend direction follow the real fastening point.

Y branches and two-way splits

Y branches and two-way splits

One incoming circuit divides into two controlled tails. The joint location, combined conductor area, branch loading, protection and distance from the split to each connector are defined together.

Multi-drop and daisy-chain branches

Multi-drop and daisy-chain branches

Repeated connectors or devices are arranged along a main run for sensors, lights, valves or modules. Drop spacing, cumulative current, addressing and service replacement affect the layout.

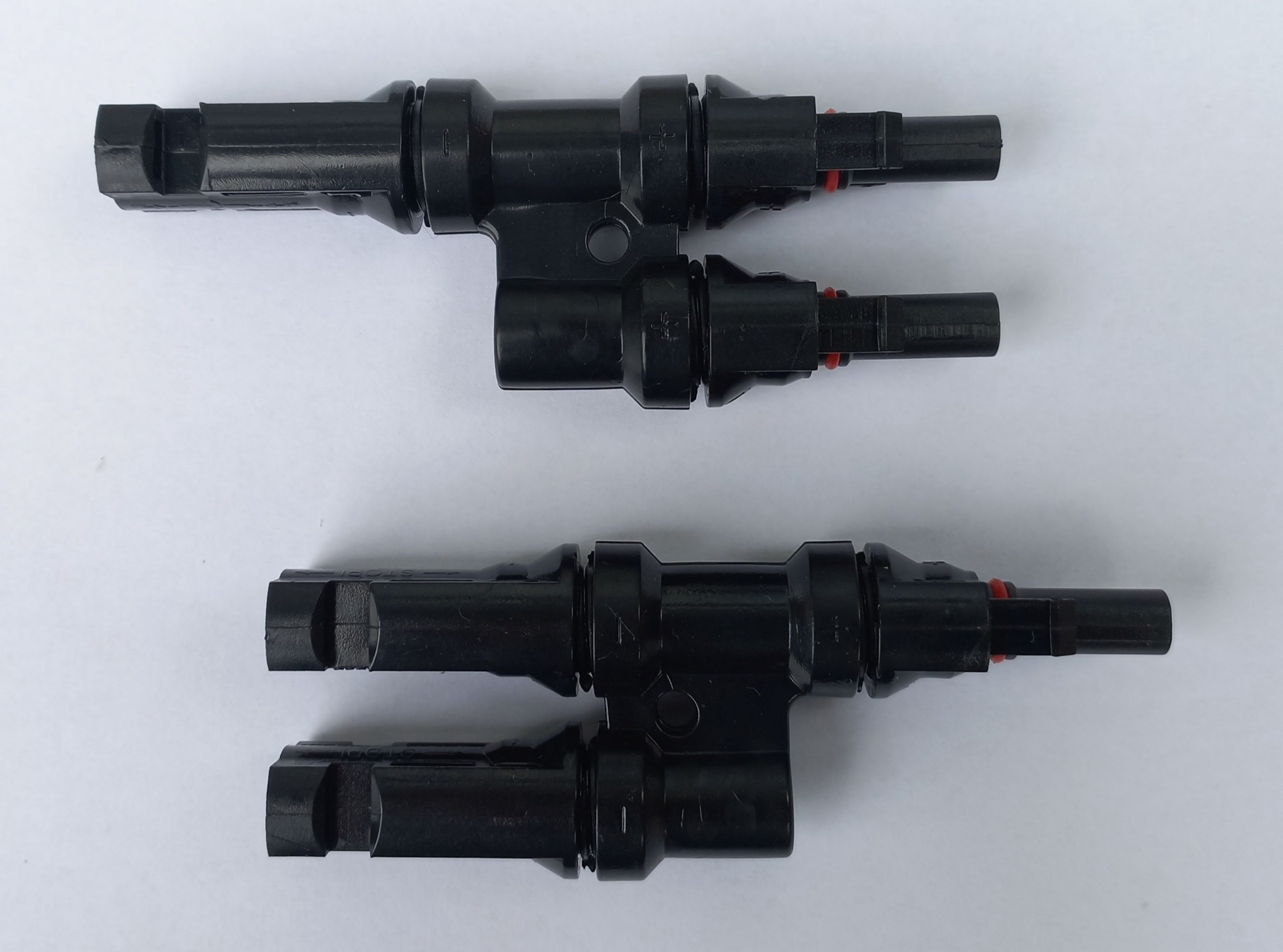

Board and sensor breakout tails

Board and sensor breakout tails

Compact leads break a board connector into individual sensor, switch, power or communication tails. Pin function, signal pairing, shield handling and tight-space routing are recorded.

Repair and replacement pigtails

Repair and replacement pigtails

Replaces a damaged connector end or adapts an available component to an existing circuit without replacing the complete loom. Mating part, pin map and approved joining method remain traceable.

Material Recommendations

Conductor combination and branch loading

Conductor combination and branch loading

Main and branch wire sizes are selected from current, voltage drop, duty cycle, temperature, bundling and terminal range. A splice must accommodate the actual combined conductor area without cutting strands or leaving an unstable fill.

Splice sleeves, ferrules and joint systems

Splice sleeves, ferrules and joint systems

Open-barrel splices, closed-end connectors, ferrules, ultrasonic welds, soldered joints or customer-specified methods are selected from conductor construction and acceptance requirements. Methods are not mixed casually.

Insulation, seals and protective coverings

Insulation, seals and protective coverings

PVC, XLPE, silicone, fluoropolymer, heat-shrink, adhesive sleeves, braid or conduit are reviewed against temperature, moisture, chemicals, abrasion and movement at the branch transition.

Connectors, terminals, seals and labels

Connectors, terminals, seals and labels

Housing keying, terminal plating, wire and seal range, cavity plugs, secondary locks and tail labels are treated as one interface system. Loose components are controlled by approved part numbers.

Pigtail and Branch Solutions

Develop from branch drawings and pin tables

Develop from branch drawings and pin tables

The drawing defines a main datum, every branch length, connector view, cavity routing, splice position, protection and labels. Dimensions state whether the harness is straight, naturally laid or formed.

Reverse an existing pigtail without hidden assumptions

Reverse an existing pigtail without hidden assumptions

A sample establishes visible dimensions and interfaces, while circuit function, ratings, internal joints, plating and sealing are verified separately. The result becomes a controlled part rather than an undocumented copy.

Create serviceable repair branches

Create serviceable repair branches

Damaged ends can be replaced with defined overlap, staggered joints, labels and protective sleeves. The repair position, access space and joint method are planned so the repaired section can be inspected and supported.

Design sealed branch transitions

Design sealed branch transitions

For wet or outdoor routes, connector seals, individual wire seals, unused cavities, cable entry, joint encapsulation and branch strain relief are reviewed as one sealing stack.

Industries and Applications

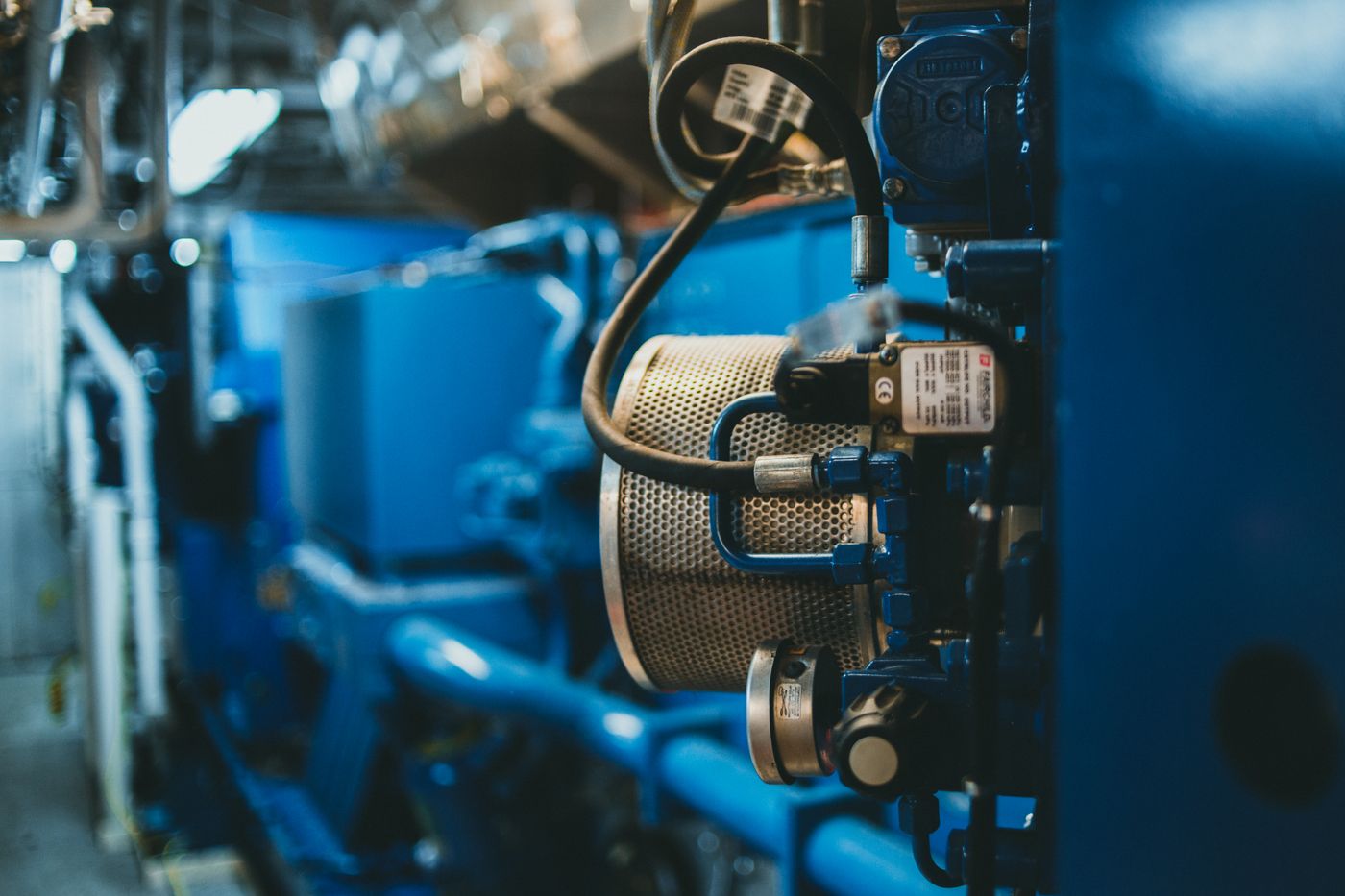

Industrial machines and distributed sensors

Industrial machines and distributed sensors

Multi-drop branches connect proximity switches, valves, indicator lamps and local I/O along machines and conveyor systems.

Appliance component replacement

Appliance component replacement

Connector tails link motors, pumps, heaters, thermostats, switches and control boards while allowing selected components to be serviced independently.

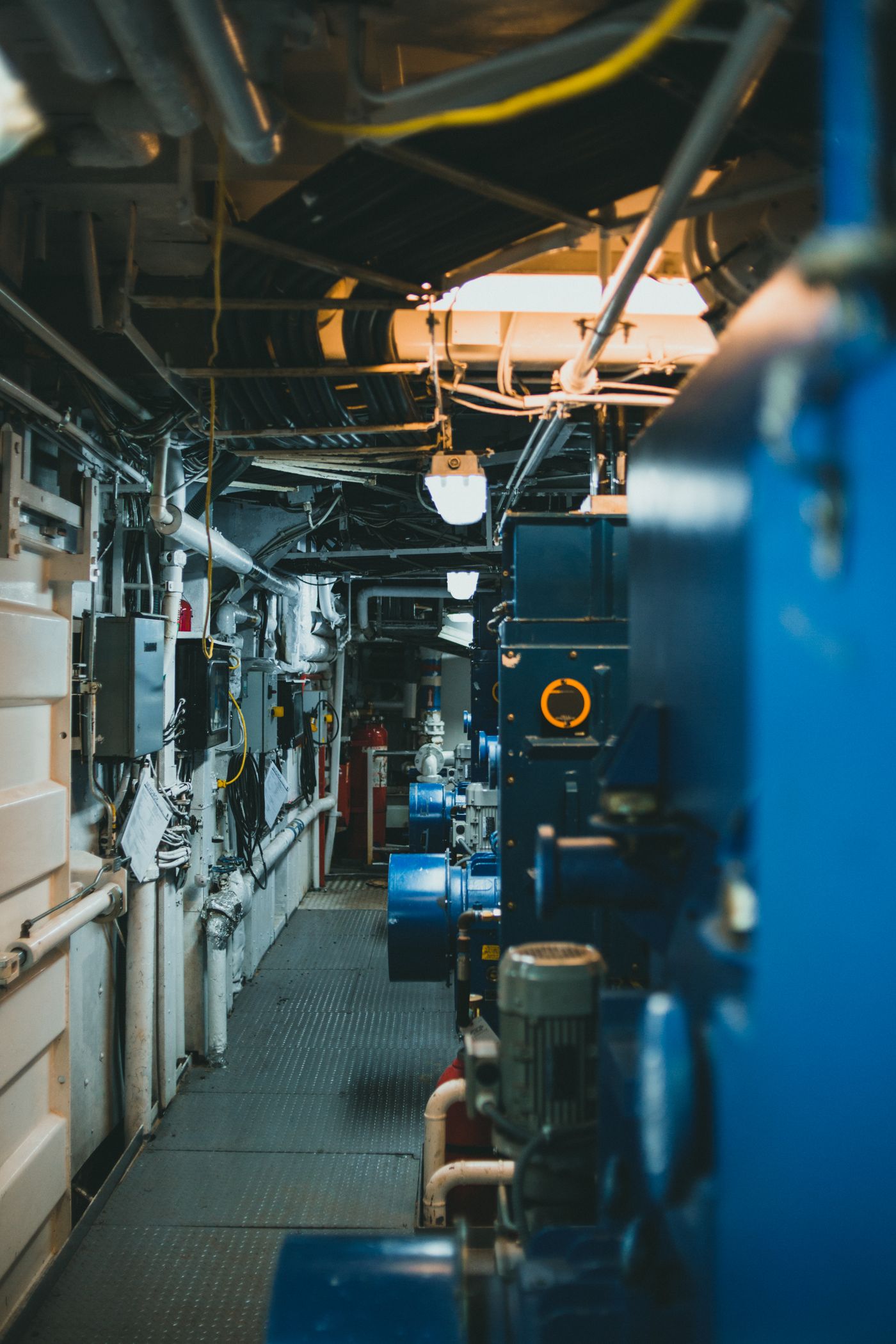

Control panels and power distribution

Control panels and power distribution

Ring-lug, ferrule and terminal pigtails organize connections among breakers, busbars, relays, switches and terminal blocks.

Vehicles and mobile equipment

Vehicles and mobile equipment

Sealed sensor tails, lighting branches and repair connectors are developed for heat, vibration, fluids and restricted service access.

Test fixtures and instrumentation

Test fixtures and instrumentation

Breakout tails expose individual circuits for measurement, simulation and fixture connection while preserving an approved interface at the equipment side.

Automation cells and robotic tooling

Automation cells and robotic tooling

Compact branches distribute power and signals among grippers, sensors, valves and tool changers where branch geometry and repeated movement must be coordinated.

Pigtail and Branch Making Method

  1. Requirement and circuit review

    Requirement and circuit review

    Confirm connector systems, pin map, branch loads, splice method, environment, tail preparation, quantity and required records.

  2. Material and interface control

    Material and interface control

    Verify wires, contacts, housings, seals, splice components, sleeves, labels and approved alternatives before the first article is released.

  3. Cutting, termination and splice preparation

    Cutting, termination and splice preparation

    Cut and strip to controlled lengths, terminate contacts, prepare conductor combinations and keep strands clean before the joint is made.

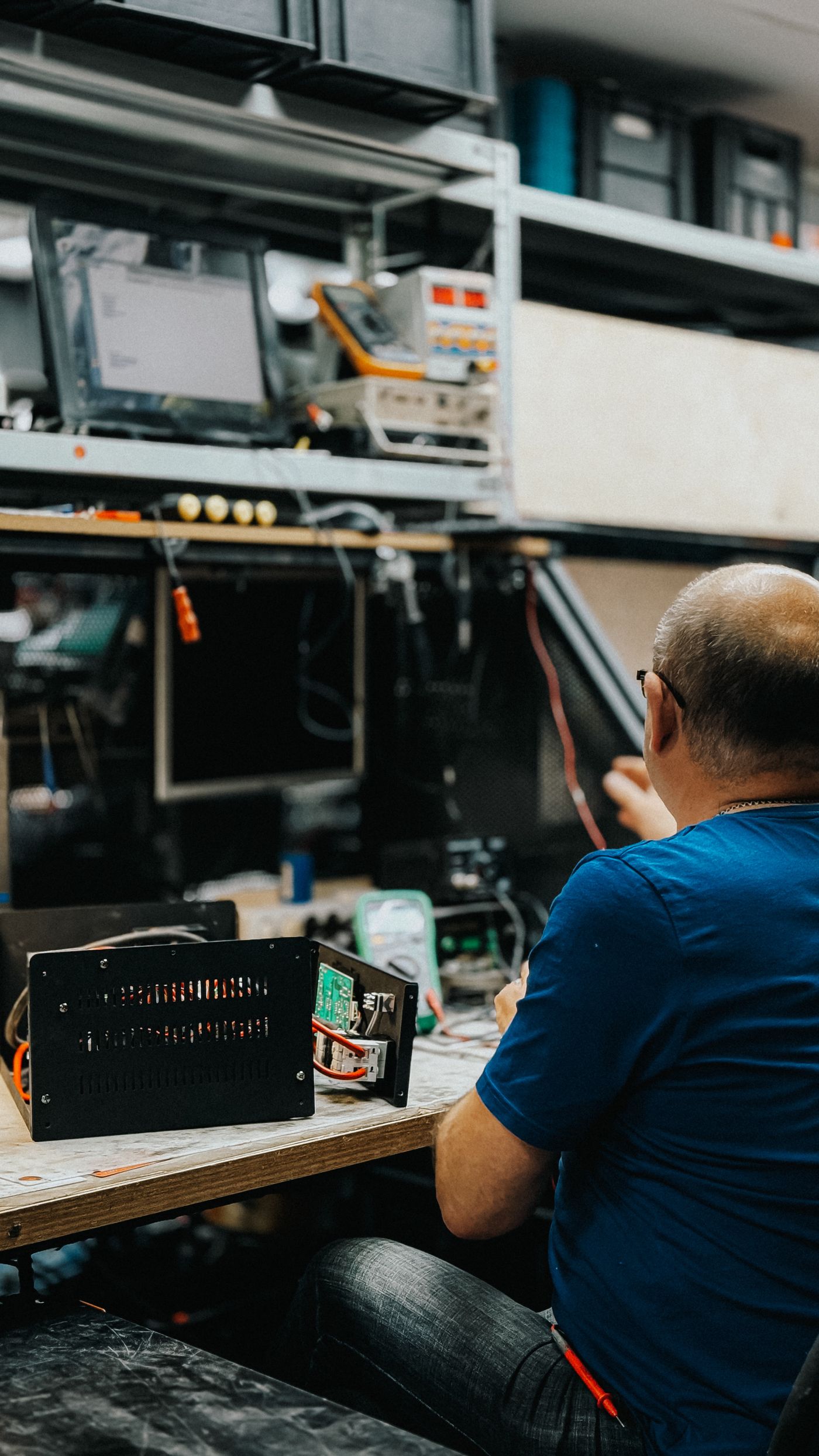

  4. Branch forming and protection

    Branch forming and protection

    Set the splice position, branch angles, stagger, sleeves, seals, conduit, labels and connector orientation on the approved fixture or dimensional reference.

  5. Electrical and mechanical checks

    Electrical and mechanical checks

    Verify continuity, circuit mapping, polarity, terminal seating, branch dimensions and visible protection. Pull or other mechanical checks follow the agreed project plan.

  6. First article and revision release

    First article and revision release

    The approved sample, drawing, BOM, branch board, inspection points and packaging method become the repeat-production reference.

Splice and Reliability Review

Splice load and strain transfer

Splice load and strain transfer

A branch joint should not become the bend hinge or pull point. Stagger, sleeve length, support and route are arranged so installation and movement loads bypass the conductor transition.

Combined current and temperature rise

Combined current and temperature rise

Main conductors, splices and shared terminals are reviewed against the sum and duty cycle of branch loads, contact resistance, bundling and ambient temperature.

Service position and joint accessibility

Service position and joint accessibility

Repair joints and replaceable tails are positioned where technicians can inspect, support and reconnect them without disturbing unrelated circuits.

Inspection scope and sealing boundary

Inspection scope and sealing boundary

Continuity and appearance are standard checks. Pull, insulation, dielectric, ingress or endurance tests require agreed samples, methods and limits. A sealed connector alone does not make every branch waterproof.

What a Defined Branch Improves

Clearer branch identification

Clearer branch identification

Defined colours, labels, connector directions and branch datums help assembly and maintenance teams distinguish circuits without tracing loose wires repeatedly.

Controlled repairs and retrofits

Controlled repairs and retrofits

A replacement pigtail can preserve the original equipment interface while documenting every new joint, material and circuit change.

Repeatable branch geometry

Repeatable branch geometry

A branch board and approved dimensions reproduce tail lengths, split points and connector orientation across later batches.

A complete interface instead of loose components

A complete interface instead of loose components

The connector, contacts, wires, joints, protection and labels arrive as one inspected assembly ready for the agreed installation process.

Frequently Asked Questions

What is the difference between a pigtail and a branch harness?

A pigtail usually has a connector or terminal system at one end and free or prepared leads at the other. A branch harness divides one or more circuits into two or more controlled tails. Some products combine both structures.

What information is needed for a quotation?

Provide connector and mating part numbers, pin table, branch drawing with datums, each tail length, conductor sizes, loads, splice and sealing requirements, environment, quantity and inspections.

Can you reproduce a pigtail from a sample?

Yes, but hidden pin routes, conductor ratings, plating, internal splices and acceptance criteria still require confirmation. A sample is evidence, not a complete specification.

Which splice method should be used?

The method depends on conductor combination, current, space, environment, available tooling and customer acceptance. Crimp splices, ultrasonic welding, soldering or other methods are reviewed per project.

Can a repair pigtail be waterproof?

It can be designed for a defined ingress test, but the connector, wire seals, unused cavities, repair joints, cable entry and installed orientation must all be included in the sealing review.

Which checks are performed before shipment?

Finished assemblies receive continuity and appearance inspection. Pin mapping, polarity, terminal retention, dimensions, labels, splice protection and other electrical or mechanical checks are added according to the approved plan.
