Product type

Relay & Fuse-Box Harness

Overview

Custom relay and fuse-box harnesses connect protected power feeds, switching circuits and vehicle loads in a serviceable assembly.

Ask About This Product TypeFind Models & Material Part NumbersBack to Products

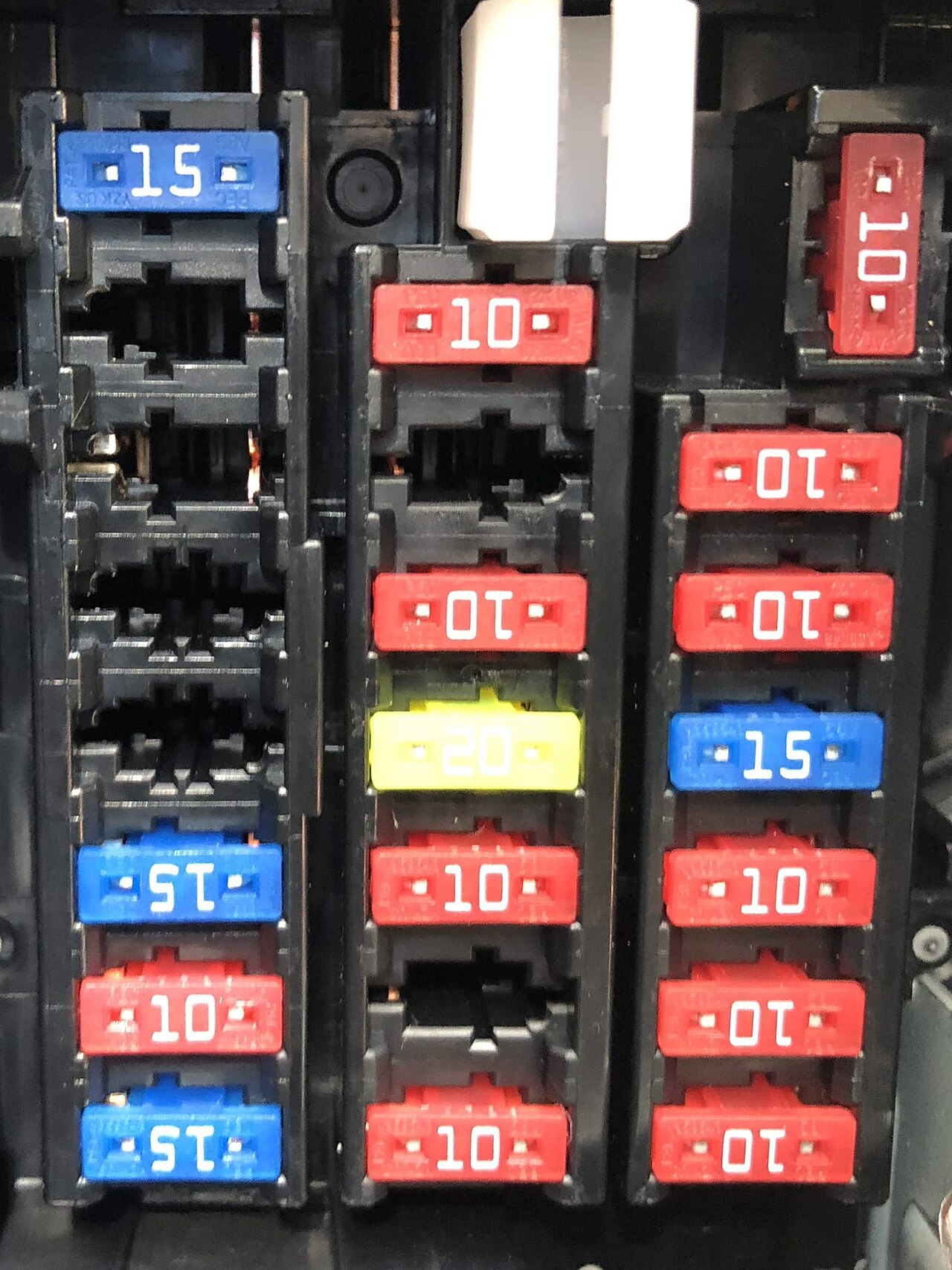

Automotive fuse-box detail
01 / 15

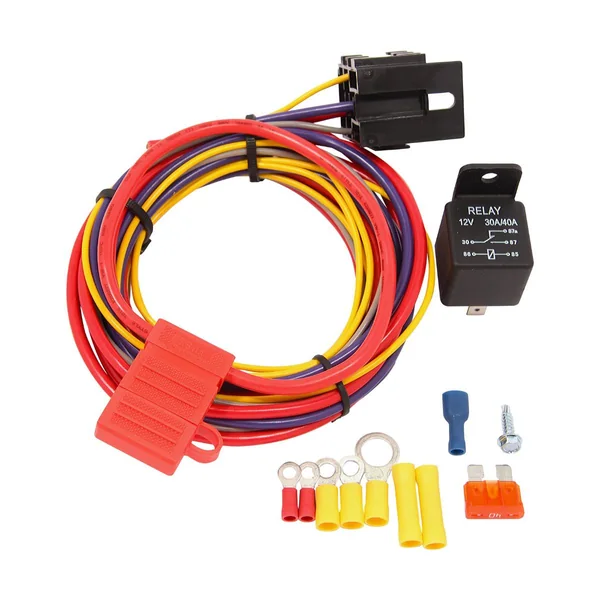

Relay & Rectangular Plug Branch Harness
01
Relay & Rectangular Plug Branch HarnessQFT-30-199

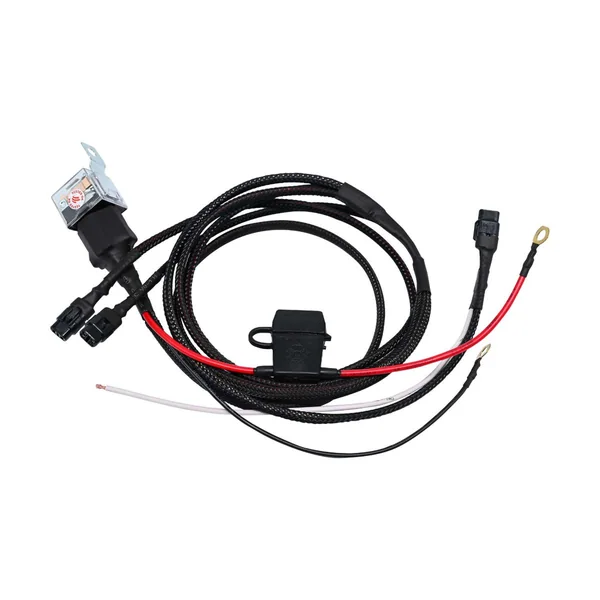

Auxiliary Vehicle Light with Fuse Holder Single-Relay Harness
02
Auxiliary Vehicle Light with Fuse Holder Single-Relay Harness

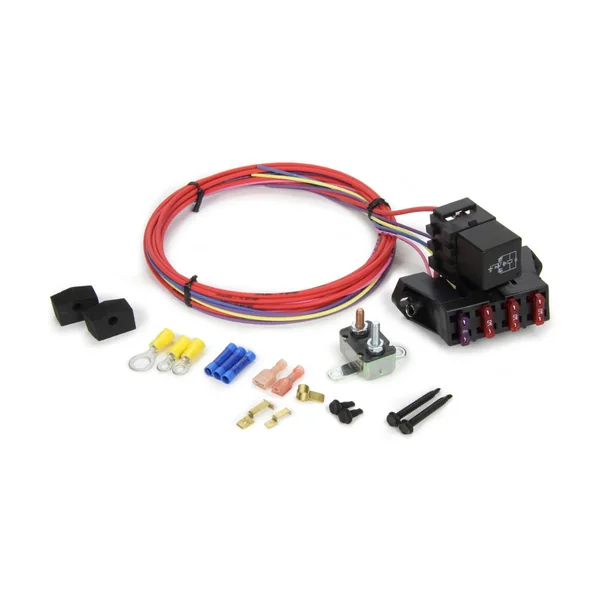

Fuse Box & Dual-Relay Power Harness
03
Fuse Box & Dual-Relay Power Harness70113

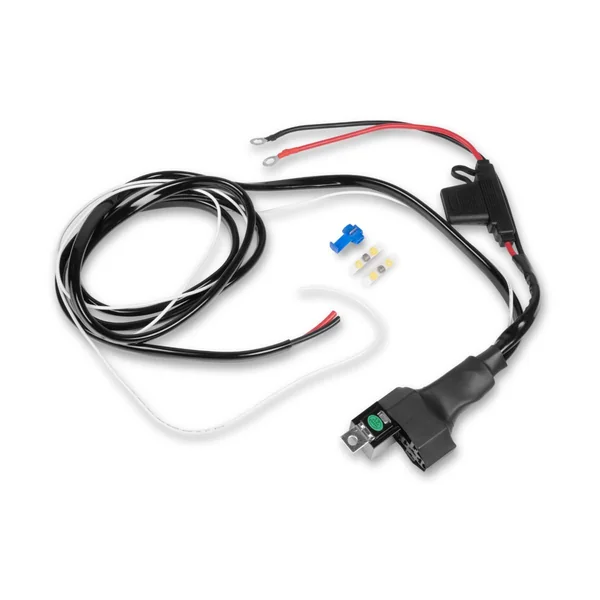

Dualrelay HD Dual-Relay Long-Lead Power Harness
04
Dualrelay HD Dual-Relay Long-Lead Power Harness

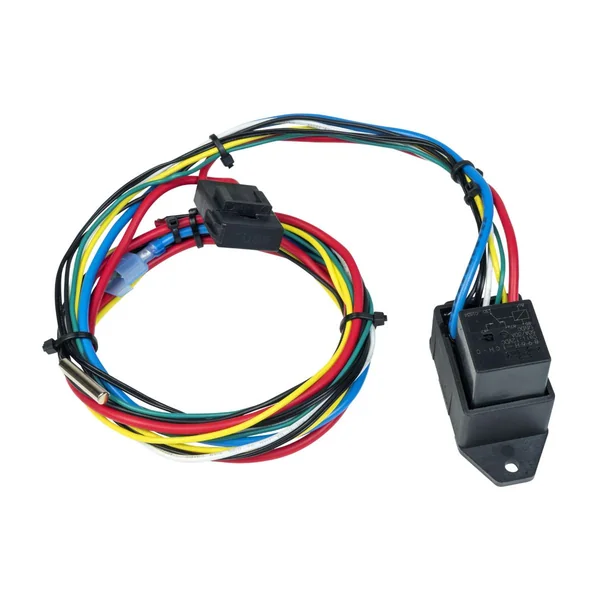

Relay & Rectangular Main Plug Color-Coded Wire Harness
05
Relay & Rectangular Main Plug Color-Coded Wire Harness121281

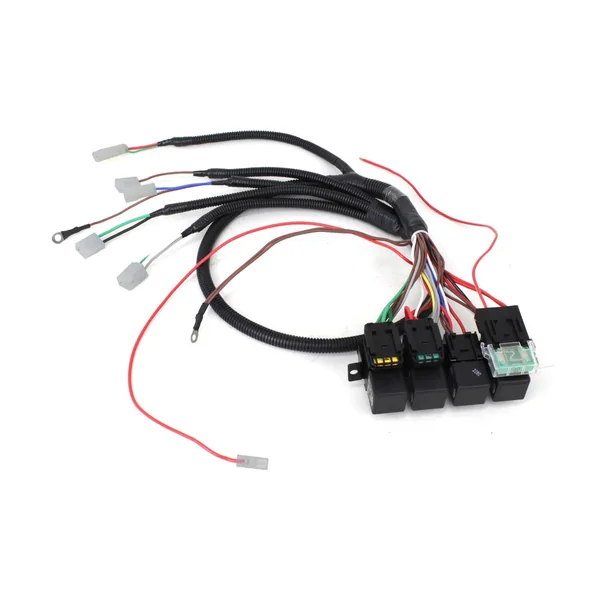

Air-Conditioning Relay Socket & Multi-Terminal Branch Harness
06
Air-Conditioning Relay Socket & Multi-Terminal Branch Harness

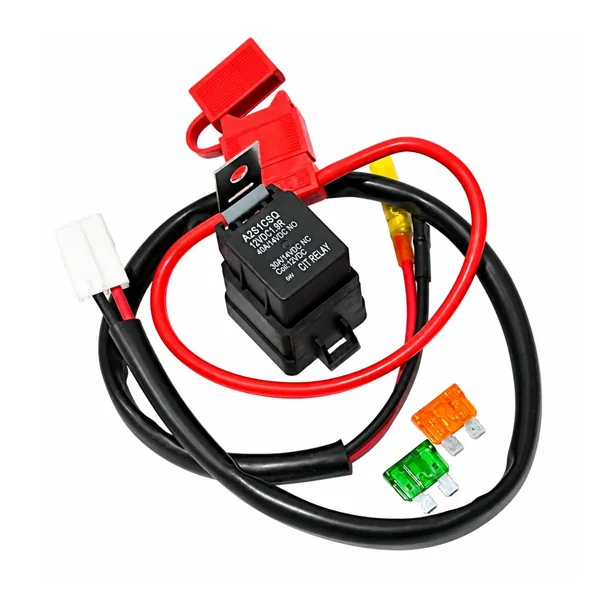

FR-PT Relay & Fuse Holder Fan Harness
07
FR-PT Relay & Fuse Holder Fan Harness

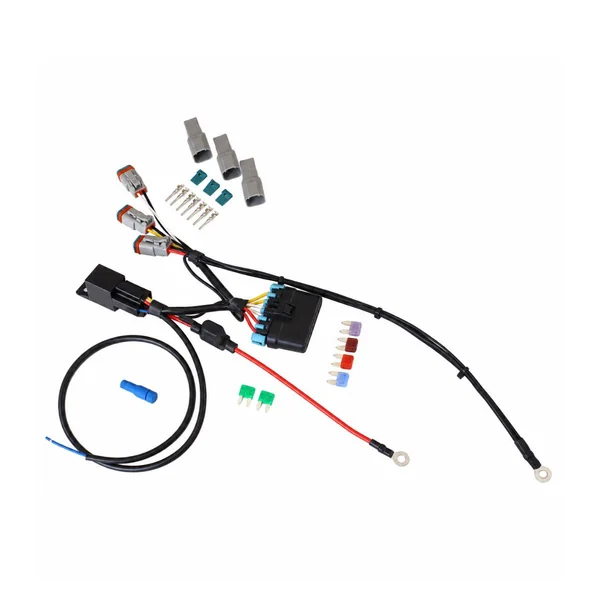

Fuse-Box Power Harness & Connector Kit
08
Fuse-Box Power Harness & Connector Kit

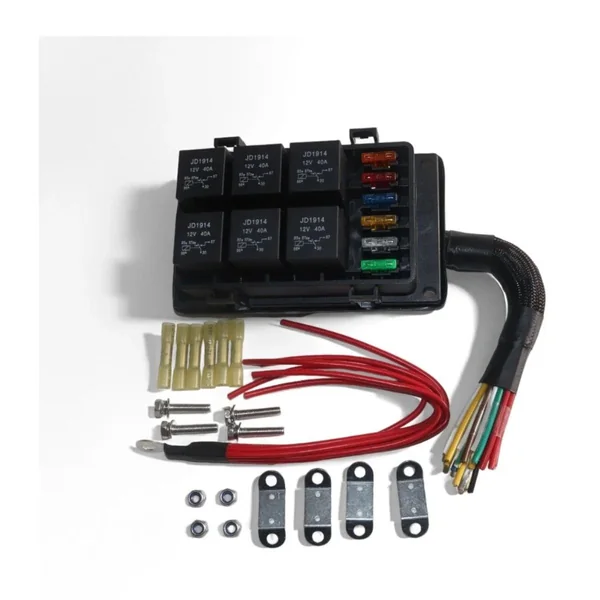

Bracket-Mounted Relay Box Multi-Terminal Harness
09
Bracket-Mounted Relay Box Multi-Terminal Harness

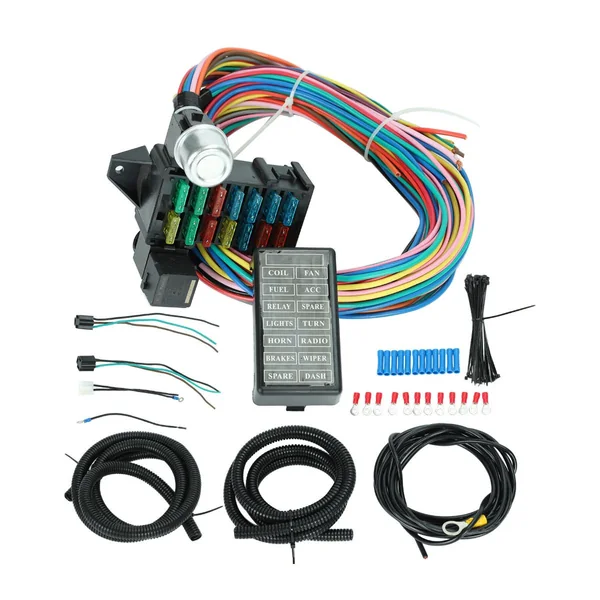

Multi-Circuit Fuse Box & Color-Coded Wire Main Harness Set
10
Multi-Circuit Fuse Box & Color-Coded Wire Main Harness Set

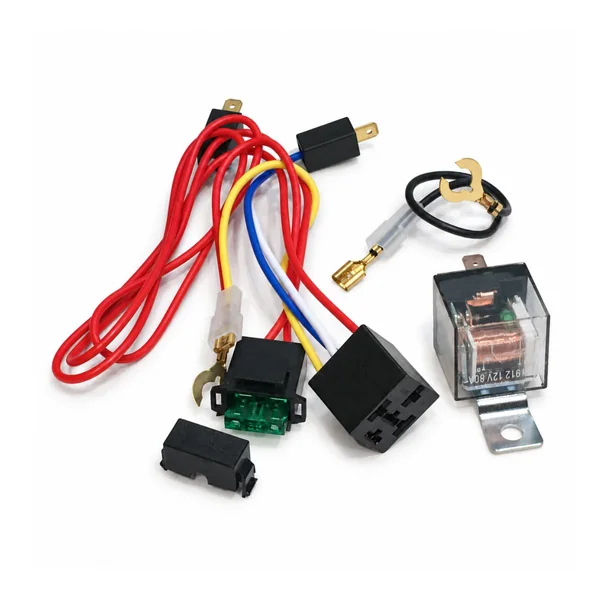

Clear Relay & Rectangular Plug Coiled Power Harness
11
Clear Relay & Rectangular Plug Coiled Power Harness

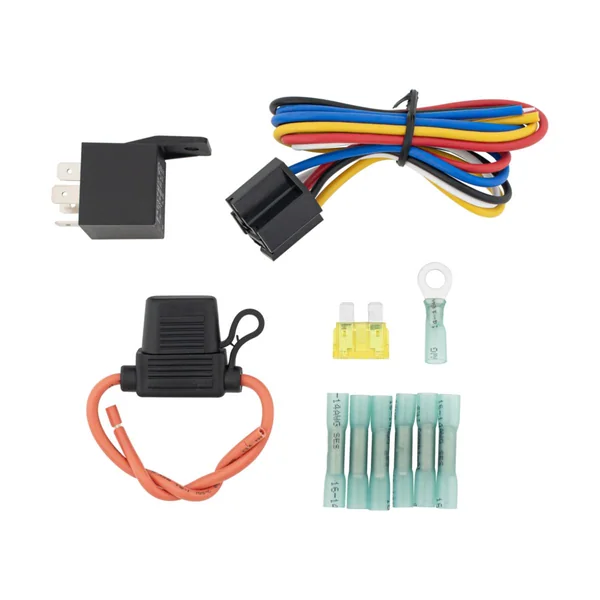

Relay & Fuse Holder Short-Branch Harness
12
Relay & Fuse Holder Short-Branch Harness98498／98997

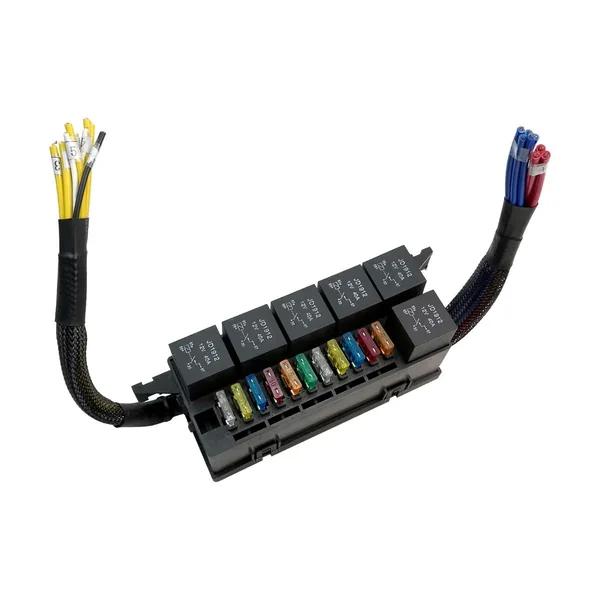

6-Relay Fuse Box 2-Branch Pigtail Assembly
13
6-Relay Fuse Box 2-Branch Pigtail Assembly

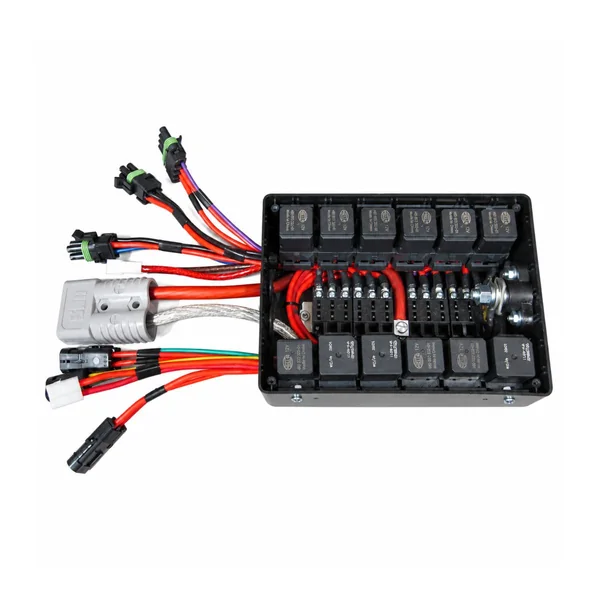

Multiple Relay Box & Multi-Plug Harness
14
Multiple Relay Box & Multi-Plug Harness

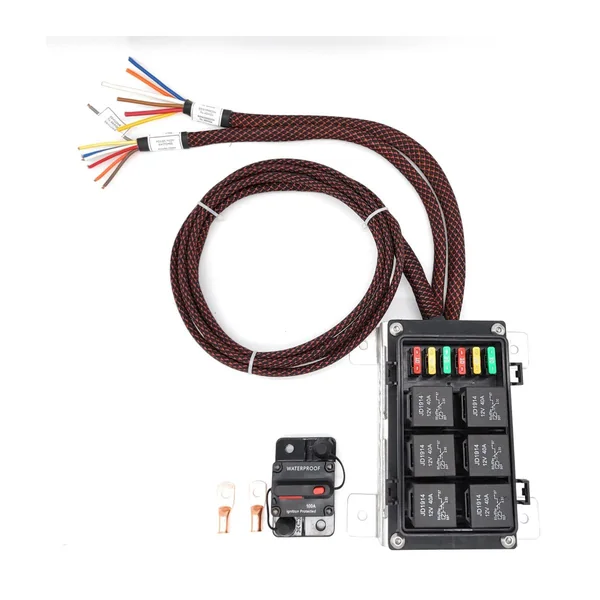

6-Relay Fuse Box Main Harness & Terminal Set
15
6-Relay Fuse Box Main Harness & Terminal Set

Product Introduction

A relay switches a load; a fuse interrupts specified overcurrent conditions. A complete harness connects both functions with power, trigger, return and output wiring. Builds range from a pre-wired relay socket and inline fuse holder to a multi-branch junction box with dedicated feeds, common busbars and option-specific connections. We develop the assembly around your equipment, circuit information and installation space.

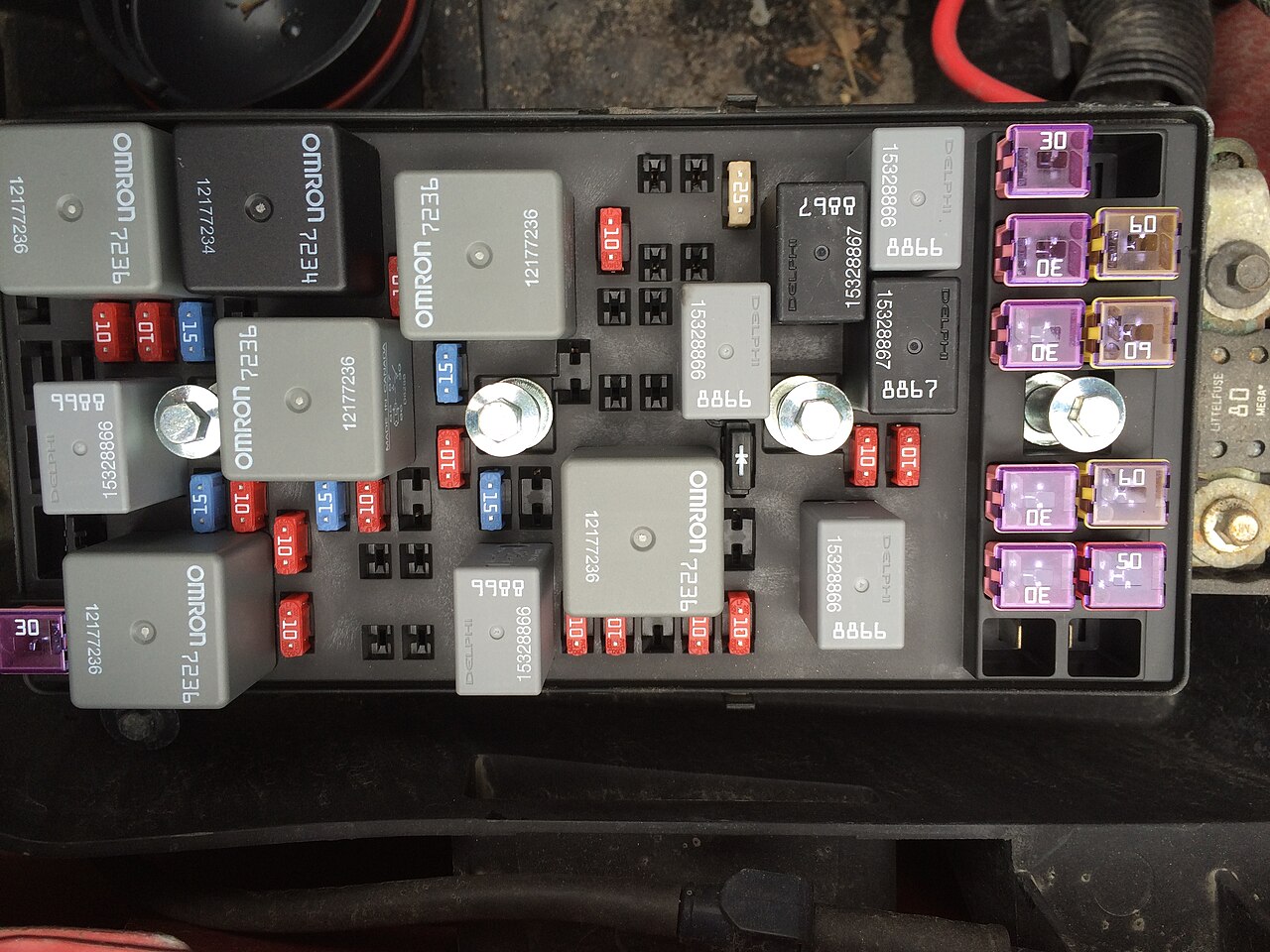

Relay & Fuse-Box Harness distribution box construction

Product Advantages

Single-relay harnesses suit one controlled lamp, horn, pump or fan circuit. Dual-relay assemblies can separate two loads or operating modes; multi-relay fuse boxes organize several protected branches in one mounting location. Pre-terminated sockets, labeled outputs and defined mounting points simplify repeat installation. The assembly may include ring terminals, sealed connectors, inline fuse holders, a switch lead or an equipment-specific interface. Two relays do not automatically provide redundancy: a shared upstream fuse, feed or return remains a common failure point. Each branch therefore needs a documented purpose and protection path.

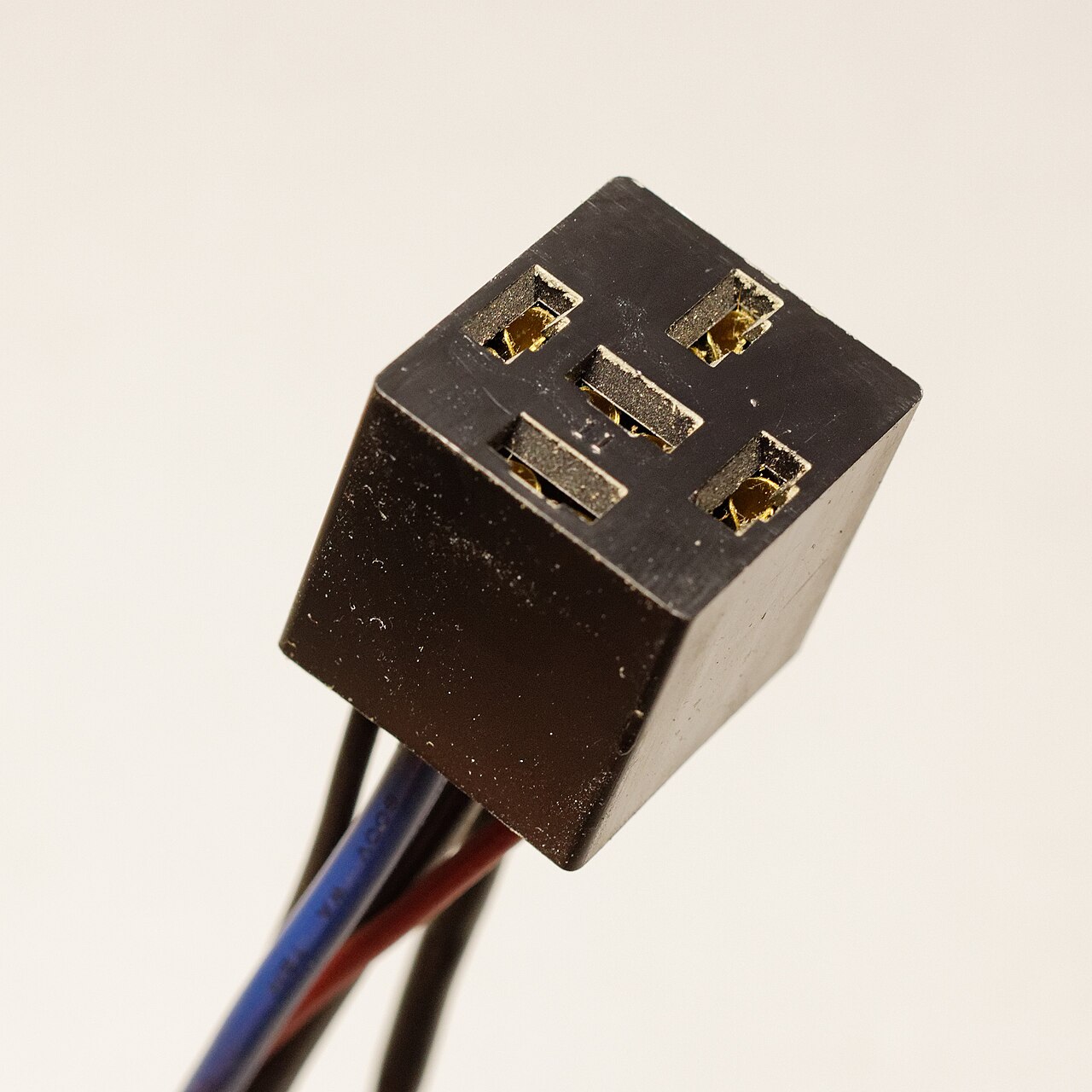

Relay sockets determine terminal retention and service access.
Relay sockets determine terminal retention and service access.

Material Recommendations

Conductor area follows current, length, voltage drop, ambient temperature and bundling. Stranding supports flexibility, while the selected insulation grade must match heat, fluids and abrasion. PA or PBT housings, copper-alloy terminals, plating, seals and cavity plugs are reviewed as a matched system. The exact resin grade matters more than the polymer name alone. Split-loom tubing protects against mechanical contact but is not a watertight enclosure. A transparent relay cover does not establish switching capacity, and a ceramic socket does not remove the need to control terminal temperature. Material selection is recorded in the approved bill of materials.

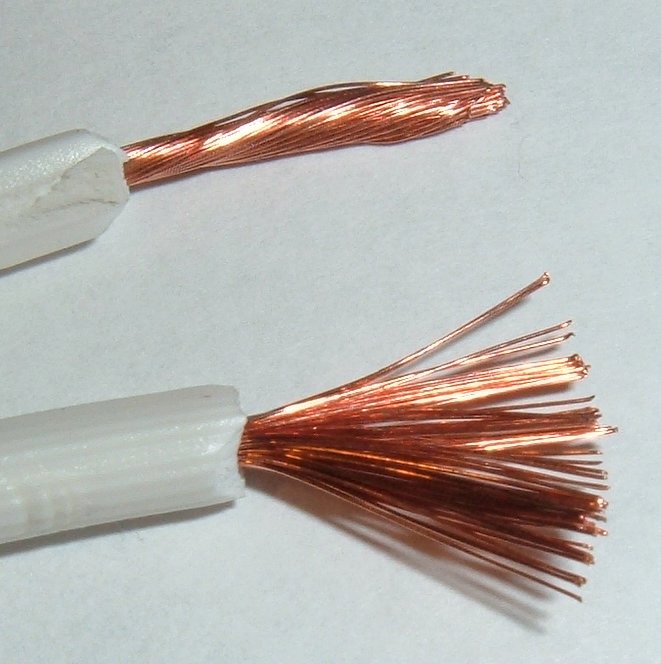

Stranded copper illustrates conductor construction, not an automotive material approval.
Stranded copper illustrates conductor construction, not an automotive material approval.

Solutions for Protected Power Distribution

Start with a load list that distinguishes continuous current, startup inrush, intermittent duty and abnormal conditions. Then coordinate the source feed, branch conductors, fuse characteristics, relay contacts and return path. Auxiliary-light kits may use the original lamp circuit only as a trigger, but that signal must first be checked for PWM, diagnostic pulses and controller limits. Cooling fans and pumps need an appropriate motor-load switching assessment. Winch or reversing-motor systems require a dedicated contactor and interlock review. We can develop a new assembly from released drawings or compare an existing sample with its circuit and equipment records before defining a replacement.

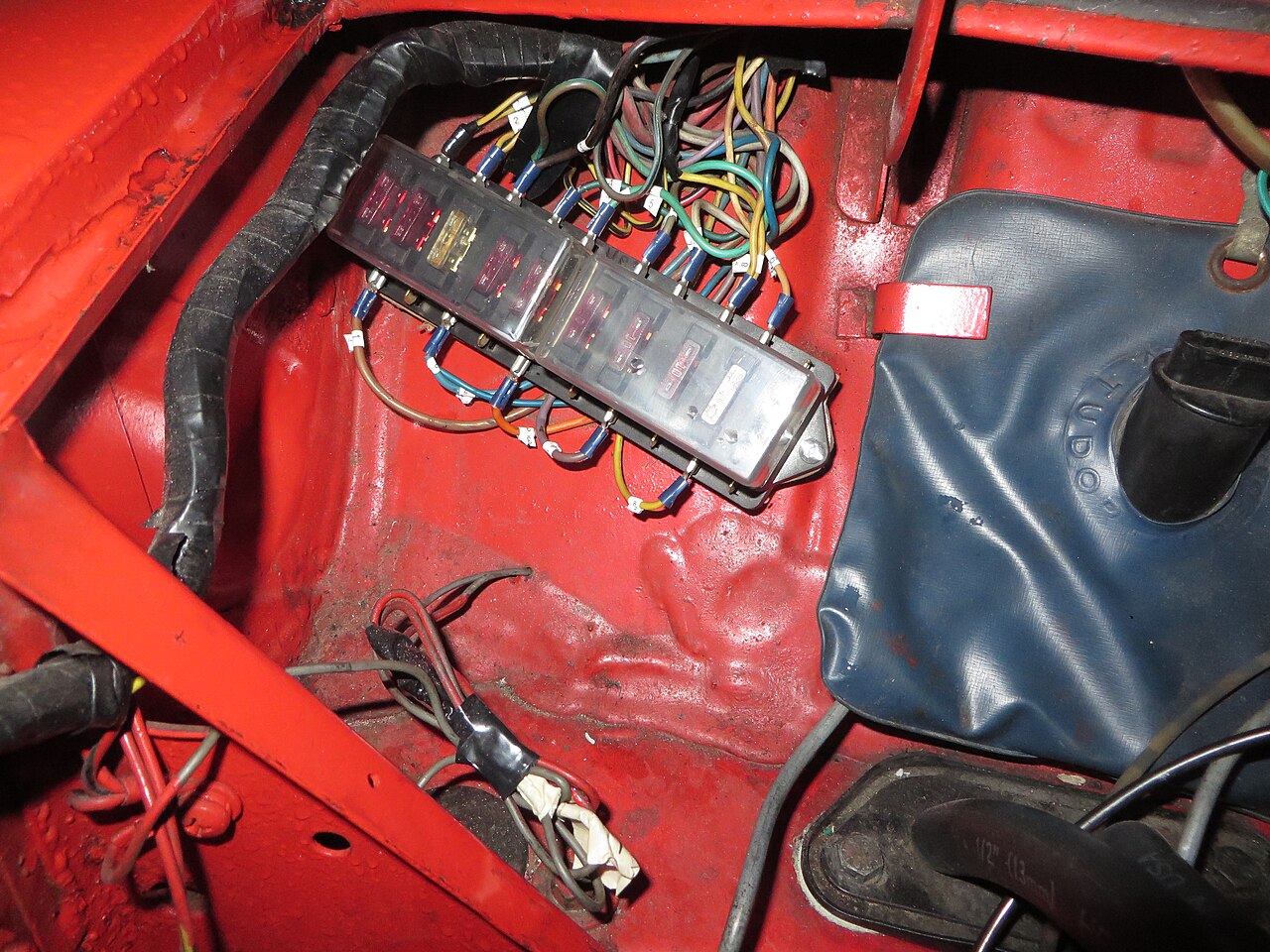

Mounted fuse positions illustrate branch organization and replacement access.
Mounted fuse positions illustrate branch organization and replacement access.

Industries and Applications

Passenger vehicles and commercial trucks use these assemblies for lighting, fans, pumps and body accessories. Agricultural and construction equipment add long routes, vibration, contamination and field repair. Emergency and specialist vehicles may require separated priority loads and defined backup-power boundaries. RV and custom-vehicle projects introduce parked loads, isolation and parasitic-current concerns. Marine projects require a separate review of salt exposure, installation location and applicable vessel requirements. These applications share a need for controlled distribution, but they do not share one universal fuse size, enclosure rating or wiring diagram.

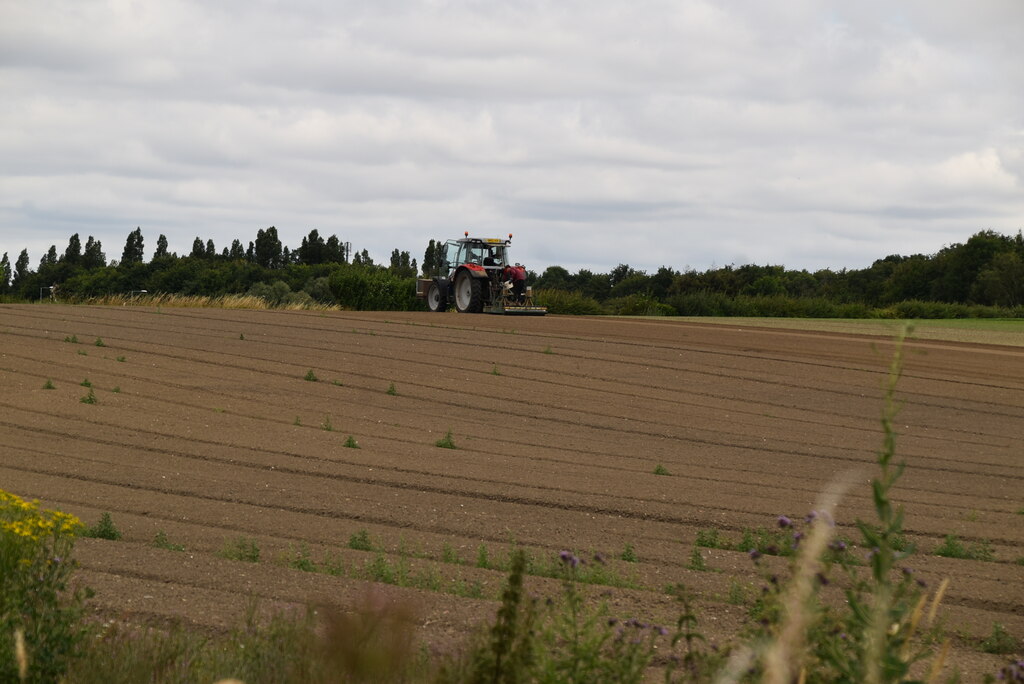

Agricultural equipment introduces vibration, dust and field-service constraints.
Agricultural equipment introduces vibration, dust and field-service constraints.

Electrical Safety and Validation

Verification begins with cavity-to-cavity continuity, polarity, isolation and relay operation against the released circuit. Loaded voltage-drop and temperature-rise checks reveal losses that a no-load continuity test cannot show. Insulation-resistance, dielectric, transient and environmental tests are specified for the actual assembly and customer requirements. Internal diodes, suppression devices or electronic modules may require isolation or different test connections. A test plan identifies operating conditions, sample configuration, instrumentation and acceptance limits. ISO 8820-2 provides automotive fuse-selection guidance; applicable fuse-family documents and component datasheets remain part of the project reference set. Listing a standard does not mean every assembly has passed its tests.

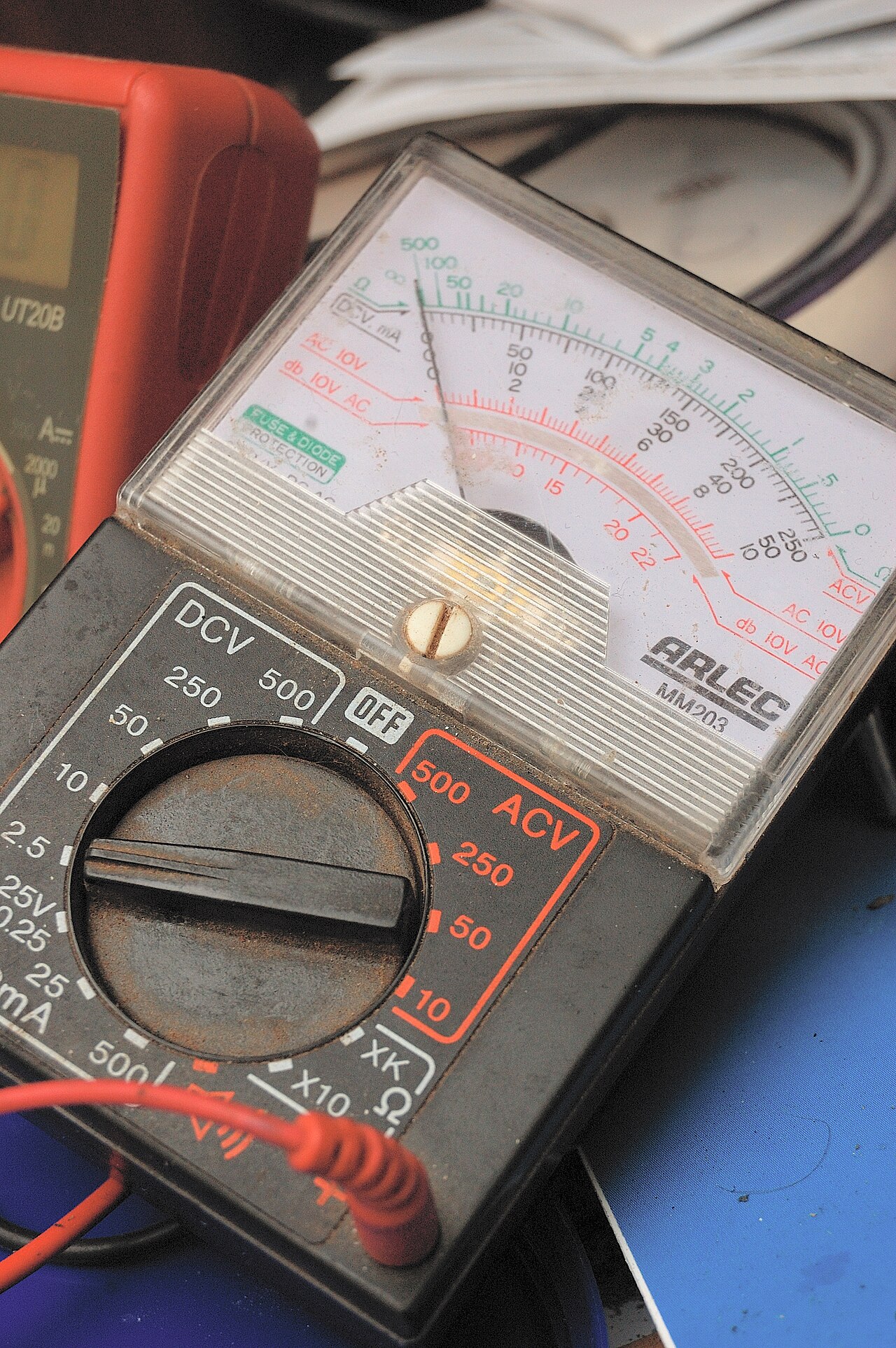

Electrical measurements support inspection; loaded tests require a defined fixture and method.
Electrical measurements support inspection; loaded tests require a defined fixture and method.

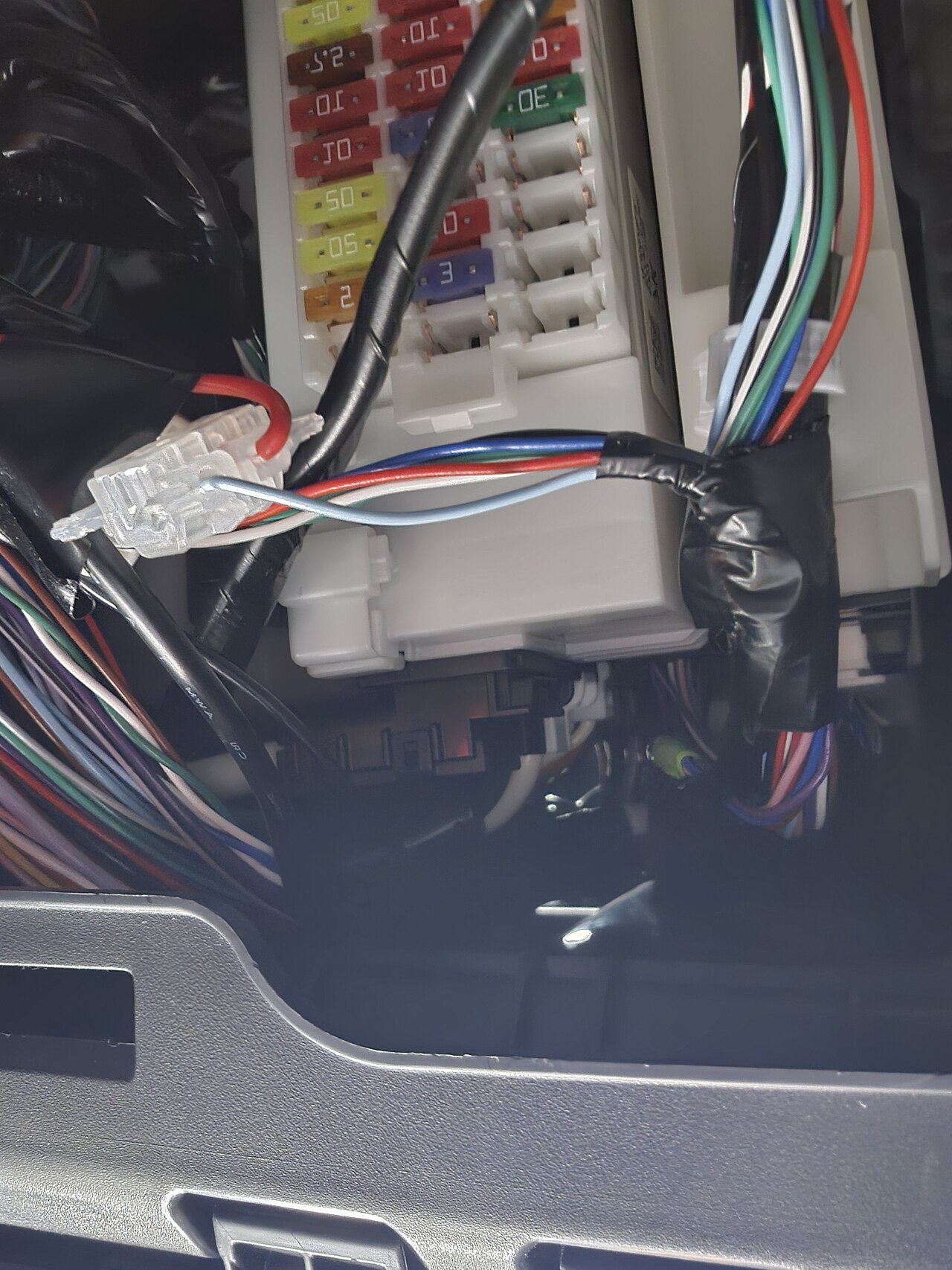

An installed fuse panel shows why access and identification belong in the layout.
An installed fuse panel shows why access and identification belong in the layout.

Compact Design, Serviceable Connections

A compact power-distribution module or junction box should shorten high-current paths while leaving room to remove fuses, open the lid, release terminals and use service tools. Busbar layout, cable exits, mounting orientation and branch bend allowances are established together. Dense packing also increases thermal interaction between adjacent devices; an open-air component rating cannot by itself demonstrate enclosed-box capacity. Spare cavities need defined plugs or approved terminals, and future options need a documented electrical budget. Compactness is useful when assembly, cooling and maintenance remain practical.

Manufacturing and Delivery Process

Requirement review records the voltage, load profile, drawing, connectors, mounting and environment. Engineering then freezes the circuit table, BOM, branch dimensions, terminal orientation and inspection points. Samples are checked for fit, operation and agreed loaded conditions before the production version is released. Assembly controls cover cutting, stripping, crimping, terminal seating, seals, supports and labeling. Electrical inspection uses the approved circuit mapping; additional tests follow the order requirements. Delivery documentation can include the drawing revision, connection instructions, labels and agreed inspection records. Quantities, lead times and special validation are confirmed for each project.

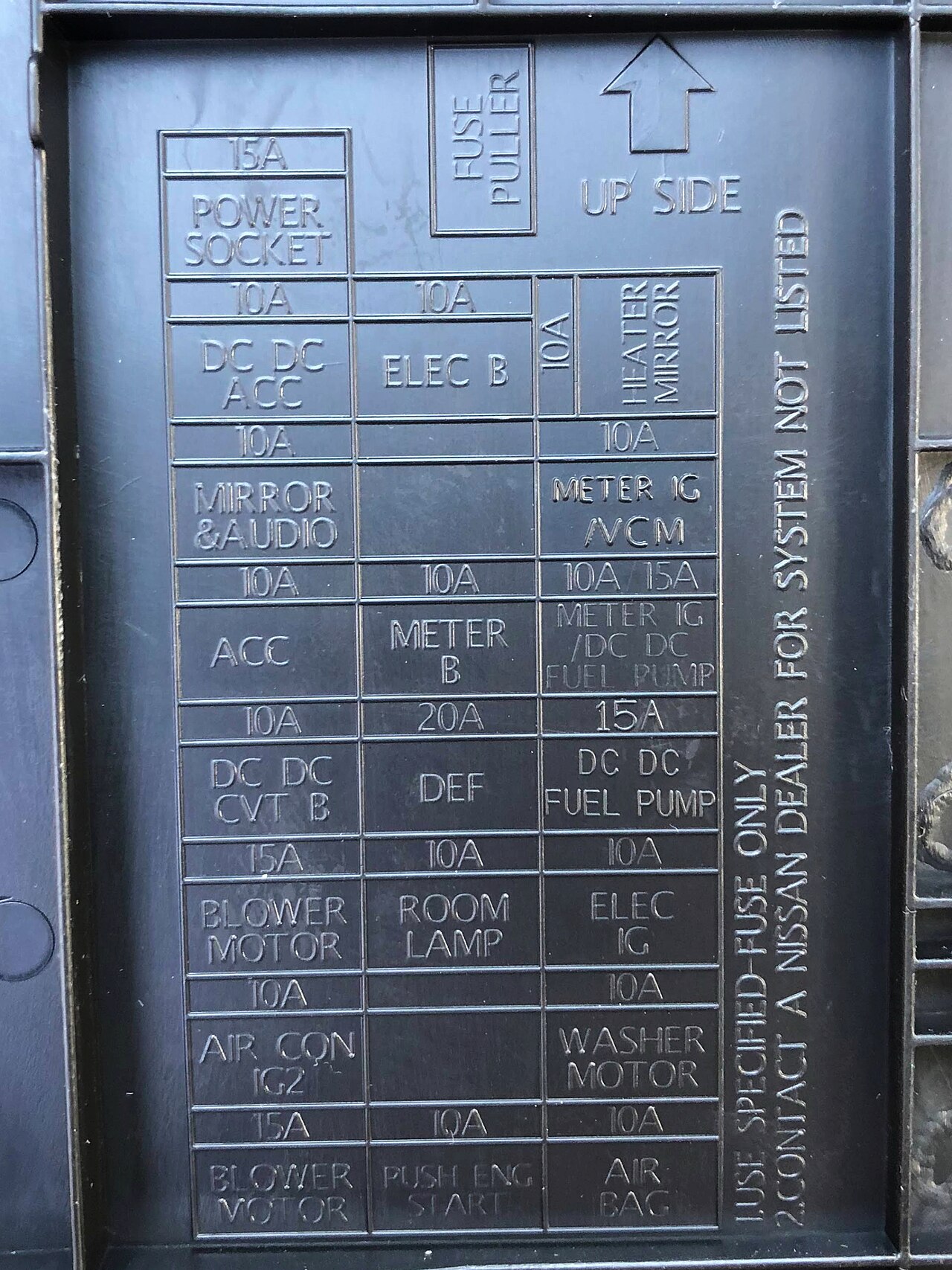

A circuit-position label supports controlled assembly and later service.
A circuit-position label supports controlled assembly and later service.
  1. Circuit definition
  2. Material approval
  3. Harness assembly
  4. Inspection & release

Durability in the Installed Environment

Water resistance depends on the lid seal, wire seals, unused-cavity plugs, cable diameter and installed orientation. An IP claim applies only to a defined assembly and test condition. Vibration review includes relay retention, busbar support, connector locks and cable-exit strain. Heat soak and fluid exposure must be compatible with every material, including small seals and labels. Increasing contact resistance can create local heating even when current is below the fuse rating. Discoloration, loose terminals or repeated nuisance operation therefore call for fault investigation before a higher-rated fuse is considered.

Rain represents exposure conditions, not a waterproof test of the product.
Rain represents exposure conditions, not a waterproof test of the product.

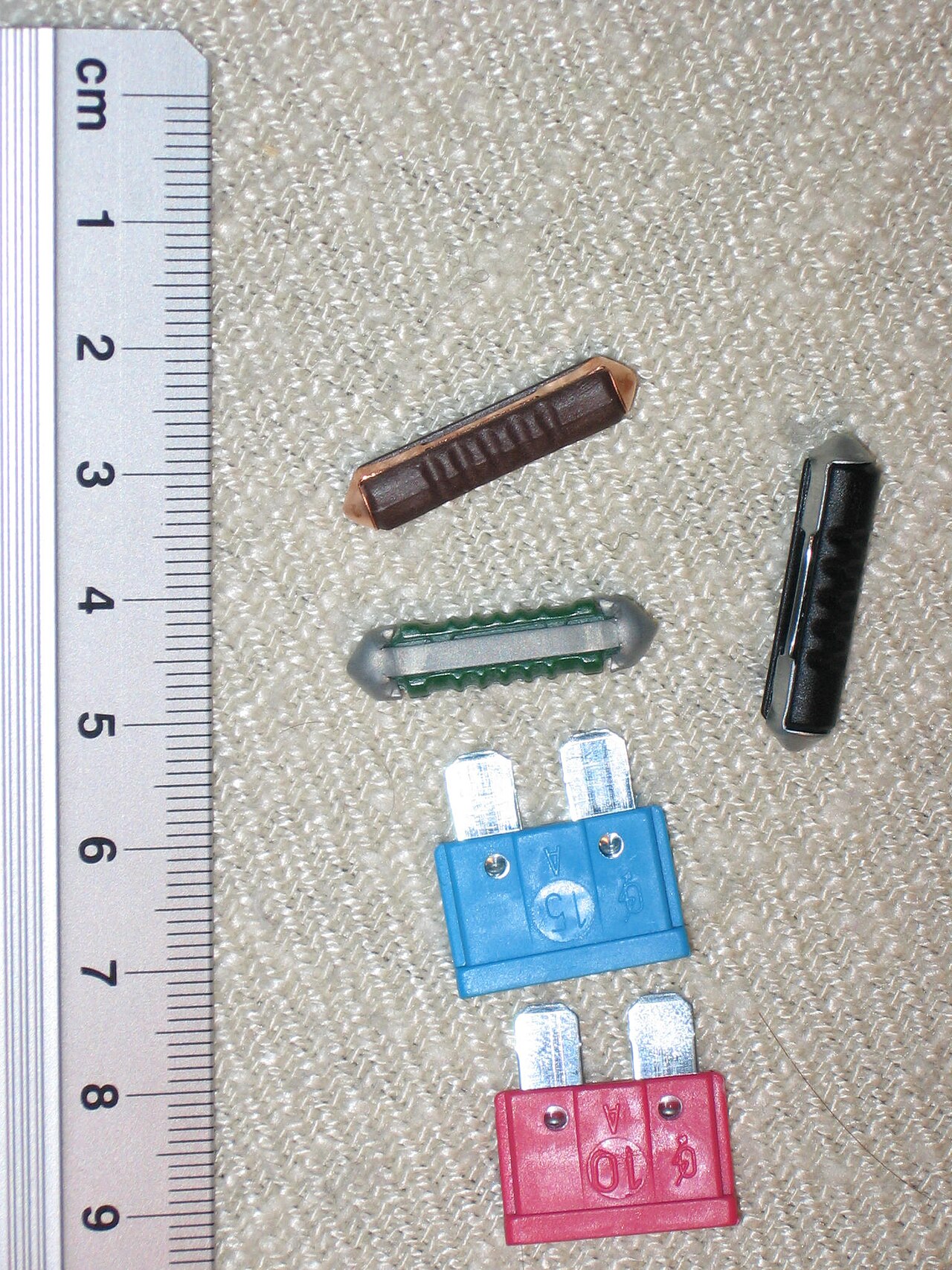

Fuse geometry, rating and holder compatibility must be checked together.
Fuse geometry, rating and holder compatibility must be checked together.

Fuse Families and Protection Coordination

Requests may specify ATO/ATC, MINI, low-profile MINI, MICRO2, MICRO3 or MAXI blade fuses, JCASE or MCASE cartridge formats, or MIDI and MEGA bolt-down types. These names identify different product families, not interchangeable approvals. Review the exact part number, rated voltage, interrupting capacity, time-current curve, pulse endurance and ambient-temperature derating. The fuse must coordinate with the conductor and fault-current source. A marked current rating is neither an instantaneous opening threshold nor permission to load the complete holder continuously at that value. Manufacturer data and the installed thermal condition govern the final selection.

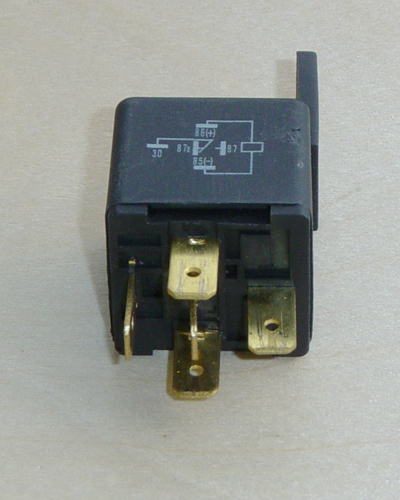

Read the actual relay schematic and part number before assigning socket cavities.
Read the actual relay schematic and part number before assigning socket cavities.

Relay Contacts, Coil Drive and Suppression

Four-pin normally-open and five-pin changeover relays are common, but a second output terminal is not always a normally-closed contact. Mini ISO and micro relay packages also differ in terminal arrangement. Read the actual schematic, coil voltage, contact-load specification and suppression option before wiring the socket. Resistive, lamp, motor and capacitive loads impose different make and break duties. A diode across the coil introduces polarity and may delay release; resistor or other suppression choices must be coordinated with the driver and relay manufacturer. The printed contact current alone does not define switching life, enclosure temperature or total harness capacity.

Relay & Fuse-Box Harness Questions

Can you build both a relay pigtail and a complete fuse-box harness?

Yes. The scope can include a pre-wired socket, fused single branch, dual-relay kit or multi-circuit distribution assembly. Drawings, load data, interfaces and installation requirements define the build.

Can the same assembly work on 12 V and 24 V?

Only when every affected component and operating condition supports both systems. Relay coil voltage, suppression, fuse voltage rating, electronics and load behavior require explicit review.

Does a larger fuse solve repeated fuse failures?

Not without reviewing the fault, load, conductor and holder. A larger fuse can leave a smaller branch inadequately protected. Investigate shorts, overload, inrush, poor contact and thermal conditions first.

Are all five-pin relays interchangeable?

No. Contact arrangement, terminal assignment, coil voltage, suppression polarity, load ratings and package dimensions must match the released circuit and socket.

What information is needed for a quotation?

Provide the system voltage, loads and duty cycles, schematic or sample, fuse and relay part numbers if specified, connectors, branch lengths, installation photographs, environment, labels, quantity and required tests.

Photographs and technical references
