RJ45 connection endRJ45连接端
The RJ45-form end supports routing around port direction, latch access and cable exit.端头采用RJ45形式，可围绕端口朝向、锁扣操作和线缆出口安排设备连接。
Industrial Ethernet / RJ45 Cable Assembly工业以太网与RJ45电缆组件

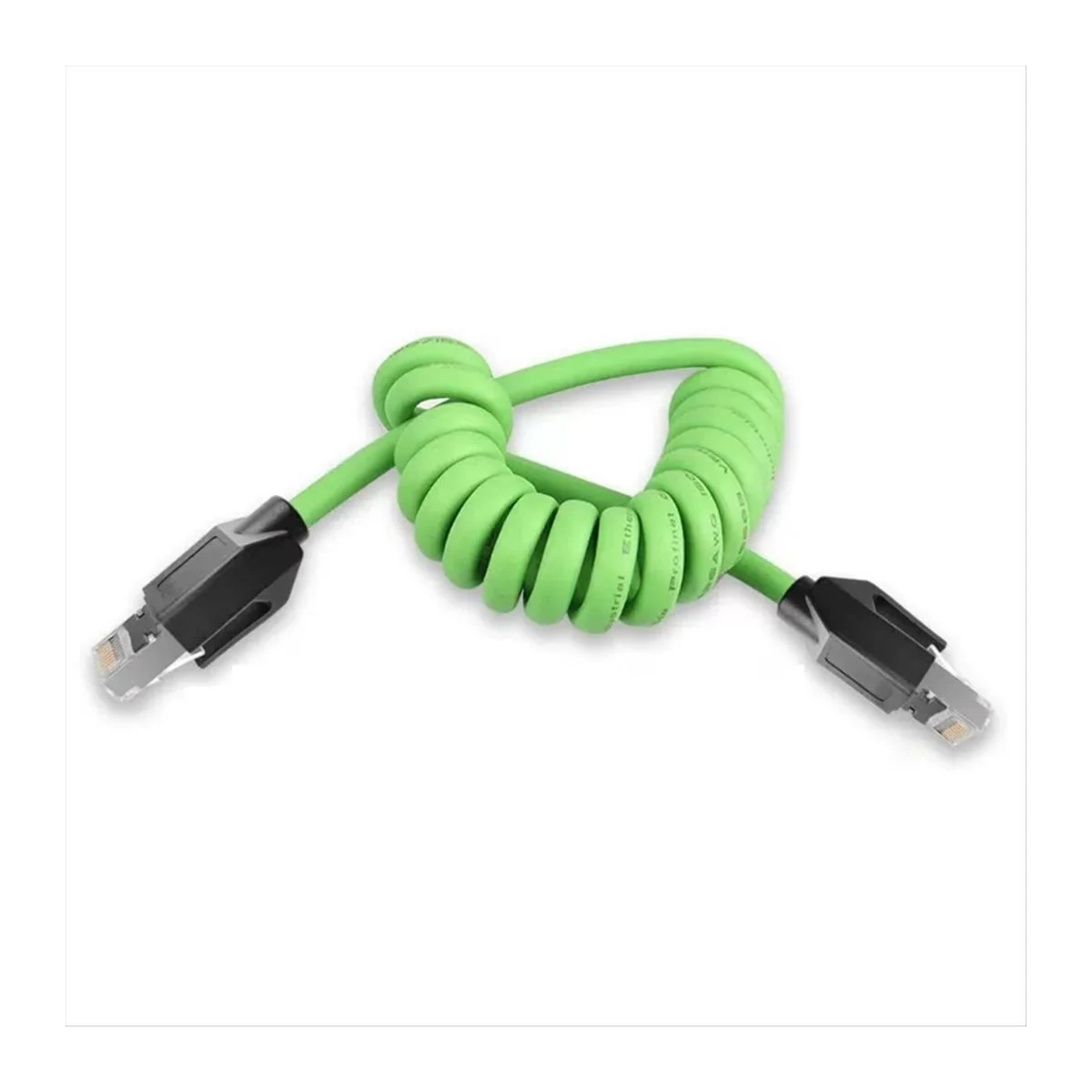

RJ45 Dual-Connector Coiled Industrial Ethernet CableRJ45双接头弹簧工业网线
RJ45 Dual-Connector Coiled Industrial Ethernet Cable combines rj45 connection end, plug-in connection end, coiled or spiral form. Interface, circuit and installation data guide dimensions, material selection and sample review.RJ45双接头弹簧工业网线的结构重点包括RJ45连接端、插接式端头、卷绕或螺旋形态。接口、电路与安装资料将作为尺寸、物料和样品制作的确认依据。
- RJ45 connection endRJ45连接端
- Plug-in connection end插接式端头
- Coiled or spiral form卷绕或螺旋形态
CONSTRUCTION结构解析
Connection structure and design details连接结构与设计要点
Use the rj45 dual-connector coiled industrial ethernet cable form as a starting point and confirm these design points against drawings and the actual equipment.以RJ45双接头弹簧工业网线的结构形式为起点，结合图纸和实际设备确认以下设计要点。
Coiled or spiral form卷绕或螺旋形态
The cable is arranged in a coiled or spiral form, with straight tails and ends placed for storage or connection positions.线缆以卷绕或螺旋形态排列，直线尾段与端头可以结合收纳或连接位置安排。
Signal path信号路径
Define signal type, pair allocation, shield continuity and termination as well as the connector shape. Establish transmission performance from the actual cable, length and system validation.在接口外形之外确认信号类型、线对分配、屏蔽连续性和端接方法；传输能力应按实际线材、长度及整机验证结果确定。
CONFIGURATION结构与选配
Construction & customization options结构与定制配置
The table describes the construction and available configuration choices. Materials, dimensions, circuits and inspection requirements are agreed for each project.以下说明展示结构与可配置内容。具体材料、尺寸、电路和检验要求按项目确认。
| Ethernet speed, category and application protocol以太网速率、类别与使用协议 | Define interface, speed, category and protocol scopes separately.接口、速率、类别和协议写明各自范围。 |
|---|---|
| RJ45 wiring, shielding and straight/crossover mapRJ45针序、屏蔽及直通交叉定义 | Confirm straight/crossover wiring, pair order and shield path for the system.直通、交叉、线对顺序与屏蔽路径按系统确认。 |
| PoE type, current and thermal conditionsPoE类型、电流与发热条件 | Review PoE load and temperature rise with conductors and contacts.PoE负载与温升结合导体和接点审核。 |
| Installation, bending and channel test method安装、弯曲及信道测试方法 | Use the applicable patch-cord, permanent-link or channel test method.跳线、永久链路或信道验证采用对应方法。 |
| Circuit and revision reference电路与版本依据 | Send the network protocol and target data rate, exact device ports and connector part numbers, two- or four-pair requirement, pin map, cable category and length, fixed or moving route, shield and bonding plan, PoE load where relevant, oil/temperature/washdown exposure, exit direction, labels, quantity and required verification or certification limit.请提供网络协议与目标速率、设备端口及连接器准确型号、两对或四对线要求、针脚表、线缆等级与长度、固定或运动走线、屏蔽及接地方案、相关 PoE 负载、油污/温度/冲洗环境、出线方向、标签、数量，以及所需线序核查或等级认证限值。 |
| Sample and manufacturing configuration样品与制造配置 | We review the drawing, sample or interface schedule before selecting a cable and termination system. The approved sample should freeze both ends, pair map, length datum, shield handling, boot or overmold geometry, marking and acceptance method.选线与确定端接体系前，先审核图纸、样品或接口表。批准样品应冻结两端接口、线对映射、长度基准、屏蔽处理、护套或包覆成型几何、标识与验收方法。 |
APPLICATIONS连接的应用
Application directions应用方向
These are connection directions for project discussion. Suitability depends on interfaces, circuits, installation conditions and project validation; configuration can be adapted to the equipment.以下为可讨论的连接方向。实际适用性取决于接口、电路、安装环境和项目验证，可按设备需求调整。
Controllers and industrial networks控制器与工业网络
Configure rate, protocol and shielding for the network architecture. Define interface, speed, category and protocol scopes separately.速率、协议及屏蔽接地按网络架构配置。选配时，接口、速率、类别和协议写明各自范围。
Cabinet and panel extensions机柜与面板延伸
Include joints and panel interfaces in channel validation. Confirm straight/crossover wiring, pair order and shield path for the system.接续与面板接口同时纳入信道验证范围。选配时，直通、交叉、线对顺序与屏蔽路径按系统确认。
Power and data planning for networked equipment联网设备的供电与数据规划
For networked equipment, define data interfaces, power paths and required documents together. If PoE is specified, confirm the applicable version and termination requirements. Review PoE load and temperature rise with conductors and contacts.联网设备需同时明确数据接口、供电路径和所需文件；如项目采用PoE，再确认适用版本及端接要求。选配时，PoE负载与温升结合导体和接点审核。
Robot-peripheral module wiring机器人外围模块布线
Route robot-peripheral data leads around module positions, communication ports and motion range, with service access retained. Use the applicable patch-cord, permanent-link or channel test method.机器人外围设备的数据线需结合模块位置、通信端口和运动范围安排路径及检修接口。选配时，跳线、永久链路或信道验证采用对应方法。
Data links in automation cells自动化工位的数据链路
Use the actual interfaces of controllers, sensors or imaging modules to define cell data links, with cable identification and inter-device distances recorded. Define interface, speed, category and protocol scopes separately.工位内的数据连接以控制器、传感或图像模块的实际接口为依据，明确线路编号和设备间距离。选配时，接口、速率、类别和协议写明各自范围。
Service-network adapters维护网络转接
Include panel patching and intermediate contacts in the link review. Confirm straight/crossover wiring, pair order and shield path for the system.面板跳接和中间接点需纳入完整链路审核。选配时，直通、交叉、线对顺序与屏蔽路径按系统确认。
ENGINEERING & PRODUCTION工程与制造
Adapt the connection to your equipment.围绕设备，调整连接细节。
Touched by me, better it’ll beTouched by me, better it’ll be
Custom wire harness manufacturing in China中国工厂 · 定制线束制造
Our China factory supports industrial ethernet / rj45 cable assembly projects through custom wire harness manufacturing and OEM/ODM development. Interface, circuit and installation data guide material selection, sample builds and manufacturing-document approval before repeat production.Super Smile-Tech 中国工厂围绕工业以太网与RJ45电缆组件的项目需求提供定制线束制造与 OEM/ODM 支持。我们从接口、电路与安装资料开始，协同物料选配、样品制作和制造文件确认，再按批准要求组织重复生产。
Ethernet speed, category and application protocol以太网速率、类别与使用协议
Define interface, speed, category and protocol scopes separately.接口、速率、类别和协议写明各自范围。
RJ45 wiring, shielding and straight/crossover mapRJ45针序、屏蔽及直通交叉定义
Confirm straight/crossover wiring, pair order and shield path for the system.直通、交叉、线对顺序与屏蔽路径按系统确认。
Installation, bending and channel test method安装、弯曲及信道测试方法
Use the applicable patch-cord, permanent-link or channel test method.跳线、永久链路或信道验证采用对应方法。
PRODUCT QUESTIONS产品问答
Product & customization questions产品与定制常见问题
Can an RJ45-looking plug guarantee Gigabit Ethernet?外形像 RJ45 的插头就能保证千兆以太网吗？
No. The complete cable and connector construction, active pairs, pin map, length and measured link performance matter. Agree the required data rate and test limit before production.不能。完整线材与连接器结构、有效线对、针脚映射、长度和实测链路性能都有关。生产前应约定目标速率与测试限值。
Can M12 D-coded and X-coded connectors be swapped?M12 D 编码与 X 编码能互换吗？
No. Their mating geometry and intended pair arrangements differ. Select the exact device-side coding and release the mapping to the modular side.不能。两者对插几何和预期线对布局不同，应确认设备端准确编码，并放行到模块化接口一侧的映射。
Does a shielded cable need a shielded plug?用了屏蔽线就一定需要屏蔽插头吗？
That depends on the system bonding and EMC design. If a continuous screened path is specified, the plug, shell and termination must support it; a shielded jacket alone cannot establish continuity.取决于系统接地与电磁兼容方案。若要求连续屏蔽路径，插头、外壳和端接必须共同支持；只有屏蔽线材不能形成完整路径。
Start with your interface and installation requirements从您的接口与安装需求开始
Share mating interfaces, a circuit table, target lengths or a sample for the rj45 dual-connector coiled industrial ethernet cable. We can use them to review configuration and sample requirements.提供RJ45双接头弹簧工业网线的对插接口、回路表、目标长度或参考样品，我们据此梳理选配与样品确认事项。
