Product type

Industrial Ethernet / RJ45 Cable Assembly

Overview

Industrial Ethernet and RJ45 cable assemblies link PLCs, remote I/O, switches, vision equipment and service ports. We build RJ45 patch leads, M12 D/X-to-RJ45 transitions, panel extensions and equipment tails to a specified pair map, shield plan, route and acceptance target.

Ask About This Product TypeFind Models & Material Part NumbersBack to Products
Industrial Ethernet / RJ45 Cable Assembly - Cable Assemblies
01 / 13
M12 4-Pin D-Coded to RJ45 Panel Socket Cable
01
M12 4-Pin D-Coded to RJ45 Panel Socket Cable

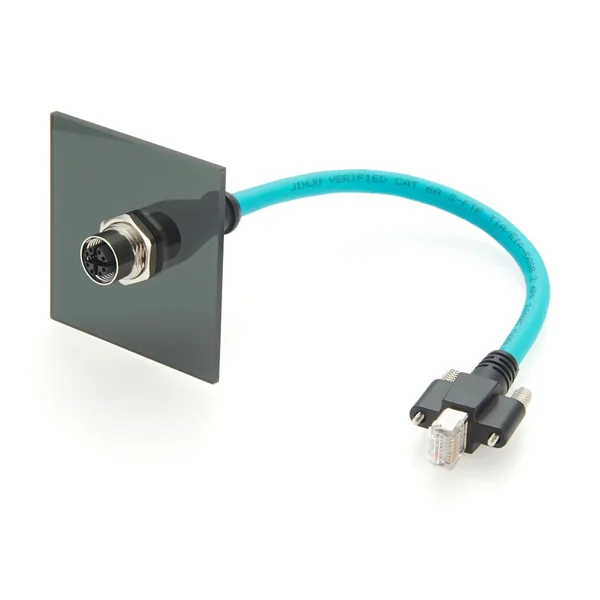

M12 X-Coded Panel to RJ45 Screw-Locking Cable
02
M12 X-Coded Panel to RJ45 Screw-Locking Cable

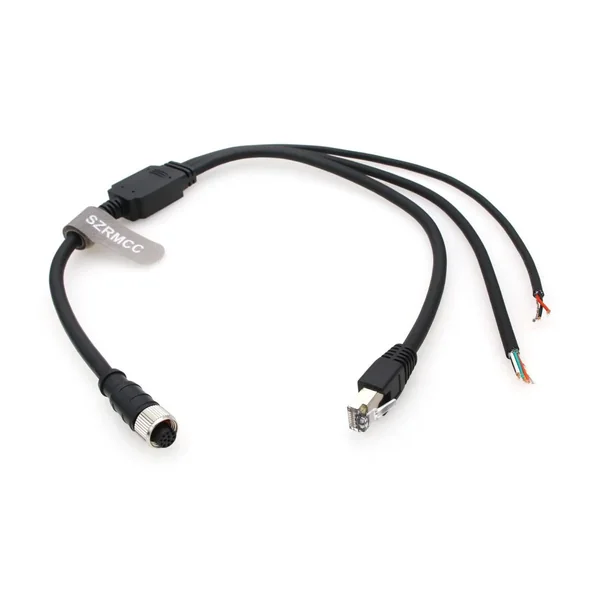

M12 & RJ45 Power Branch Harness
03
M12 & RJ45 Power Branch Harness

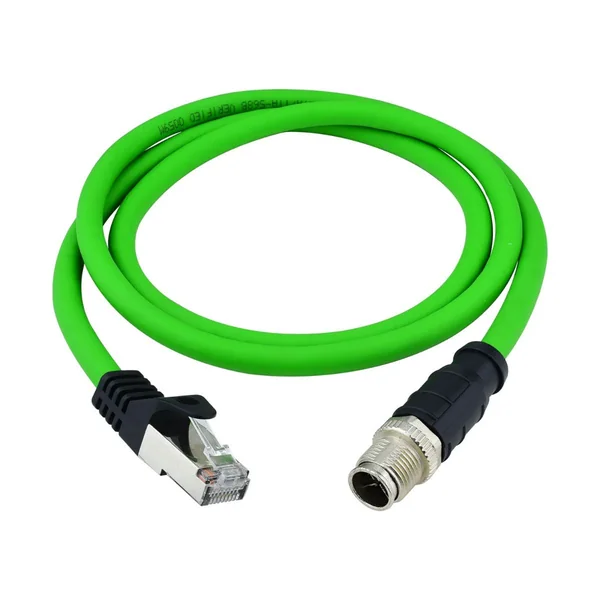

M12 X-Coded 8-Pin to RJ45 Ethernet Cable
04
M12 X-Coded 8-Pin to RJ45 Ethernet Cable
DM8000-ECABLEC-5 DataMan Coiled Ethernet Cable
05
DM8000-ECABLEC-5 DataMan Coiled Ethernet Cable

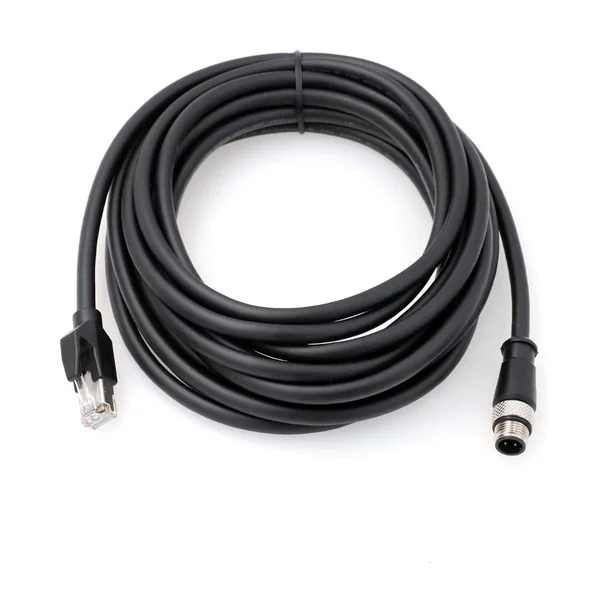

M12 4-Pin D-Coded to RJ45 Industrial Ethernet Cable
06
M12 4-Pin D-Coded to RJ45 Industrial Ethernet Cable

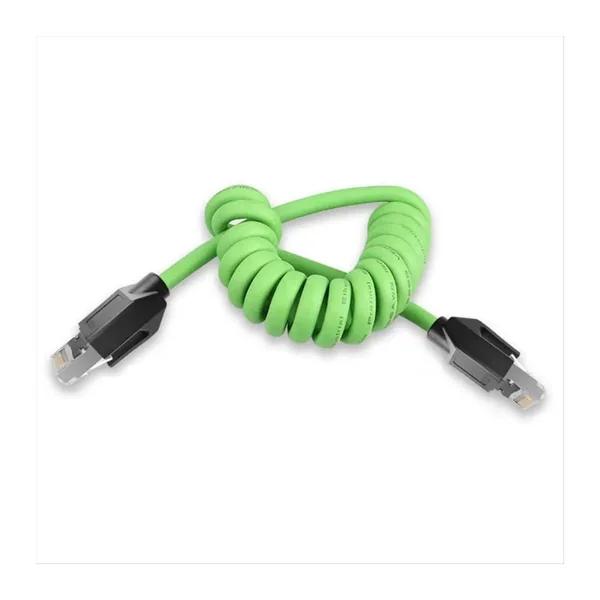

RJ45 Dual-Connector Coiled Industrial Ethernet Cable
07
RJ45 Dual-Connector Coiled Industrial Ethernet Cable

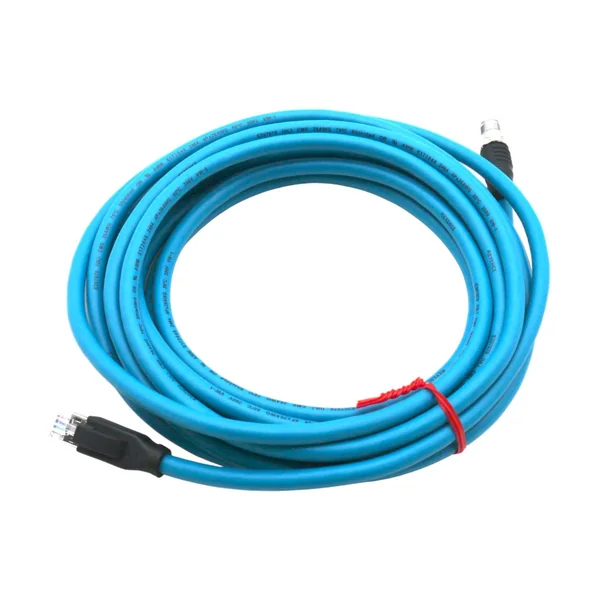

OP-88836 M12 to RJ45 Industrial Ethernet Cable
08
OP-88836 M12 to RJ45 Industrial Ethernet Cable

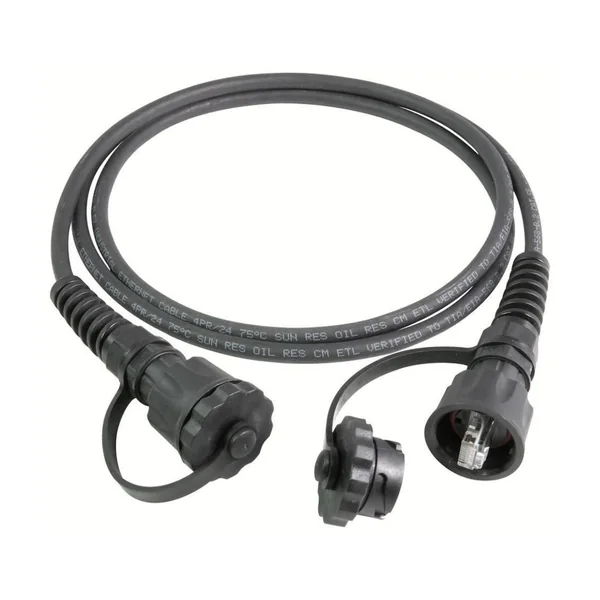

C6A IP67 Double-Ended Sealed RJ45 Ethernet Cable
09
C6A IP67 Double-Ended Sealed RJ45 Ethernet Cable

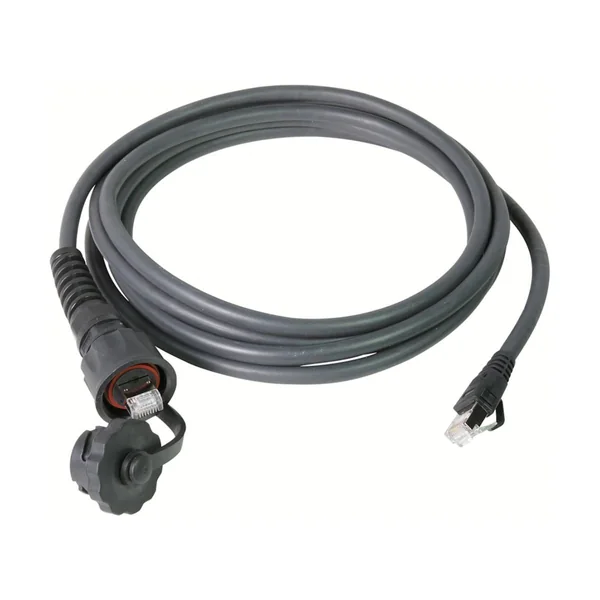

C6A IP67-IP20 Single-Ended Sealed RJ45 Ethernet Cable
10
C6A IP67-IP20 Single-Ended Sealed RJ45 Ethernet Cable

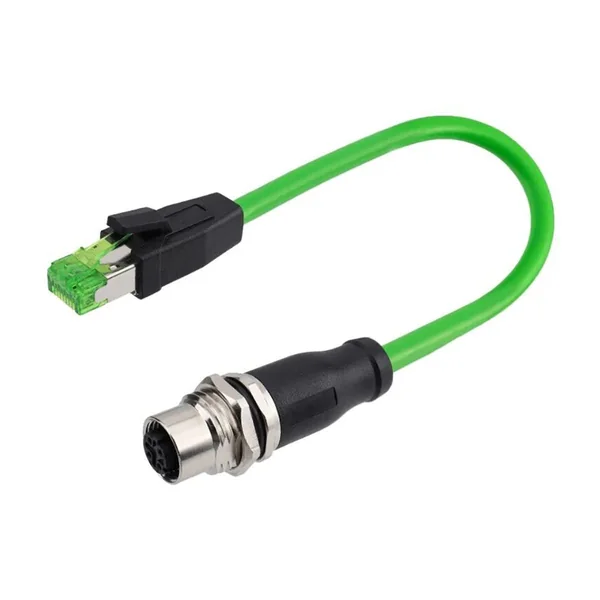

M12 D-Coded Bulkhead Connector to RJ45 Short Cable
11
M12 D-Coded Bulkhead Connector to RJ45 Short Cable

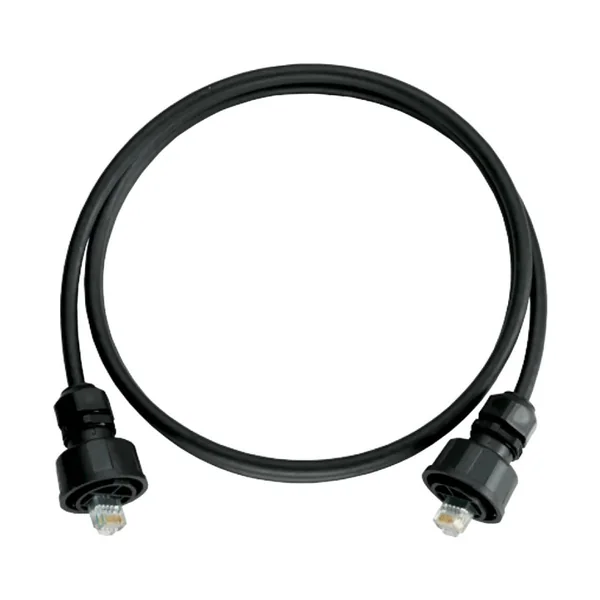

DURAPORT Sealed Dual-Port Industrial Ethernet Cable
12
DURAPORT Sealed Dual-Port Industrial Ethernet Cable

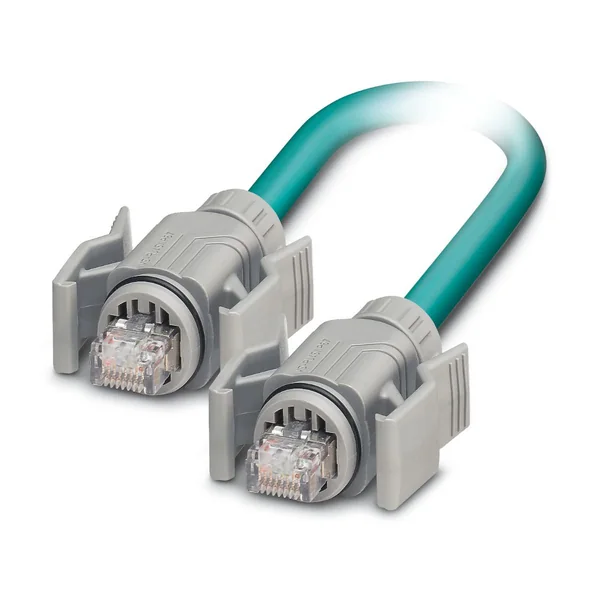

VS-IP67-IP67-94C-LI-10.0 RJ45 Ethernet Cable
13
VS-IP67-IP67-94C-LI-10.0 RJ45 Ethernet Cable
PAIR / PORT / ROUTE / TEST

Define the Link Before Choosing the Plug

A good drawing identifies both device ports, every twisted pair, the shield, cable route and the acceptance target. We then select the connector, jacket and termination around that defined link—whether the assembly ends in two RJ45 plugs, an M12-to-RJ45 transition or a panel interface.

Industrial Ethernet / RJ45 Cable Assembly connector detail
01

ASSEMBLY FAMILIES

RJ45, M12 and panel transitions are different builds

RJ45, M12 and panel transitions are different builds

RJ45-to-RJ45 leads serve cabinet and equipment links; M12 D- or X-coded transitions connect machine ports to modular ports; panel feedthroughs move a service interface to an accessible surface. Straight or angled exits, locking boots, overmolds, length, labels and protective caps follow the installation. M12 coding, contact count and pair assignment must be checked against port documentation rather than inferred from a photograph.

Two-pair or four-pair

Specify the actual interface and pair map; a modular shell does not define active pairs.

A-side and B-side

Part number, orientation, exit direction and finished-length datum belong on the drawing.

02

CABLE STRUCTURE

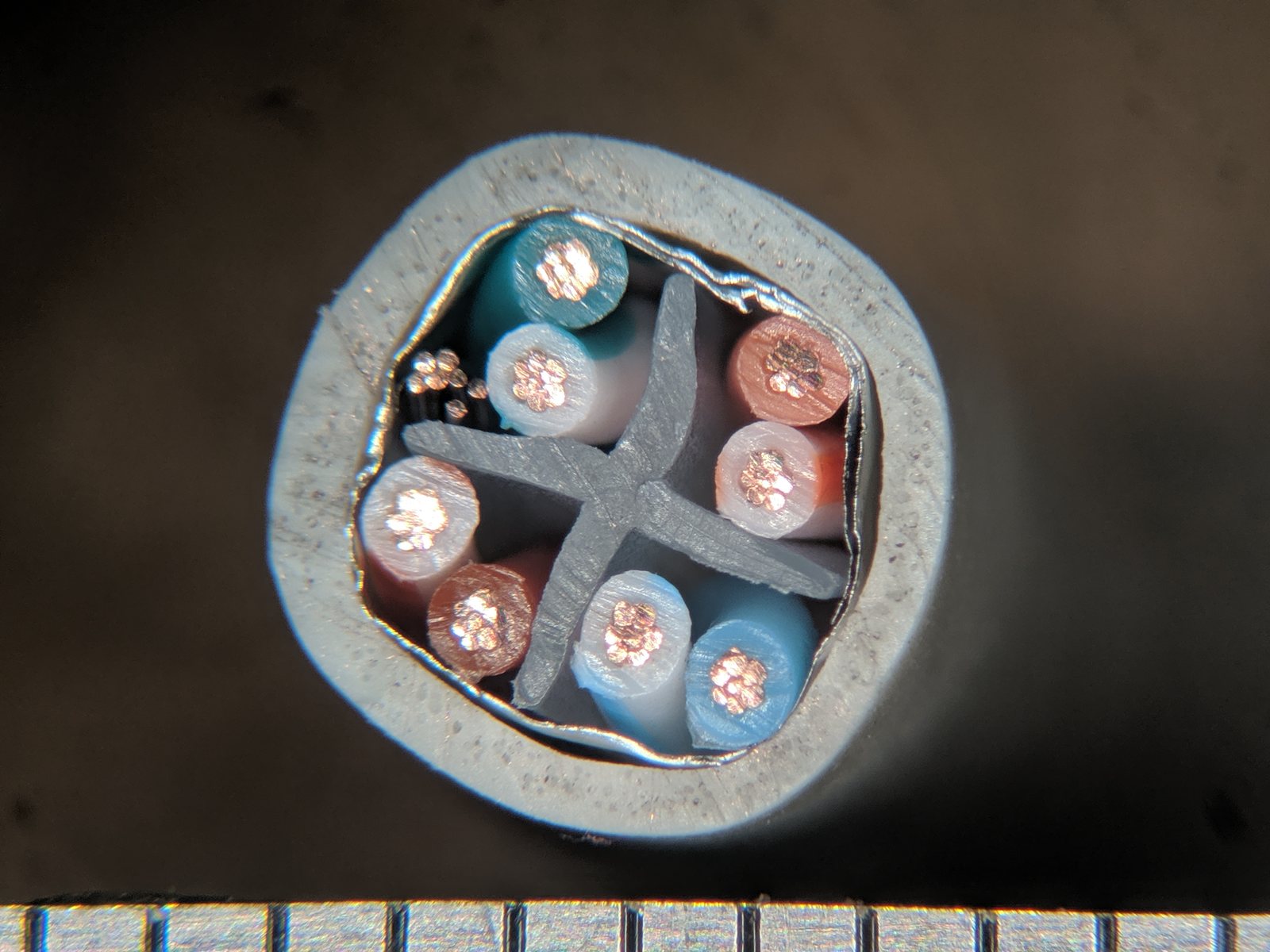

Pair geometry, shield and jacket belong to one selection

Pair geometry, shield and jacket belong to one selection

The requested channel class is assessed across cable and compatible connectors, not by jacket marking alone. Fixed runs and repeatedly moving equipment need different conductor and jacket constructions. Pair twist and any foil or braid should remain controlled through termination; excessive untwist or an interrupted shield path can undermine the intended performance. PVC, PUR and other jackets are reviewed against bend duty, temperature, oil, abrasion and cleaning exposure.

Match conductor to termination

Solid and stranded conductors may require different compatible contacts and preparation.

Control the shield path

Define where the shield is bonded; shielded cable alone does not define grounding.

03

POWER OVER ETHERNET

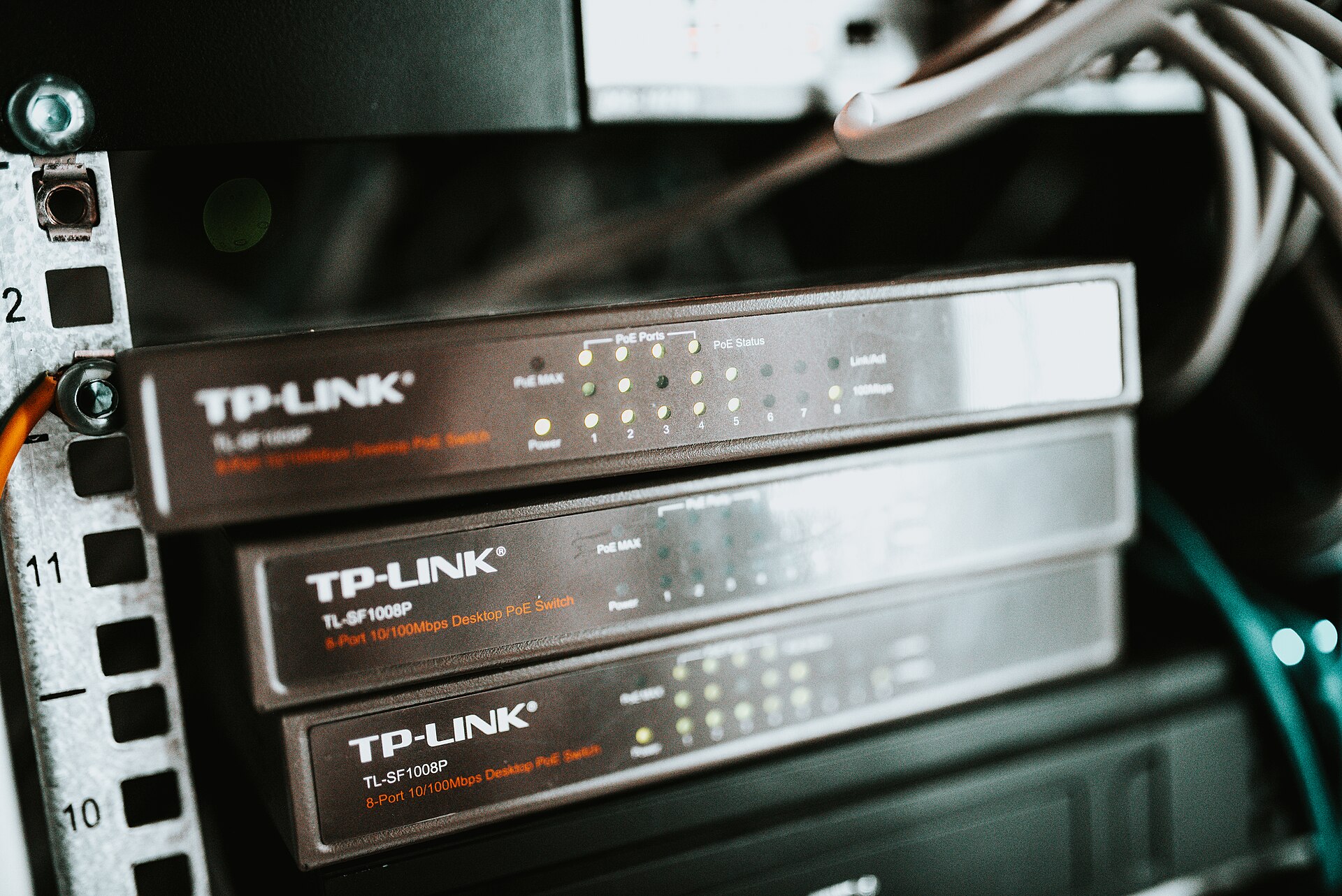

PoE adds current and heat review to the data path

PoE adds current and heat review to the data path

If equipment is powered over the data link, define the PoE mode and actual load before selecting conductor size, contact system, cable length and bundle density. Electrical resistance and heating in a tight bundle matter alongside data transmission. The switch pictured here is application context, not evidence that every cable on this page supports a particular PoE class or power level.

Document the load

Port and powered-device requirements are inputs, not assumptions based on an RJ45 appearance.

Review installed heat

Cable grouping, ambient temperature and route influence the final choice.

04

INSTALLATION

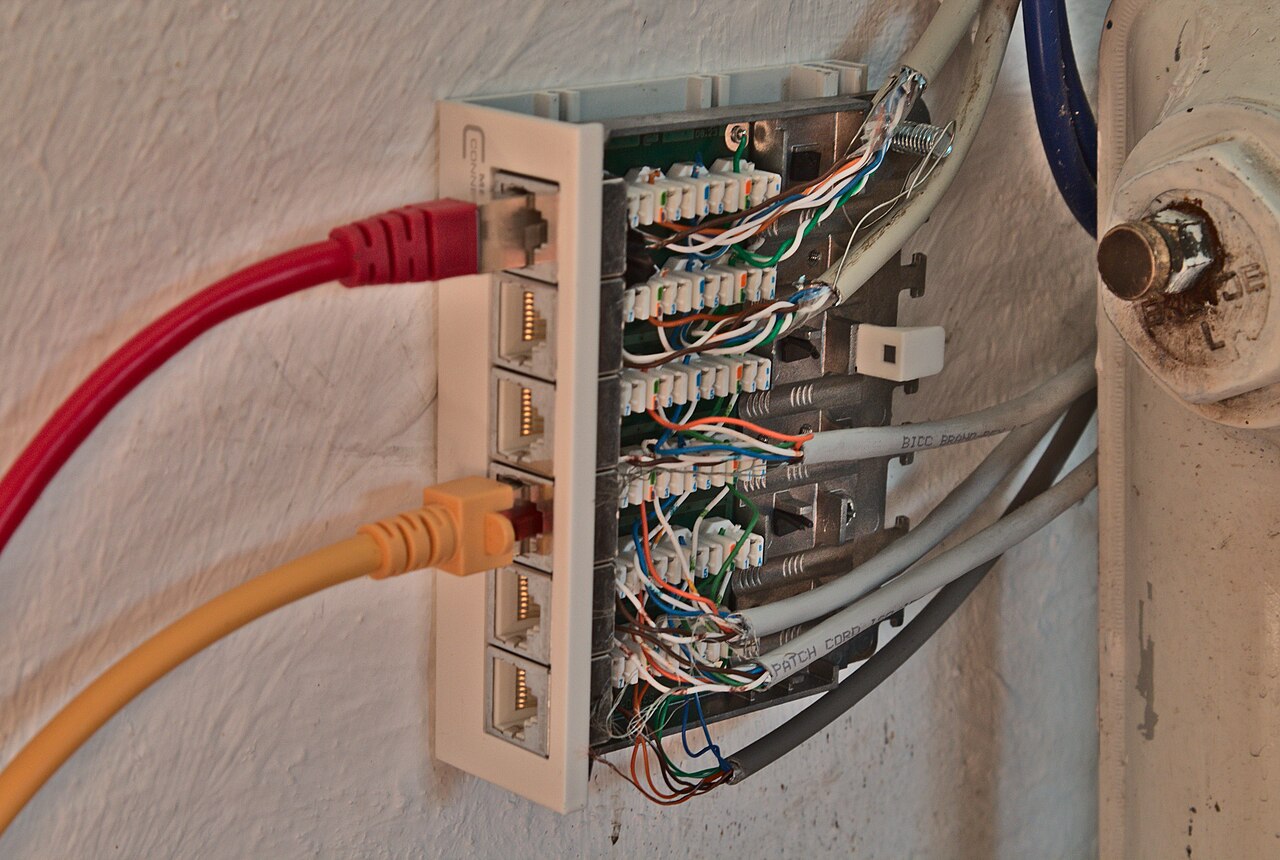

Panel boundaries and motion change the mechanical design

Panel boundaries and motion change the mechanical design

A cabinet patch lead, machine-side M12 lead and panel pass-through see different pull, vibration, washdown and service loads. Review connector access, bend radius, strain relief, routing near drives and power cables, gland or gasket interfaces and service loops. An ingress rating belongs to a specified mated and installed configuration; it is not inherited by an entire assembly merely because one connector carries an IP label.

Fixed versus moving

Repeated flexing is a cable-system requirement, not solved by a thicker boot alone.

Define the boundary

Specify which side of the panel receives the plug, seal, lock and label.

05

MANUFACTURING

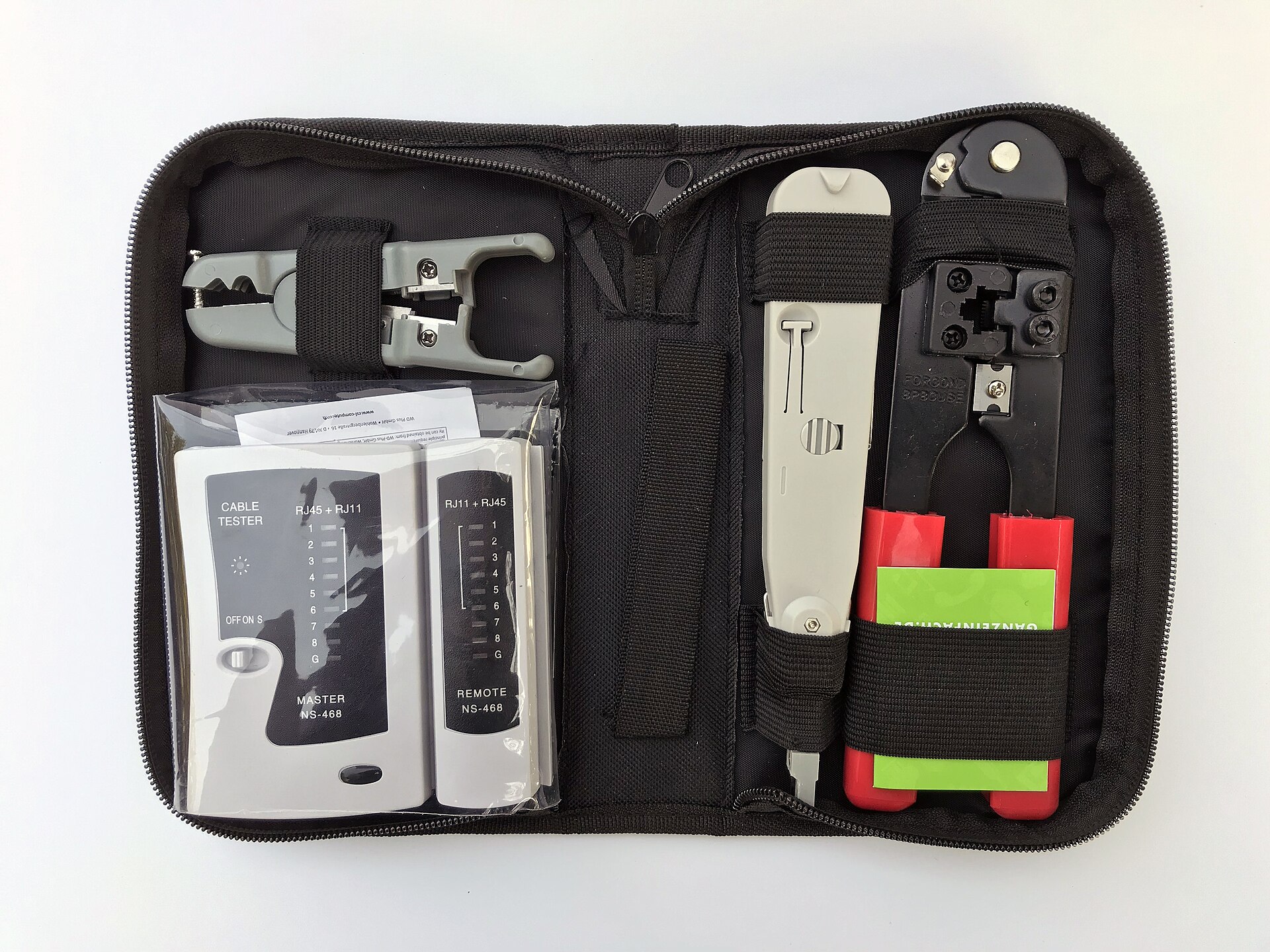

Keep the approved pair map through every termination

Keep the approved pair map through every termination

The production file identifies cable and plug part numbers, strip dimensions, pair map, contact or termination method, shield preparation, boot or overmold geometry and finished-length reference. The first article is checked before repetition. The pictured tools are editorial context: the actual tool, die, setting and inspection point depend on the released connector system. Color order alone is not a substitute for a controlled pin schedule.

Preserve pair identity

Prevent pair splits, misplaced contacts and uncontrolled untwist at both ends.

Freeze revision

A material or connector substitution triggers review of fit and test scope.

06

ACCEPTANCE

Wire-map verification is not performance certification

Wire-map verification is not performance certification

Routine inspection can check material identity, length, label, visual workmanship, latch, continuity, pair map, shorts and shield connection as specified. Network qualification or category certification asks a different question and needs the defined standard, limit, calibrated instrument and suitable adapters. Link communication on one machine is useful functional evidence but does not certify every installed channel. The acceptance plan states which result is required for this order.

Define the test object

A patch cord, permanent link and full channel have different test boundaries.

Keep the result traceable

Record sample or lot, instrument, limit and result when reports are requested.

07

APPLICATIONS

One category spans cabinets, cells and field devices

One category spans cabinets, cells and field devices

Typical projects include PLC-to-switch cabinet links, remote-I/O drops, industrial cameras, HMI and service-port leads, machine-tool networks and packaged equipment. Each application changes connector space, maintenance access, route, shielding, possible PoE load and validation target. An assembly can be customized for these interfaces after the real equipment and network requirement are confirmed; the category name is not a promise of universal protocol or device compatibility.

Cabinet and panel

Short runs prioritize clear port identity, service loops and accessible replacement.

Machine and field

Movement, contamination and installation loads become part of the specification.

Industrial Ethernet Cable Assembly Questions

Can an RJ45-looking plug guarantee Gigabit Ethernet?

No. The complete cable and connector construction, active pairs, pin map, length and measured link performance matter. Agree the required data rate and test limit before production.

Can M12 D-coded and X-coded connectors be swapped?

No. Their mating geometry and intended pair arrangements differ. Select the exact device-side coding and release the mapping to the modular side.

Does a shielded cable need a shielded plug?

That depends on the system bonding and EMC design. If a continuous screened path is specified, the plug, shell and termination must support it; a shielded jacket alone cannot establish continuity.

What is the difference between a wire-map test and cable certification?

Wire-map testing checks conductor correspondence and faults such as opens, shorts or split pairs where the tester supports it. Certification applies a defined cabling standard and measured limits to a specified link configuration. One result must not be presented as the other.

What information is needed for a custom quotation?

Send the device interfaces and part numbers, protocol and rate, pin schedule, cable class and length, fixed or moving installation, shield and PoE requirements, environment, quantities, labels and acceptance method. A verified sample can supplement an incomplete drawing.

Image sources and licenses

PART NUMBER / INTERFACE / MATERIAL

Models, Part Numbers & Sourcing

Find a cable model or material part number, then send it for a custom replacement or original-part sourcing review.
