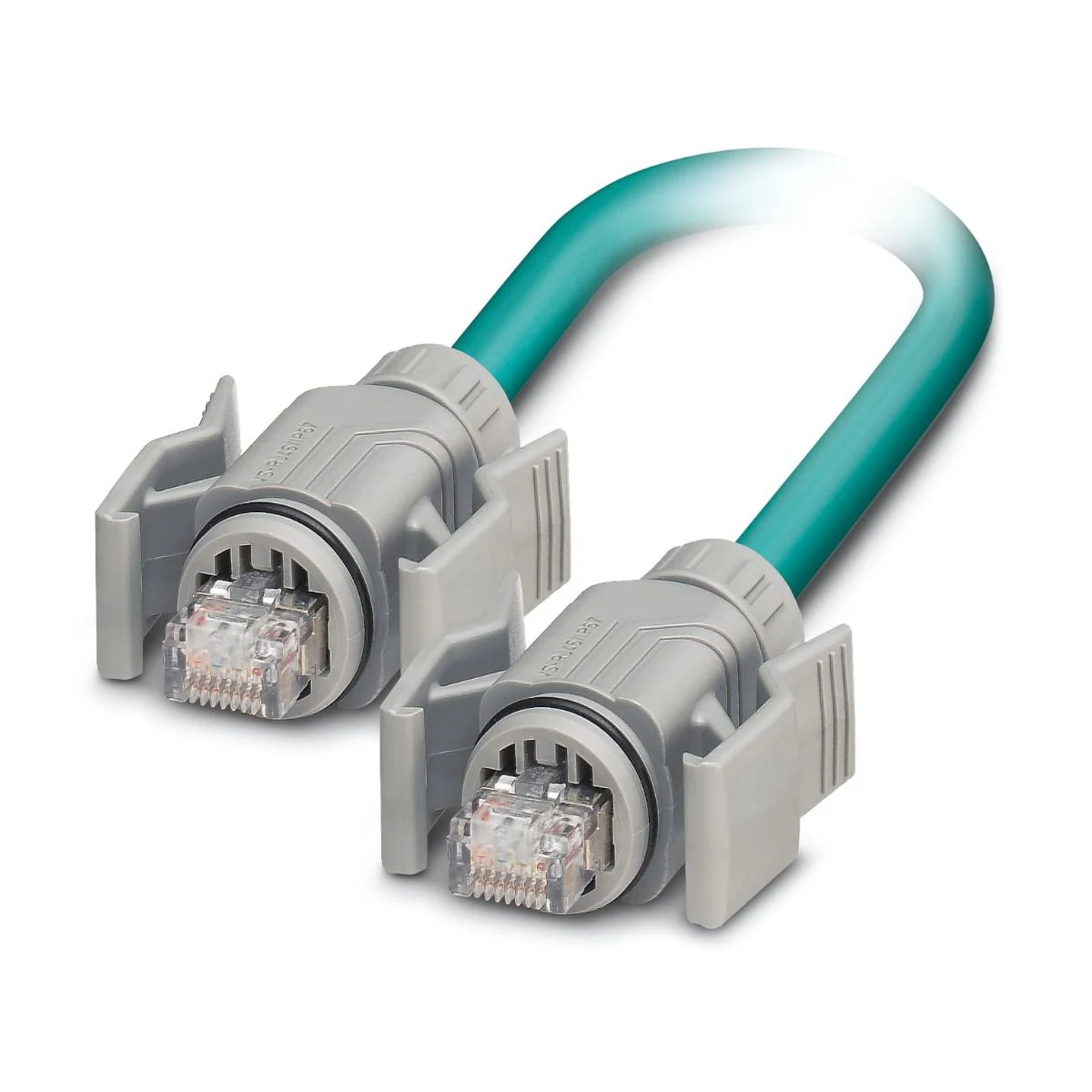

RJ45 Equipment Connection Cable can be configured around equipment interfaces and routing. Industrial Ethernet and RJ45 cable assemblies link PLCs, remote I/O, switches, vision equipment and service ports. We build RJ45 patch leads, M12 D/X-to-RJ45 transitions, panel extensions and equipment tails to a specified pair map, shield plan, route and acceptance target.RJ45设备连接电缆可围绕设备接口与安装路径进行配置。工业以太网与 RJ45 电缆组件连接 PLC、远程 I/O、工业交换机、视觉设备与维护端口。可按指定线对映射、屏蔽方案、走线路径及验收目标，制作 RJ45 引线、M12 D/X 编码转 RJ45、面板延长线和设备尾线。
Use the rj45 equipment connection cable form as a starting point and confirm these design points against drawings and the actual equipment.以RJ45设备连接电缆的结构形式为起点，结合图纸和实际设备确认以下设计要点。
Define signal type, pair allocation, shield continuity and termination as well as the connector shape. Establish transmission performance from the actual cable, length and system validation.在接口外形之外确认信号类型、线对分配、屏蔽连续性和端接方法；传输能力应按实际线材、长度及整机验证结果确定。
Select conductors and insulation from circuit loads, diameter limits, bending and exposure. A material name does not replace ratings or validation results.从电路负载、外径限制、弯曲方式与环境条件选择导体和绝缘体系；材料名称不应直接代替额定参数或验证结果。
RJ45 shape does not establish category or gigabit performanceRJ45外形不证明Cat等级或千兆性能
Confirm industrial housing protection separately from network performance工业防护壳与网络传输性能分开确认
The table describes the construction and available configuration choices. Materials, dimensions, circuits and inspection requirements are agreed for each project.以下说明展示结构与可配置内容。具体材料、尺寸、电路和检验要求按项目确认。
| Ethernet speed, category and application protocol以太网速率、类别与使用协议 | Define interface, speed, category and protocol scopes separately.接口、速率、类别和协议写明各自范围。 |
|---|---|
| RJ45 wiring, shielding and straight/crossover mapRJ45针序、屏蔽及直通交叉定义 | Confirm straight/crossover wiring, pair order and shield path for the system.直通、交叉、线对顺序与屏蔽路径按系统确认。 |
| PoE type, current and thermal conditionsPoE类型、电流与发热条件 | Review PoE load and temperature rise with conductors and contacts.PoE负载与温升结合导体和接点审核。 |
| Installation, bending and channel test method安装、弯曲及信道测试方法 | Use the applicable patch-cord, permanent-link or channel test method.跳线、永久链路或信道验证采用对应方法。 |
| Circuit and revision reference电路与版本依据 | Send the network protocol and target data rate, exact device ports and connector part numbers, two- or four-pair requirement, pin map, cable category and length, fixed or moving route, shield and bonding plan, PoE load where relevant, oil/temperature/washdown exposure, exit direction, labels, quantity and required verification or certification limit.请提供网络协议与目标速率、设备端口及连接器准确型号、两对或四对线要求、针脚表、线缆等级与长度、固定或运动走线、屏蔽及接地方案、相关 PoE 负载、油污/温度/冲洗环境、出线方向、标签、数量，以及所需线序核查或等级认证限值。 |
| Sample and manufacturing configuration样品与制造配置 | We review the drawing, sample or interface schedule before selecting a cable and termination system. The approved sample should freeze both ends, pair map, length datum, shield handling, boot or overmold geometry, marking and acceptance method.选线与确定端接体系前，先审核图纸、样品或接口表。批准样品应冻结两端接口、线对映射、长度基准、屏蔽处理、护套或包覆成型几何、标识与验收方法。 |
These are connection directions for project discussion. Suitability depends on interfaces, circuits, installation conditions and project validation; configuration can be adapted to the equipment.以下为可讨论的连接方向。实际适用性取决于接口、电路、安装环境和项目验证，可按设备需求调整。
Configure rate, protocol and shielding for the network architecture. Define interface, speed, category and protocol scopes separately.速率、协议及屏蔽接地按网络架构配置。选配时，接口、速率、类别和协议写明各自范围。
Include joints and panel interfaces in channel validation. Confirm straight/crossover wiring, pair order and shield path for the system.接续与面板接口同时纳入信道验证范围。选配时，直通、交叉、线对顺序与屏蔽路径按系统确认。
For networked equipment, define data interfaces, power paths and required documents together. If PoE is specified, confirm the applicable version and termination requirements. Review PoE load and temperature rise with conductors and contacts.联网设备需同时明确数据接口、供电路径和所需文件；如项目采用PoE，再确认适用版本及端接要求。选配时，PoE负载与温升结合导体和接点审核。
Route robot-peripheral data leads around module positions, communication ports and motion range, with service access retained. Use the applicable patch-cord, permanent-link or channel test method.机器人外围设备的数据线需结合模块位置、通信端口和运动范围安排路径及检修接口。选配时，跳线、永久链路或信道验证采用对应方法。
Use the actual interfaces of controllers, sensors or imaging modules to define cell data links, with cable identification and inter-device distances recorded. Define interface, speed, category and protocol scopes separately.工位内的数据连接以控制器、传感或图像模块的实际接口为依据，明确线路编号和设备间距离。选配时，接口、速率、类别和协议写明各自范围。
Include panel patching and intermediate contacts in the link review. Confirm straight/crossover wiring, pair order and shield path for the system.面板跳接和中间接点需纳入完整链路审核。选配时，直通、交叉、线对顺序与屏蔽路径按系统确认。
Our China factory supports industrial ethernet / rj45 cable assembly projects through custom wire harness manufacturing and OEM/ODM development. Interface, circuit and installation data guide material selection, sample builds and manufacturing-document approval before repeat production.Super Smile-Tech 中国工厂围绕工业以太网与RJ45电缆组件的项目需求提供定制线束制造与 OEM/ODM 支持。我们从接口、电路与安装资料开始，协同物料选配、样品制作和制造文件确认，再按批准要求组织重复生产。
Define interface, speed, category and protocol scopes separately.接口、速率、类别和协议写明各自范围。
Confirm straight/crossover wiring, pair order and shield path for the system.直通、交叉、线对顺序与屏蔽路径按系统确认。
Use the applicable patch-cord, permanent-link or channel test method.跳线、永久链路或信道验证采用对应方法。
No. The complete cable and connector construction, active pairs, pin map, length and measured link performance matter. Agree the required data rate and test limit before production.不能。完整线材与连接器结构、有效线对、针脚映射、长度和实测链路性能都有关。生产前应约定目标速率与测试限值。
No. Their mating geometry and intended pair arrangements differ. Select the exact device-side coding and release the mapping to the modular side.不能。两者对插几何和预期线对布局不同，应确认设备端准确编码，并放行到模块化接口一侧的映射。
That depends on the system bonding and EMC design. If a continuous screened path is specified, the plug, shell and termination must support it; a shielded jacket alone cannot establish continuity.取决于系统接地与电磁兼容方案。若要求连续屏蔽路径，插头、外壳和端接必须共同支持；只有屏蔽线材不能形成完整路径。
Share mating interfaces, a circuit table, target lengths or a sample for the rj45 equipment connection cable. We can use them to review configuration and sample requirements.提供RJ45设备连接电缆的对插接口、回路表、目标长度或参考样品，我们据此梳理选配与样品确认事项。
