Pushbutton, rocker, toggle, snap-action and limit-switch leads are built around the specified contacts, load and installation geometry.按钮、摇臂、拨动、微动与限位开关引线，均需围绕指定触点、负载及安装几何制作。
A switch cable assembly connects the operator, contacts, cable and equipment interface as one installable unit. Similar-looking switches can differ in contact logic, load ratings, illumination wiring and operating travel. The starting point is the customer's switch part number or approved sample, circuit drawing and installed position. This category covers device-side switch leads and their connectors; a complete control-panel harness includes many additional circuits and is reviewed separately. We can review a broad range of switch wiring projects, while the exact materials, process and verification remain specific to each order.

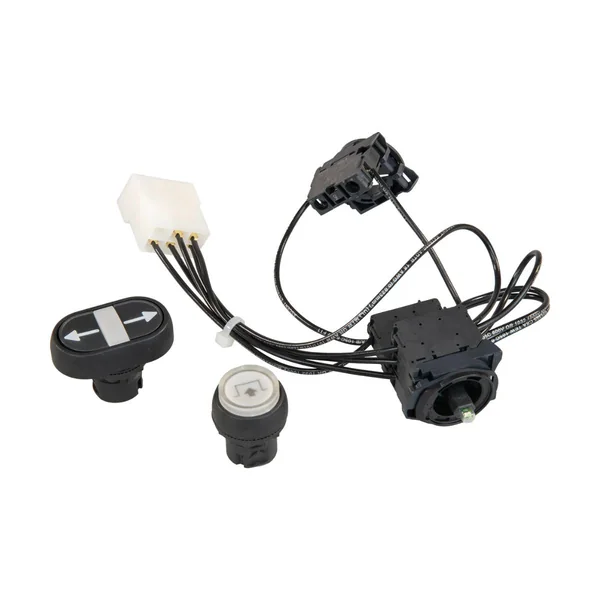

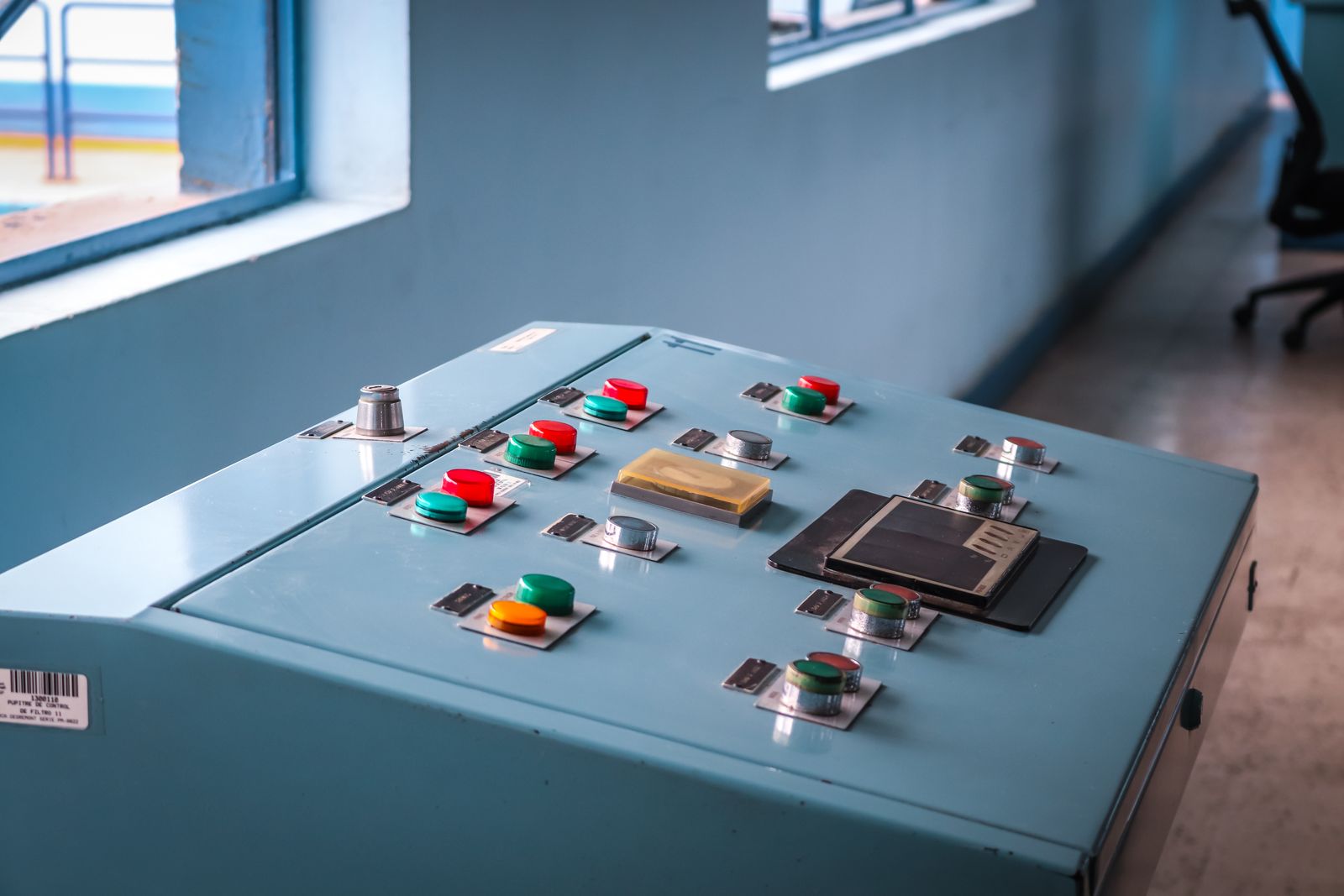

Industrial pushbuttons illustrate one operator form; other switch types require their own terminal drawings.工业按钮展示其中一种操作形式；其他开关仍须核对各自的端子图。

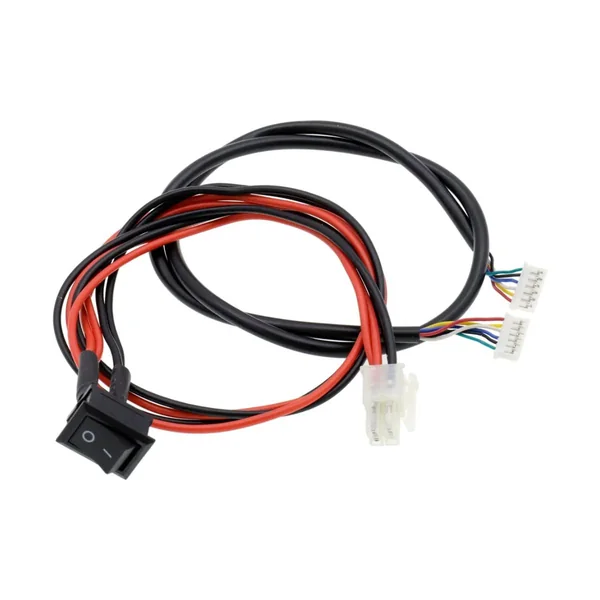

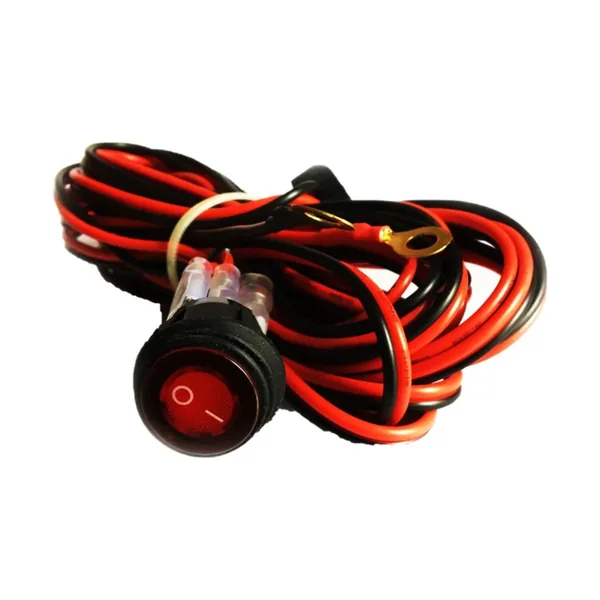

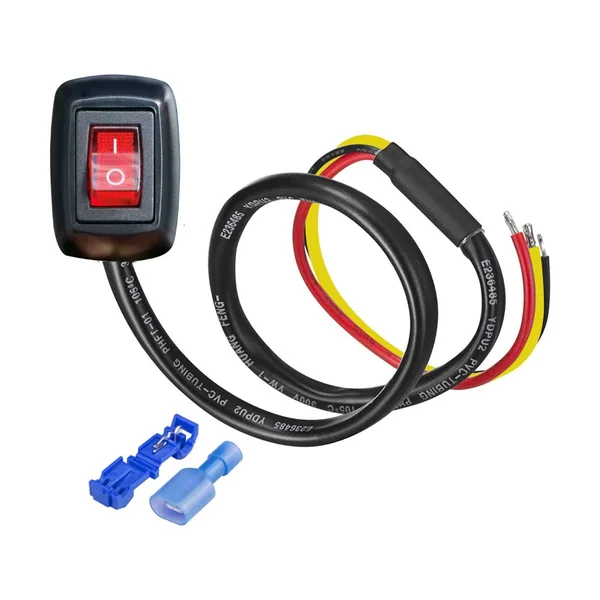

Pushbutton, rocker and toggle: operation defines the circuit
按钮、摇臂与拨动：动作方式决定回路
A pushbutton may be momentary or maintained. For a rocker or toggle switch, confirm positions, poles, contact form and panel cutout. An illuminated version also needs its lamp voltage, polarity and wiring checked. Similar-looking switches can have different terminal layouts, so verify the exact part against the schematic before the first build. A lit indicator does not, by itself, prove that the load is energized.

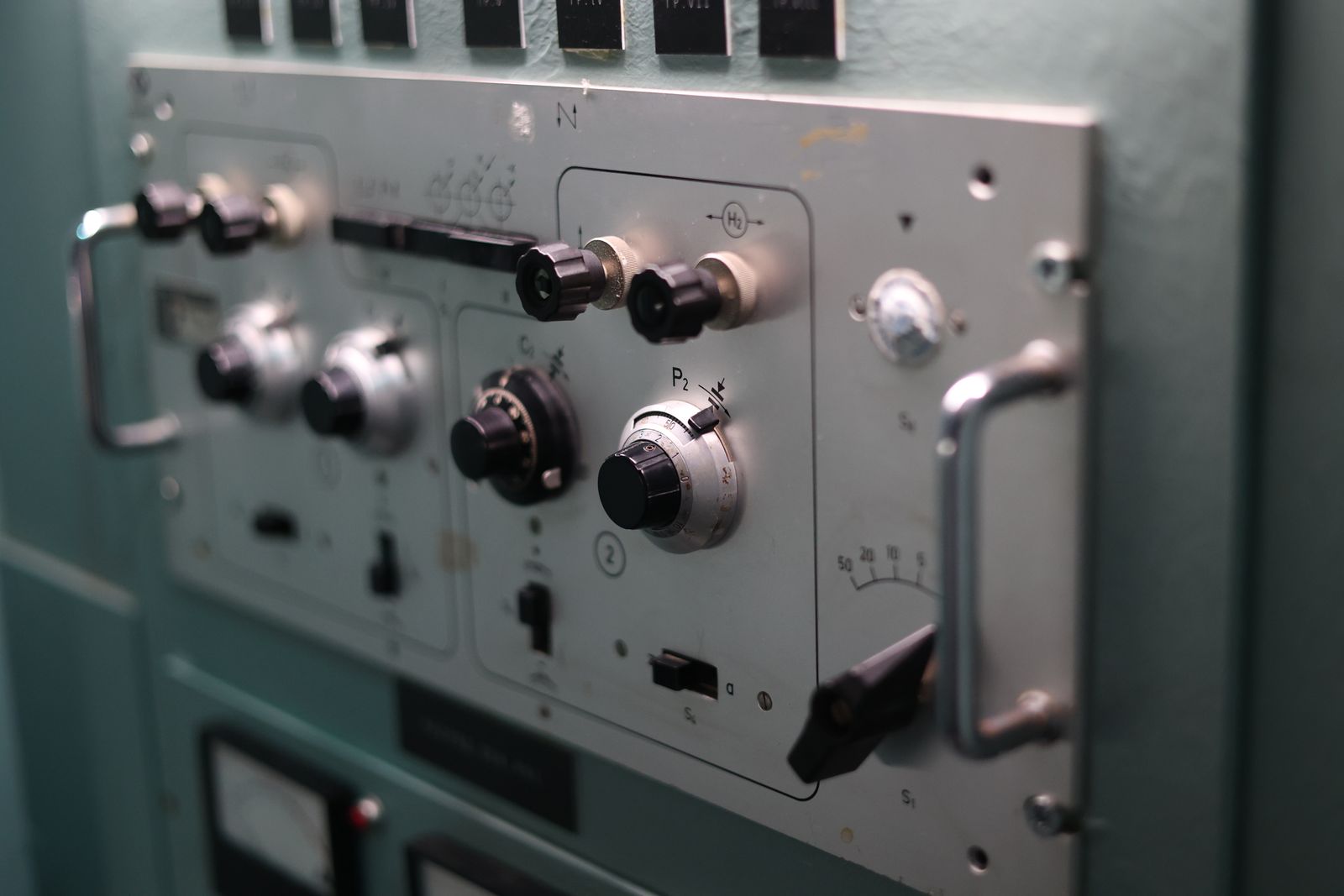

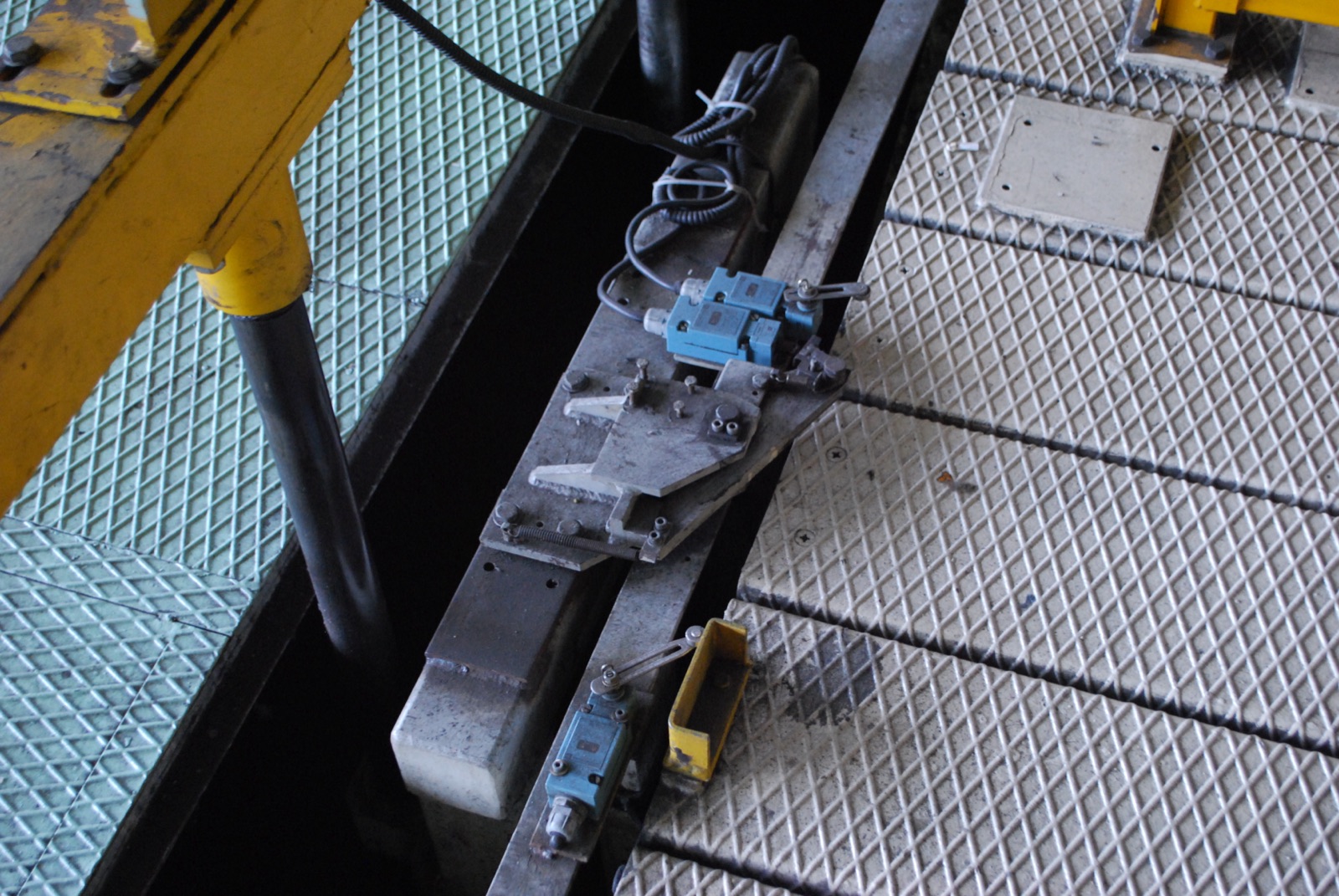

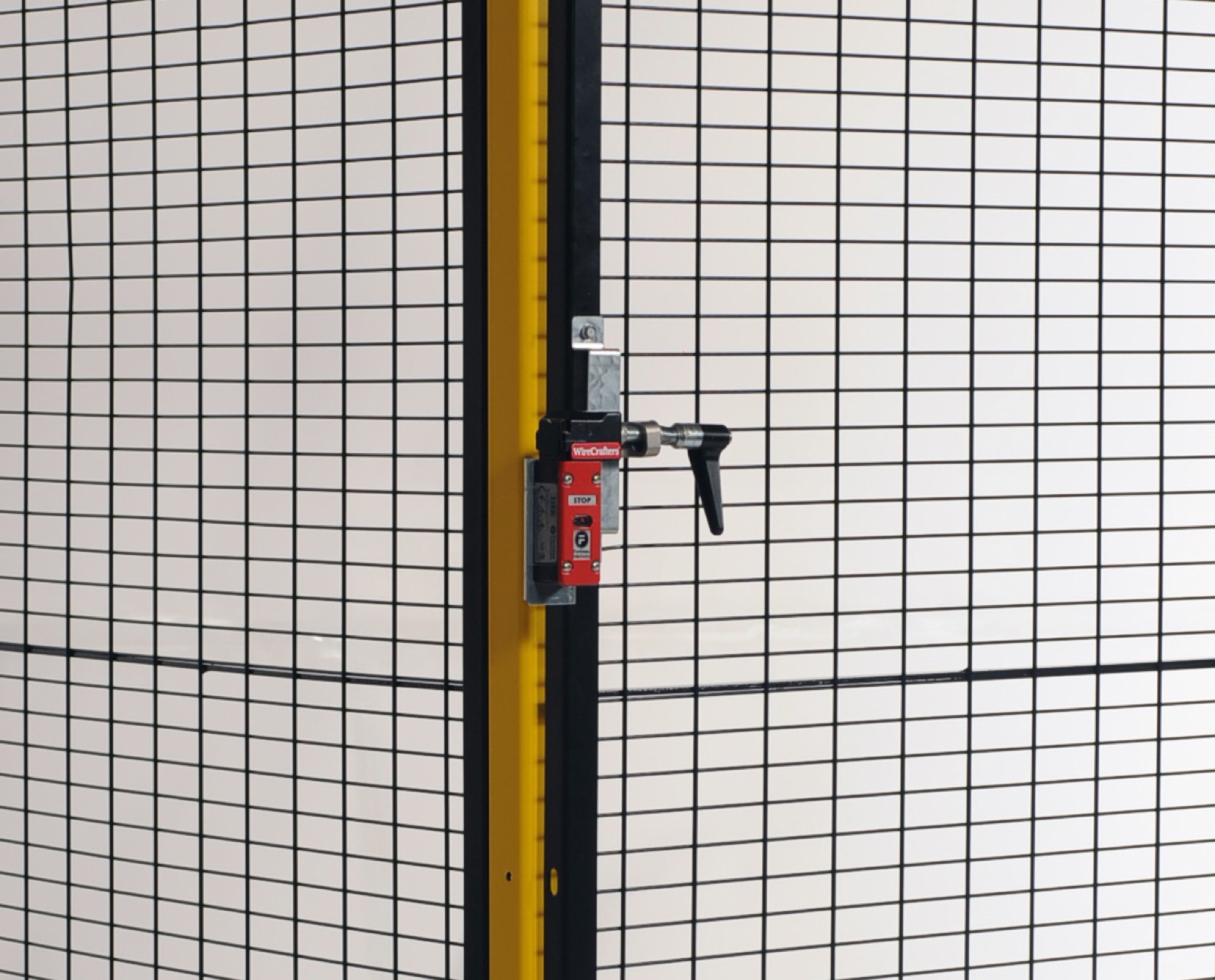

A machine-position switch shows actuation context, not an approved operating stroke for this project.机构位置开关展示触发场景，不代表本项目已经确认动作行程。

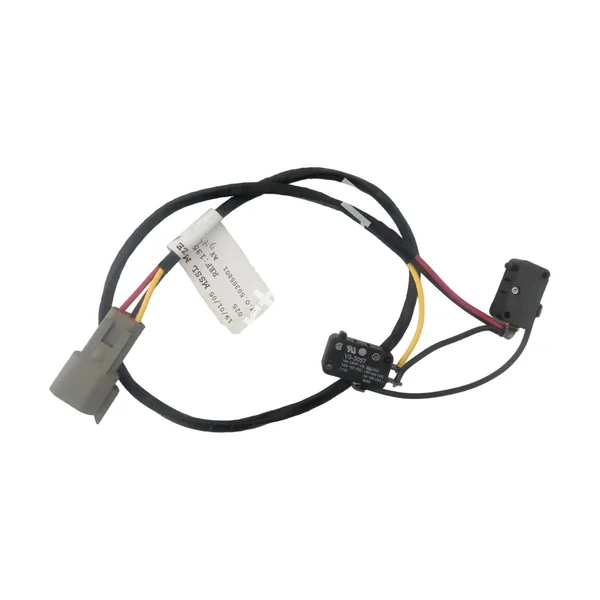

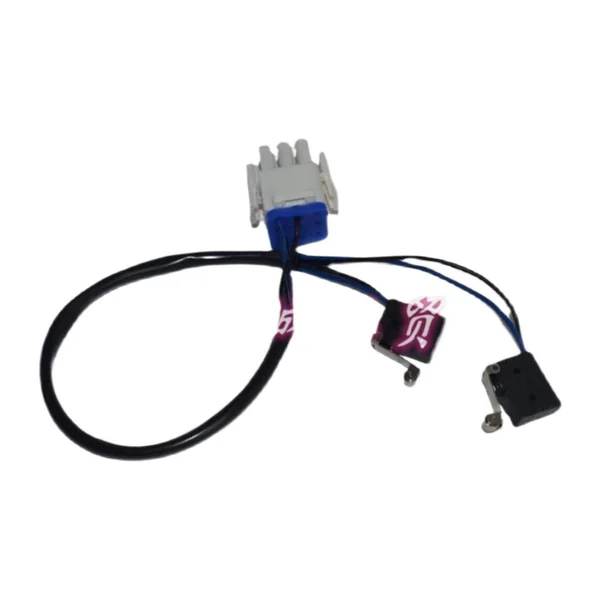

Snap-action and limit switches: turn movement into a defined signal
微动与限位：把机械动作变成确定信号
Snap-action and limit switches can report a door position, end of travel or machine state. Roller, plunger and lever actuators have different approach directions, operating positions and overtravel ranges. Route the cable clear of moving parts and leave service access. Set the actuator stroke from the selected switch data sheet; a switch that only touches at the edge of its travel may not operate consistently.

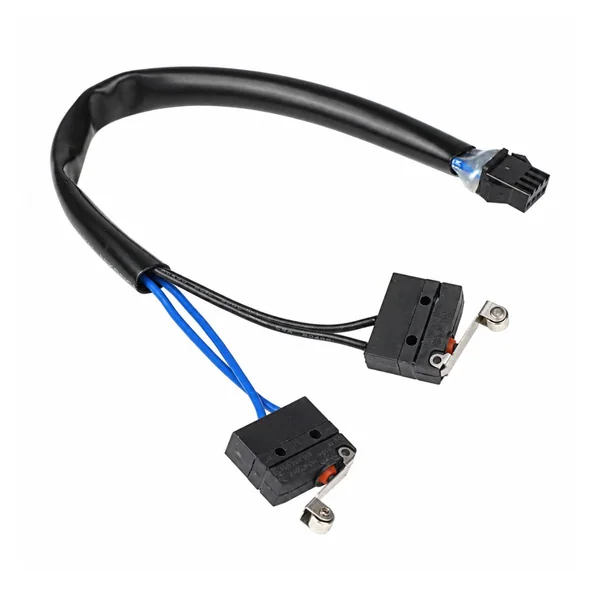

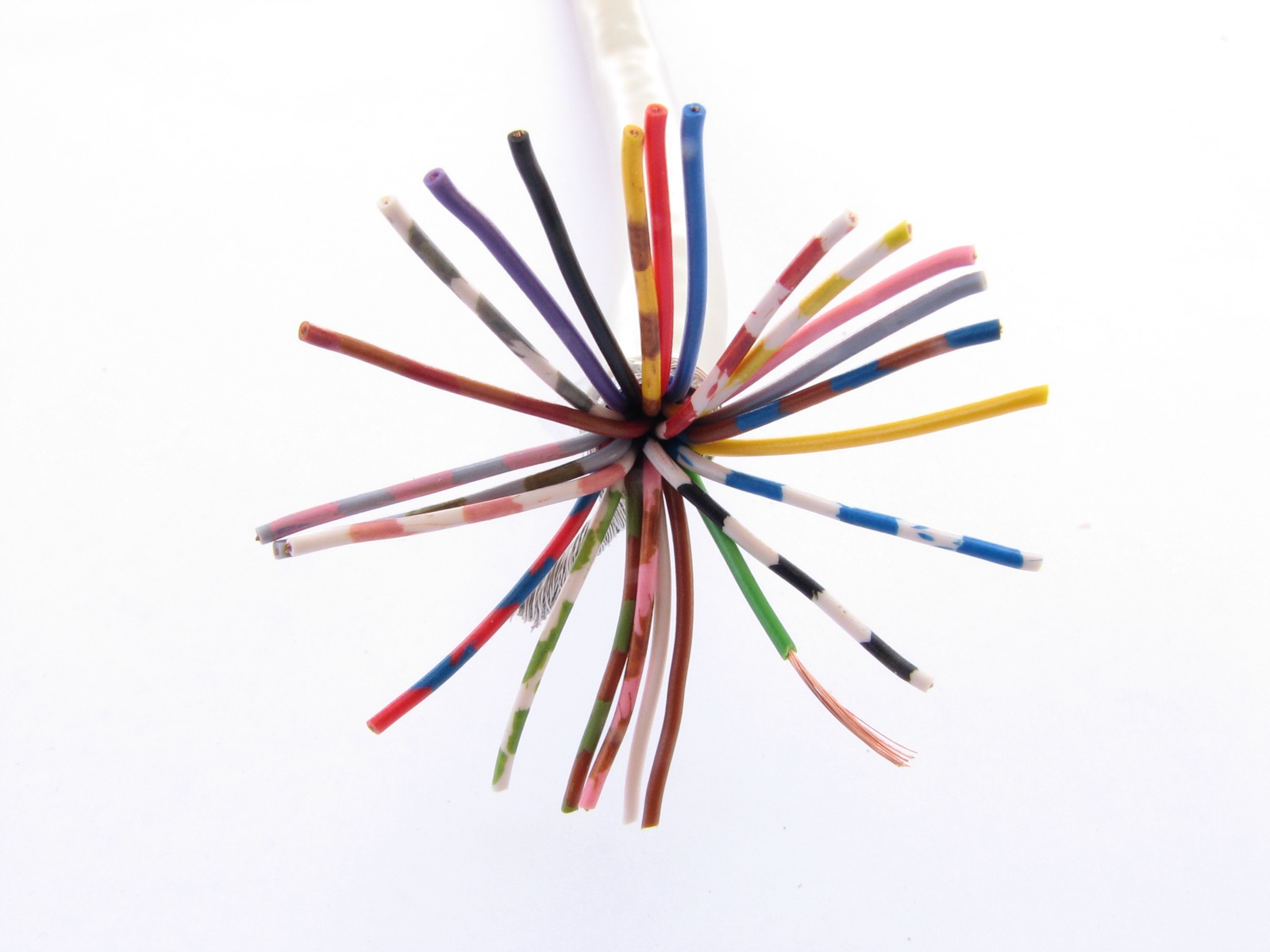

Conductors and jackets illustrate material choices; current capacity depends on the approved construction and installation.导线与护套示意材料选择；载流能力取决于获认可的结构和敷设条件。
Conductors and jackets: match the load and route
导体与护套：负载和布线路径共同决定
First identify whether the switch handles a low-level signal, indicator, relay coil or load. Then check voltage, current, cable length, terminal wire range and temperature. Motors and lamps may draw inrush current, so steady-state current or wire size alone cannot establish the switch rating. Select the conductor and jacket for the actual route, bending duty and approved equipment specification.

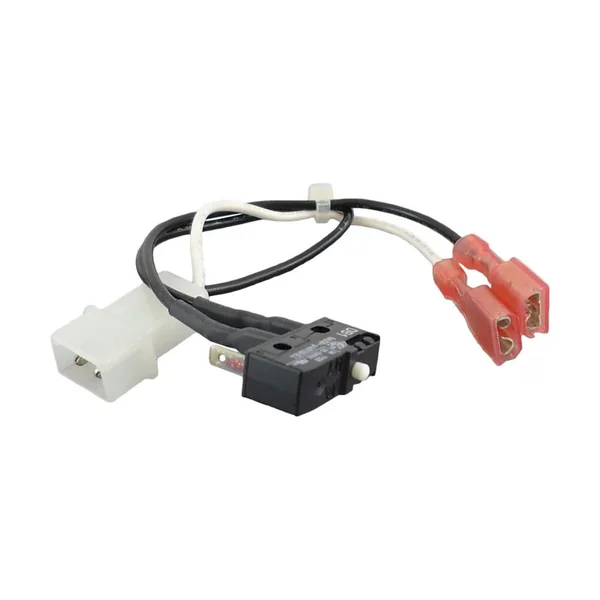

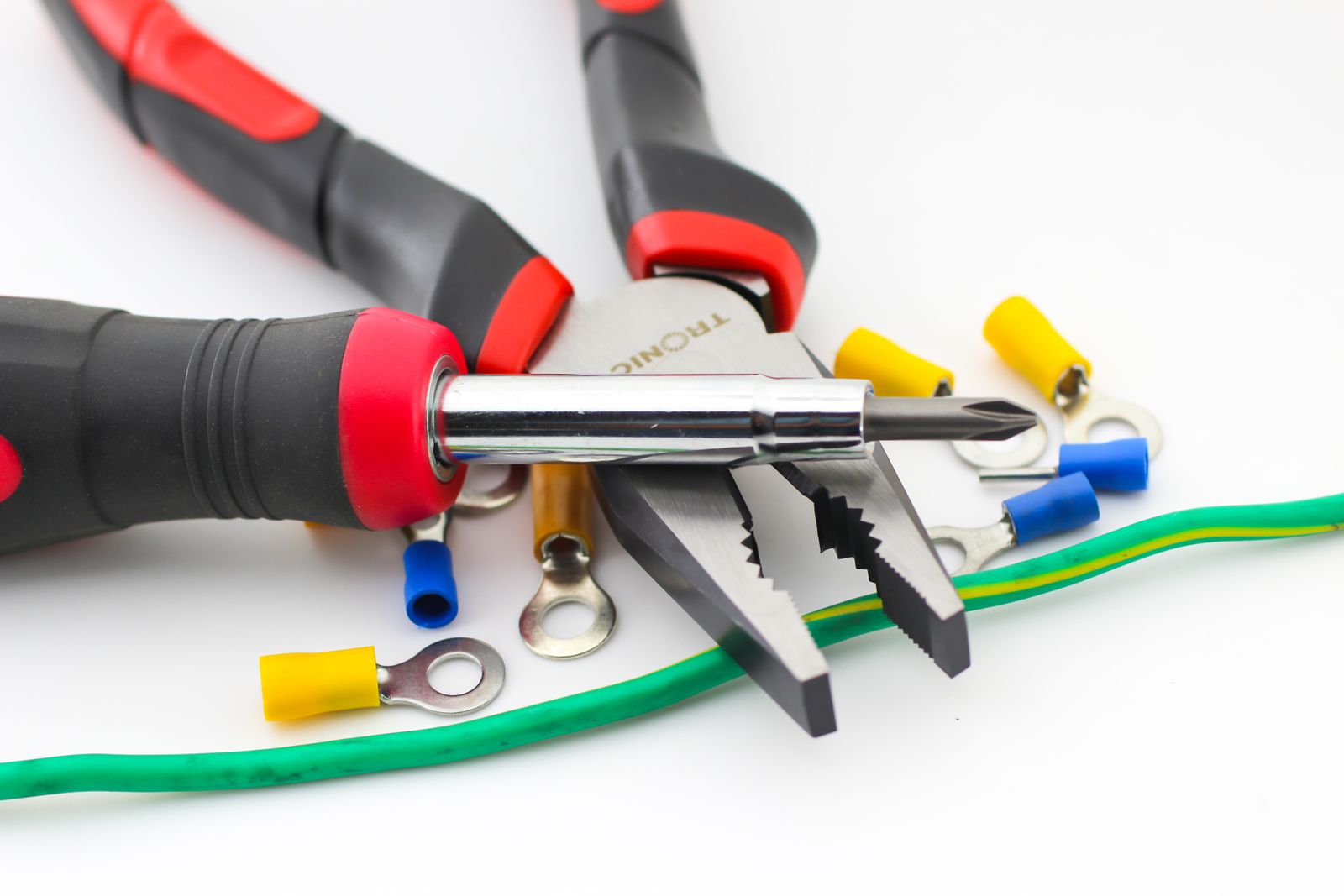

Tools, wire and terminals illustrate termination choices; this is not a Super Smile assembly or crimp record.工具、导线与端子展示端接选择；并非超斯迈尔成品或压接记录。

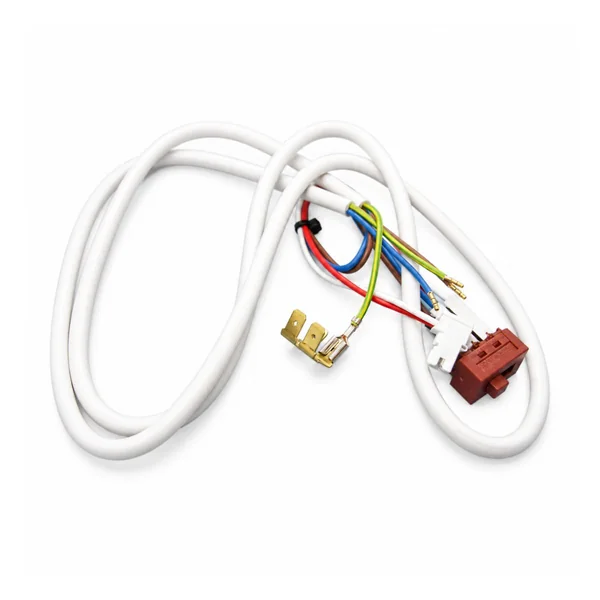

Terminals and interfaces: protect the switch-side connection
端子与接口：守住开关侧的连接边界
Spade, solder-lug, screw and connector terminations require different processes. A crimp must match the wire, terminal and tooling, with both conductor crimp and insulation support checked. For solder terminals, follow the switch maker's instructions. Define cable retention and exit protection so service loads are not carried by the contact or solder joint alone. Confirm the mating connector and terminal orientation before cutting wires.

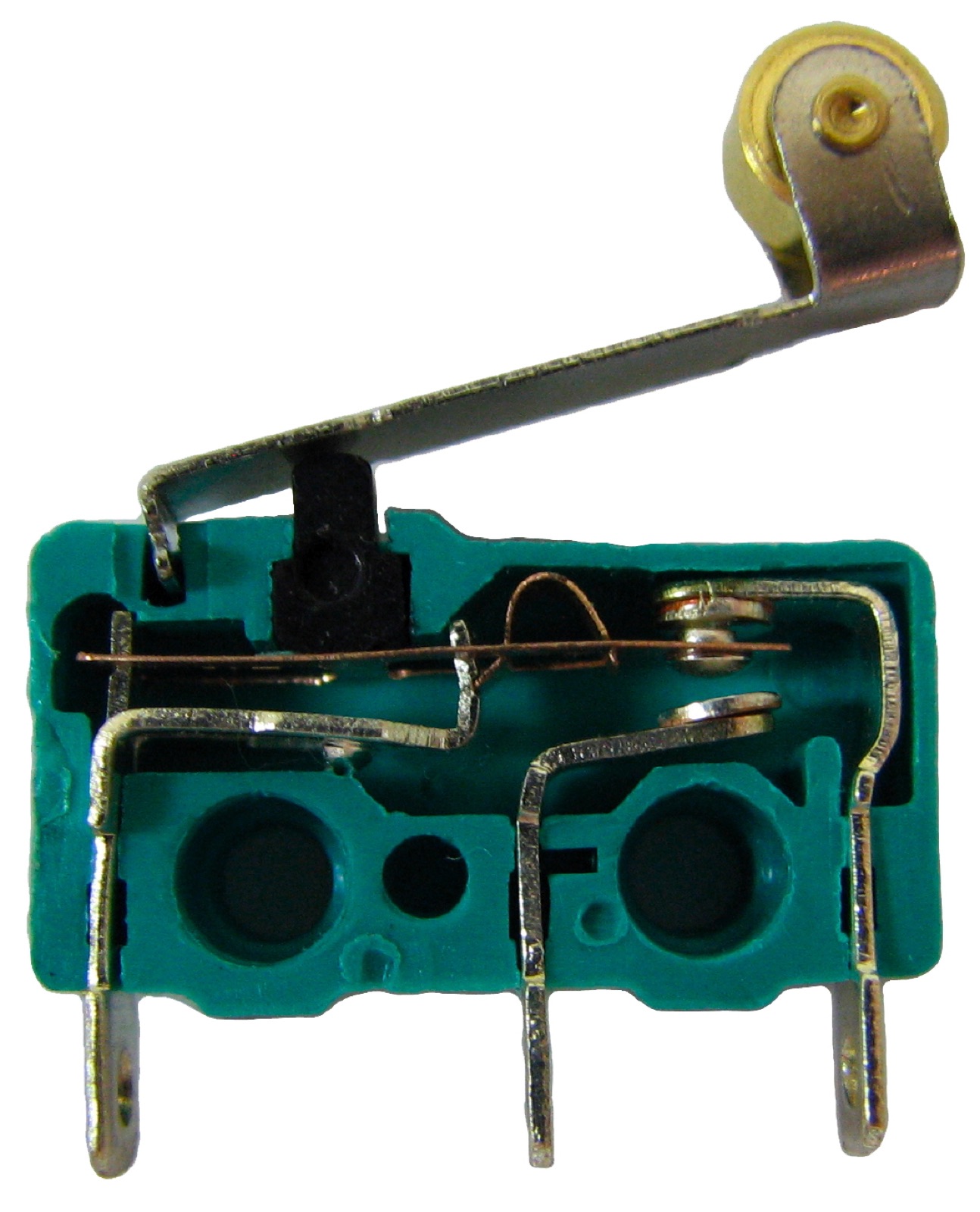

The opened microswitch shows internal contacts; identify COM, NO and NC from the selected part's data sheet.拆开的微动开关展示内部触点；COM、NO、NC 须以所选型号数据表辨识。
COM, NO, NC and the separate lamp circuit
COM、NO、NC 与独立的指示灯回路
COM is the common terminal; NO and NC identify the open and closed paths in the unoperated state. Select the path from the customer's control logic, rather than wire color alone. On an illuminated switch, confirm the lamp circuit separately. The approved drawing should show terminal numbers, wire colors, mating ends and unused contacts. A change from normally open to normally closed changes what the equipment sees before anyone touches the switch.
COM 是公共端，NO 与 NC 分别代表未动作时断开和闭合的触点路径。采用哪一路取决于客户的控制逻辑，不能只凭线色决定。带灯开关还要单独确认灯的回路。获认可的图纸应标出端子号、线色、对插端和未使用触点。常开与常闭一旦接反，设备在无人操作时读到的状态就会变化。

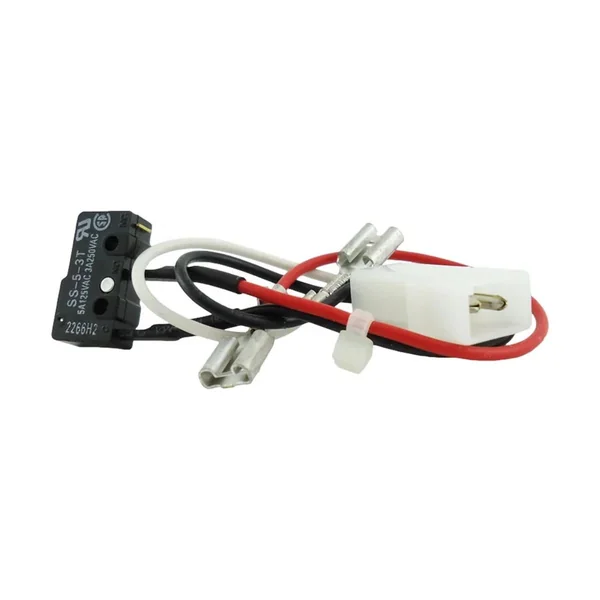

A bench-measurement photograph is process context, not a Super Smile test record or safety approval.台面测量照片仅说明工艺场景，不是超斯迈尔检验记录或安全批准。
Check the first article against a switch-state table
首件验证从开关状态表开始
Map expected continuity at rest, actuation and return before making the first article. Check terminal identity, wire labels, switch orientation and connector pins against that table. If ingress, pull or mechanical endurance validation is required, agree on the test method and acceptance limits beforehand. A basic continuity pass confirms wiring; it does not validate the safety of the complete machine or the switch's lifetime in that installation.
Machine guards, slide endpoints, conveyors and service covers may use switch leads. Define actuator approach, bracket tolerances, cable flex and removal access before fixing the branch length. Where a switch forms part of a safety circuit, the equipment designer must select suitable components and validate the system to the applicable requirements. A red operator, an NC contact or a tidy harness is not evidence of a completed safety function.

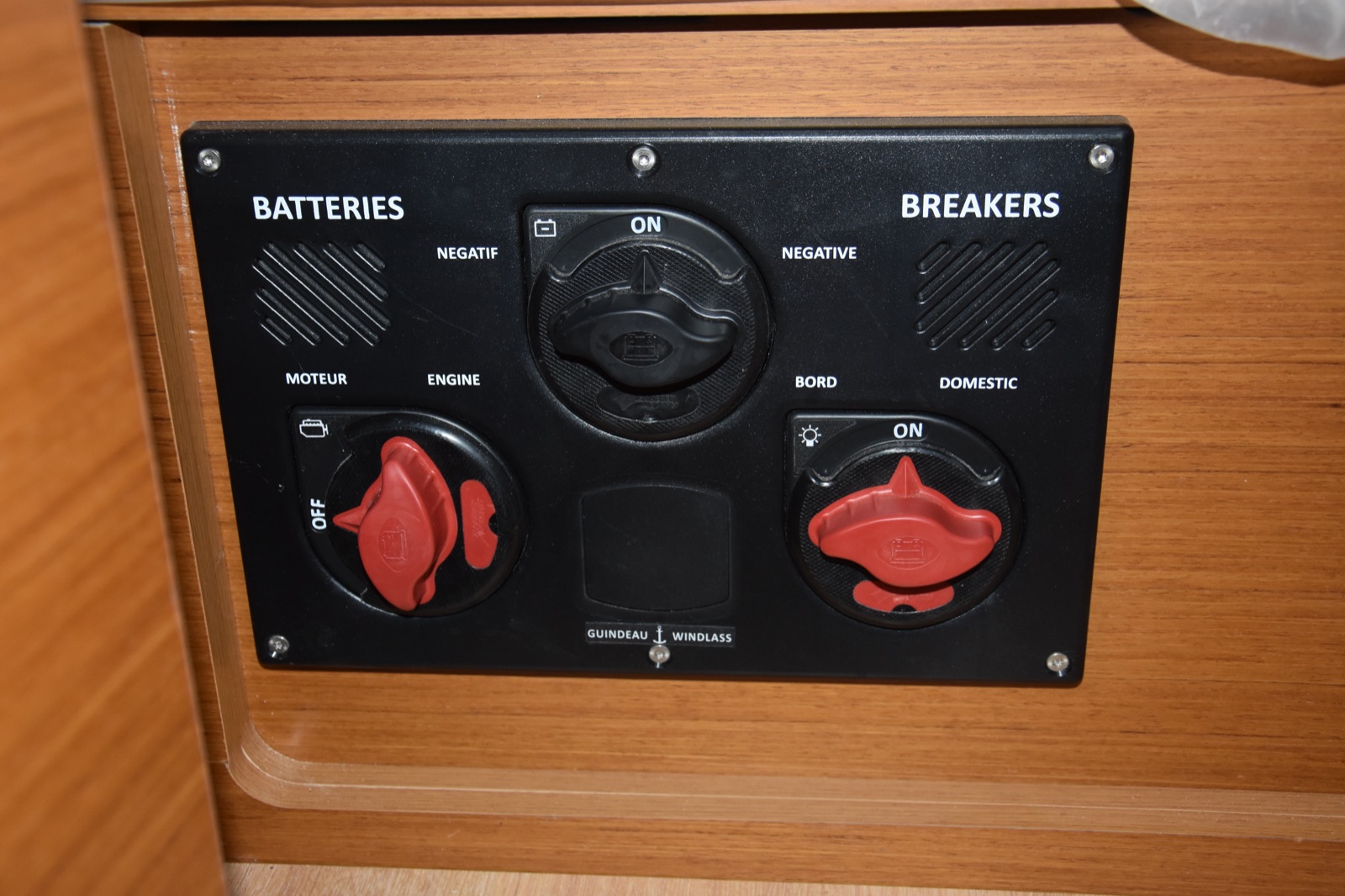

A sailboat battery-switch panel illustrates installed controls, not an ingress rating for any cable assembly.船用电池开关面板展示安装场景，不代表任何线束取得防护等级。

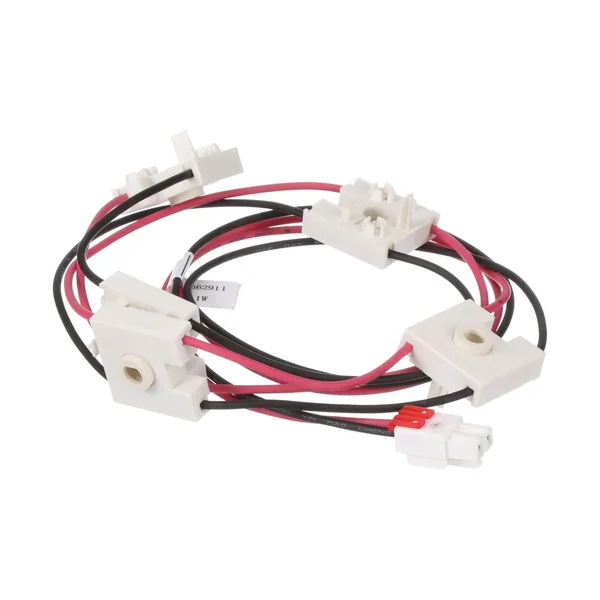

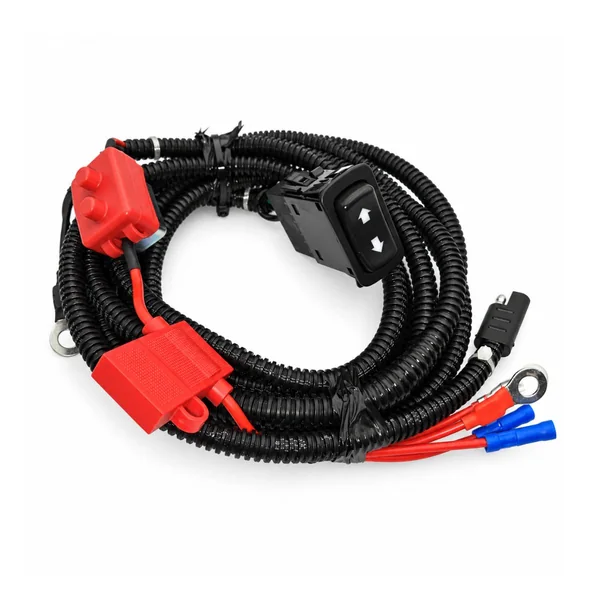

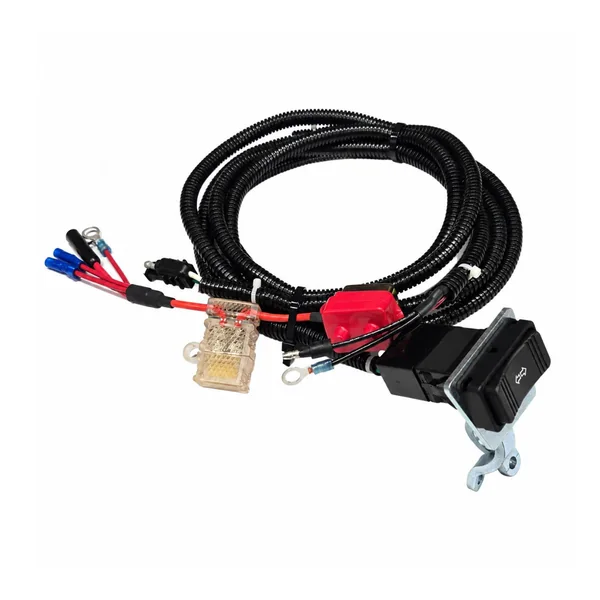

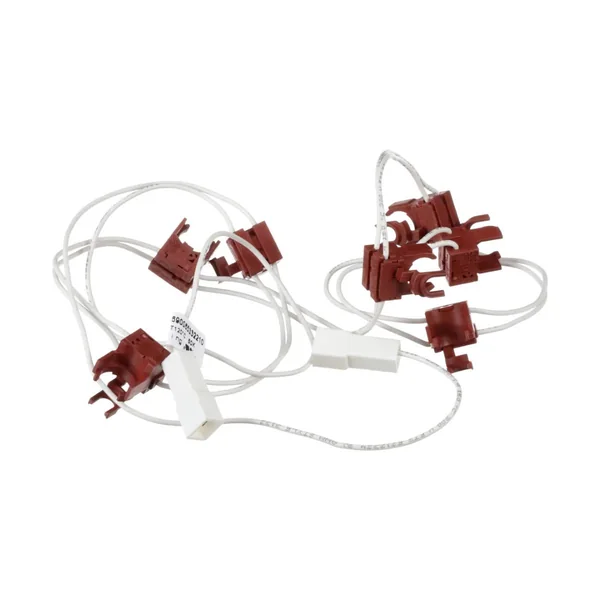

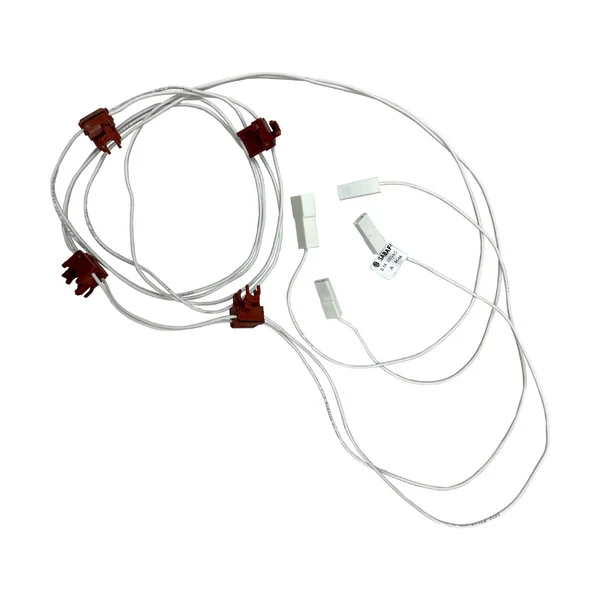

Vehicle, outdoor and appliance controls
车辆、户外与电器控制
Lighting, auxiliary equipment and appliance panels use rocker, pushbutton and toggle switches. For a vehicle or outdoor installation, review vibration, moisture, connector location, retention and circuit protection together. Appliance projects also require the panel cutout, contact load and service access to be checked. Any ingress rating must refer to the selected components and assembled installation, backed by the relevant documentation or test.

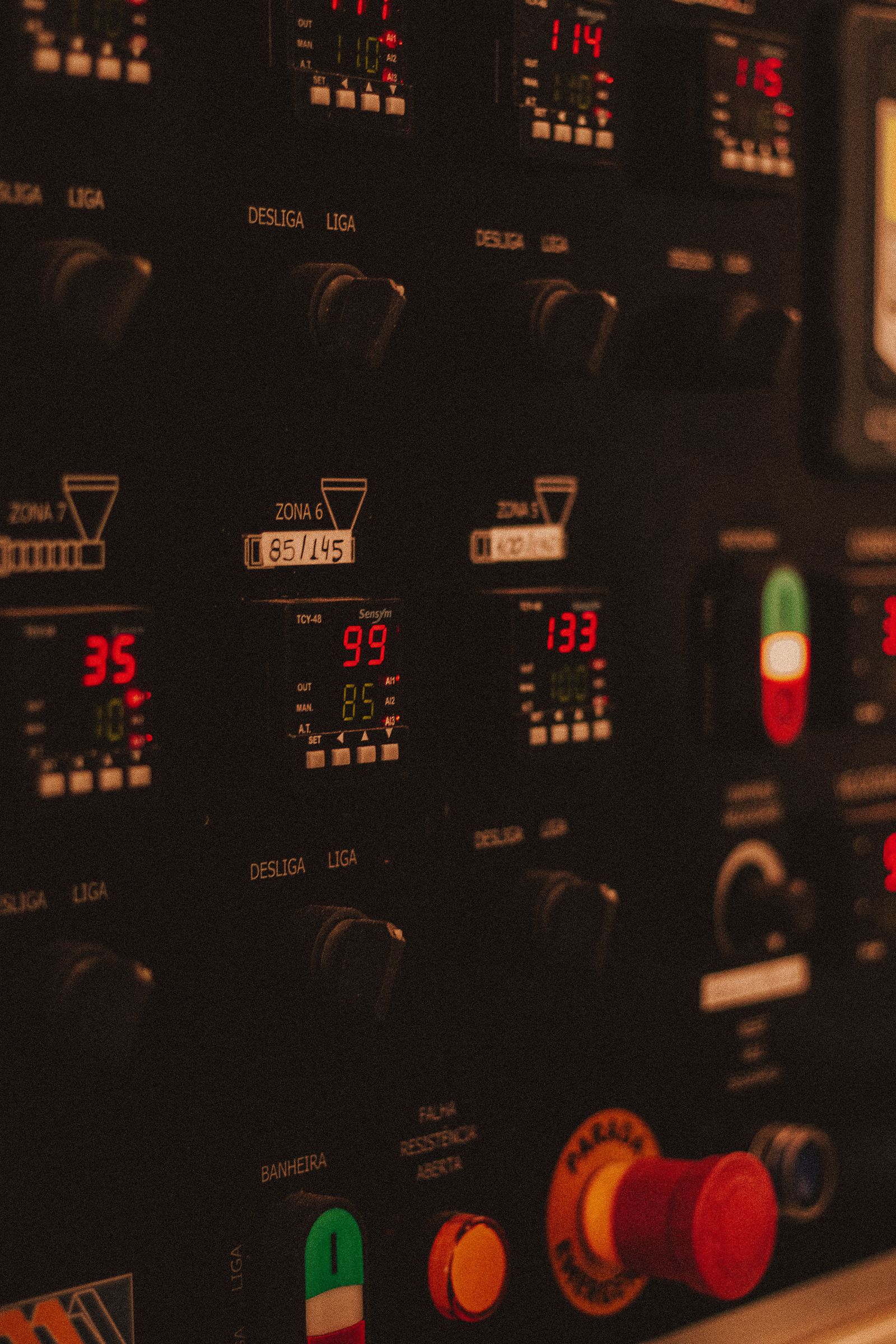

An installed control panel illustrates switch placement; the photographed controls are not supplied part numbers.设备控制面板展示开关安装位置；照片中的器件并非本项目指定料号。
Configure from the switch model to the installation interface
从开关型号定制到设备安装界面
A drawing, switch sample or specified part number can define the switch, connector, cable length, branches, labels and installation direction. A useful inquiry includes the switch data sheet, schematic, load type, panel or bracket dimensions, environment and quantity. Names such as R13-507, KCD1 and KW12 are component search terms, not proof that two suppliers' terminals or mounting details interchange. Any substitute must be reviewed against the actual mating and electrical requirements.

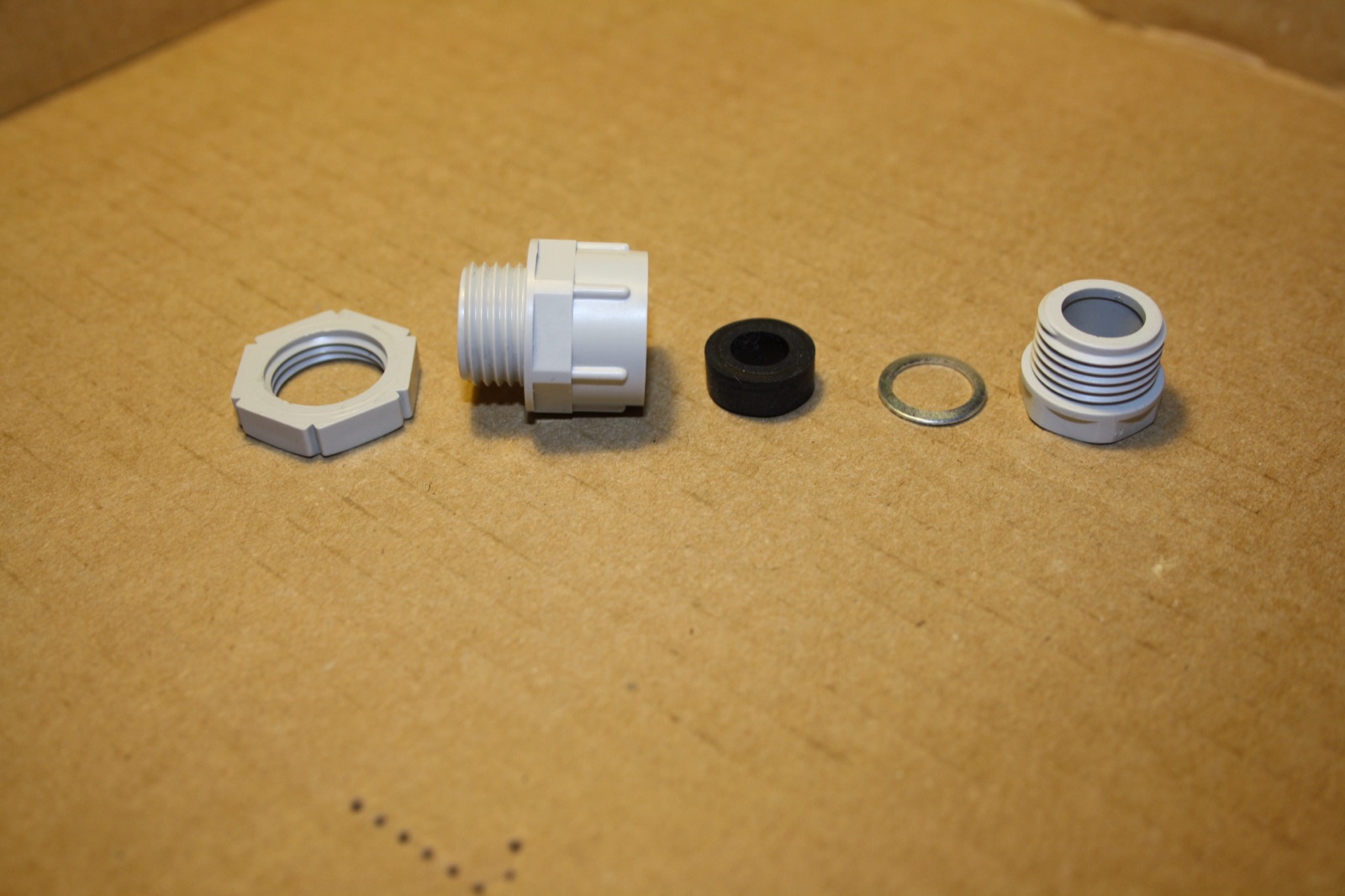

Disassembled cable-gland parts illustrate an exit-sealing component, not a rated finished harness.拆解的电缆密封接头展示出口保护元件，不代表整件线束的防护等级。
Single-core, multicore and protected cable exits
单芯、多芯与出口保护
Individual leads suit separated terminals; a multicore jacket groups related control conductors along one route. Core count alone does not set current capacity. Check conductor cross-section, insulation, installation and termination range separately. Select sleeving, heat-shrink, clips or grommets for the expected bending and pull at the cable exit. Those features alone do not certify the complete assembly for water ingress or tensile performance.
01Exact switch part number, data sheet or approved sample准确的开关料号、数据表或获认可样品
02Circuit schematic, contact-state table and any lamp wiring回路原理图、触点状态表及指示灯接线
03Load type, voltage, steady current and inrush or coil duty负载类型、电压、稳态电流及浪涌或线圈工况
04Panel cutout, actuator direction, cable route and mating connector面板开孔、触发方向、布线路径及对插件
05Environmental conditions, quantity and required inspection criteria环境条件、数量及所需检验准则
Common questions常见问题
Can a normally open switch lead replace a normally closed one?常开开关引线可以直接代替常闭引线吗？
Only after the equipment circuit is reviewed. NO and NC have different states before the switch is operated; the equipment designer must approve any change to the control logic and pin map.
Does a lighted switch need a separate wire?带灯开关一定需要额外导线吗？
It depends on the selected switch's lamp circuit and how its terminals are arranged. Check the manufacturer's schematic, lamp voltage and polarity rather than assuming a universal wire count.
取决于所选开关的灯回路与端子配置。应核对制造商接线图、灯电压和极性，不能预设统一的线芯数量。
Does a waterproof switch make the whole cable assembly waterproof?选了防水开关，整件线束就防水了吗？
No. The switch, cable entry, connector and installed panel interface form separate exposure points. A finished-assembly protection claim needs the specified configuration and appropriate evidence.
What is needed to quote an existing switch lead?按现有开关引线报价需要哪些资料？
Send the switch part number or sample, terminal and connector references, wiring diagram, length and branch dimensions, load and environment details, quantity and any required tests.
