Clamp-style connection end夹钳式连接端
The connection end includes a clamp form, with the lead routed to the target contact point. Allow handling space and appropriate end insulation.接入端包含夹持结构，便于按目标接触位置安排引线。夹持操作空间与端部绝缘需要一起考虑。
Battery Jump Cable汽车电瓶搭接线

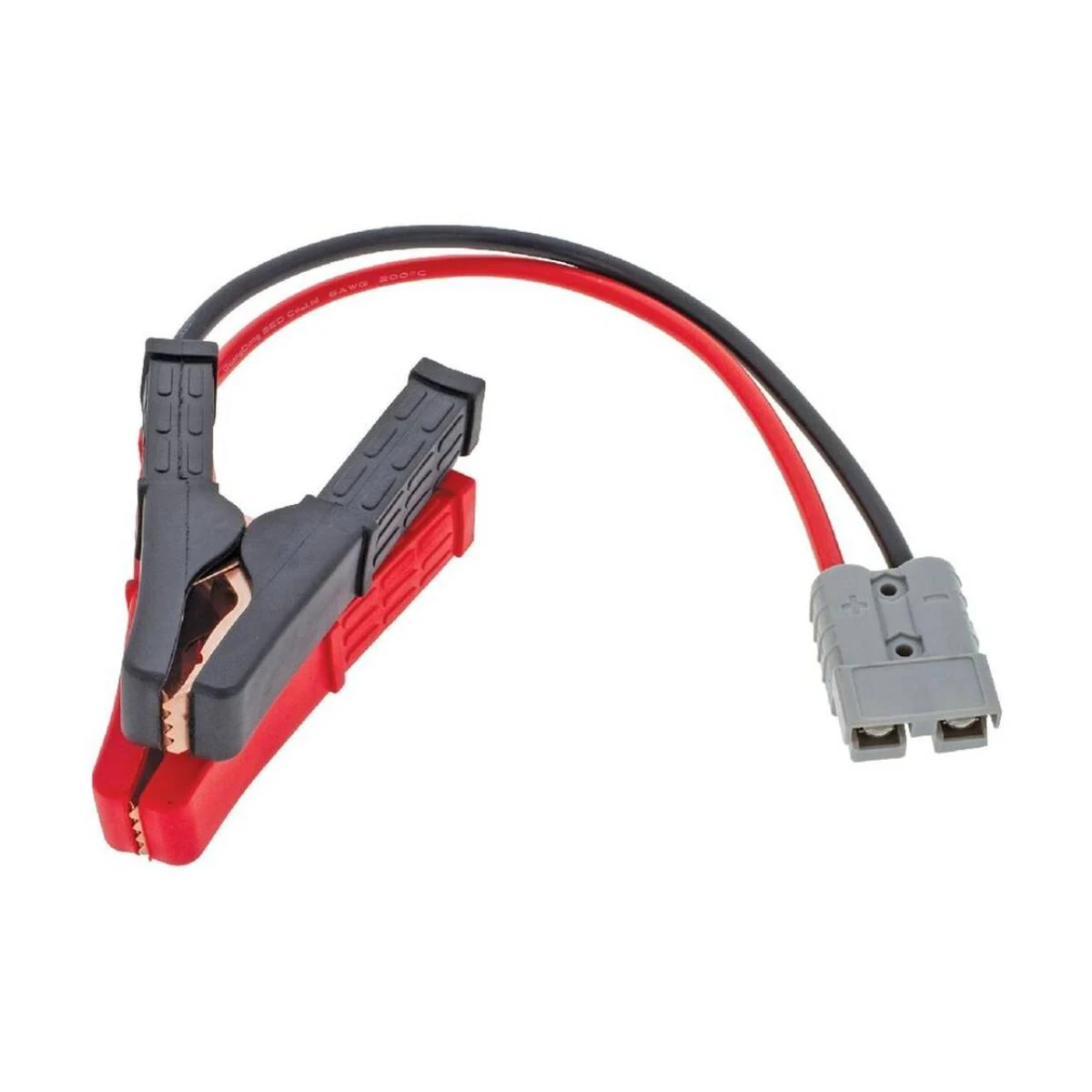

Two-Pole Quick Connector to Flat-Jaw Battery Clamps Harness双极快插接头转扁口电瓶夹线束
Two-Pole Quick Connector to Flat-Jaw Battery Clamps Harness combines clamp-style connection end, end transition layout, plug-in connection end. Interface, circuit and installation data guide dimensions, material selection and sample review.双极快插接头转扁口电瓶夹线束的结构重点包括夹钳式连接端、端头转接与组合、插接式端头。接口、电路与安装资料将作为尺寸、物料和样品制作的确认依据。
- Clamp-style connection end夹钳式连接端
- End transition layout端头转接与组合
- Plug-in connection end插接式端头
CONSTRUCTION结构解析
Connection structure and design details连接结构与设计要点
Use the two-pole quick connector to flat-jaw battery clamps harness form as a starting point and confirm these design points against drawings and the actual equipment.以双极快插接头转扁口电瓶夹线束的结构形式为起点，结合图纸和实际设备确认以下设计要点。
End transition layout端头转接与组合
The assembly organizes a transition or combined connection, with end directions, transition sections and fixing arranged around the equipment positions.组件以转接或组合形式组织连接，可围绕两端设备位置安排端头方向、过渡段与固定。
Plug-in connection end插接式端头
The end uses a plug-in form, with clearance arranged for insertion, removal and cable bends.端头采用插接形式，可围绕安装位置安排插入、退出及线缆弯曲空间。
Current path and end termination载流与端部连接
Select conductors and terminations from continuous and peak loads, installed length and temperature rise. Confirm the end interface, contact surface, insulation coverage and fixing as a set; check mounting-bore size where ring terminals are specified.依据持续与峰值负载、安装长度和温升要求选择导体与端接；端部接口、接触面、绝缘覆盖及固定方式需要成套确认；仅在采用环形端子时核对安装孔径。
CONFIGURATION结构与选配
Construction & customization options结构与定制配置
The table describes the construction and available configuration choices. Materials, dimensions, circuits and inspection requirements are agreed for each project.以下说明展示结构与可配置内容。具体材料、尺寸、电路和检验要求按项目确认。
| Starting-system voltage and target engine use启动系统电压与目标发动机用途 | Select the construction after defining starting voltage and use.启动系统电压与目标用途明确后选择结构。 |
|---|---|
| Peak current, duration and cooling interval峰值电流、持续时间与冷却间隔 | Record peak current, duration and cooling intervals separately.峰值、持续时间和冷却间隔分别记录。 |
| Conductor material, area and total length导体材质、截面及总长度 | Conductor material, area and length define circuit resistance.导体材质、截面与总长度决定回路电阻。 |
| Clamp contact, polarity marking and insulation夹钳接触、极性标识和绝缘 | Review clamp contact, polarity and insulation together.夹钳接触、极性及绝缘保护共同审核。 |
| Circuit and revision reference电路与版本依据 | Define permanent installation separately from temporary jump starting.永久安装线路与临时跨接起动应分别定义。 |
| Sample and manufacturing configuration样品与制造配置 | Release drawings, material part numbers, polarity, branch dimensions and inspection requirements before production.生产前确认图纸、物料型号、极性、分支尺寸及检验要求。 |
APPLICATIONS连接的应用
Application directions应用方向
These are connection directions for project discussion. Suitability depends on interfaces, circuits, installation conditions and project validation; configuration can be adapted to the equipment.以下为可讨论的连接方向。实际适用性取决于接口、电路、安装环境和项目验证，可按设备需求调整。
Service starting connections维修启动连接
Define clamps and cable for the target system and operating conditions. Select the construction after defining starting voltage and use.按目标系统和操作条件定义夹钳与电缆。选配时，启动系统电压与目标用途明确后选择结构。
Battery replacement and service电瓶更换与维护
Arrange ends for polarity, access and insulation. Record peak current, duration and cooling intervals separately.极性、可接近性与绝缘共同影响端头安排。选配时，峰值、持续时间和冷却间隔分别记录。
Commercial-vehicle service work商用车辆维护作业
For commercial-vehicle starting assistance and battery service, confirm voltage system, contacts and working space before defining tool leads or a fixed assembly. Conductor material, area and length define circuit resistance.商用车辆的辅助启动与电瓶维护需确认电压体系、接点和操作空间，再定义工具引线或固定组件。选配时，导体材质、截面与总长度决定回路电阻。
Temporary auxiliary power and leads临时辅助电源与引线
Define load, duration, polarity identification and insulation coverage for temporary auxiliary-power leads. Cable outside diameter alone is not a selection basis. Review clamp contact, polarity and insulation together.临时辅助电源引线需明确负载、使用时长、极性标识和绝缘覆盖，避免仅按线缆外径选型。选配时，夹钳接触、极性及绝缘保护共同审核。
Equipment auxiliary starting设备辅助起动
Define system voltage and engine purpose first. Select the construction after defining starting voltage and use.系统电压和发动机用途必须先明确。选配时，启动系统电压与目标用途明确后选择结构。
Fixed starting connections固定起动连接
Review fixing, vibration and terminal contact paths separately. Record peak current, duration and cooling intervals separately.固定点、振动和端子接触路径需要独立审核。选配时，峰值、持续时间和冷却间隔分别记录。
ENGINEERING & PRODUCTION工程与制造
Adapt the connection to your equipment.围绕设备，调整连接细节。
Touched by me, better it’ll beTouched by me, better it’ll be
Custom wire harness manufacturing in China中国工厂 · 定制线束制造
Our China factory supports battery jump cable projects through custom wire harness manufacturing and OEM/ODM development. Interface, circuit and installation data guide material selection, sample builds and manufacturing-document approval before repeat production.Super Smile-Tech 中国工厂围绕汽车电瓶搭接线的项目需求提供定制线束制造与 OEM/ODM 支持。我们从接口、电路与安装资料开始，协同物料选配、样品制作和制造文件确认，再按批准要求组织重复生产。
Starting-system voltage and target engine use启动系统电压与目标发动机用途
Select the construction after defining starting voltage and use.启动系统电压与目标用途明确后选择结构。
Peak current, duration and cooling interval峰值电流、持续时间与冷却间隔
Record peak current, duration and cooling intervals separately.峰值、持续时间和冷却间隔分别记录。
Clamp contact, polarity marking and insulation夹钳接触、极性标识和绝缘
Review clamp contact, polarity and insulation together.夹钳接触、极性及绝缘保护共同审核。
PRODUCT QUESTIONS产品问答
Product & customization questions产品与定制常见问题
Are permanent battery leads and jumper cables the same?永久安装的电瓶线与救援跨接线一样吗？
No. Mounting, insulation, terminations and operating duty differ. A temporary clamp connection is not a substitute for a released permanent installation.不一样。固定、绝缘、端接和工作周期不同，临时夹钳连接不能替代已确认的永久安装方案。
Can current capacity be selected from AWG alone?只看 AWG 就能确定载流能力吗？
No. Review conductor material and area, length, ambient temperature, bundling, voltage drop, connections and the continuous or intermittent duty.不能。还需核对导体材料与截面、长度、环境温度、成束状态、压降、连接点以及连续或间歇工作要求。
Can you match a drawing or existing cable?可以按图纸或现有样品定制吗？
Yes. Provide dimensions, terminal references, polarity, installation photographs, electrical duty, quantity and required inspection. A sample establishes geometry but not every hidden requirement.可以。请提供尺寸、端子资料、极性、安装照片、电气工况、数量及检验要求。样品能提供几何参考，但不包含全部隐藏要求。
Start with your interface and installation requirements从您的接口与安装需求开始
Share mating interfaces, a circuit table, target lengths or a sample for the two-pole quick connector to flat-jaw battery clamps harness. We can use them to review configuration and sample requirements.提供双极快插接头转扁口电瓶夹线束的对插接口、回路表、目标长度或参考样品，我们据此梳理选配与样品确认事项。
