Product type

Battery Jump Cable

Overview

Custom battery terminal leads, starter feeds, earth straps and jumper assemblies, defined by the complete current path and installation.

Ask About This Product Type Find Models & Material Part Numbers Back to Products

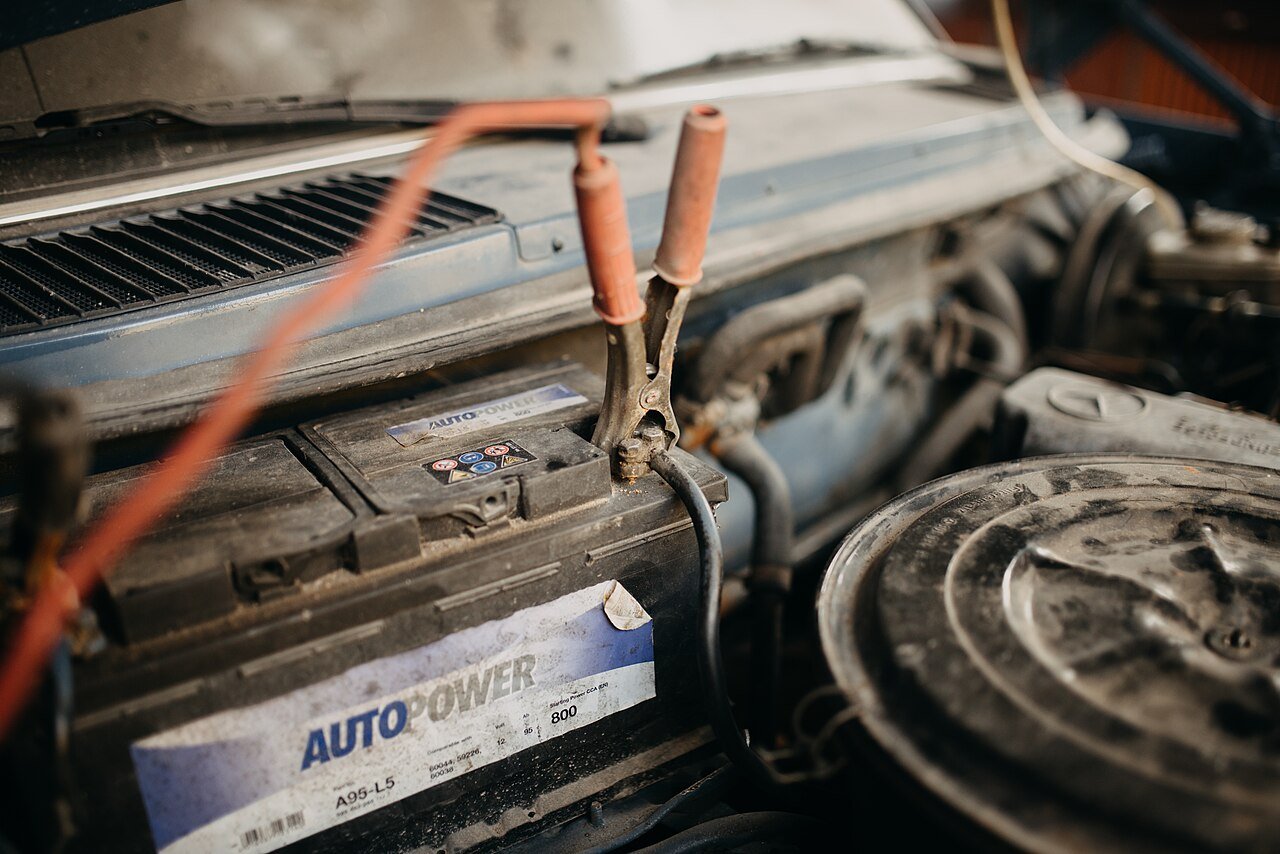

Automotive battery terminal and temporary jump lead

Popular Product Photos

01 / 20

01

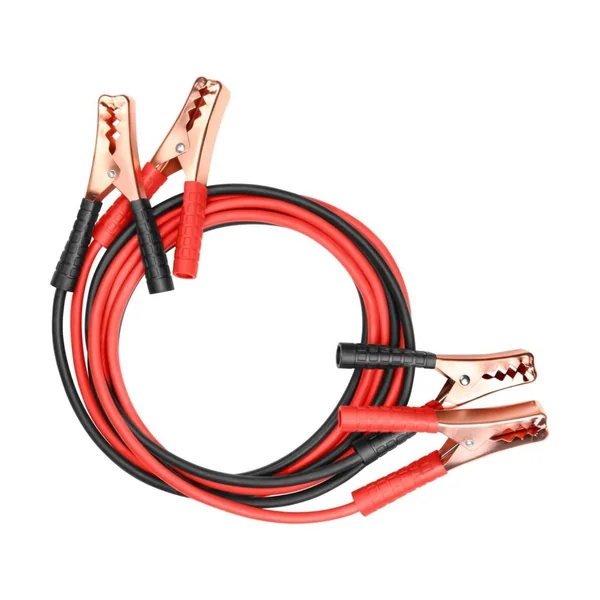

Red/Black Long-Handle Metal Battery Clamps 2-Wire Jumper Leads

02

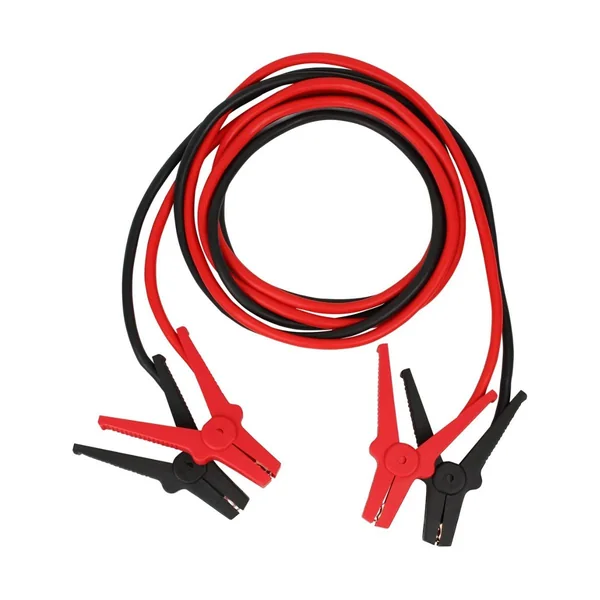

Red/Black Insulated Clamp Handle Battery Clamps Long-Lead Jumper Leads

03

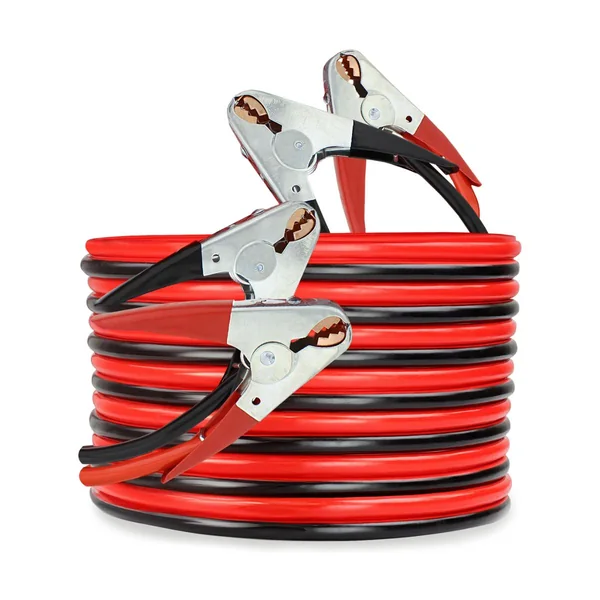

Metal Battery Clamps Heavy-Gauge Dual-Circuit Jumper Leads

04
Two-Pole Quick Connector to Battery Clamps Long-Lead Harness

05

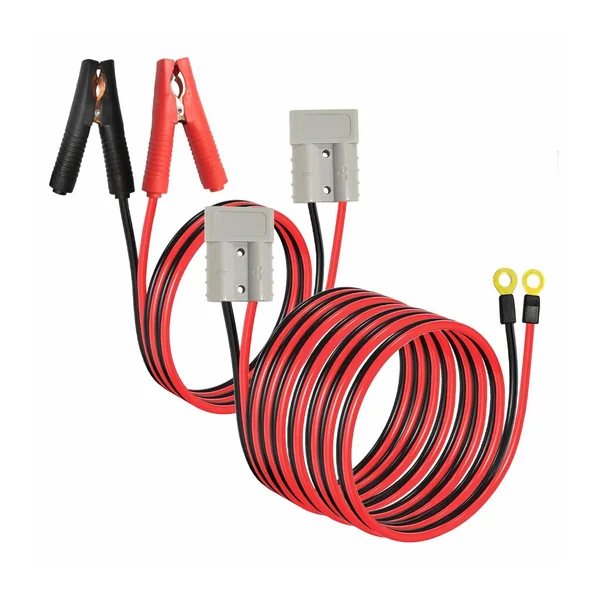

Two-Pole Quick Connector Battery Clamps & Ring-Terminal Cable Set

06
Compact Battery Clamps to Ring-Terminal 2-Wire Harness

07
EC5 Plug to Red/Black Battery Clamps Short Harness

08

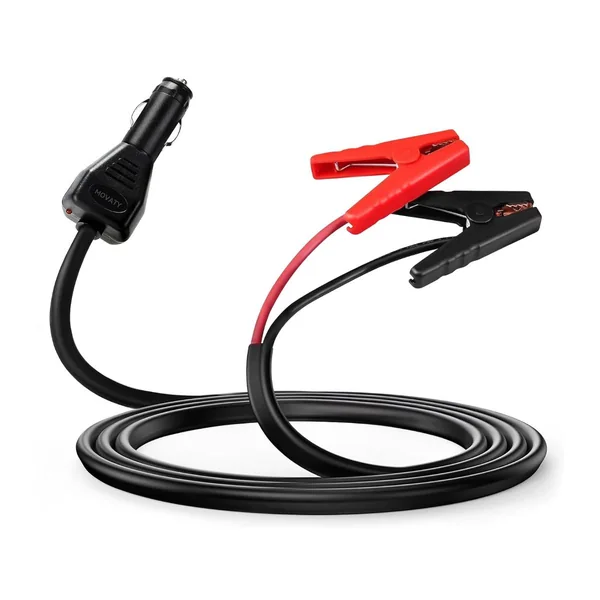

Vehicle Cigarette-Lighter Plug to Dual Battery Clamps Harness

09
Cigarette-Lighter Socket with Fuse to Battery Clamps Harness

10
Dual Circular Power Plug to Compact Battery Clamps Harness

11

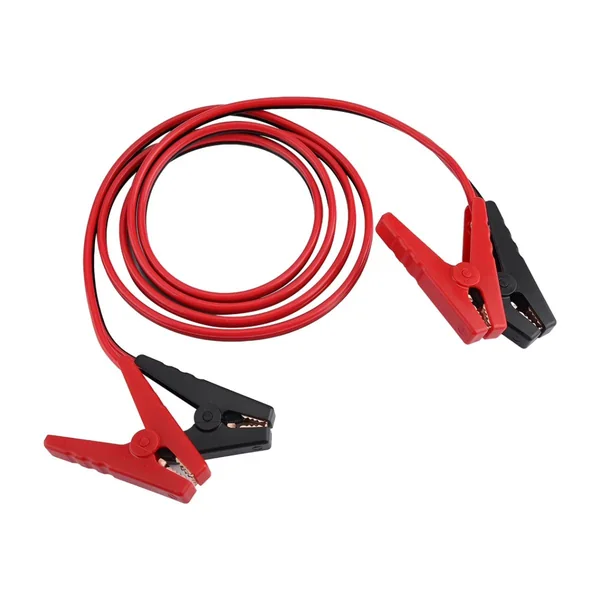

Red/Black Flat-Jaw Battery Clamps Coiled Jumper Leads

12

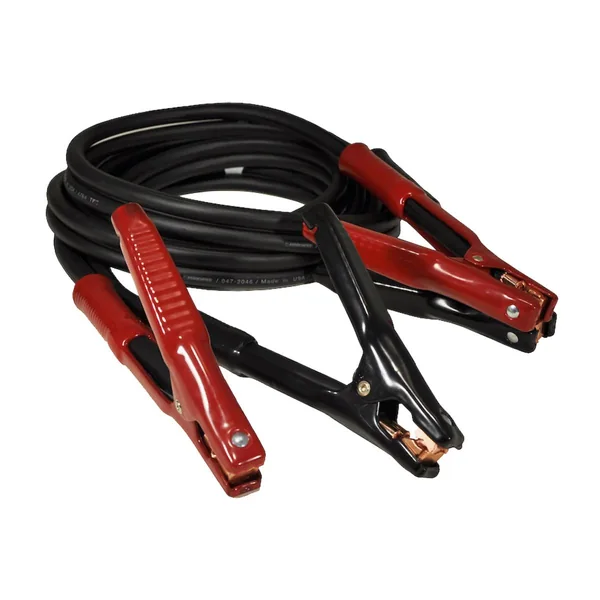

Spring-Loaded Clamp Handle Battery Jumper Leads6162

13

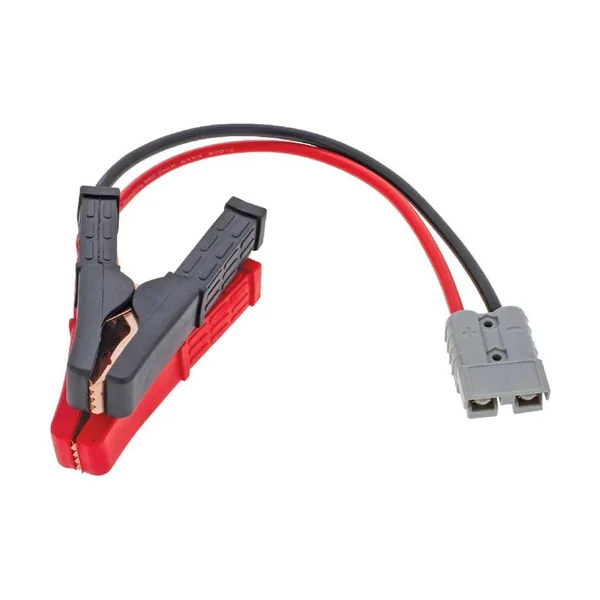

Two-Pole Quick Connector to Flat-Jaw Battery Clamps HarnessHU6968

14

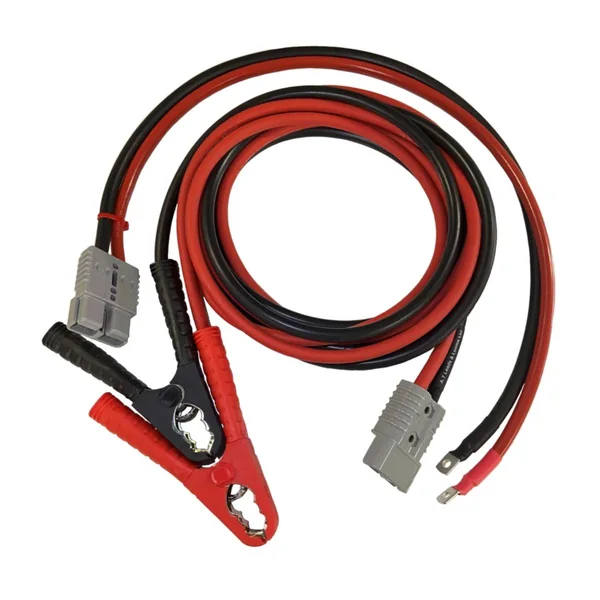

Two-Pole Quick Connector & Battery Clamps Harness Set

15

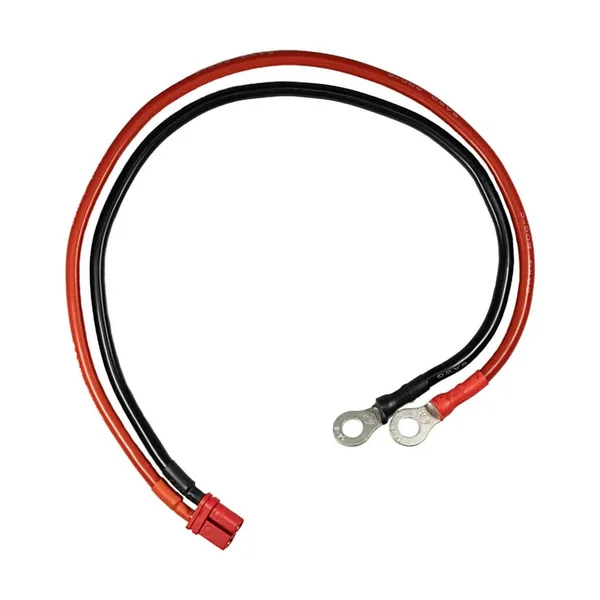

Two-Pole Quick Connector to Ring-Terminal HarnessXP-20

16

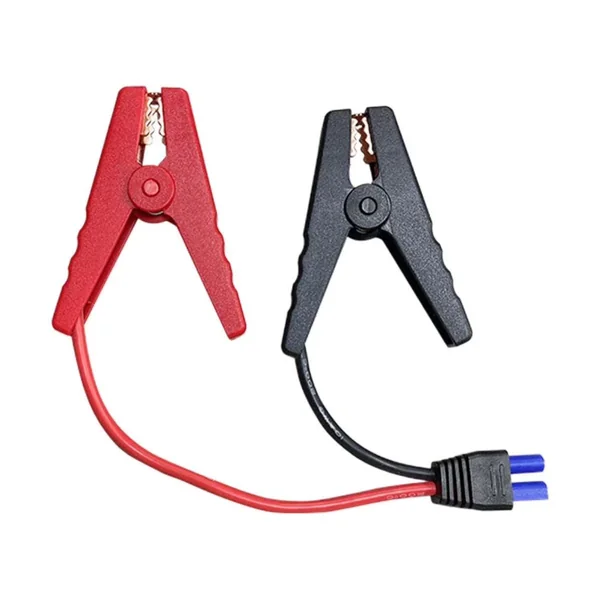

EC5 Plug to Flat-Jaw Battery Clamps Short-Branch Harness

17

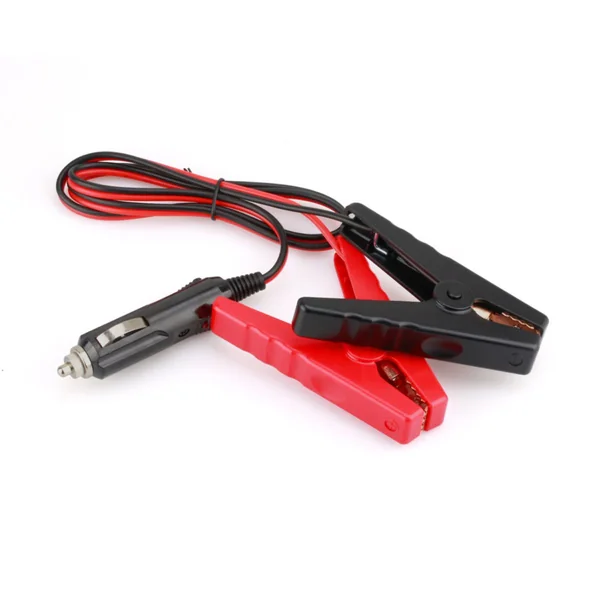

Cigarette-Lighter Plug to Compact Battery Clamps Coiled Harness

18

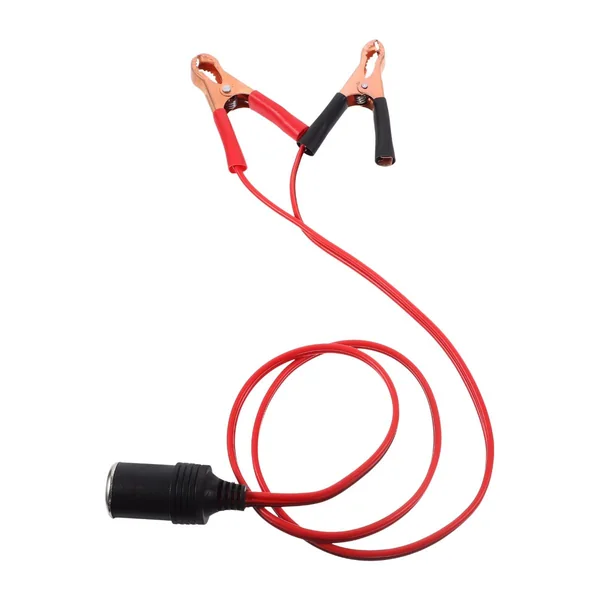

Cigarette-Lighter Socket to Compact Battery Clamps Long-Lead Harness

19

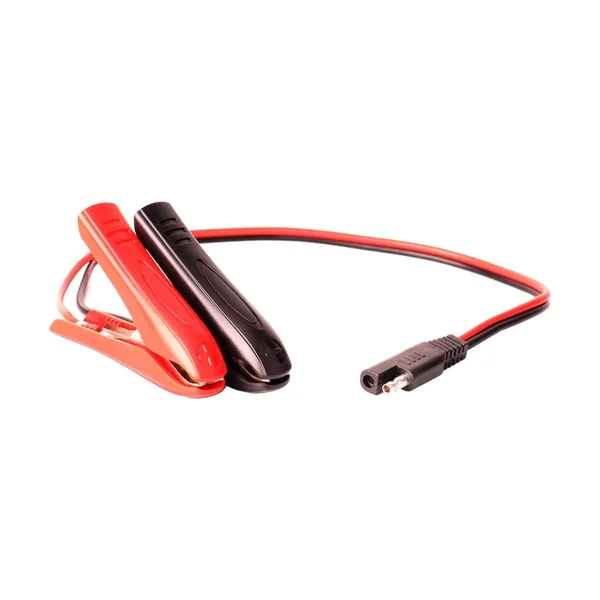

MP68995 SAE Two-Pole Connector to Battery Clamps Harness

20

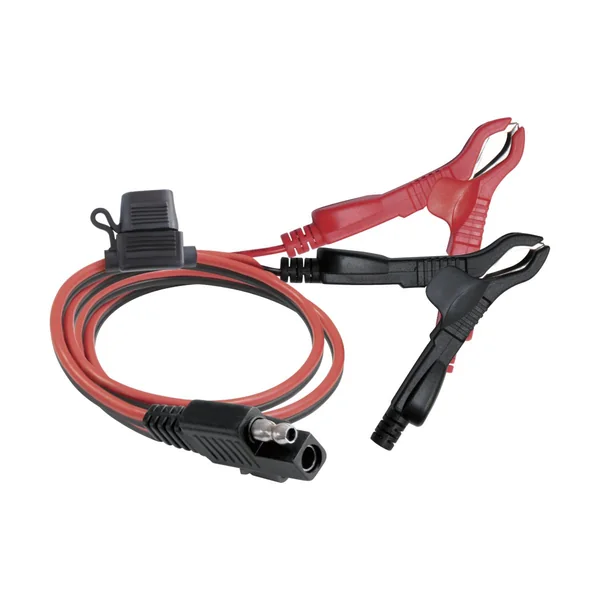

Kit S1 SAE Connector to Battery Clamps & Fuse Branch Harness

Product Introduction

A battery cable is part of a circuit, not simply a thick wire. It may join the battery to a starter, connect a chassis ground, link batteries in an approved arrangement or provide an accessible service connection. The category includes ring-lug leads, terminal-clamp cables, flexible earth straps and detachable power leads. Temporary booster cables have a different operating procedure from a permanently installed harness. We develop the assembly around the equipment's circuit, interfaces, route and duty cycle rather than treating one cable size as suitable for every vehicle.

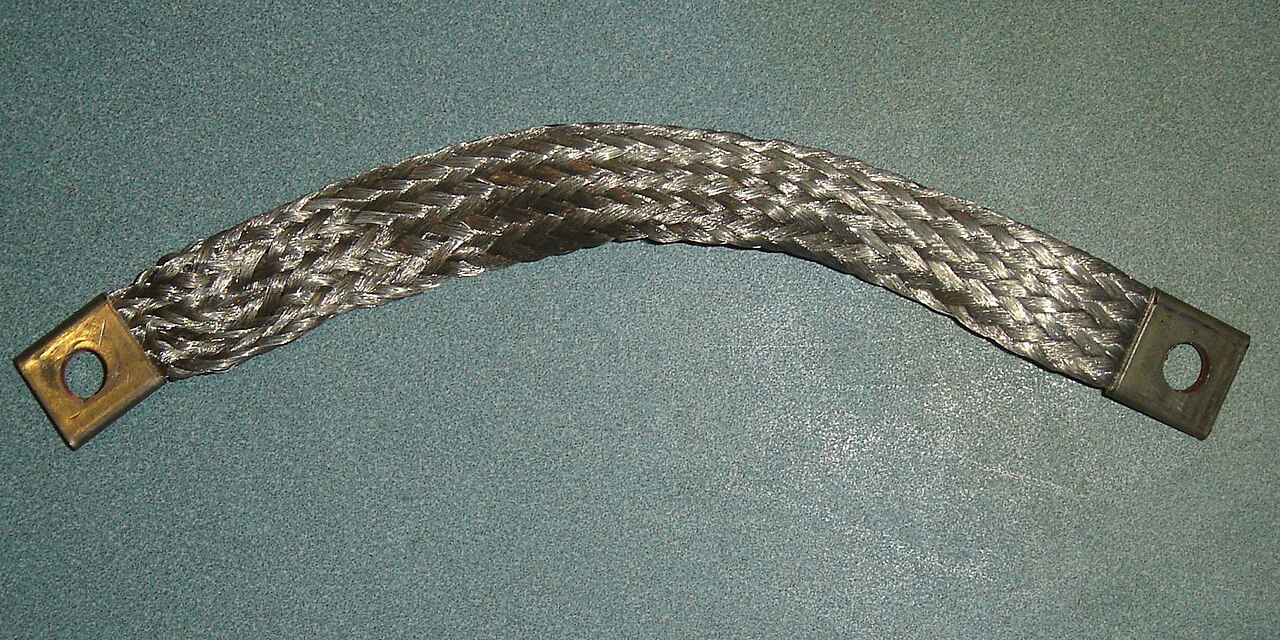

Braided earth strap: a flexible conductor connects the two mounting palms.

Product Advantages

A purpose-built cable replaces unnecessary joins with controlled cable length, lug orientation and mounting geometry. Positive starter leads, negative battery cables, engine-to-chassis bonds and auxiliary battery links have different routing and current duties. An accessible detachable connection can simplify service when its contacts, keying and electrical rating match the equipment. Flexible strands may help installation, but flexibility does not establish continuous-flex life or current capacity. Likewise, a large clamp does not prove that the conductor inside is large enough. Design starts with load and starting-current information, allowable voltage loss, ambient temperature and the complete positive and return paths.

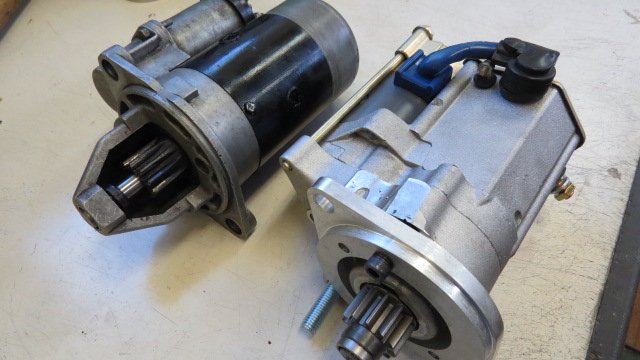

The mounting point and current path define the cable configuration.

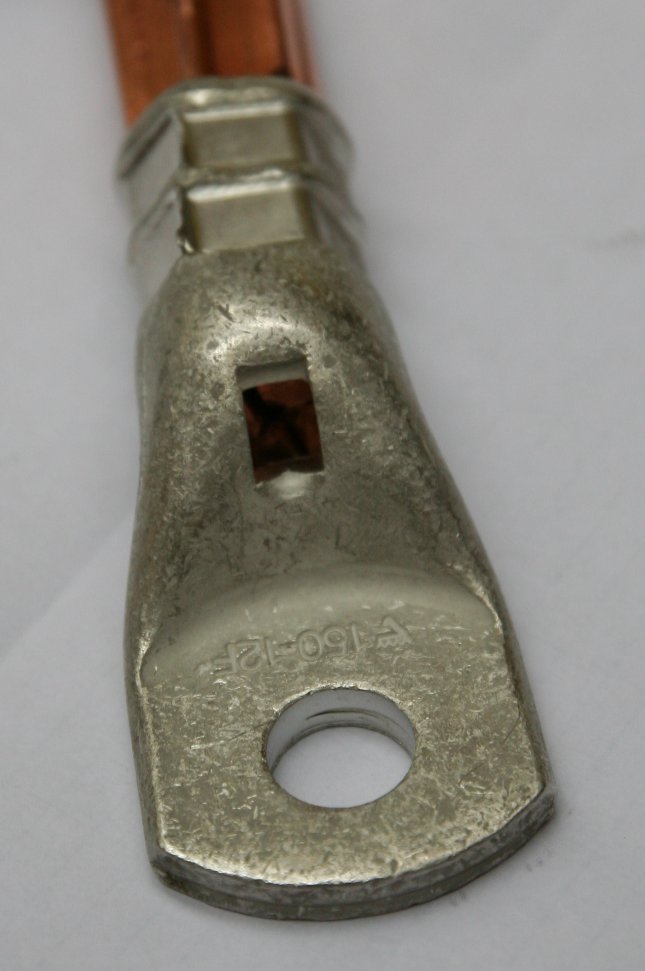

Barrel size, stud hole and palm geometry must all match the installation.

Automotive Lug and Terminal Options

Options include straight ring lugs, angled palms, inspection-hole lugs, two-hole lugs, battery post clamps and selected detachable connectors. A lug has two separate interfaces: its barrel must fit the conductor and its palm must fit the stud and contact surface. Names such as SC or DT alone do not define a universal dimensional or performance standard. Confirm the actual drawing, hole diameter, barrel dimensions, conductor class, plating and approved tooling. Tinned copper is a common option; aluminum conductors require specifically compatible terminations and processing. Copper-only contacts cannot be made aluminum-compatible by adding solder or choosing a similar-looking lug.

Solutions for the Complete Current Path

A remote battery location may need a longer feed, a protected pass-through and a defined return connection. A dual-battery arrangement may add isolation, charging control or a distribution point, which must be designed as a system rather than joined indiscriminately. Detachable leads can use a specified Anderson SB family interface, but connector size, color keying, contact part number and wire range require verification. A starter circuit's short-duration current is not a continuous operating rating. Protection selection must coordinate with the equipment architecture and expected fault current; adding an arbitrary inline fuse or bypassing the original protection is not a universal solution.

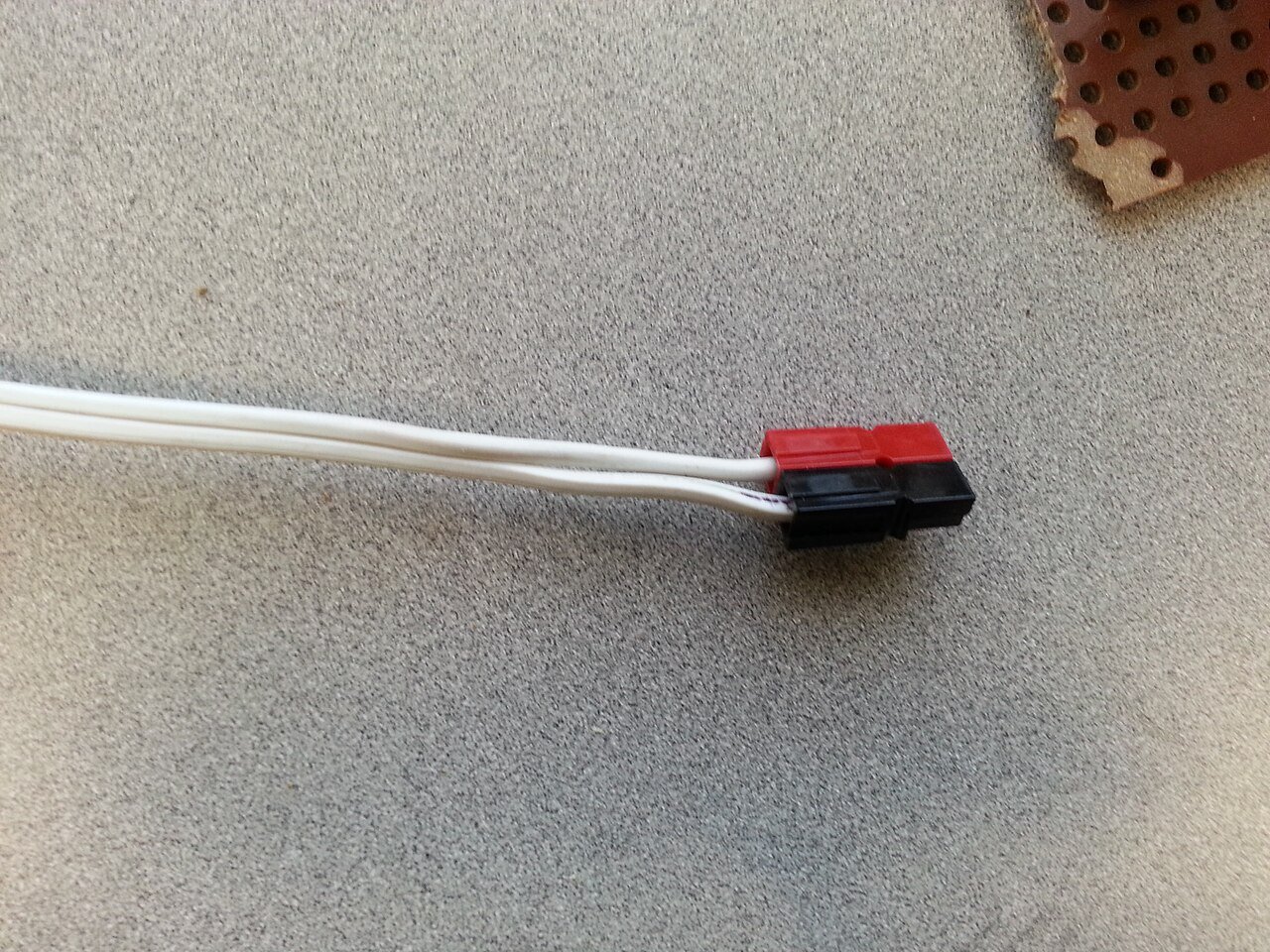

A small Powerpole connection illustrates detachable keying; it is not an SB-series battery connector.

Industries and Applications

Passenger vehicles and trucks use battery leads for starting, charging and grounded returns. Off-road machinery adds vibration, mud and difficult routing; marine and recreational vehicles introduce moisture, service-access and auxiliary-load considerations. Stationary generators and backup equipment may prioritize long idle periods, dependable connections and inspection access. These are related applications, not interchangeable cable approvals. Route temperature, fluid exposure, fastening, battery arrangement and applicable equipment rules must be defined separately. Low-voltage battery leads are also distinct from orange high-voltage traction cables in an electric vehicle. An auxiliary battery connection must not be represented as suitable for the traction system.

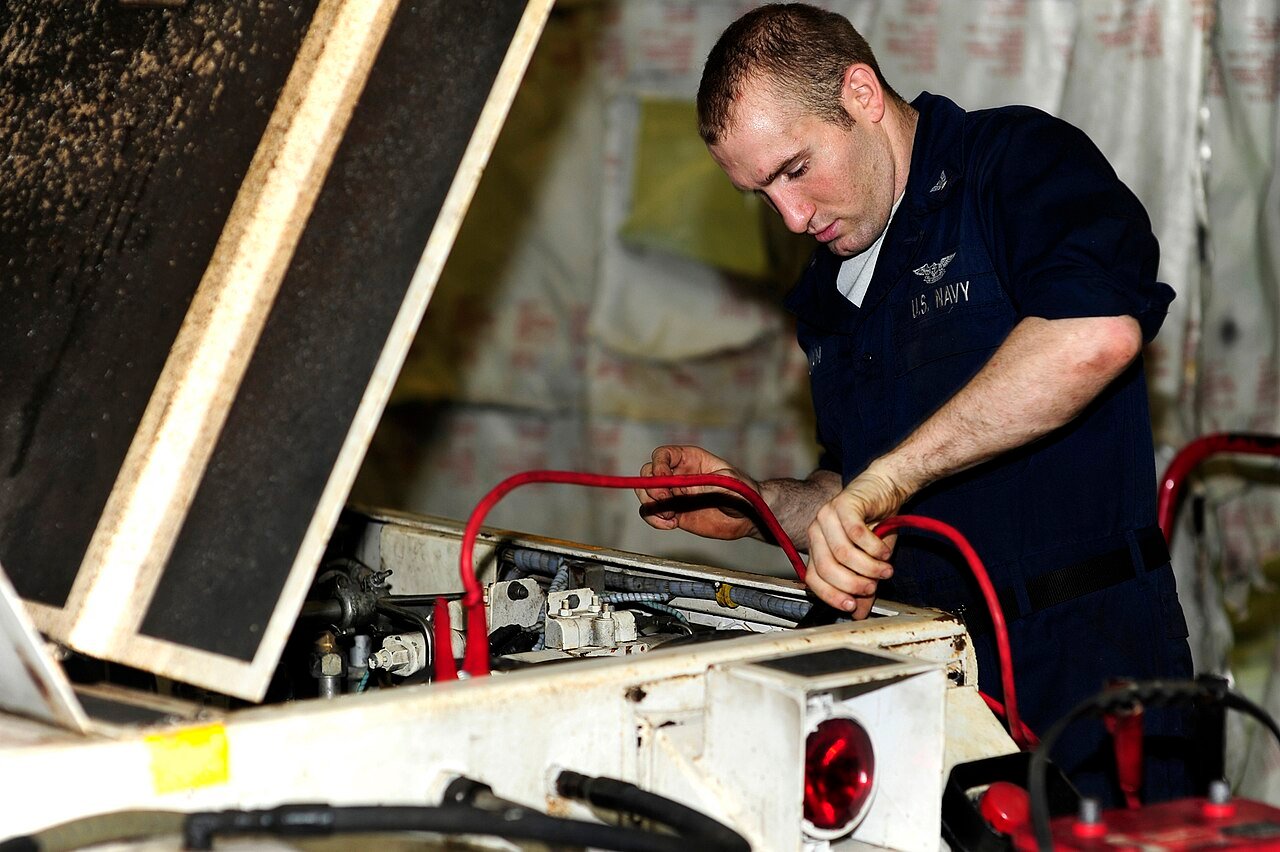

Equipment duty changes the requirements for the battery circuit.

Secure Connections with Heavy-Duty Lugs

The electrical connection is created inside the barrel and at the bolted contact, not by the outer heat-shrink tube. Preparation must avoid damaged strands, trapped insulation and incompatible barrel fill. The specified die, crimp position and number of compressions follow the terminal manufacturer's instructions. Pull testing and visual inspection assess different aspects of workmanship; neither alone establishes low resistance in service. A supported cable exit reduces bending at the barrel transition. At installation, use the equipment's fastening and torque specification: excessive torque can damage a stud or palm, while insufficient contact pressure can cause resistance and local heating.

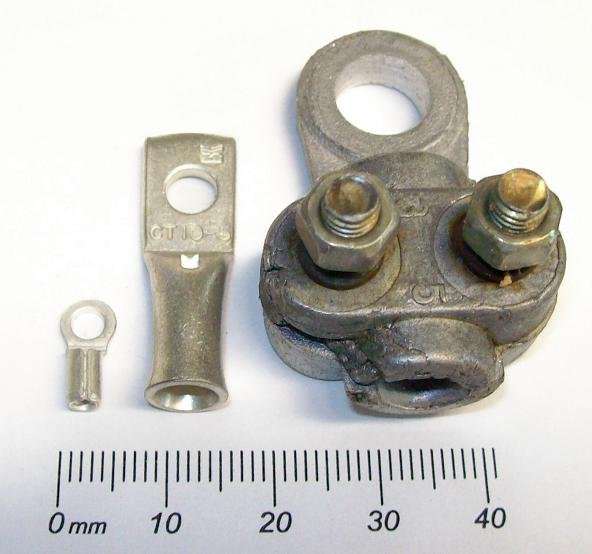

Termination quality depends on the matched conductor, terminal and tool.

Corrosion Protection and Long-Term Safety

Plating, terminal boots and correctly selected adhesive-lined heat shrink can help protect a connection, but none makes every installation waterproof. The seal must accommodate the actual cable diameter and exit geometry; water can also enter elsewhere and migrate along strands. Insulation selection should consider temperature, oils, abrasion and the battery-compartment environment. SAE J1127 is a reference for low-voltage battery cable; the specified revision, cable construction and test requirements belong in the purchase specification. A reference to that standard is not certification of the finished harness. Regular inspection should address loose connections, damaged insulation, corrosion and unsupported movement.

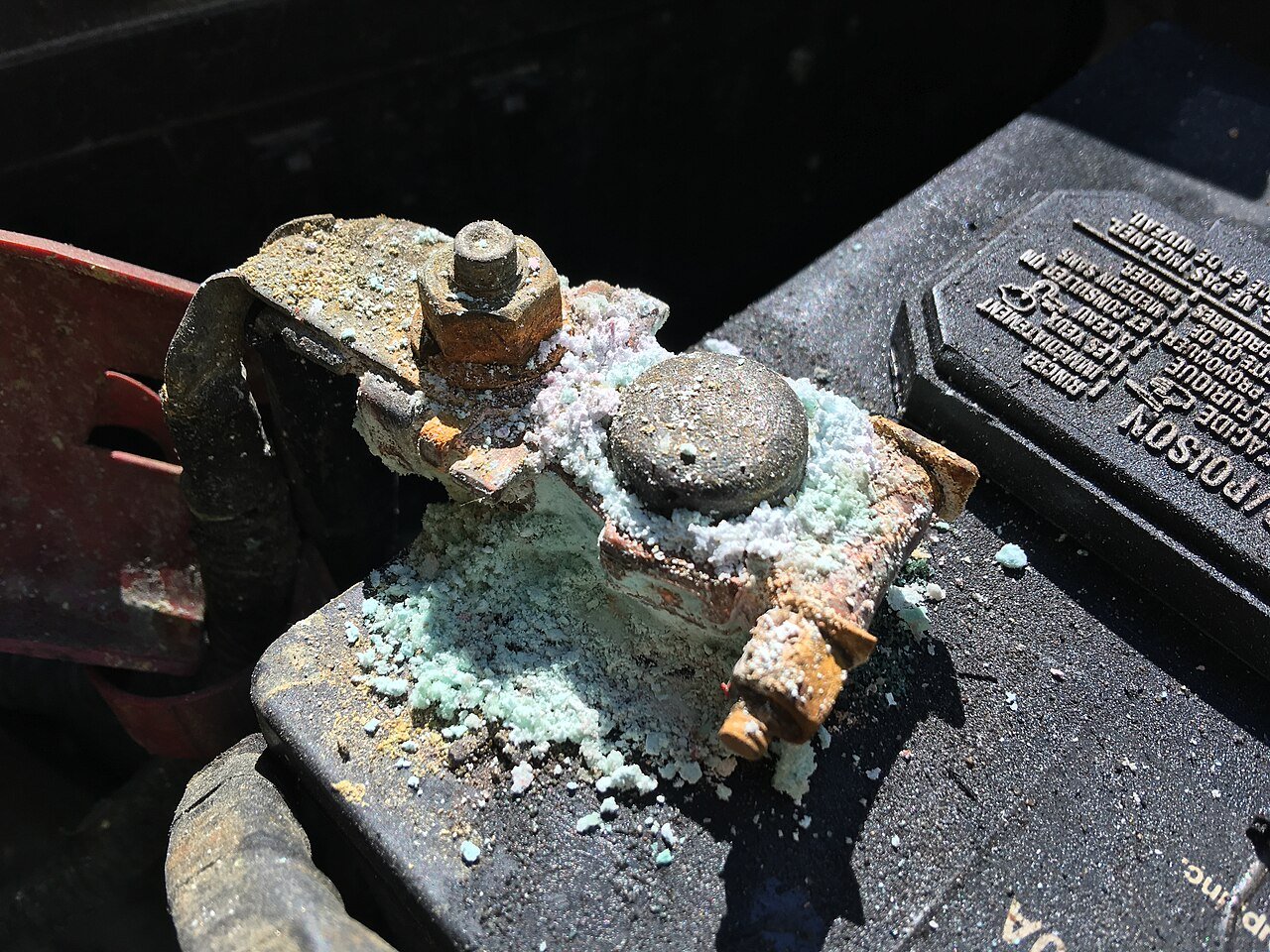

Corrosion at the connection can increase resistance without breaking continuity.

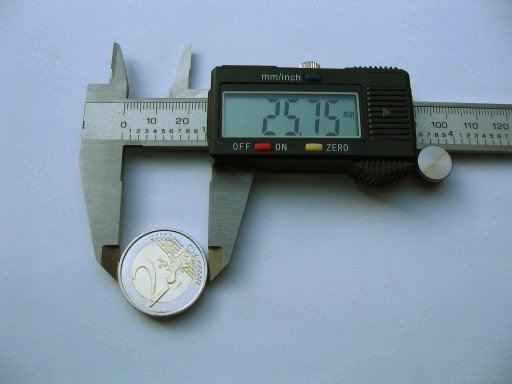

A caliper illustrates dimensional measurement; cable drawings still need defined terminal datums.

Custom Lengths and Configurations

Useful drawings state whether length is measured between hole centers, contact faces or cut ends. Define lug clocking, bend direction, branch positions, post polarity, labels and service loops. A short straight-line measurement may miss the length needed around brackets and moving components; excess slack can rub or enter a pinch point. AWG and square-millimeter sizes should be checked against the actual conductor specification, not treated as exactly interchangeable labels. Prototype installation can confirm fit before the configuration is released. Drawings or samples are useful starting points, but hidden circuit functions and the intended electrical duty still require customer confirmation.

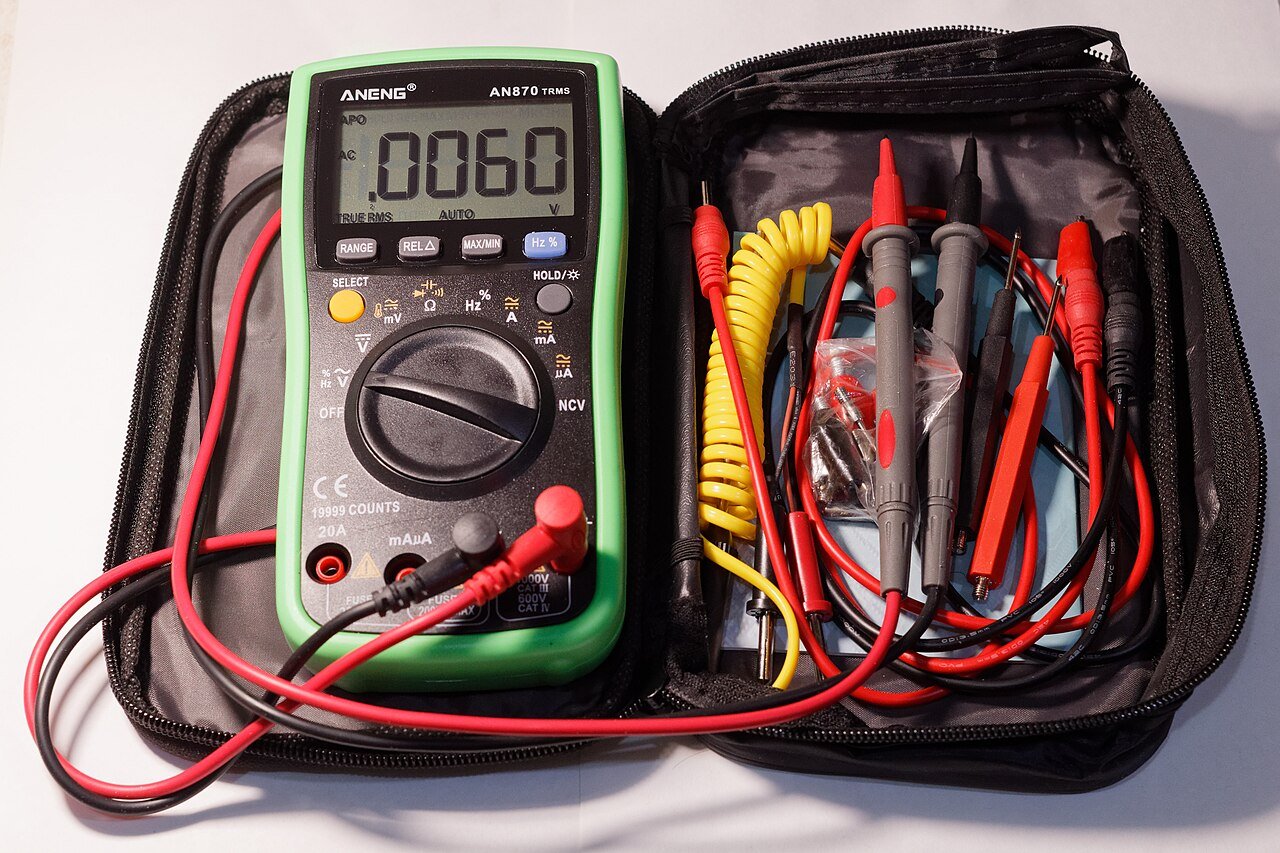

Meter and probes illustrate test equipment, not a recorded battery-cable test result.

Why Review or Upgrade a Battery Cable?

Slow cranking or intermittent power does not automatically mean the cable needs a larger conductor. Battery condition, the starter, grounds and terminations may all contribute. A continuity beep uses very little current and can miss a connection that becomes restrictive under load. A controlled voltage-drop test across the positive and return paths helps locate loss when the circuit is operating; the equipment's service limits and safe test procedure take precedence. Compare the cable, lug and bolted interfaces separately where access permits. Thermal observations may support the investigation, but surface appearance alone cannot establish an acceptable electrical connection.

Assembly, Inspection and Service Boundaries

A released build defines cut length, stripping, terminal preparation, crimp tooling, sleeve position, polarity and identification. Inspection can include dimensions, contact retention, pull checks and agreed electrical tests, with acceptance criteria tied to the drawing and intended duty. Portable jump leads require a separate assessment of clamp insulation, grip and short-duration operation. They are not a replacement for a permanent battery lead. Follow the specific vehicle manual for jump starting; system voltage and approved connection points matter, and some hybrids must not supply jump-start assistance. This product overview is not a live-battery installation procedure.

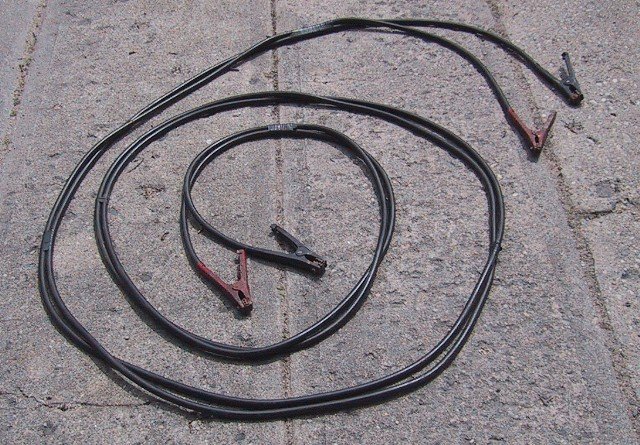

Temporary jump leads are used only at the vehicle's approved connection points.

Battery Cable Questions

Are permanent battery leads and jumper cables the same?

No. Mounting, insulation, terminations and operating duty differ. A temporary clamp connection is not a substitute for a released permanent installation.

Can current capacity be selected from AWG alone?

No. Review conductor material and area, length, ambient temperature, bundling, voltage drop, connections and the continuous or intermittent duty.

Can you match a drawing or existing cable?

Yes. Provide dimensions, terminal references, polarity, installation photographs, electrical duty, quantity and required inspection. A sample establishes geometry but not every hidden requirement.

Does thicker insulation mean more copper?

No. Overall diameter includes insulation. Conductor material, cross-sectional area and resistance must be checked independently.

Image credits and technical references

DigitalCaliperEuro.jpgXofc at English Wikipedia · Public domain
US Navy 100504-N-6604E-004 Aviation Support Equipment Technician Airman James Hillman attaches jumper cables to the battery of an aircraft tow tractor.jpgU.S. Navy photo by Mass Communication Specialist 3rd Class Bradley Evans · Public domain
Jumper cables.jpgWtshymanski at English Wikipedia · Public domain
Kabelschoen 150-12F.pngFluppe37 · CC BY-SA 3.0
MFrey Masseband.jpgMichaelFrey · CC BY-SA 3.0
Battery Terminal Corrision.jpgMarkBuckawicki · CC0
Aneng AN870 multimeter 01.jpgRetired electrician · CC0
Kabelschuh.jpgUlfbastel · Public domain
Anderson connector1.jpgShengtaoliu · CC BY-SA 3.0
Starter motor.JPGY Sekiai · CC BY-SA 4.0
Close-up of the cables connected to an old and dirty car battery.jpgShixart1985 · CC BY 2.0
SAE J1127 — Low-Voltage Battery Cable (2025)SAE International · Technical reference; no certification claim
SB connector series and assembly instructionsAnderson Power · Technical reference
Electrical automotive troubleshootingFluke · Technical reference
Third-party reference photographs illustrate construction, applications or maintenance issues, not verified company production, approved installations or photographer endorsements. Resizing, display cropping and tonal adjustments are applied; image adaptations retain the applicable original share-alike license.

PART NUMBER / INTERFACE / MATERIAL
