Is ultrasonic wire welding the same as soldering?

No. It is a solid-state joining process using force and ultrasonic motion without added solder.

Can a validated recipe be reused after changing wire size?

Not automatically. The new wire combination changes geometry and energy transfer.

Product category · Solid-state wire joining

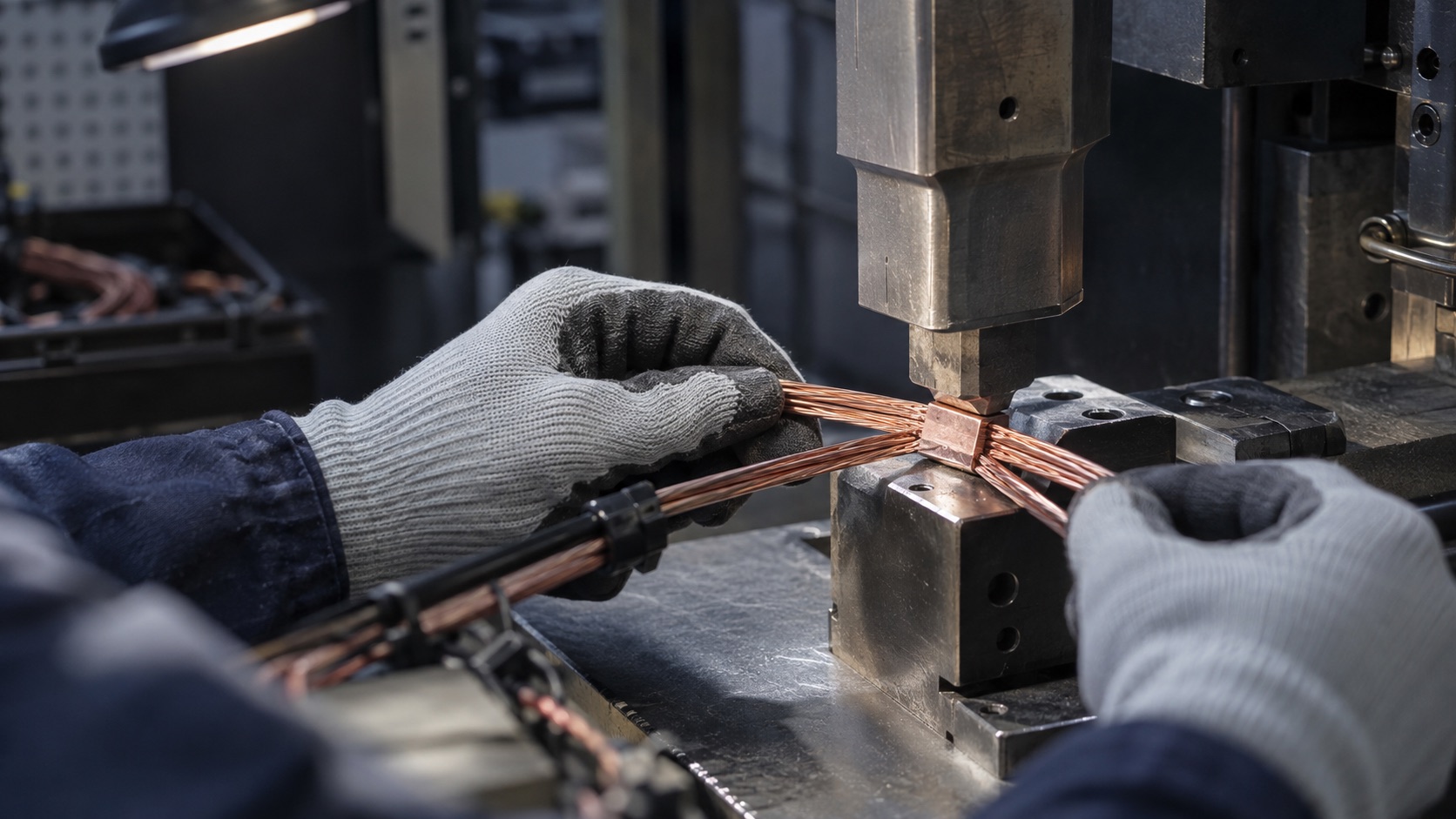

Ultrasonic-Welded Branch Harness

Overview

Compact wire branches developed around a controlled conductor combination and validated ultrasonic weld window.

Ask About This Product Type Review Interfaces & Material Selection Back to Products

Popular Product Photos

01 / 14

01
Vehicle Test Multi-Connector Branch Harness

02

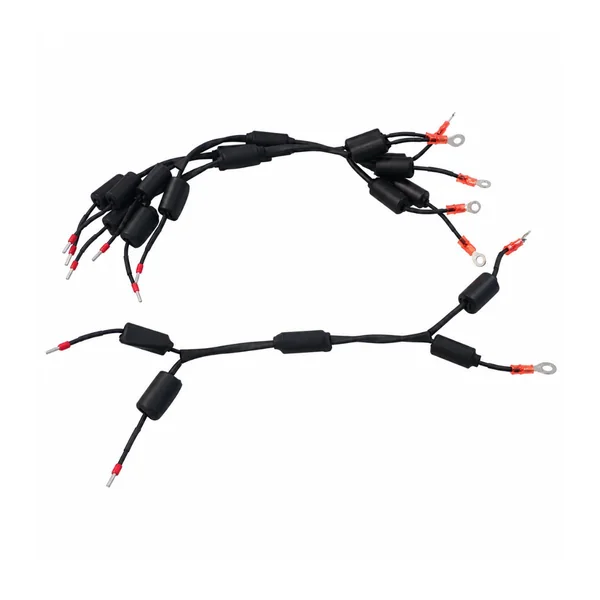

Ring- and pin-terminal wire harness set

03
Multi-Way Rectangular Connector Radial Branch Harness

04
Rectangular Main Connector Multi-Way Branch Harness

05

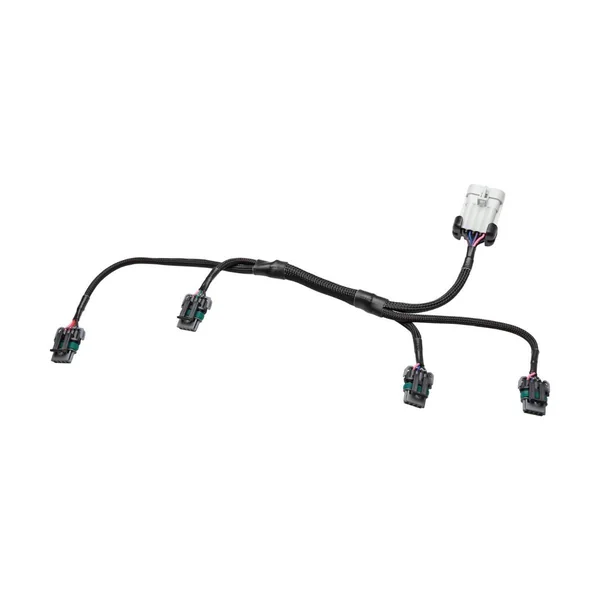

Rectangular Connector Series Branch Harness

06

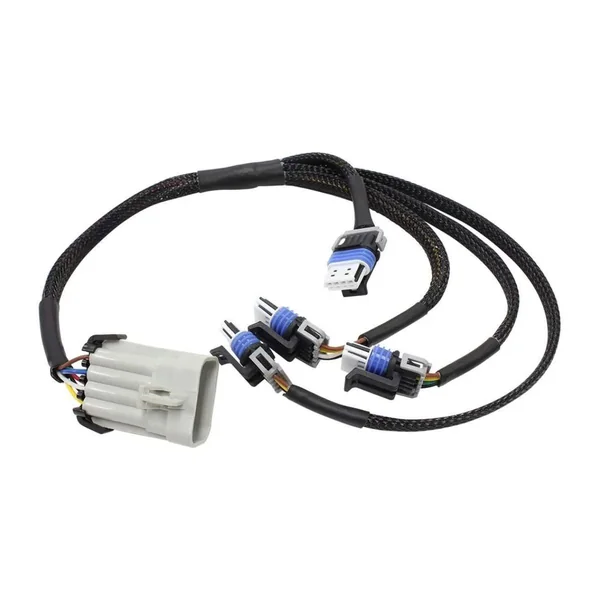

White Main Connector Multi-Terminal Braided Sleeve Branch Harness

07

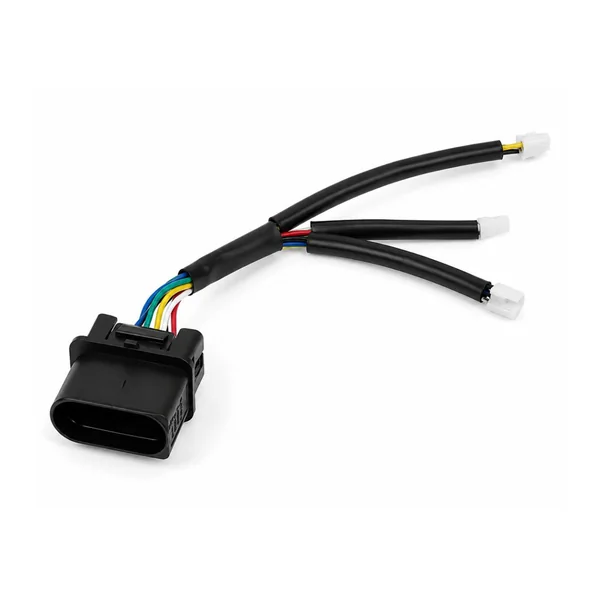

White Lighting Terminals Multi-Way Pigtail

08

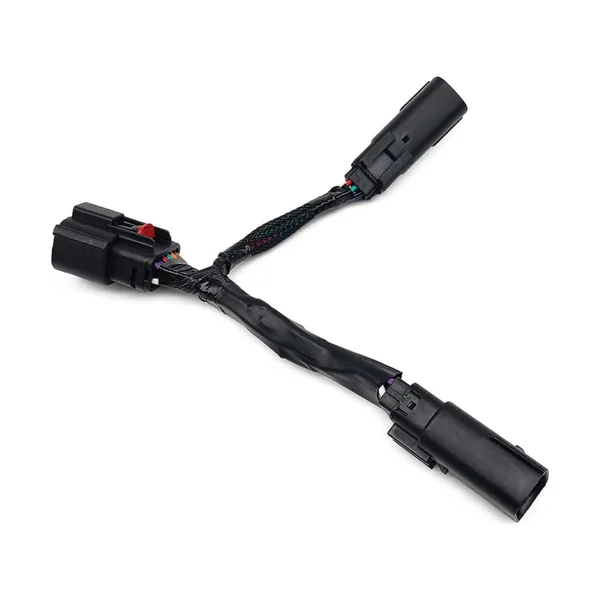

Rectangular Power Connector Y-Branch Harness

09

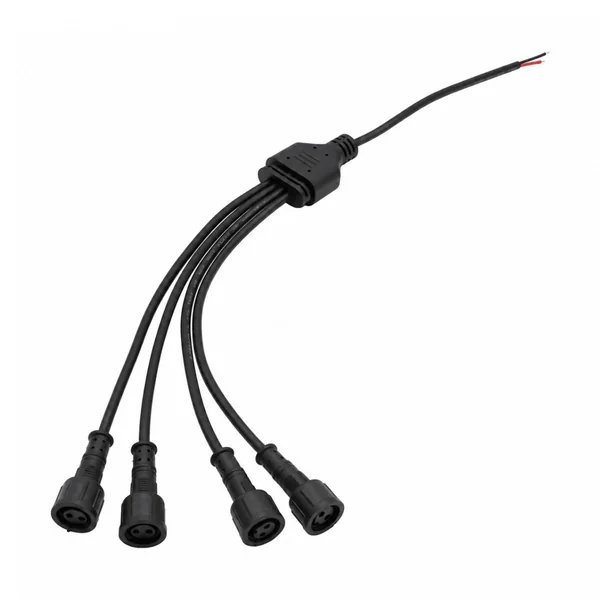

4-Pin Circular Connector 4-Way Branch Pigtail

10
2-Pin Circular Power Connector Y-Branch Harness

12

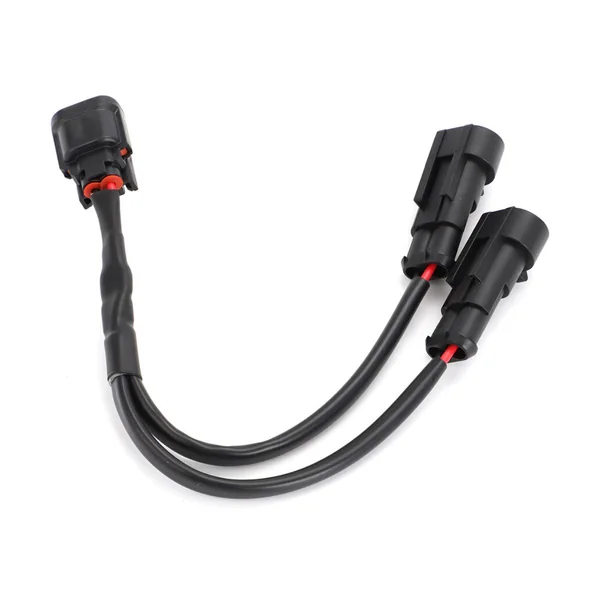

Automotive 2-Pin Rectangular Power Connector Y-Branch Harness

13
White Terminals & Ring-Terminal Branch Harness

14
Ring-Terminal Multi-Plug Power Harness

PART NUMBER / INTERFACE / MATERIAL

Interface Configuration & Material Selection

Define the interfaces, material requirements and acceptance plan for your custom project.

Configuration & Project Review

01 Joint and standard

Distinguish a wire-to-wire branch splice from a wire-to-terminal bond. Agree the validation standard for the actual joint.

02 Exact conductor stack

List every wire material, cross-section, strand construction, surface condition and branch orientation. Treat a changed combination as a review trigger.

03 Wire preparation

Define strip length, cleanliness, strand integrity and the allowed stack arrangement without assuming plated or lubricated wire behaves like bare conductor.

04 Tooling and weld window

Record the machine and tooling identity, force or pressure, amplitude, energy and monitoring limits developed for the actual joint.

05 Branch protection

Review nugget location, insulation clearance, strain relief and the selected protective system together with harness routing.

06 Joint verification

Agree mechanical strength, electrical resistance and environmental conditioning for the joint, with controlled sample preparation and traceable acceptance records.

Send the part number, drawing or sample to confirm the replacement configuration and sourcing plan.
