01
Connector & Terminal
OBD2, Deutsch, DB15, RJ45, Type-C, XT series, Anderson and customer-specified connectors.
CUSTOM CAPABILITY

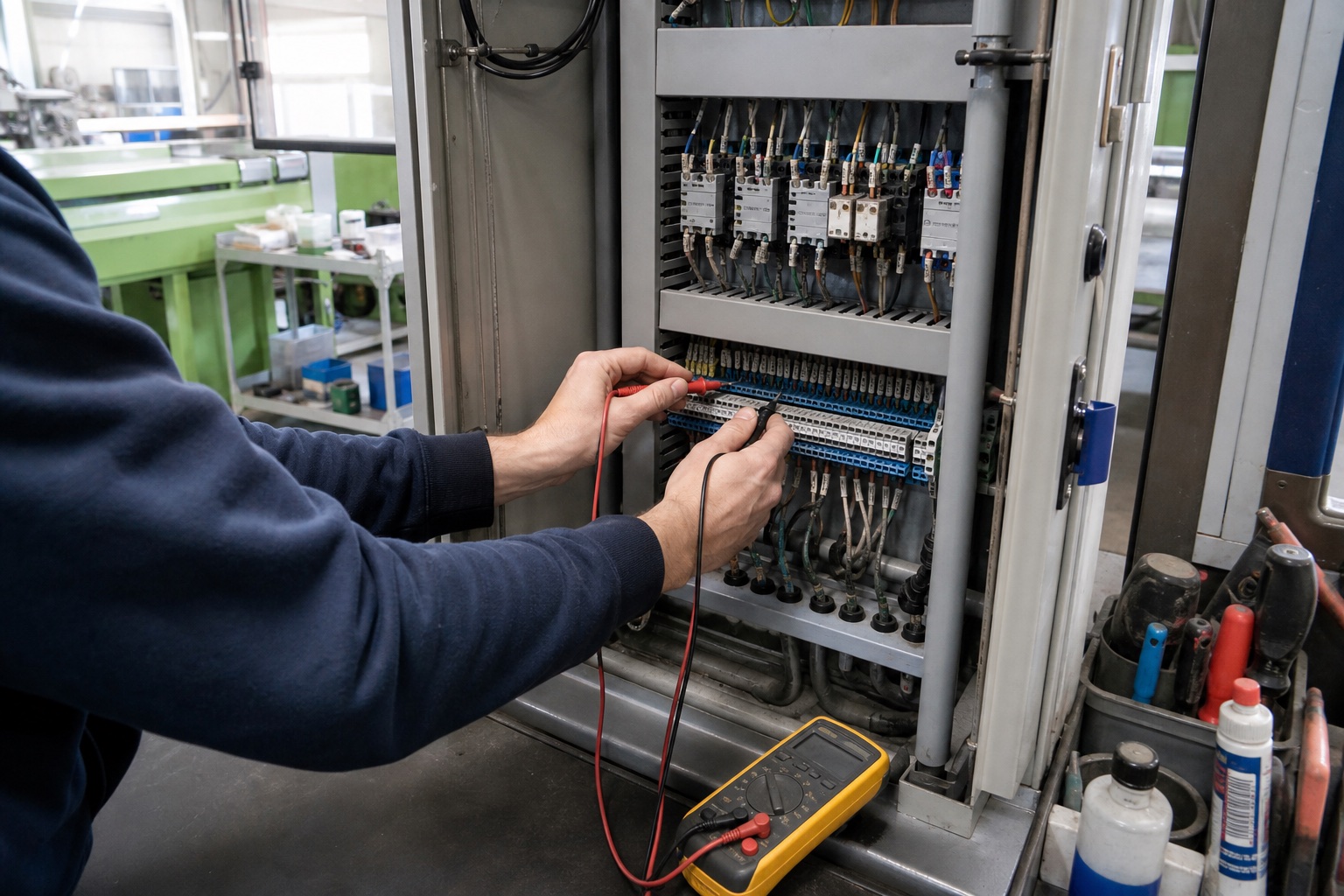

Industrial Equipment Wiring Harness Requirements Guide
A practical input and validation checklist for engineering and procurement teams defining a new industrial equipment harness or cable assembly before supplier capability review.
Define the Operating Environment Before the Drawing
Connector selection and wire size cannot be reviewed in isolation. Fixed or moving installation, voltage and current, temperature, vibration, bend radius, liquids, abrasion, service access and applicable project standards all affect the design inputs.
02
Pinout & Signal Route
Built according to pin definition, diagnostic protocol and equipment interface requirements.
03
Cable Structure
Length, wire gauge, core count, shielding, jacket material and branching can all be adjusted.
04
Branding & Packaging
Neutral packaging, buyer labels, model stickers, barcodes and instruction sheets.
Turn Requirements into an Approved Sample
01
Send Your Info
Drawing, sample, connector photos, pinout or target device model.
02
Engineering Review
Confirm connector type, wiring route, material spec and feasibility.
03
Sampling
Sample made for fit, continuity and function testing.
04
Mass Production
Mass production after approval, batch inspection before shipment.
QC / PROJECT BASIS
Build the Validation Plan Around the Application
There is no single generic test plan for every industrial harness. The approved drawing, material specifications, operating environment and customer acceptance criteria determine which electrical, mechanical and environmental checks are required.
- 01
Operating voltage, current and circuit functions documented
- 02
Connector interfaces, pin map, wire structure and routing constraints defined
- 03
Mechanical and environmental risks converted into measurable requirements
- 04
Sample records and acceptance criteria approved before volume discussion
Industrial Harness Requirements FAQ
What information should an industrial harness drawing contain?
At minimum, identify both interfaces, pin assignment, wire size and construction, circuit functions, finished dimensions, branches, labels, protection, tolerances and any referenced material or workmanship specifications.
How should the installation environment be described?
Record whether the harness is fixed or moving, the expected temperature range, vibration, bend radius, abrasion, oil or chemical exposure, moisture or dust, service access and nearby heat sources.
Can wire gauge be selected from current alone?
Not reliably. Current is one input, but conductor length, voltage drop, bundling, ambient temperature, duty cycle, insulation and applicable project requirements also affect the choice.
Which tests are normally considered?
Possible checks include visual inspection, dimensions, continuity, resistance, insulation, pull force, retention, sealing or environmental validation. The actual list and limits must be agreed for the project.
Does this guide prove that every industrial harness can be manufactured?
No. It is a requirements checklist. Manufacturing capability, materials, tooling, process controls and validation scope must be reviewed for each project before a supply commitment is made.
Prepare the Project Inputs for Capability Review
Send the drawing or sample, connector details, pin map, electrical loads, installation environment, required checks and expected quantity range. We will first identify missing information and review feasibility.
