Product type

Binder Compatible Cable Assemblies

Overview

Custom Binder-interface sensor, data and equipment cables, with specified coding, pinouts, materials and installation support.

Ask About This Product Type Find Models & Material Part Numbers Back to Products

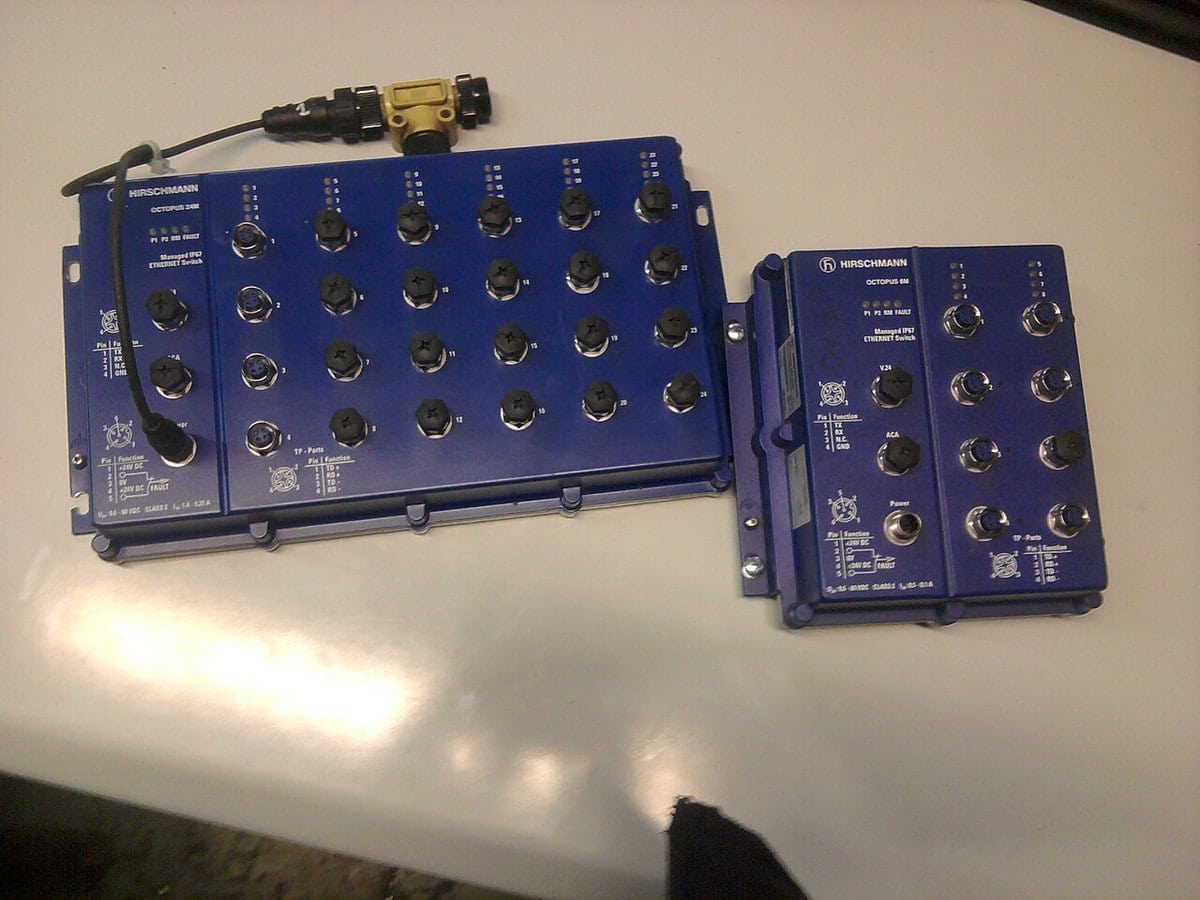

Binder Compatible Cable Assemblies application reference

Popular Product Photos

01 / 12

01

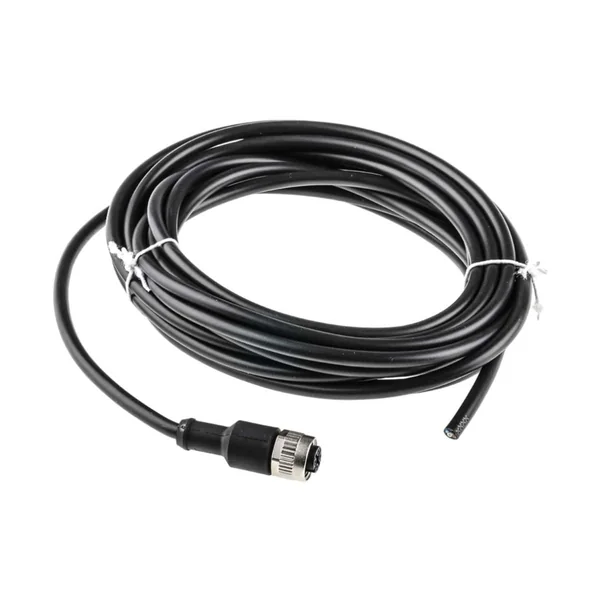

4-Pin Circular Connector Pigtail79-3430-17-04

02

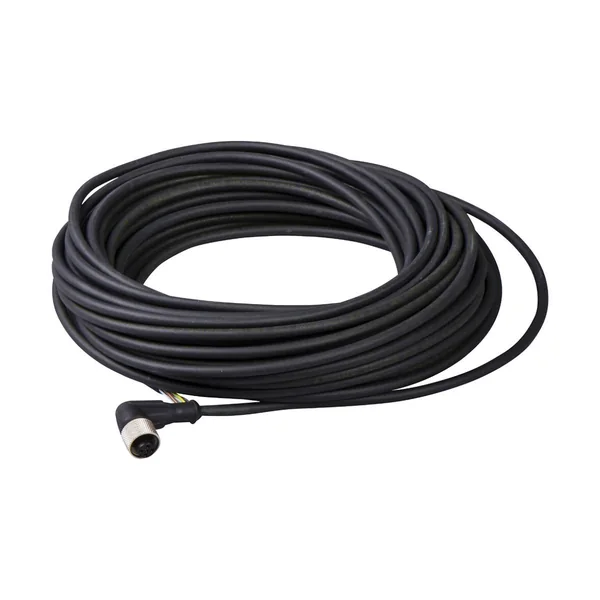

Threaded Circular Connector Double-Ended Harness

03

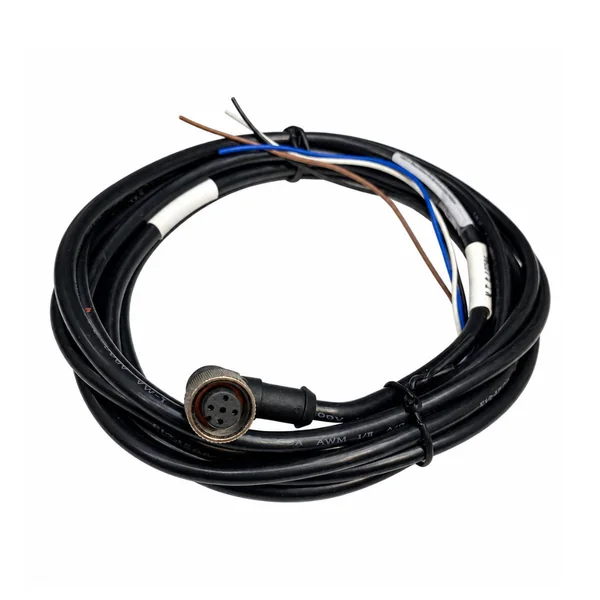

M12 Right-Angle Terminated HarnessMQDC-415RA

04

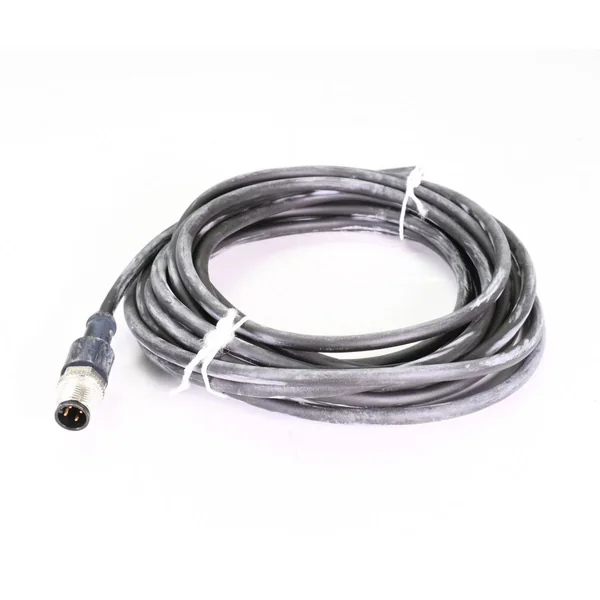

M12 Double-Ended Harness79-3429-37-04

05

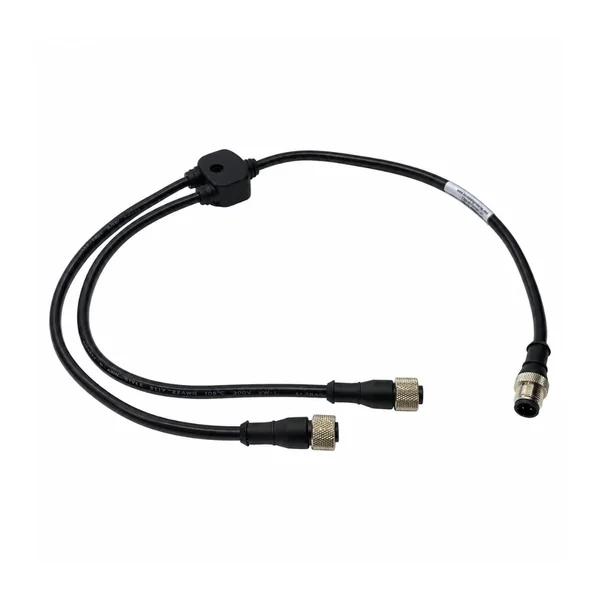

CSA-M1241M1241 M12 Connector Y-Branch Harness

06

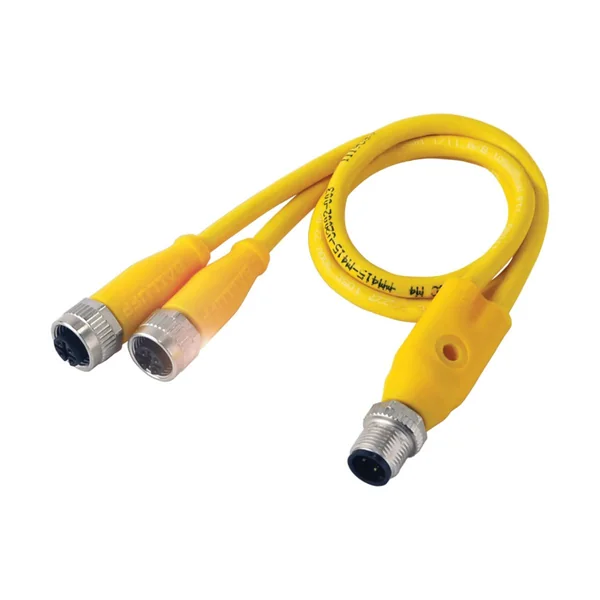

M12 Metal Connector Y-Branch HarnessBCC0ALH

07

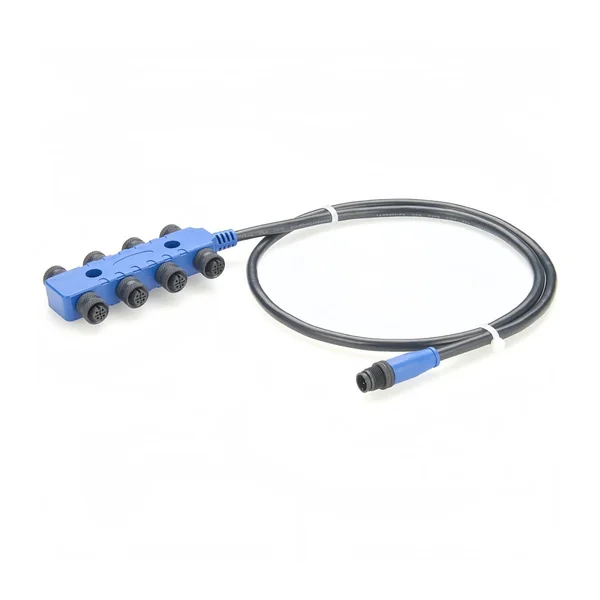

M12 8-Port Sensor Distribution Box Harness

08

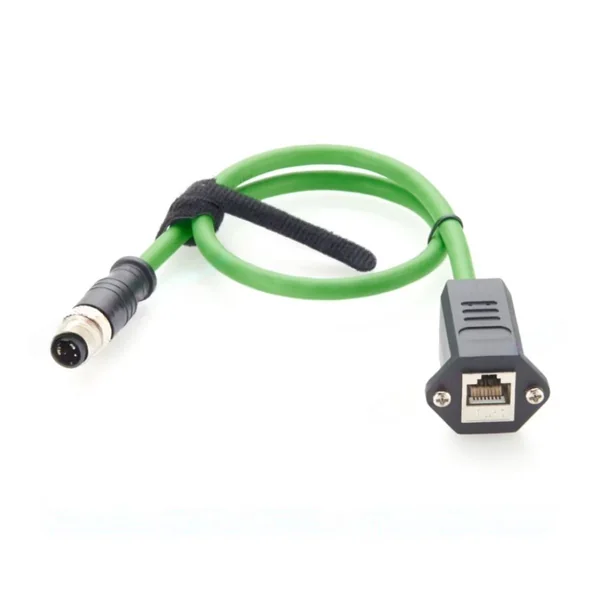

M12 4-Pin Connector to RJ45 Panel-Mount Harness

09

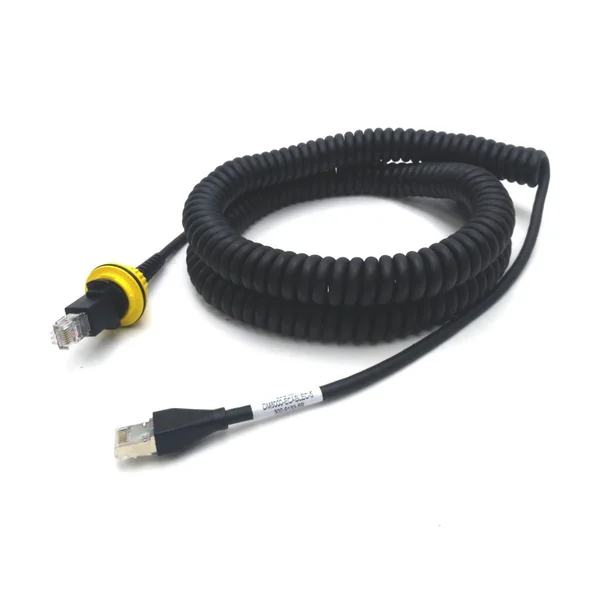

Circular Connector to RJ45 Network HarnessDM8000-ECABLEC-5

10

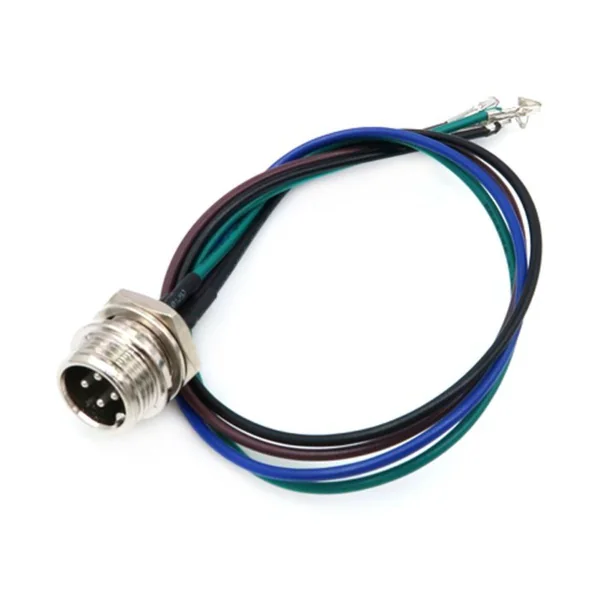

GX16 4-Pin Circular Flange Terminated Harness

Binder Cable Assemblies: Selection, Installation and Service

Binder-compatible wiring covers a broad set of signal, data and power connections. The right design starts with the actual interface and follows the cable through the equipment: how it is mounted, exposed, moved and serviced. This guide explains the family choices, materials, applications and production details that turn a connector selection into a controlled cable assembly.

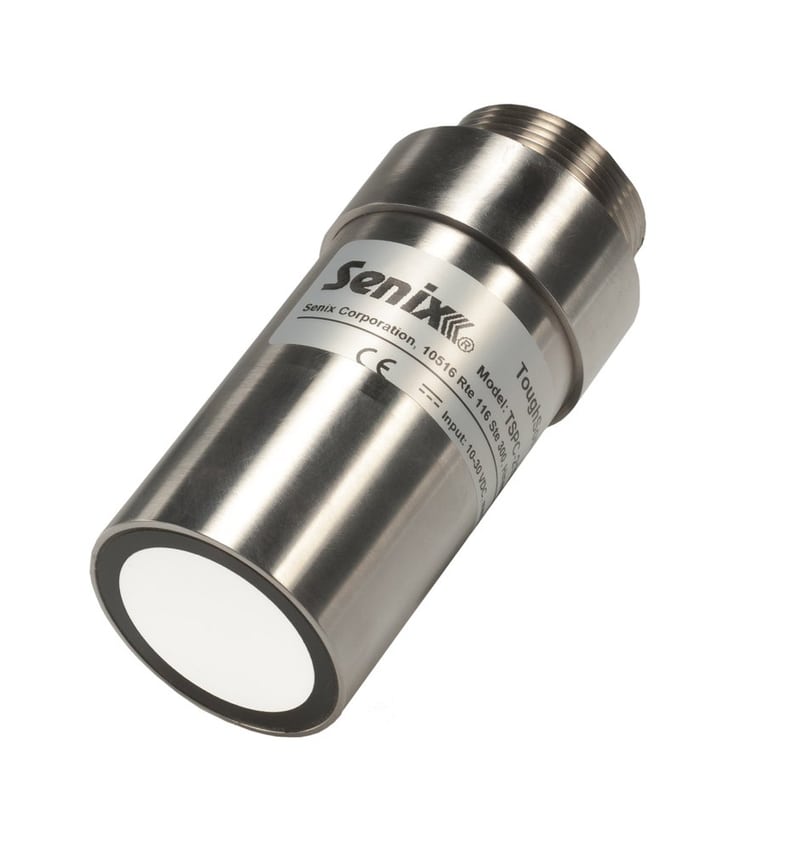

Ultrasonic sensor illustrates the equipment end of a sensor connection.

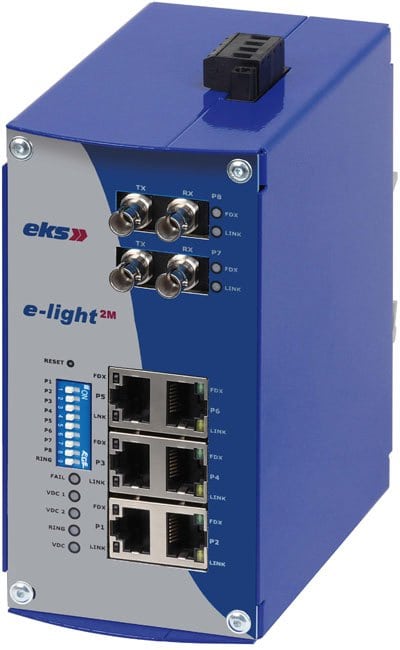

Industrial network converter shows one equipment interface context.

Binder Connector Cables: More Than One Interface

This category covers sensor leads, equipment extensions, panel feedthroughs, distribution branches and power or data connections built around specified Binder interfaces. A connector family name is not a complete cable definition. Identify the mating part, circuit, cable construction, length and installation environment together. Super Smile reviews original components and approved alternatives separately, with the supplied part references and required inspection recorded before production.

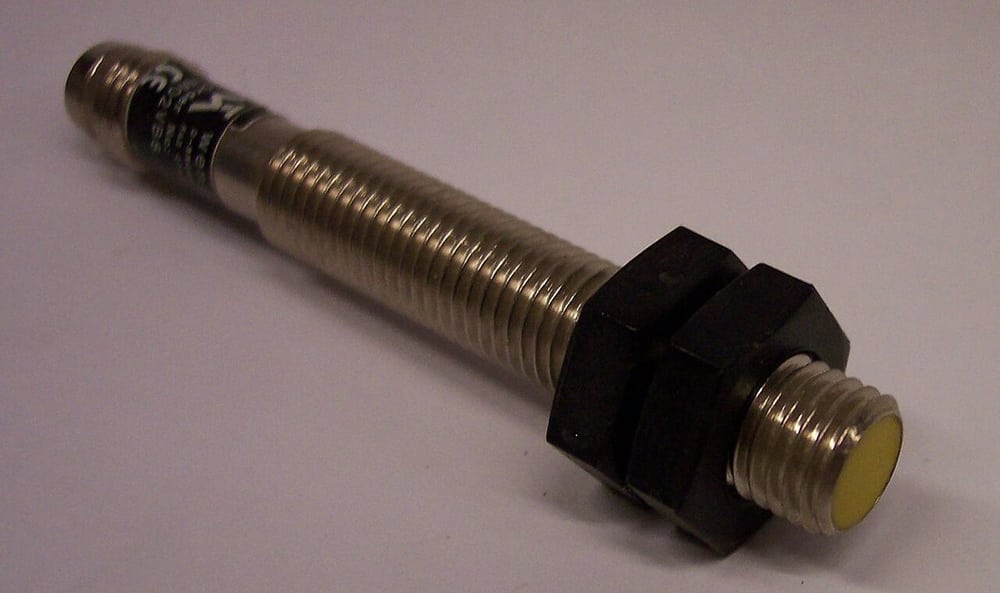

Compact inductive switch illustrates sensor installation space; not a Binder M8 part reference.

M8: Compact Sensor and Actuator Wiring

Binder 768 and 718 series include M8 automation connections with different contact counts and cable or panel configurations. Small size is useful near sensors, but access to the coupling and cable bend must still be checked. Confirm the complete reference, straight or angled exit and appropriate conductor range. More contacts within a similar envelope do not imply the same current rating or identical installation clearances.

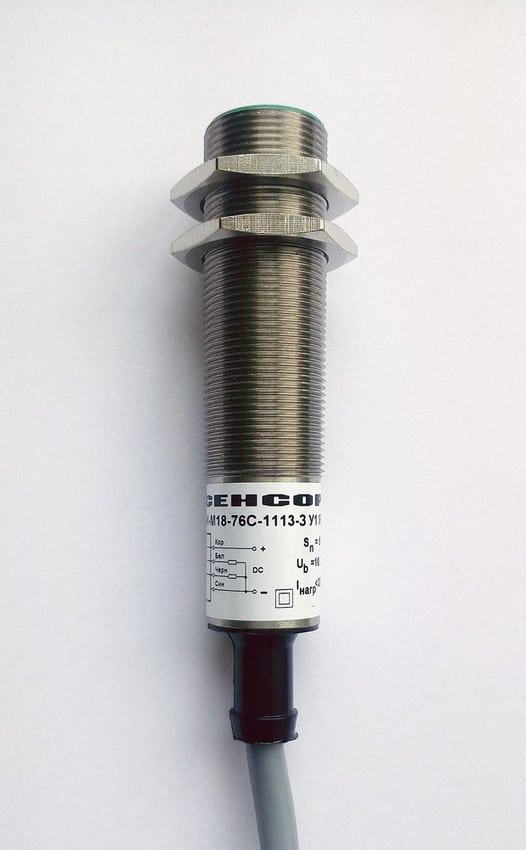

Cylindrical proximity sensor: confirm the actual connector and circuit separately.

M12 A-Coding: Define the Sensor Circuit

The 713 and 763 M12-A families provide cable and panel connections for many automation configurations. A-coding identifies the mating geometry, not one universal wiring map. Confirm pin count, contact gender, circuit assignment and panel mounting thread. A prewired receptacle tail also needs the correct length and end preparation. Compare the front mating view with the equipment drawing before transferring a pinout to the manufacturing document.

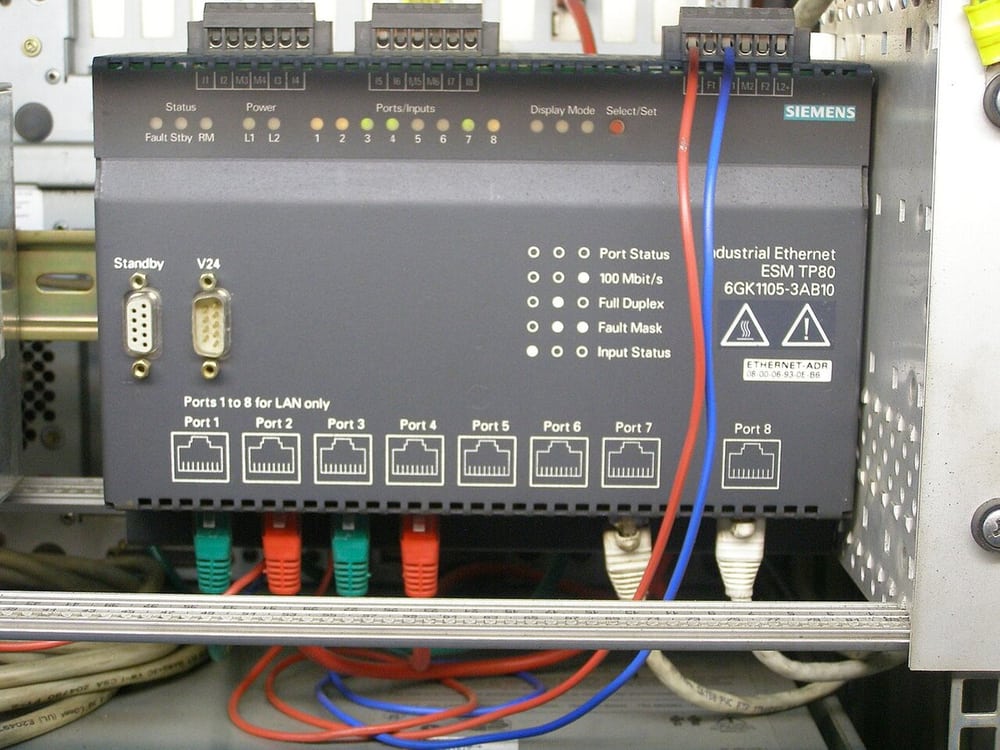

Industrial Ethernet switch and installed network cabling.

M12 D and X: Match the Data Channel

D- and X-coded M12 systems serve different Ethernet channel arrangements. They differ in contact layout and shielding architecture, so an adapter must preserve the intended pairs rather than merely join numbered pins. Binder 825 and 876 references include data-connection variants; select the exact termination and cable construction. Connector capability is not a promise of complete-channel speed: cable length, pair handling and the other interface remain part of the verification.

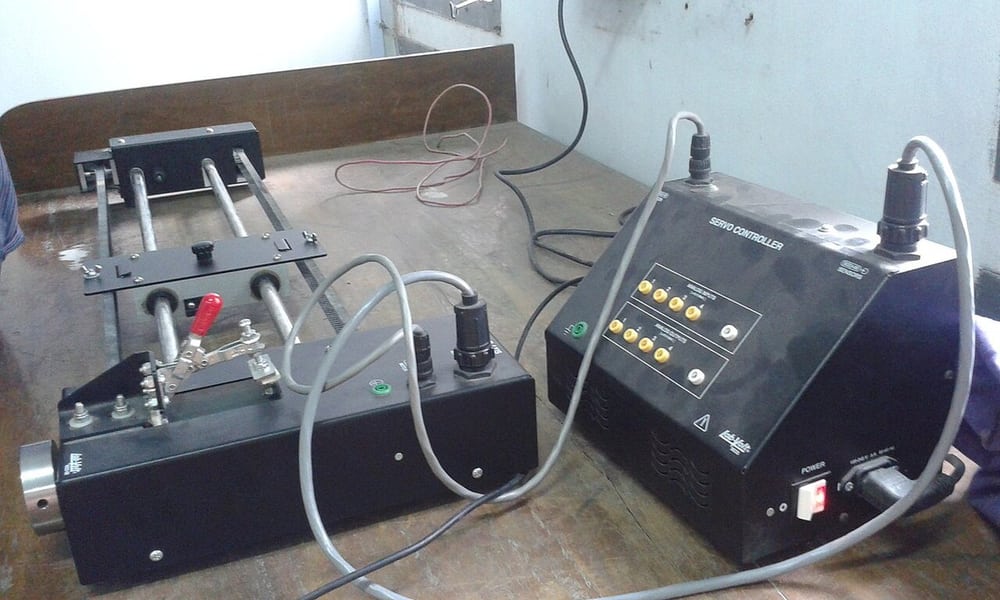

Servo training equipment illustrates separate power and control connections.

K and L Coding: Separate AC and DC Power

M12 power connectors are not interchangeable with signal-coded versions. Binder K-coded configurations address AC supply, while L-coded configurations address DC supply. Confirm protective or functional earth requirements from the exact device circuit, not cable color alone. Conductor size, terminal range, load profile and temperature rise require joint review. The connector rating does not remove the need for suitable protection and installation rules in the finished equipment.

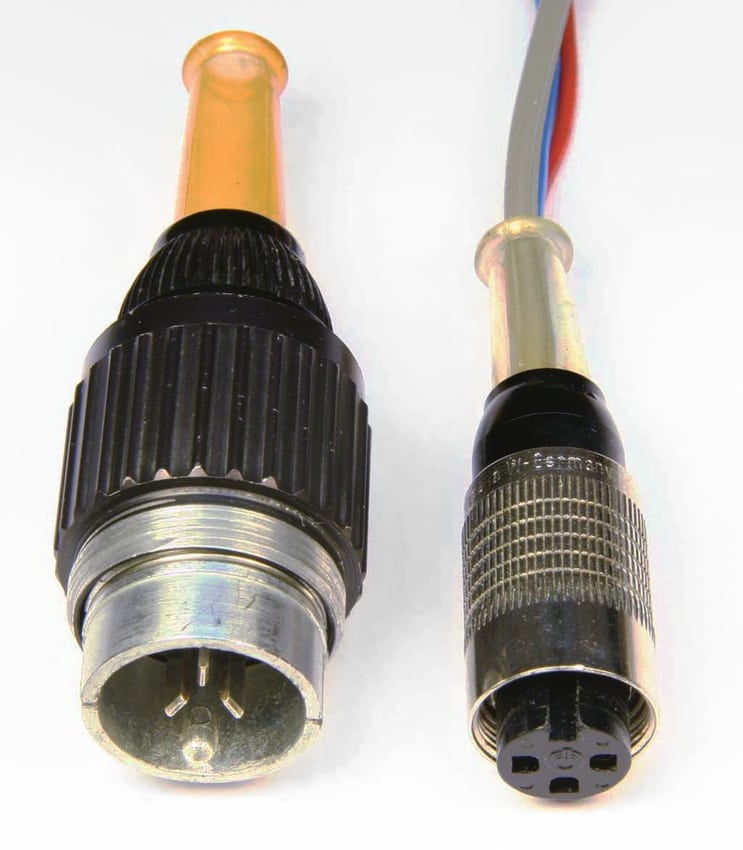

Tuchel circular connectors illustrate differing coupling geometries, not Binder snap-in or ELC products.

Snap-In, Bayonet and ELC Families

Not every Binder interface uses a threaded metal coupling. Snap-in and bayonet families provide other handling options, including selected medical-grade versions. The 570 ELC uses a snap-in mechanism with a plastic housing; 620, 720 and 770 are separate systems. Check the release action, keying, cable grip and specified protection of the exact version. A medical-grade component designation does not certify the complete device or establish compatibility with every cleaning agent.

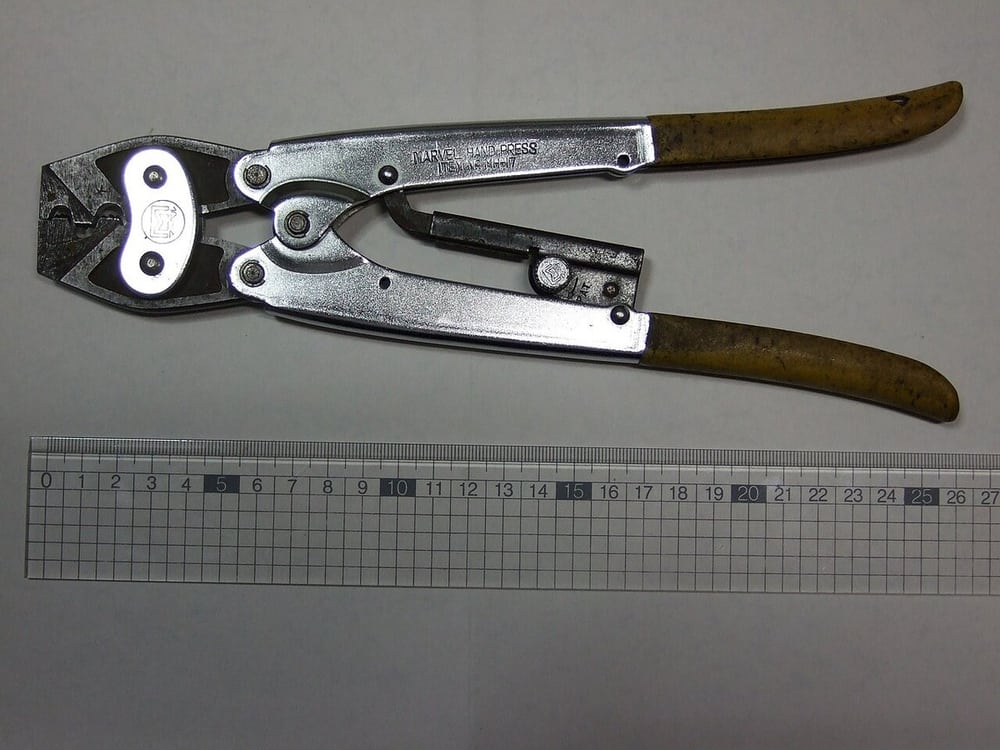

Contact crimp tool; the correct tool and terminal combination must be specified.

Materials and Workmanship: Control the Interface

Incoming parts should match the approved reference, finish and dimensional requirements. During assembly, control stripping, termination, contact seating and cable support; a visually neat jacket cannot compensate for a damaged strand or incomplete contact insertion. Record the inspection points that matter to this configuration. Where an ingress or mechanical test is required, agree its method and acceptance criteria rather than assuming every assembly receives every possible laboratory test.

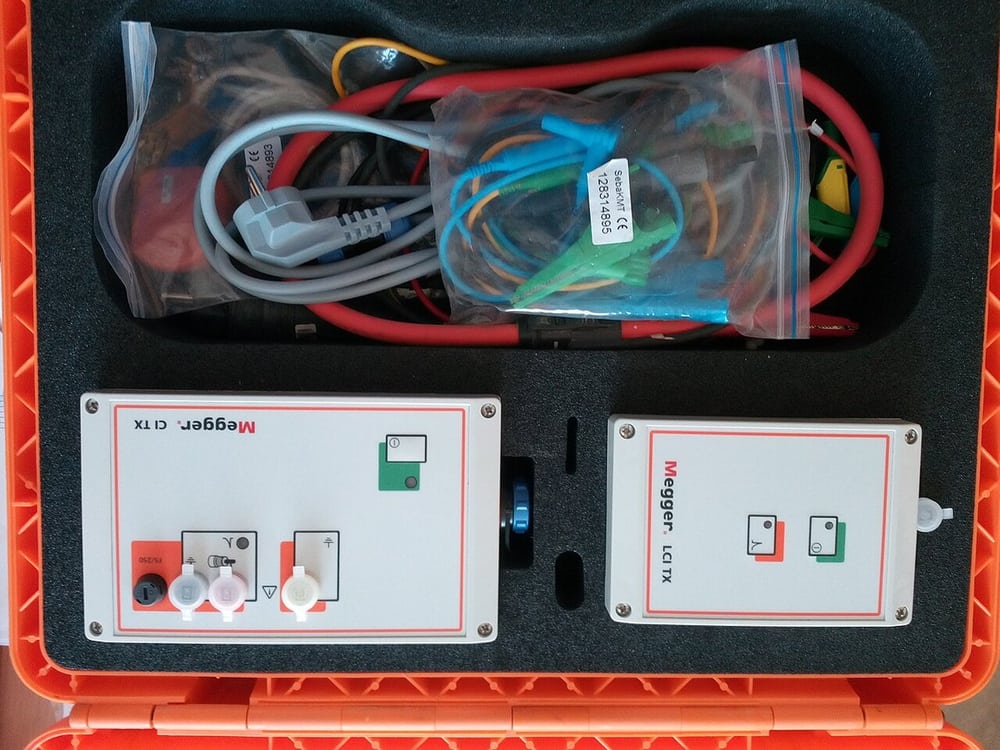

Cable identification equipment illustrates circuit tracing during installation.

Industrial Connection Solutions

Start with the equipment topology: which sensors remain on the machine, which modules are removed and where the cabinet boundary lies. This determines whether a direct lead, extension, splitter or panel feedthrough is useful. Keep installation datums and branch lengths unambiguous. The practical aim is a repeatable circuit that can be installed and serviced without forcing the cable across a sharp edge, hot surface or moving component.

Cleaning-wipe context; chemical compatibility must be confirmed for the actual assembly.

Medical Connections: Handling and Cleaning

For a medical-equipment project, identify whether the cable is internal, operator handled or patient adjacent. These positions create different material and documentation requirements. Connector color and keying can support identification, while jacket selection should follow the specified cleaning process. Repeated wiping, fluid exposure and storage bends should be described before sampling. Required device-safety or cleaning validation remains a project-specific requirement, not a consequence of selecting a familiar connector brand.

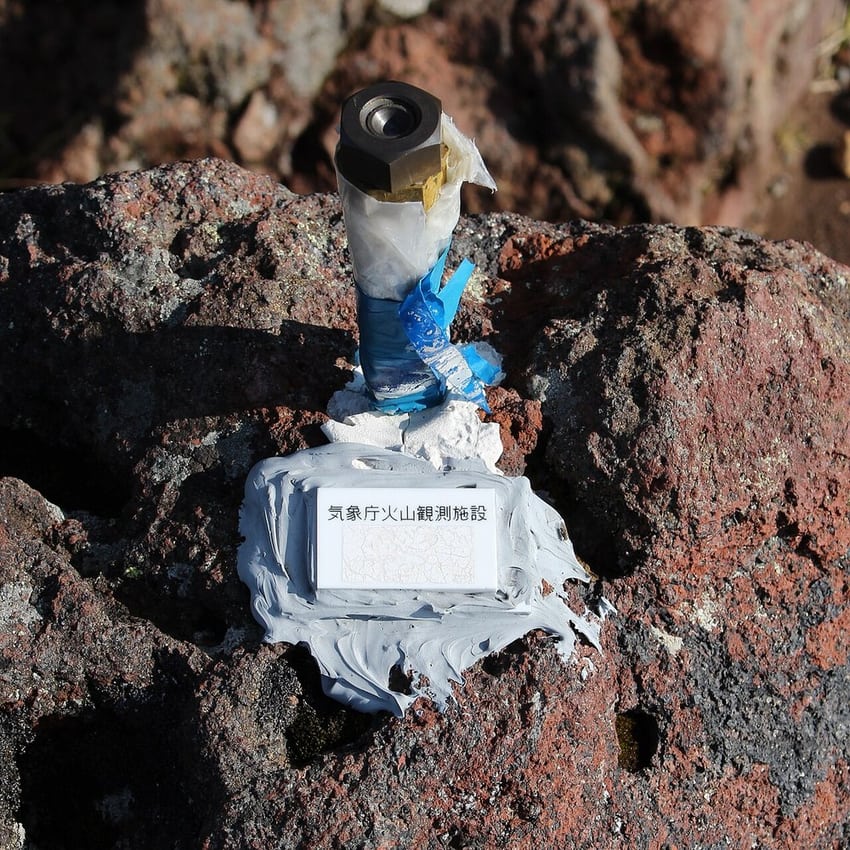

Outdoor monitoring sensor exposed to a real field environment.

Outdoor Connections: Review Every Entry Path

Rain may reach the mating face, rear cable entry, enclosure joint or an open branch. Define all of those boundaries before selecting a sealing configuration. The same lead may also experience sunlight, cold starts and vibration, which an ingress code alone does not describe. Plan cable support and drainage so liquid is not encouraged toward an unsealed end. Any environmental test should represent the intended assembled condition.

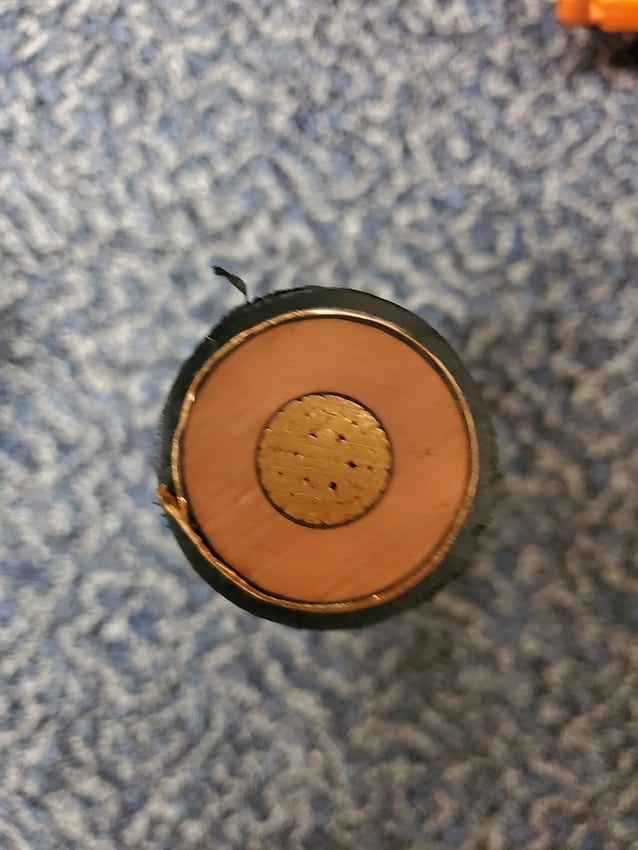

Copper-tape shielded cable cross-section illustrates layered construction, not a specified Binder cable size.

Cable Construction: Load, Signal and Motion

Choose the conductor from load, voltage drop, termination range and the installation duty. For a data channel, preserve the required pairs and shielding; thinner insulation alone does not suppress interference. PVC and PUR are construction choices with grade-specific properties, not universal performance rankings. Verify the actual jacket diameter against the connector entry. Static bending, repeated flexing and torsion must be distinguished when evaluating a cable for moving equipment.

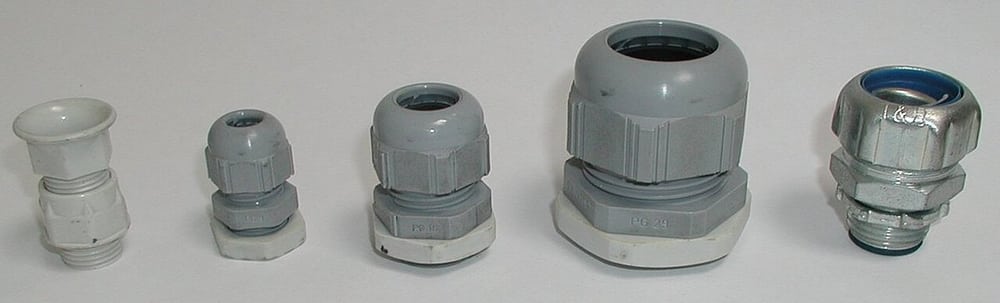

Cable glands in different materials illustrate mounting and cable-entry choices.

Housing Materials and Mounting

Metal and polymer housings solve different mechanical, handling and environmental requirements. Use the selected part specification rather than assuming all Binder shells use one alloy. A metal shell contributes to shielding only when the intended electrical path is maintained. Mounting thickness, nut access and anti-rotation features affect the installed connection. Review the connector with the actual panel stack so tightening does not distort the enclosure or strain an internal lead.

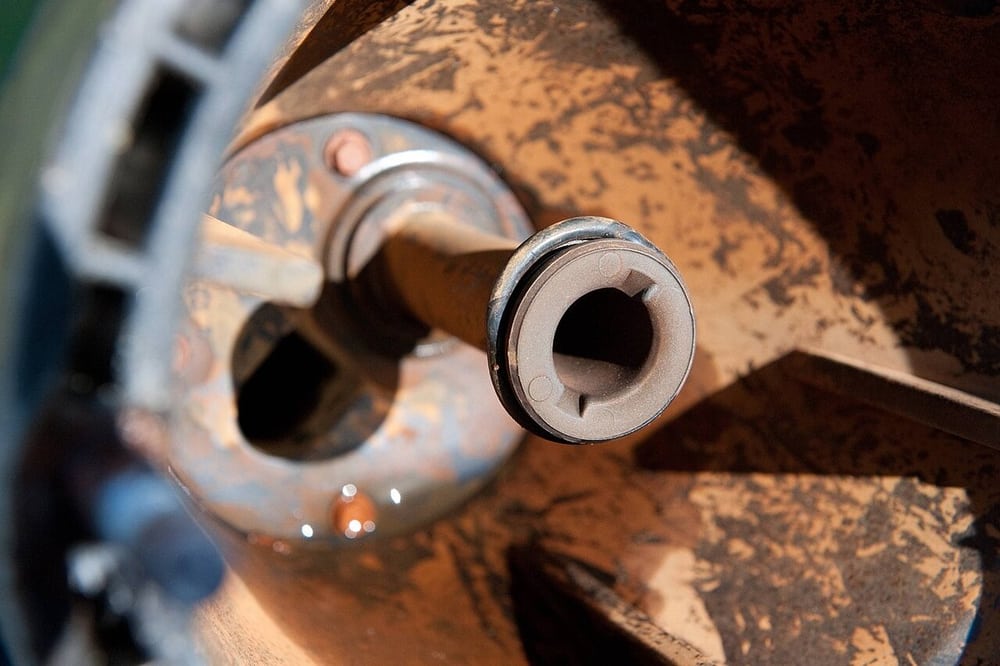

A distorted O-ring illustrates why seal geometry and installation matter.

Seals: Geometry Before a Material Label

An elastomer works as a seal only with suitable compression, surface condition and dimensions. Cable diameter, roundness and jacket softness affect the rear seal, while panel seals must fit the actual mounting face. Check compatibility with temperature and the specified fluid rather than assigning one chemical resistance to all rubber. Assembly cleanliness matters: a trapped fiber or damaged sealing edge can defeat an otherwise appropriate component selection.

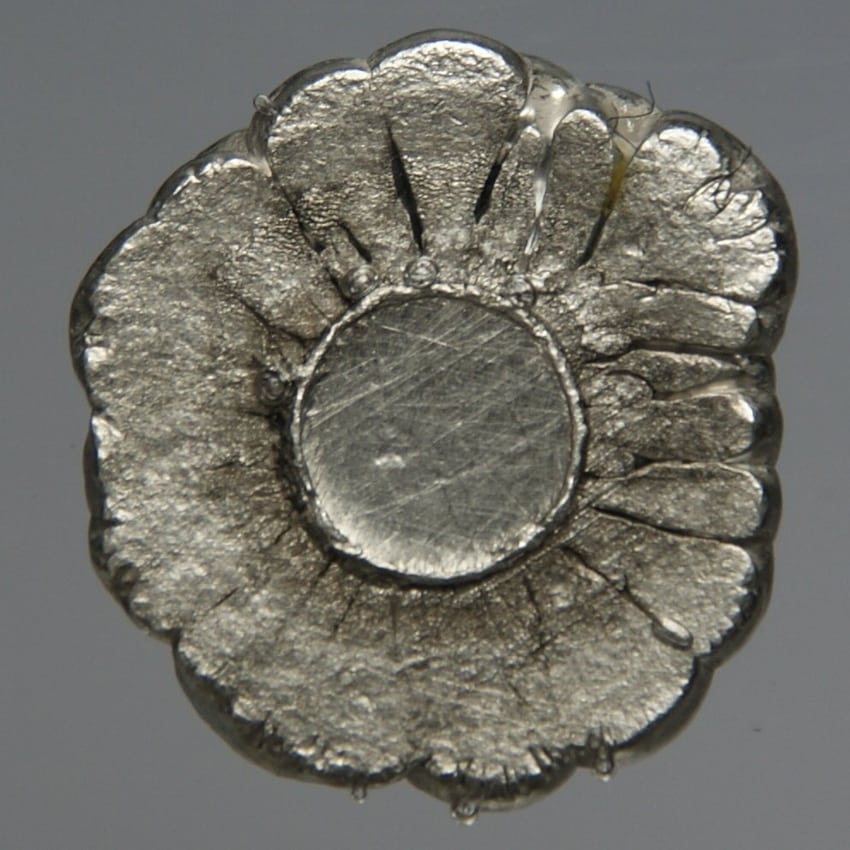

Electrolytic nickel as a material reference, not a finished connector coating certificate.

Contacts and Plating: Preserve the Approved Pair

Contact alloy, mating finish and termination geometry act together. Select the exact contact reference and approved wire range; a similar-looking terminal is not a substitute for a documented match. Plating color cannot establish thickness or condition. For mixed-source assemblies, assess both mating finishes and the required evidence before approval. The finished circuit should be checked against its electrical requirements, with damaged or incompletely seated contacts handled under a defined rework rule.

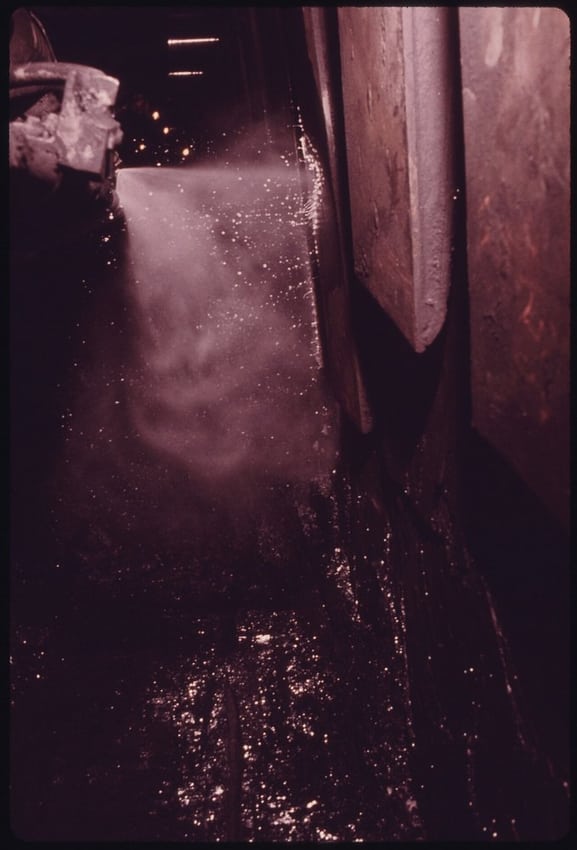

Dust-suppression spray in a mining environment illustrates combined dust and moisture exposure.

Industrial Dust and Humidity

Dust protection and water protection describe different challenges. Consider whether fine particles are present during mating, whether the enclosure breathes through temperature changes and whether condensation can form inside. A sealed mating interface does not remove moisture already trapped in the assembly. Keep unused ports protected with the specified accessories and define inspection after service. Do not treat an IP rating as a universal guarantee against dust, cleaning jets and long-term immersion together.

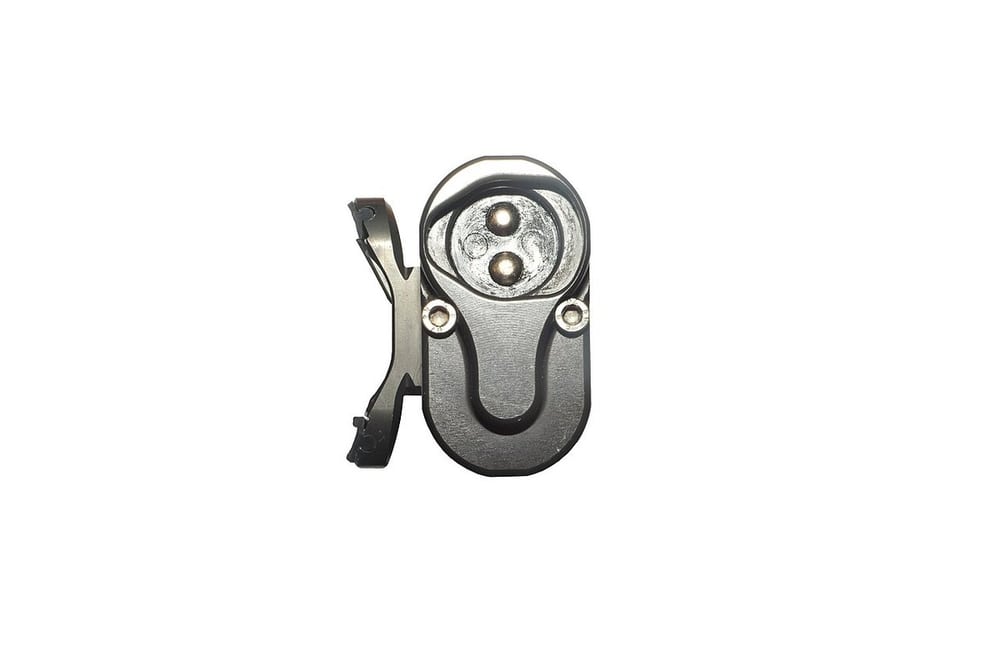

A diving light connector closure illustrates the need to examine openings; not an NCC rating example.

Unmated Protection and NCC Configurations

The environmental boundary changes when a cable is unplugged. Binder NCC families include closed-contact arrangements, but the protected receptacle condition must be distinguished from the exposed cable plug. Confirm the exact series and use the specified cap where required. This distinction matters for washable equipment and removable accessories. State protection in the drawing for both normal operation and service, instead of listing a single code without the mating condition.

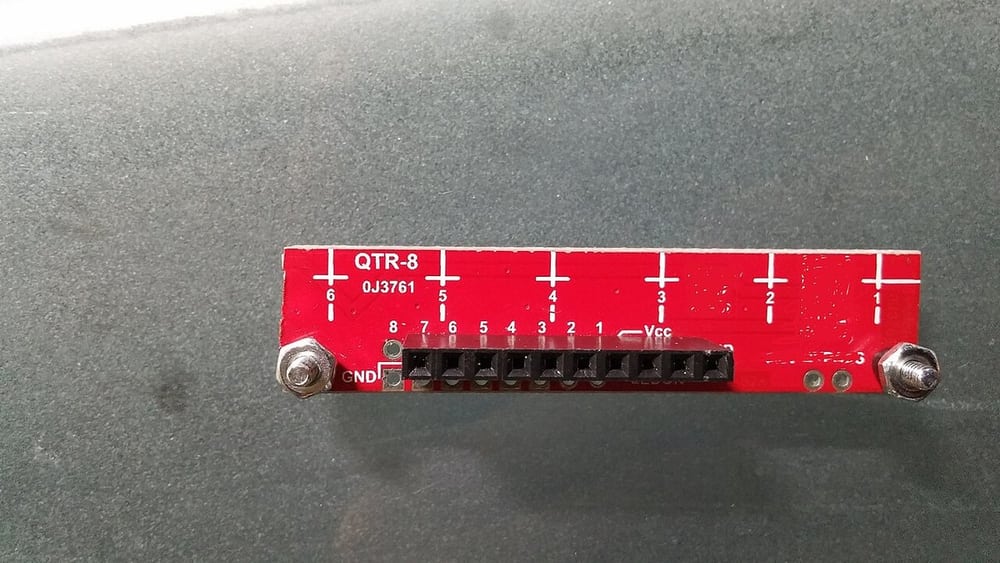

Sensor board and pin adapter illustrate the connection from sensing to electronics.

Industrial Automation: Sensors to Control

Sensor clusters, I/O modules, valve islands and cabinet interfaces create different branch and connector needs. An approved wiring diagram should describe the signal type and any shared supply before a splitter is built. Label branches where they remain visible after installation. Check the service route with the machine guards in place; accessible coupling nuts and clear channel identification can simplify replacement without changing the validated circuit.

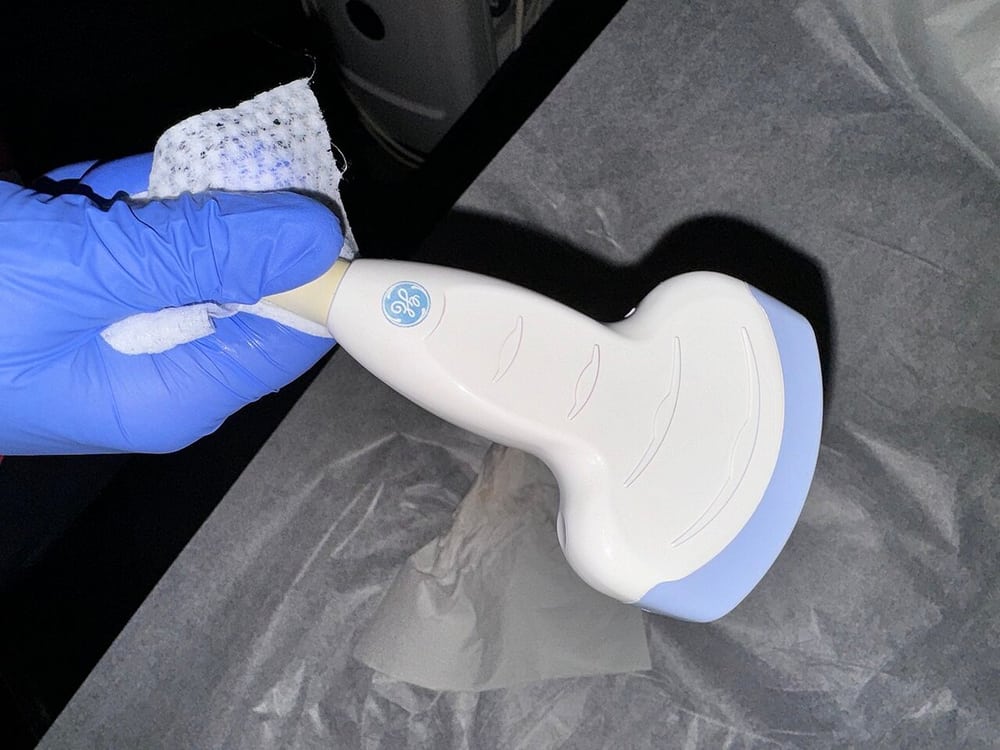

Ultrasound probe illustrates a handled medical accessory, not our medical-device approval.

Medical Equipment: Define the Accessory Boundary

A monitor cable and a removable diagnostic accessory may require different flexibility, cleaning and safety evidence. Record the intended equipment and the approved electrical interface rather than calling every lead medical grade. Connector component data can support material selection, but the complete accessory must be assessed within the device requirements. Clear labels and controlled replacement specifications are particularly important when multiple similar channels sit next to one another.

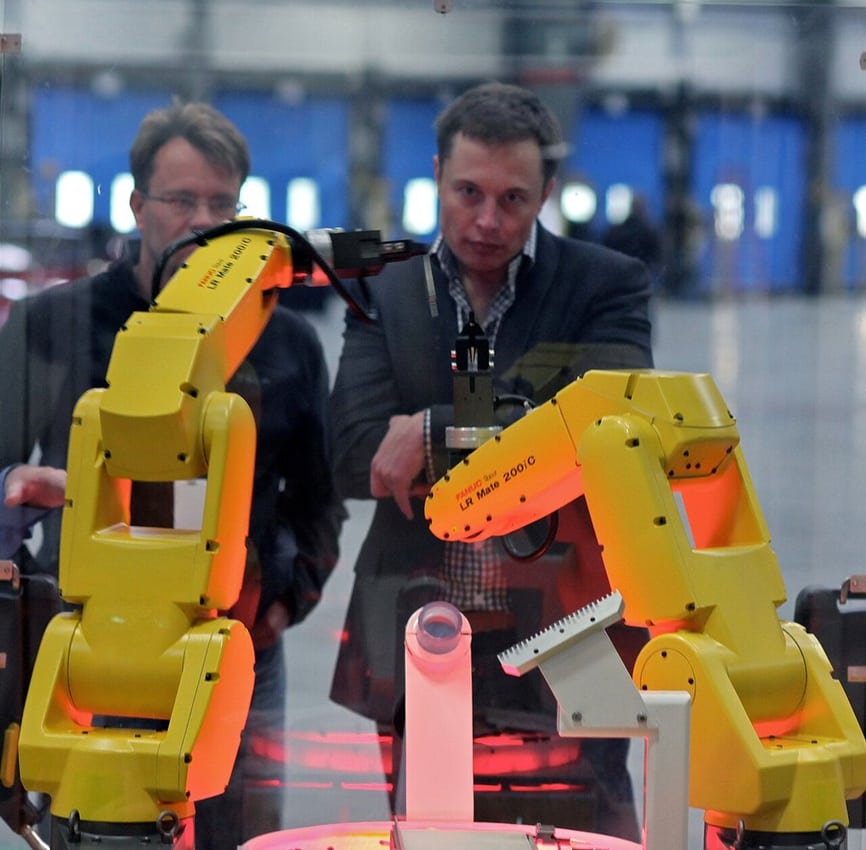

Industrial robot demonstration illustrates moving equipment and routing constraints.

Robotics: Separate Bending from Torsion

A robot dress pack may twist, while a cable carrier may primarily bend through a defined radius. Select construction for the actual motion, not a generic flexible label. Keep connectors outside the repeated flex zone and support the cable without crushing it. Describe travel, orientation and duty cycle before agreeing a prototype evaluation. Intermittent continuity under motion should be investigated at its source rather than hidden with a longer sleeve.

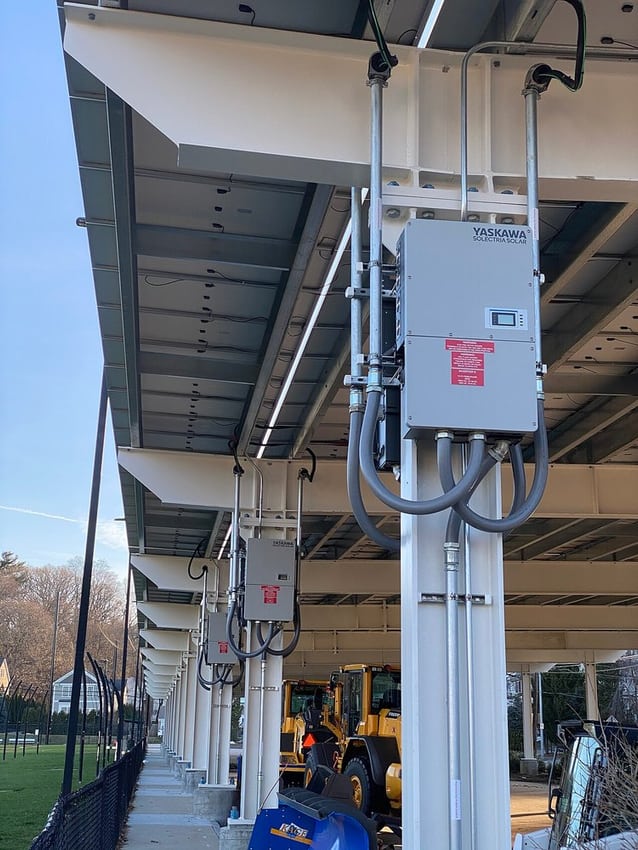

Installed solar inverters illustrate outdoor energy equipment and cable routing.

Renewable Energy and Outdoor Equipment

Outdoor monitoring, control actuators and local equipment power can each need different cable assemblies. Distinguish low-voltage control connections from a generation system main power circuit. Sunlight, temperature variation, water exposure and maintenance access all affect material selection. Route the cable to avoid abrasive supports and standing water where possible. A connector used in an energy project does not by itself establish suitability for every photovoltaic or wind-power circuit.

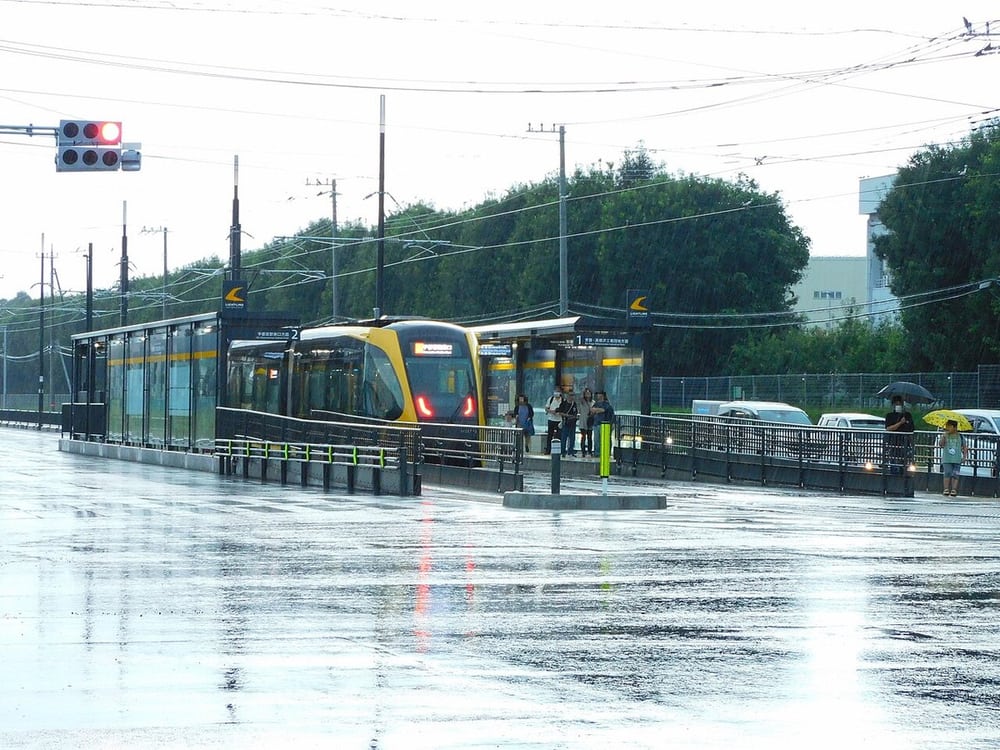

Rail transport in heavy rain illustrates the actual exposure environment.

Transportation and Rail: Installation Matters

Vehicle and rail equipment can impose vibration, temperature and fire-performance requirements beyond a stationary cabinet. Identify the mounting location and applicable customer specification before choosing a cable. Connector locking cannot compensate for unsupported mass or a harness rubbing against a bracket. Material declarations, routing restraints and any required qualification evidence must apply to the actual configuration; a general industrial family name is not a rail approval.

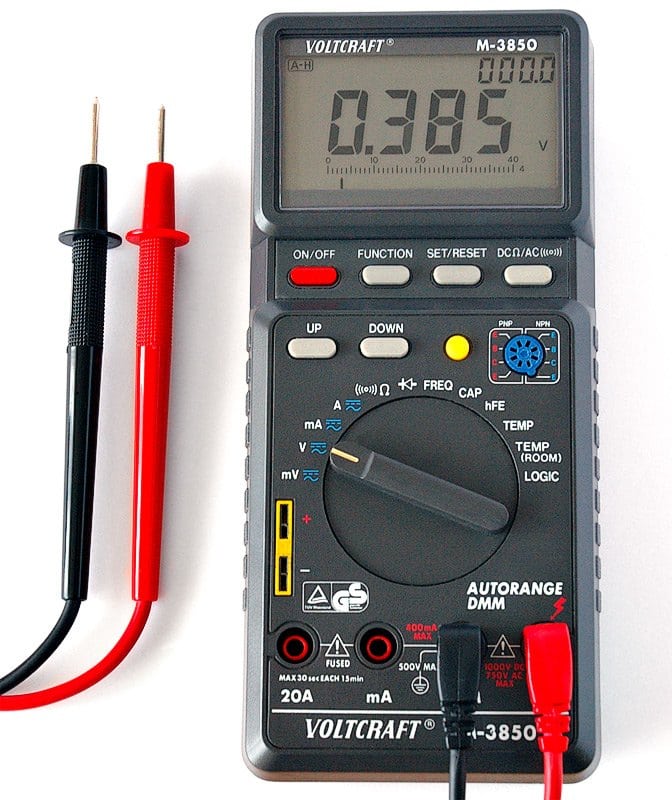

Multimeter as an electrical inspection tool; project-specific checks remain necessary.

Quality Control That Matches the Drawing

A meaningful inspection plan checks the features that could make this assembly wrong: the interface, circuit, dimensions, contact seating, labels and required protection. Use an approved sample as a reference alongside the drawing, not as a replacement for it. Continuity and visual inspection are basic checks; additional tests follow project requirements. Keep results linked to the production version so a later change can be evaluated against the same baseline.

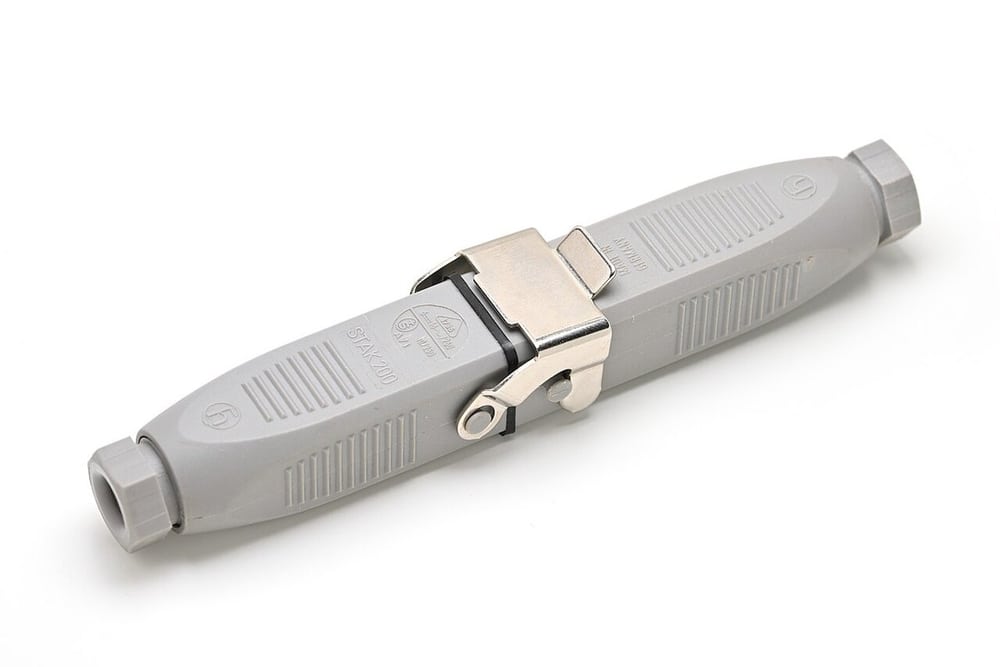

Secured Hirschmann industrial connector illustrates a mechanical retention feature; not a Binder interchangeability claim.

Locking Systems and Installation Loads

Threaded, snap-in and bayonet couplings require different handling. Follow the exact connector instructions for alignment and tightening rather than twisting a cable until it feels secure. Check access with neighboring connections present. A cable clamp should carry the planned service load so the coupling is not used as the only support. After maintenance, verify both mechanical engagement and circuit identification before restoring operation.

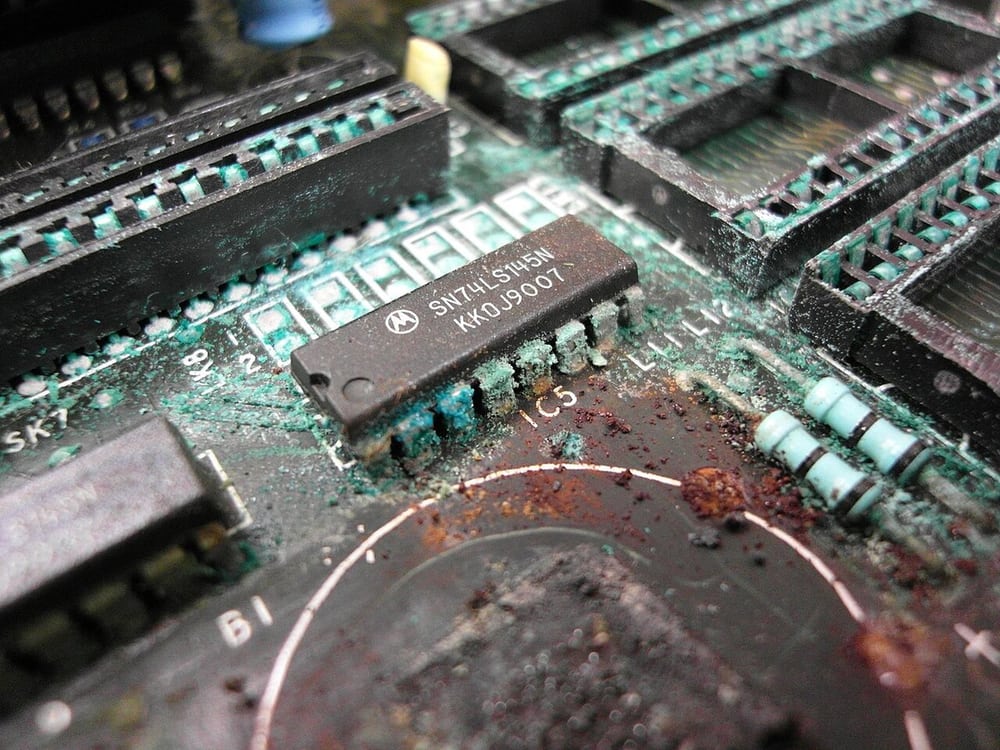

Corrosion on electronics illustrates the value of preserving physical failure evidence.

Wear, Selection and Service Cost

Contact wear, a damaged seal and a broken conductor can produce similar intermittent symptoms but need different corrections. Preserve evidence from the failed location before choosing a replacement. The lowest purchase price may not be the lowest installed cost when access, labeling and replacement time are considered. A suitable configuration should balance electrical requirements, environment and serviceability, without promising a universal lifespan or eliminating every possible failure.

Tape measure illustrates dimensional datums and installation allowance.

Custom Lengths and Installation Datums

Specify where each length starts and ends: mating face, backshell exit, branch point or prepared wire end. A drawing should separate useful installed reach from service allowance. Too little length loads the connection; unnecessary loops can rub, trap dirt or occupy maintenance space. Agree dimensional tolerance with the cable and assembly process, and check a sample on the equipment when the routing is complex.

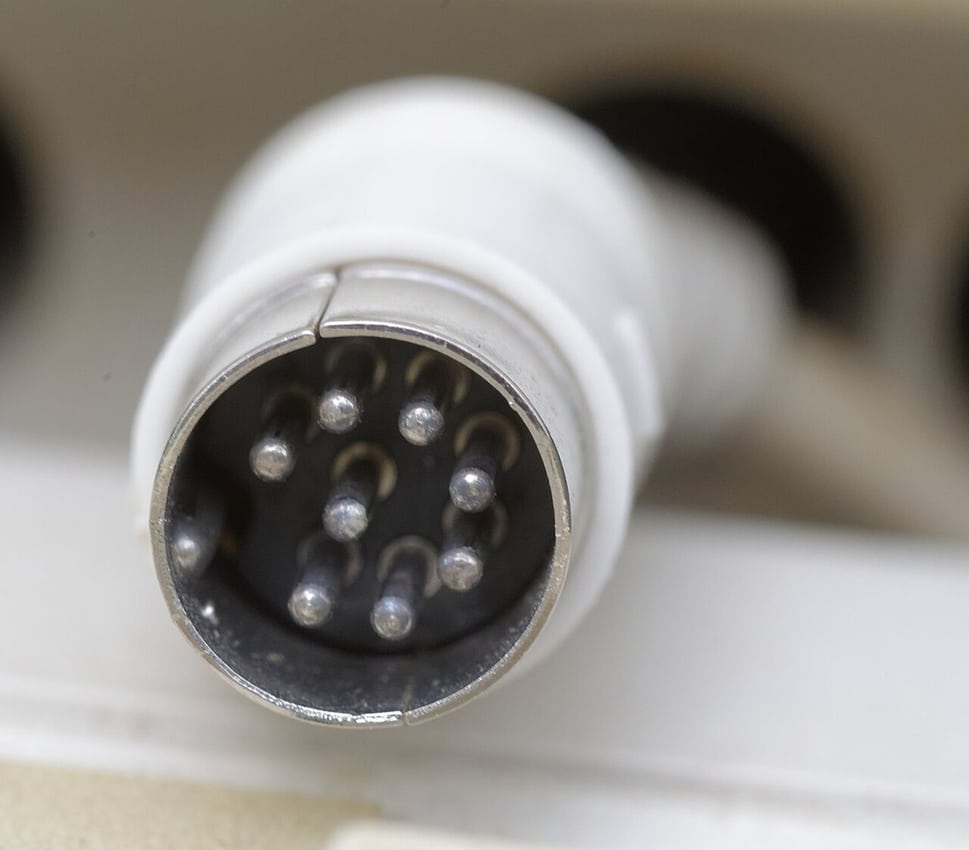

An eight-pin DIN mating face illustrates contact-view orientation; not a Binder pinout.

Wiring Layouts and Contact Views

Document the connector view, circuit name and wire identity before assembly. Front and rear views can appear mirrored, and a standard shell does not guarantee a standard device pinout. For a branch harness, record shared connections explicitly instead of relying on color alone. Final circuit testing should compare the finished assembly with the approved map, including intended unused contacts and any shield connection.

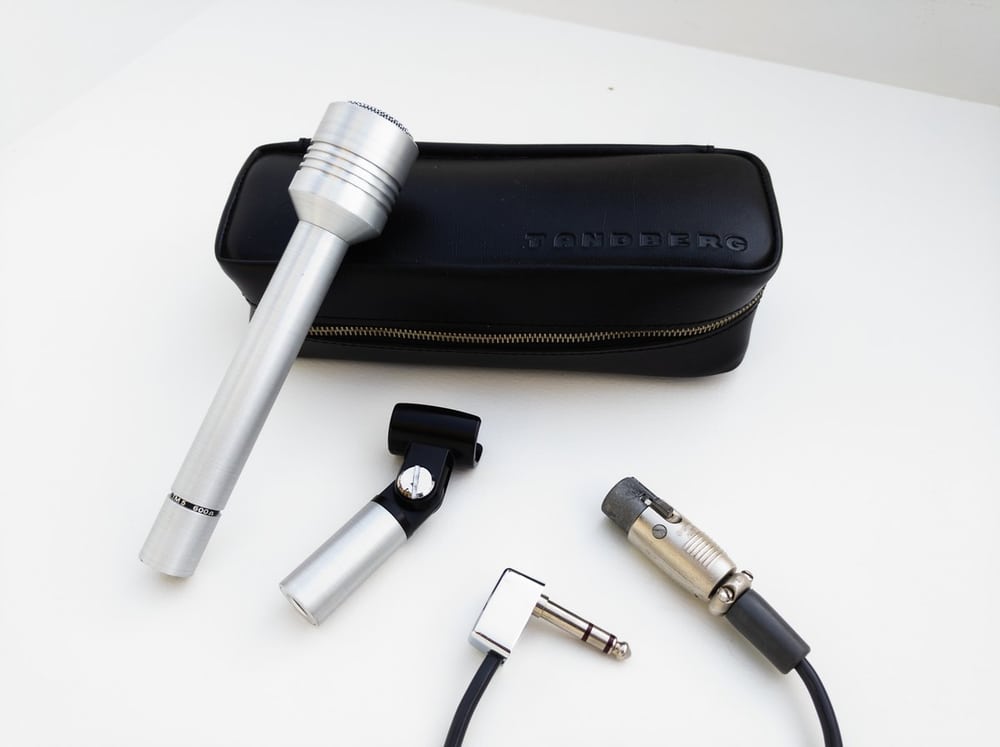

Microphone and interface accessories illustrate different connection forms in one system.

Mixed Interfaces in One Assembly

A Binder-interface lead can transition to a terminal block, another circular connector or a defined equipment plug. Identify each end separately and confirm that the circuit, shielding and mechanical support remain appropriate through the transition. An adapter is not a protocol converter unless electronics are explicitly included. Mixed connectors can simplify installation, but only when the new assembly is documented and tested as one complete electrical path.

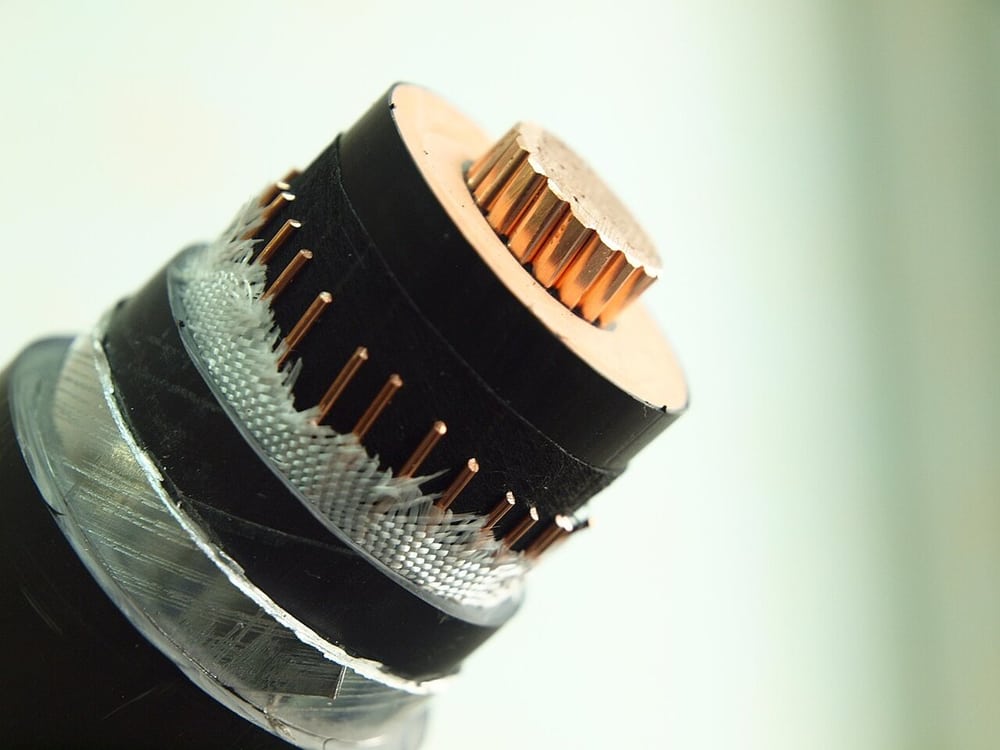

EPR-insulated cable section illustrates material layers, not a recommended small-signal cable gauge.

Jackets Matched to the Site

Describe the actual heat, cold, oil, chemicals, sunlight and movement rather than requesting a tough cable without conditions. Material performance depends on grade and exposure time. A jacket change can also alter outer diameter, stiffness and the fit of seals or clamps. Review those effects before substituting cable. The acceptance sample should reflect the intended jacket, markings and protection, not a temporary material that only resembles the production choice.

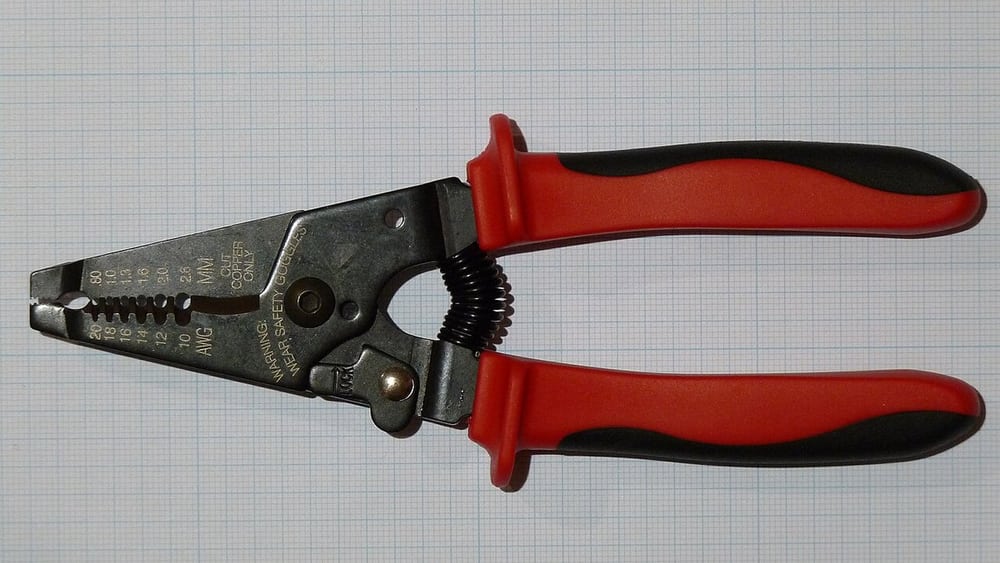

Gauged wire-stripping scissors illustrate controlled end preparation before assembly.

From Prototype to Repeat Production

Start with the mating references, circuit drawing, dimensions, quantity range and operating conditions. Engineering review resolves uncertain interfaces and material choices before sampling. After approval, release the drawing, material list and inspection plan together. Lead time depends on confirmed parts, tooling and checks, so it is quoted for the project rather than promised universally. Any approved substitution should be recorded before the next batch is built.

Engineering and Purchasing Questions

Are all M12 connectors interchangeable?

No. Coding, contact count, gender, termination and circuit assignment must match. Physical diameter alone cannot define a compatible interface.

Does Binder mean an office cable clip?

Here Binder refers to connector-interface families. Cable clamps and routing supports are separate components chosen for the equipment, not office binder clips.

Can you supply an original-brand build or an alternative?

The project review and quotation identify the approved source. Original components and alternatives are listed separately; this page does not claim Binder authorization.

Is the assembly protected when unplugged?

That depends on the exact plug, receptacle and cap configuration. The drawing must define mated and unmated conditions separately.

What is needed for a custom harness?

Provide the mating references or samples, circuit map, length datums, cable requirements, quantity and operating conditions. Unclear interfaces are resolved before sample production.

How is a failed connection evaluated?

Record where and when it occurs, retain the failed sample and compare wiring, contact seating, support and exposure with the approved specification. Replacement should address the cause, not only the visible symptom.

Photo Sources and Context

Hirschmann Octopus 8M и 24M.jpgMixabest · CC BY-SA 3.0
Senix ToughSonic 50 Rear Mount Ultrasonic Sensor.jpgBpducharme · CC BY-SA 4.0
Eks Medienkonverter2 Industrial Ethernet Switch.jpgeks Engel GmbH & Co. KG · CC BY-SA 3.0 de
Inductive Proximity Switch.jpgIP83 · CC BY-SA 3.0
Inductive proximity sensor.jpgEkbsensor · CC BY-SA 4.0
Siemens ESM TP80.JPGMixabest · Public domain
LabVolt Digital Servo motor with rail and controller.jpgArr4 · CC BY 3.0
Tuchel connectors.jpgBastler · CC BY-SA 3.0
Hand crimp tool MH-17 closing.jpg魔私利戸 · CC BY-SA 3.0
Cable Identifier measurement system.jpgPowerfox · CC BY-SA 4.0
Disinfectant wipes.jpgMrBeastRapper · CC BY-SA 4.0
Volcano sensor (Mount Ontake).JPGAlpsdake · CC BY-SA 4.0
CopperTapeShieldedCable.jpgNova ryan · CC BY-SA 4.0
Presse-etoupe.jpg1-1111 · Public domain
Distorted O-ring (4680308128).jpgDwight Sipler from Stow, MA, USA · CC BY 2.0
Electrolytic nickel section.jpgHi-Res Images of Chemical Elements · CC BY 3.0
WATER IN A CONTINUOUS SPRAY IS USED ALONG THE FACE OF THE LONG WALL WHEN THE COAL MACHINE IS IN OPERATION TO CUT DOWN... - NARA - 556361.jpgJack Corn · Public domain
Metalsub umbilical torch top connector detail.jpgNick Birse · CC BY-SA 4.0
QTR Sensor with Pin adapter.jpgSkwon9642 · CC BY-SA 4.0
A medical ultrasound linear array probe, scan head, transducer.jpgHarrison Keely · CC BY 4.0
FANUC Robot Assembly Demo.jpgSteve Jurvetson · CC BY 2.0
NNHS solar array inverters.agr.jpgArnoldReinhold · CC BY-SA 4.0
Haga Industrial Park Management Center station in heavy rain.jpgMiyuki Meinaka · CC BY-SA 4.0
Digital Multimeter Aka.jpgAndré Karwath aka Aka · CC BY-SA 2.5
Hirschmann ST-series mated and secured.jpgPhiarc · CC BY-SA 4.0
PCB corrosion.jpgBinarysequence · CC BY-SA 3.0
Measuring-tape.jpgEvan-Amos · Public domain
Eight-pin DIN connector.jpgJud McCranie · CC BY-SA 4.0
Tandberg Microphone 5 (TM 5) and accessories.pngGutten på Hemsen · CC BY 4.0
Cable with ethylene propylene insulation.jpgХолдинг "Кабельный альянс" · CC BY-SA 4.0
Gauged wire stripping scissors.JPGDmitry G · CC BY-SA 3.0
Third-party reference photographs illustrate construction, materials or applications, not company products, approved installations, test results or brand authorization. Images are resized, display-cropped and tonally adjusted; adaptations retain the applicable original share-alike license.

PART NUMBER / INTERFACE / MATERIAL

Models, Part Numbers & Sourcing

Find a cable model or material part number, then send it for a custom replacement or original-part sourcing review.

Cable & Harness Models

Binder M8 and M12-A moulded cable assemblies.

Binder
77 3419 0000 50003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3420 0000 50003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 20003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3427 0000 20708-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 20003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3434 0000 20708-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 70003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 50003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 50003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3627 0000 20003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3630 0000 20003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3634 0000 20003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3834 0000 20003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 20403-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3727 0000 20908-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 20403-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3734 0000 20908-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 80003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 80003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3419 0000 50003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3420 0000 50003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 50003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3427 0000 50708-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 50003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3434 0000 50708-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 70003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 50003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 50003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3627 0000 50003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3630 0000 50003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3634 0000 50003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3834 0000 50003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 40403-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3727 0000 40908-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 40403-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3734 0000 40908-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 80203-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 80203-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3419 0000 50004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3420 0000 50004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 20003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3427 0000 20708-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 20003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3434 0000 20708-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 70004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 50004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 50004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3627 0000 20003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3630 0000 20003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3634 0000 20003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3834 0000 20003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 20403-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3727 0000 20908-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 20403-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3734 0000 20908-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 80003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 80003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3419 0000 50004-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3420 0000 50004-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 50003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3427 0000 50708-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 50003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3434 0000 50708-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 70004-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 50004-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 50004-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3627 0000 50003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3630 0000 50003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3634 0000 50003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3834 0000 50003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 40403-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3727 0000 40908-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 40403-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3734 0000 40908-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 80203-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 80203-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3419 0000 50005-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3420 0000 50005-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 20004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3427 0000 20712-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 20004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3434 0000 20712-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3434 0000 70003-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 50005-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 50005-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3627 0000 20004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3630 0000 20004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3634 0000 20004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3834 0000 20004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 20404-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3727 0000 20912-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 20404-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3734 0000 20912-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 80004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 80004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3419 0000 50005-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3420 0000 50005-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 50004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3427 0000 50712-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 50004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3434 0000 50712-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3434 0000 70003-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 50005-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 50005-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3627 0000 50004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3630 0000 50004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3634 0000 50004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3834 0000 50004-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3729 0000 40404-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3727 0000 40912-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3730 0000 40404-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3734 0000 40912-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 80204-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 80204-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3419 0000 50708-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3420 0000 50708-0200
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3429 0000 20004-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3427 0000 20712-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3430 0000 20004-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3434 0000 20712-0500
PDF datasheet
M12-A moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 50006-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 50006-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 50006-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 50006-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3608 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 20706-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3508 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 50006-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 50006-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 50006-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 50006-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3608 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 50706-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3508 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 20008-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 20008-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 20008-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 20008-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3608 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 20706-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3508 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 50008-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 50008-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 50008-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 50008-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3608 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 50706-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3508 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 20004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 20004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 20004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 20004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 20008-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 20008-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 20008-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 20008-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3608 0000 20004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 20708-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3508 0000 20004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 50004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 50004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 50004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 50004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 50008-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 50008-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 50008-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 50008-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3608 0000 50004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 50708-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3508 0000 50004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 20004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 20004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 20004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 20004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3608 0000 20004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 20708-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3508 0000 20004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 50004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 50004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 50004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 50004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3608 0000 50004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 50708-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3508 0000 50004-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 20005-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 50005-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 20005-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 50005-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3606 0000 20003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 20703-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3506 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 50005-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 50005-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 50005-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 50005-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3606 0000 50003-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 50703-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3506 0000 50003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3405 0000 20005-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3403 0000 50006-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3406 0000 20005-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3408 0000 50006-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3705 0000 20004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3703 0000 20004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3706 0000 20004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3708 0000 20004-0200
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3606 0000 20003-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing
Binder
77 3505 0000 20703-0500
PDF datasheet
M8 moulded cable assembly
Custom compatible replacements · Original-parts sourcing

Connector & Material Part Numbers

Binder circular connector components from manufacturer order tables.

Binder
99 0429 43 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 82 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 287 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1437 914 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1431 814 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0525 14 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0527 14 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1433 814 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 19 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 44 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 162 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1431 824 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0525 24 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1433 824 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 58 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 10 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 82 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 287 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1436 914 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1432 814 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0524 14 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0528 14 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1434 814 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 19 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 92 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 162 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1432 824 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0524 24 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1434 824 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 58 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 57 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 282 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 287 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1487 914 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1439 814 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0525 12 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0527 12 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0529 14 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 19 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 69 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 162 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1439 824 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0525 52 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0529 24 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 58 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 30 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 282 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 287 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1486 914 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1438 814 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0524 12 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0528 12 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0530 14 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 19 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 292 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 286 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1438 824 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0524 52 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0530 24 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 58 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 43 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 82 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0487 287 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1491 914 12
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1489 814 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0537 14 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0529 12 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 44 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 286 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1489 824 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0537 24 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0529 52 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 57 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 82 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0486 287 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1492 914 12
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1488 814 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0536 14 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0530 12 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 92 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1488 824 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0536 24 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0530 52 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 57 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 282 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 186 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1429 814 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1489 812 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0537 12 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 69 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 286 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1429 824 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0537 52 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 10 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 282 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 186 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1430 814 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1488 812 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0536 12 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 292 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1430 824 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0536 52 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 07 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0487 282 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 186 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1429 812 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1429 991 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1525 814 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 92 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1429 822 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1525 824 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 57 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0486 282 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 186 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1430 812 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1430 991 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1526 814 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 27 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1430 822 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1526 824 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 158 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 684 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0487 186 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1437 814 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1429 992 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1525 812 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 292 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1437 824 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1525 822 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 07 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 684 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0486 186 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1436 814 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1430 992 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1526 812 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 161 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1436 824 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1526 822 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 314 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 684 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 142 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1437 812 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1437 991 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1537 814 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 92 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1437 822 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1537 824 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 158 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 684 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 142 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1436 812 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1436 991 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1538 814 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 324 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1436 822 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1538 824 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 14 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 142 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1487 814 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1437 992 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1537 812 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 292 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1487 822 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1537 822 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 314 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0436 142 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1486 814 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1436 992 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1538 812 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 24 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1486 822 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1538 822 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 12 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1487 812 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1487 992 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1527 814 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 27 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1491 822 12
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 14 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1486 812 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1486 992 08
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1528 814 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 52 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1492 822 12
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0437 14 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1491 812 12
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1539 814 05
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0429 161 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 0430 12 04
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 1492 812 12
PDF datasheet
M12-A circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3379 500 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3361 25 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3385 00 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3400 100 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3360 25 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3402 00 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3403 282 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3412 282 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3379 550 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3361 00 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3387 00 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3376 100 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3360 00 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3378 00 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3391 282 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3390 282 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3383 500 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3363 25 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3379 110 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3400 00 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3362 25 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3400 110 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3412 280 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3383 550 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3363 00 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3383 110 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3376 00 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3362 00 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3376 110 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3390 280 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3379 00 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3361 300 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3365 00 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3400 500 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3360 300 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3364 00 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3412 281 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3383 00 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3363 300 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3367 00 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3400 550 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3362 300 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3366 00 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3390 281 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3379 100 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3361 100 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3376 500 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3360 100 03
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3383 100 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing
Binder
99 3363 100 04
PDF datasheet
M8 circular connector component
Custom compatible replacements · Original-parts sourcing

Six Decisions Behind the Part Number

01 Exact Series

Confirm the Binder series, coding, contact sex and mating number.

02 Termination Method

Distinguish moulded cordsets, field-wireable connectors and panel components.

03 Cable Configuration

Set conductor size, pin map, shielding and length for the circuit.

04 Mounting Geometry

Check panel thickness, thread, exit direction and installation clearance.

05 Seal & Lock

Review the actual mating assembly, cable diameter and seal compression.

06 Approved Build

Keep the selected parts, assembly instructions and test requirements on one controlled specification.

Send the part number, drawing or sample to confirm the replacement configuration and sourcing plan.

Binder Compatible Cable Assemblies

Binder Cable Assemblies: Selection, Installation and Service

Binder Connector Cables: More Than One Interface

M8: Compact Sensor and Actuator Wiring

M12 A-Coding: Define the Sensor Circuit

M12 D and X: Match the Data Channel

K and L Coding: Separate AC and DC Power

Snap-In, Bayonet and ELC Families

Materials and Workmanship: Control the Interface

Industrial Connection Solutions

Medical Connections: Handling and Cleaning

Outdoor Connections: Review Every Entry Path

Cable Construction: Load, Signal and Motion

Housing Materials and Mounting

Seals: Geometry Before a Material Label

Contacts and Plating: Preserve the Approved Pair

Industrial Dust and Humidity

Unmated Protection and NCC Configurations

Industrial Automation: Sensors to Control

Medical Equipment: Define the Accessory Boundary

Robotics: Separate Bending from Torsion

Renewable Energy and Outdoor Equipment

Transportation and Rail: Installation Matters

Quality Control That Matches the Drawing

Locking Systems and Installation Loads

Wear, Selection and Service Cost

Custom Lengths and Installation Datums

Wiring Layouts and Contact Views

Mixed Interfaces in One Assembly

Jackets Matched to the Site

From Prototype to Repeat Production

77 3419 0000 50003-0200

77 3420 0000 50003-0200

77 3429 0000 20003-0200

77 3427 0000 20708-0200

77 3430 0000 20003-0200

77 3434 0000 20708-0200

77 3430 0000 70003-0200

77 3729 0000 50003-0200

77 3730 0000 50003-0200

77 3627 0000 20003-0200

77 3630 0000 20003-0200

77 3634 0000 20003-0200

77 3834 0000 20003-0200

77 3729 0000 20403-0200

77 3727 0000 20908-0200

77 3730 0000 20403-0200

77 3734 0000 20908-0200

77 3429 0000 80003-0200

77 3430 0000 80003-0200

77 3419 0000 50003-0500

77 3420 0000 50003-0500

77 3429 0000 50003-0200

77 3427 0000 50708-0200

77 3430 0000 50003-0200

77 3434 0000 50708-0200

77 3430 0000 70003-0500

77 3729 0000 50003-0500

77 3730 0000 50003-0500

77 3627 0000 50003-0200

77 3630 0000 50003-0200

77 3634 0000 50003-0200

77 3834 0000 50003-0200

77 3729 0000 40403-0200

77 3727 0000 40908-0200

77 3730 0000 40403-0200

77 3734 0000 40908-0200

77 3429 0000 80203-0200

77 3430 0000 80203-0200

77 3419 0000 50004-0200

77 3420 0000 50004-0200

77 3429 0000 20003-0500

77 3427 0000 20708-0500

77 3430 0000 20003-0500

77 3434 0000 20708-0500

77 3430 0000 70004-0200

77 3729 0000 50004-0200

77 3730 0000 50004-0200

77 3627 0000 20003-0500

77 3630 0000 20003-0500
