LVDS Cable Assembly

Overview

LVDS cable assemblies carry high-speed differential data between processors, serializers, displays, cameras and control electronics. This category covers internal display looms, panel links, shielded twisted-pair assemblies and application-specific power/control branches—not one universal screen cable.

Ask About This Product TypeFind Models & Material Part NumbersBack to Products
LVDS Cable Assembly - Cable Assemblies
01 / 15

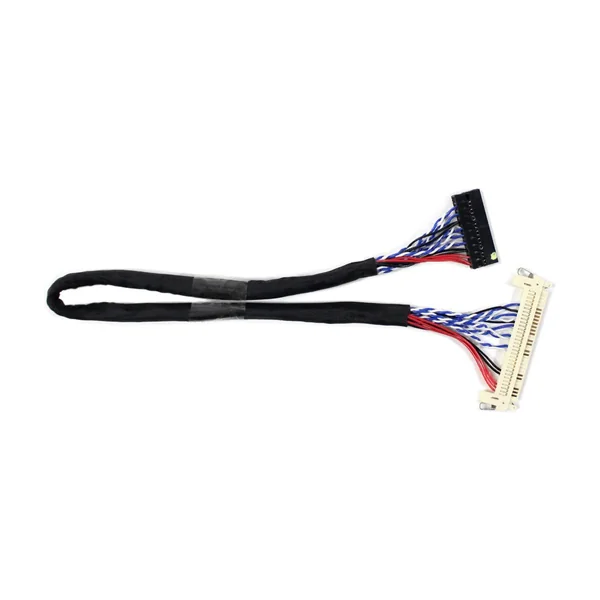

M185B1-L01 LTM185AT01 30-Pin LVDS Display Cable
01
M185B1-L01 LTM185AT01 30-Pin LVDS Display Cable

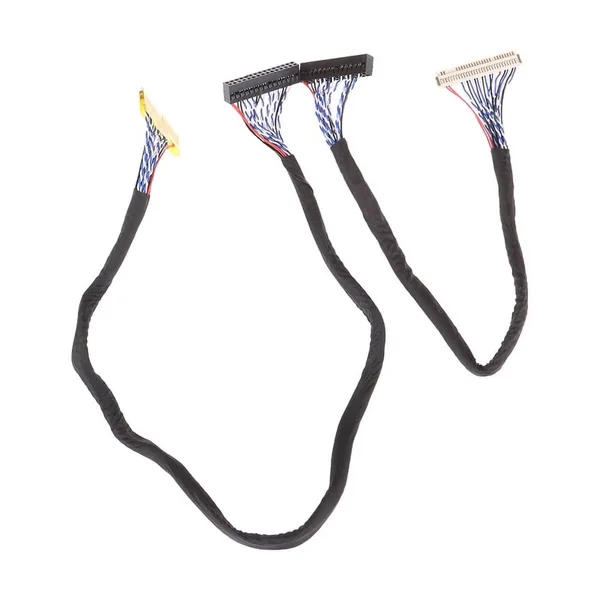

LVDS Multi-Pin Connector Branch Display Cable
02
LVDS Multi-Pin Connector Branch Display Cable

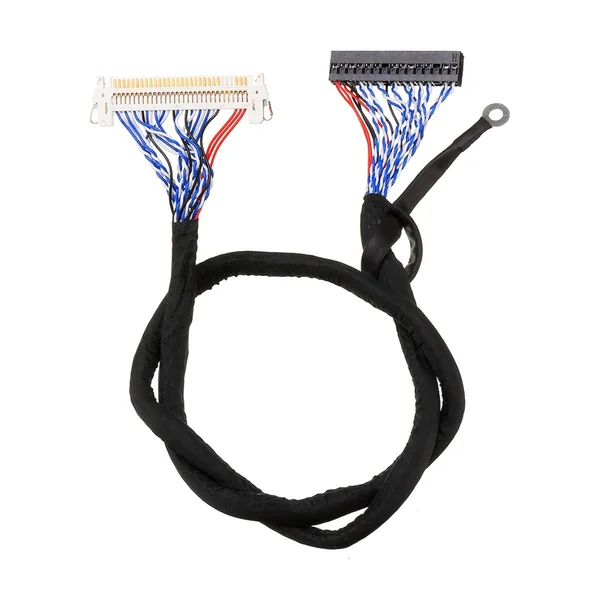

FI-X 30-Pin Dual-Channel LVDS Ground Display Cable
03
FI-X 30-Pin Dual-Channel LVDS Ground Display Cable

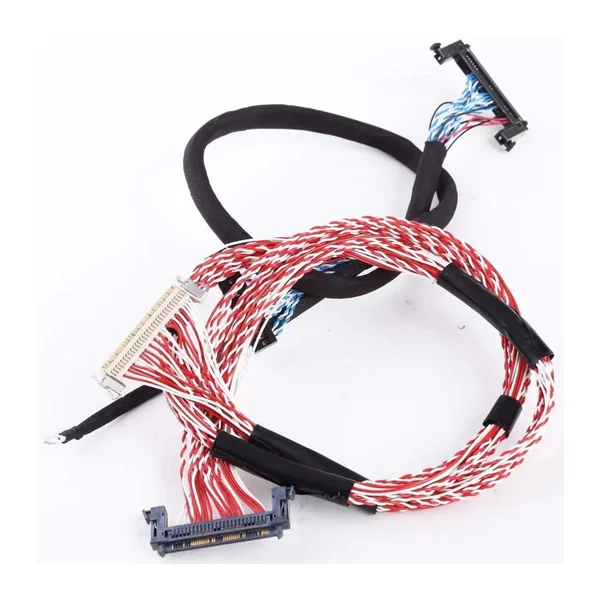

DF14-20S-1.25C to DF19-20S-1C Display Cable
04
DF14-20S-1.25C to DF19-20S-1C Display Cable

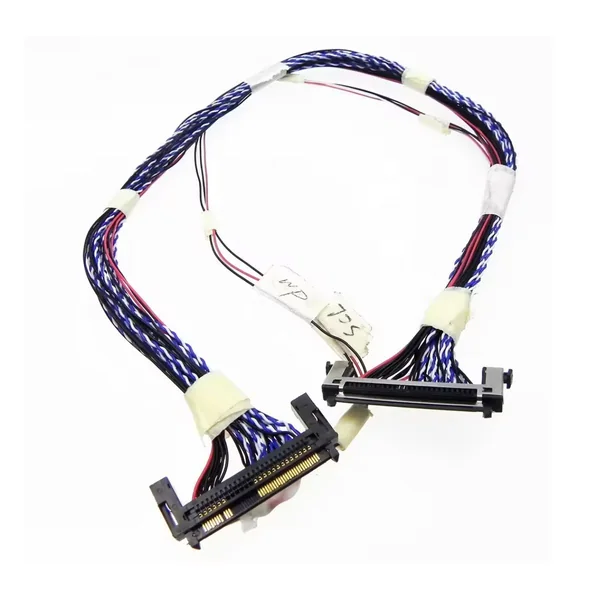

LVDS Dual Black Connectors Twisted Display Cable
05
LVDS Dual Black Connectors Twisted Display Cable

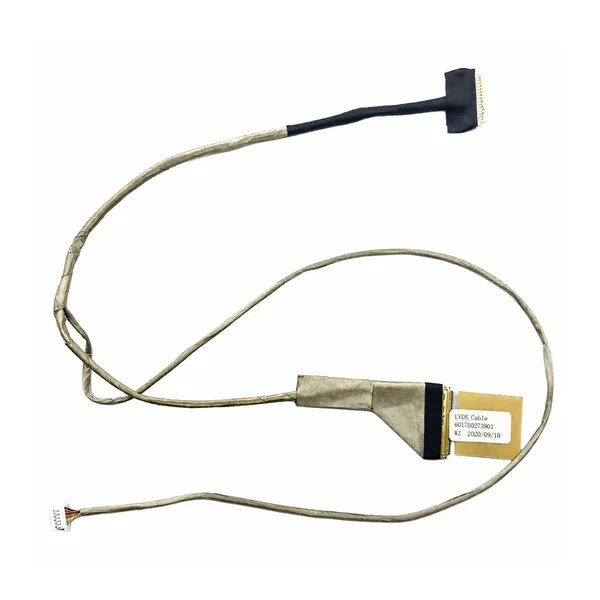

6017B0273901 Toshiba C600-C645 Display Cable
06
6017B0273901 Toshiba C600-C645 Display Cable

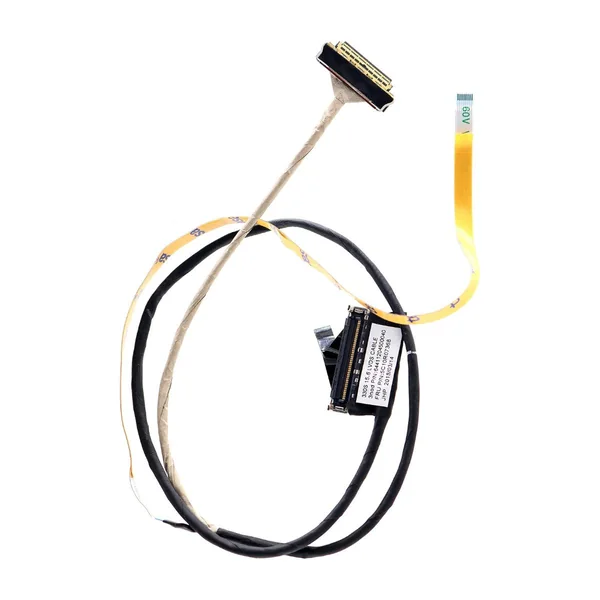

FRU LVDS Display Branch Cable
07
FRU LVDS Display Branch Cable

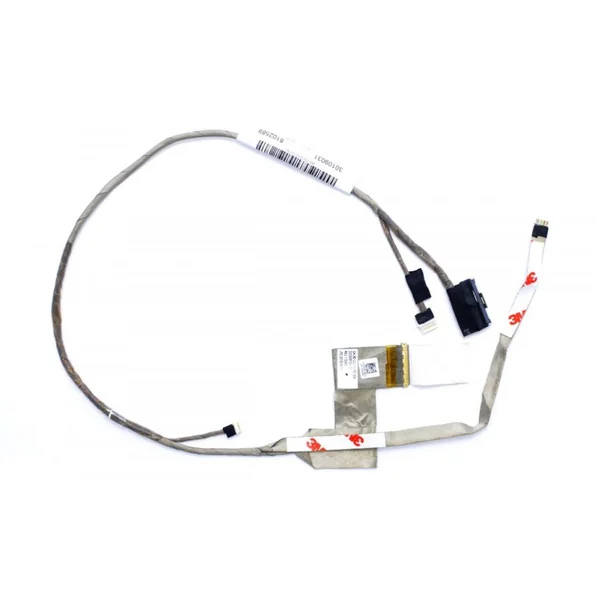

Dell Latitude E6430 LVDS Display Cable
08
Dell Latitude E6430 LVDS Display Cable

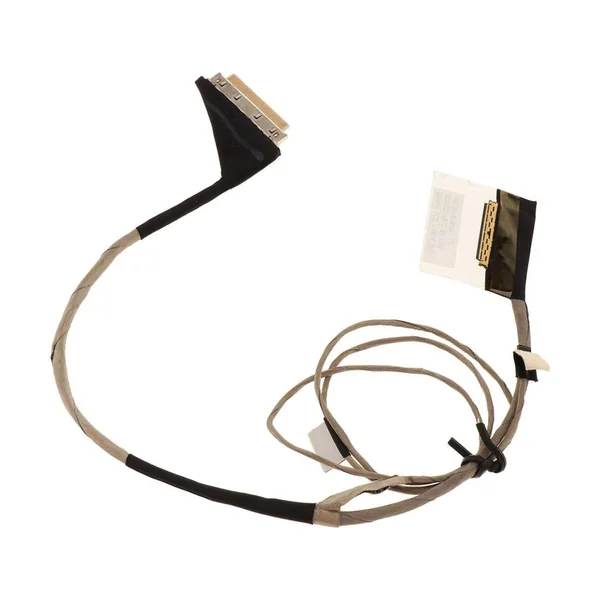

Acer V3-572 V3-532 E5-572G Display Cable
09
Acer V3-572 V3-532 E5-572G Display Cable

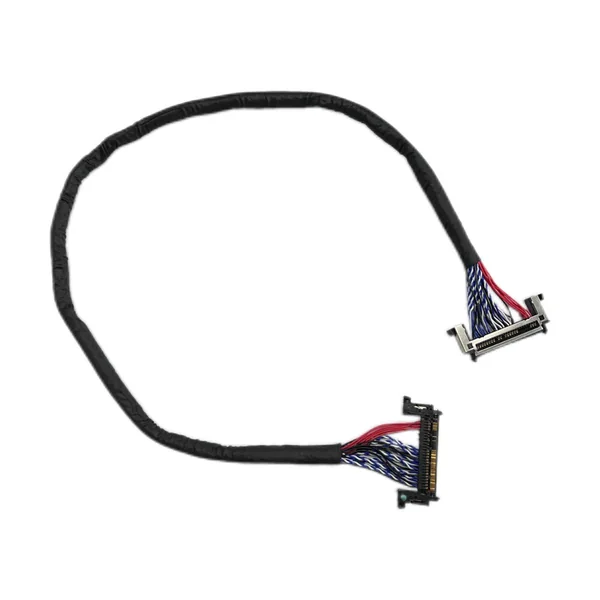

LVDS Dual Multi-Pin Connectors Jacketed Display Cable
10
LVDS Dual Multi-Pin Connectors Jacketed Display Cable

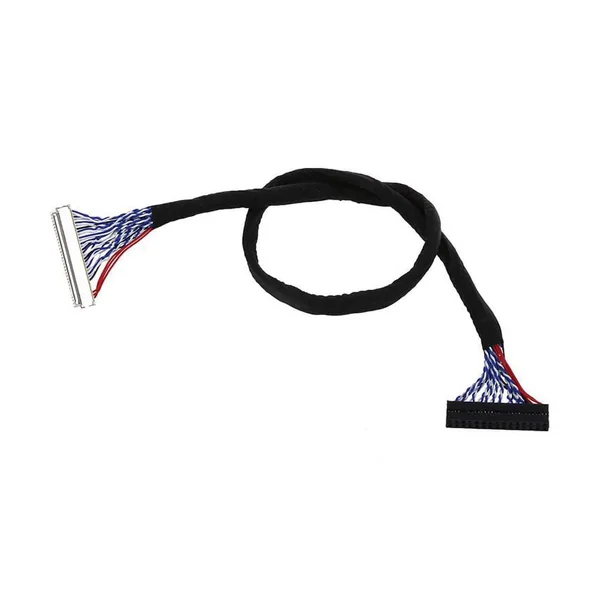

FI-X 30P S8 Dual-Channel LVDS Display Cable
11
FI-X 30P S8 Dual-Channel LVDS Display Cable

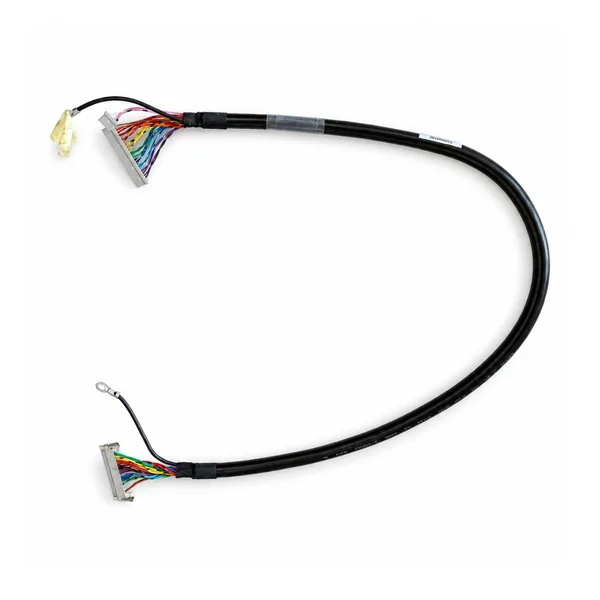

FI-X30H to DF14 with Ground LVDS Harness
12
FI-X30H to DF14 with Ground LVDS Harness

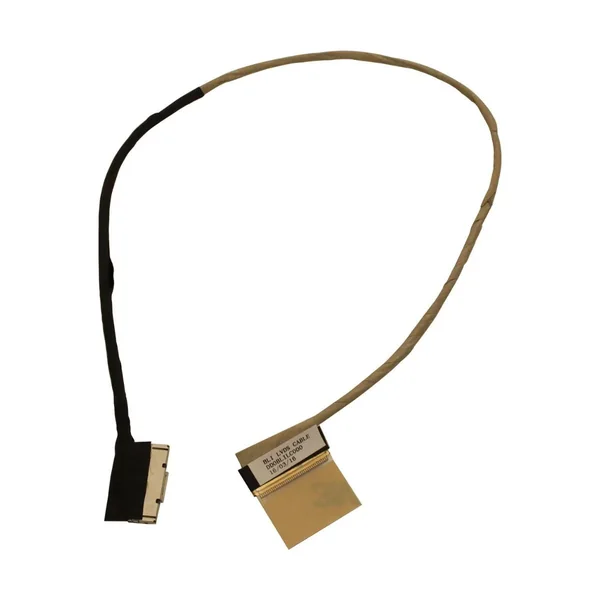

LCD Dual Flat Connectors Display Cable
13
LCD Dual Flat Connectors Display Cable

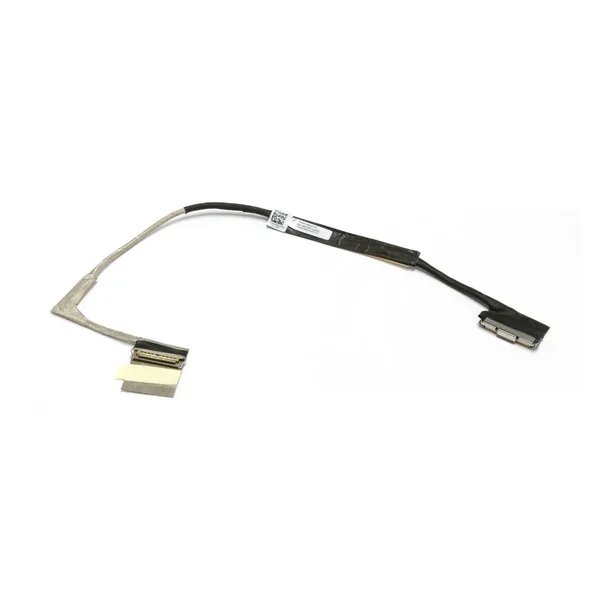

DC02002LM00 BCV10 EDP Display Cable
14
DC02002LM00 BCV10 EDP Display Cable

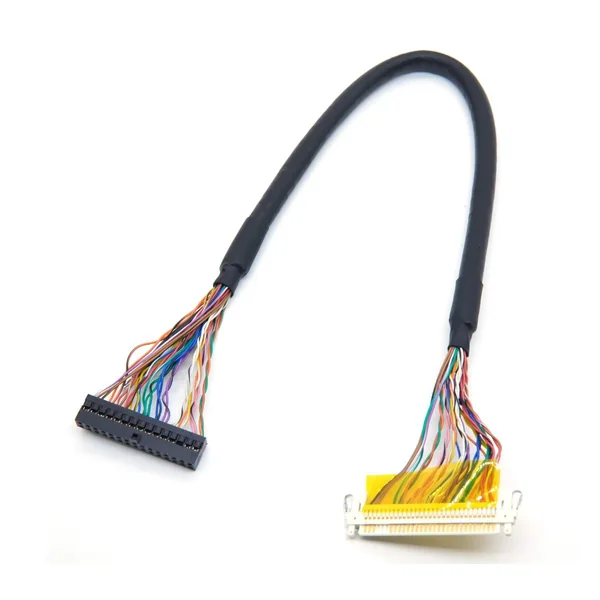

Multi-Pin Connector to Dual-Row Socket Display Cable
15
Multi-Pin Connector to Dual-Row Socket Display Cable

Design the Entire Signal Path

Pair geometry, impedance, shielding and display-system integration

A reliable LVDS assembly is a continuous high-speed path: transmitter launch, connector, cable pair, shield and receiver termination all matter. We define this path from the equipment interface outward, then design the cable construction and manufacturing controls around it.

LVDS Cable Assembly product range

    LVDS Cable Assembly Questions

    Is every display cable an LVDS cable?

    No. Displays may use LVDS, eDP, MIPI, FPD-Link, GMSL or proprietary parallel/serial interfaces. Connector appearance alone cannot identify the electrical interface.

    Can the cable be built from an old sample?

    A sample helps with connector, length and routing, but data rate, pin map, pair assignment, impedance, termination, shield grounding, power circuits and acceptance limits still require equipment data or engineering confirmation.

    Does 100-ohm cable guarantee a good LVDS link?

    No. Connector and board transitions, pair balance, length, loss, termination, stubs, grounding, crosstalk and the actual transmitter/receiver also affect the complete channel.

    Can power and backlight wires be included?

    Yes, when voltage, current, return path, sequencing, connector rating, separation and thermal conditions are defined. They are documented separately from the high-speed pairs.

    Why can a cable pass continuity but still show flicker?

    Continuity does not reveal impedance discontinuity, attenuation, skew, poor termination, intermittent contact, grounding noise or marginal timing. The agreed high-speed or functional test is needed.

    What information is needed for quotation?

    Provide both mating interfaces and drawings, equipment or chipset models, pin map, pair/lane count, data rate, target impedance, cable and branch lengths, auxiliary power/control circuits, shield/ground plan, movement and environment, quantity, labels and validation requirements.

    PART NUMBER / INTERFACE / MATERIAL

    Models, Part Numbers & Sourcing

    Find a cable model or material part number, then send it for a custom replacement or original-part sourcing review.
