Measurement Instrument Cable
PRODUCT CATEGORY · TECHNICAL CABLE产品小类 · 技术电缆

Measurement Instrument Cable测量仪器电缆

Preserve the measurand from sensor interface to instrument input从传感接口到仪器输入，保持被测量的真实性
Signal level, bandwidth, source impedance, shielding, grounding and connector compensation define the measurement path.信号电平、带宽、源阻抗、屏蔽、接地与连接器补偿共同定义测量路径。
Ask About This Product Type咨询这一类产品Find Models & Material Part NumbersBack to Products返回产品中心
01 / 12

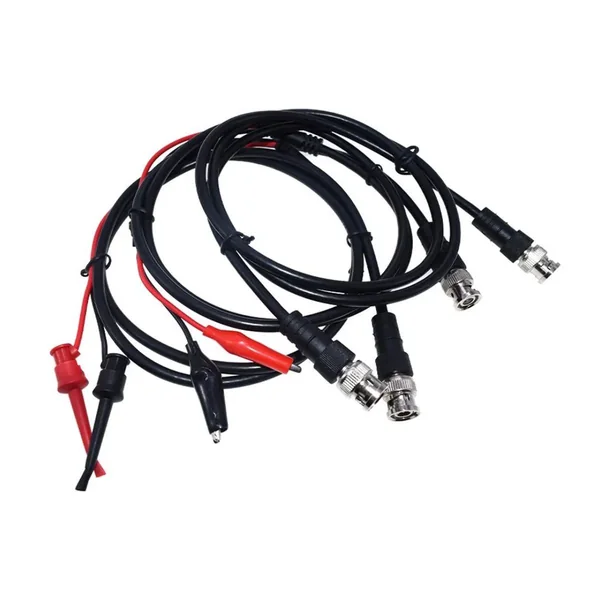

BNC to Alligator Clips & Test Hooks Cable Set
01
BNC to Alligator Clips & Test Hooks Cable Set
BNC to Alligator Clips Test Leads
02
BNC to Alligator Clips Test Leads

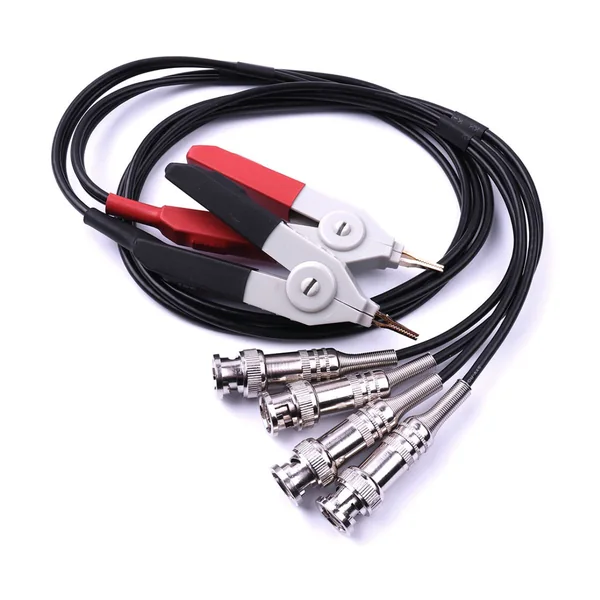

4-Way BNC Kelvin Clips Test Harness
03
4-Way BNC Kelvin Clips Test Harness

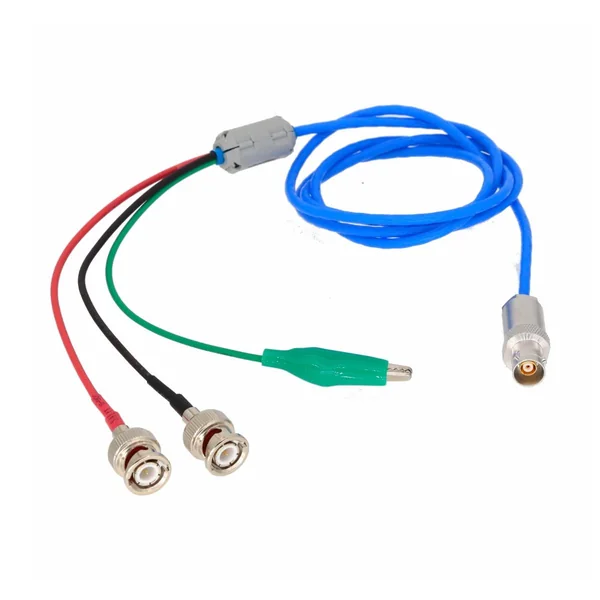

Triaxial Socket to BNC & Alligator Clips Harness
04
Triaxial Socket to BNC & Alligator Clips Harness

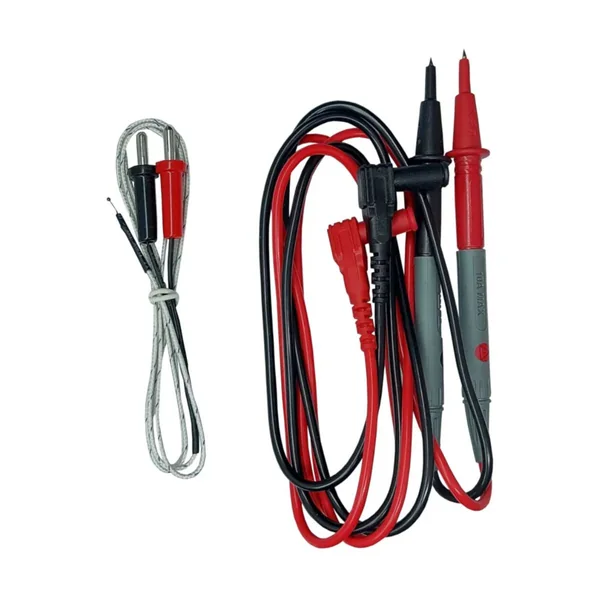

Multimeter Probe & Test Clips Cable Set
05
Multimeter Probe & Test Clips Cable Set
Thermocouple Temperature Measurement Extension Cable Set
06

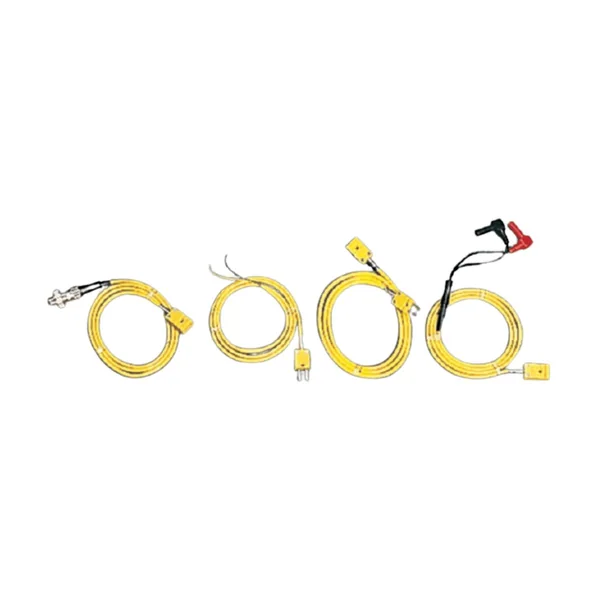

Thermocouple Temperature Measurement Extension Cable SetP03652913

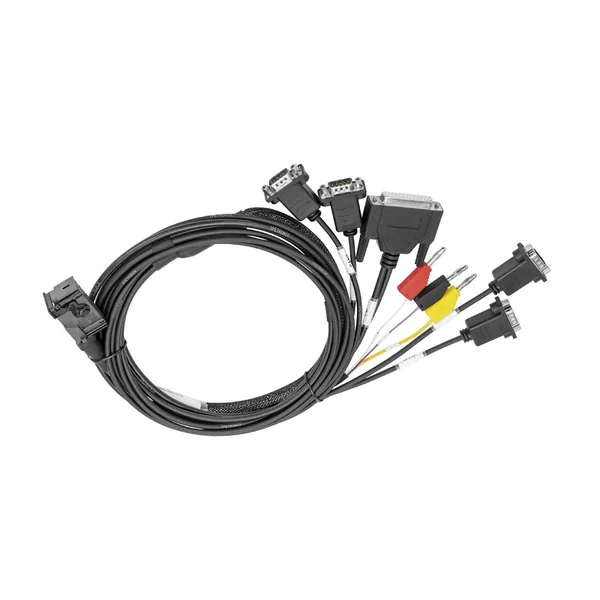

D-sub Multi-Branch Test Terminals Harness
07
D-sub Multi-Branch Test Terminals Harness
D-sub & Coaxial Connector Mixed Harness
08

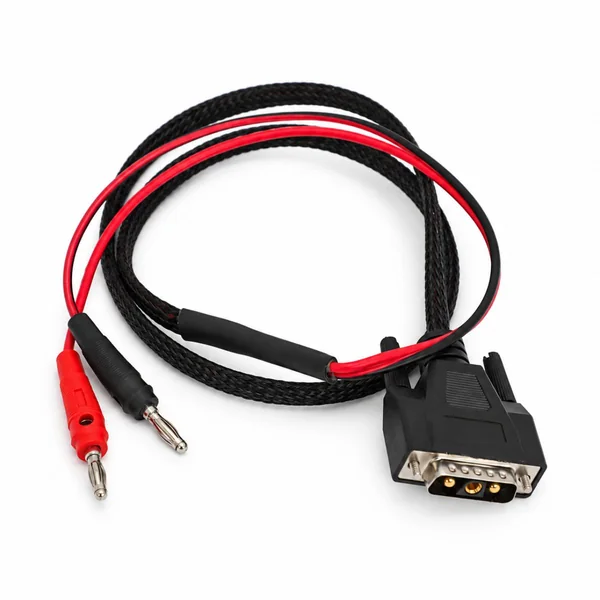

D-sub & Coaxial Connector Mixed Harness

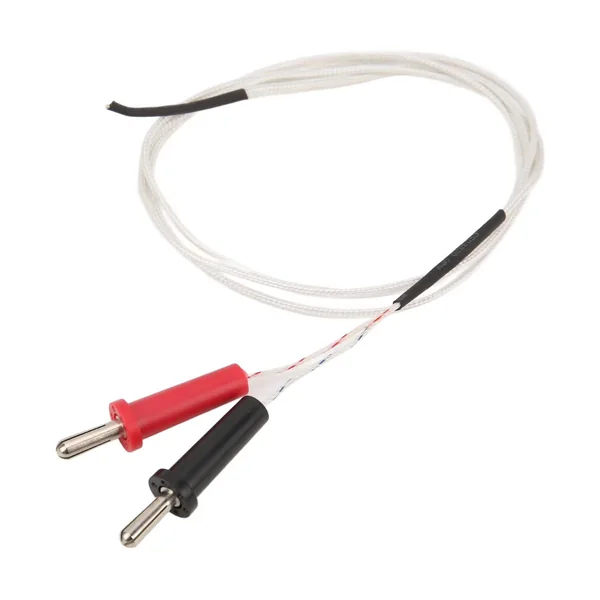

Dual-End Temperature Probe Cable
09
Dual-End Temperature Probe CableUA23

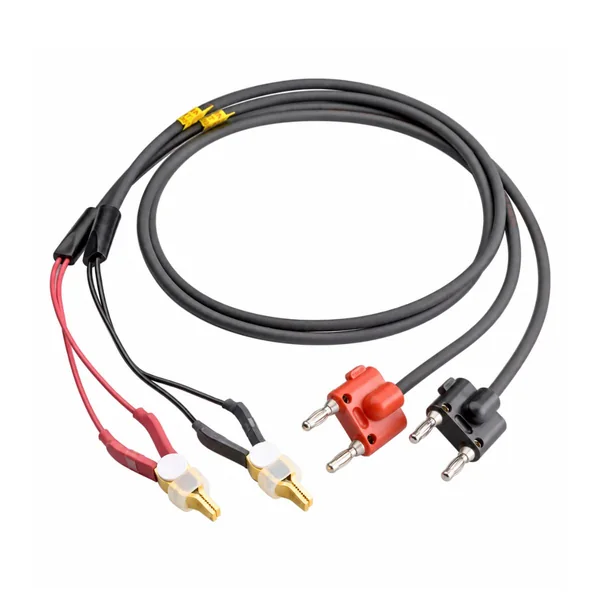

Dual-banana-plug to alligator-clip cable assembly
10
Dual-banana-plug to alligator-clip cable assembly
USB & Instrument Test Cable Set
11

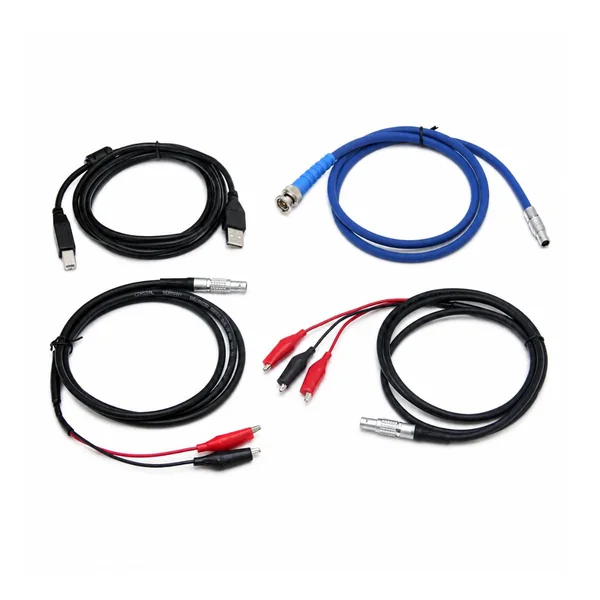

USB & Instrument Test Cable Set
Oscilloscope Probe & Measurement Cable Set
12

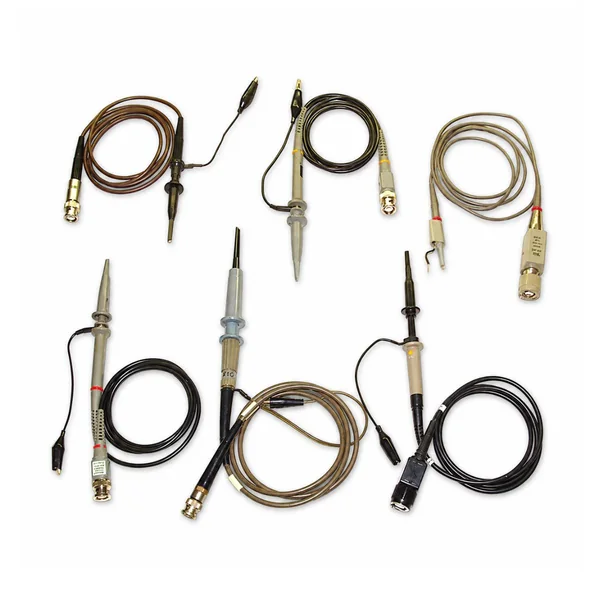

Oscilloscope Probe & Measurement Cable Set
ENGINEERING OVERVIEW工程概览

Preserve the measurand from sensor interface to instrument input从传感接口到仪器输入，保持被测量的真实性

A measurement cable is part of the measurement system. Thermocouples, RTDs, strain gauges, accelerometers, current probes, oscilloscopes, DAQ modules and precision sensors do not share one universal cable. The assembly can add resistance, capacitance, leakage, triboelectric noise, thermal EMF, attenuation or coupling, so the required uncertainty and bandwidth must be known before construction.

测量电缆属于测量系统的一部分。热电偶、RTD、应变计、加速度计、电流探头、示波器、DAQ 模块与精密传感器并不共用一种万能线缆。组件可能引入电阻、电容、泄漏、摩擦电噪声、热电势、衰减或耦合，因此必须在设计前明确不确定度与带宽要求。
