Diagnostic Adapter and Connector Series
Compact diagnostic adapters and connector references for selected scan tools and vehicle interfaces. Verify both sides, pin routing, model and intended task before purchase.

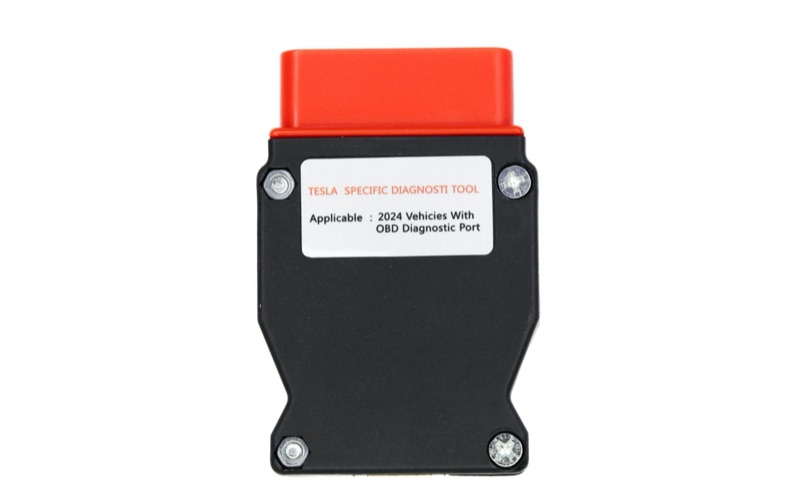

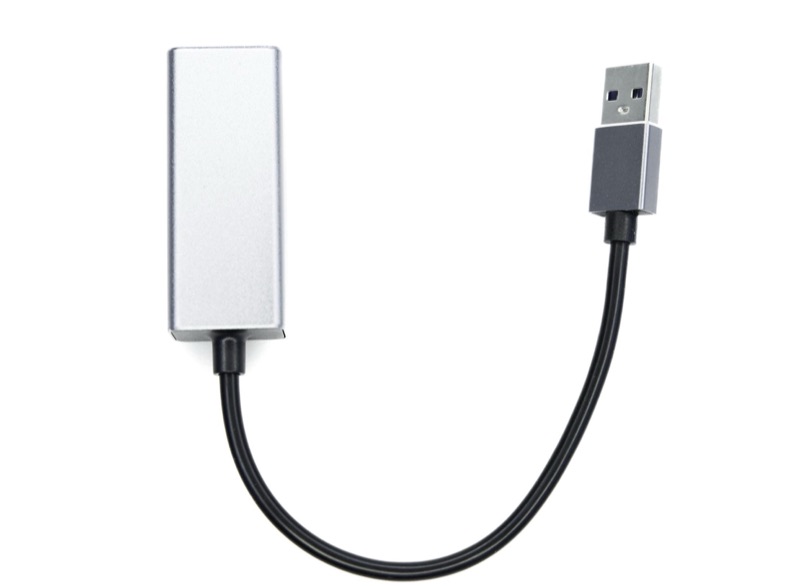

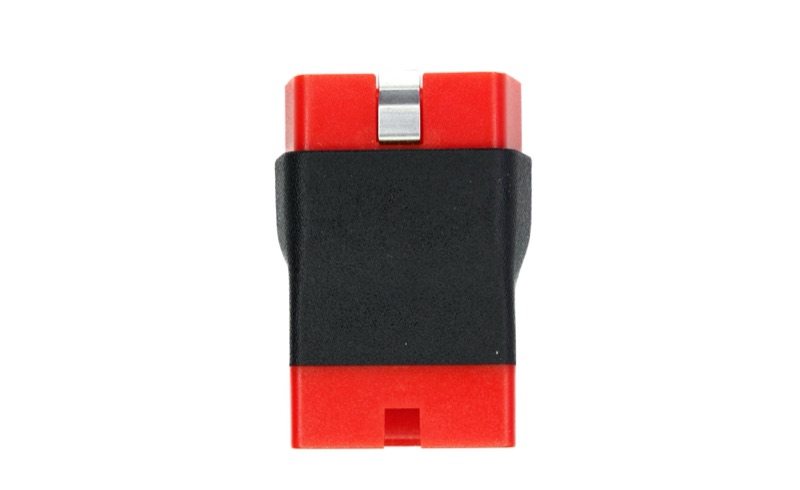

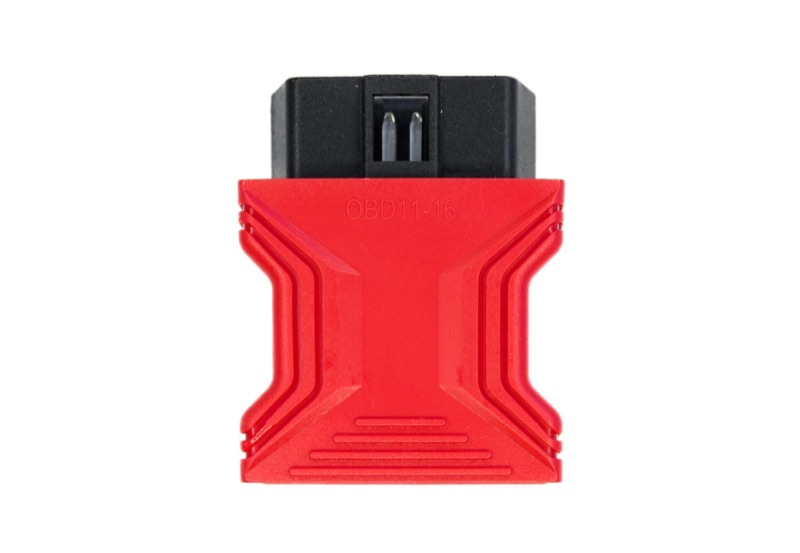

Real Products in This Series
Open an item to inspect its original product photos and available record before sending a requirement.
A Mechanical Adapter Still Has an Electrical Definition
An adapter may look simple, but orientation, keying, terminal population and internal pin routing determine whether it is correct for a tool and vehicle combination.
- 01
Tool-side interface and model
- 02
Vehicle-side interface
- 03
Connector orientation and keying
- 04
Populated terminals and pin route
- 05
Required diagnostic or service task
Adapter Identification
Similar shells may be used with different internal wiring. Product photos help identify the housing, but the exact model and pin definition remain part of the purchasing specification.
Before You Order
Can two adapters with the same outer shape be interchangeable?
Not automatically. Terminal population, pin routing, keying and tool requirements can differ even when the housing appears identical.
What photos are useful for adapter identification?
Provide both mating faces, side views showing keying and locks, labels or part numbers and the connected tool or cable when available.
Can an adapter be customized?
Connector selection and pin routing can be reviewed when both interfaces, terminal requirements, function and expected quantity are defined.
Send the Exact Model, Interface and Task
Include clear connector photos, the current product or sample, target equipment, required function and quantity range. We will review the correct product path before quoting.
