Heavy-Duty and Diesel Diagnostic Cable Series
Real 9-pin Deutsch, DB15, ECU-service, common-rail and diesel diagnostic cable references. Confirm the vehicle or engine, diagnostic tool, connector type and task for each request.
Real Products in This Series
Open an item to inspect its original product photos and available record before sending a requirement.
DTS 9-Pin Deutsch OBD2 ECU Flashing Cable

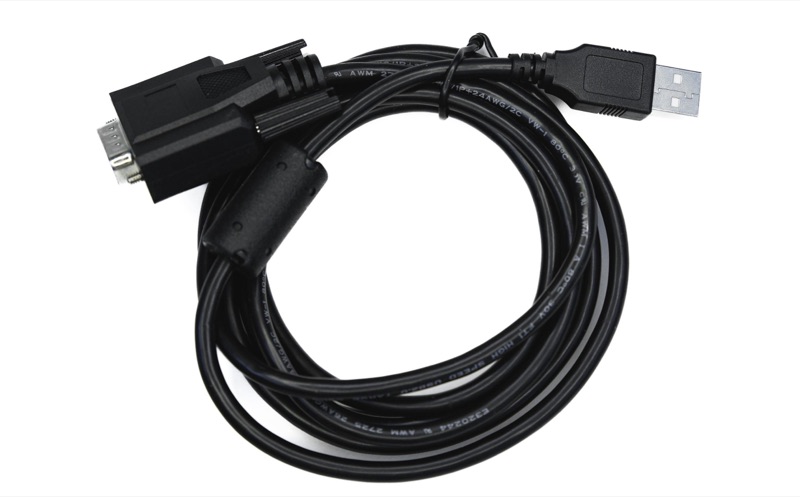

DTS 9-Pin Deutsch Main ECU Flashing Cable

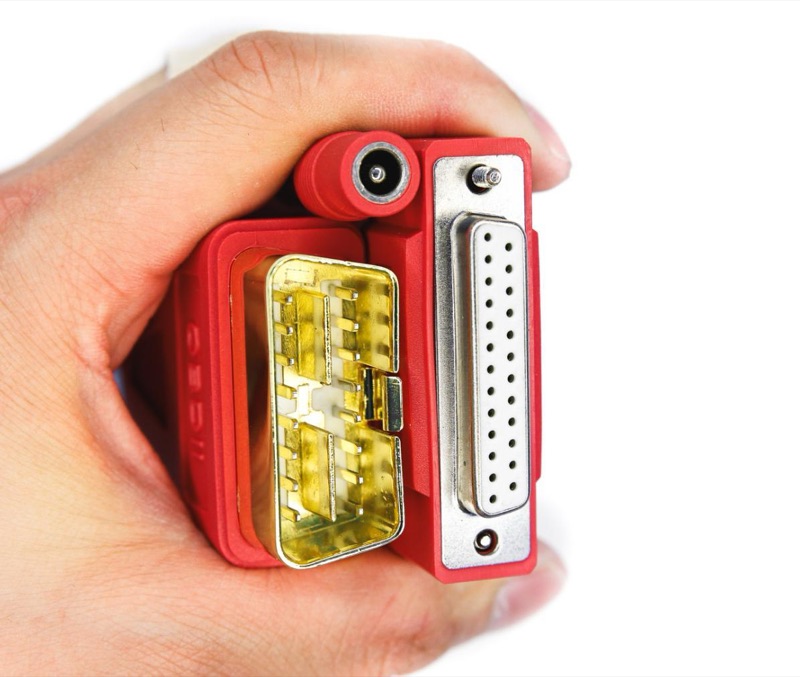

DTS Metal Shell 9-Pin Deutsch to OBD2 DB15 Cable

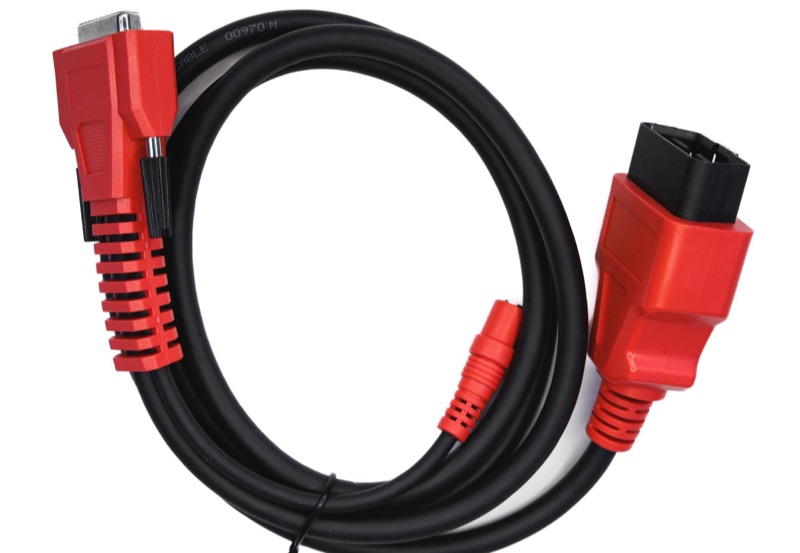

DTS 3-Row DB15 to OBD2 16 Pin Main Test Cable Adapter

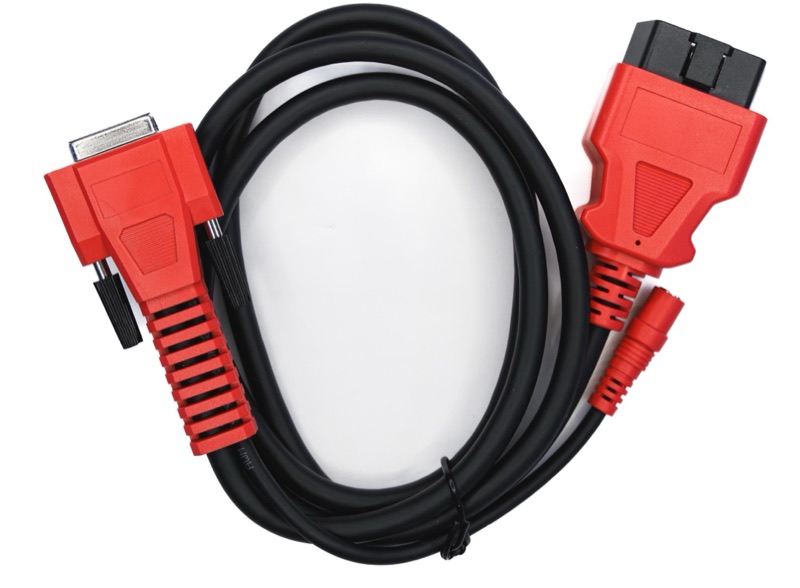

DTS 2-Row DB15 to OBD2 16 Pin Main Test Cable Adapter

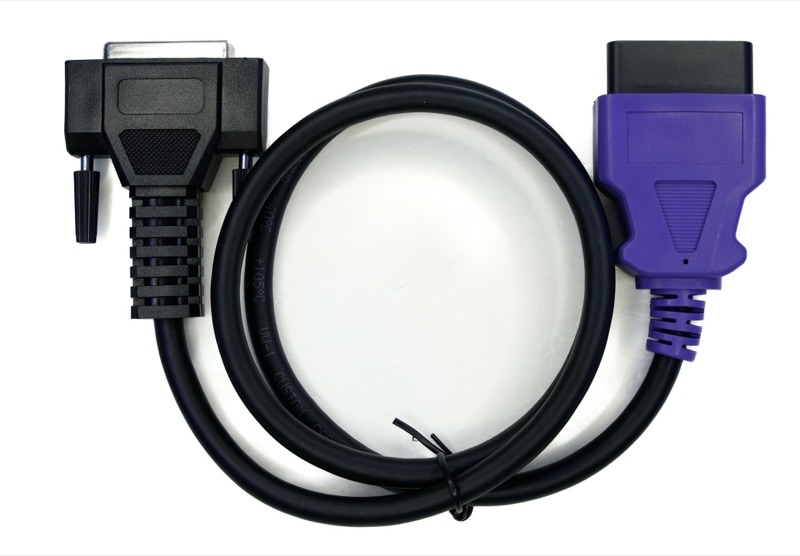

Cummins Insite

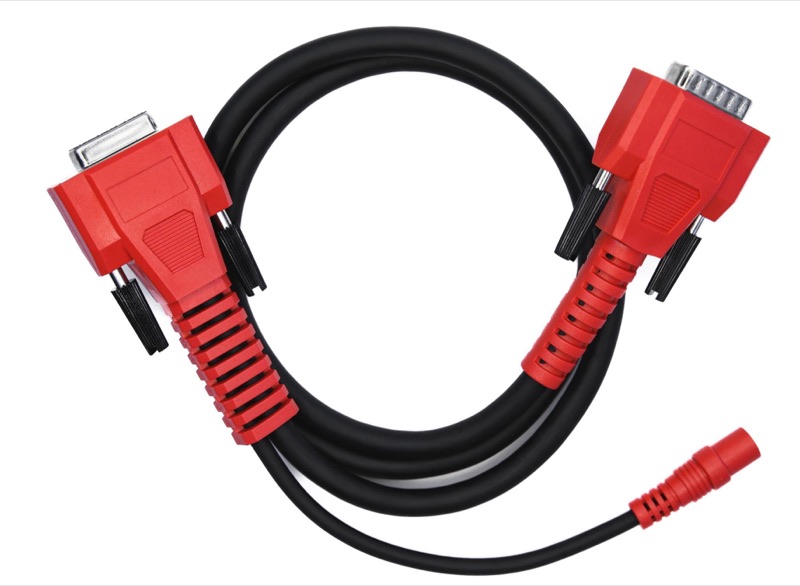

Common Rail Diagnostic Master Cable

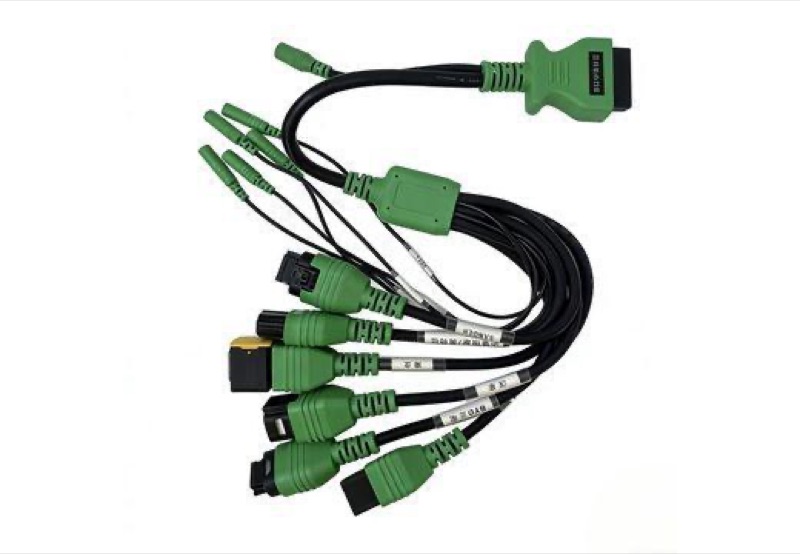

6 in 1 EV AC Compressor Diagnostic Harness for

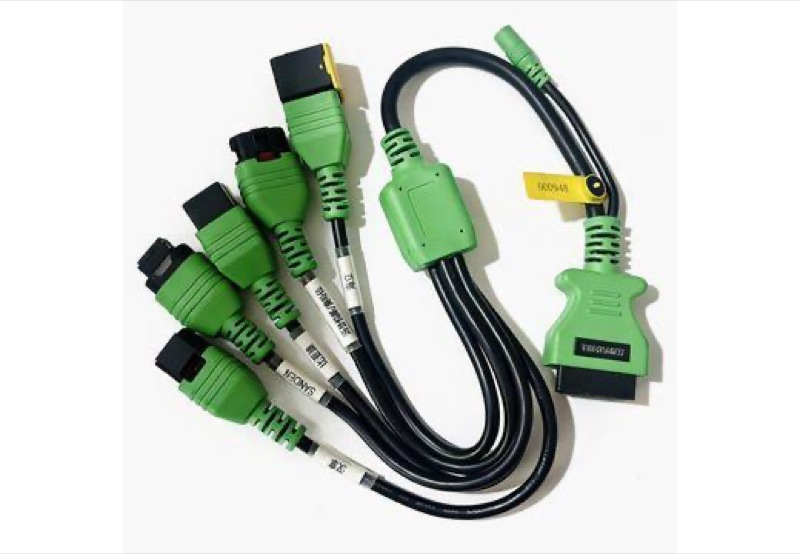

1-to-5 Multi-Output

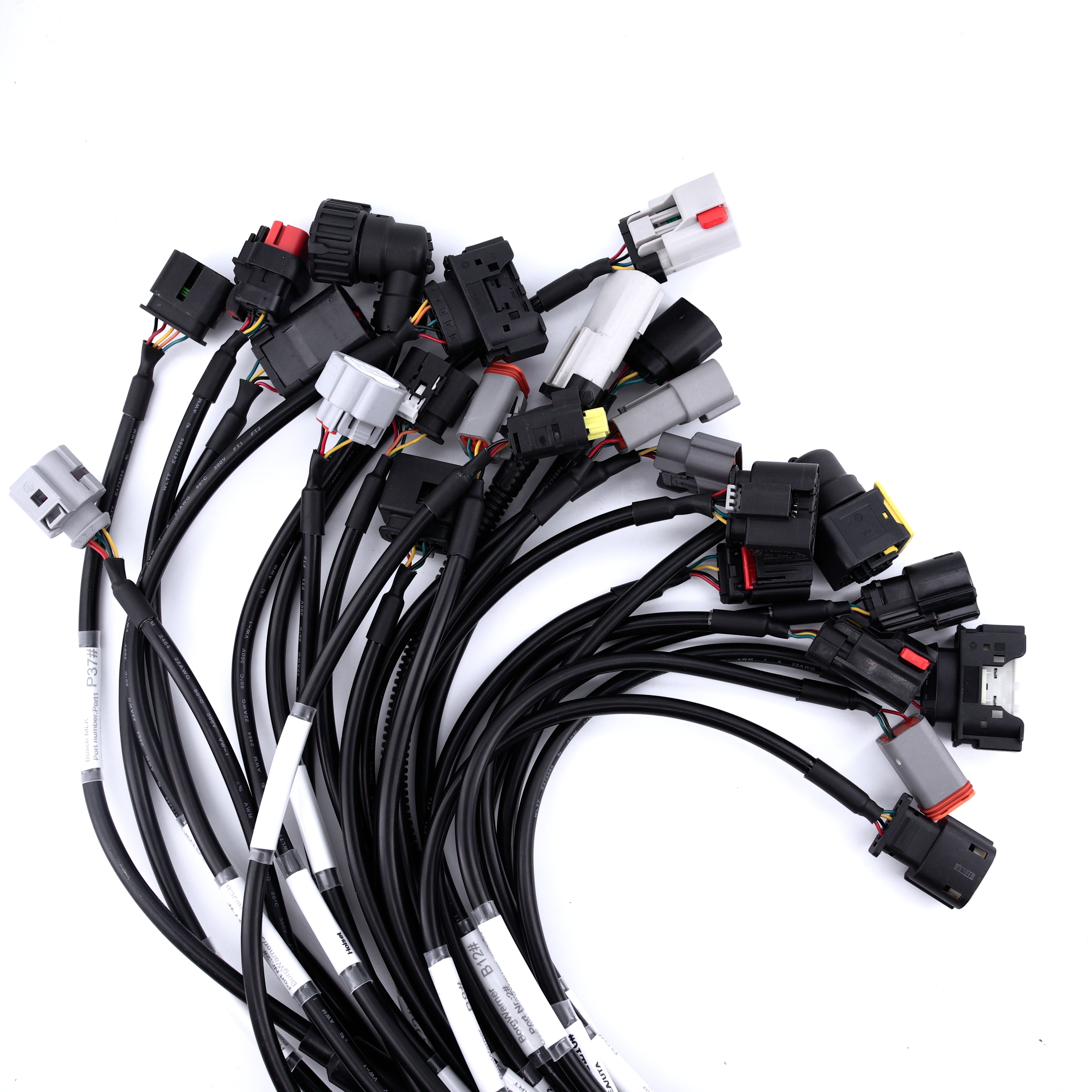

Diesel Engine Harness
Separate Vehicle Interface, Tool Interface and Service Function
Heavy-duty diagnostic requests may involve 9-pin Deutsch connectors, DB15 tool interfaces, ECU programming routes or engine-specific service leads. One label such as J1939 does not define the complete cable.
- 01
Truck, engine or equipment reference
- 02
Diagnostic or programming tool
- 03
Deutsch color/keying or other interface
- 04
Pin map and intended service function
- 05
Existing cable, label or part reference
Protocol and Function Boundary
A cable should only be described for diagnostics, programming or flashing when that exact equipment path and use have been verified. Mechanical connection alone is insufficient.
Before You Order
Are all 9-pin Deutsch diagnostic connectors wired the same?
No. Connector color, keying, generation, equipment requirements and pin allocation can differ. The exact interface must be identified.
Is an ECU flashing cable a general diagnostic cable?
Not necessarily. Flashing depends on the target ECU, tool, power and communication path and the operating procedure. The verified task should be named precisely.
What should be sent for a replacement diesel diagnostic cable?
Provide the engine or equipment, diagnostic tool, both connector views, current cable label or sample, intended task and required length.
Send the Exact Model, Interface and Task
Include clear connector photos, the current product or sample, target equipment, required function and quantity range. We will review the correct product path before quoting.
