OBD2 and Universal Diagnostic Cable Series
Browse real OBD2 extension, splitter, breakout, scanner-main and service-tool cable products. Mechanical fit, pin assignment, tool model and intended function must be verified together.
Real Products in This Series
Open an item to inspect its original product photos and available record before sending a requirement.
OBD2 16Pin Female to USB Power Cable

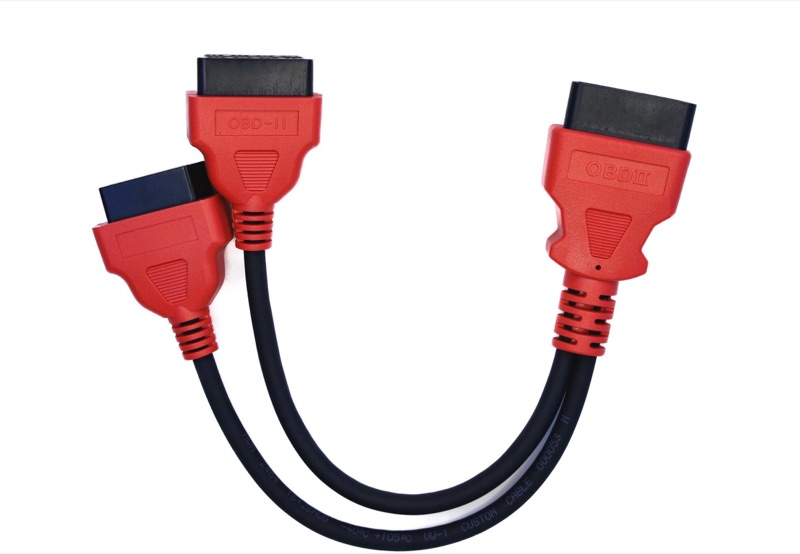

OBD2 1 to 2 Y Splitter 16Pin Extension

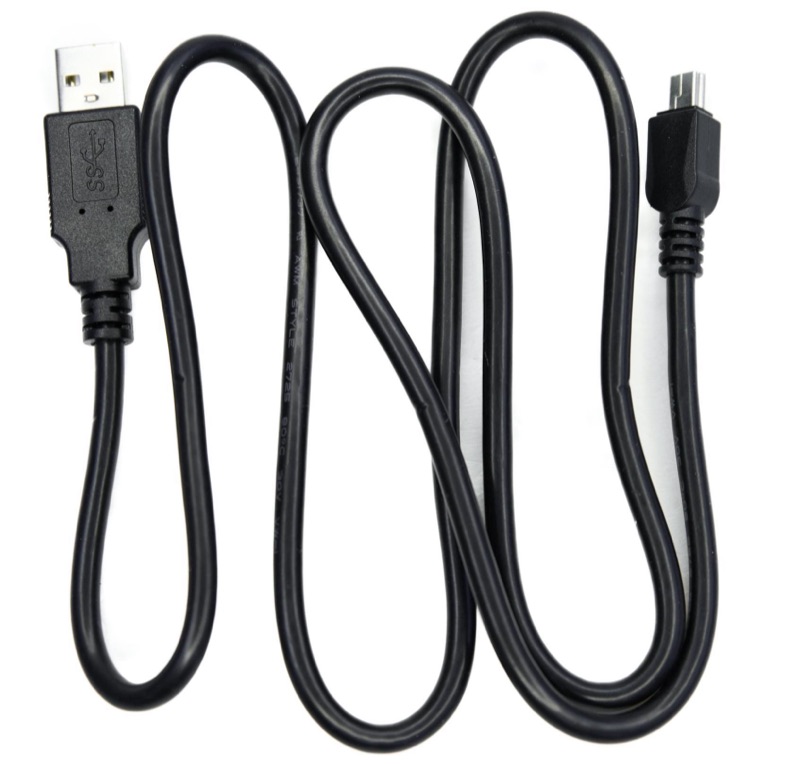

USB to Mini USB Data Cable

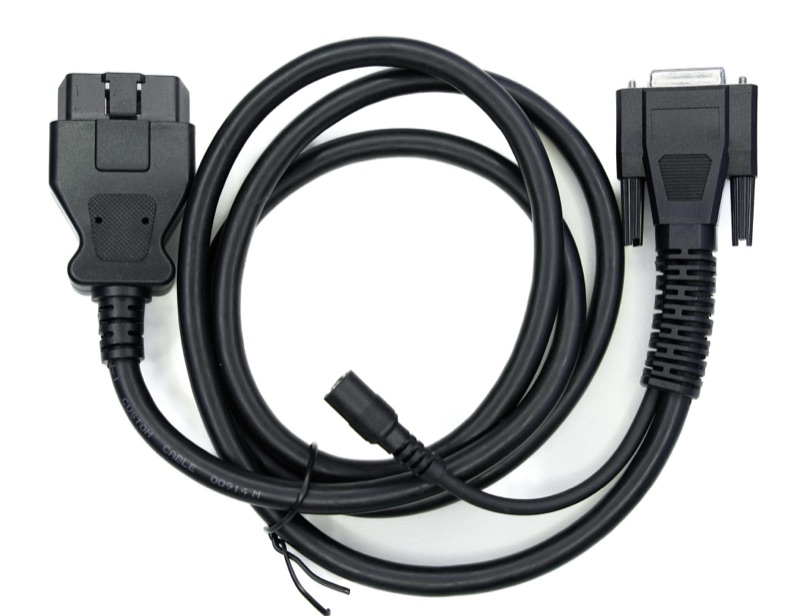

FCAR 3-Row Main

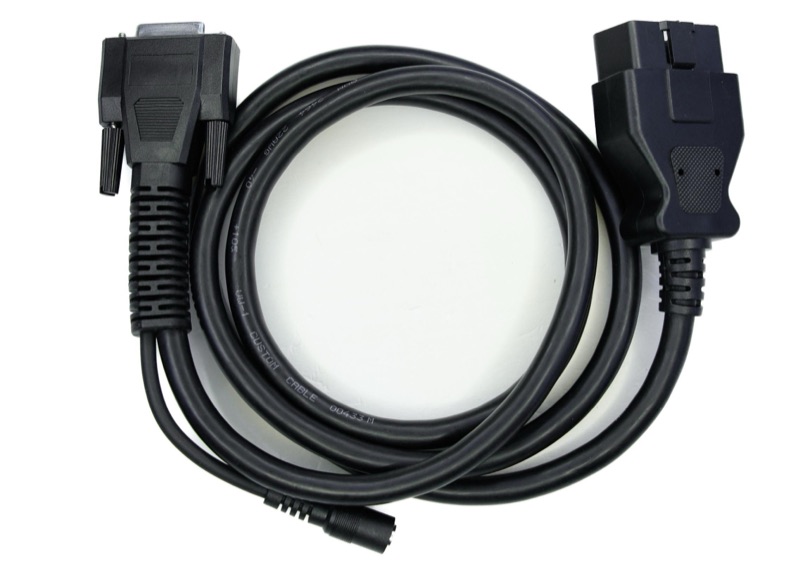

FCAR 2-Row Main

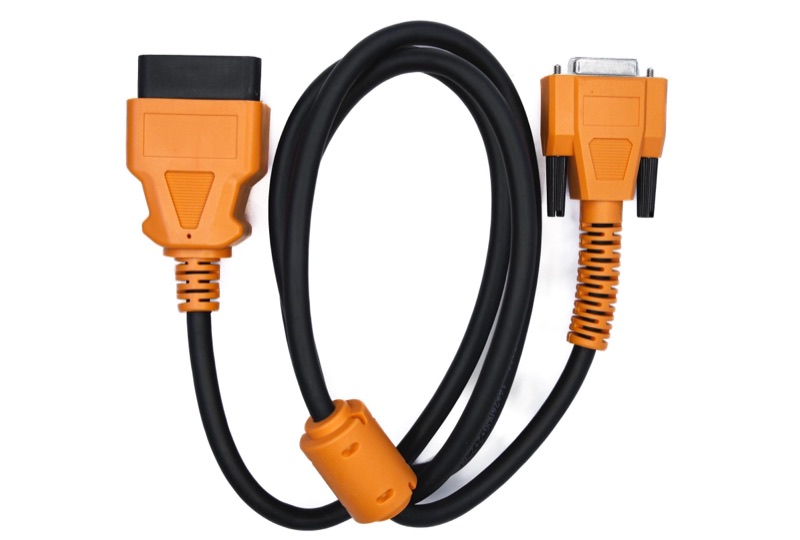

Anche OBD2 Harness

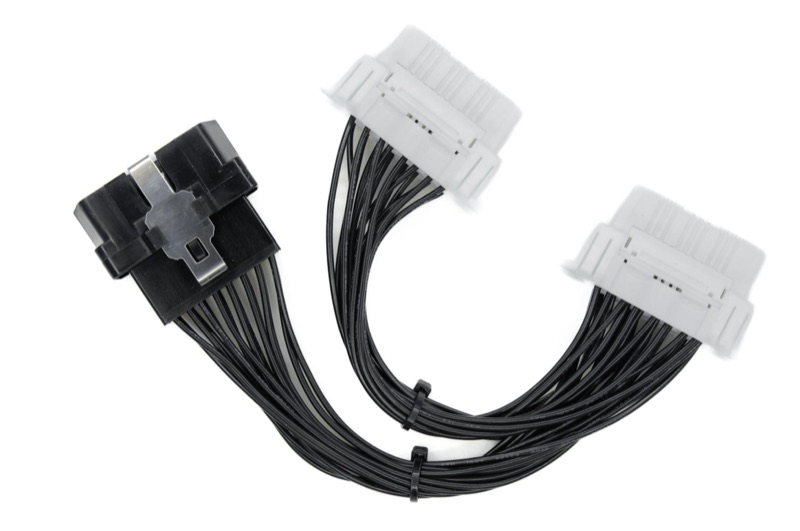

Connector 1-to-2

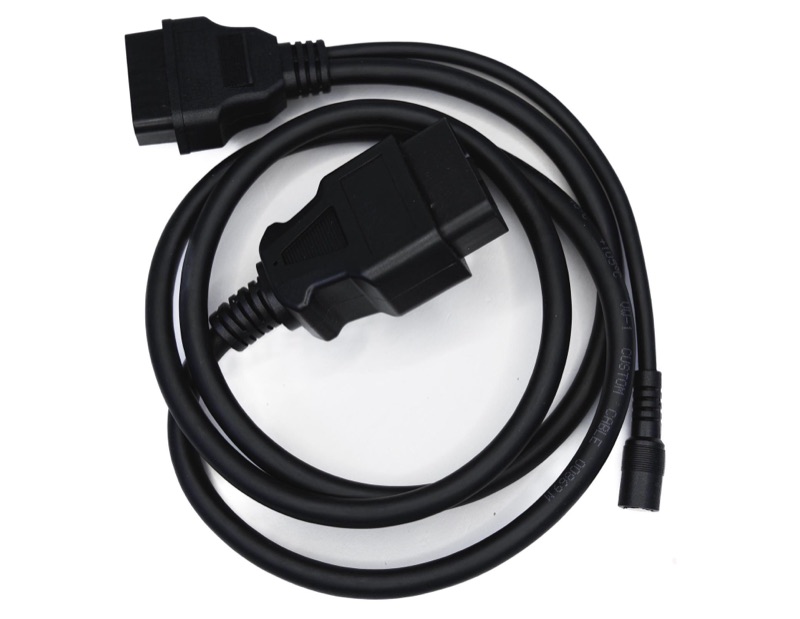

Huayan Old M-F

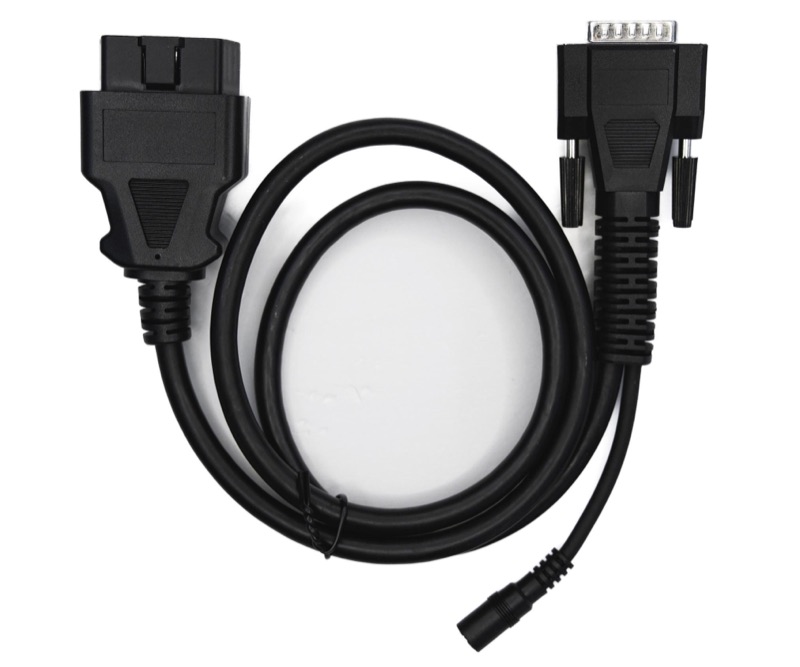

Huayan New M-M 1.5m

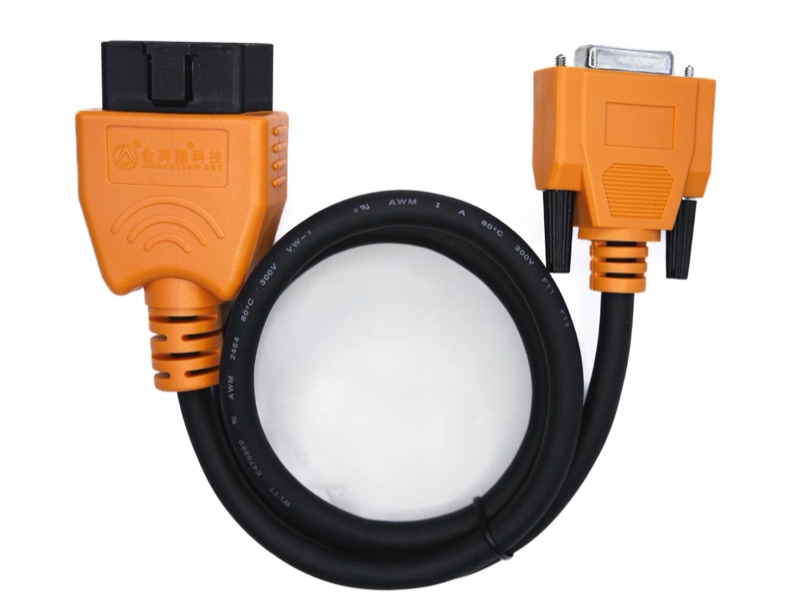

JBT OBD2 16Pin Extension

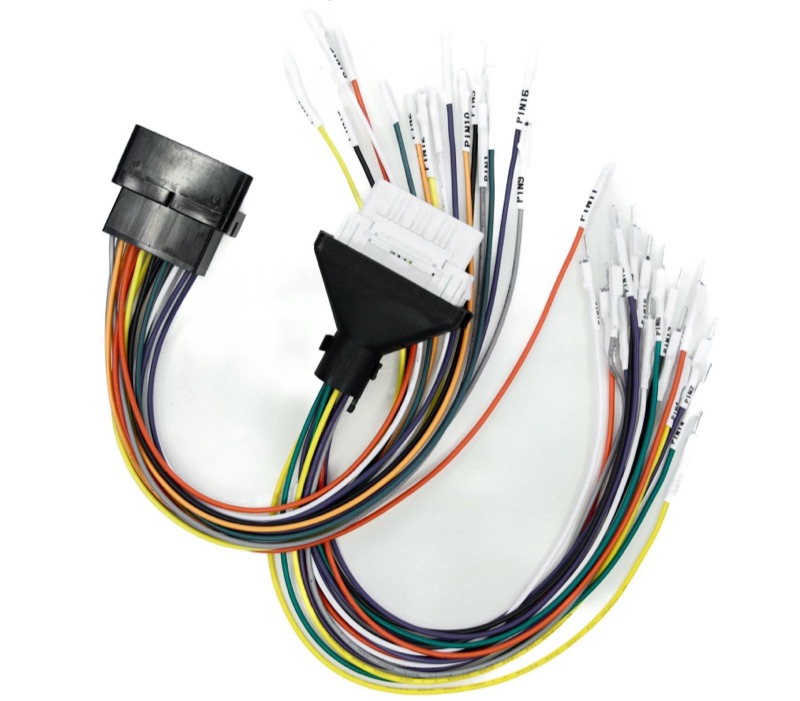

OBD2 Male/Female Jumper

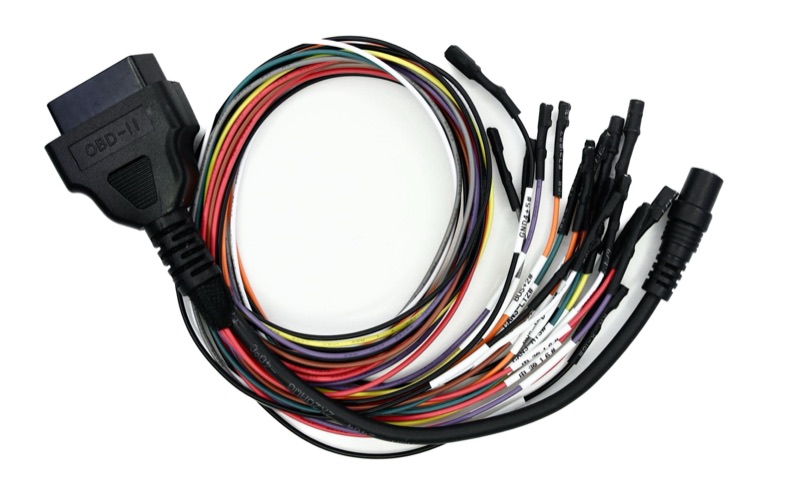

Universal OBD2 Breakout

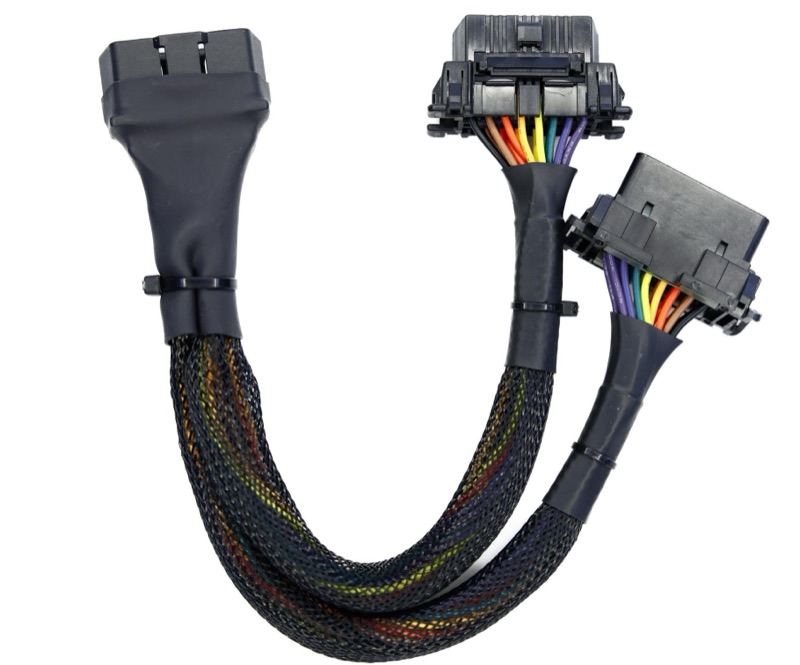

OBD2 16Pin Splitter

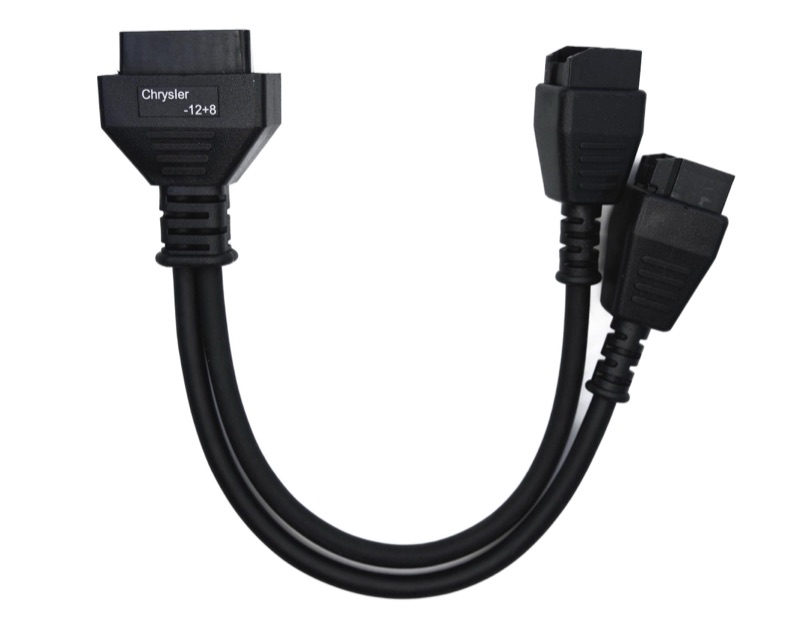

Autel Chrysler 12+8 Black Square Adapter

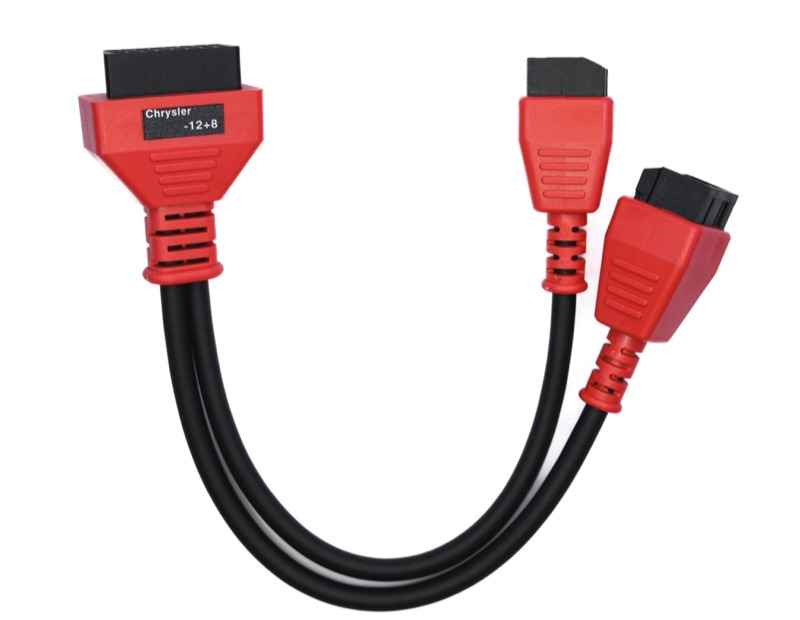

Autel Chrysler 12+8 Red Square Adapter

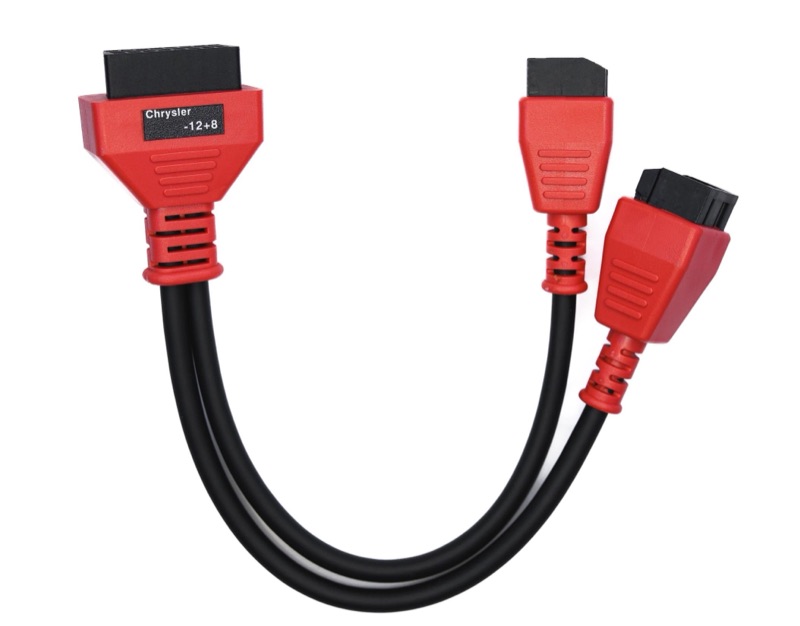

Autel Chrysler 12+8 Red Star Adapter

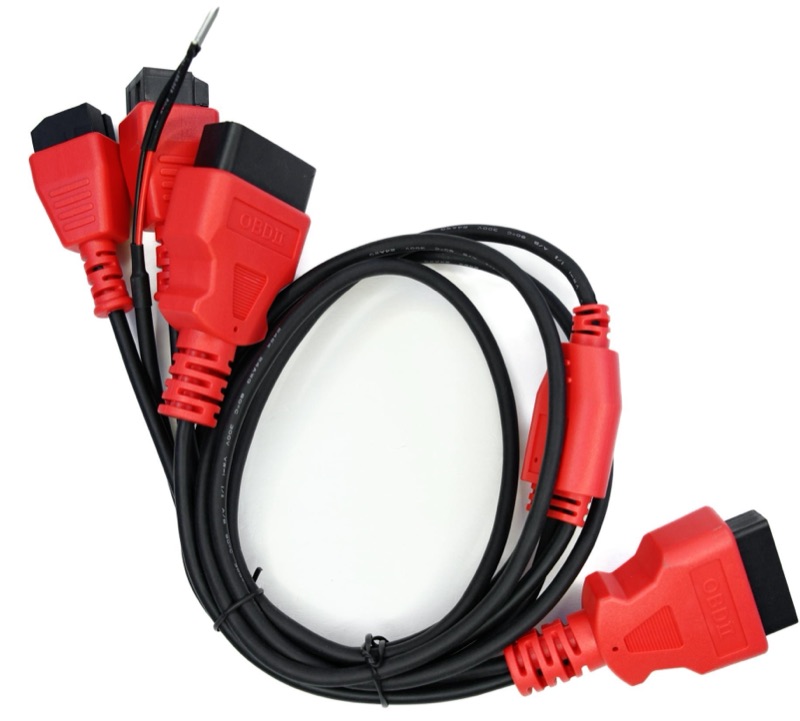

Autel Chrysler 12+8 Red Square Upgrade Adapter Cable

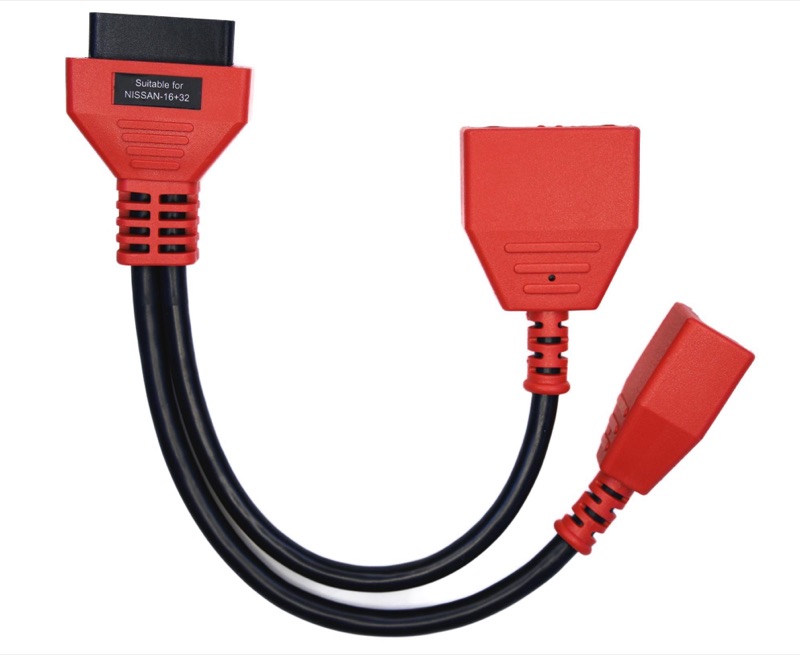

Autel Nissan 16+32 Pin Gateway Adapter Cable Connector

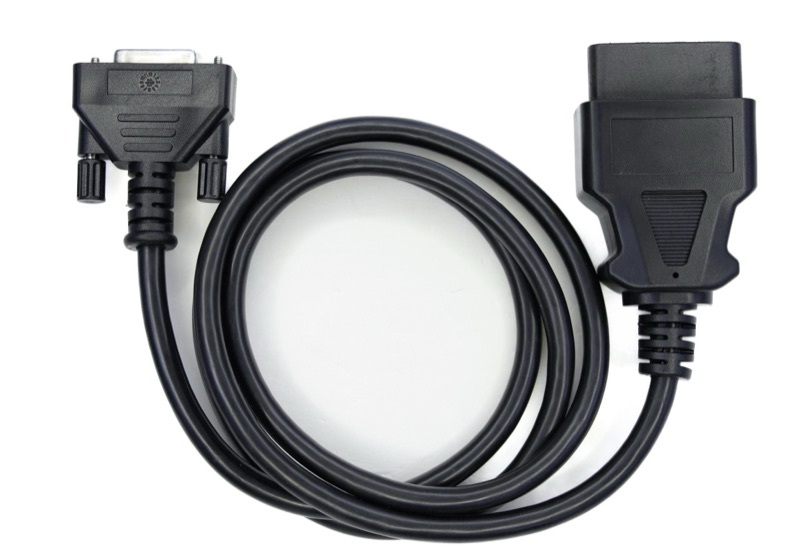

Autel TS508 Cable

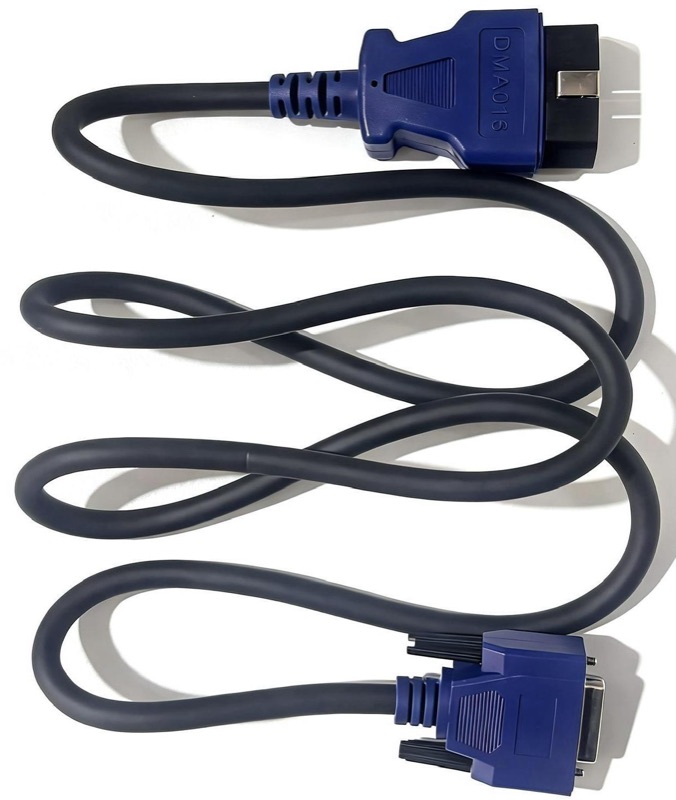

Autel IM608 IM608 PRO OBD2 Cable

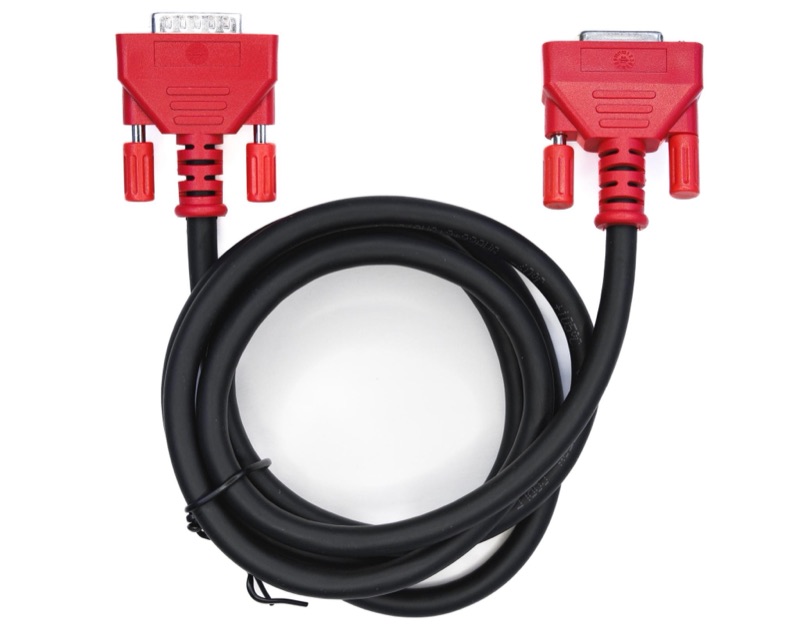

Autel MaxiDAS DS708 Main Test Cable

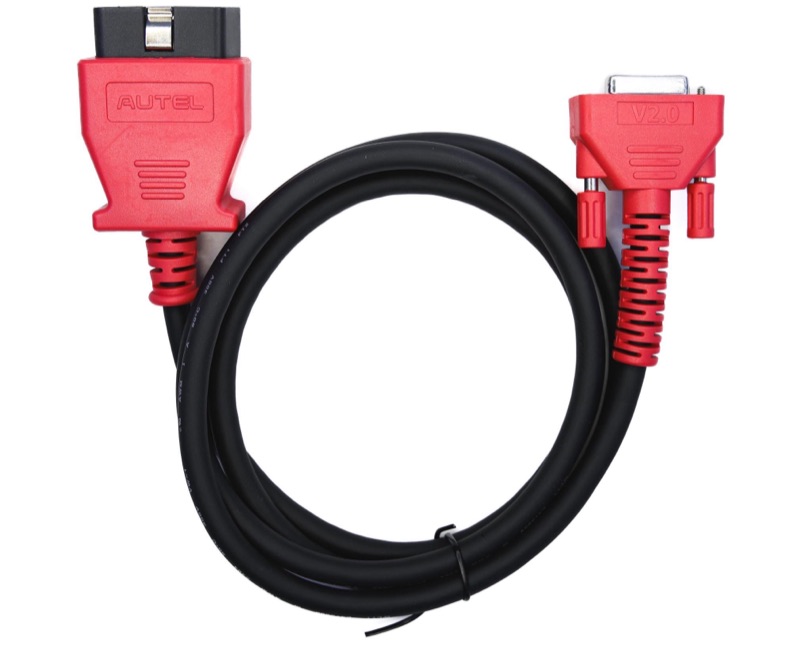

Autel MS908 3-Row

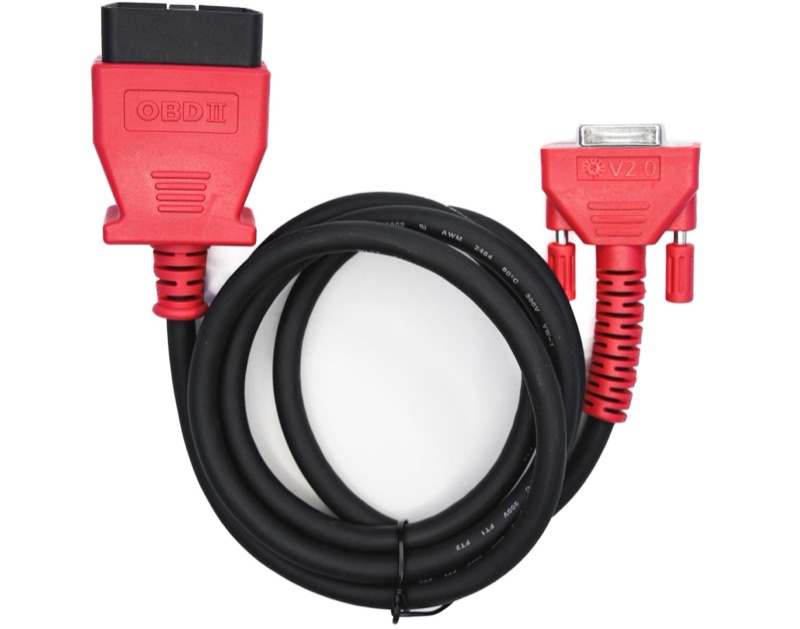

Autel MS908 2-Row

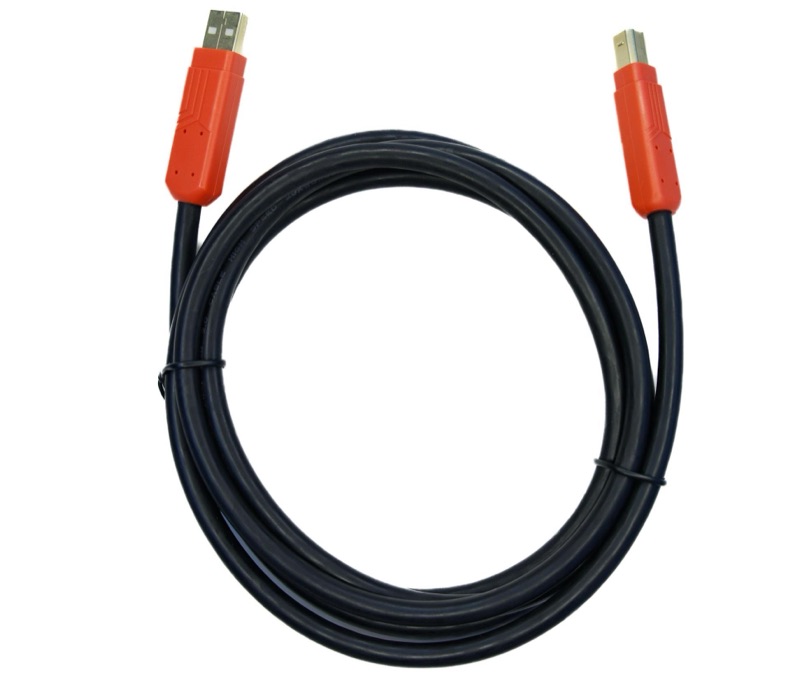

Autel MS908 Cable

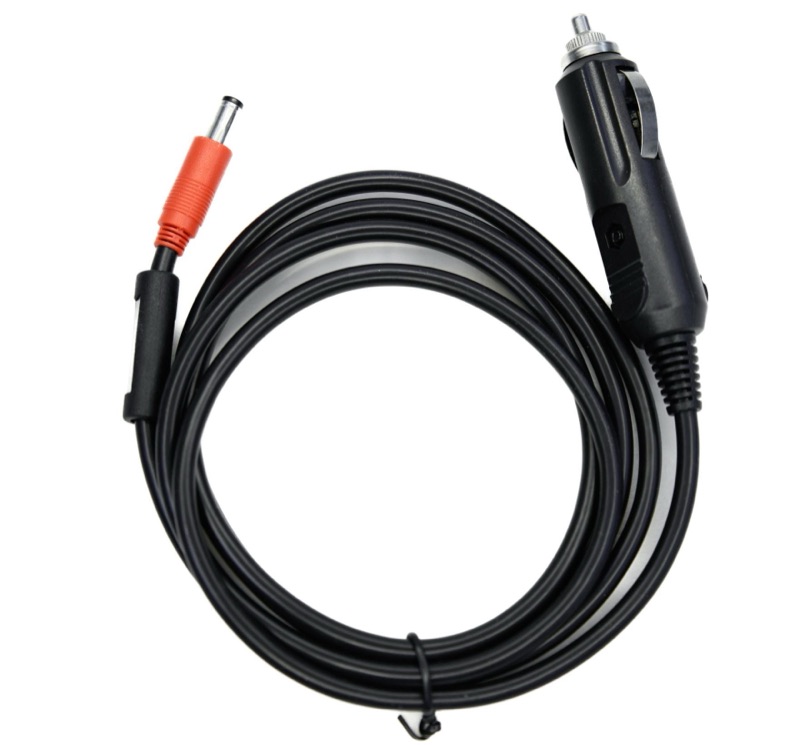

Autel 12V Cigarette Lighter

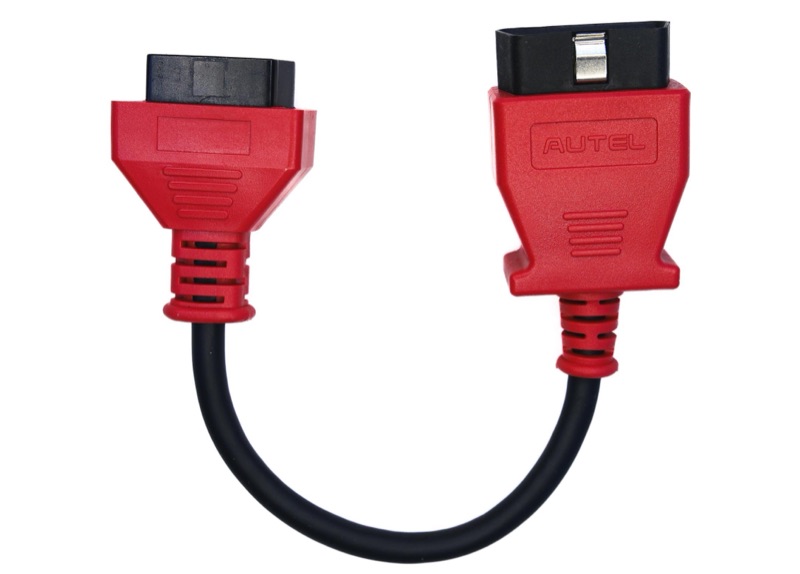

Autel BT Extension

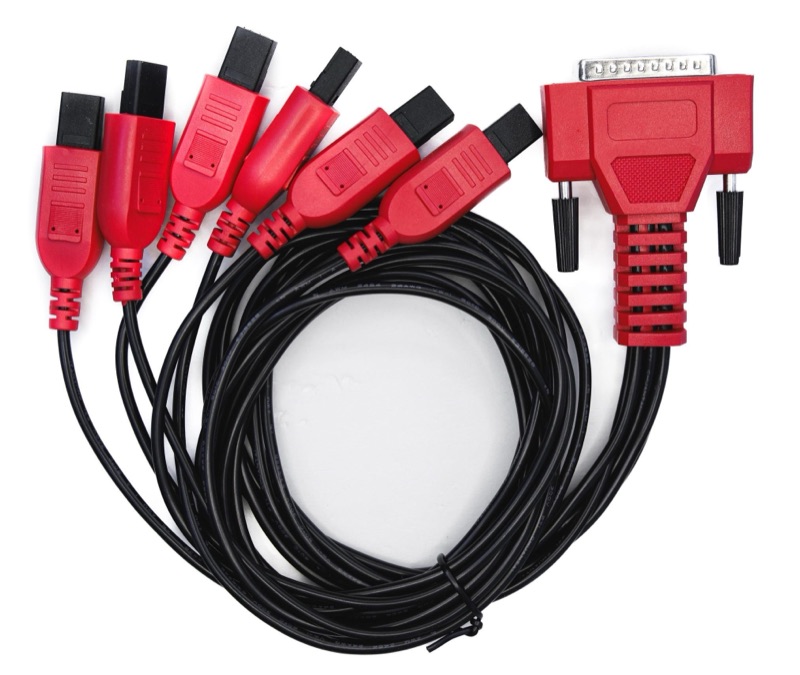

Autel Injector Regular

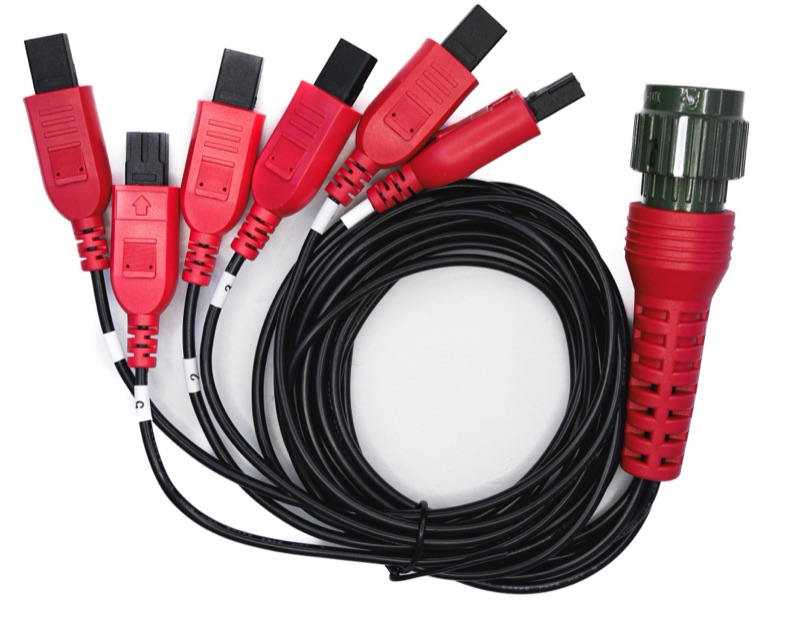

Autel Injector Round

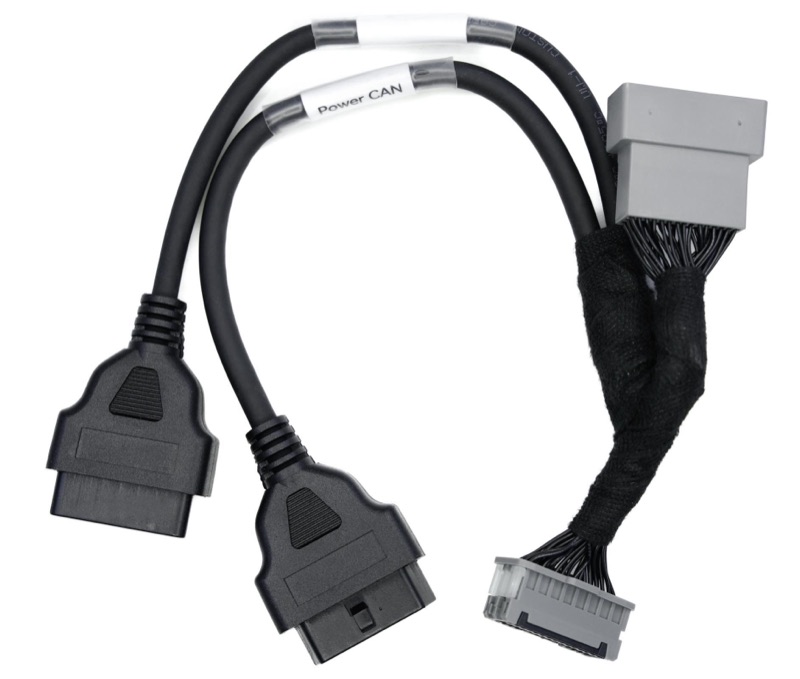

NIO NT2 0 EV Gateway Diagnostic Cable

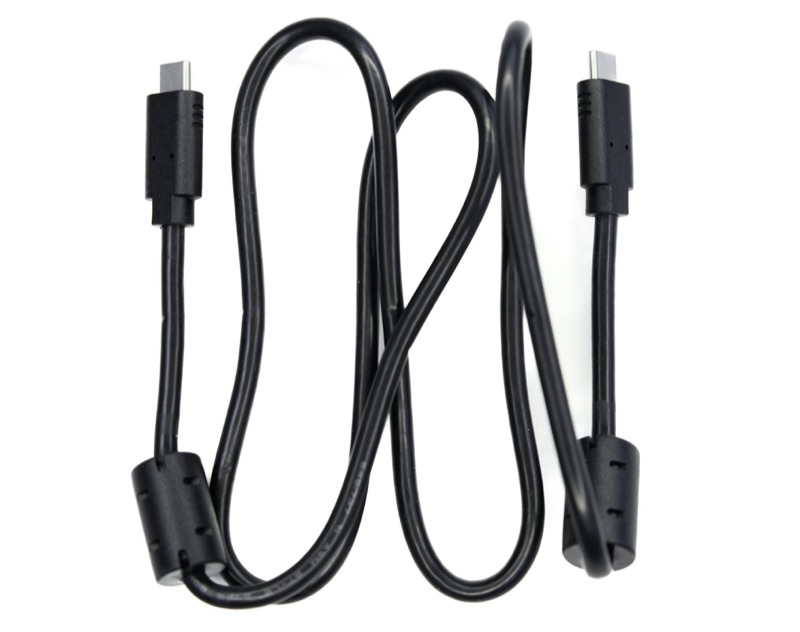

Autel MaxiAP D1Pro Bluetooth Cable

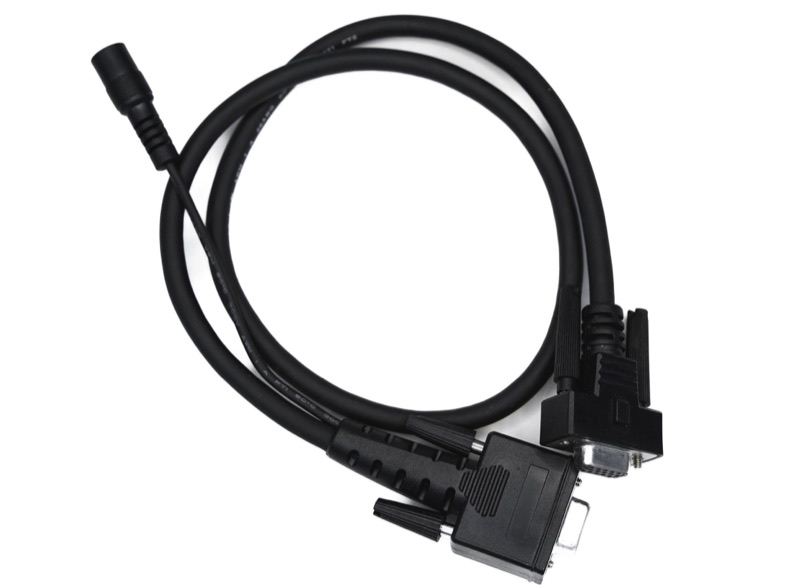

LAUNCH X431 Connector

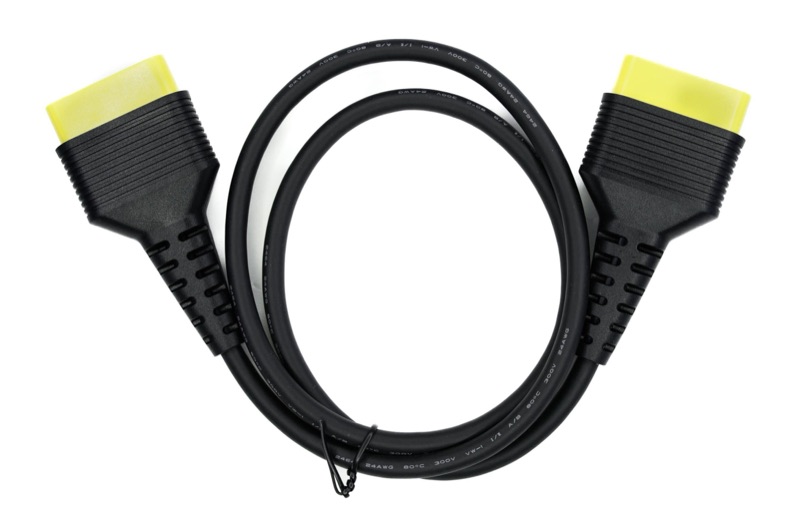

LAUNCH 5.0 M-M Round

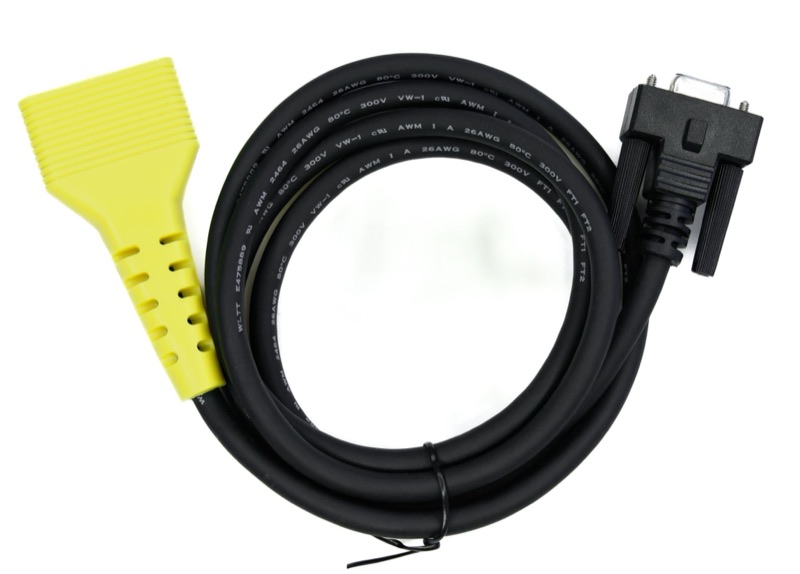

LAUNCH HTT EV17 3-Row DB15 to OBD2 Cable

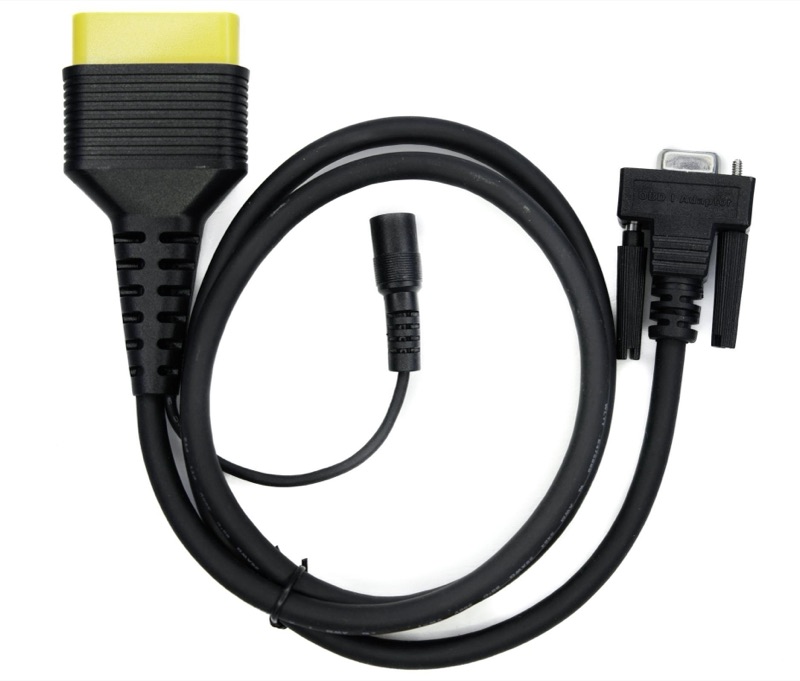

LAUNCH HTT EV17 OBD2 Cable

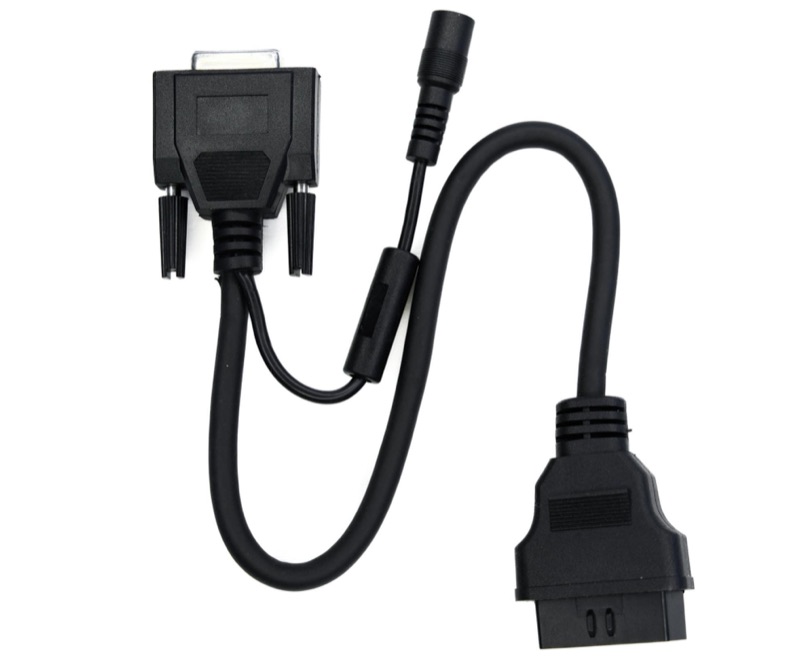

LAUNCH X431 Old 2-Row

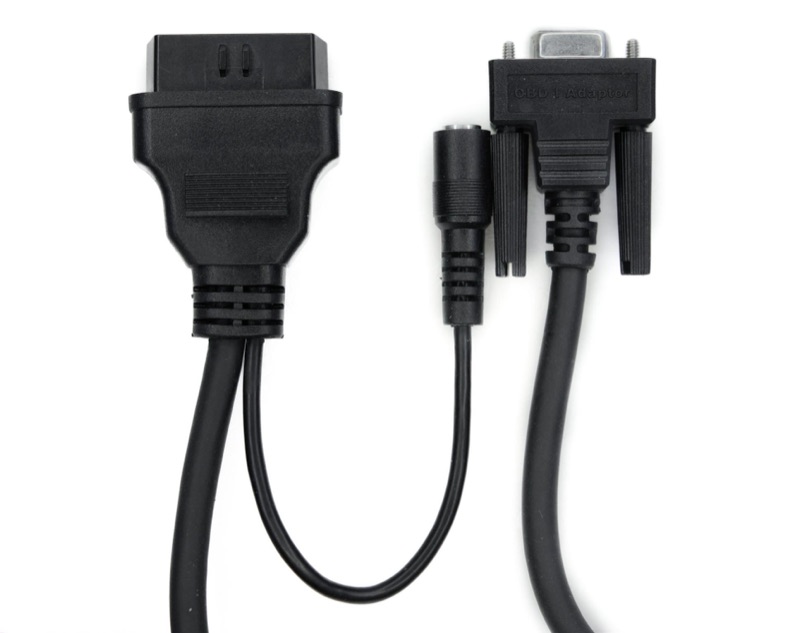

LAUNCH X431 New 3-Row

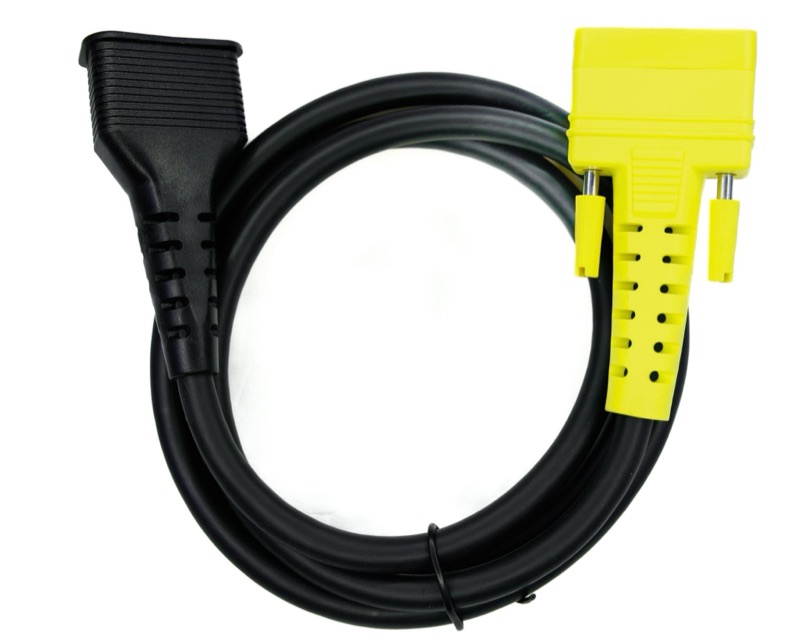

LAUNCH X431 HD Cable

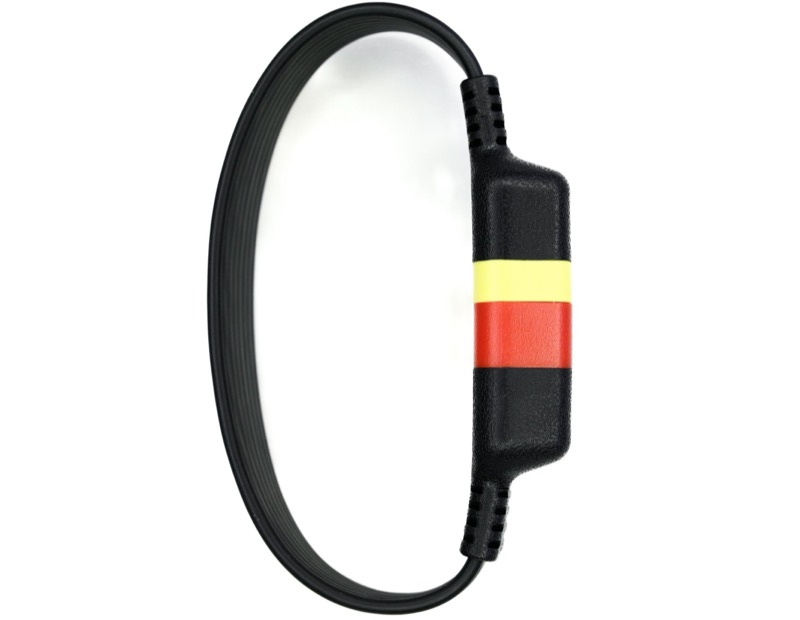

LAUNCH Flat M-F
Zhengyuan V30 V60 V80 V90 OBD2 Cable
Choose by Tool, Pinout and Task — Not Plug Shape Alone
The 16-pin OBD2 form appears across extensions, splitters, breakout leads, power cables and diagnostic-tool main cables. Similar housings can contain different wiring and serve different equipment.
- 01
Vehicle or equipment range
- 02
Diagnostic tool brand and model
- 03
Both connector faces
- 04
Pin assignment and required signals
- 05
Extension, splitter, breakout or main-cable task
Compatibility Boundary
OBD2 connector shape does not prove protocol, power routing or scan-tool compatibility. Every product reference must be matched to the exact vehicle, tool and task before purchase or customization.
Before You Order
Can one OBD2 cable work with every scan tool?
No. Tool-side connectors, pin maps, power requirements and supported functions can differ even when the vehicle-side connector looks familiar.
What is the difference between an extension and a splitter?
An extension moves one connection point, while a splitter provides more than one branch. The pin routing and permitted simultaneous use still need to be checked.
Can a current cable be used as a custom reference?
Yes. Clear photos or a physical sample can be reviewed with the tool model, pin information, length and required changes before a sample is built.
Send the Exact Model, Interface and Task
Include clear connector photos, the current product or sample, target equipment, required function and quantity range. We will review the correct product path before quoting.
