JAE Compatible Cable Assemblies

Overview

Custom JAE-interface wiring for vehicle controls, displays and equipment modules, with defined pinouts, materials and inspection.

Ask About This Product Type Find Models & Material Part Numbers Back to Products

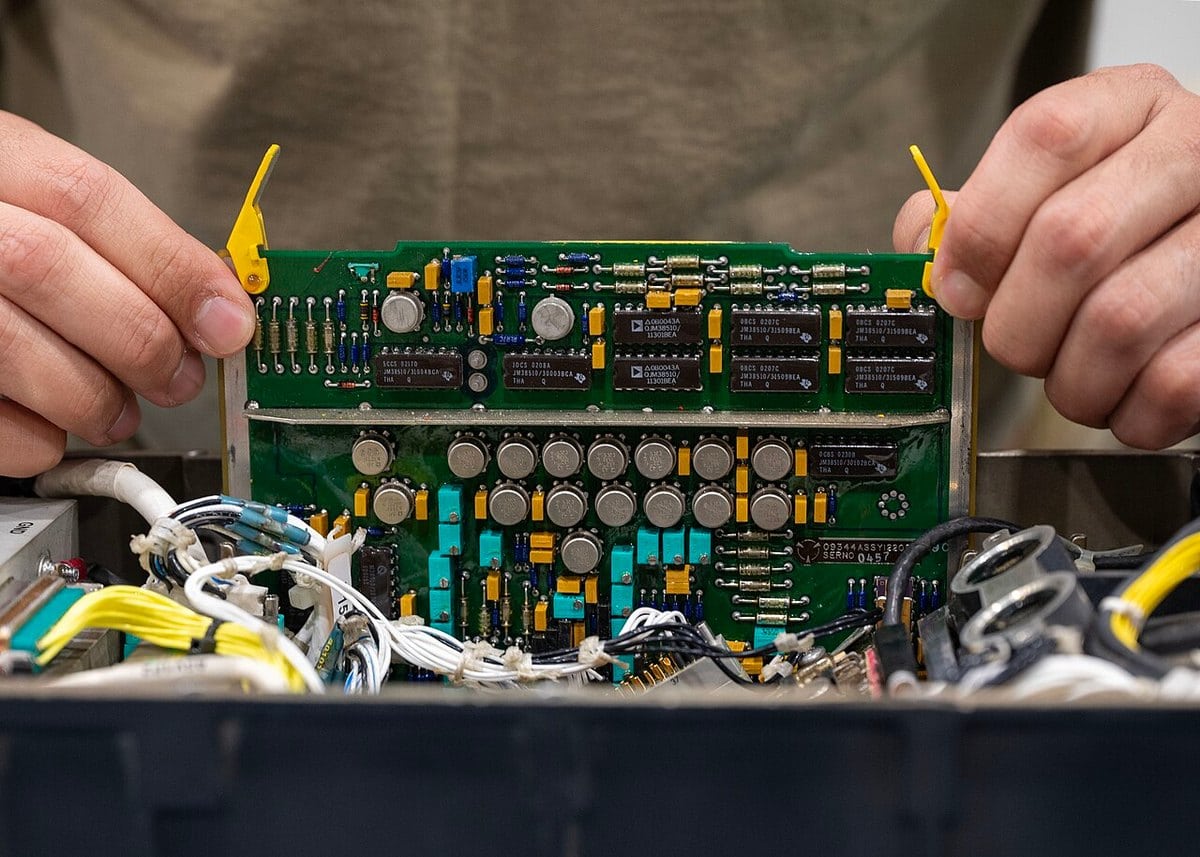

JAE Compatible Cable Assemblies application reference

Popular Product Photos

01 / 11

01

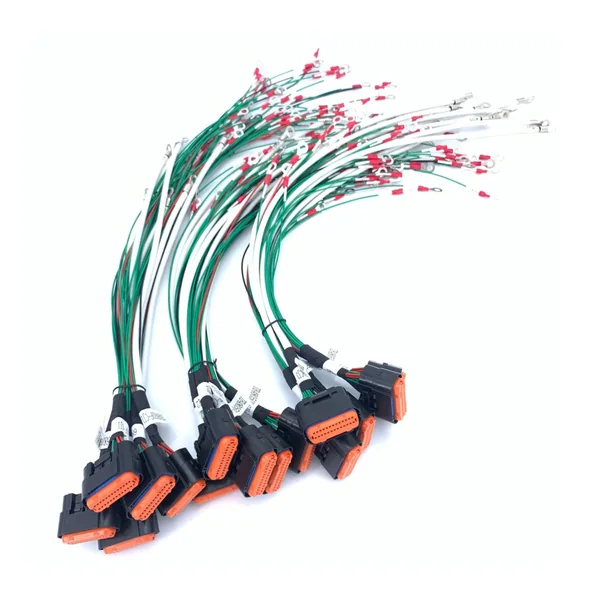

MX23A26SF1 Multi-Core Rectangular Connector Pigtail Set

03

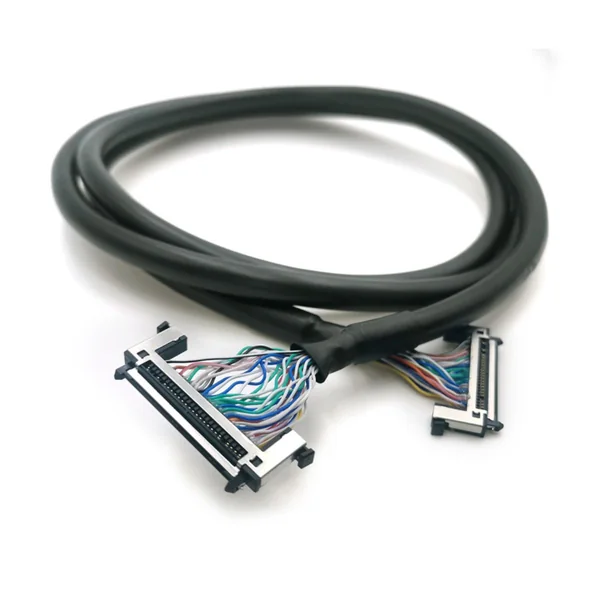

LVDS Rectangular Connector Double-Ended Grey Harness

04

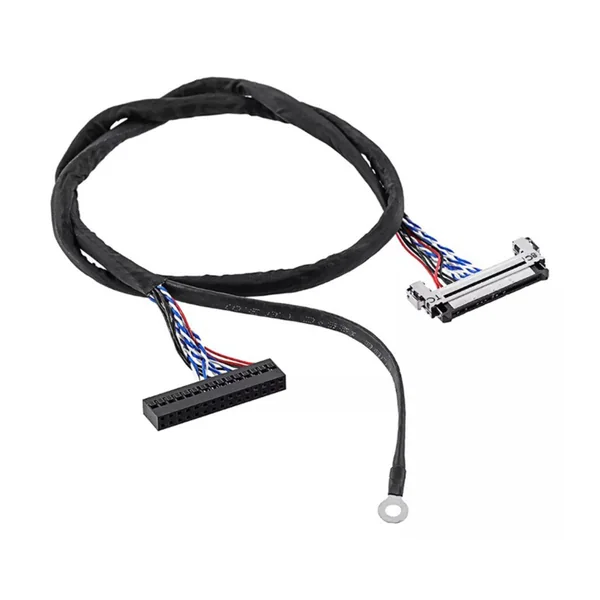

FI-RE41 Display Ground Branch Harness

05

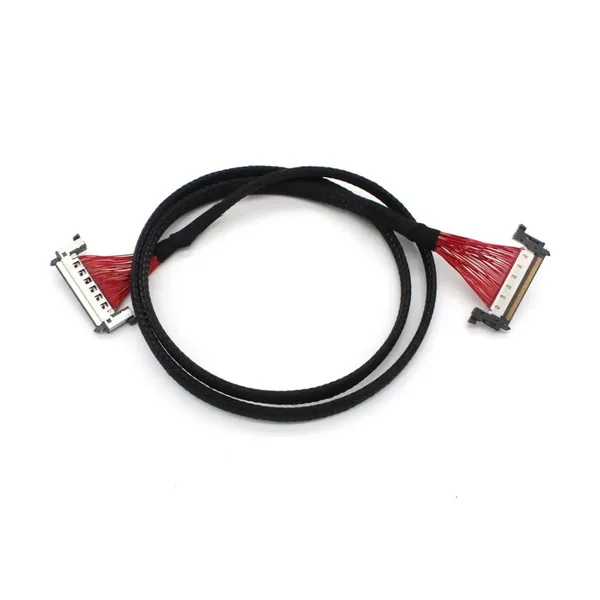

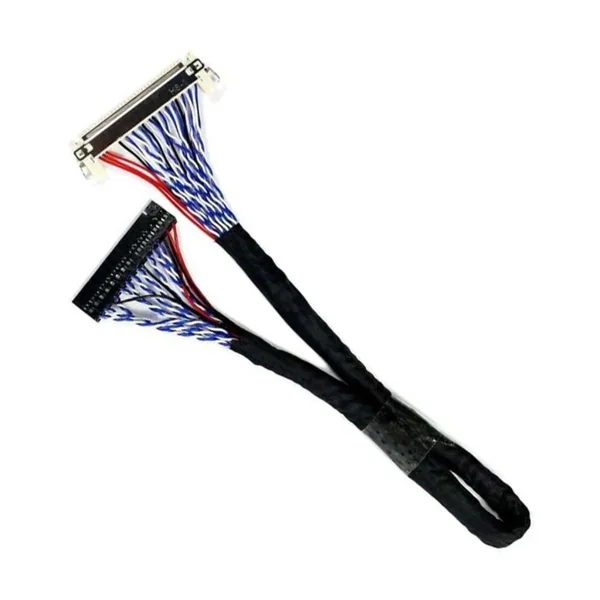

FI-RE51P Display Double-Ended Harness

06

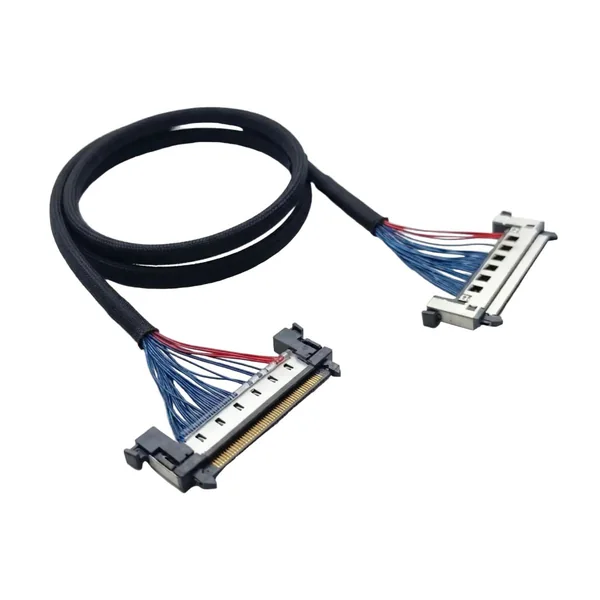

FI-RE51S-HL Twisted Wire Double-Ended Harness

08

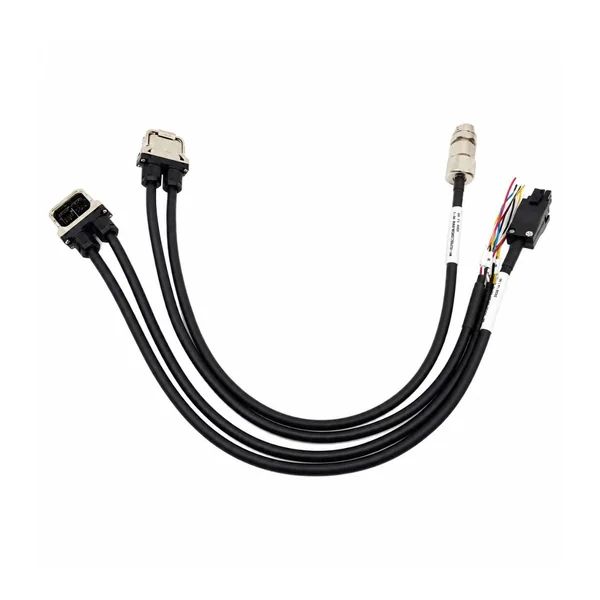

Servo Encoder Branch HarnessMR-AEP2J10CBL03M-A2-L

09

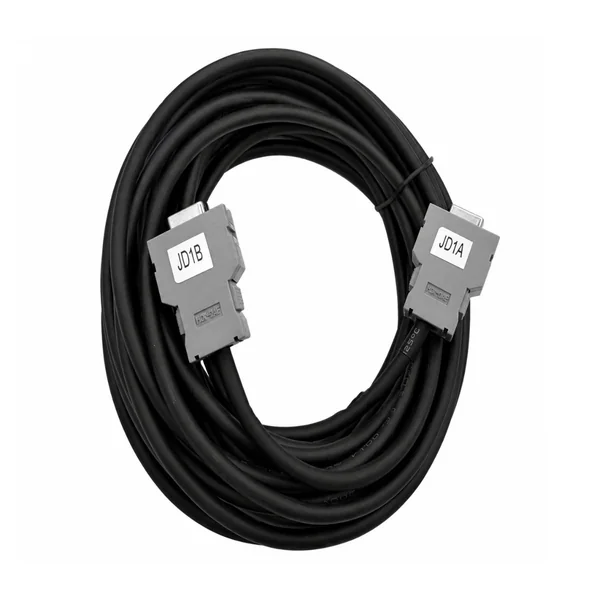

Rectangular Servo Connector Double-Ended Harness

10

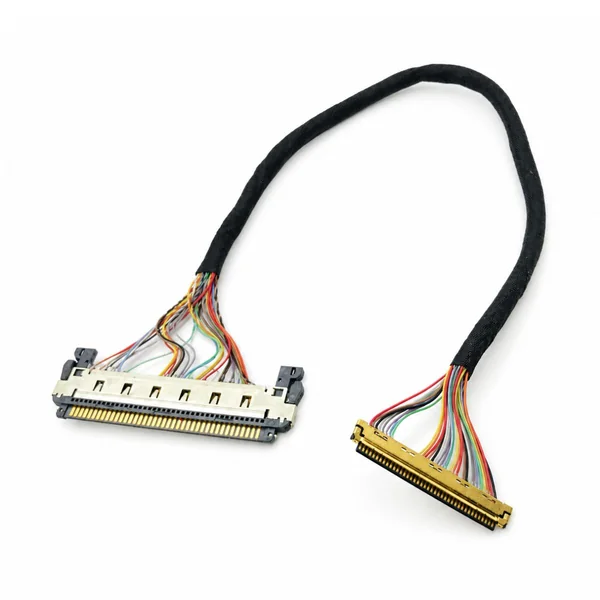

30-Pin LVDS Double-Ended Display Harness

11

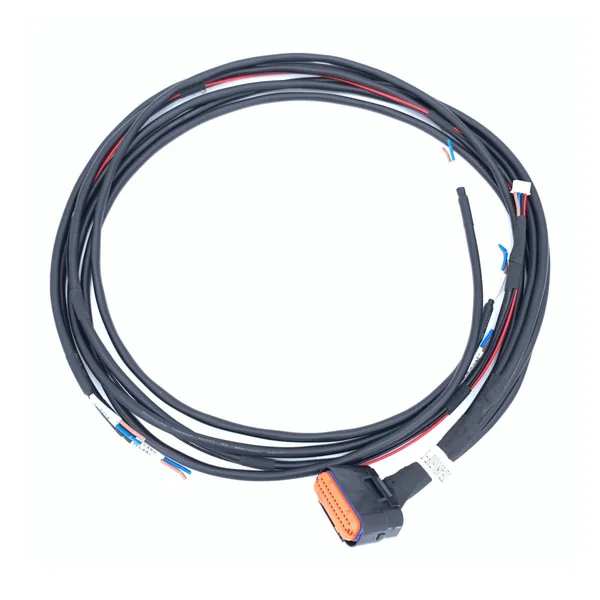

MX23A34SF1 Battery Sense Multi-Core Pigtail

JAE Harnesses: Interfaces and Engineering

JAE wiring covers many constructions: non-sealed vehicle controls, sealed board connections, display cables and compact equipment interconnects. The right assembly starts with the actual mating parts and circuit requirements, not a generic brand label. This guide explains interface choices, materials, installation and validation so that procurement and engineering can define the same build. Super Smile reviews project-specific harnesses from drawings, samples and confirmed connector references.

JAE D03 SIO connectors: a brand reference, not an MX or FI series identification.

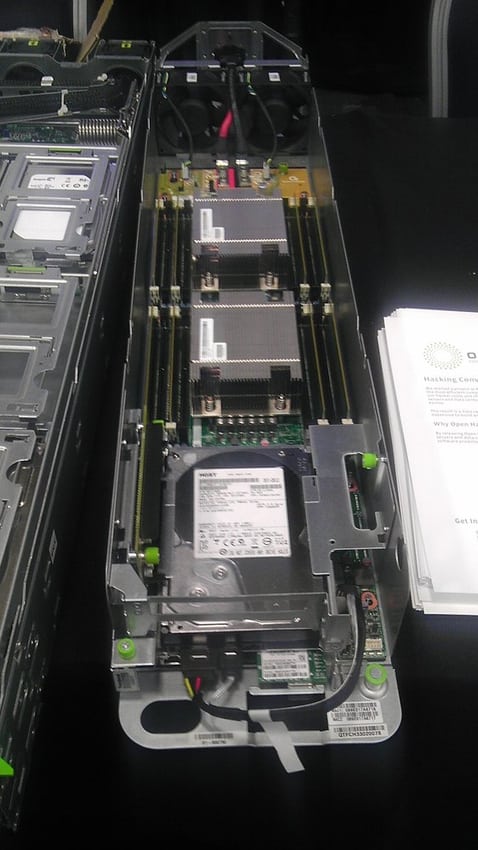

Open server hardware illustrates the variety of internal equipment connections.

JAE Connectors: Start with the Complete Interface

Japan Aviation Electronics Industry supplies many connector families, not one interchangeable interface. A JAE cable assembly can connect a PCB, display, sensor or removable equipment module. Identify the housing, contact, mating header and locking arrangement together. Super Smile reviews cable length, circuit mapping, protection and assembly instructions against that interface. Original-brand parts and proposed alternatives must be distinguished in the approved bill of materials.

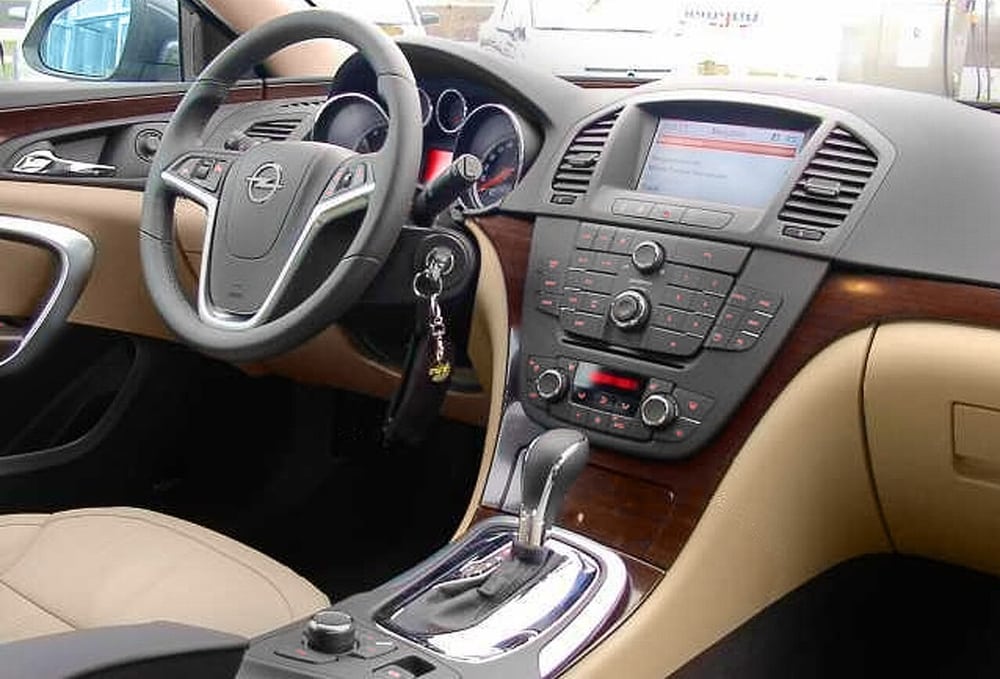

Protected cabin controls illustrate an internal vehicle installation zone, not a specific connector fitment.

MX34: Non-Waterproof Vehicle Wiring

MX34 is a high-density, non-waterproof automotive connector family. Board and in-line configurations support different packaging arrangements; straight and right-angle headers are not equivalent cable exits. In a body controller or protected switch assembly, verify connector access after the enclosure closes. Record cavity numbering from the specified mating view, terminal retention and wire dressing. A vehicle application alone does not establish water resistance.

Rain at a vehicle window illustrates exposure to water, not a harness ingress test.

MX23A: Sealing Is a Complete Assembly

MX23A waterproof board-to-cable connections use sealing features at both the mating interface and wire entry. The sealing ring, rear grommet and specified plugs for unused cavities are part of the system. Match wire outside diameter and front-cap configuration, not only conductor size and pin count. Assembly damage, an unfilled cavity or strain at the cable exit can compromise the intended seal. Agree the finished-assembly exposure and acceptance test separately.

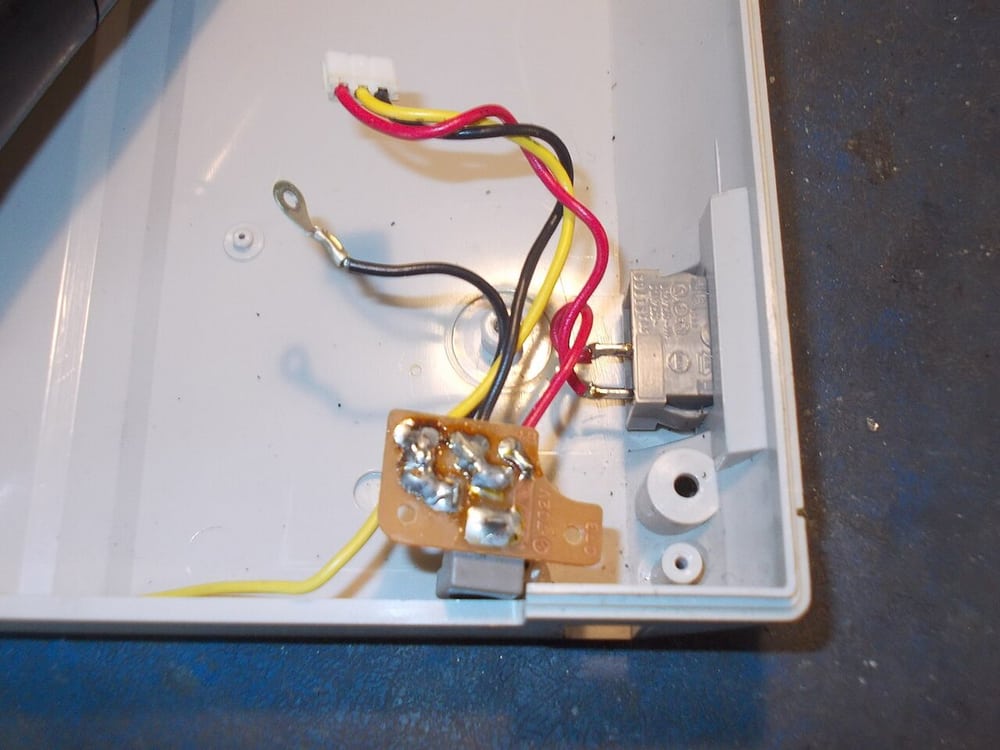

Wiring inside a small enclosure illustrates the need for accessible connections and support.

IL-AG5: Retention and Service Access

The 2.5mm-pitch IL-AG5 family includes board-to-cable and cable-to-cable connections. Its terminal-retention and mechanical-locking features must be used with the correct components. Do not infer compatibility from pitch alone: housing shape, contact geometry and polarization also matter. Define where a technician can press the latch and pull the housing, without loading the wires. A service loop should help disconnection without allowing the harness to rub against nearby parts.

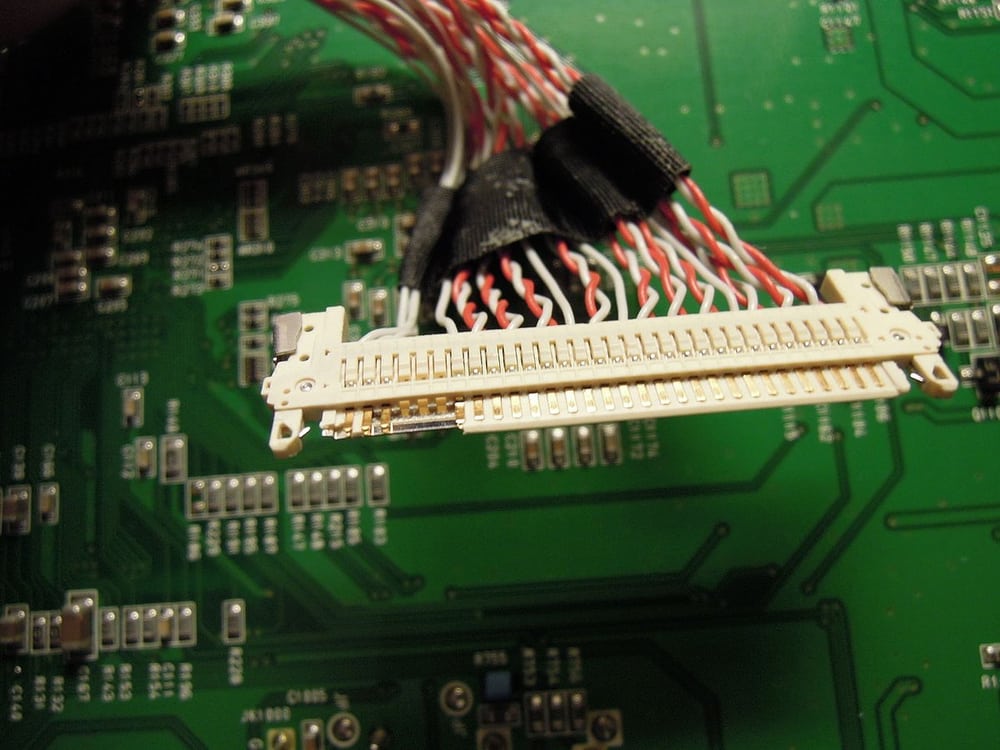

A monitor's board-to-panel harness provides display-wiring context; its series is not identified here.

FI and FI-X Display Connections

FI and FI-X are separate connector families. JAE describes FI-X as a 1.0mm-pitch LCD interface with a metal shell and differential-transmission design. The cable still needs the correct lane assignment, grounds, shielding and termination. A connector catalogue impedance is not a measurement of the complete harness. Review the board connector drawing and display pinout together; similar-looking display plugs can place supply voltage on different positions.

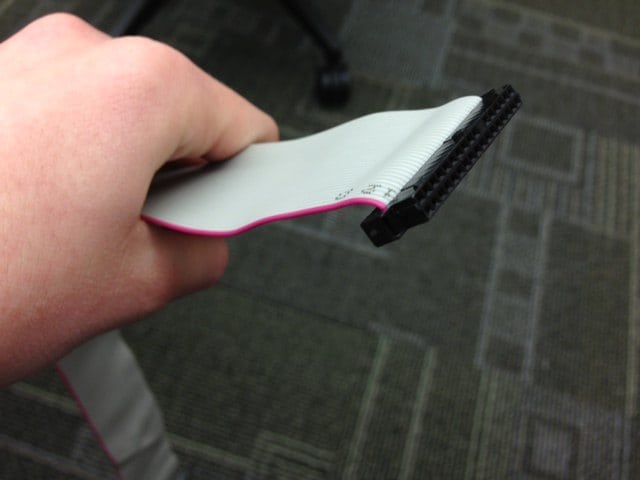

Parallel insulated conductors illustrate why cable construction must be specified separately from connector pitch.

Fine Pitch Is Not a Wire Specification

A small contact pitch can help fit more circuits into a compact board area, but it does not select the cable for you. The contact application specification determines allowable conductor and insulation dimensions. Check strip length, exposed strands and insulation support under suitable magnification. Board-to-board and FPC connectors should not be substituted for crimp-wire interfaces merely because the brand and pitch match.

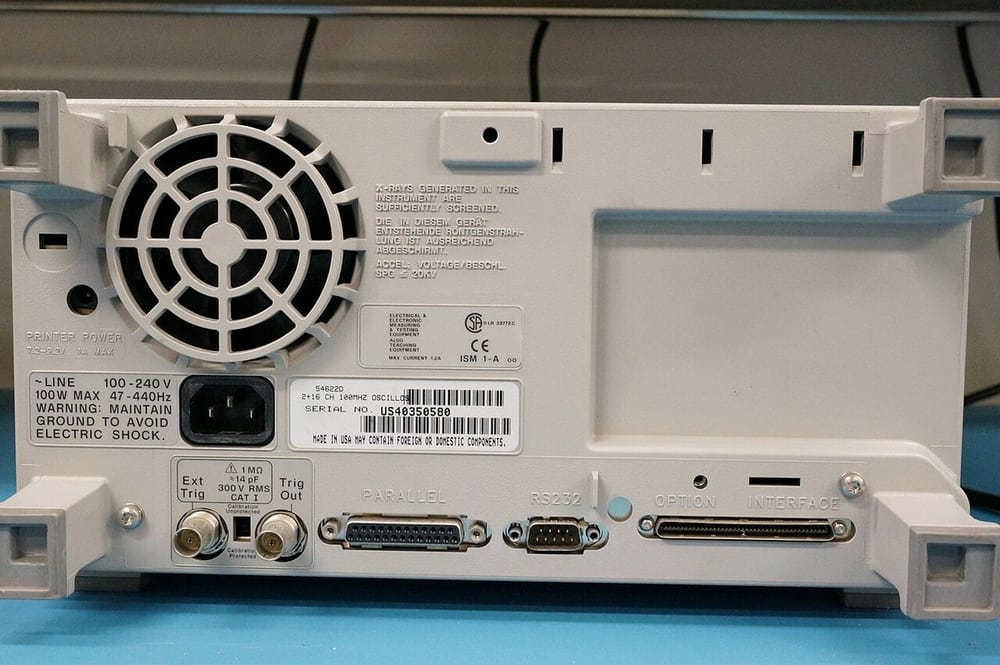

An instrument rear panel shows why equipment identity and specified conditions matter in verification.

Automotive Qualification: Read the Scope

AEC-Q is not a blanket certification for every automotive connector. Its document families address particular electronic-component types. For a connector project, request the exact part drawing, applicable connector test specification and report scope. Distinguish a component evaluation from a completed harness test and from vehicle approval. If a customer names USCAR-2 or another requirement, agree its revision, test groups and acceptance evidence before quoting compliance.

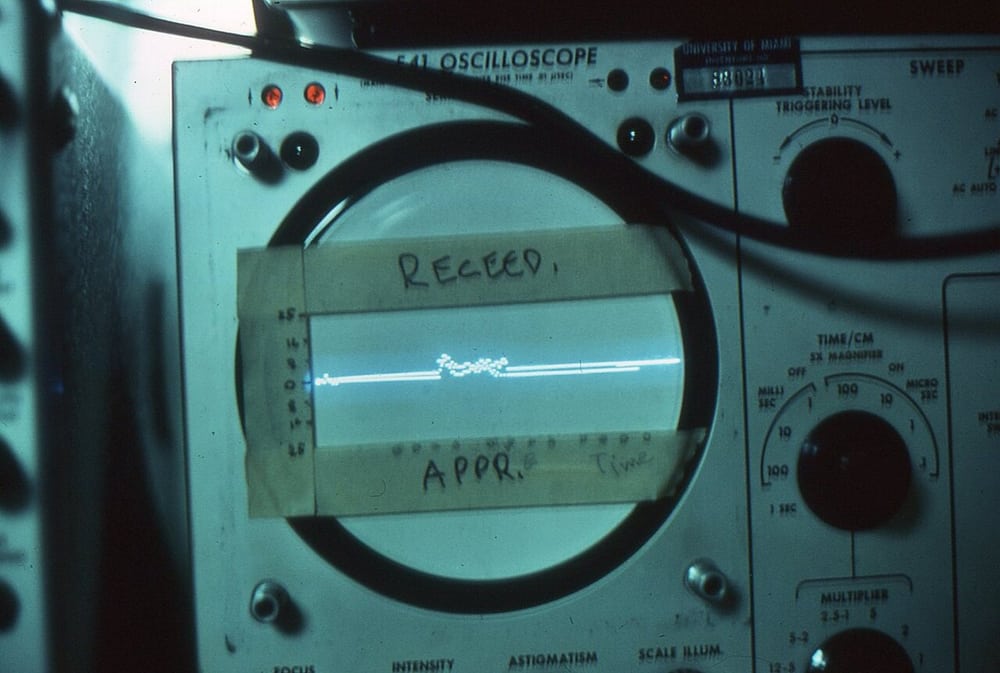

An oscilloscope trace illustrates signal observation, not a test result for this assembly.

Shielding and the Signal Return Path

High-speed wiring depends on the full path through the cable, connector and board transition. Keep paired conductors together and control untwisted length where the design requires it. A metal shell is useful only when its bonding and cable-screen connection suit the system. Separate sensitive signal routing from switching power where practical. Continuity checks confirm connections, but they do not establish insertion loss, crosstalk or an acceptable eye diagram.

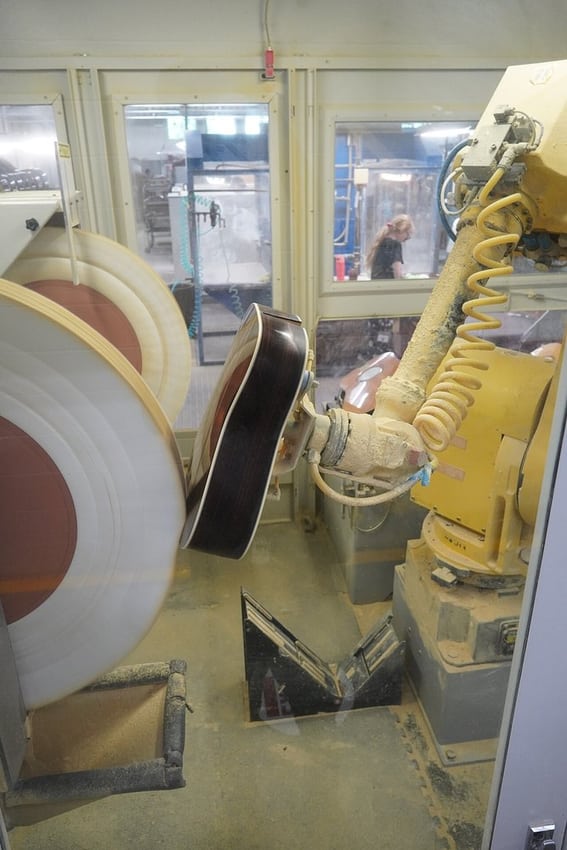

A robot polishing guitars illustrates a real moving production application.

Industrial Automation and Robotics

Controller cabinets, encoders, sensors and removable robot modules need different harness constructions. A connector at a fixed control board does not make the attached cable suitable for continuous flexing. Separate the moving section from the fixed section, define the bend path and support transitions before they reach the connector. Supply the motion envelope, service access and expected environment so that cable construction and protection can be reviewed together.

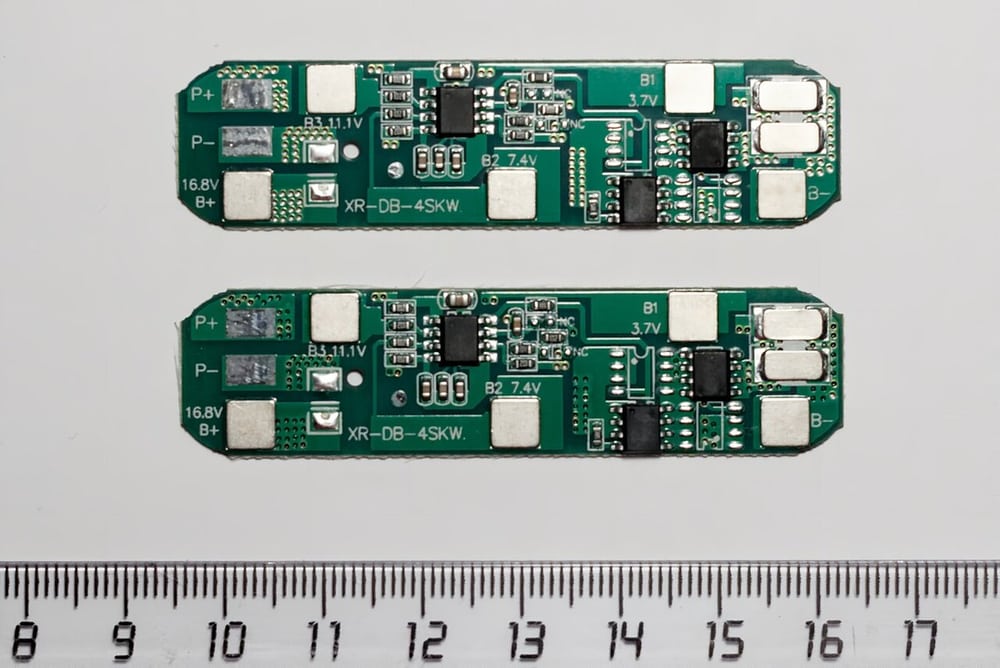

Battery-management boards illustrate low-voltage control electronics, not high-voltage cable qualification.

Automotive and New-Energy Controls

Body electronics, auxiliary modules and low-voltage battery controls can require connector-specific branches and mounting points. These control circuits must not be confused with high-voltage traction wiring. Specify supply range, load behavior, fuse protection, installation zone and mating references. For repairs or retrofits, document changes to the original pinout rather than relying on wire colors; the same color may identify different functions in different vehicle versions.

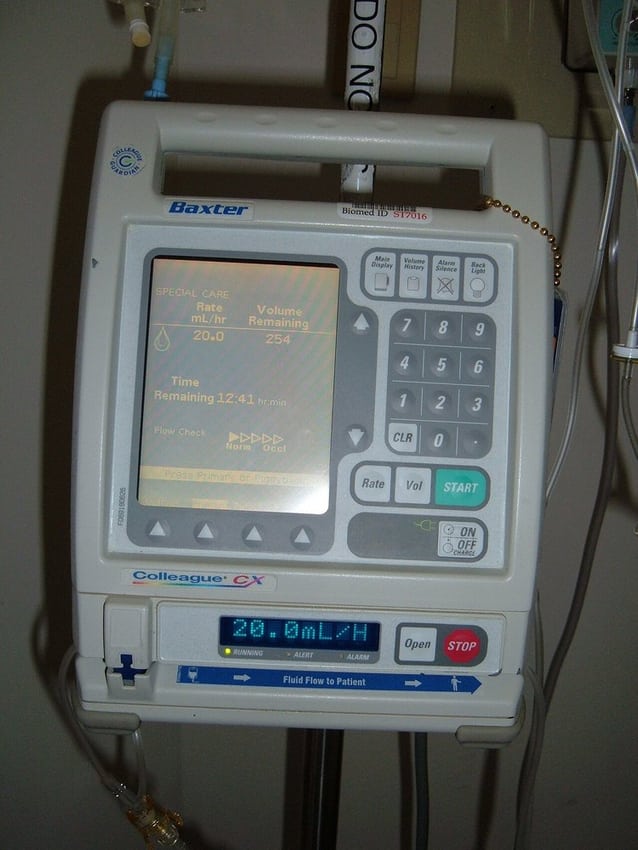

An infusion pump illustrates equipment context; no patient-contact or device approval is implied.

Medical Equipment Interconnections

Displays, measurement boards and equipment modules may use compact connector assemblies. Review electrical separation, cleaning exposure, strain relief and service replacement against the equipment design. Internal wiring is not automatically suitable for direct patient contact, sterilization or fluid exposure. The equipment manufacturer must define the intended use and validation requirements. We review those requirements before proposing materials or a production inspection plan.

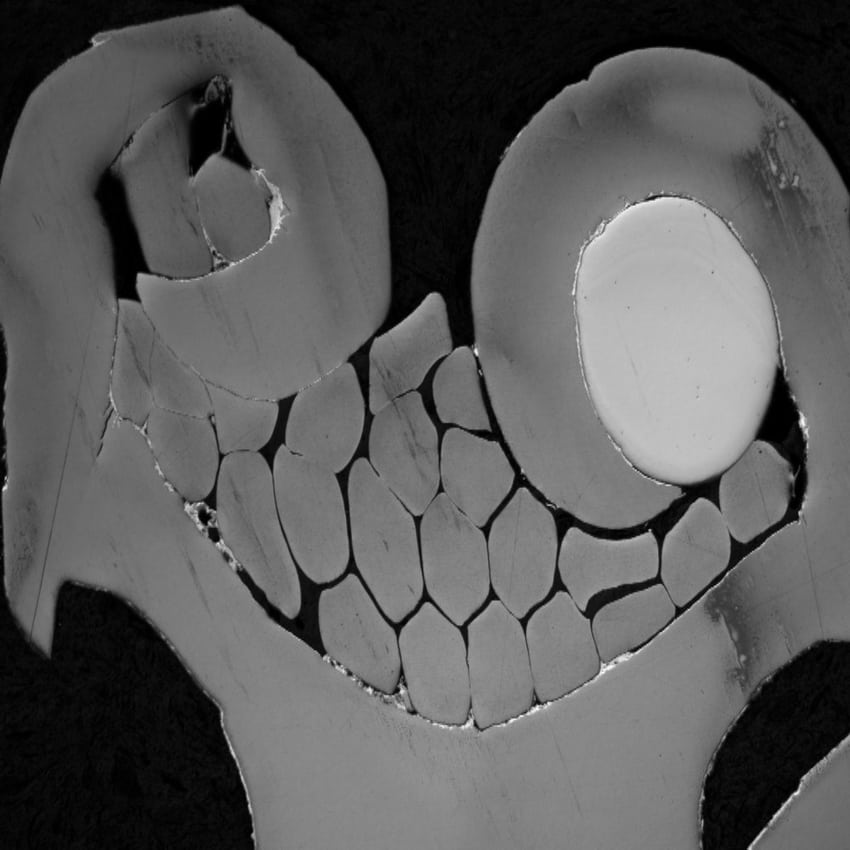

A microscopic section of a crimped connection reveals conductor and contact geometry.

Contact Alloys: Do Not Generalize

Connector contacts balance conductivity, spring force, forming behavior and wear. Copper alloy, phosphor bronze and beryllium copper are not interchangeable material descriptions. Do not assume every JAE terminal is beryllium copper. The selected part drawing controls the alloy and finish; for example, JAE documentation includes copper-alloy contacts in IL-AG5 products. Replacement decisions also need contact geometry, mating force and the approved crimp-wire combination.

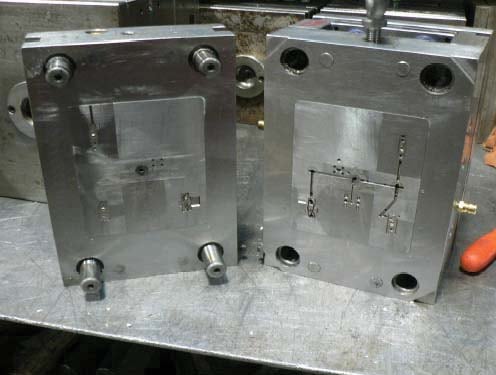

An injection mould illustrates how small plastic features depend on tooling and process control.

LCP for Compact Connector Housings

Liquid crystal polymer can support thin-wall moulding and precise small features in suitable grades. That makes it relevant to compact connector design, but not proof that every JAE housing is LCP. JAE also specifies other resins for other parts. Review the exact grade, processing conditions and operating exposure. Soldering heat resistance and long-term service temperature are different questions, and a resin family name alone does not answer either.

Bagged resin granules illustrate raw-material handling; the polymer grade is not identified as JAE housing material.

Glass-Filled Polyamide and PBT

Glass reinforcement can improve stiffness and dimensional behavior, while moisture conditioning affects polyamide properties. PA66-GF and PBT are distinct choices, not generic substitutes. Some JAE IL-AG5 documentation specifies PBT, so the material must be checked by part rather than copied from a broad brand description. Confirm chemical exposure, latch flexibility, thermal conditions and material declarations when reviewing the housing and any proposed substitute.

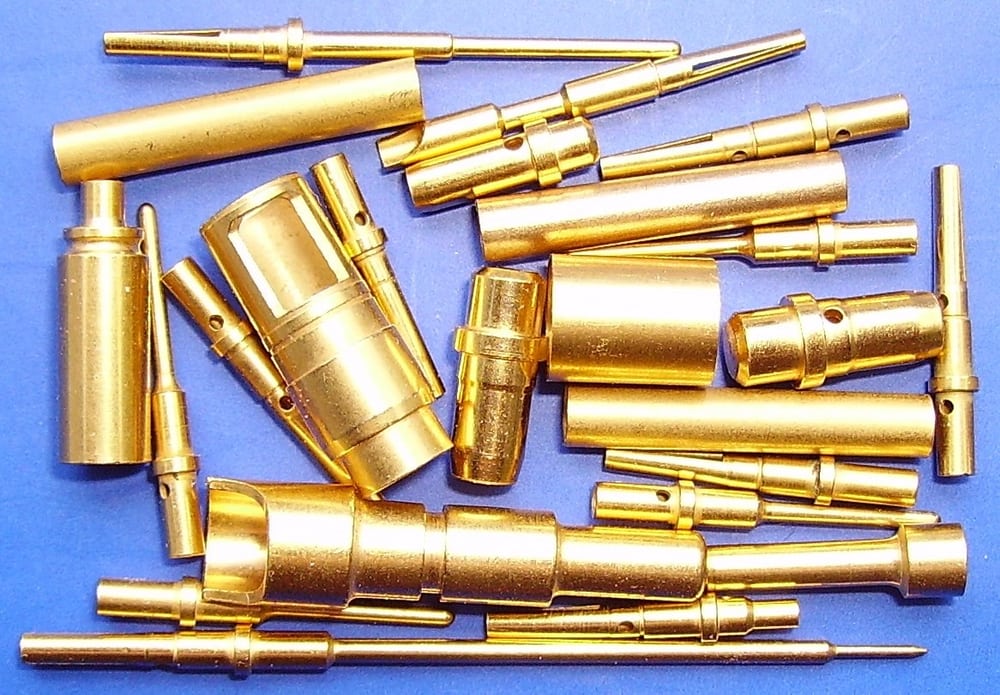

Gold-plated contacts illustrate mating-surface finishes, not a specific JAE part.

Plating and Mating Surfaces

Gold over nickel and tin finishes appear in different connector specifications. Their thickness, coverage and mating surface must match the intended contact system. A gold-colored part is not evidence of the required plating. Avoid substituting contacts solely by appearance, and keep oils, abrasive cleaning and uncontrolled rework away from the mating surface. The approved BOM should preserve the complete contact suffix and finish option.

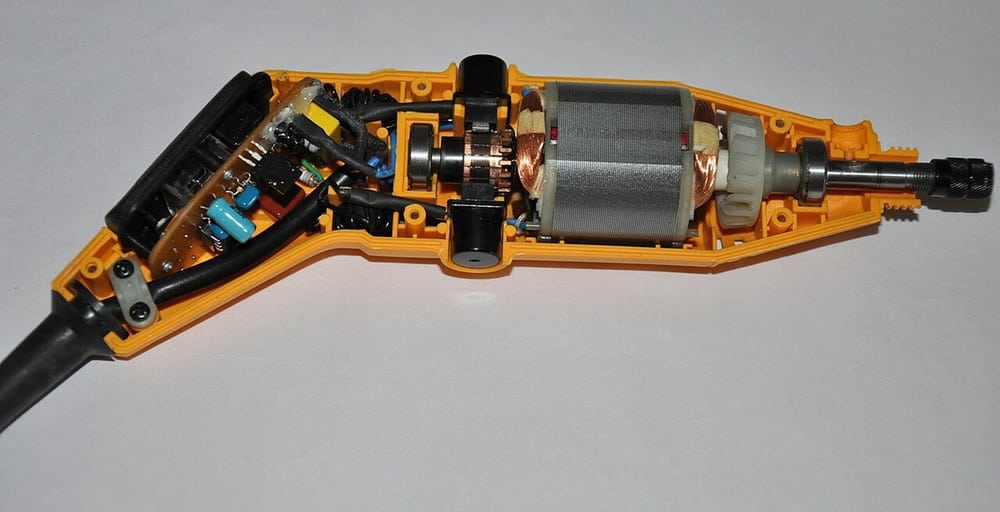

An opened compact power tool illustrates internal routing around a motor and controller.

Consumer and Embedded Electronics

A display, camera or compact computing module may need a short harness that folds through a narrow enclosure. Establish the connector height, cable exit and fold location before fixing the overall length. Check that a cover screw or sharp chassis edge cannot trap the cable. Small assemblies benefit from clear orientation marks and installation instructions, particularly when the two cable ends look similar but carry different pin assignments.

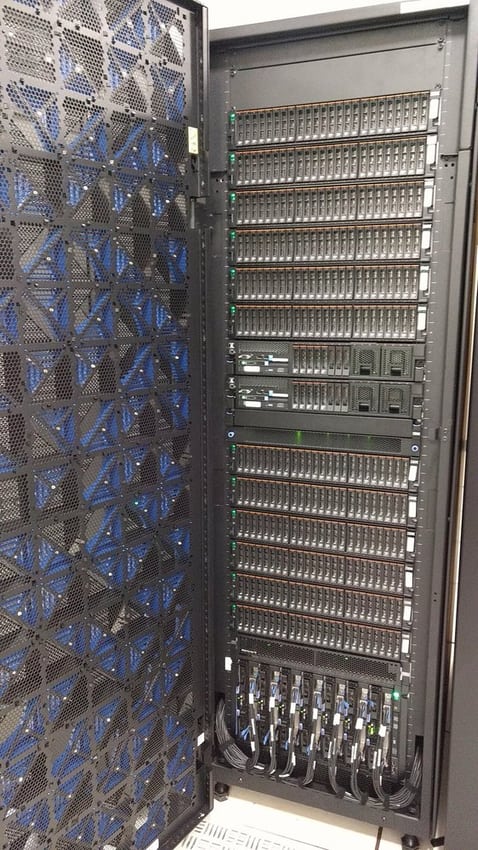

An open equipment rack illustrates module access and cable-routing space.

Telecom and Network Equipment

Rack equipment combines power distribution, control wiring and data paths in limited space. Identify each circuit class and its connector rather than treating all internal cables as equivalent. Plan access for module replacement and cooling-air paths, and avoid placing a service loop in a fan inlet. Signal-integrity requirements, shielding and cable length should follow the actual interface specification, not a speed implied by the connector brand.

An avionics maintenance scene illustrates controlled equipment work; no affiliation or qualification is implied.

Aerospace and Defence Project Review

A manufacturer name associated with aviation does not qualify every connector or harness for flight hardware. Such projects can involve controlled drawings, traceability, environmental testing and specific material or process approvals. State the equipment role and required evidence at the enquiry stage. We distinguish an engineering feasibility review from an approved supply commitment; no blanket aerospace, military or flightworthiness qualification is implied.

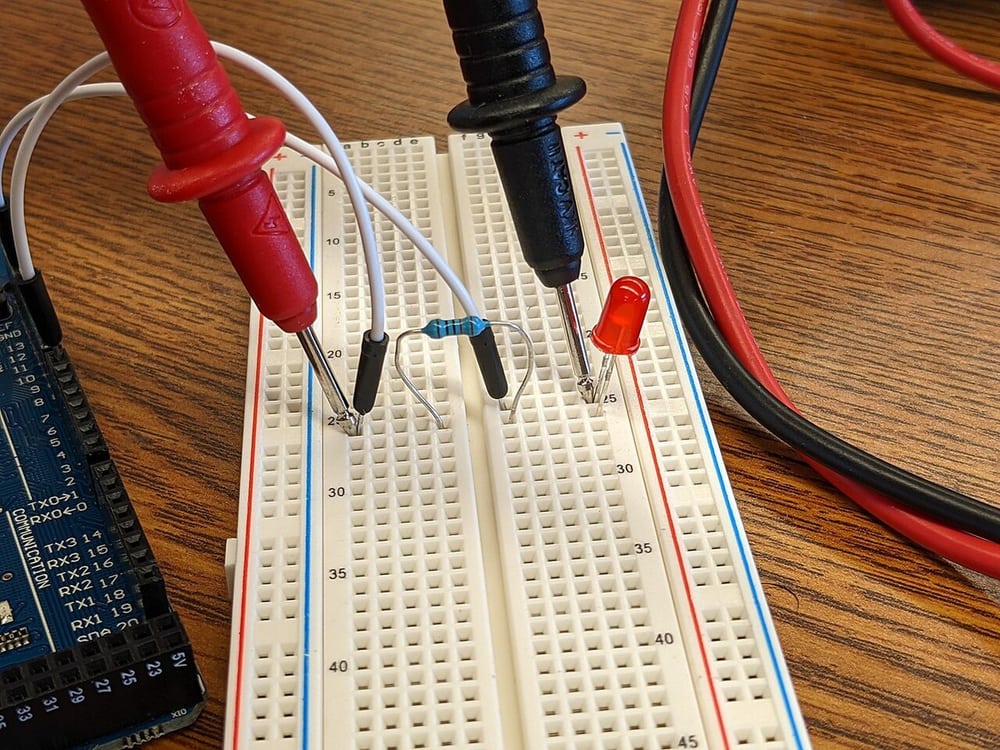

Meter probes on a circuit illustrate electrical connection checks, not production acceptance results.

Continuity and Miswire Inspection

A test program should be built from the approved netlist, including intentional connections and circuits that must remain separate. Check opens, shorts and crossed pins against that reference, not against an unverified sample. Fixture wear and contact condition can affect measurements, so retain the tester setup and fixture identity with the work instructions. A passing continuity result does not prove the cable can carry its design current without excessive heating.

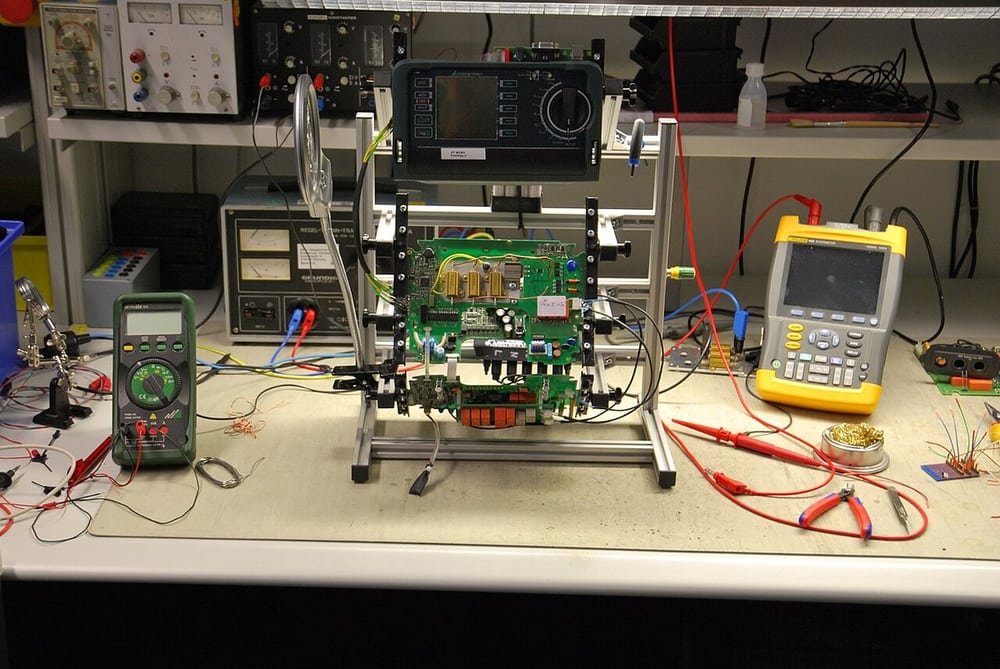

An electronics test setup illustrates planning around the connected equipment before additional tests.

Dielectric Withstand Testing

A dielectric withstand test stresses specified insulation barriers under an agreed voltage, duration and trip criterion. It is not the operating voltage rating and should not be applied indiscriminately to assemblies containing electronics. Identify connected components, grounded screens and test groups first. The customer-approved plan determines whether this is a qualification, sampling or production test, and how the assembly is made safe after the test.

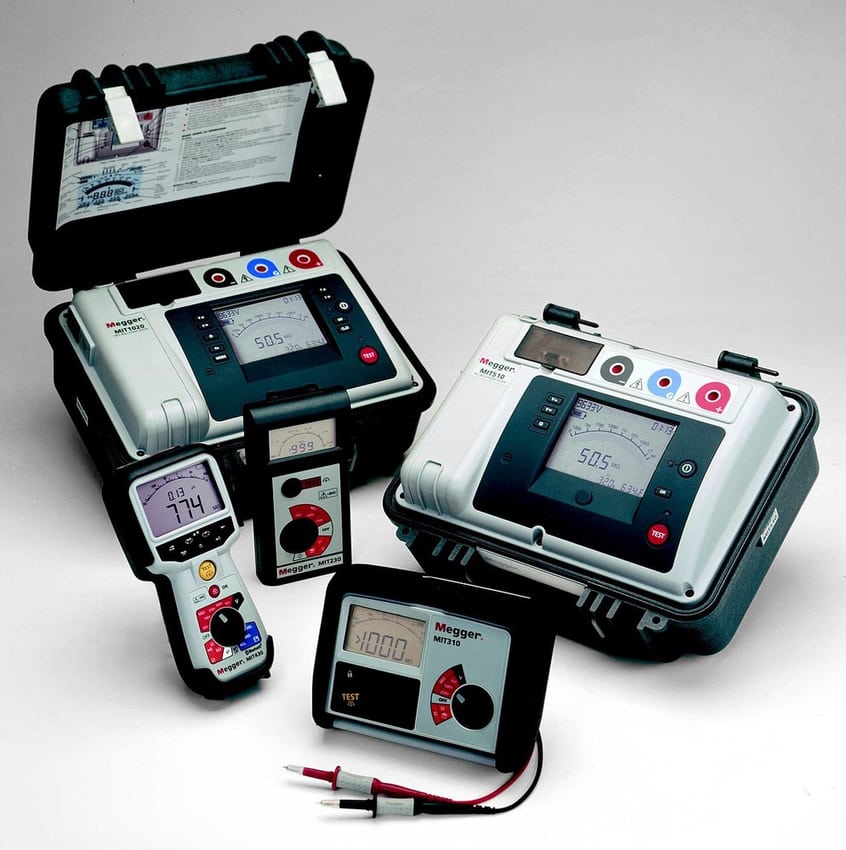

Insulation-resistance instruments illustrate a measurement method distinct from continuity.

Insulation Resistance and Cleanliness

Insulation resistance is measured between circuits intended to be isolated at a defined test voltage and settling time. Moisture, contamination and fixture leakage can influence the result. Specify the measurement conditions and acceptance threshold instead of writing only “insulation tested”. Keep this check distinct from continuity and dielectric withstand. For sensitive signal assemblies, cleanliness and handling controls may be as important as the nominal insulation material.

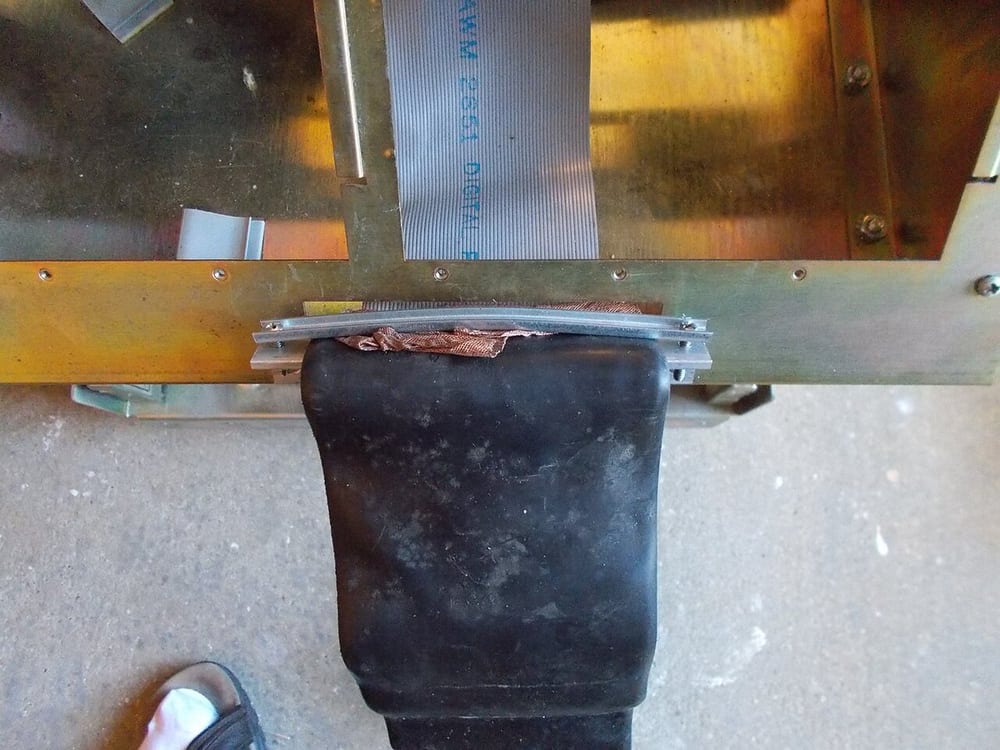

A cable clamp in equipment illustrates taking mechanical load away from a termination.

Longevity Begins with Installation

Connector life depends on mating cycles, temperature, vibration, contamination and load, not simply on brand selection. Route the cable so that clamps carry installation loads before they reach the terminals. Avoid sharp bends at the rear of a housing and provide protection at panel edges. Define service inspection and replacement criteria for the actual equipment. Catalogue durability data applies to stated conditions and is not a universal years-in-service promise.

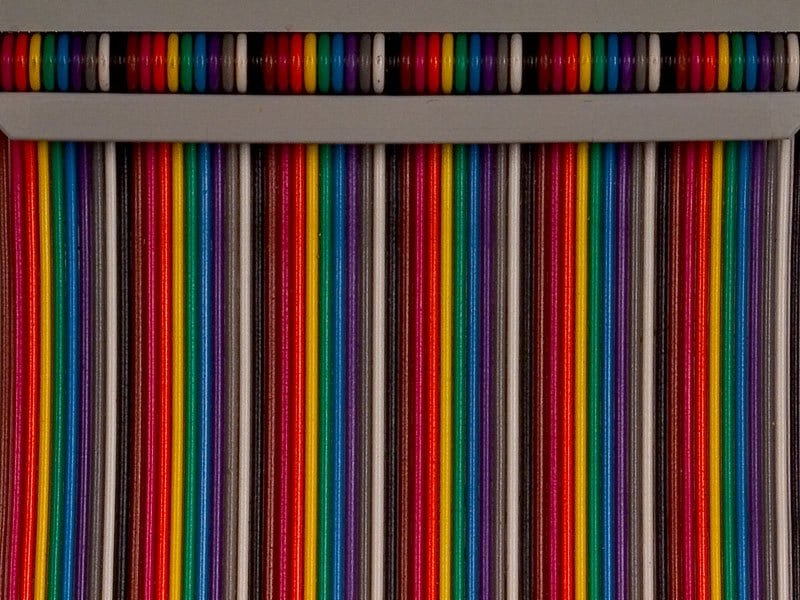

Color-coded ribbon conductors help illustrate circuit identification; colors alone do not define a pinout.

Application-Specific Pinout and Length

Specify the connector view, cavity numbers, signal names and wire identification at both ends. Define the dimension datum: housing face, rear exit or another drawing reference. Include branch lengths, tolerance, sleeve positions and label direction where installation depends on them. A controlled pinout makes sample approval repeatable and allows later revisions to be compared without guessing from photographs or wire colors.

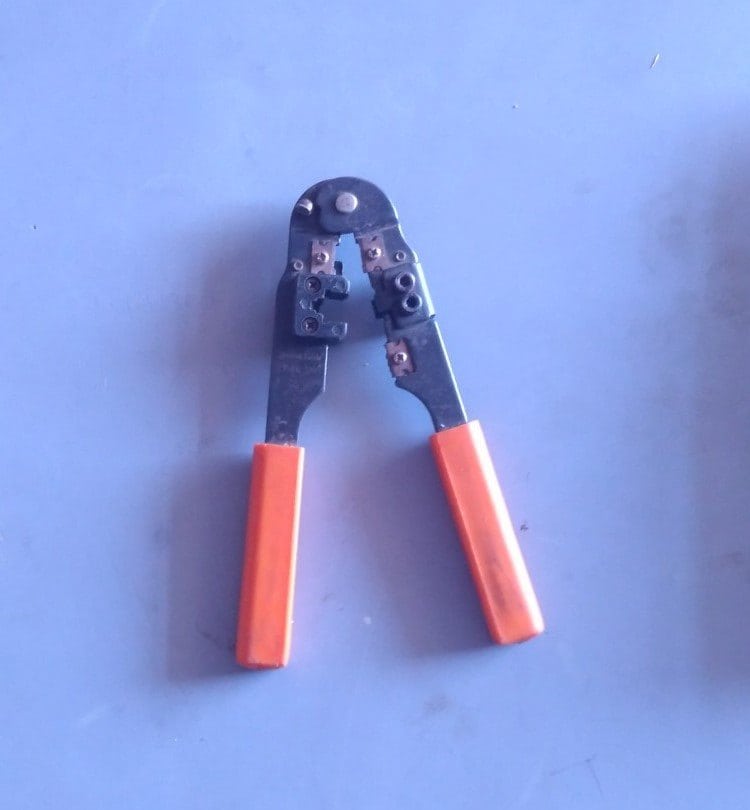

A crimp tool illustrates process tooling; the tool must be approved for the selected JAE contact.

Contacts, Wire and Crimp Tooling

JAE publishes tooling references by contact and series. Select the approved terminal, wire range and tool combination together; a tool that closes the barrel is not necessarily suitable. Define preparation, inspection and any agreed destructive sample checks in the process plan. Terminal insertion should confirm retention without damaging the lance. Rework requires an appropriate extraction method and a clear rule for replacing damaged contacts or housings.

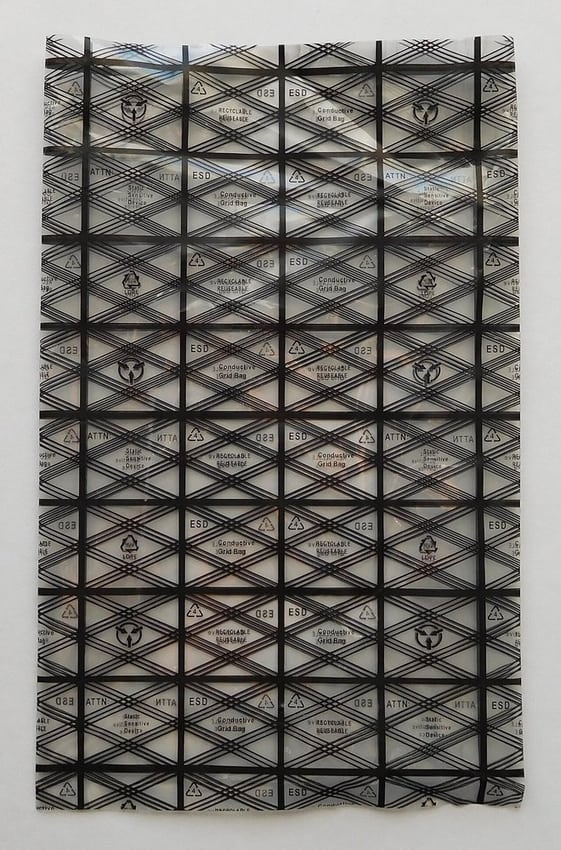

Protective electronic-component packaging illustrates controlled handling and material identification.

Sourcing and Revision Control

Record the original manufacturer, full part number and approved alternative status in the BOM. Where traceability is required, agree supplier documentation and lot identification before purchasing. Availability changes should trigger a review, not a silent substitution. Keep the released drawing, sample approval and inspection plan aligned so that a later batch reproduces the agreed configuration rather than merely resembling the first sample.

Selection and Ordering Questions

Does compatible mean an original JAE connector?

Not by itself. The approved BOM must distinguish original JAE parts from any separately reviewed alternative. Compatibility needs the exact mating reference and requirements.

Are MX34 and MX23A both waterproof?

No. MX34 is non-waterproof. MX23A uses a sealing system whose wire entry, mating components and unused cavities must be correctly assembled.

Can I order by pin count and pitch?

Those are useful starting details, but not sufficient. Provide the complete part number, mating view, contact and wire specification, and a verified pinout.

Can you customize branches and wire lengths?

Yes, subject to design review. Drawings should define length datums, tolerances, branch positions, mounting and circuit mapping.

Does continuity testing prove high-speed performance?

No. Continuity checks circuit connections. Signal-integrity verification requires agreed measurements and limits for the actual interface and cable length.

What should accompany an existing sample?

Add the mating part references, confirmed electrical functions, dimensions, environment and required tests. A sample alone may not reveal hidden circuit details or the intended operating limits.

Image sources and usage notes

Avionics Airmen- back shop behind the scenes keeping Aircraft mission capable (8228713).jpgU.S. Air Force AFCENT by Senior Airman Sarah Williams · Public domain
JAE D03 SIO Connector.JPGMitmap · CC BY-SA 3.0
Open Compute Server Front.jpgRobert.Harker · CC BY-SA 3.0
Interior dashboard view of Opel Insignia (2008).jpgEcogarf · CC BY-SA 4.0
Close-up of the rain drops on a car window. Car in a blurry background.jpgShixart1985 · CC BY 2.0
PSU Connector PCB.jpgtony_duell · CC BY 2.0
LG M2762D - mainboard to panel connector easily breaks due to weak plastic and unused pins.jpgCmuelle8 · CC0
32-wire ribbon cable.JPGRnewkirk7954 · CC BY-SA 3.0
Agilent 54622D Mixed Signal Oscilloscope Teardown (13183068765).jpgDave Jones from Australia · CC BY 2.0
Oscilloscope with a Doppler radar signal.jpgJrmlhermitte · CC BY-SA 4.0
Robotic Arm Polishing Guitars at Martin Guitar Factory.jpgHenrysz · CC BY 4.0
Generic Chinese 4S BMS boards for lithium batteries 02.jpgRetired electrician · CC0
Baxter Colleague CX infusion pump.JPGBrokenSphere · CC BY-SA 3.0
Electrical contact, copper conductors and metal cable crimped by metal bracket.jpgDanilovVA · CC BY-SA 4.0
Standard two plate injection molding tool.jpgBritiju at English Wikipedia / · Public domain
Sacks of plastic granules.jpgRohini · CC BY-SA 3.0
Gold-plated electrical connectors.jpgCjp24 · CC BY-SA 3.0
Replacement motor speed controller installed on INGCO mini drill (40594107743).jpgDilshan Jayakody from Maharagama, Sri Lanka · CC BY-SA 2.0
IBM PureData server (open).jpgElizabeth K. Joseph · CC BY 2.0
US Navy 090506-N-0096C-025 Sgt. Steven Quitugua, from Sacramento, Calif. assigned to the Death Rattlers of Marine Strike Fighter Squadron (VMFA) 323, checks an aircraft electronic component's resistance an avionics shop aboard.jpgU.S. Navy photo by Seaman Eboni C. Cameron · Public domain
Multimeter probes on breadboard.jpgZeroping · CC BY 4.0
Proper PCB Sample Assembly.JPGKondiMaster · CC BY-SA 4.0
Insulation testers by Megger.jpgMegger Ltd. · CC BY 3.0
R80 Cable Clamped.jpgtony_duell · CC BY 2.0
60-Wire Flat Ribbon Cable.jpgs58y · CC BY 2.0
Crimping tools.jpgDnyaneshwari Dalvi · CC BY-SA 4.0
Antistatic bag with conductive grid.jpgCjp24 · CC BY-SA 4.0
Third-party reference photographs illustrate construction, materials or applications, not company products, approved installations, test results or brand authorization. Images are resized, display-cropped and tonally adjusted; adaptations retain the applicable original share-alike license.

PART NUMBER / INTERFACE / MATERIAL

Models, Part Numbers & Sourcing

Find a cable model or material part number, then send it for a custom replacement or original-part sourcing review.

Cable & Harness Models

Finished cable and harness references for this interface or application.

JAE Electronics
DX07518S10N18747
DX07 USB-C cable harness
Custom compatible replacements · Original-parts sourcing
JAE Electronics
JF08R0R041020UA
FFC cable harness
Custom compatible replacements · Original-parts sourcing
JAE Electronics
DX07550B20K19510
USB-C cable harness
Custom compatible replacements · Original-parts sourcing
JAE Electronics
DX07518S20K18747
DX07 USB-C cable harness
Custom compatible replacements · Original-parts sourcing
JAE Electronics
JF08R0R041030UA
FFC cable harness
Custom compatible replacements · Original-parts sourcing
JAE Electronics
DX07550B10N19510
USB-C cable harness
Custom compatible replacements · Original-parts sourcing
JAE Electronics
DX07518B10N19114
DX07 USB-C cable harness
Custom compatible replacements · Original-parts sourcing
JAE Electronics
JF08R0R041040UA
FFC cable harness
Custom compatible replacements · Original-parts sourcing
JAE Electronics
DX07C19S10L26338
USB-C cable harness
Custom compatible replacements · Original-parts sourcing
JAE Electronics
DX07518B20K19114
DX07 USB-C cable harness
Custom compatible replacements · Original-parts sourcing
JAE Electronics
JF08R0R051020UA
FFC cable harness
Custom compatible replacements · Original-parts sourcing
JAE Electronics
JF08R0R051030UA
FFC cable harness
Custom compatible replacements · Original-parts sourcing
JAE Electronics
JF08R0R051040UA
FFC cable harness
Custom compatible replacements · Original-parts sourcing

Connector & Material Part Numbers

Connector, wire and process-material references for project selection.

JAE Electronics
FI-X30MA1
Cable connector plug
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-X30HL
Cable connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-X30CH-NPB-7000
Connector shell
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-XC3B-1-15000
Connector contact
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-X30SSLA-HF / FI-X30SSLA-HF-R2500
PCB connector receptacle
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-3S-S3C2-SA
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-2P-S3T2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
M34S75C4F1
Connector socket contact
Custom compatible replacements · Original-parts sourcing
JAE Electronics
M34P75C4F1
Connector pin contact
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34020PF1
Pin connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-RE41S-HF
Connector receptacle
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-RE41HL
Connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-X30M-NPB
Cable connector plug
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-X30H
Cable connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-C2-SC-1-10000
Connector contact
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-XB30SSRLA-HF16
PCB connector receptacle
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-4S-S3C2-SA
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-3P-S3T2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
M34S75C4F2
Connector socket contact
Custom compatible replacements · Original-parts sourcing
JAE Electronics
M34P75C4F2
Connector pin contact
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34012PF1
Pin connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-RE51S-HF
Connector receptacle
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-RE51HL
Connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-X30MR-NPB
Cable connector plug
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-X30HL-B
Cable connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-C2-SC-10000
Connector contact
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-5S-S3C2-SA
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-4P-S3T2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
M34S75C4F3
Connector socket contact
Custom compatible replacements · Original-parts sourcing
JAE Electronics
M34P75C4F5
Connector pin contact
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34016PF1
Pin connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-RE41S-VF
Connector receptacle
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-RE31HL
Connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-C1-5000
Connector contact
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-6S-S3C2-SA
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-5P-S3T2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
M34S75C4F4
Connector socket contact
Custom compatible replacements · Original-parts sourcing
JAE Electronics
031-55234
Connector pin contact
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-22P-D3C1
Pin connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-RE21S-HF
Connector receptacle
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-RE21HL
Connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-PC1-5000
Connector contact
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-7S-S3C2-SA
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-6P-S3T2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
M34S75C4F5
Connector socket contact
Custom compatible replacements · Original-parts sourcing
JAE Electronics
031-55235
Connector pin contact
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-6P-S3C1
Pin connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-RE31S-VF
Connector receptacle
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-RC3-1A-1E-15000
Connector contact
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-8S-S3C2-SA
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-7P-S3T2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
031-54619
Connector socket contact
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-RE31S-HF
Connector receptacle
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-RC3-1B-1E-15000
Connector contact
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-9S-S3C2-SA
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-9P-S3T2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
031-54620
Connector socket contact
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-RE51S-VF
Connector receptacle
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-10S-S3C2-SA
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-10P-S3T2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
FI-RE21S-VF
Connector receptacle
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-11S-S3C2-SA
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-11P-S3T2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-12S-S3C2-SA
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-12P-S3T2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-13S-S3C2-SA
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-2P-S3L2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-15S-S3C2-SA
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-3P-S3L2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-2S-S3C2-SA
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-4P-S3L2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-14S-S3C2-SA
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-5P-S3L2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34028SF1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-6P-S3L2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34020SF1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-7P-S3L2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34016SF1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-8P-S3L2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34032SF1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-9P-S3L2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34040SF1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-10P-S3L2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34036SF1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-11P-S3L2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34024SF1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-12P-S3L2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34012SF1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-13P-S3T2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34003SF1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-14P-S3T2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34005SF1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-15P-S3T2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34007SF1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-13P-S3L2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34016AF1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-14P-S3L2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34024AF1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-15P-S3L2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34032AF1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-6P-S3T2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34E08SF1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-2P-S3T2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34024SF4
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-3P-S3T2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34012SF4
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-4P-S3T2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34036SF4
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-5P-S3T2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34008SF4
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-7P-S3T2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34020AF1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-8P-S3T2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34028AF1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-9P-S3T2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34007SF4
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-10P-S3T2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34007AF1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-11P-S3T2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34007SF8
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-12P-S3T2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34032SF8
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-13P-S3T2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34032SF4
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-14P-S3T2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34024SF8
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-15P-S3T2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34032SF5
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-2P-S3L2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34005SF8
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-3P-S3L2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34012SF8
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-4P-S3L2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34020SF8
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-5P-S3L2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34016SF4
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-6P-S3L2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-5S-S3C1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-7P-S3L2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-5SK-S3C1-LB
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-8P-S3L2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-6S-S3C1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-9P-S3L2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-6SK-S3C1-LB
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-10P-S3L2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-7S-S3C1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-11P-S3L2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-16S-D3C1-A
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-12P-S3L2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-22S-D3C1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-13P-S3L2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-30S-D3C1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-14P-S3L2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-18S-D3C1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-15P-S3L2-SA-1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-4S-S3C1
Socket connector housing
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-G-8P-S3T2-SA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34020UF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34016UF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34020NF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34016NF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34024UF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34024NF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34012NF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34012UF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34003NF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34005NF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34005UF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34007UF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34007NF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34028NF2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34032NF2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34036NF2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34040NF2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34028UF2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34032UF2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34036UF2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34040UF2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34E08NF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R32VF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R20VF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34012NF3
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34016NF3
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34020NF3
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34024NF3
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34028NF3
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34032NF3
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34036NF3
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34040NF3
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34012UF3
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34016UF3
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34020UF3
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34024UF3
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34028UF3
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34032UF3
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34036UF3
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34040UF3
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34024NF4
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34012UF4
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34036NF4
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R12VF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34007UF4
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R08HF4T
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34003NF3
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R20HF4T
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R03HF4T
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R05HF4T
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R07HF4T
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R12HF4T
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R16HF4T
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R24HF4T
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R32HF4T
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R36HF4T
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34032NF4
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34032NF5
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R32HFDT
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R12HF8T
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R16HF4TA
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34005NF3
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34E08NF3
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R05HF4R150
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R07HF4R150
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R16HF4R110
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R36HF4R110
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34012NF4
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34Q32BTF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34R28HF4T
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34Q32BTF1T30
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34Q32BTF1R200
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34Q20ATF8T40
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
045-52662-001
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
045-53047
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34Q32BTF2-1T20
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34TG16NF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34TG24NF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34TG28NF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34TG32NF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34TG36NF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34TG08NF2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34TG12NF1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34TG12NF2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
MX34TG16NF2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-5P-S3T2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-5P-S3L2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-5PK-S3T2-LB
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-5PK-S3L2-LB
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-6P-S3T2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-6P-S3L2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-6PK-S3L2-LB
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-7P-S3T2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-7P-S3L2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-16P-D3T2-A
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-16P-D3L2-A
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-22P-D3L2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-30P-D3T2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-30P-D3L2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-18P-D3L2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-22PK-D3L2-LB
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-4P-S3T2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-4P-S3L2
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-7P-S3C1
PCB pin header
Custom compatible replacements · Original-parts sourcing
JAE Electronics
IL-AG5-22P-D3T2
PCB pin header
Custom compatible replacements · Original-parts sourcing

Configuration & Project Review

01 Interface & Application

Match the complete connector series, mating pair and application requirements.

02 Project Inputs

Supply part numbers, pinout, dimensions, environment and required evidence.

03 Release Requirements

Review materials and drawings, approve samples, then release controlled production.

04 Mating & Termination

Identify the mating part number and termination method before confirming the assembly drawing.

05 Sample Review

Compare the sample with the approved pin map, dimensions and material list.

06 Build Records

Retain the approved part list and inspection results for repeat production.

Send the part number, drawing or sample to confirm the replacement configuration and sourcing plan.

JAE Compatible Cable Assemblies

JAE Harnesses: Interfaces and Engineering

JAE Connectors: Start with the Complete Interface

MX34: Non-Waterproof Vehicle Wiring

MX23A: Sealing Is a Complete Assembly

IL-AG5: Retention and Service Access

FI and FI-X Display Connections

Fine Pitch Is Not a Wire Specification

Automotive Qualification: Read the Scope

Shielding and the Signal Return Path

Industrial Automation and Robotics

Automotive and New-Energy Controls

Medical Equipment Interconnections

Contact Alloys: Do Not Generalize

LCP for Compact Connector Housings

Glass-Filled Polyamide and PBT

Plating and Mating Surfaces

Consumer and Embedded Electronics

Telecom and Network Equipment

Aerospace and Defence Project Review

Continuity and Miswire Inspection

Dielectric Withstand Testing

Insulation Resistance and Cleanliness

Longevity Begins with Installation

Application-Specific Pinout and Length

Contacts, Wire and Crimp Tooling

Sourcing and Revision Control

DX07518S10N18747

JF08R0R041020UA

DX07550B20K19510

DX07518S20K18747

JF08R0R041030UA

DX07550B10N19510

DX07518B10N19114

JF08R0R041040UA

DX07C19S10L26338

DX07518B20K19114

JF08R0R051020UA

JF08R0R051030UA

JF08R0R051040UA

FI-X30MA1

FI-X30HL

FI-X30CH-NPB-7000

FI-XC3B-1-15000

FI-X30SSLA-HF / FI-X30SSLA-HF-R2500

IL-G-3S-S3C2-SA

IL-G-2P-S3T2-SA

M34S75C4F1

M34P75C4F1

MX34020PF1

FI-RE41S-HF

FI-RE41HL

FI-X30M-NPB

FI-X30H

IL-G-C2-SC-1-10000

FI-XB30SSRLA-HF16

IL-G-4S-S3C2-SA

IL-G-3P-S3T2-SA

M34S75C4F2

M34P75C4F2

MX34012PF1

FI-RE51S-HF

FI-RE51HL

FI-X30MR-NPB

FI-X30HL-B

IL-G-C2-SC-10000

IL-G-5S-S3C2-SA

IL-G-4P-S3T2-SA

M34S75C4F3

M34P75C4F5

MX34016PF1

FI-RE41S-VF

FI-RE31HL

IL-AG5-C1-5000

IL-G-6S-S3C2-SA

IL-G-5P-S3T2-SA

M34S75C4F4

031-55234

IL-AG5-22P-D3C1

FI-RE21S-HF
